Gradient PCR instrument

Product Introduction:

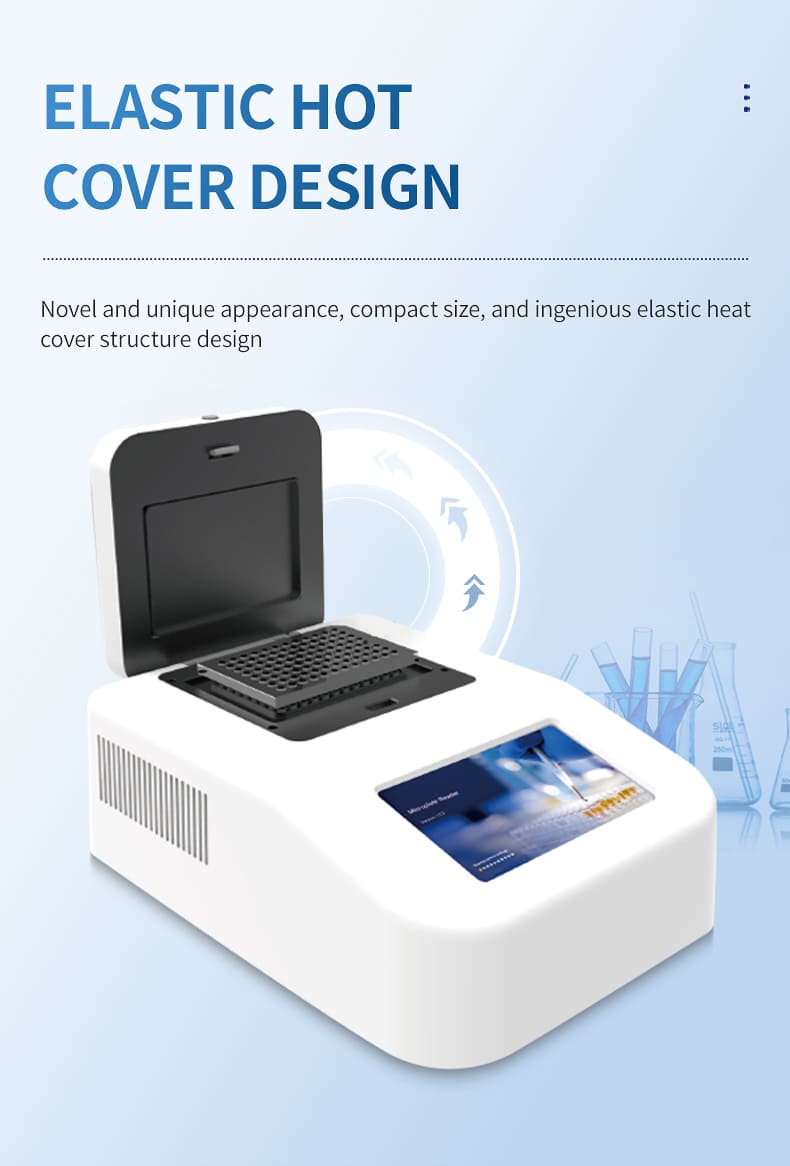

1. The appearance is novel and unique, with a compact size and clever elastic heat cover structure design

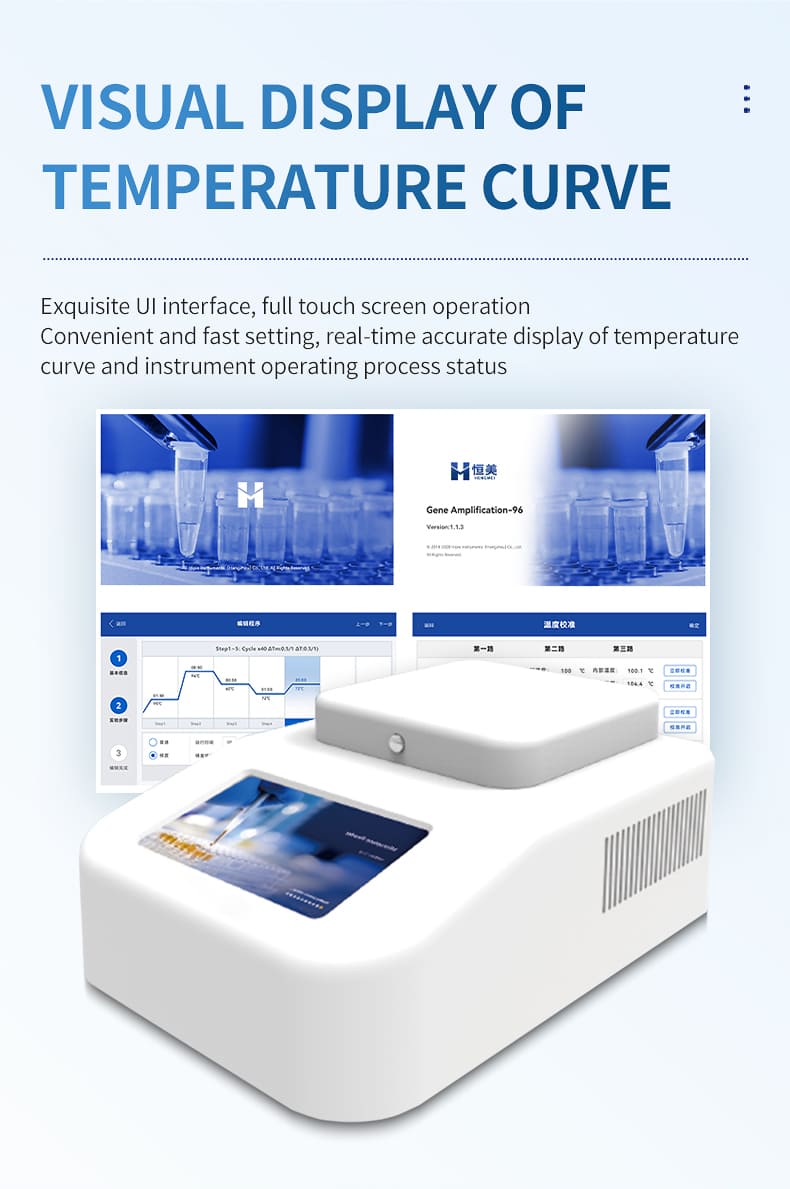

2. Visual display of temperature curve, convenient and fast setting, real-time display of temperature curve and instrument operation status

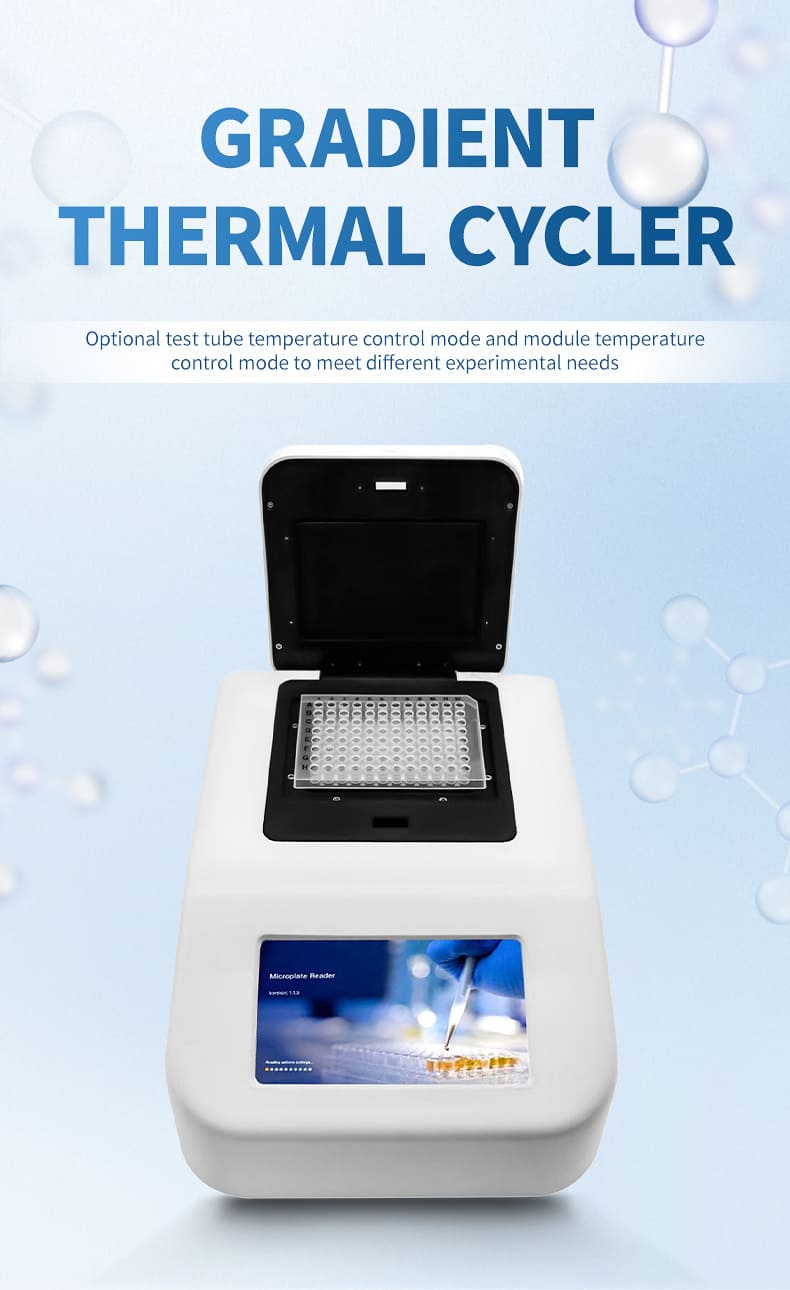

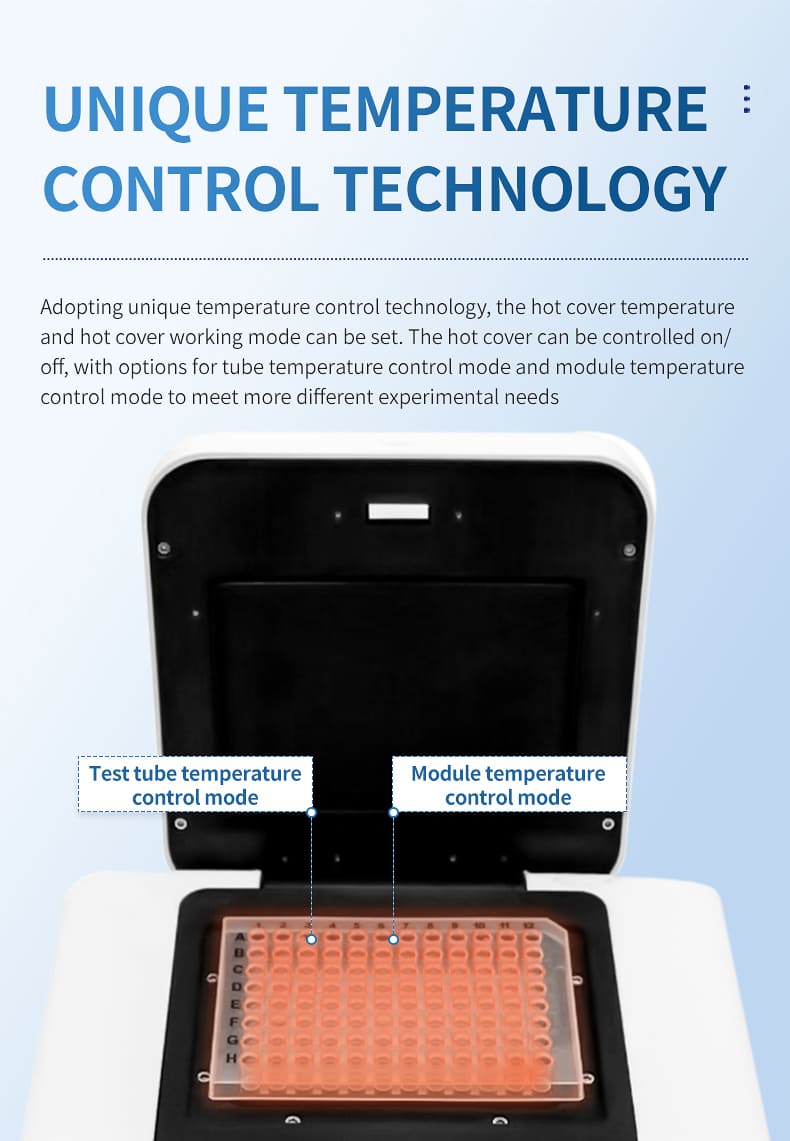

3. ※ Adopting unique temperature control technology, the hot cover temperature and working mode can be set, and the hot cover can be switched for control. There are options for test tube temperature control mode and module temperature control mode to meet more different experimental needs

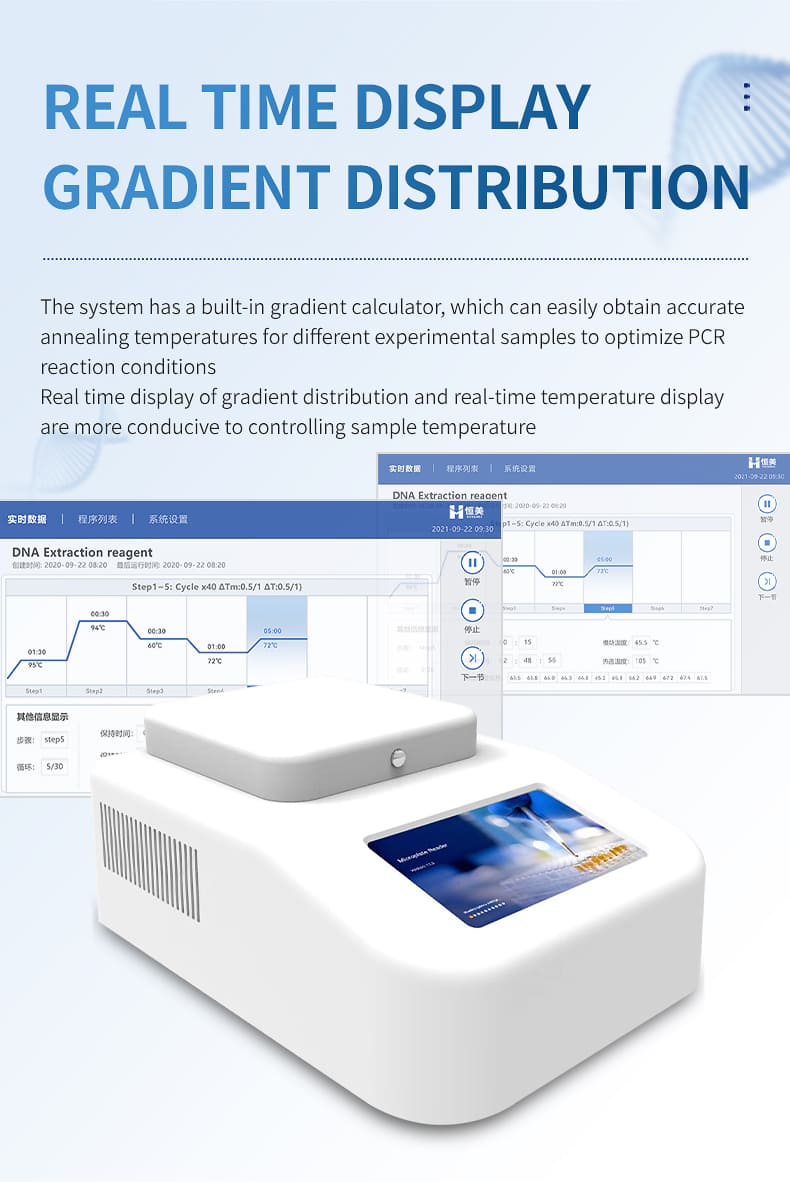

4. The system is equipped with a built-in gradient calculator, which can easily obtain accurate annealing temperatures for different experimental samples to optimize PCR reaction conditions. Real time display of gradient distribution is more conducive to controlling sample temperature

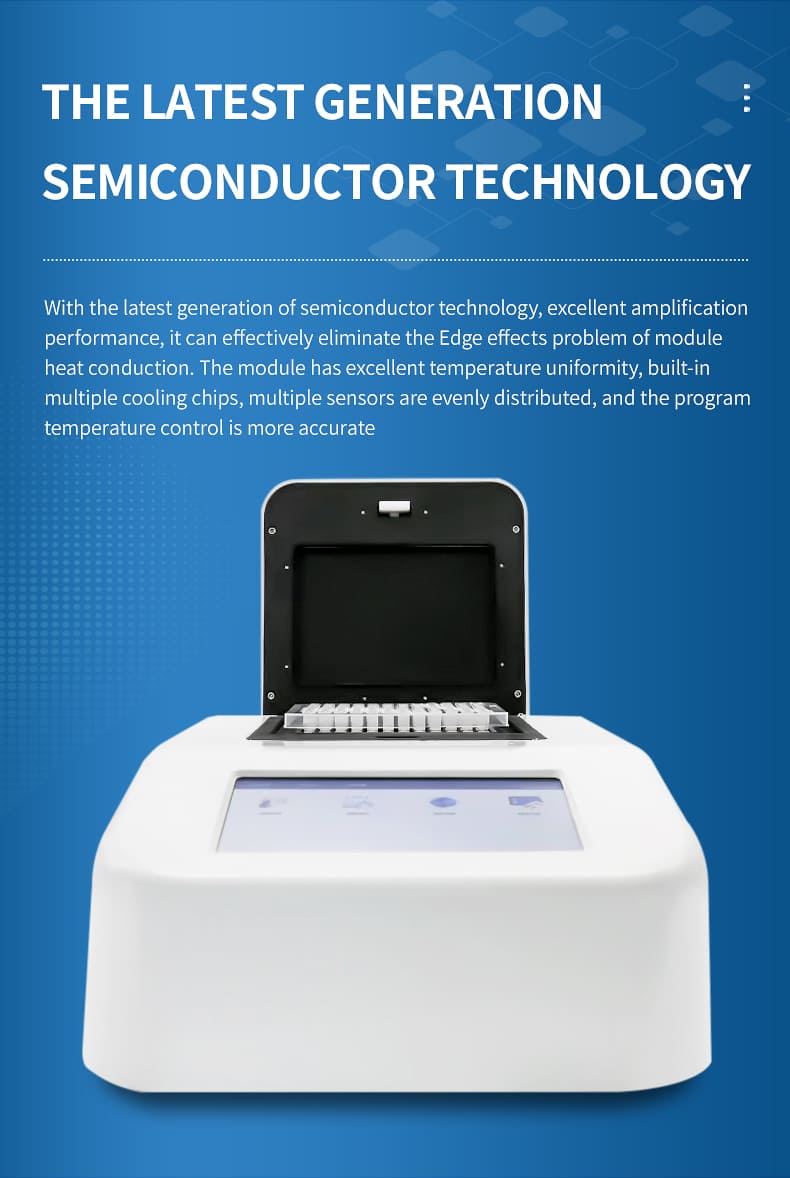

5. ※ Adopting the new generation semiconductor technology, excellent amplification performance, effectively eliminating the edge effect problem of module heat conduction, excellent temperature uniformity of the module, built-in multiple refrigeration chips, multiple sensors evenly distributed, and more precise program temperature control

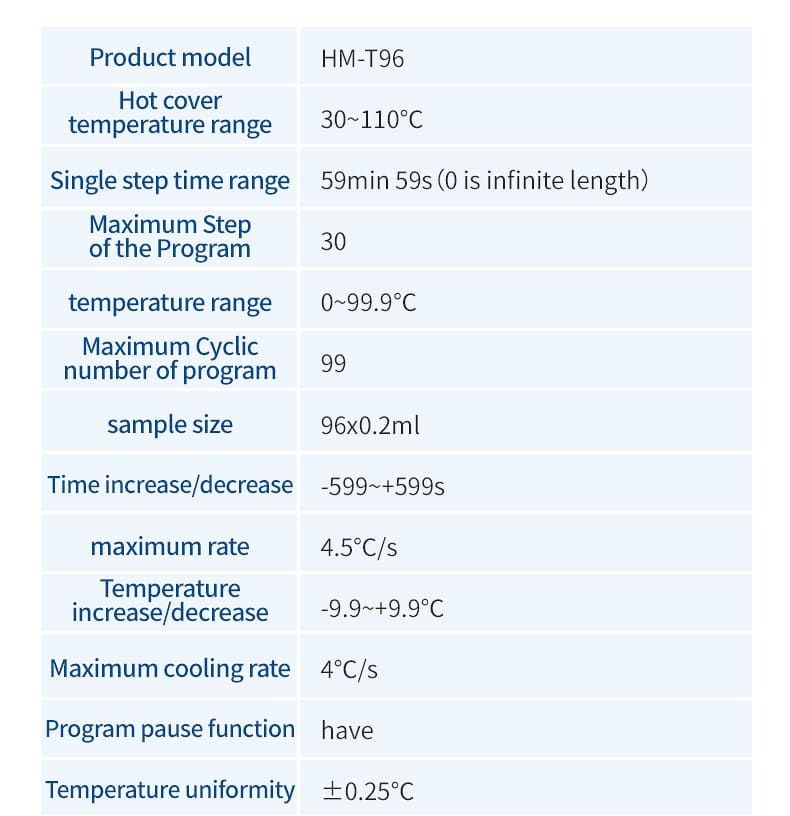

6. Hot cover temperature range: 30-110 ℃

7. Single step time range 59min59s (0 is infinite)

8. Program * Major Steps 30

9. Temperature range: 0~99.9 ℃

10. Program * Large Loop Count 99

11. Sample capacity 96x0.2ml

12. Time increase/decrease -599~+599 seconds

13. * Large heating rate of 4.5 ℃/s

14. Temperature increase/decrease -9.9~+9.9 ℃

15. * Large cooling rate of 4 ℃/s

16. The program pause function includes

17. Temperature uniformity soil 0.25 ℃

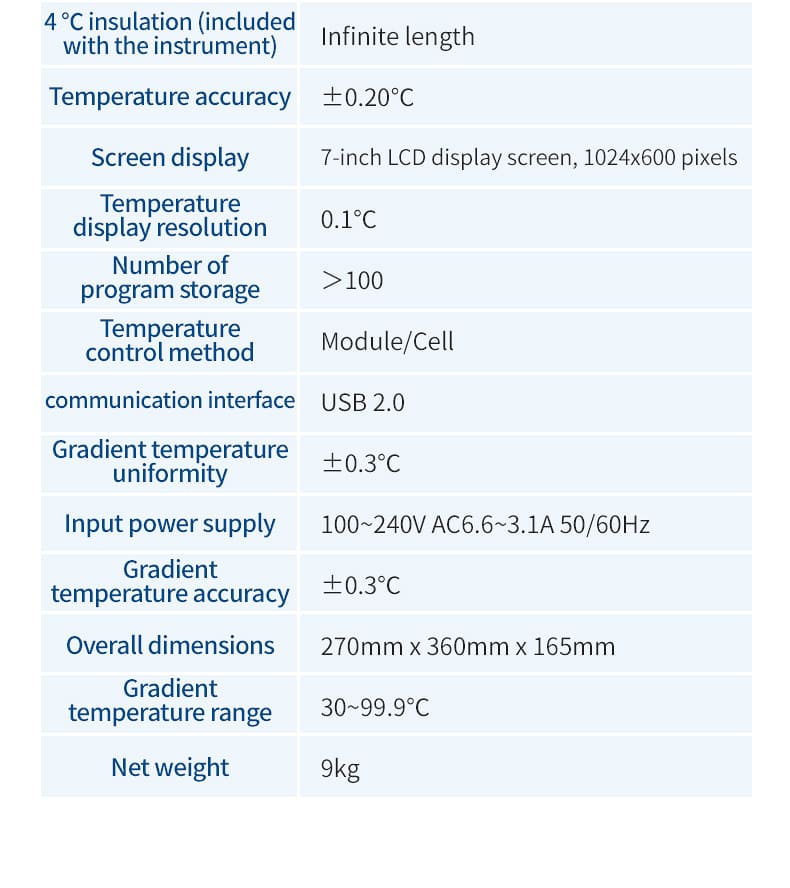

18. 4 ℃ insulation {instrument comes with} infinite length

19. Temperature accuracy soil 0.20 ℃

20. LCD display screen 7 inches, 1024x600 pixels

21. Temperature display resolution 0.1 ℃

22. Program storage quantity>100

23. Temperature control mode module/test tube

24. Communication interface USB 2.0

25. Gradient temperature uniformity soil 0.3 ℃

26. Input power supply 100-240V AC 6.6-3.1A 50/60Hz

27. Gradient temperature accuracy soil 0.3 ℃

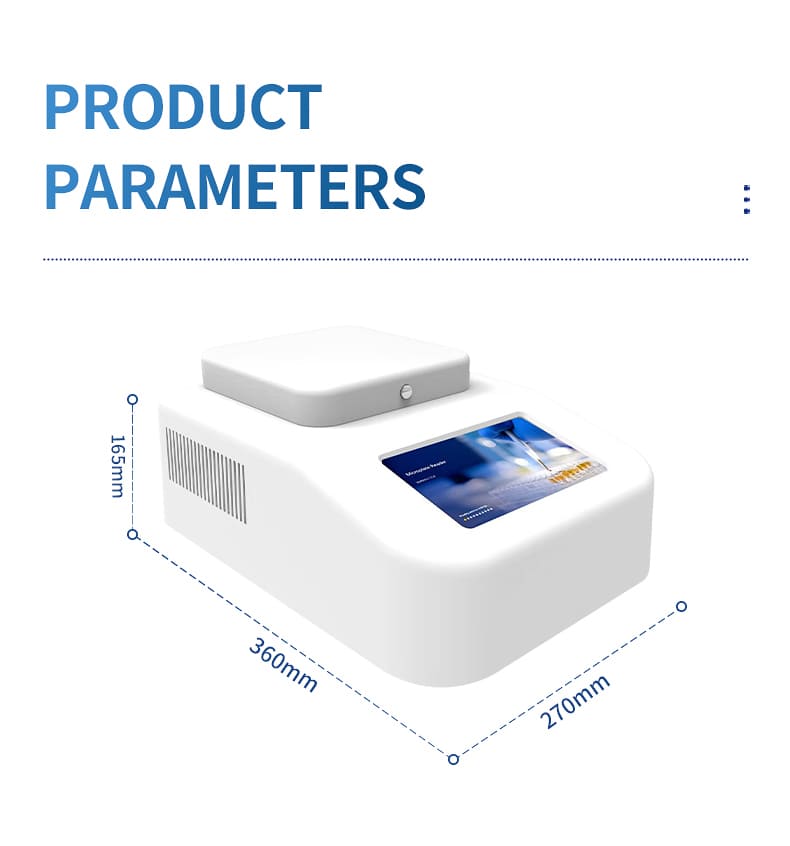

28. External dimensions 270x360x165mm

29. Gradient temperature range: 30~99.9 ℃

30. Net weight 9kg
