HM Instruments HM-GT2 Soil Nutrient Analyzer: Inner Mongolia Lvtianfeng Agricultural Service Case

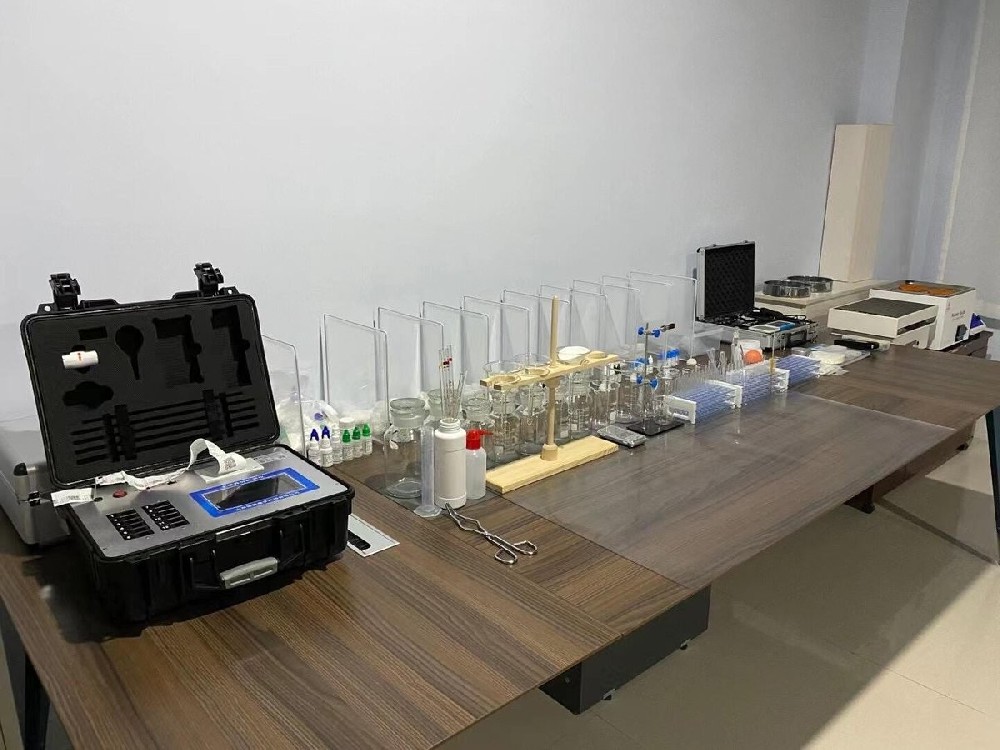

In early 2022, an agricultural service centre in Inner Mongolia set up a dedicated soil diagnostics bench. A black hard-shell instrument case sat open on a wooden table, revealing the touchscreen and channel slots of an HM-GT2 soil nutrient analyzer. Beside it were arranged glass beakers, graduated cylinders, reagent bottles and a wooden test-tube rack — the compact laboratory that HM Instruments supplies with each unit. On the wall behind the bench, rows of reagent bottles lined glass shelves, suggesting that this was not a one-off demonstration but a working facility preparing to process large numbers of soil and fertiliser samples for local farmers.

The customer, Lvtianfeng Agricultural Technology Development Company, operates as an agricultural service provider in Inner Mongolia. The company works with crop growers, cooperatives and input distributors, offering variety selection, agronomic advice and soil-improvement recommendations. The HM-GT2 was acquired to add an in-house soil and fertiliser testing capability, allowing the company to verify soil fertility before recommending fertiliser programmes and to check fertiliser quality for its clients.

Project Snapshot

Why the Customer Bought: The Starting Point

Lvtianfeng sits at the intersection of agricultural input supply and agronomic consulting. In Inner Mongolia's crop-growing regions, farmers make large fertiliser purchases before each season, and the quality of those purchases depends partly on whether the recommended products match actual soil needs. The company identified three ways that an in-house soil analyzer could strengthen its service.

Independent verification of soil fertility. Rather than relying on third-party laboratory reports that might be delayed or based on samples taken at the wrong time, the company could collect its own samples and run them immediately. This let agronomists tailor fertiliser recommendations to specific fields and crop rotations.

Fertiliser quality control. The same instrument can test compound fertilisers, organic fertilisers and water-soluble fertilisers for nitrogen, phosphorus and potassium content. The company could therefore cross-check delivered products against label claims and provide an extra layer of confidence for farmer clients.

Differentiated service offering. In a competitive agricultural services market, the ability to show a farmer a printed soil analysis report creates trust. It transforms a sales conversation into a technical consultation and helps justify premium or specialised products when the data support them.

Why the HM-GT2 Was Selected

The company compared three options: sending all samples to a regional laboratory, buying several low-cost single-parameter testers, or investing in one integrated multi-parameter soil and fertiliser analyzer. The HM-GT2 was selected for the following reasons.

1. Twelve-channel batch capacity. With twelve detection channels, the HM-GT2 can process a full day's sample load in a few batches. This is important for a service company that receives samples from multiple farms during the busy pre-season period.
2. Comprehensive soil and fertiliser menu. The instrument covers available NPK, organic matter, pH, salt and trace elements in soil, as well as NPK and organic matter in fertilisers. This matches the full range of tests the company needs for its consulting work.
3. Compact integrated design. The instrument, balance, electrodes, glassware and reagents fit into portable cases. This allows the company to offer on-farm testing for large clients or to move the laboratory to different branch locations.
4. Built-in crop expert system. The software converts measured values into fertiliser recommendations for more than one hundred crops. For a service company, this reduces the time needed to translate raw data into farmer advice.
5. Direct data upload. Wi-Fi and 4G connectivity let results be uploaded to a cloud platform, building a historical database that the company can use to track field fertility trends over multiple seasons.

Deployment, Installation and Training

The HM-GT2 was delivered to the Lvtianfeng service centre and installed on a dedicated laboratory bench. The first step was an inventory of the instrument case and the reagent case against the supplied configuration list: main unit with built-in printer, pH electrode, TDS meter, electronic balance, cuvettes, glass pipettes, conical flasks, reagent bottles, soil nutrient reagent sets, filter paper, centrifuge tubes, spatula and accessories. Training focused on three operational areas.

Instrument operation. The operator learned start-up, touchscreen navigation, account setup, calibration with blank and standard solutions, and cuvette loading. The four-wavelength cold-light source system was explained, along with the importance of allowing it to stabilise before reading a batch.

Sample and reagent handling. The training covered soil weighing, extraction, filtering, and the correct use of the balance, pipettes and reaction bottles. Because the extraction chemistry depends on precise ratios, the electronic balance and graduated glassware were treated as part of the measurement chain rather than accessories.

Result interpretation. The final module showed how to use the built-in crop expert system to convert nutrient concentrations into recommended fertiliser rates for wheat, maize, potatoes and other regional crops. Operators also learned to export and upload data for long-term record keeping.

Delivered Configuration

Results Reported: What Changed

Specifications Relevant to This Deployment

Building a Commercial Soil Testing Service Around the HM-GT2

For an agricultural service company, the purchase of a soil analyzer is only the first step. The real challenge is turning instrument output into a service that farmers are willing to pay for and trust. Lvtianfeng structured its HM-GT2 service around three principles: speed, transparency and repeatability.

Speed. Farmers typically bring soil samples to the service centre before they order fertiliser. By promising same-day results, the company captures the decision window when fertiliser choices are still open. The HM-GT2's twelve-channel design lets the laboratory process several client samples in parallel rather than running them one by one.

Transparency. The built-in thermal printer produces a result ticket that the farmer can keep. The ticket shows the test item, channel number, absorbance value, nutrient concentration and test time. This physical document is more persuasive than a verbal recommendation because it can be shown to family members, cooperative managers or input suppliers.

Repeatability. The company maintains a log of reagent batches, calibration dates and operator names. This discipline is essential because a service company's reputation depends on producing consistent results across the season. The practice aligns with JJG 179-90 spectrophotometer verification principles, even though the HM-GT2 is a field-portable device rather than a laboratory reference instrument.

Customer education. Lvtianfeng also invests time in explaining what the soil test does and does not measure. Farmers sometimes expect a single test to predict every nutrient need for an entire season; the service team explains that the HM-GT2 measures available nutrient levels at one point in time and that follow-up tests may be useful after top-dressing or irrigation. Managing these expectations reduces disputes and builds long-term trust.

Reagent Management and Batch Control

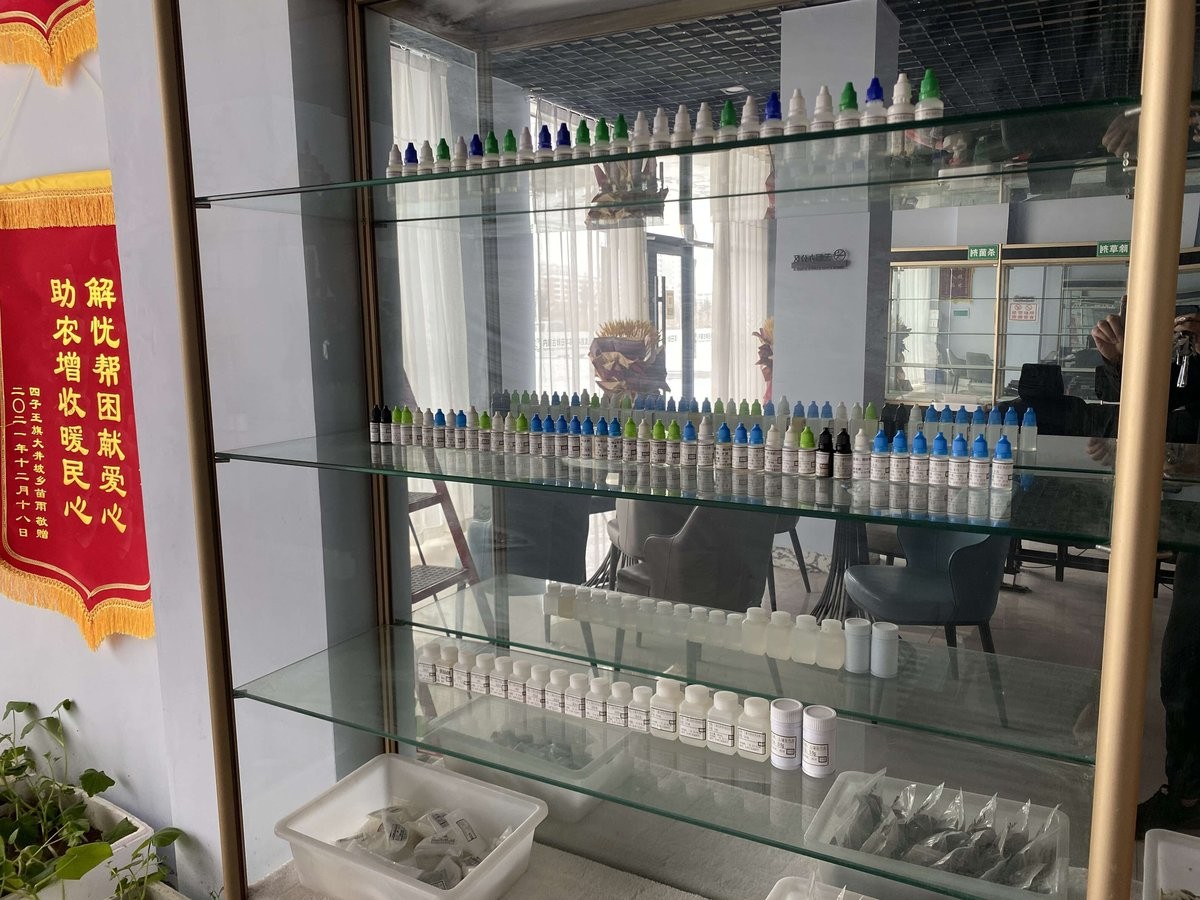

The wall of reagent bottles shown in the photographs is a reminder that soil testing consumes chemistry. For a commercial service, reagent management directly affects both cost and quality. Lvtianfeng adopted four controls.

Inventory tracking. Each reagent bottle is labelled with its arrival date and batch number. The service centre maintains a minimum stock level so that a surge in samples during the pre-season does not force the use of expired or incompatible reagents.

Batch pairing. Reagents from the same production batch are used together for a single campaign. Mixing reagents from different batches can introduce systematic shifts in results, so the laboratory groups samples by batch rather than opening every bottle at once.

Standard checks. A known standard solution is run with each batch to confirm that the instrument is reading within expected limits. If the standard deviates, the batch is recalibrated before client samples are reported.

Shelf-life monitoring. Reagents are stored away from direct sunlight and temperature extremes. The service centre records opening dates and discards reagents that have passed their effective period, even if the bottle is not empty.

Connecting Soil Tests to Fertiliser Recommendations

The final link in the service chain is the fertiliser recommendation. The HM-GT2's built-in crop expert system calculates a suggested fertiliser rate based on the measured soil supply, the selected crop and a target yield. This calculation follows the same logic as the 4R Nutrient Stewardship framework: the right source, at the right rate, at the right time and in the right place.

For Lvtianfeng's agronomists, the software provides a starting point that can be adjusted for local conditions. A field with measured low phosphorus and high potassium will receive a different recommendation from a field with the opposite profile. The agronomist can then factor in irrigation, crop variety, market price and the farmer's existing input inventory. The printed recommendation becomes a document that both the company and the farmer can refer to during the season.

Related Reading

Technical specifications for the HM-GT2 soil and fertiliser nutrient analyzer are summarised on the product page for the Soil Test Formula Fertilization Instrument. Companies that need higher throughput or additional parameters may also review the New Type Soil Detector. A complementary government extension deployment is described in the Hebei Anxin County Agriculture Bureau case.

About HM Instruments

HM Instruments is the international brand of Shandong Hengmei Electronic Technology Co., Ltd., a national high-technology enterprise, a Shandong gazelle enterprise and a specialised "little giant" SME listed on the New Fourth Board under equity code 306008. The company holds ISO 9001 quality management certification (No. 06524Q02062ROM), an intellectual property management system certification (472IP190206R0S), occupational health and safety certification (06524S00854ROM), environmental management certification (06524E00905ROM), an after-sales service certification (78323SC0008R0S) and a radiation safety licence (鲁环辐证[G0334]). Certificate metadata is notarised on the Zhixin (至信链) blockchain and can be verified at zxscan.qq.com.

Development is carried out by a research team of more than one hundred engineers, and the company holds around 150 core patents. Field support is delivered through 280 service centres across China with a 24-hour response commitment. Every instrument carries a 12-month whole-unit warranty, lifetime technical support, lifetime free training and lifetime maintenance. For Lvtianfeng, the lifetime free training clause ensures that new laboratory staff can be brought up to speed without recurring training fees.
