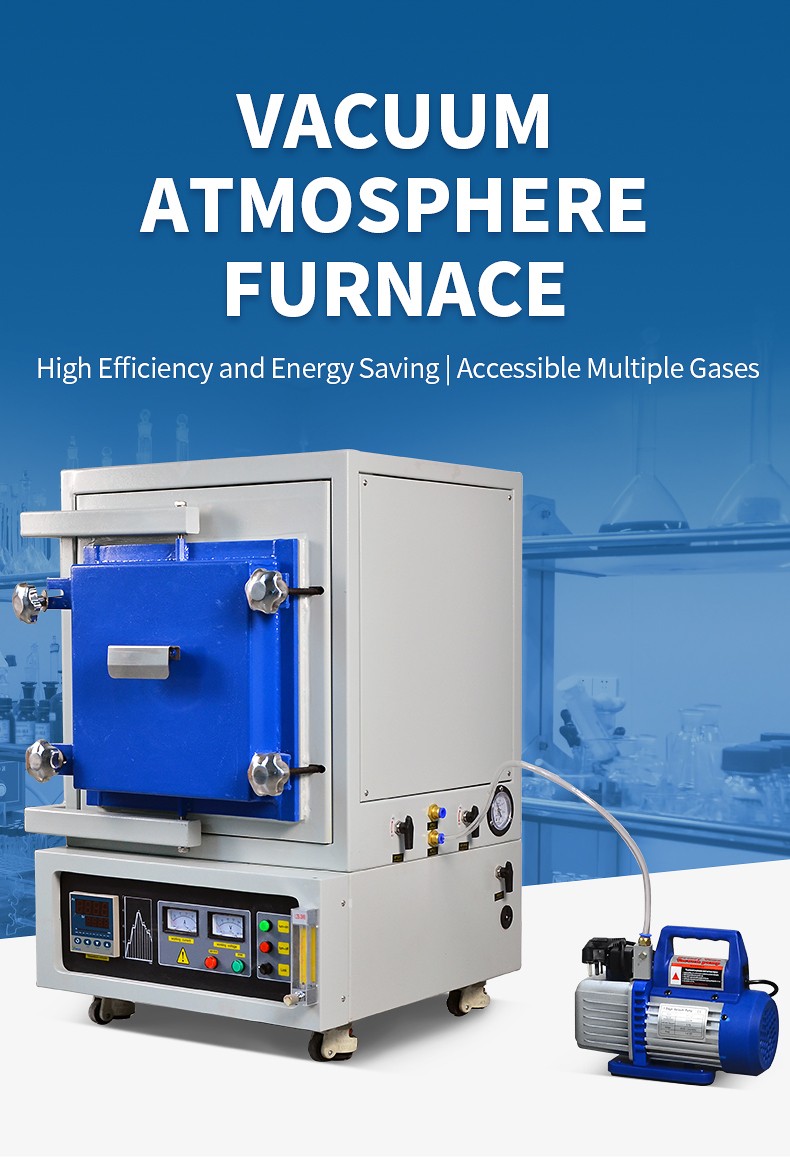

HM-2-17 Vacuum Atmosphere Box Furnace

Product Introduction

HM-2-17 is a 1700°C vacuum atmosphere box furnace for universities, research institutes, and industrial or mining enterprises carrying out atmosphere-protected sintering or atmosphere reduction. Its 100*100*100 mm chamber is configured for small high-temperature specimens and advanced materials research, with a 2kw rating and 220V50/60HZ supply listed for this model. The furnace is specified with a uniform temperature field, fast heating, energy-conscious operation, and the ability to introduce multiple gases. A polished furnace door with an embedded silicone strip supports sealing, while lightweight alumina ceramic fiber provides insulation and resistance to rapid heating and cooling. Double-layer forced-air cooling is used for the furnace body. Intelligent temperature control provides 30-50 segment programmable PID self-tuning, automatic heating, and automatic cooling. Optional RS-485 communication and control software can support computer-based start, stop, pause, heating-curve setting, curve storage, and historical-curve recording. The model is suited to the listed advanced ceramic, metallurgical, refractory, new-material, and special-material work. For the matching technical configuration, see the related HM-2-17 product guide.

Applications / Testing Items

• Ceramic and refractory material development with controlled heating.
• Metallurgical and special-material experiments requiring the listed gas connections.
• Electronic, glass, chemical, mechanical, new-material, and building-material research.
• Small-batch production and process teaching within the documented application scope.
• Atmosphere-protected sintering for 1700°C-class material work.
• Atmosphere reduction studies in universities and research institutes.

Functional Performance / Features

1. Maximum temperature class of 1700°C for this configuration.
2. A 100*100*100 mm furnace chamber matched to the compact model format.
3. 2kw heating capacity with a 220V50/60HZ supply.
4. silicon molybdenum rods used as the heating element for the 1700°C class.
5. B-type (0-1820°C) measurement system for the listed temperature range.
6. Temperature control accuracy specified as ±1°C.
7. Heating rate can be set from 0-20°C/min; the documented recommendation is ≤10°C/min.
8. Inert gases, mixed gases, nitrogen, oxygen, carbon monoxide, and hydrogen are listed as usable gases.
9. Inlet ball valves, an outlet port, a vacuum-pumping port, and one vacuum gauge are provided in the gas-control arrangement.
10. The intelligent controller provides 30-50 segment programmable PID self-tuning with automatic heating and cooling.

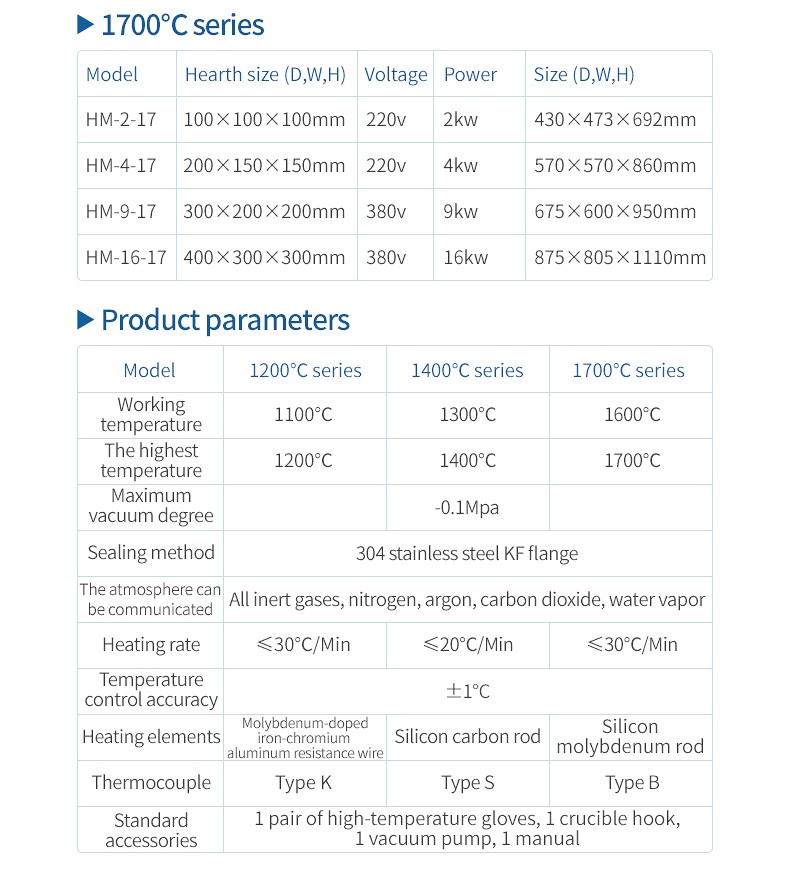

Main Parameters

Parameter	Specification
Maximum temperature	1700°C
Furnace chamber	100*100*100 mm
External dimensions (depth*width*height)	490*547*839 mm
Power	2kw
Voltage	220V50/60HZ
Temperature control accuracy	±1°C

Technical Parameters

Parameter	Specification

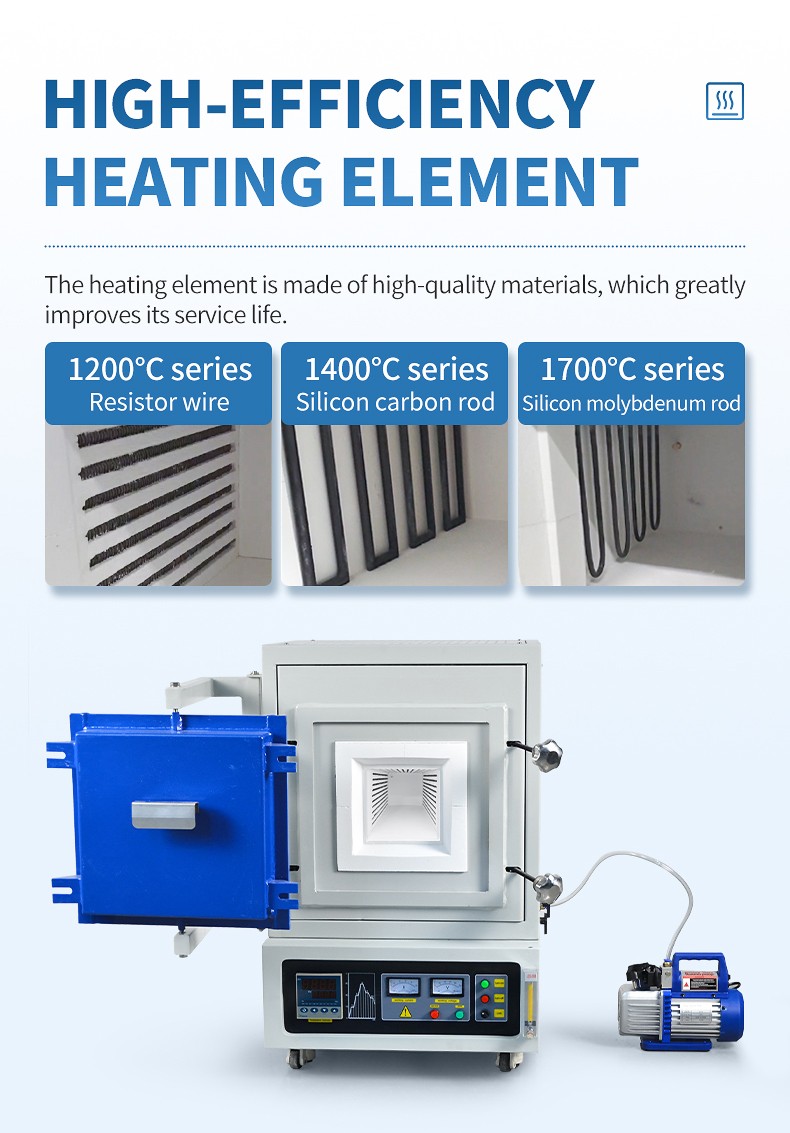

Heating element	silicon molybdenum rods
Thermocouple and measurement range	B-type (0-1820°C)
Heating rate	0-20°C/min, freely set; recommended ≤10°C/min
Available gases	All inert gases, mixed gases, nitrogen, oxygen, carbon monoxide, and hydrogen
Gas control	One or more inlet ports with ball valves; one outlet port; one vacuum-pumping port; all ports with ball valves; one vacuum gauge
Vacuum equipment	One vacuum pump included
Door sealing	Overall plane-polished door with embedded silicone strip

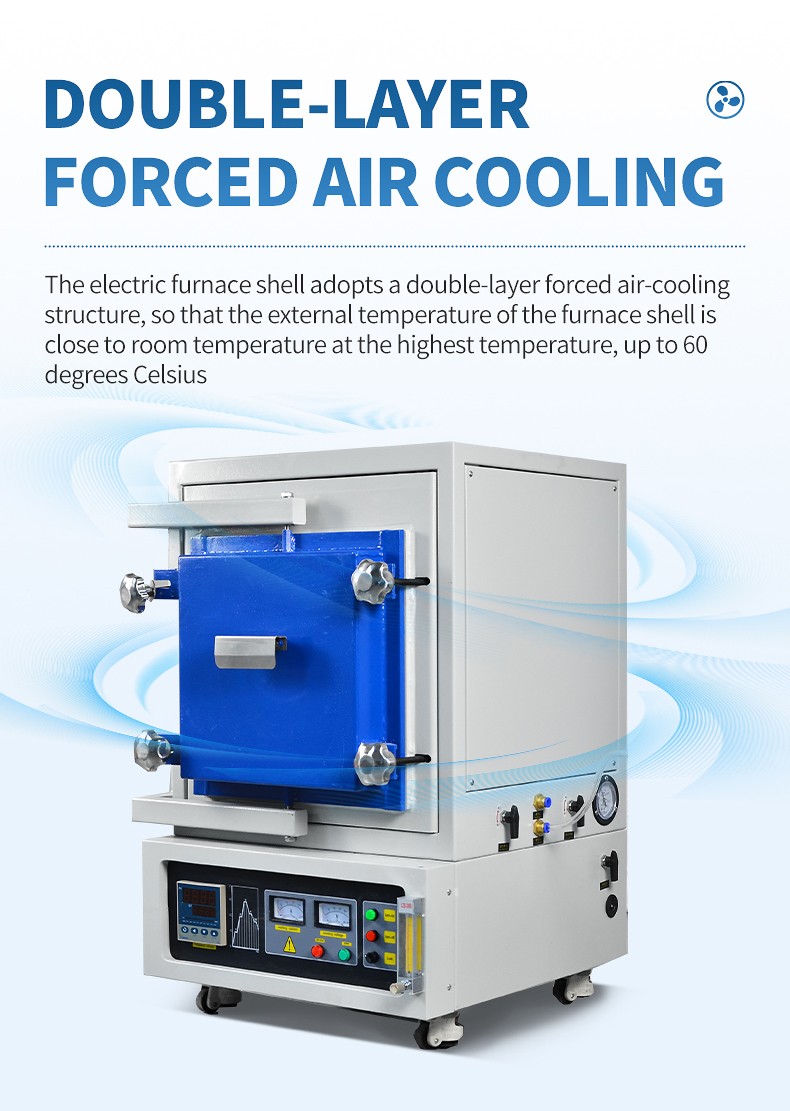

Furnace body	Double-layer forced-air cooling construction

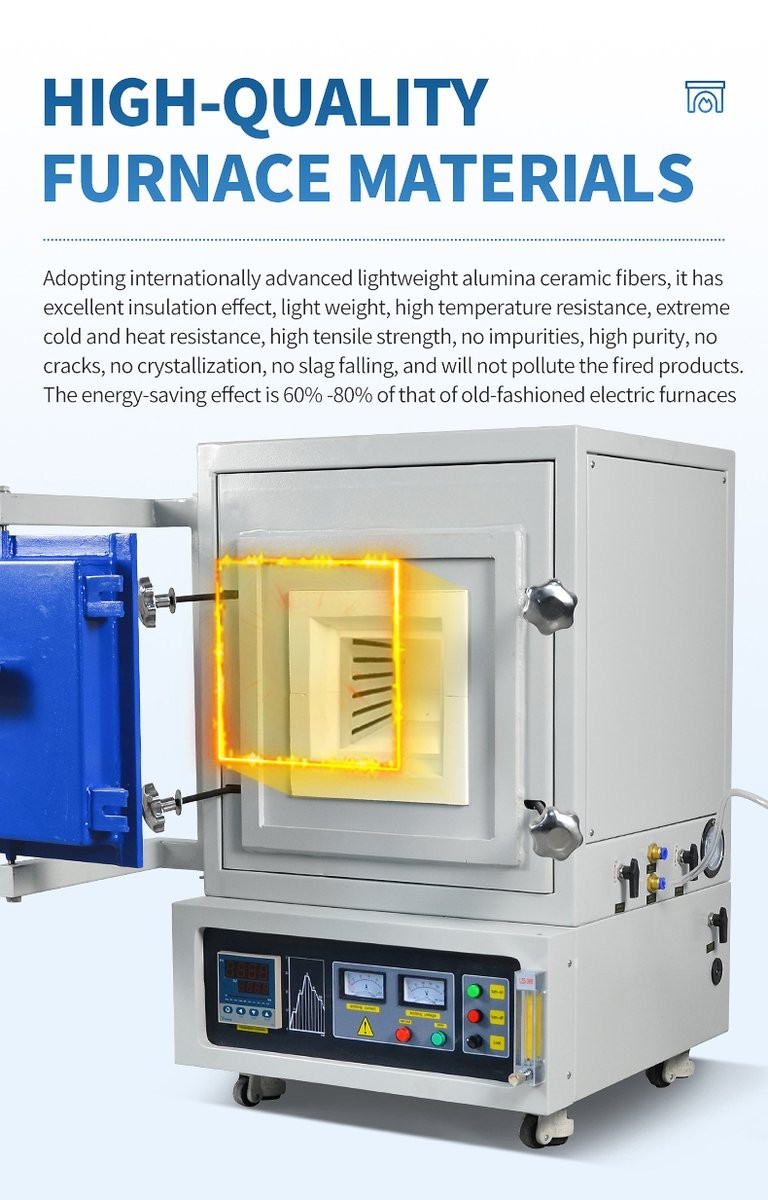

Chamber material	Lightweight alumina ceramic fiber

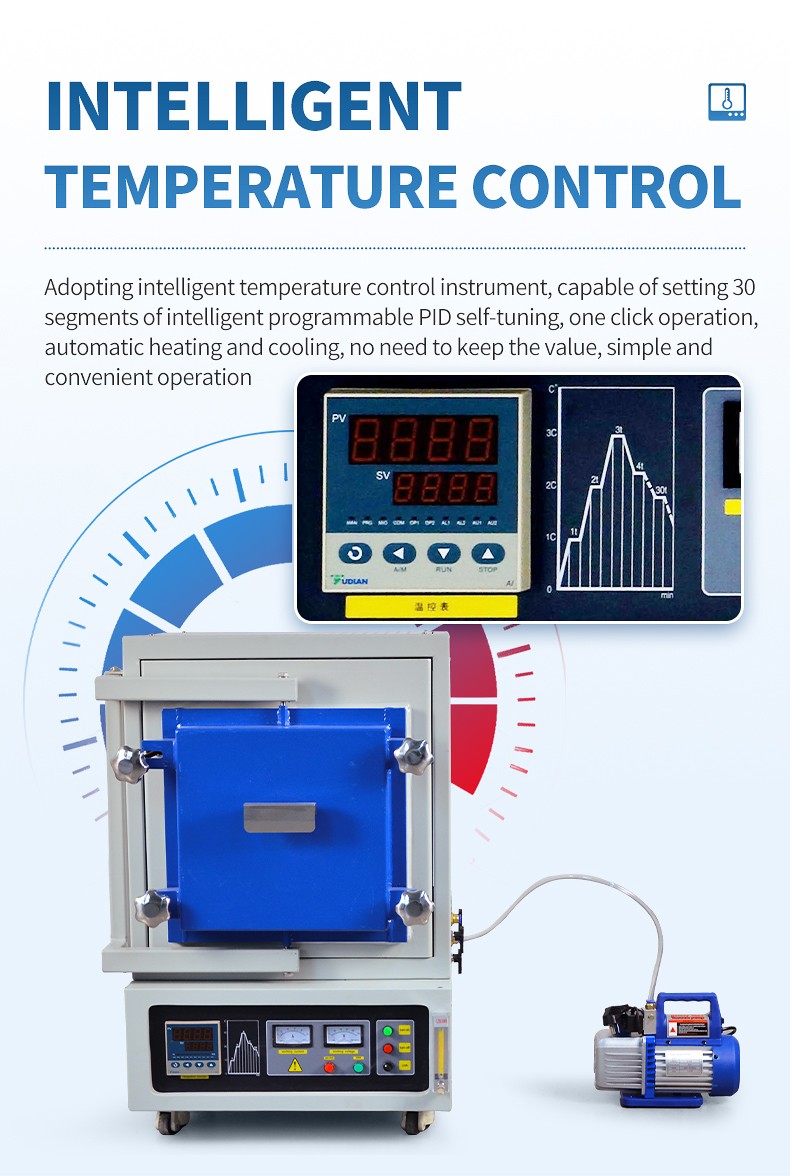

Controller	Intelligent controller with 30-50 segment programmable PID self-tuning, automatic heating, and automatic cooling

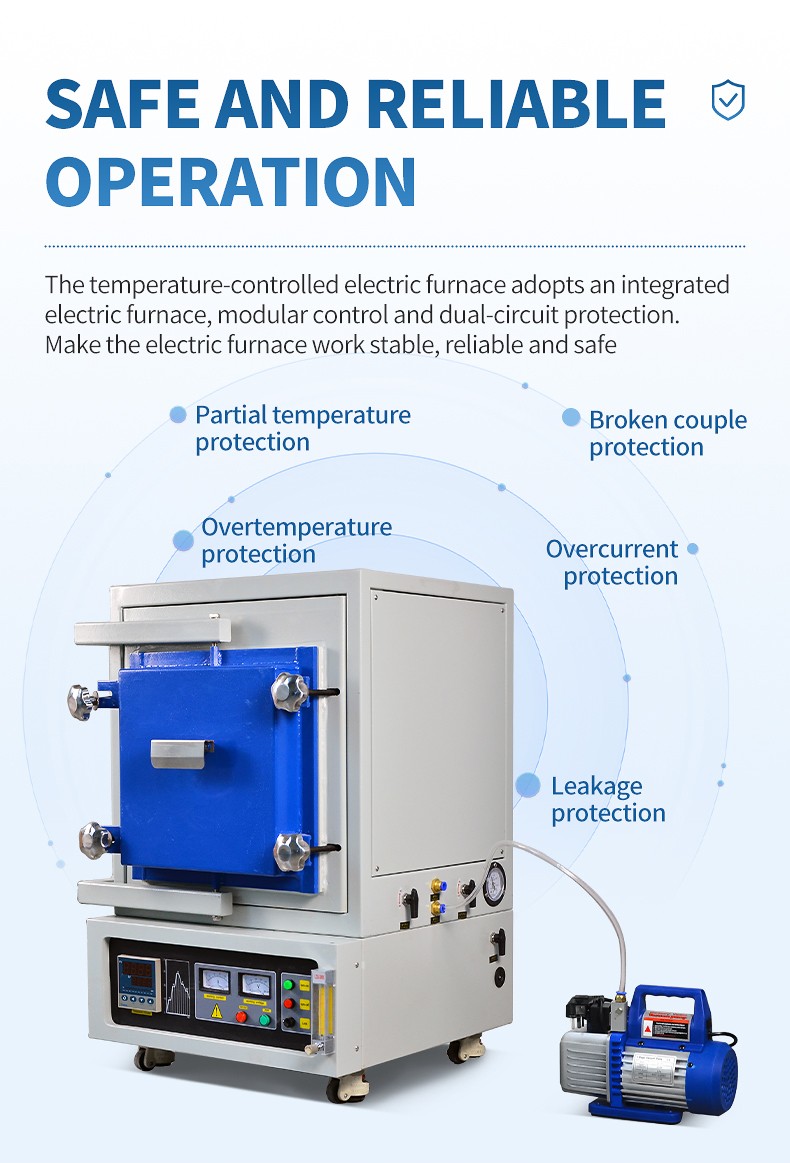

Protection	Deviation-temperature, over-temperature, broken-thermocouple, and overcurrent protection
Included accessories	One vacuum pump, one pair of crucible tongs, one pair of high-temperature gloves, and one user manual
Optional equipment	Touchscreen control, inlet configuration, exhaust chimney, observation window, paperless recorder, remote communication control system, non-standard door opening, and circulation fan
Certifications	CE and ISO9001:2015 quality management system certification
Warranty and service	Furnace body warranty: one year, excluding heating elements and wearing parts; lifetime maintenance
