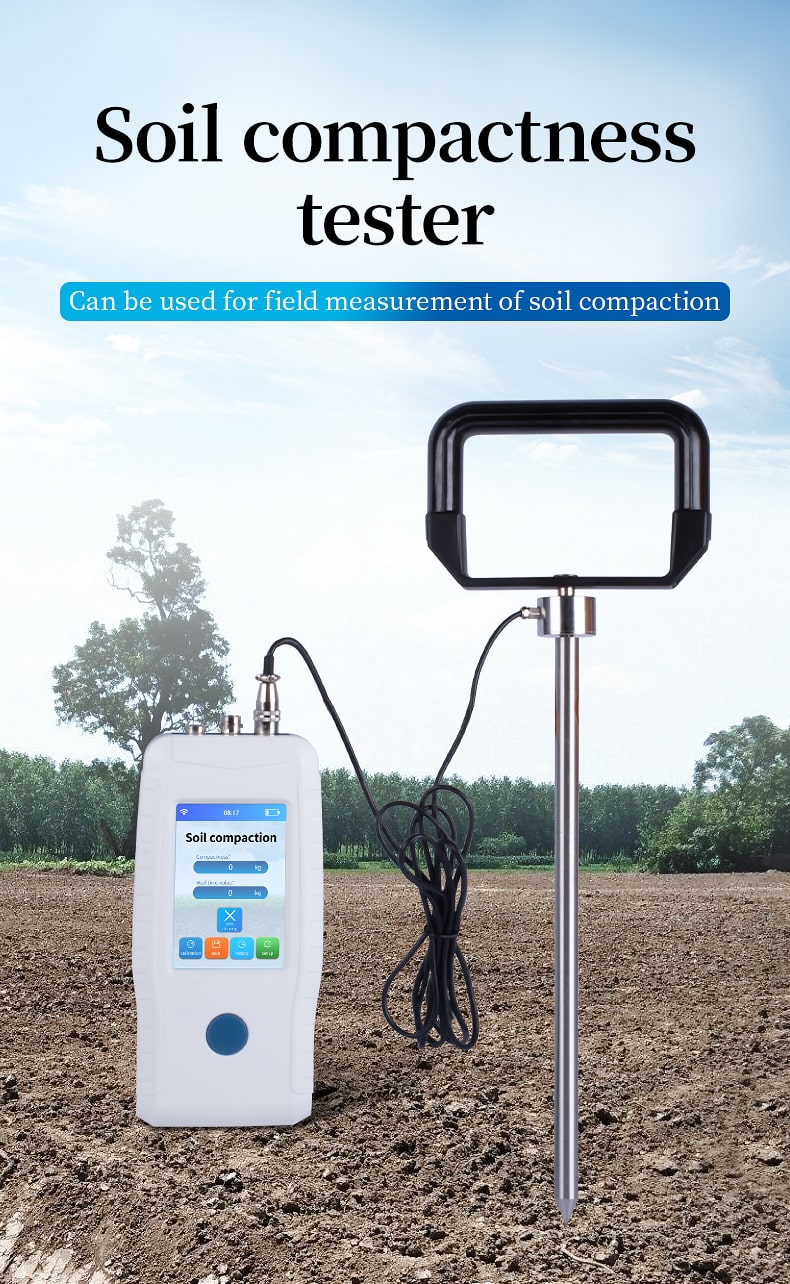

Soil firmness tester

Overview:

1. Main uses and scope of application

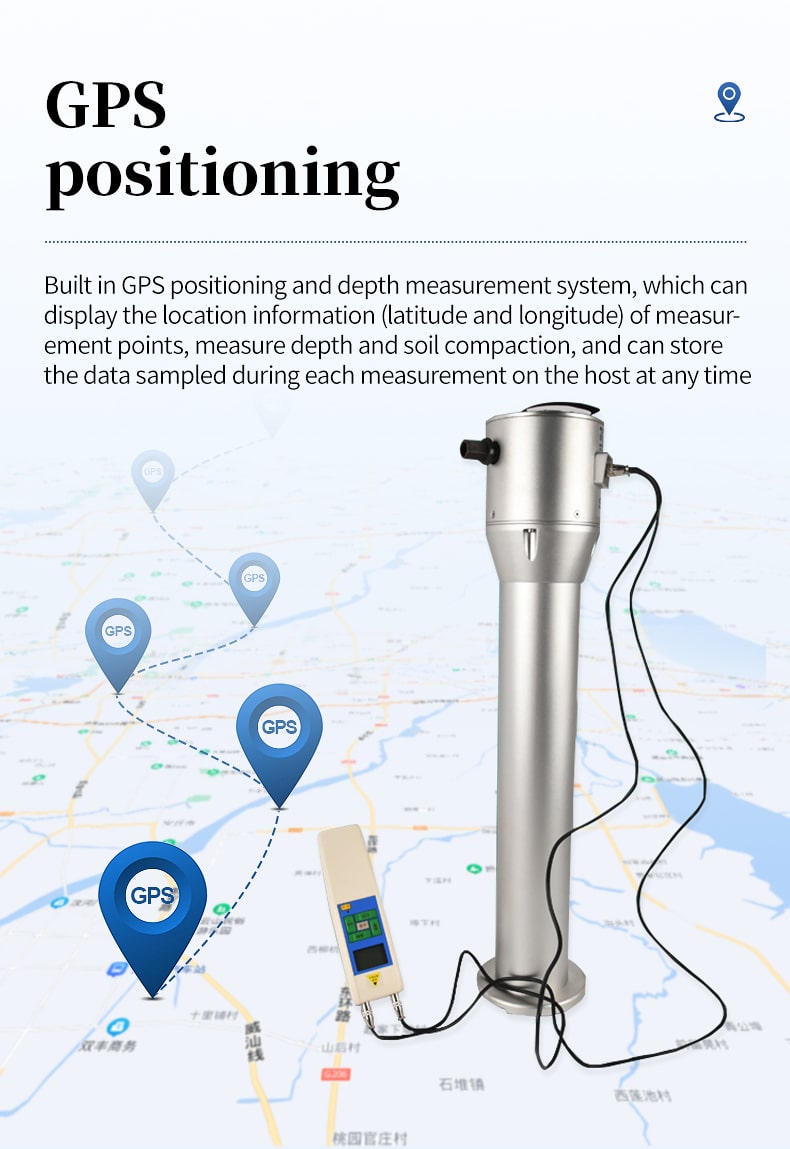

The soil firmness tester has a built-in GPS positioning and depth measurement system, which can simultaneously display soil compactness, measurement depth and geographical location. After connecting to a computer, it can automatically generate a soil compactness curve for each measurement point and a regional soil compactness distribution map from multiple measurement points, and can automatically generate related data links.

The soil firmness tester is also called a soil firmness and hardness tester. It can be used to measure soil compactness in the field. Compacted soil can prevent water infiltration, reduce the utilization rate of fertilizers, affect plant root growth, and lead to crop yield reduction. Therefore, it is particularly important to know the compactness of the soil. This instrument can better guide agricultural production and road construction.

2. Product features

Real-time pressure and displacement display;

Convenient storage, can store 100 sets of data;

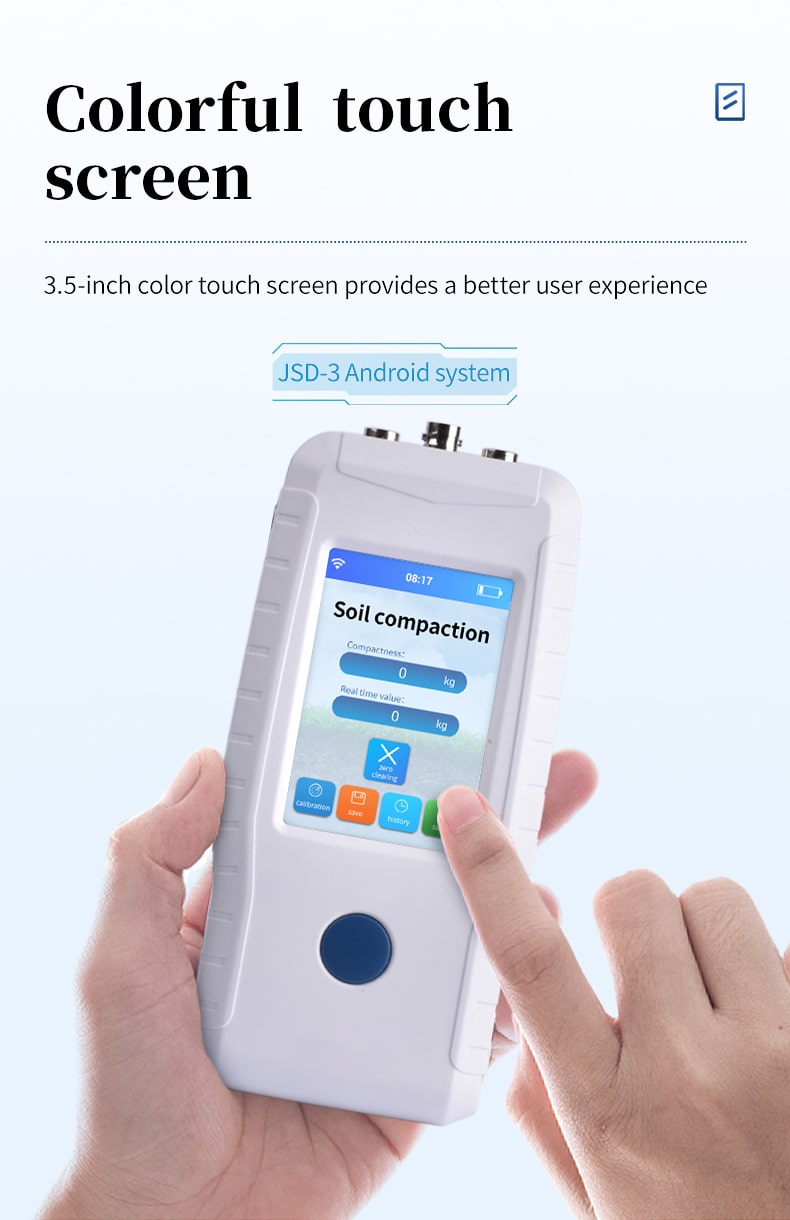

Touch screen display;

Switchable between Chinese and English;

Optional time zone;

With automatic shutdown function;

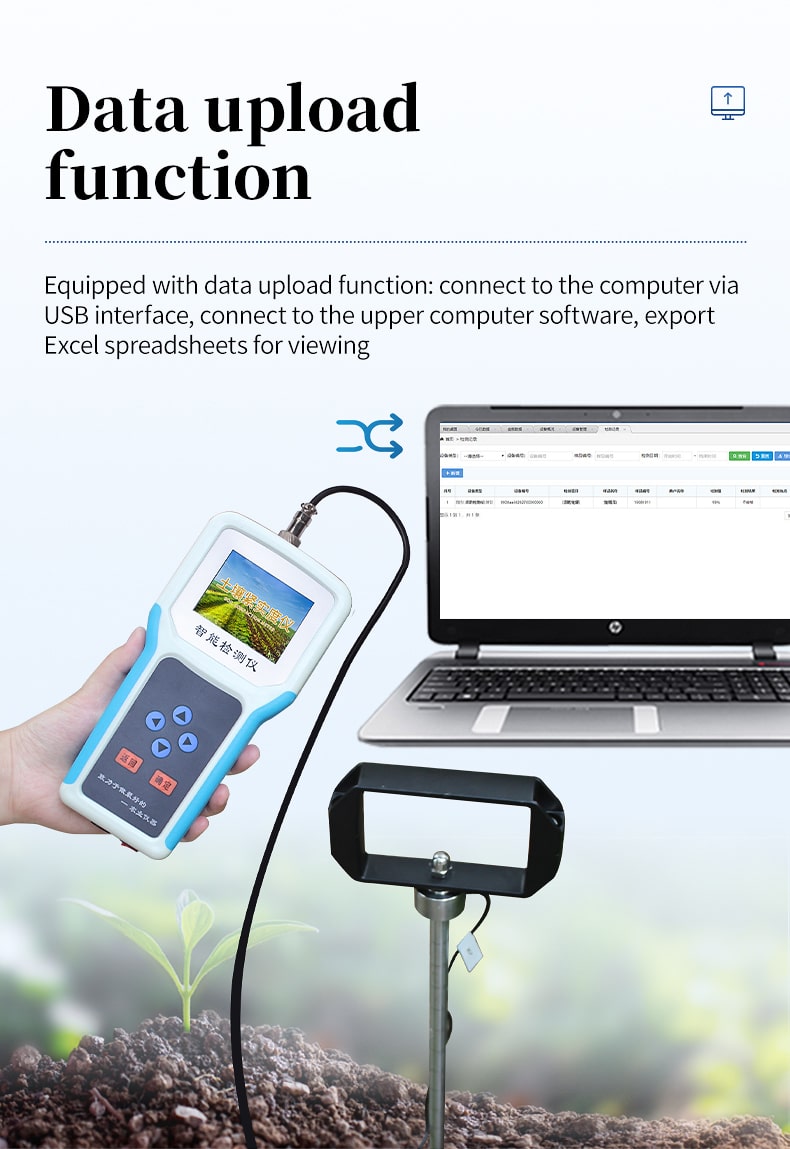

With data upload function: connected to the computer using the DB9 interface, the host computer software has storage and printing functions.

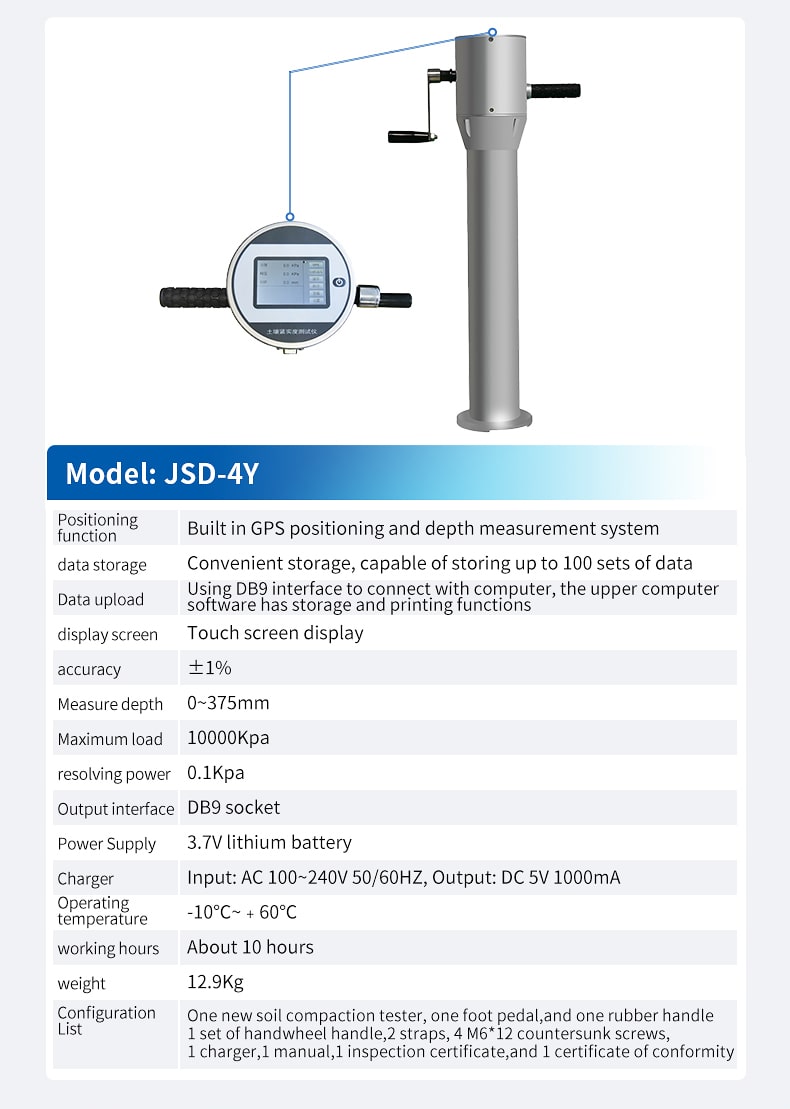

Technical parameters

Accuracy: ±1%;

Measurement depth: 0~375mm;

Maximum load: 10000Kpa;

Resolution: 0.1Kpa;

Output interface: DB9 socket;

Power supply: 3.7V lithium battery;

Charger: Input: AC 100~240V 50/60HZ, Output: DC 5V 1000mA;

Operating temperature: -10℃~﹢60℃;

Working time: about 10 hours;

Weight: 12.9Kg.

Configuration list

New soil compaction tester 1 unit

Foot pedal 1 unit

Rubber handle 1 unit

Handwheel handle 1 unit

Straps 2 units

Cross slot countersunk screws M6*12 4 units

Charger 1 unit

Instruction manual 1 unit

Inspection certificate 1 unit

Certificate of conformity 1 unit
