Soil compaction meter

Product Number：

JSD-4

Product Difference：

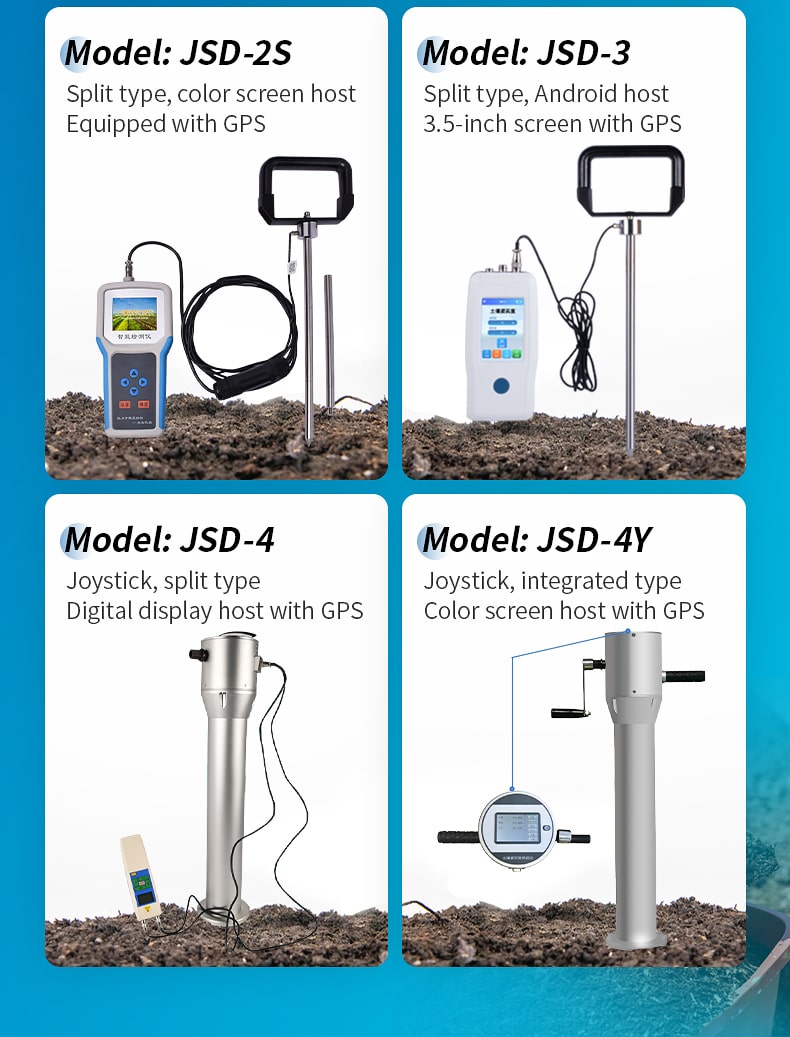

Joystick, split type, digital display host, with GPS.

17853698681 Consultation icon

Product Details

Function description:

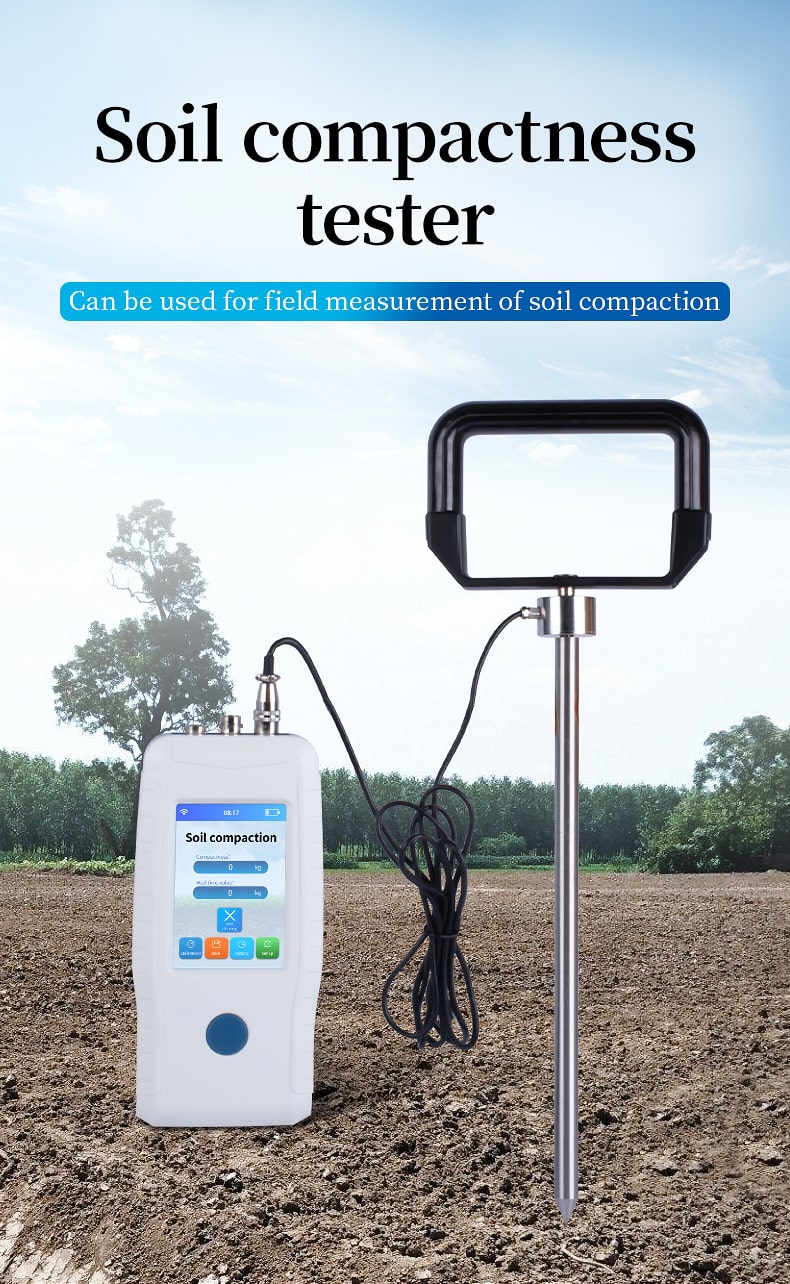

The digital soil compaction meter is also called soil firmness and hardness meter, which can be used to measure soil compaction in the field. It has built-in GPS positioning and depth measurement system, which can simultaneously display soil compaction, measurement depth and geographical location. After connecting to the computer, it can automatically generate soil compaction curves for each measuring point and can generate regional soil compaction distribution maps from multiple measuring points and automatically generate related data links.

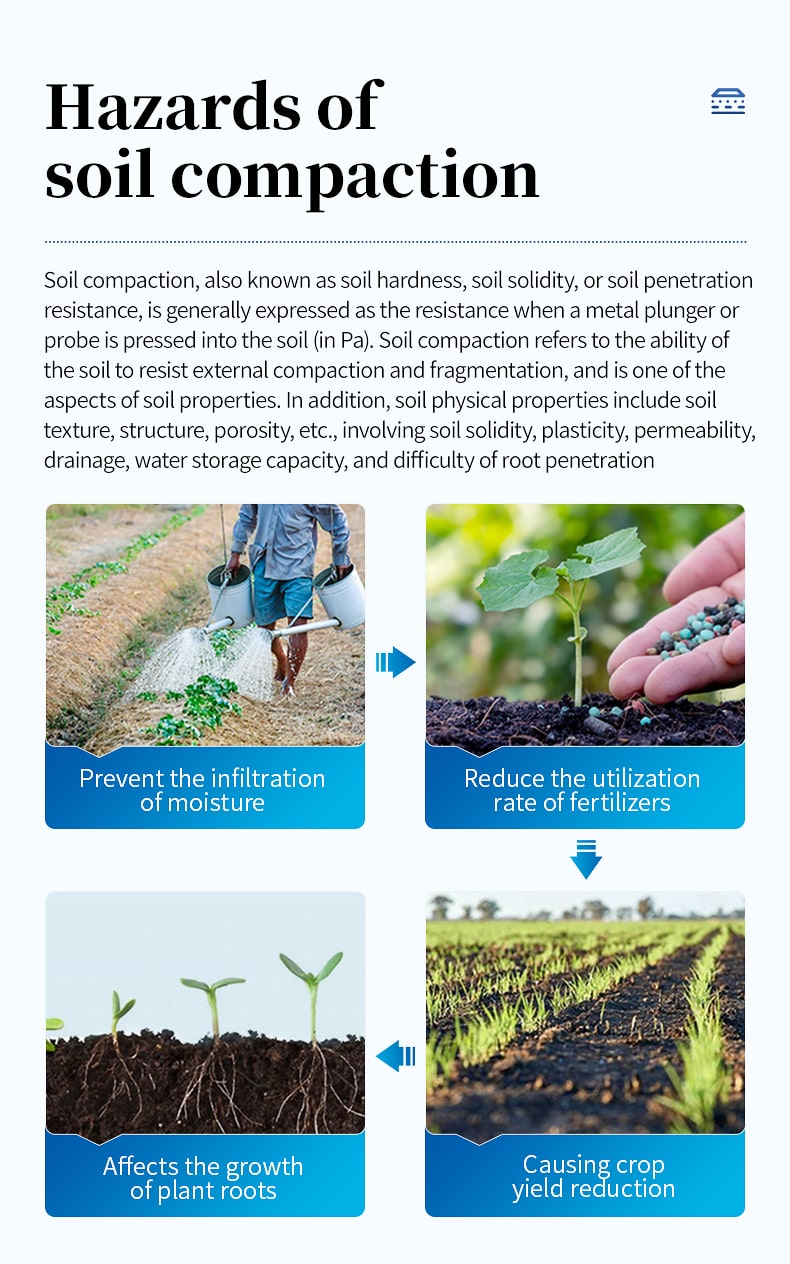

Compacted soil can prevent water infiltration, reduce the utilization rate of fertilizers, affect plant root growth, and lead to crop yield reduction. Therefore, it is particularly important to know the compaction of the soil. This instrument can better guide agricultural production and road construction.

Feature description:

Field portable, high precision and high resolution, with simple operation, full functions, easy to carry and other characteristics.

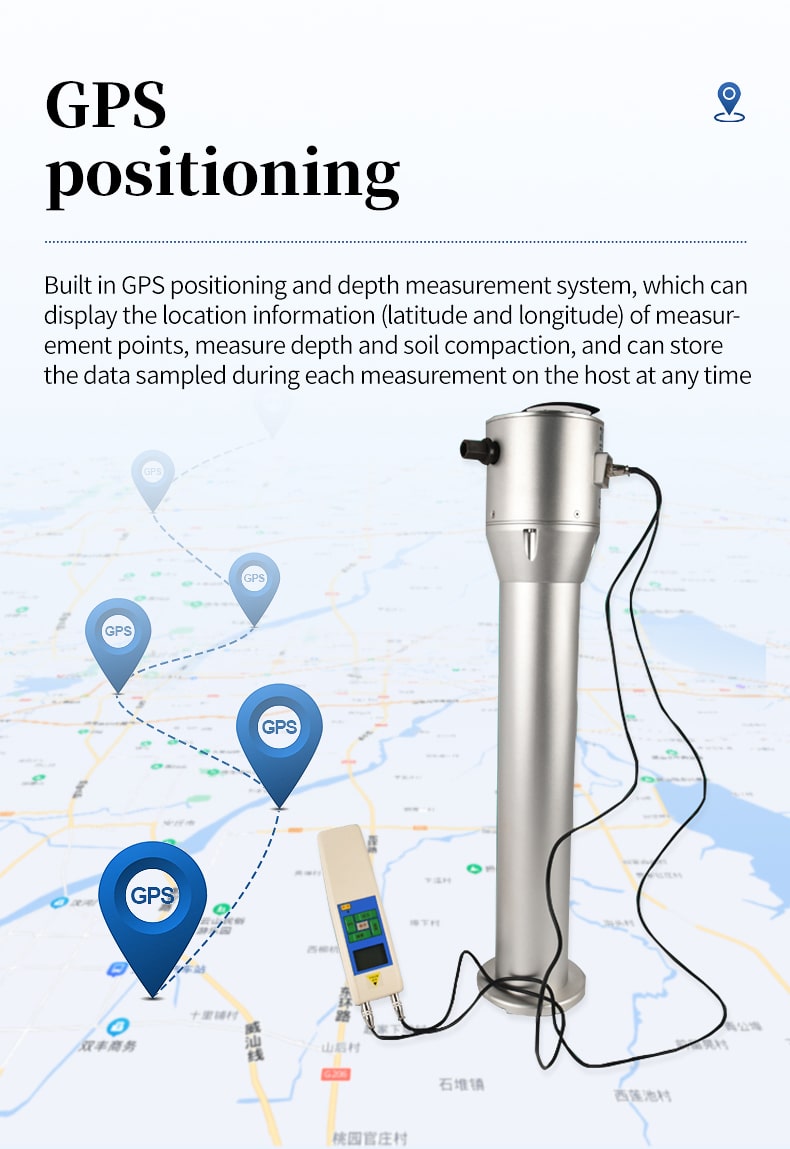

It can directly measure soil compactness, with built-in GPS positioning and depth measurement system, which can display the location information (latitude and longitude) of the measuring point, the measuring depth and soil compactness, and can store the data of each sampling at any time on the host, and can store all the data of up to 200 measuring points.

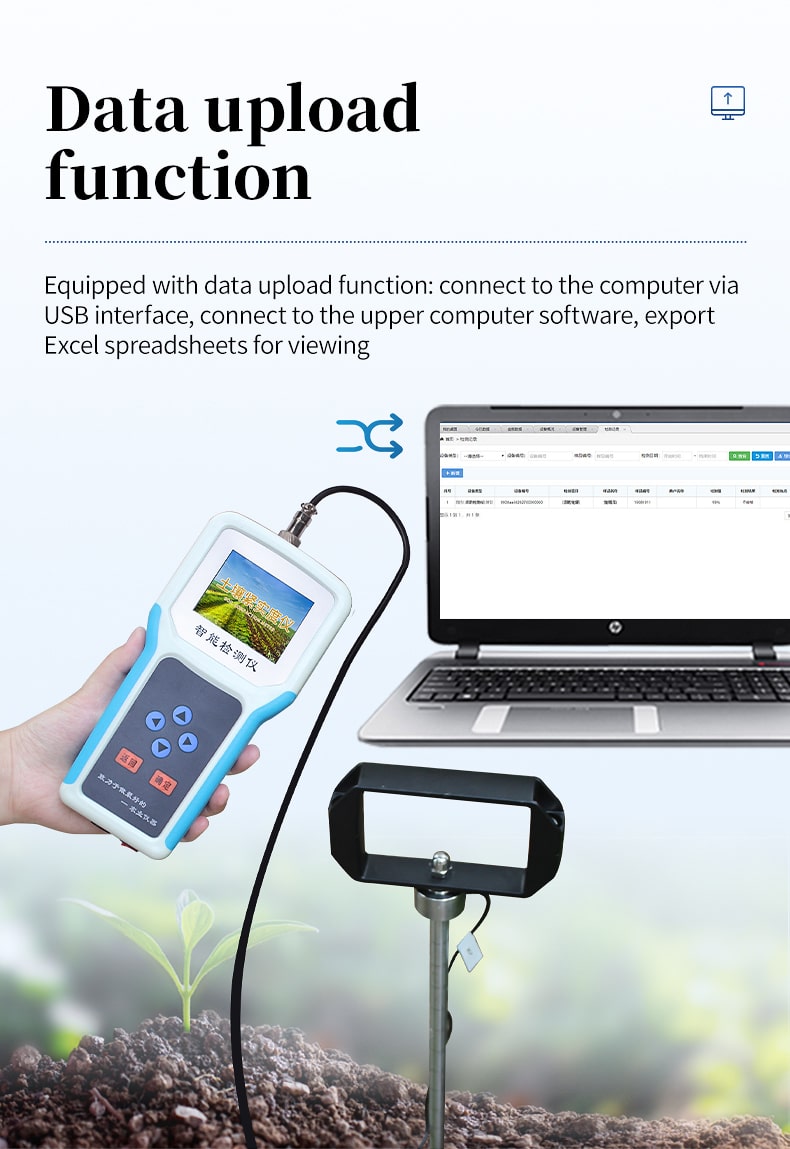

It has data upload function: it is connected to the computer through RS232 interface, and the software can automatically generate the soil compactness curve of each measuring point, and can generate regional soil compactness distribution map from multiple measuring points and automatically generate related data links. The software has storage and printing functions.

It has the function of automatically capturing the peak value of soil compactness and backlight, which is green and environmentally friendly, and has automatic shutdown function.

(If there is no operation on the display button, the display will automatically shut down after 10 minutes).

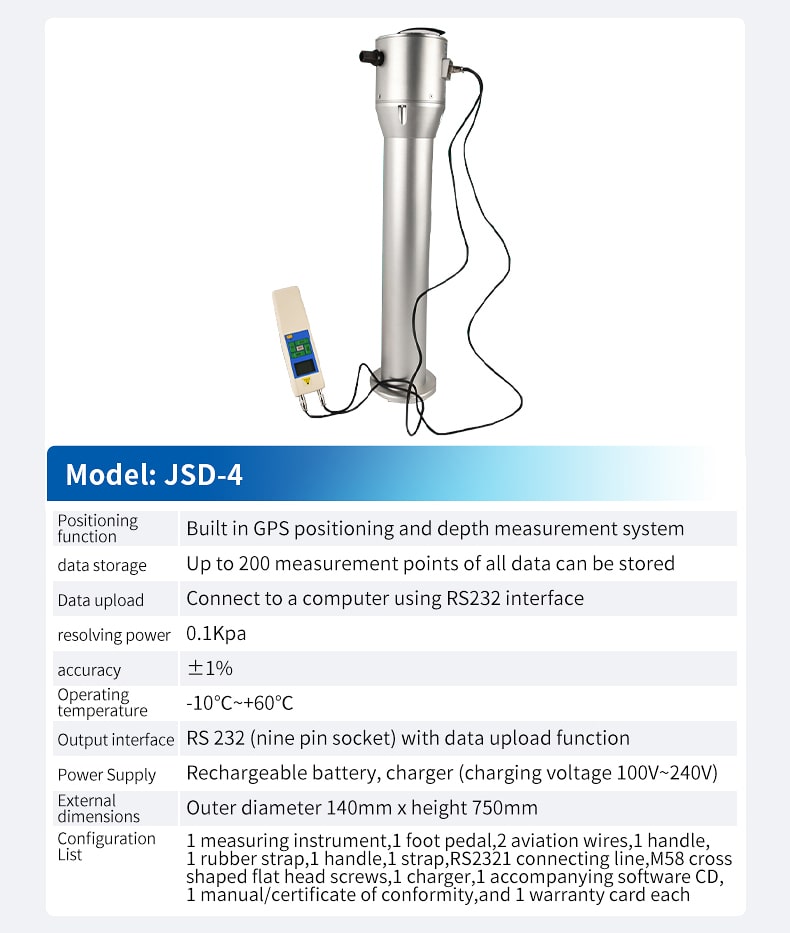

Technical parameters:

Resolution: 0.1Kpa

Accuracy: ±1%

Operating temperature: -10℃~60℃

Output interface: RS 232 (nine-hole socket)

Power supply: rechargeable battery, charger (charging voltage 100V~240 V)

Operating temperature: -10℃~+60℃

Dimensions: outer diameter 140mm×height 750mm

Configuration list:

1. Measuring instrument 1 set

2. Pedal 1 piece
