HM-T1 Desktop Soil Nutrient Analyzer

Product Overview

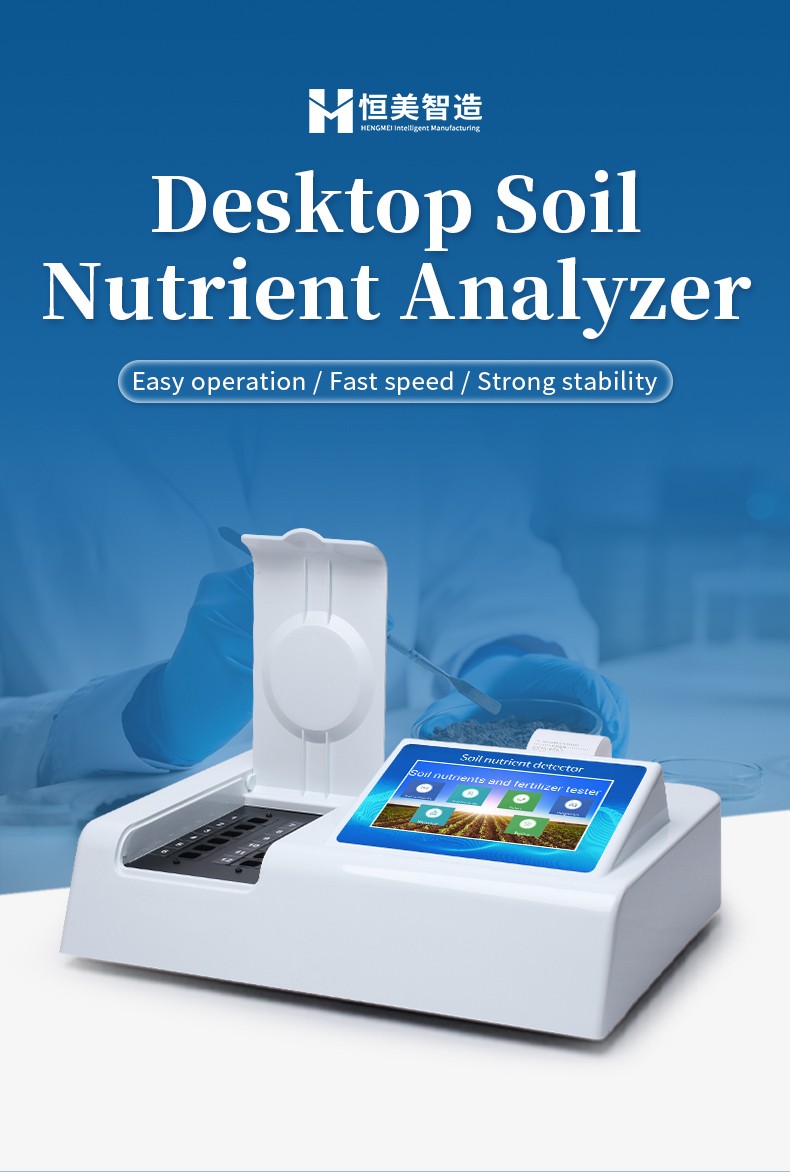

The HM-T1 Desktop Soil Nutrient Analyzer is a 12-channel spectrophotometric testing instrument engineered for routine agricultural soil fertility testing and formula fertilization. Powered by an ARM Cortex-A7 quad-core processor and Android OS, the HM-T1 integrates optical analysis, touch-controlled workflow, automated calculations, and thermal printing into a self-contained desktop workstation for agricultural service stations, farm cooperatives, and fertilizer dealers.

Featuring a 4-wavelength cold light source and patented filter technology (Patent ZL 2020 2 1763837.9), the HM-T1 completes simultaneous extraction and determination of available nitrogen, phosphorus, and potassium (NPK) in 20 minutes per sample, or 8 samples per hour. Built-in fertilization recommendation algorithms and a plant deficiency visual atlas provide immediate field guidance.

Key Features

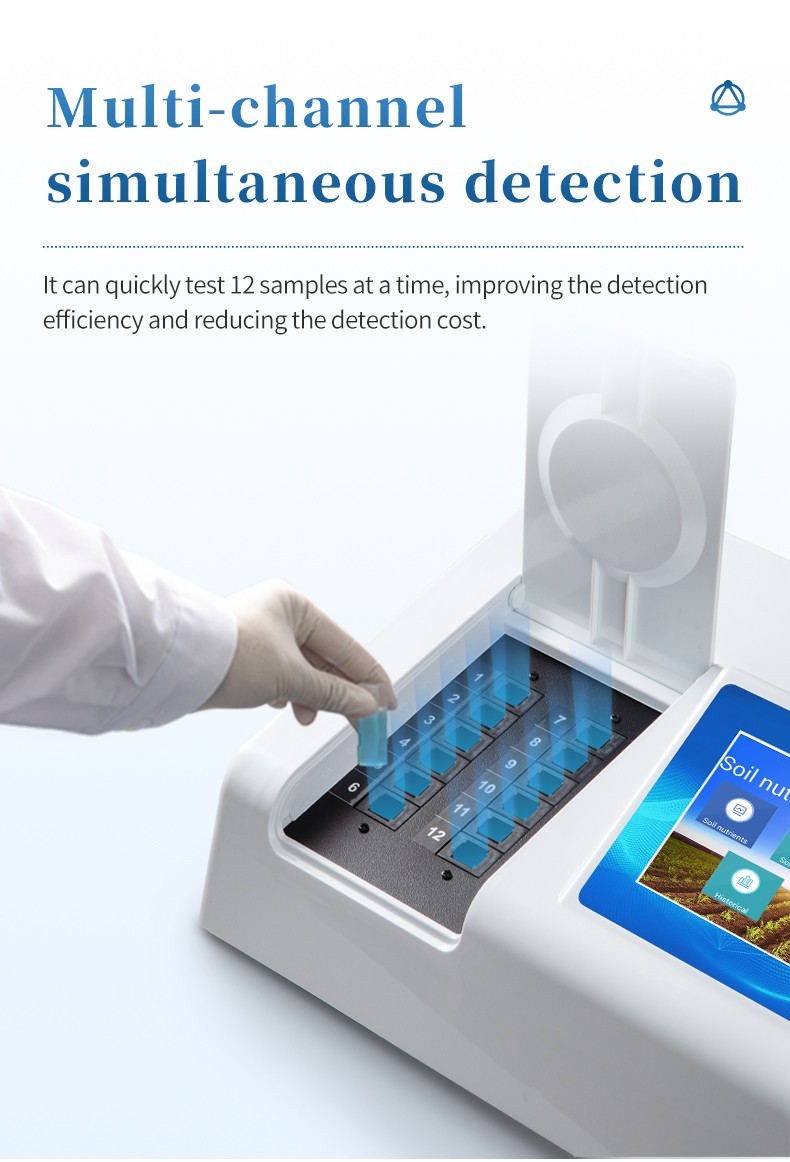

• 12 optical colorimetric channels enable simultaneous batch testing of 12 samples, improving laboratory throughput.
• 4-wavelength cold light source (680nm, 420nm, 510nm, 590nm) delivers over 100,000 hours of operating life without thermal drift.

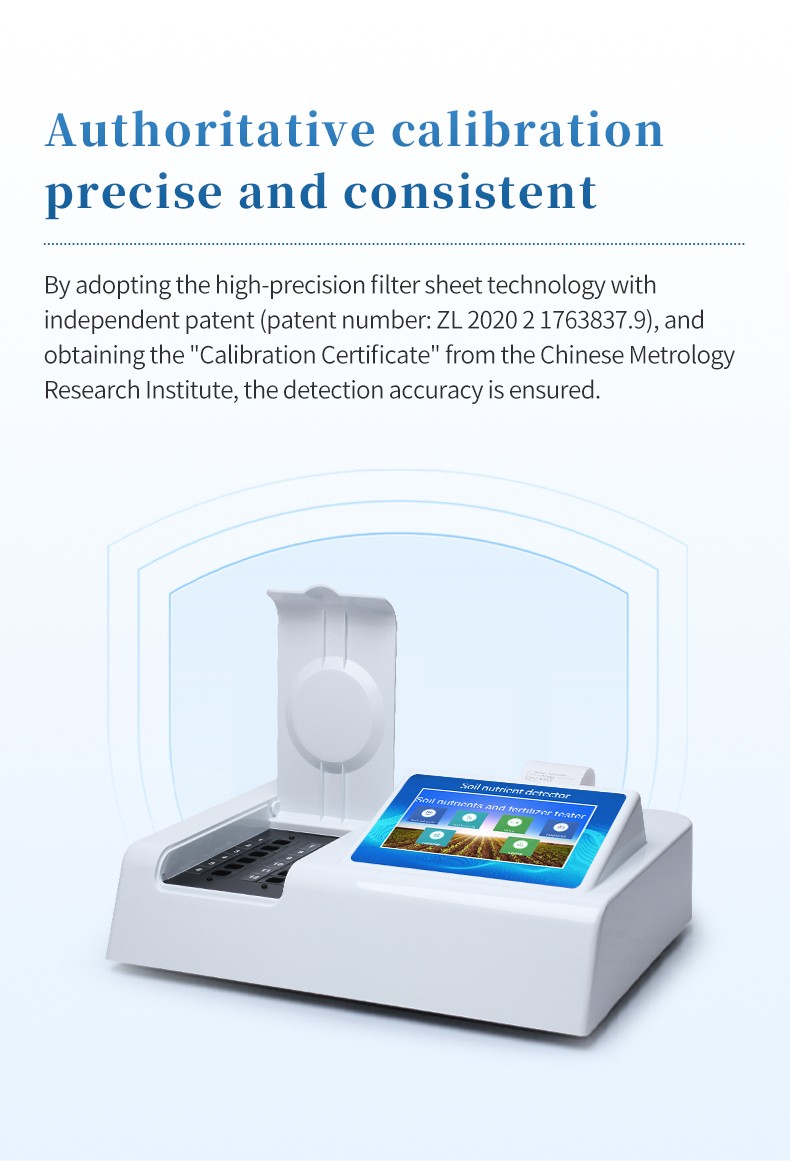

• Patented optical filter technology ensures measurement consistency certified by the National Institute of Metrology.
• 7-inch true-color capacitive touchscreen (1024×600) with intuitive Android UI minimizes operational training time.
• Built-in thermal printer outputs test receipts with operator ID, channel number, absorbance, nutrient concentrations, and QR codes.
• Integrated expert fertilization system calculates nutrient application rates for over 100 agricultural crops and fruit trees.

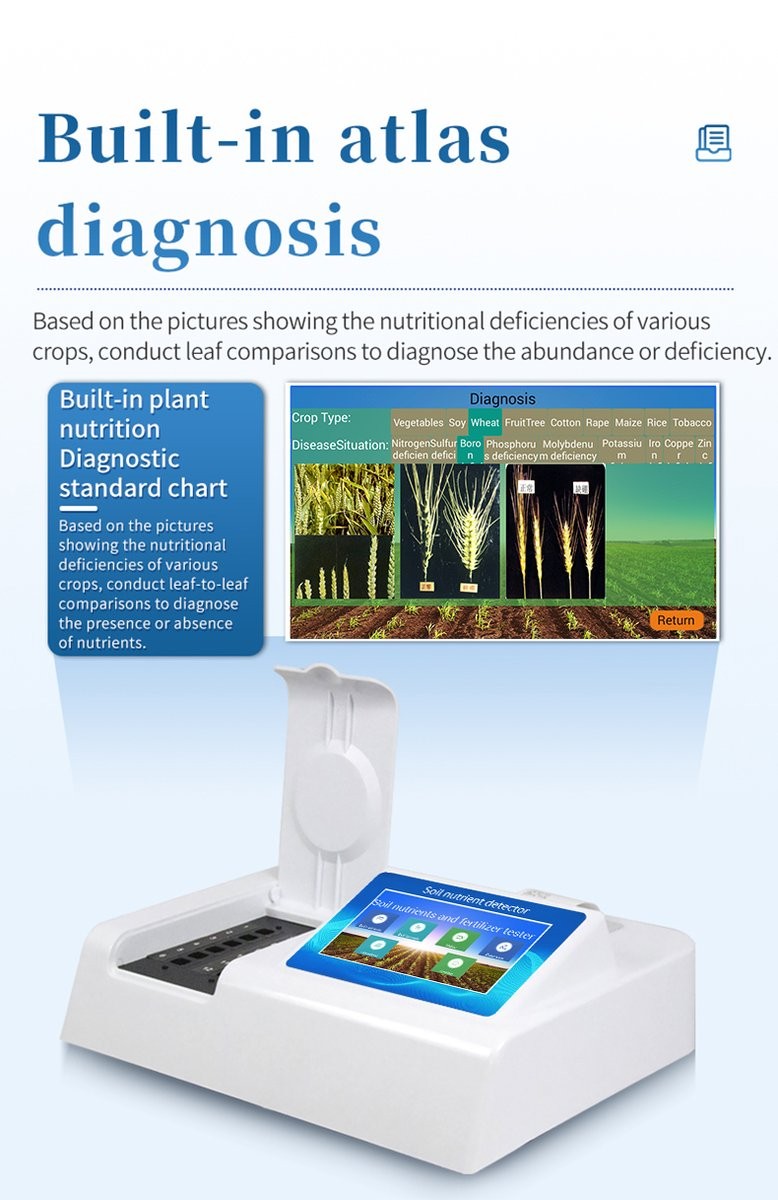

• Plant nutritional deficiency atlas enables direct on-screen leaf symptom comparison to diagnose nutrient disorders.
• Wireless data connectivity (WiFi, 4G, GPRS) uploads testing records to the smart agricultural cloud platform.
• Dual AC/DC power with internal rechargeable lithium battery providing over 10 hours of continuous field operation.
• IP65 ingress protection, multi-user passwords, automatic power-off data protection, and GPS coordinate tagging.

Applications

The HM-T1 is designed for standard agricultural soil nutrient determination and fertility mapping:

• Soil Available Nutrients: Ammonium nitrogen, available phosphorus, available potassium, nitrate nitrogen, hydrolyzed nitrogen.
• Soil Total Nutrients & Organic Matter: Total nitrogen, total phosphorus, total potassium, organic matter, TOC, and C/N ratio.
• Physical and Chemical Properties: Soil pH value (1–14), soil salt content (0.01%–1.00%), and soil moisture (0–100%).
• Target Facilities: Agricultural extension stations, rural cooperatives, fertilizer retail outlets, and commercial plantations.

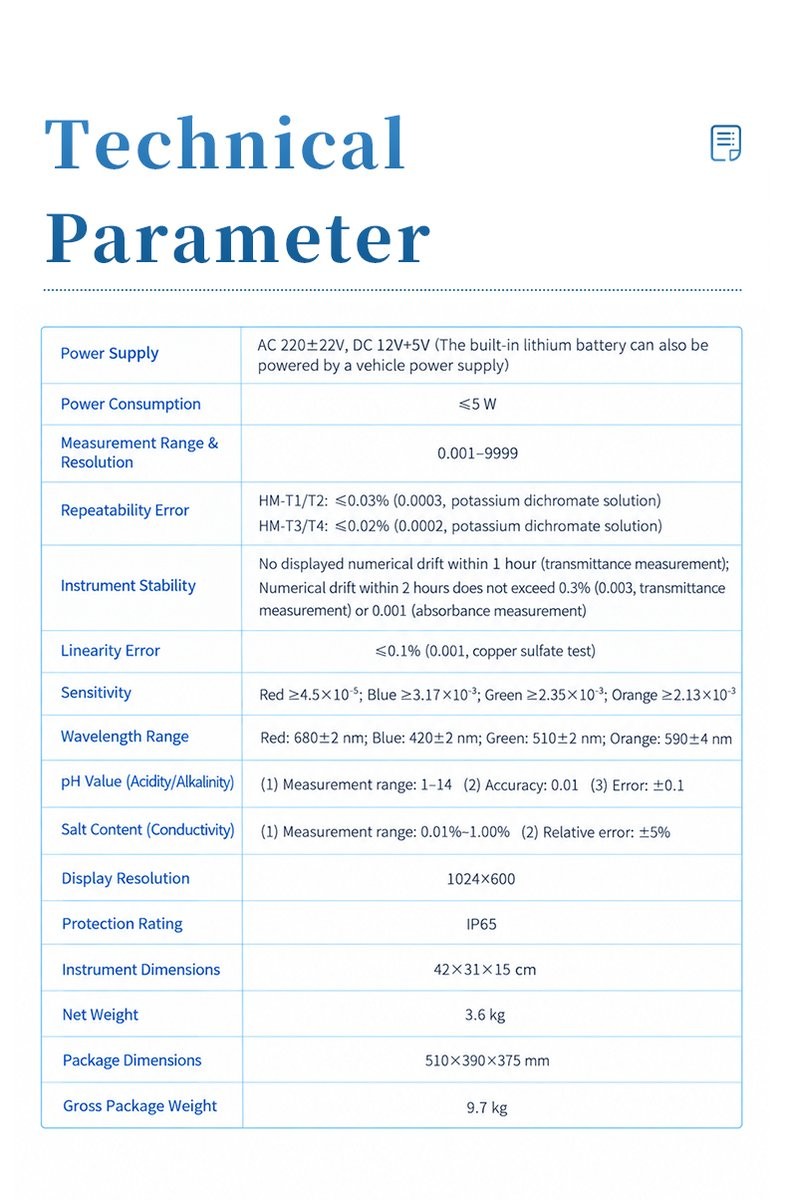

Technical Specifications

Parameter	Specification
Operating System	Android OS, ARM Cortex-A7 RK3288 4-Core (1.88 GHz)
Optical Channels	12 independent colorimetric channels with 1cm cuvettes
Cold Light Source	4 wavelengths (Red 680nm, Blue 420nm, Green 510nm, Orange 590nm); 100,000h lifespan
Patent & Calibration	High-precision filter patent ZL 2020 2 1763837.9; Metrology Calibration Certificate

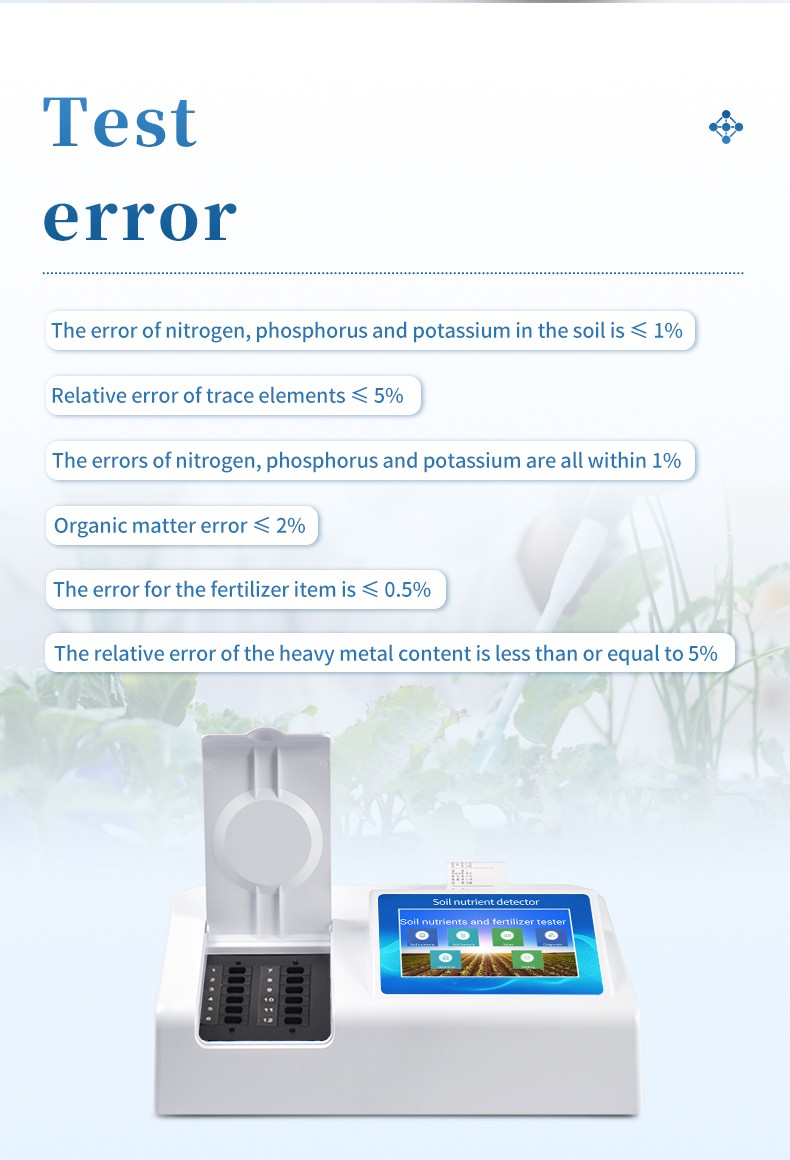

Repeatability Error	≤0.03% (0.0003, potassium dichromate solution)
Stability	Zero drift in 1h; drift ≤0.3% (T) or 0.001 (A) within 2h
Linearity Error	≤0.1% (copper sulfate test)
Sensitivity	Red ≥4.5×10⁻⁵, Blue ≥3.17×10⁻³, Green ≥2.35×10⁻³, Orange ≥2.13×10⁻³
Measurement Range	0.001–9999
pH Measurement	Range 1–14, Accuracy 0.01, Error ±0.1
Salinity (Conductivity)	Range 0.01%–1.00%, Relative error ±5%
Soil Moisture	Range 0–100%, Error <0.5%

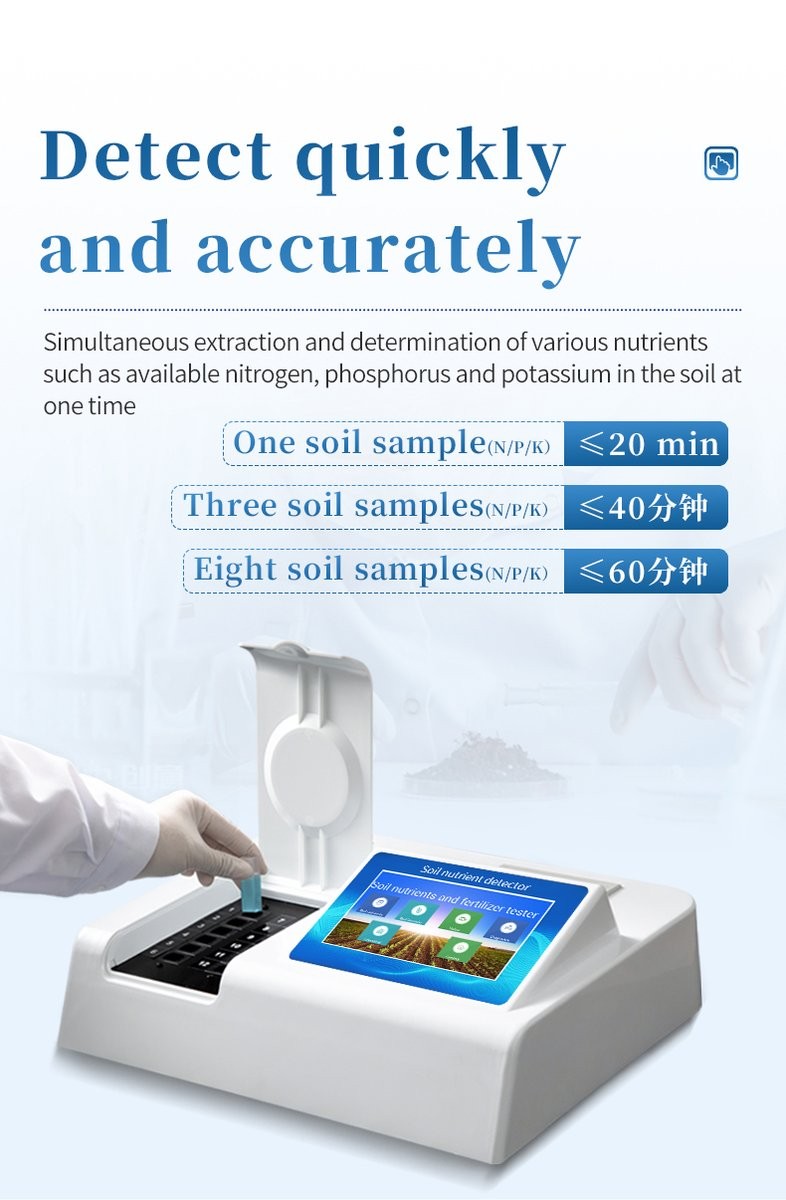

Testing Speed	Single sample NPK ≤20 min; 3 samples ≤40 min; 8 samples ≤60 min
Display Screen	7-inch high-sensitivity true-color touchscreen (1024×600)
Data Interface	WiFi, 4G, GPRS, USB, RJ-45 Ethernet, Cloud upload
Built-in Printer	Integrated thermal printer (supports text & QR codes)
Smart Software	Crop fertilization formula system, plant deficiency atlas, tutorial videos
Power Supply	AC 220±22V, DC 12V+5V; rechargeable lithium battery (>10h) & vehicle power
Power Consumption	≤5 W
Housing & Weight	IP65 protection; Host: 420×310×150 mm, 3.6 kg; Package: 510×390×375 mm, 9.7 kg

Configuration and Accessories

No.	Item Description	Quantity
1	Main Instrument Host (12-Channel)	1 unit
2	pH Test Electrode Pen (Range 1-14)	1 pc
3	TDS Salinity Conductivity Pen	1 pc
4	Electronic Precision Balance (100g/0.01g)	1 unit
5	Aluminum Soil Sampling Box	1 pc
6	Rubber Suction Bulb	1 pc
7	Glass Stirring Rod	1 pc
8	Glass Pipette 1ml	1 pc
9	Dedicated Reagent Carrying Case	1 unit
10	NPK & Organic Matter Reagent Kit	1 set
11	Qualitative Filter Paper	1 box
12	Optical Glass Cuvettes	10 boxes
13	Glass Test Tubes	12 pcs
14	Plastic Test Tubes	20 pcs
15	Erlenmeyer Flask 100ml	2 pcs
16	Chemical Reagent Bottle	1 pc
17	Power Cable & 12V Vehicle Charger	1 set

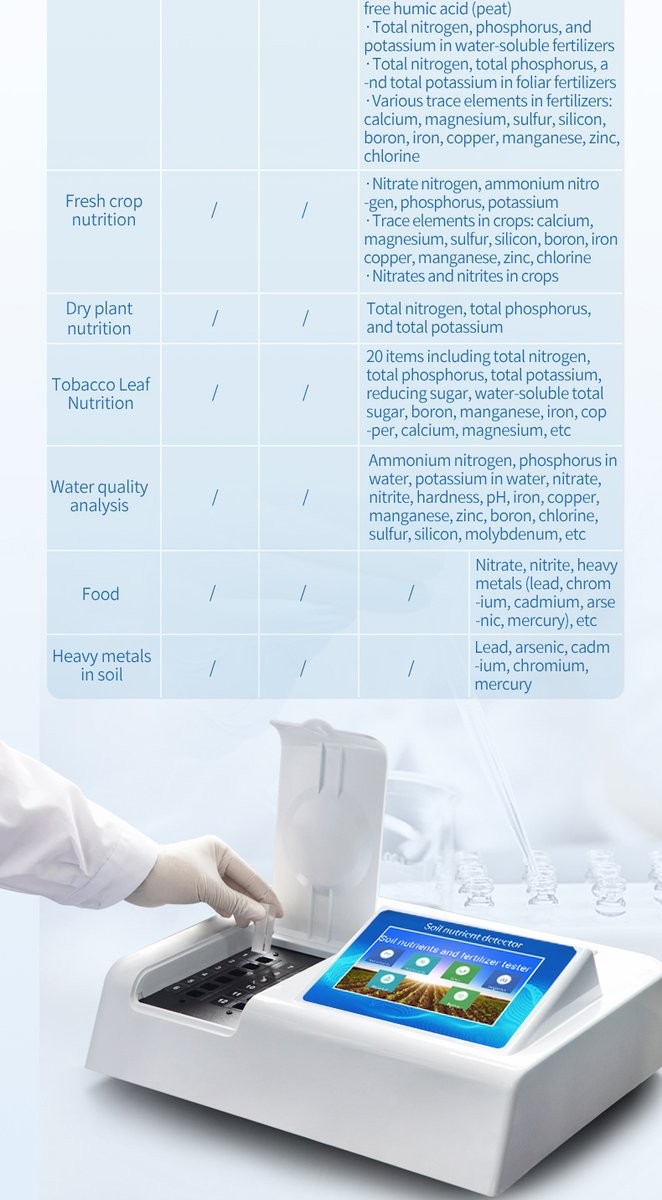

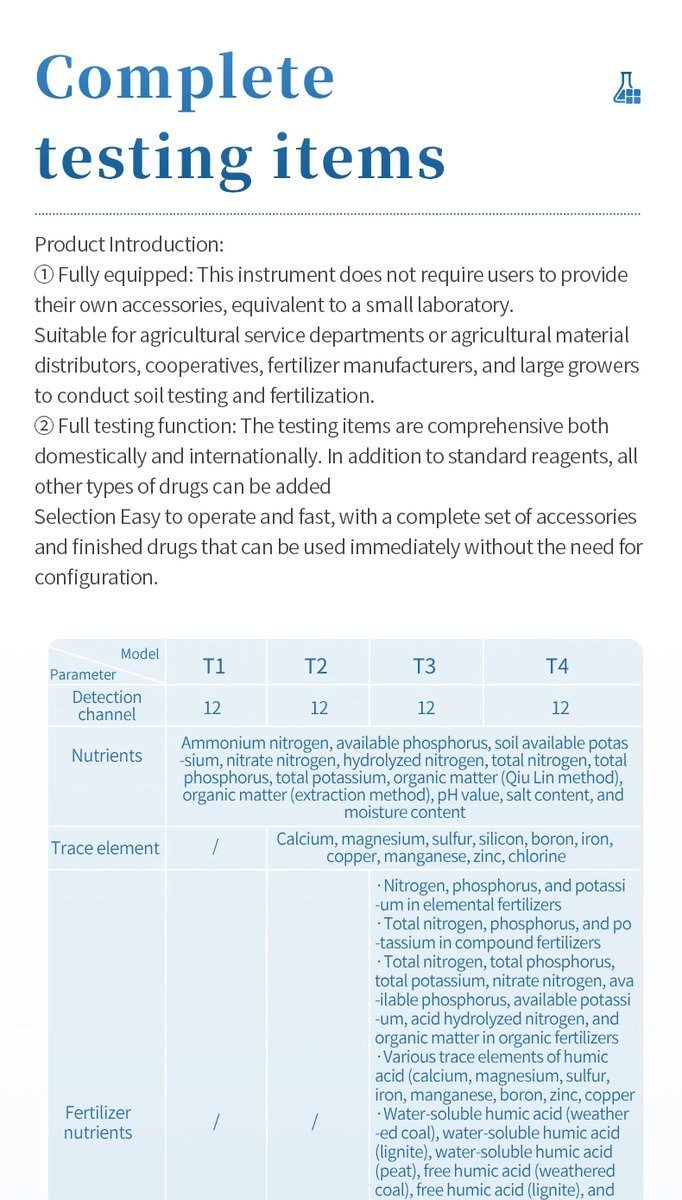

Model Selection

HM Instruments offers four specialized desktop models within the T-series to address varying testing requirements:

Model	Channels	Error	Testing Capabilities	Target Scope
HM-T1	12	≤0.03%	Soil NPK, Organic Matter, pH, Salt, Moisture	Routine soil testing, supply stores, field cooperatives
HM-T2	12	≤0.03%	T1 items + 11 Soil Trace Elements (Ca, Mg, S, B, Fe, Zn, etc.)	Balanced nutrition, commercial orchards, greenhouse farming
HM-T3	12	≤0.02%	T2 items + Fertilizers (NPK, humic acid) + Plant Tissues + Water	Fertilizer factories, quality control, agrochemical stations
HM-T4	12	≤0.02%	T3 items + Heavy Metals (soil/fertilizer) + Food Safety items	Research institutes, universities, food safety inspection
