HM-BDXP Portable Biological Toxicity Analyzer National Standard Edition

Product Introduction

The HM-BDXP is the flagship portable biological toxicity analyzer from HM Instruments, designed for professional laboratories that require comprehensive toxicity assessment, bacterial incubation, and surface cleanliness monitoring in a single integrated platform. It combines three detection modes: quantitative bioluminescent bacteria toxicity measurement, qualitative chemiluminescence-based toxicity screening, and dual-channel ATP detection for microbial contamination assessment.

Built on the Android 10 operating system with a 7-inch color touchscreen, the HM-BDXP features 24 constant-temperature incubation positions with temperature control at 15 to 25℃ ±1℃, a refrigerated storage compartment maintaining 5℃ ±1℃, and kinetic detection capability for time-course toxicity monitoring. The instrument stores up to 30,000 test results and is powered by a 30000mAh lithium battery, providing extended operation for multi-day field campaigns or continuous laboratory use. With a precision of RSD ≤5% and ATP detection sensitivity down to 1×10⁻¹⁵ mol ATP, the HM-BDXP meets the rigorous demands of professional toxicity testing and regulatory compliance.

Applications

• Professional environmental monitoring laboratories: comprehensive toxicity assessment of water, soil, and sediment samples
• Pharmaceutical water system validation: endotoxin and toxicity testing of purified water and water for injection
• Food safety testing centers: toxicity screening and microbial cleanliness monitoring of food contact surfaces
• Industrial hygiene assessment: ATP-based cleanliness verification and toxicity monitoring in manufacturing environments
• Research institutions: kinetic toxicity studies and long-term incubation-based toxicity evaluation
• Regulatory compliance testing: JJF 2203-2025 compliant verification for toxicity measuring instruments

Functional Performance / Features

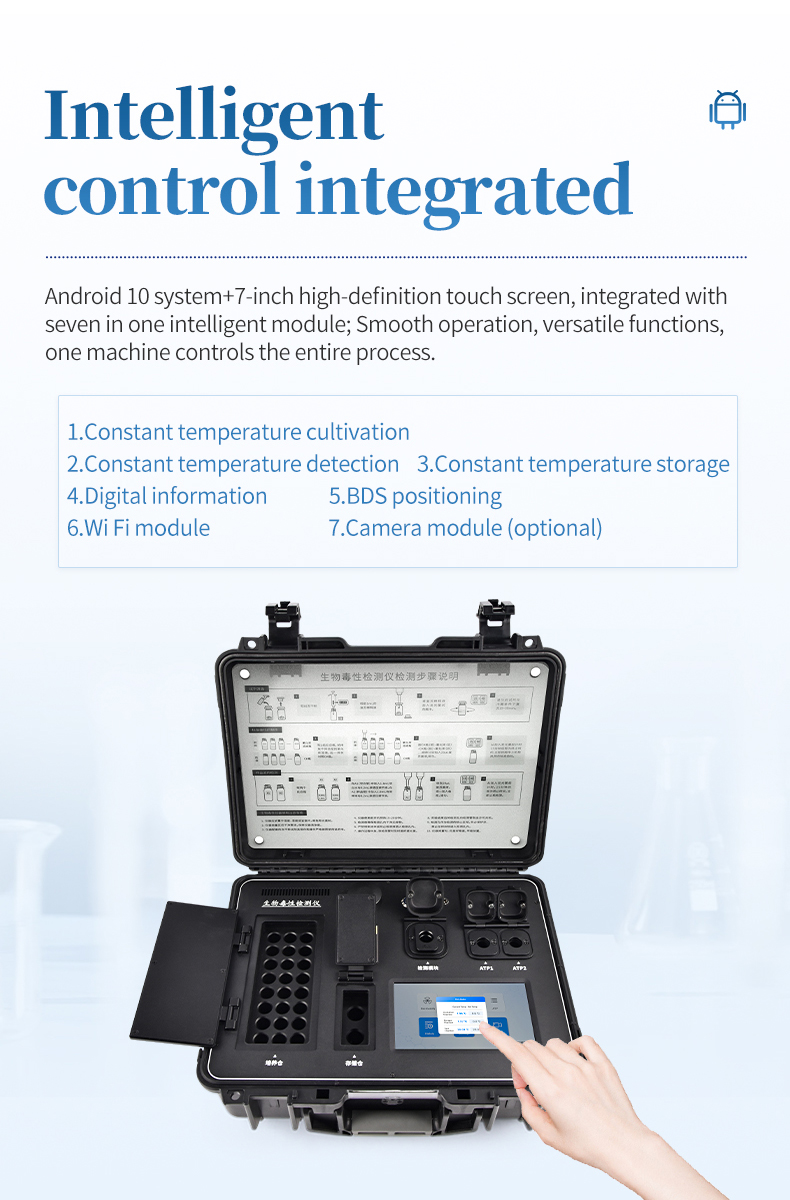

1. Android 10 operating system with 7-inch color touchscreen for integrated instrument control

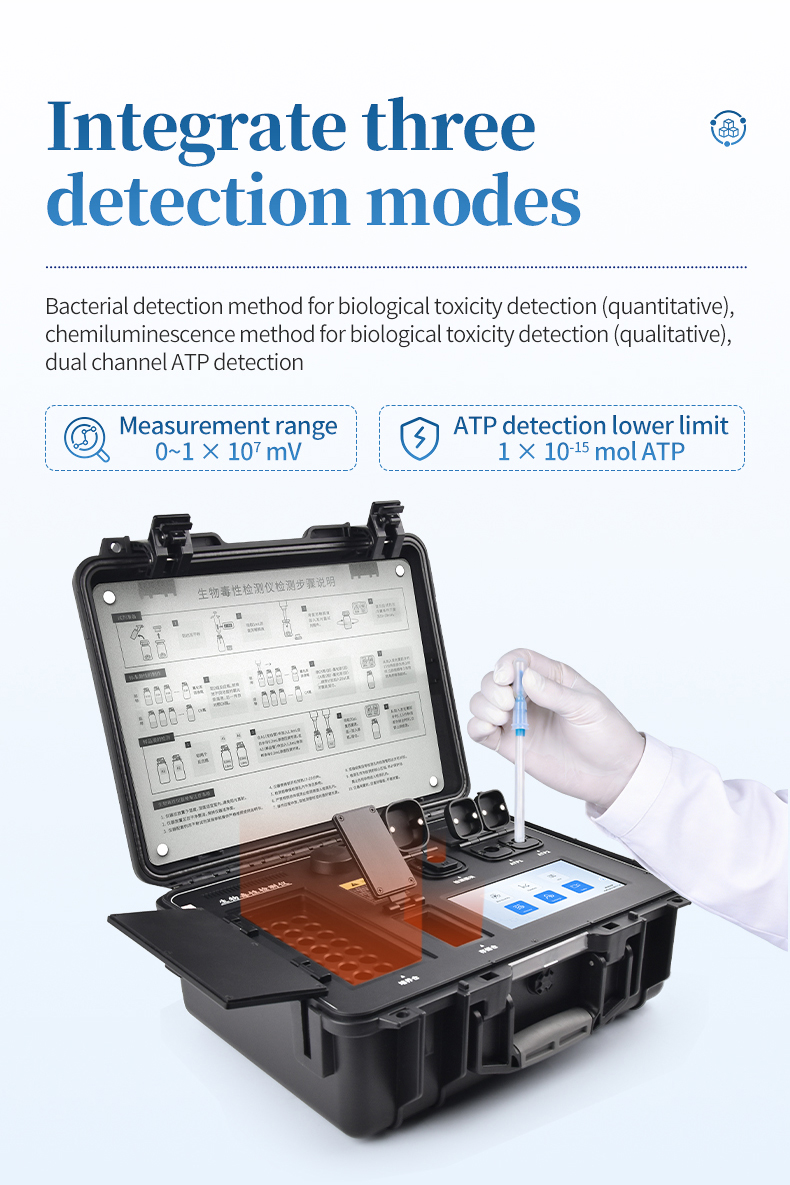

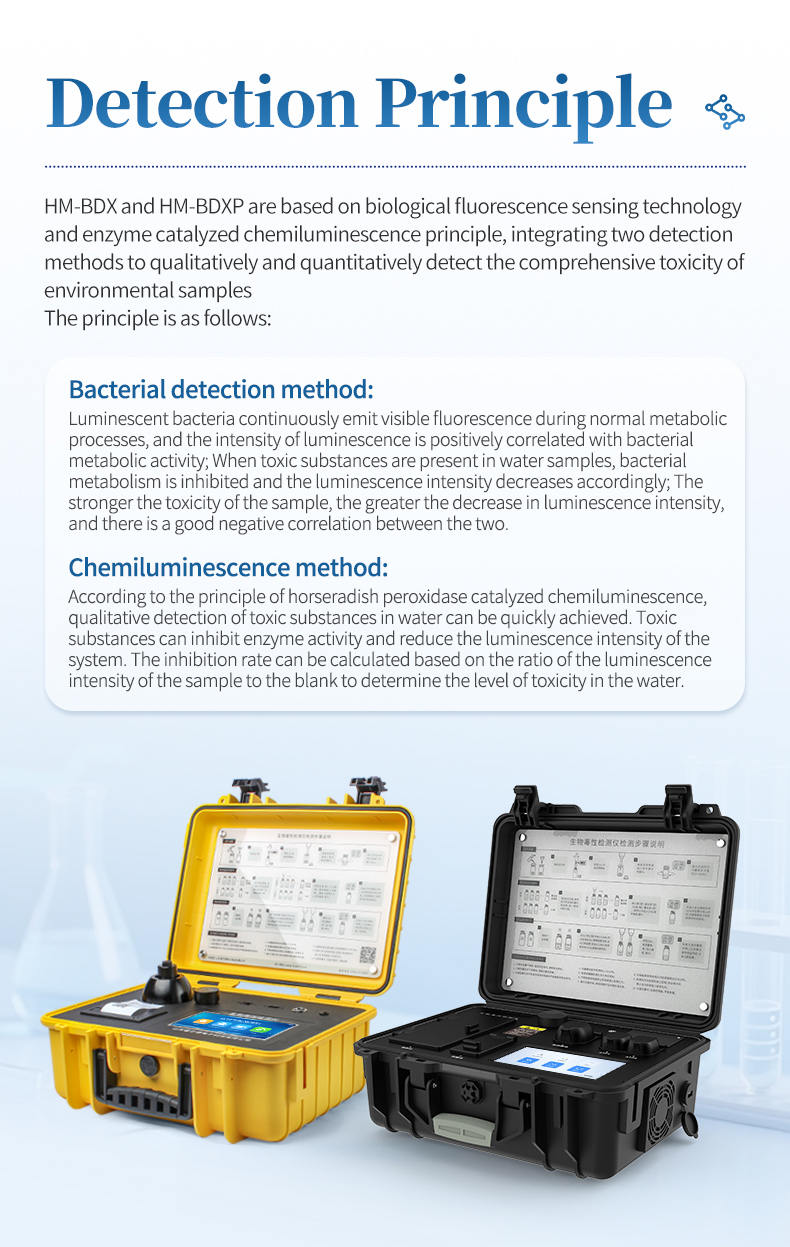

2. Three detection modes: quantitative bioluminescent bacteria, qualitative chemiluminescence, and dual-channel ATP

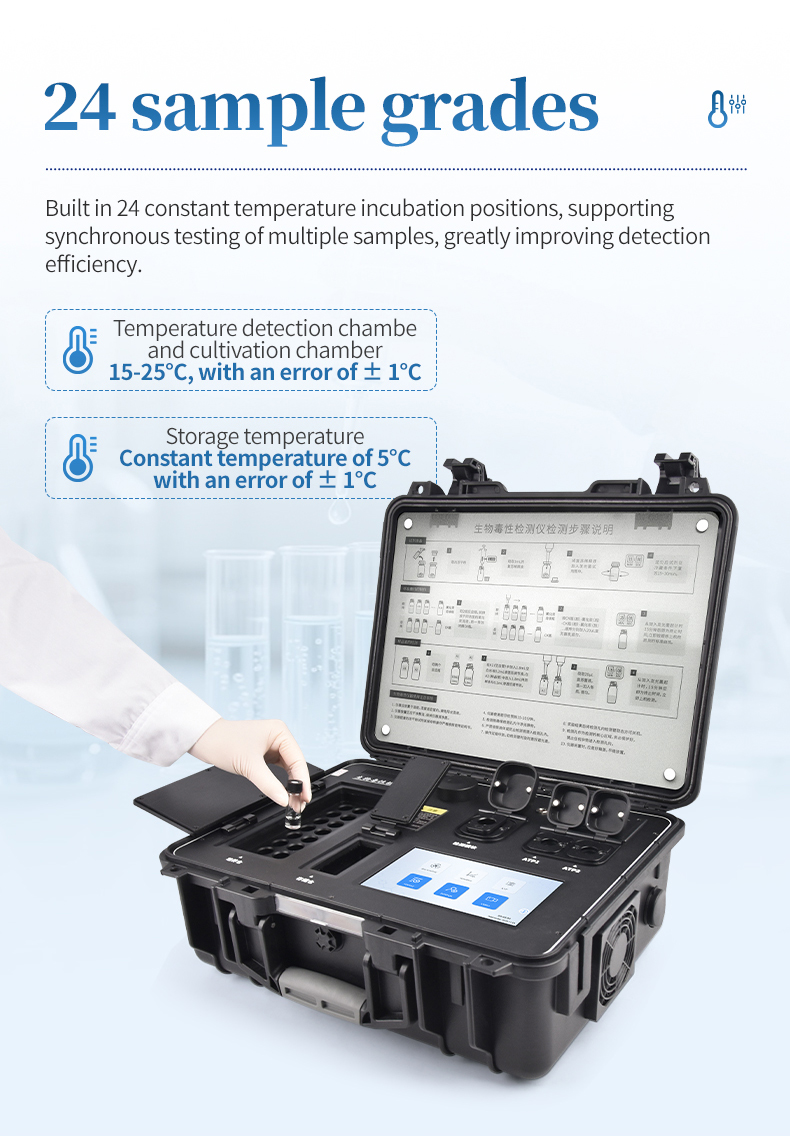

3. 24 constant-temperature incubation positions with temperature range 15~25℃ ±1℃
4. Refrigerated storage compartment maintaining 5℃ ±1℃ for reagent and sample preservation

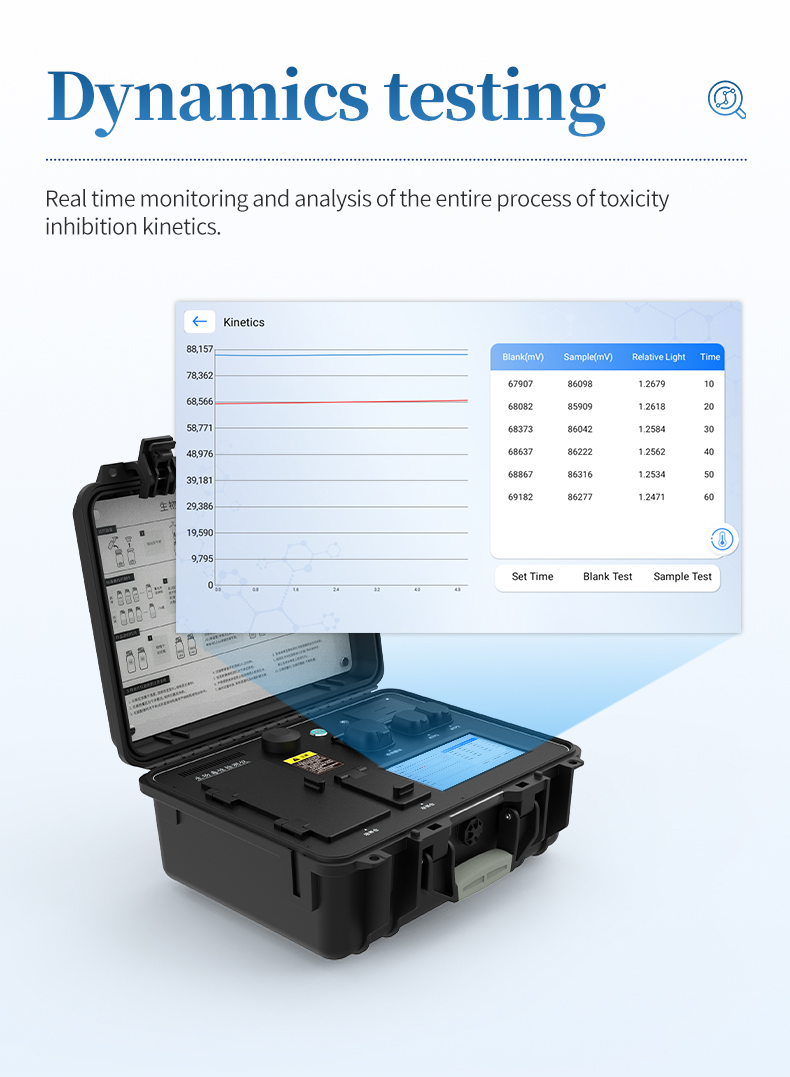

5. Kinetic detection function for time-course toxicity monitoring and reaction curve analysis
6. Precision: RSD ≤5% for reliable quantitative measurement reproducibility
7. ATP detection limit: 1×10⁻¹⁵ mol ATP for trace-level biological contamination detection
8. 30,000 test result storage capacity for extended monitoring campaigns
9. 30000mAh lithium battery for multi-day continuous field and laboratory operation
10. Auto-elevating detection dark chamber with silicon photomultiplier detector
11. Multi-format result output: quantitative (mg/L), qualitative (5-level), inhibition rate (%)

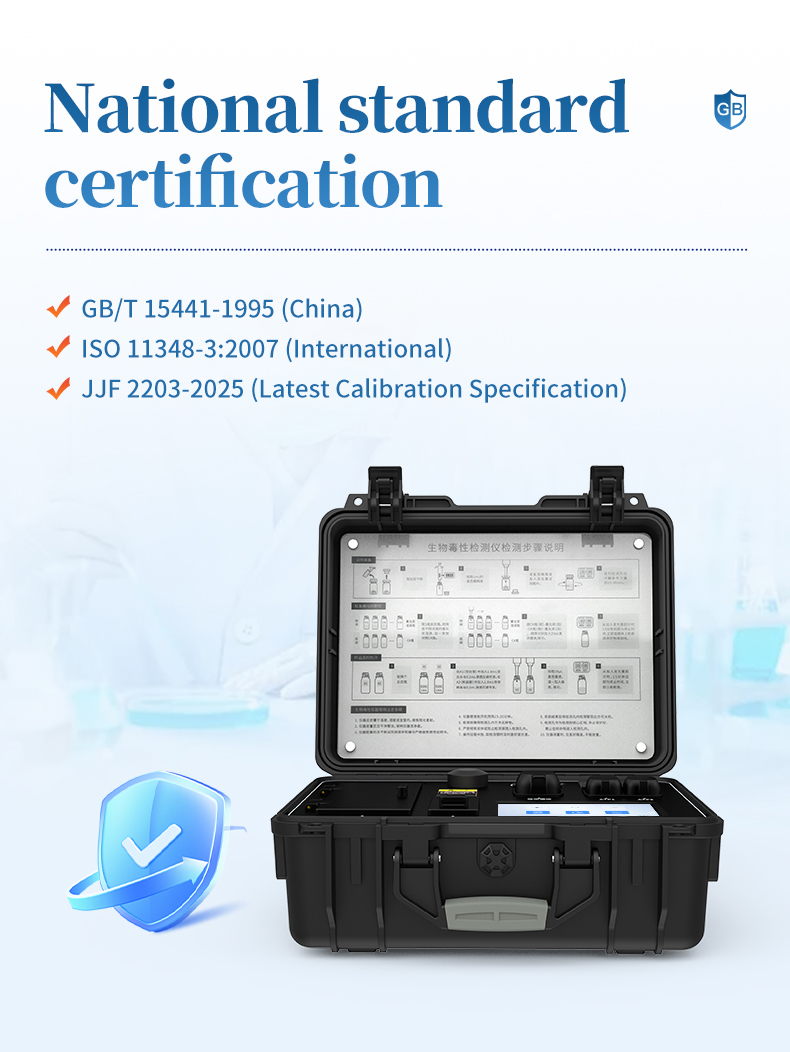

12. Compliance with GB/T 15441-1995, ISO 11348-3, and JJF 2203-2025 standards

Main Parameters

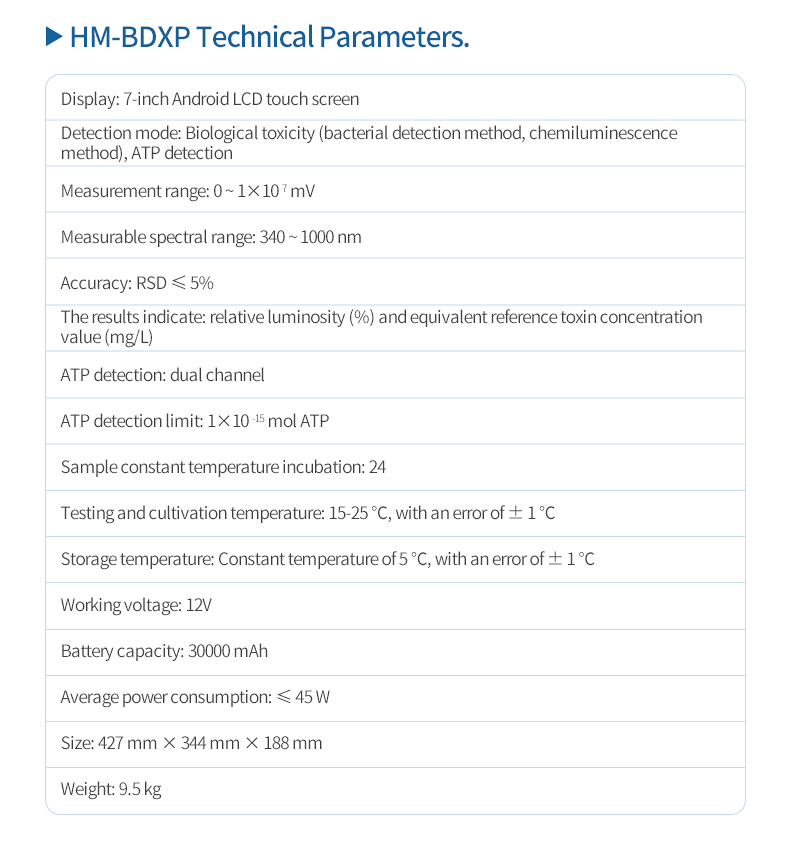

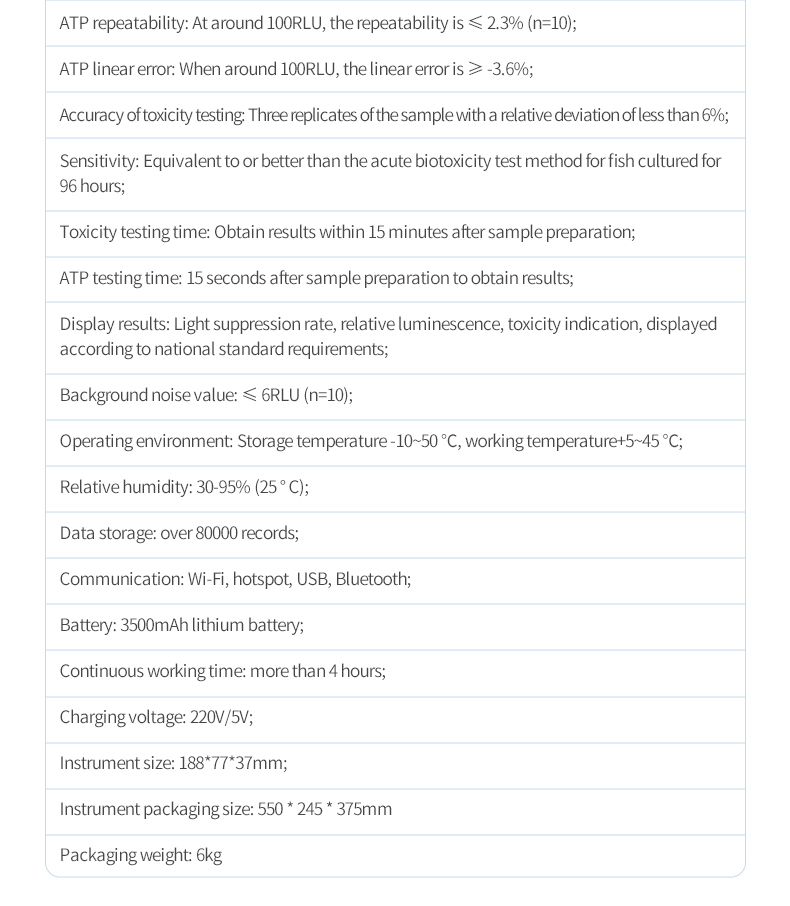

Technical Parameters

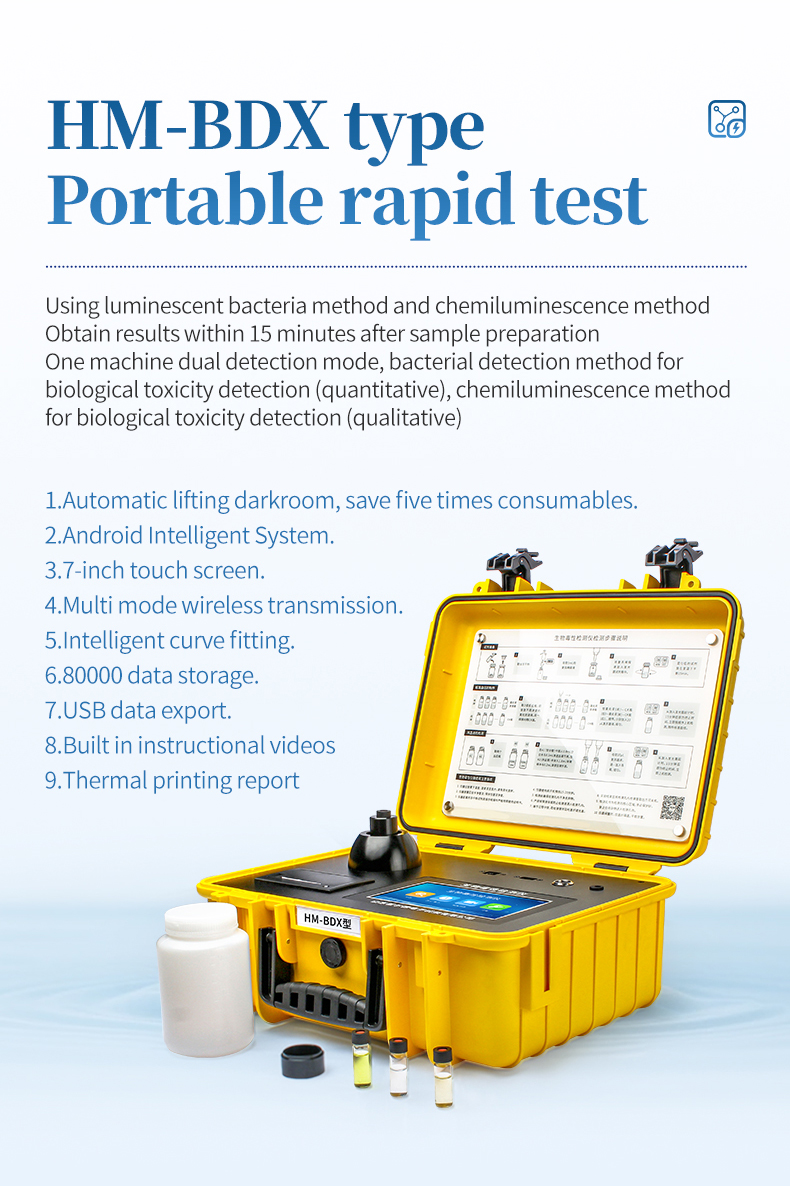

• Previous: HM-BDX Portable Biological Toxicity Analyzer
