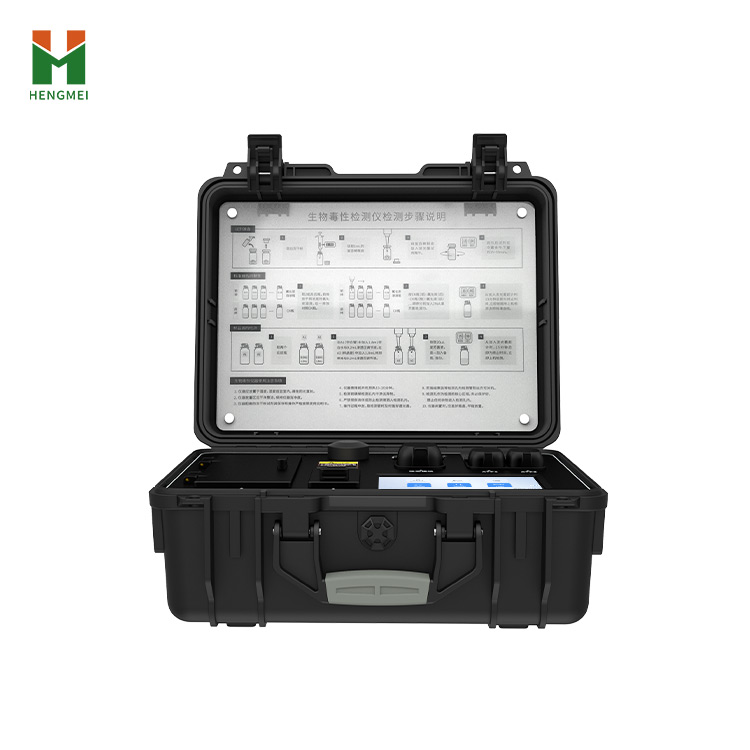

HM-BDXP Biological Toxicity Analyzer National Standard Edition

Product Introduction

The HM-BDXP represents the most advanced configuration in HM Instruments' biological toxicity detection product line — a laboratory-grade portable analyzer designed for research institutions, regulatory reference laboratories, and high-throughput monitoring facilities requiring the highest level of analytical capability and metrological compliance.

Distinguished from standard portable analyzers by its 24-position automatic incubation carousel, the HM-BDXP enables simultaneous multi-sample processing with individual temperature control at each position. This batch processing capability increases laboratory throughput by 300-400% compared to single-sample instruments, while maintaining measurement consistency through elimination of inter-sample timing variations.

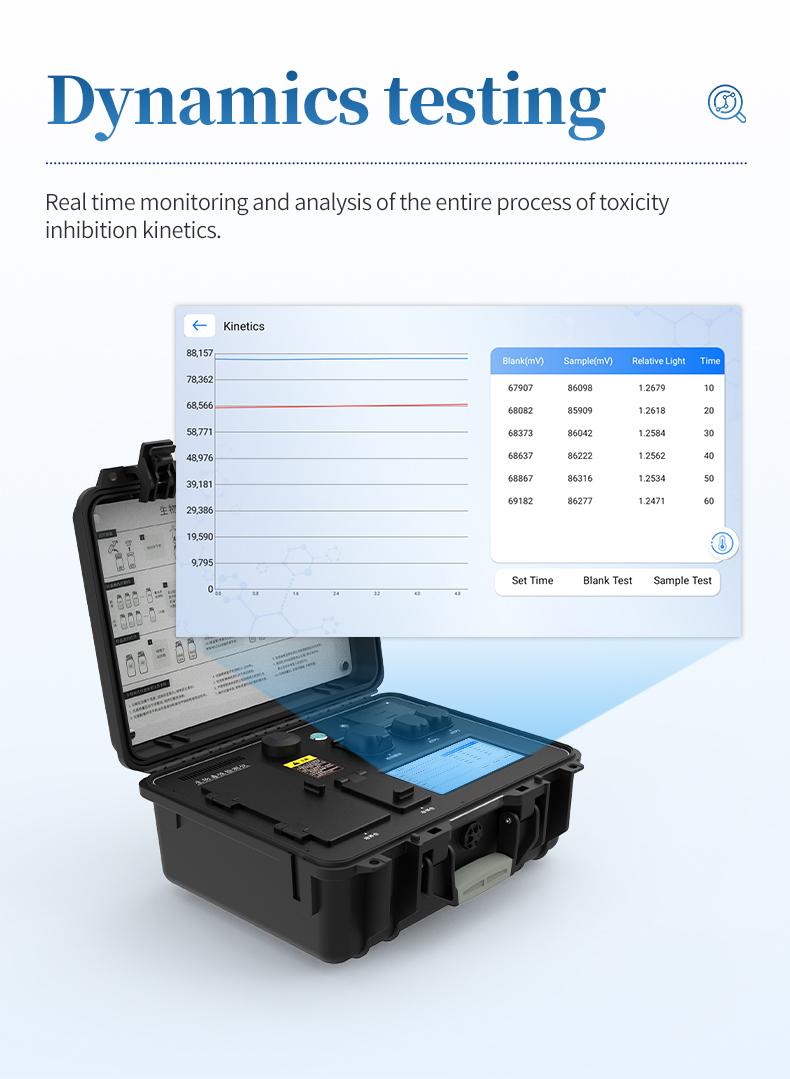

The kinetic toxicity curve analysis function — unique to the HM-BDXP within this product family — measures luminescence inhibition at multiple programmed time points, generating complete toxicity onset and recovery profiles. This capability is essential for research applications investigating contaminant interaction dynamics, treatment process optimization, and regulatory method development.

Applications

• National and provincial water quality reference laboratory standard method analysis

• Research institution toxicity dynamics and contaminant interaction studies

• High-throughput environmental monitoring with batch sample processing

• Regulatory method development and inter-laboratory comparison programs

• Pharmaceutical industry discharge toxicity quantification (regulatory evidence)

• Metrological verification services for lower-tier instruments

• Forensic environmental evidence collection requiring legal-grade data

• Treatment technology evaluation and process optimization research

Functional Performance

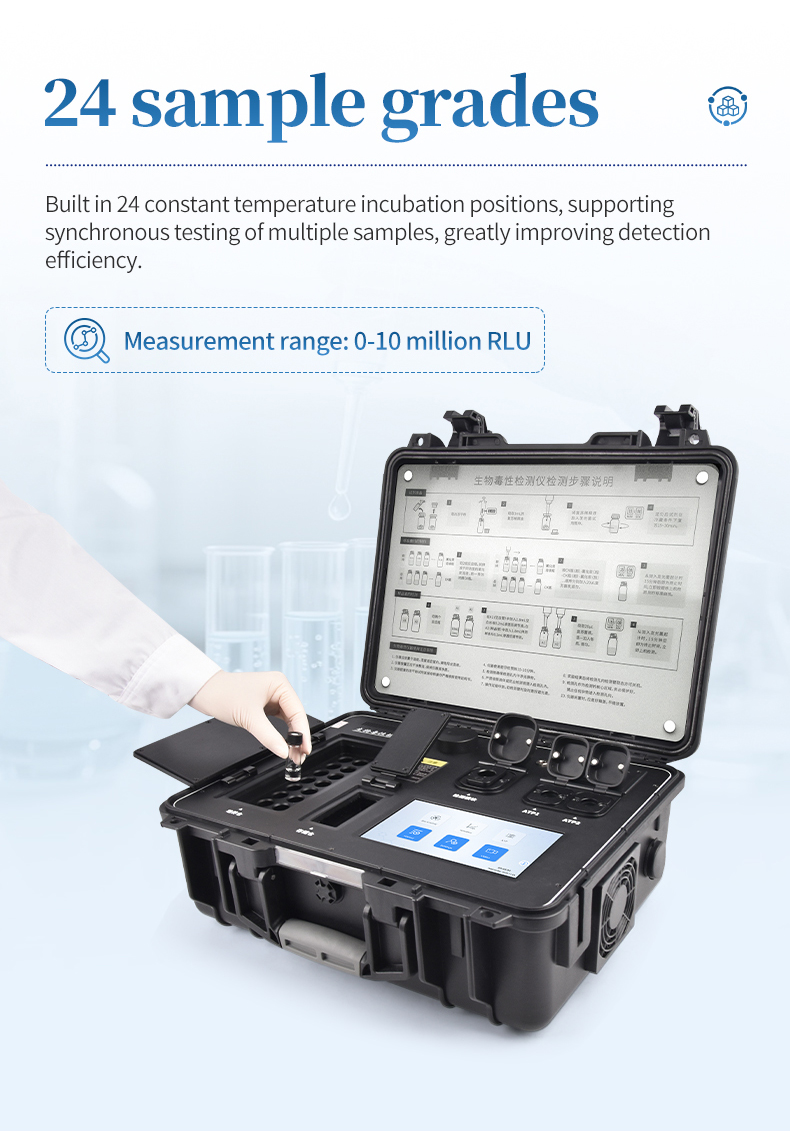

1. 24-position automatic incubation carousel with individual temperature monitoring enables batch processing of 24 simultaneous samples

2. Kinetic toxicity curve analysis: multi-time-point luminescence measurement with automated dose-response curve generation

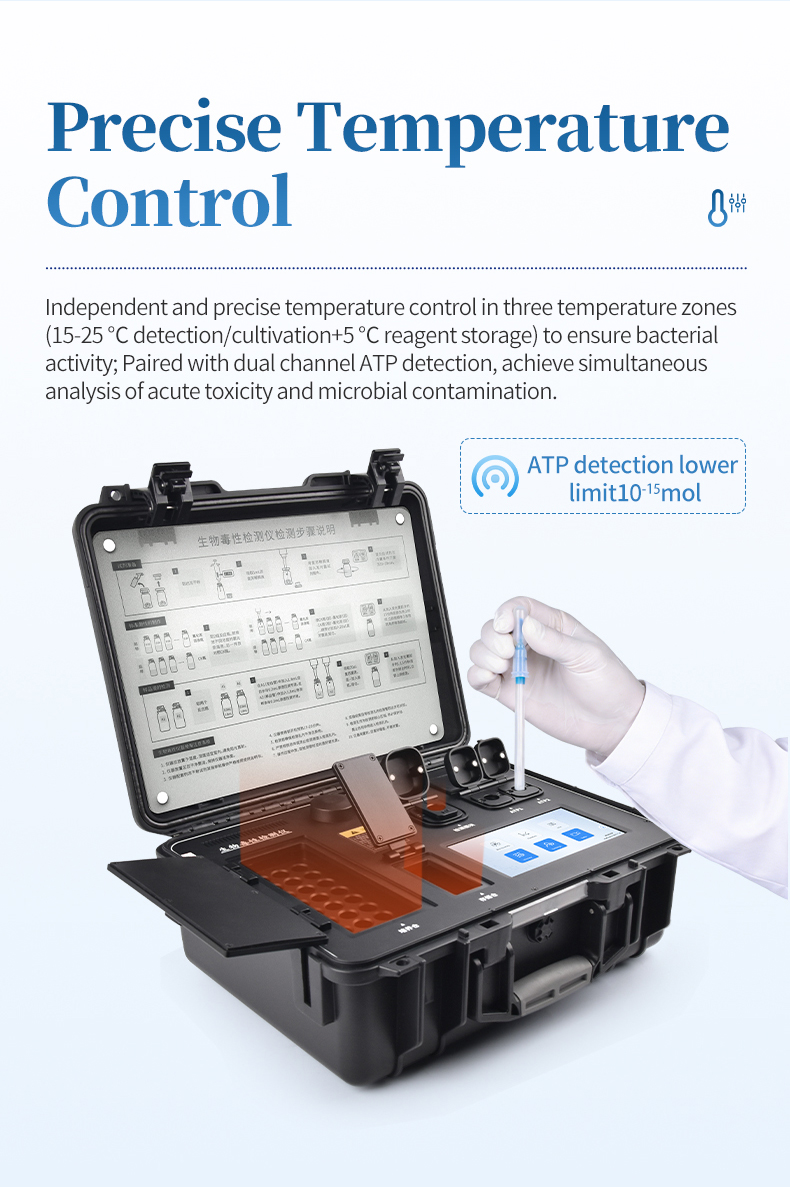

3. Integrated cold storage compartment (5°C) maintains freeze-dried bacteria reagent viability during extended experimental sessions

4. Dual-channel ATP detection with sensitivity reaching 10⁻¹⁵ mol for cross-validation of bacterial viability assessment

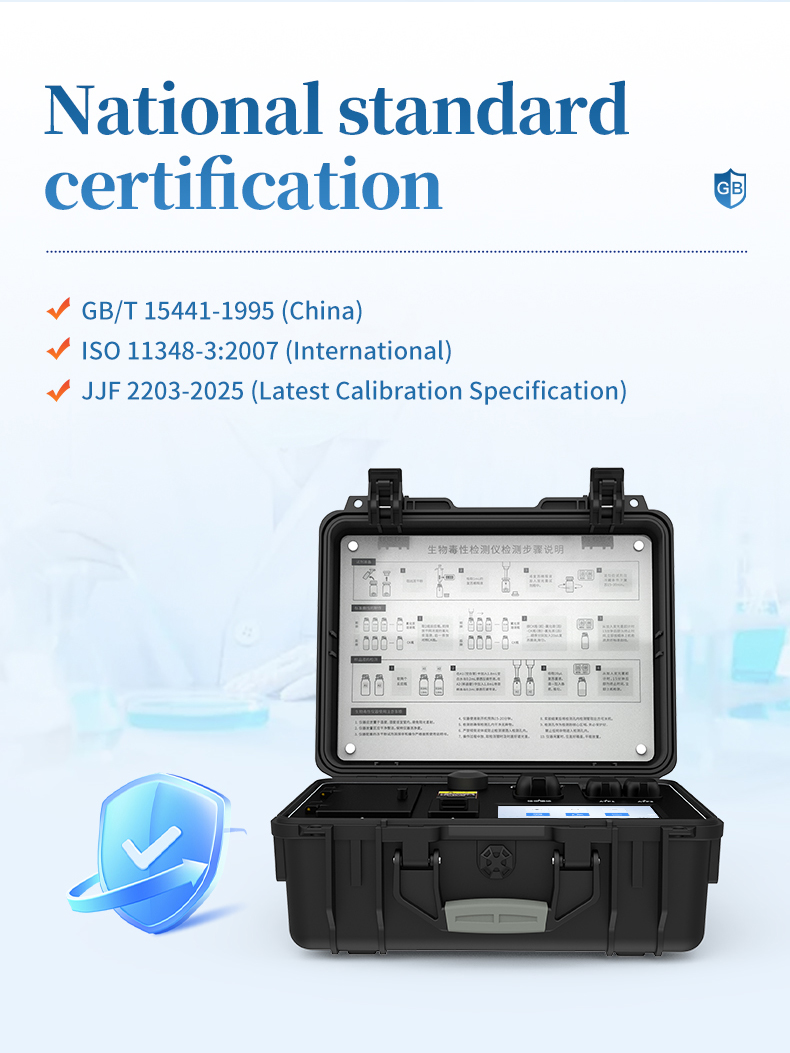

5. Full metrological compliance: GB/T15441-1995, ISO 11348-3, and JJF2203-2025 calibration specification

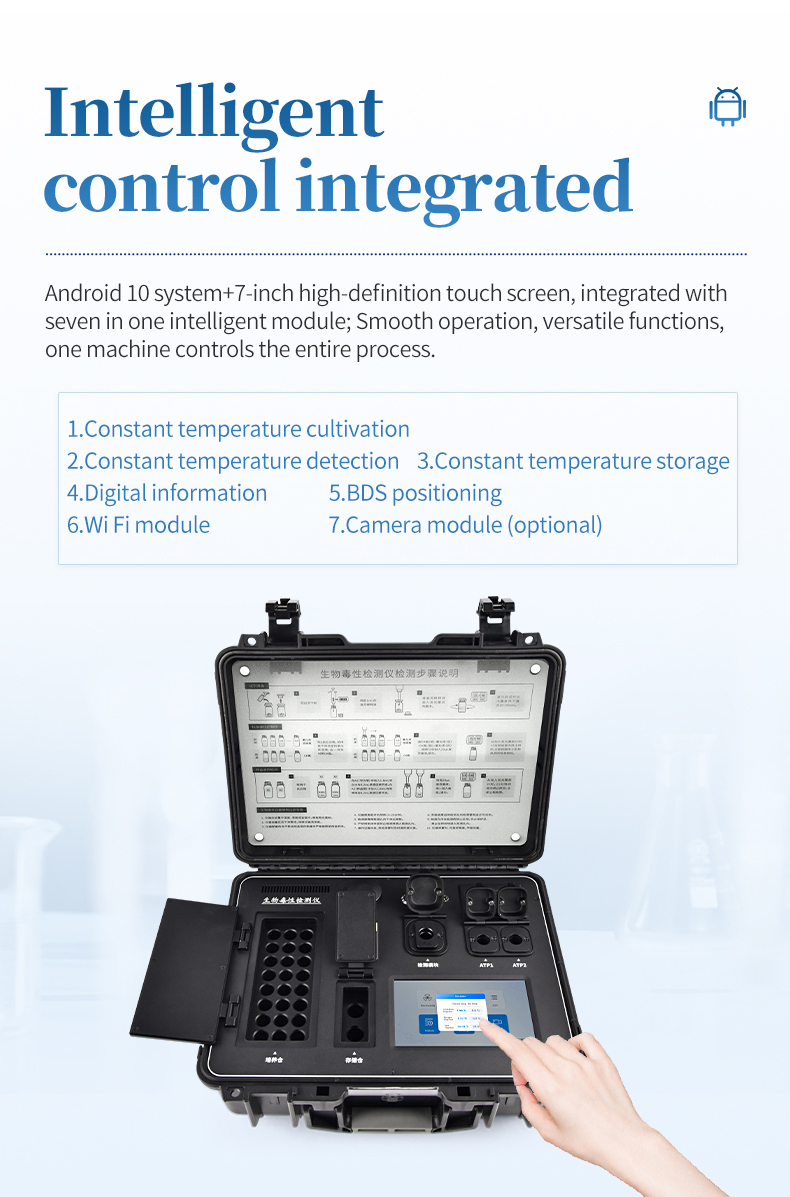

6. 7-inch HD touchscreen running Android 10 OS enabling custom experimental protocol programming

7. 30000mAh battery capacity supporting 12+ hours of continuous operation including thermal management systems

8. 50,000 measurement record storage with comprehensive audit trail and automated certificate generation

9. Multi-connectivity: 4G / WiFi / RJ45 Ethernet / USB for flexible data integration with laboratory LIMS

10. Automated complete measurement workflow from dark calibration through incubation to result calculation

11. Publication-grade data reproducibility (CV <5% across triplicate measurements)

12. Portable design (427×344×188mm) retaining field deployment capability despite full laboratory functionality

Main Parameters

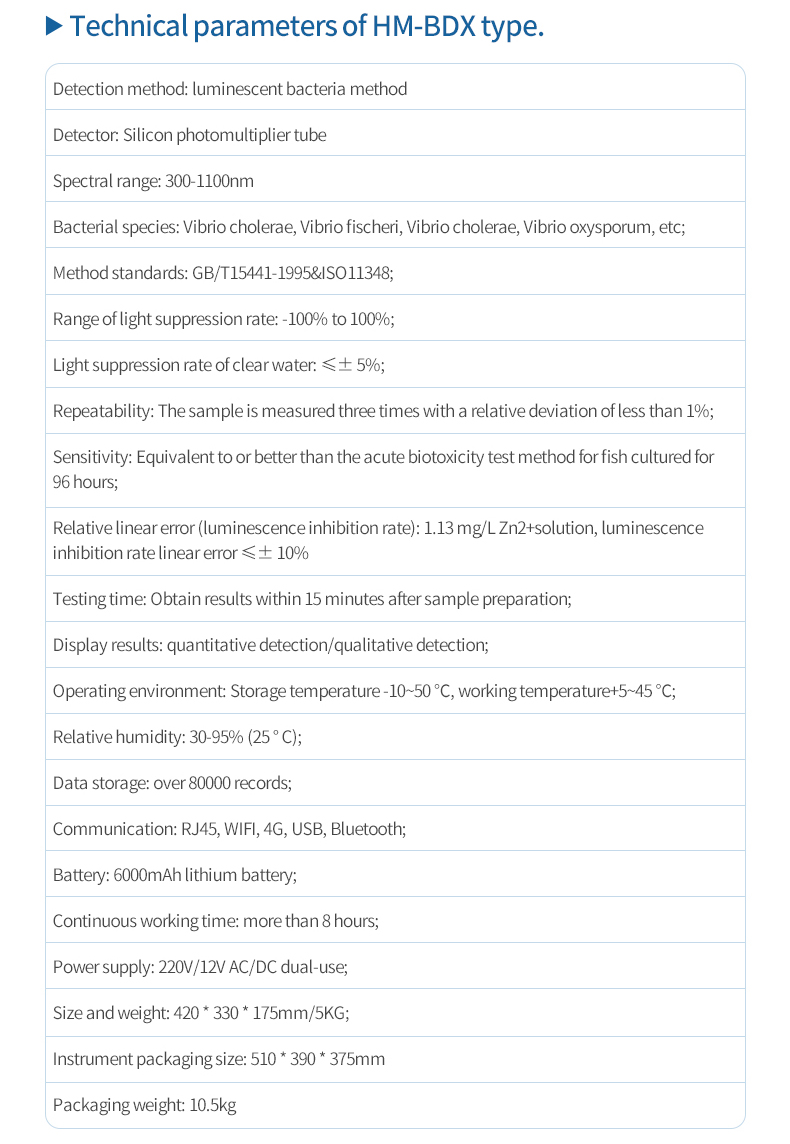

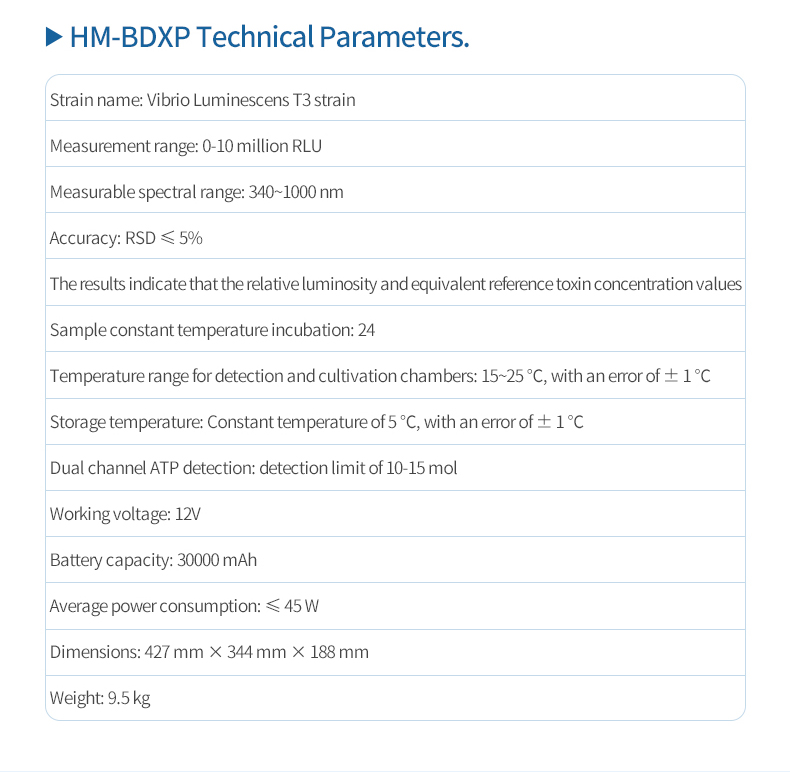

Technical Parameters

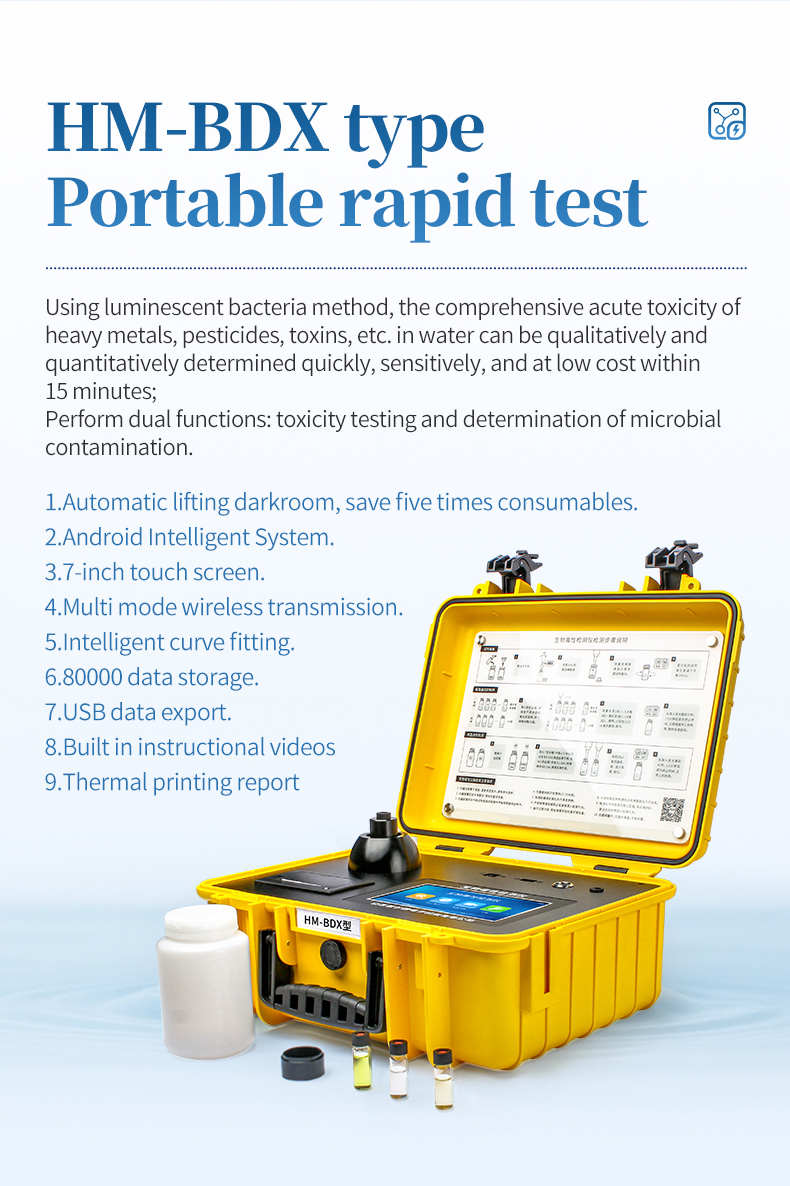

• Previous: HM-BDX Biological Toxicity Analyzer
