Ultra trace spectrophotometer

Product Number：

HM-CWF2

Product Difference：

Ultra trace nucleic acid protein detection (dual wavelength), OD600 bacterial solution detection, fluorescent nucleic acid detection

17853698681 Consultation icon

Product Details

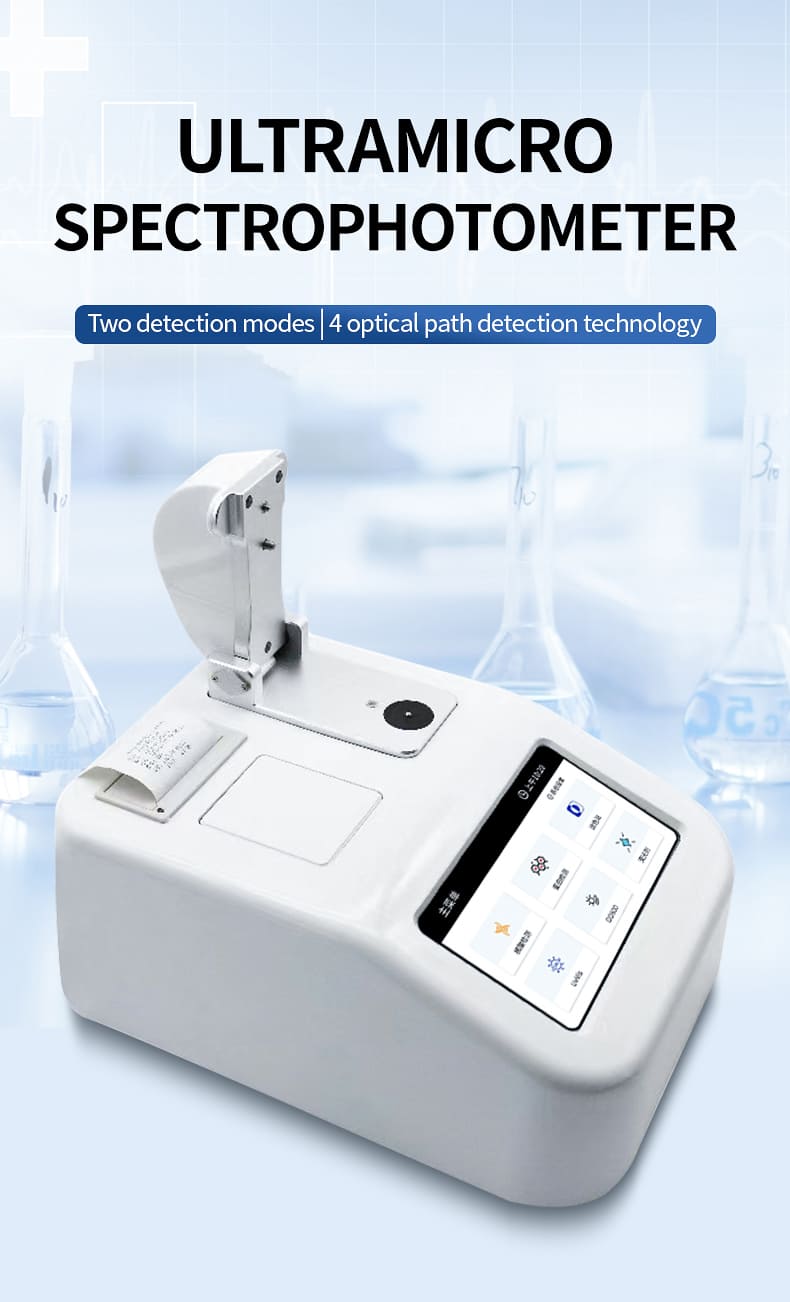

HM-CWF2 ultra micro spectrophotometer

1. ※ Adopting LED cold light source, stable emission, economical and affordable

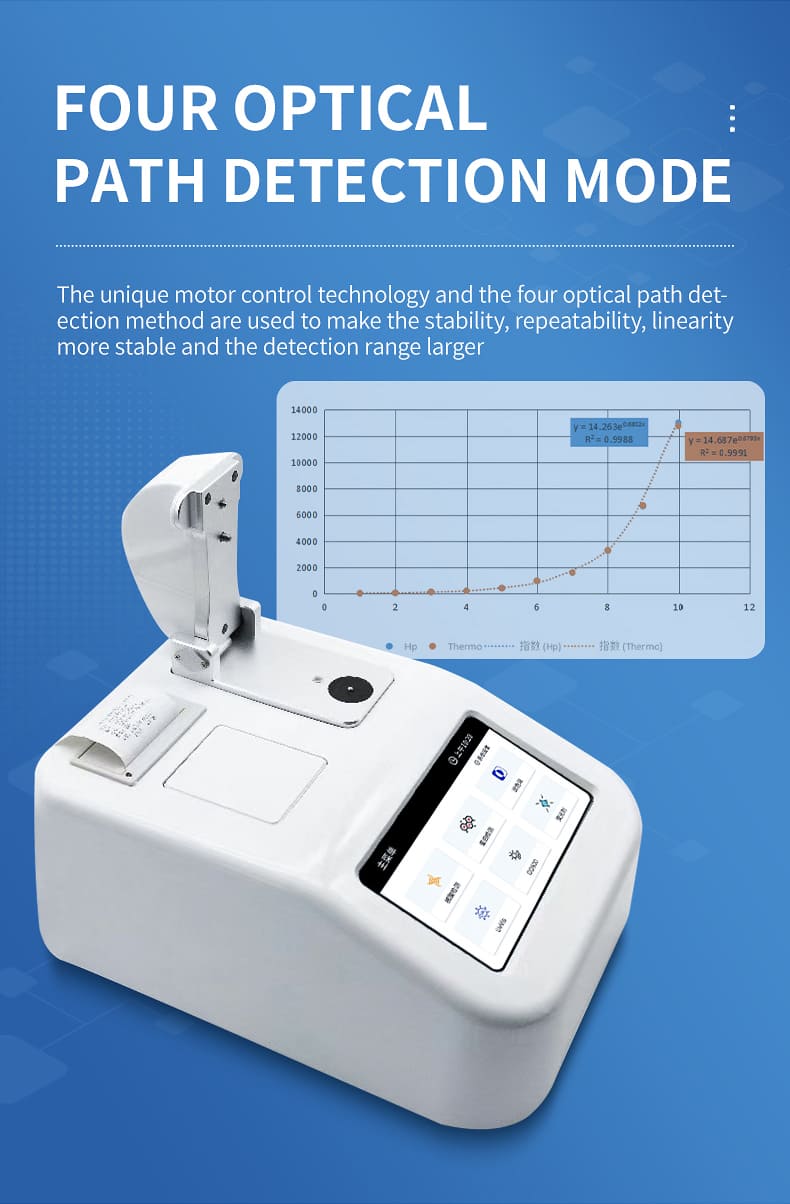

2. Using unique motor control technology and adopting four optical path detection method, stability, repeatability, linearity are more stable, and the detection range is larger

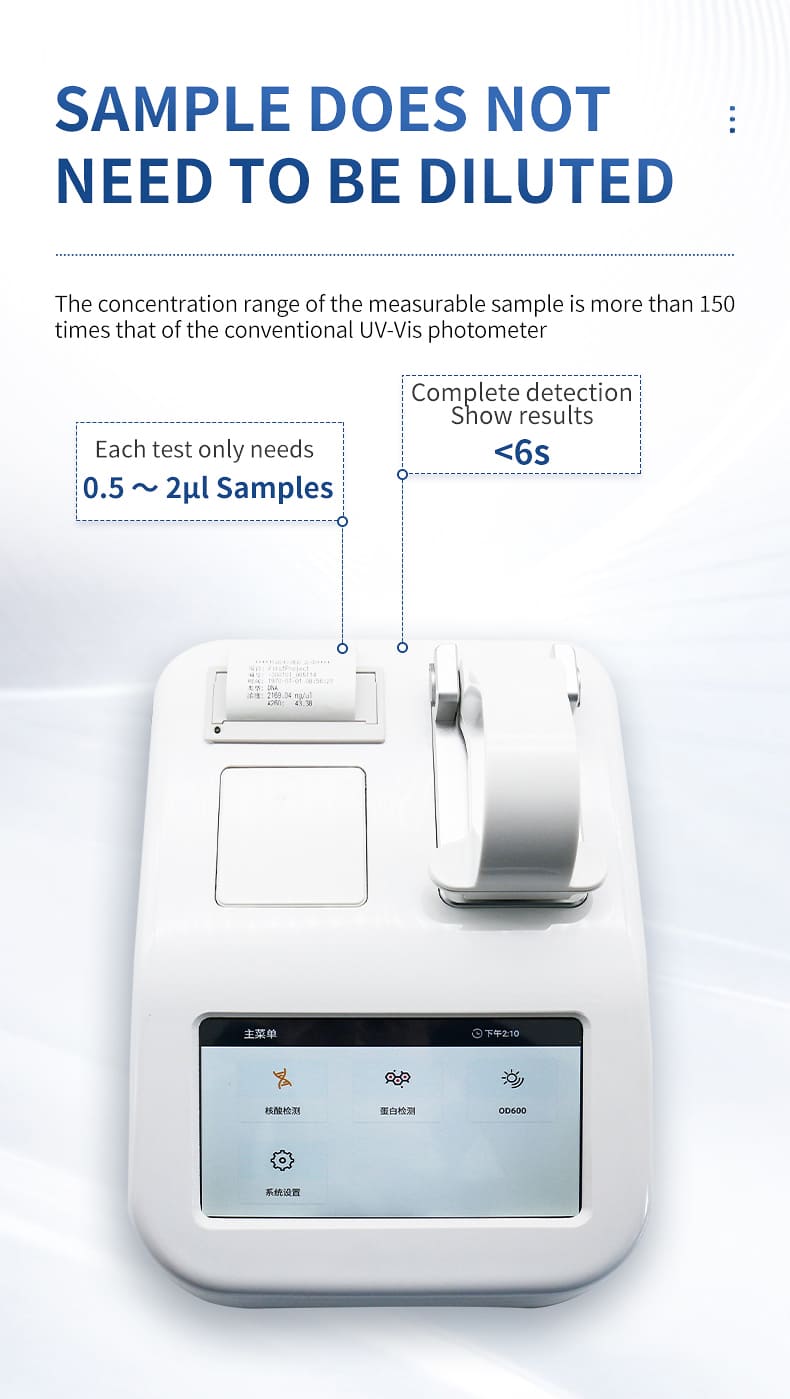

3. The sample does not need to be diluted, and the concentration range of the measurable sample is more than 150 times that of a conventional UV visible spectrophotometer

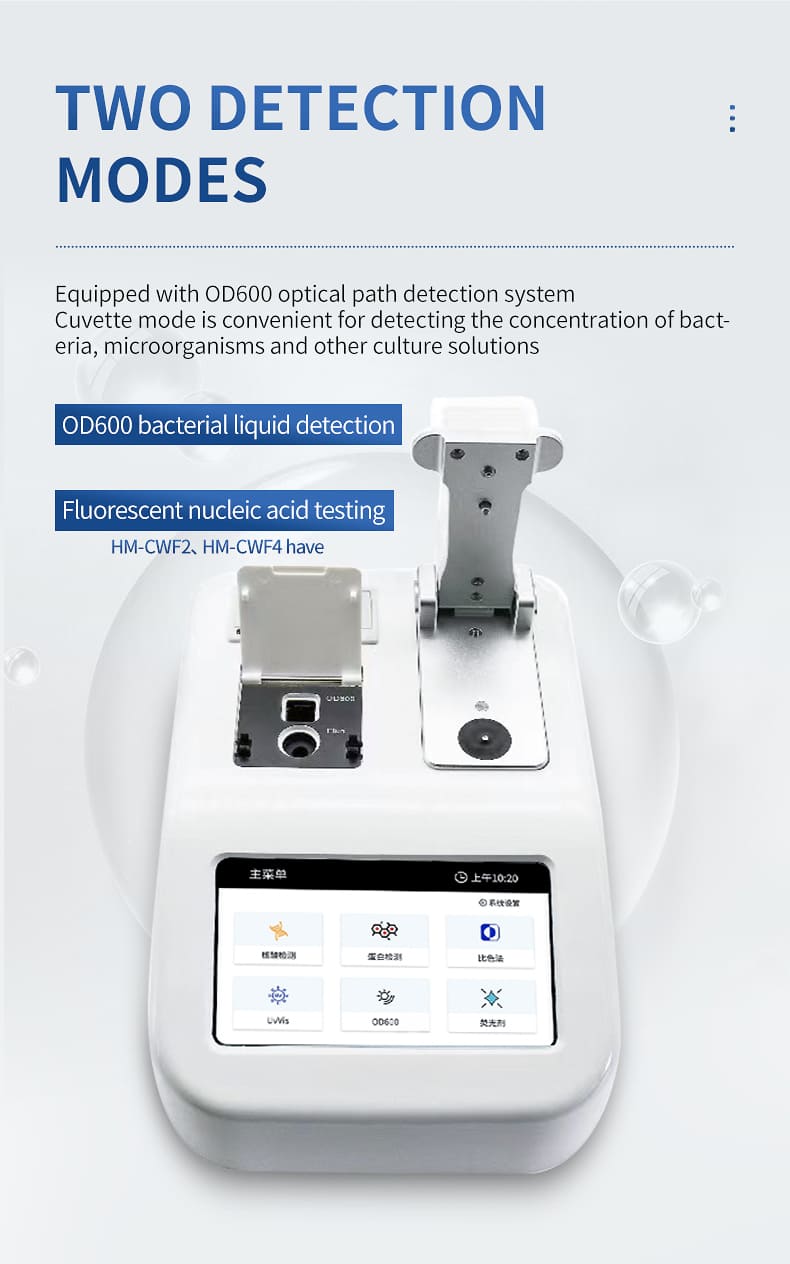

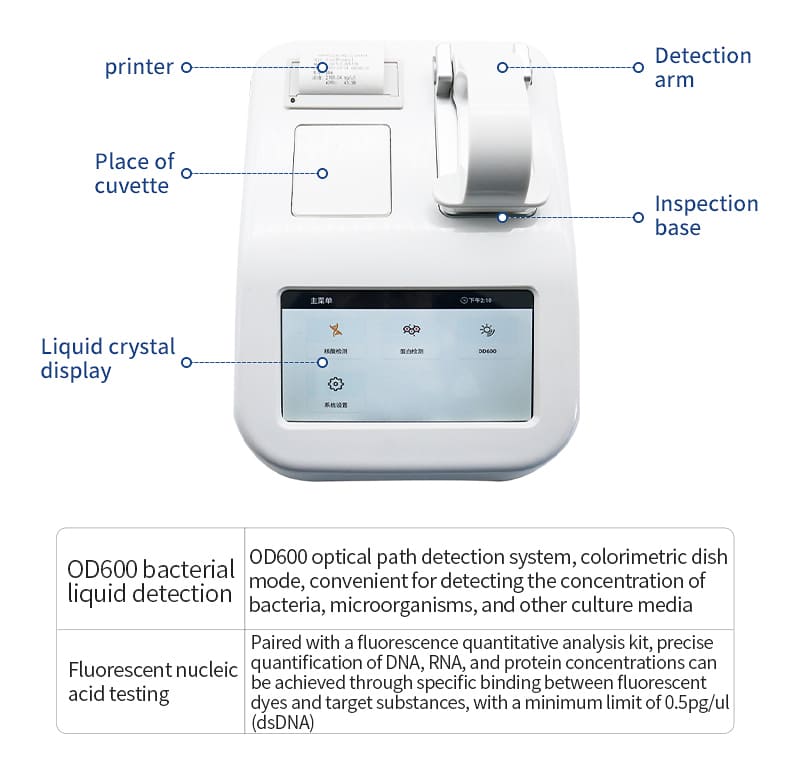

4. Equipped with OD600 optical path detection system, colorimetric dish mode, convenient for detecting the concentration of bacteria, microorganisms, and other culture media

5. Fluorescence detection, combined with a fluorescence quantitative analysis kit, quantifies DNA, RNA, and protein concentrations through specific binding between fluorescent dyes and target substances, with a low limit of up to 0.5pg/ul (dsDNA)

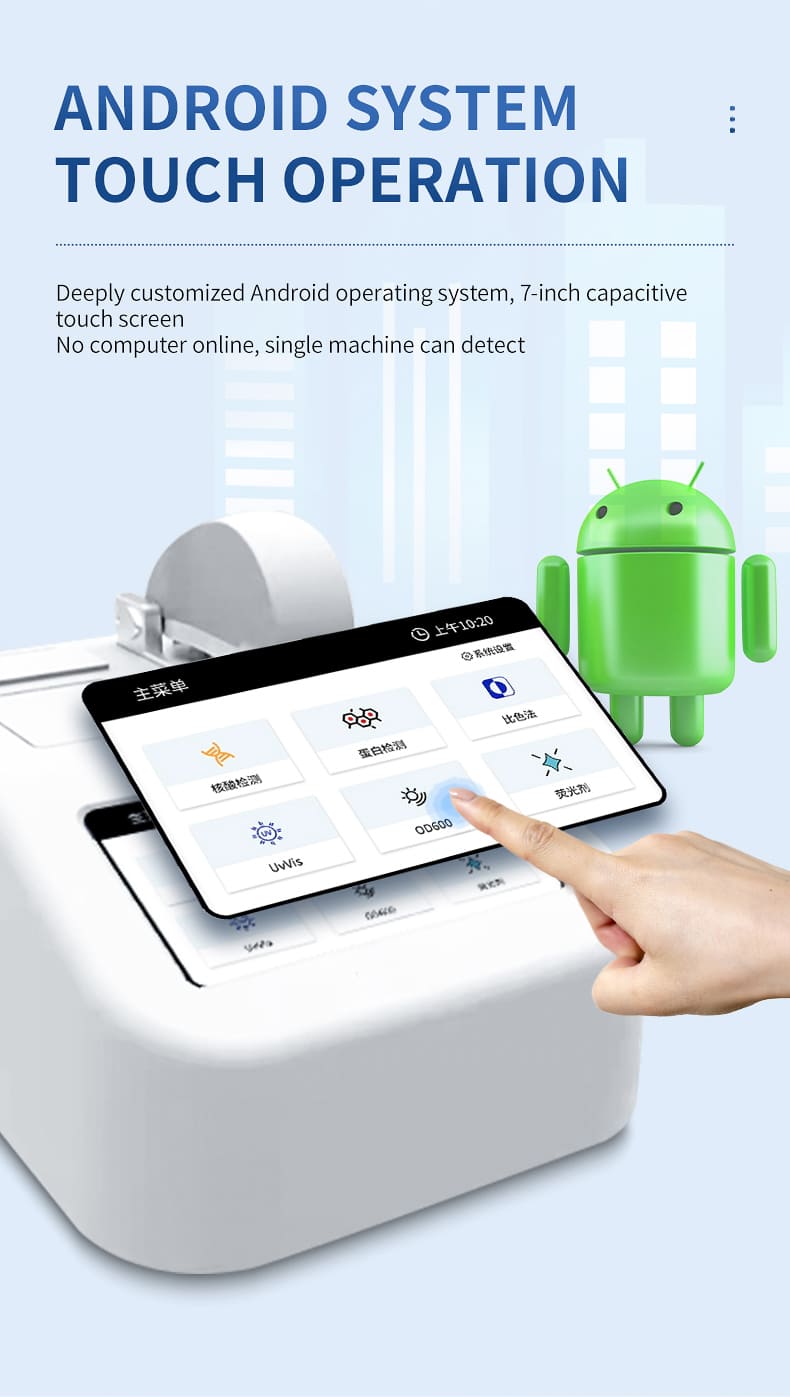

6. Deeply customized Android operating system, 7-inch capacitive touch screen, no need for computer connection, can be detected on a single machine

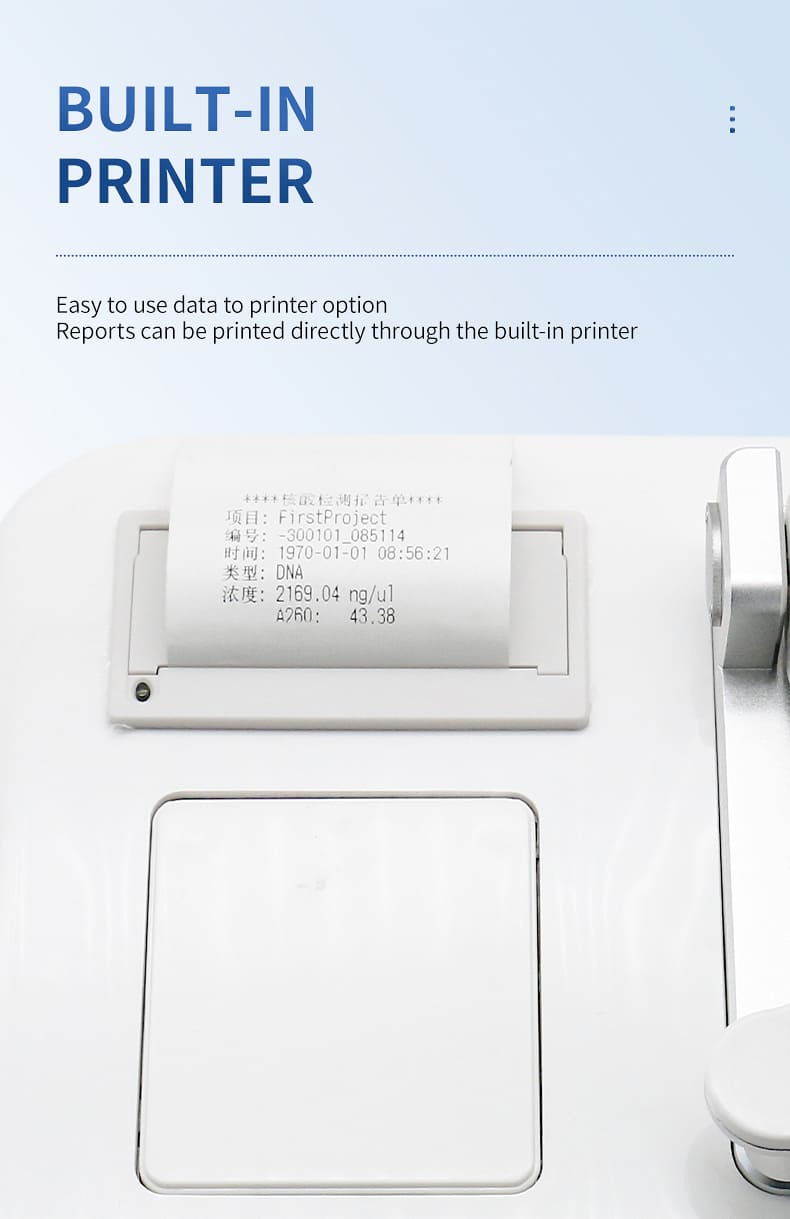

7. ※ With a simple and easy-to-use data to printer option, you can directly print reports through the built-in printer

8. Adopting image and table storage formats, the table is compatible with Excel, facilitating subsequent data processing, and supports JPG image export

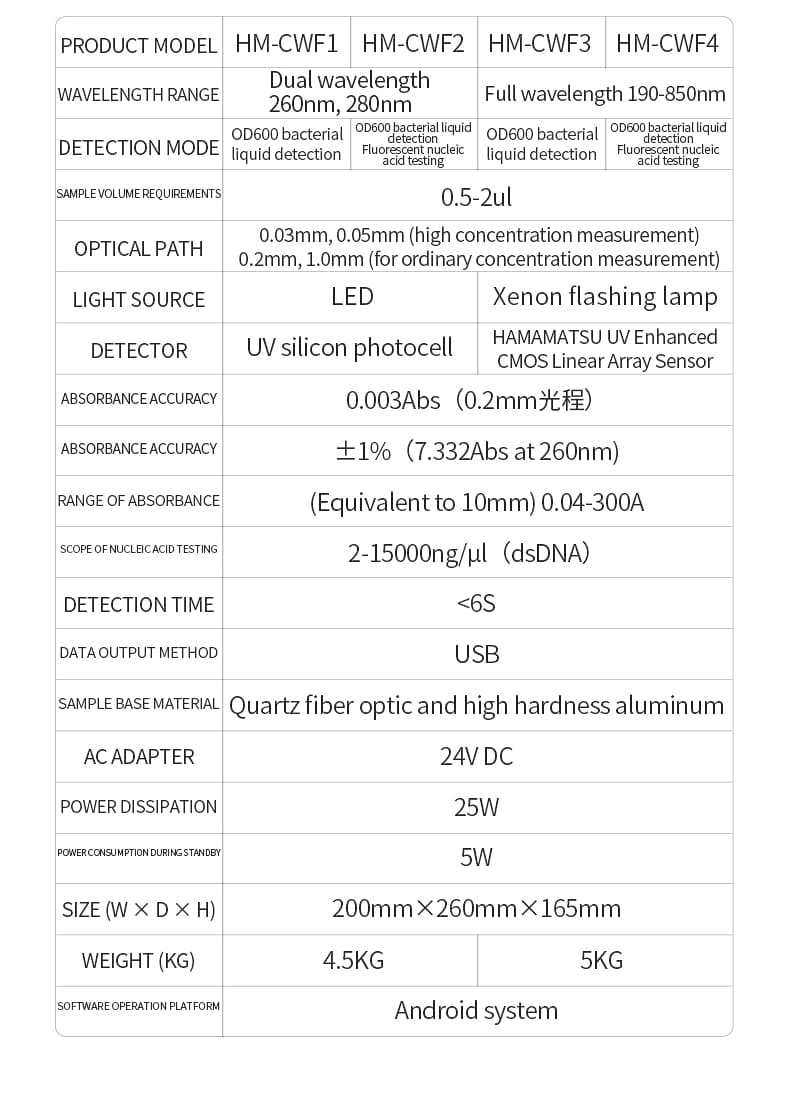

9. Wavelength range 260nm, 280nm

10. Sample volume requirement: 0.5-2ul

11. ※ Optical path 0.03mm, 0.05mm (high concentration measurement) 0.2mm, 1.0mm (normal concentration measurement)

12. Light source LED

13. Detector UV Silicon Photocell

14. absorbance * * degree 0.003Abs (0.2mm optical path)

15. Accuracy of absorbance ± 1% (7.332Abs at 260nm)

16. Absorbance range (equivalent to 10mm) 0.04-300A

17. Nucleic acid testing range 2-15000ng/ μ L (dsDNA)

18. Detection time<6S

19. Data output method USB

20. Sample base material: quartz optical fiber and high hardness aluminum
