Fully automatic Soxhlet extractor

Product Overview:

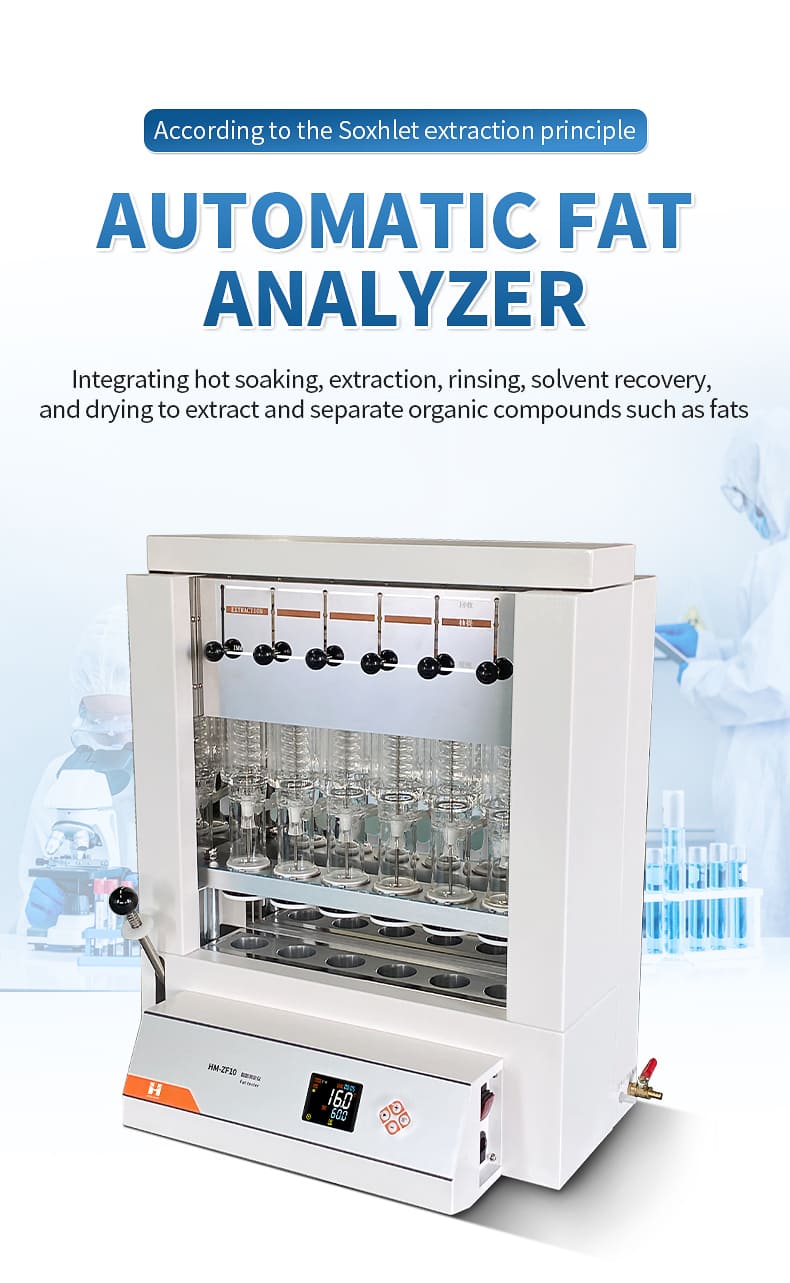

The automatic fat analyzer (Soxhlet extractor) is an instrument that combines hot soaking, extraction, rinsing, solvent recovery, and drying based on the Soxhlet extraction principle to extract and separate organic compounds such as fats. The instrument adopts an automatic temperature control and fully enclosed well electric heating form, which makes the heating of the instrument more uniform, safe and reliable, and has good sealing facilities, thereby achieving fast and accurate results* Reduce solvent usage to a maximum extent, automatically recover solvents, and save analysis costs. It has the advantages of reasonable design, simple operation, high precision, stable performance, good reproducibility, labor-saving, and time-saving.

Product features:

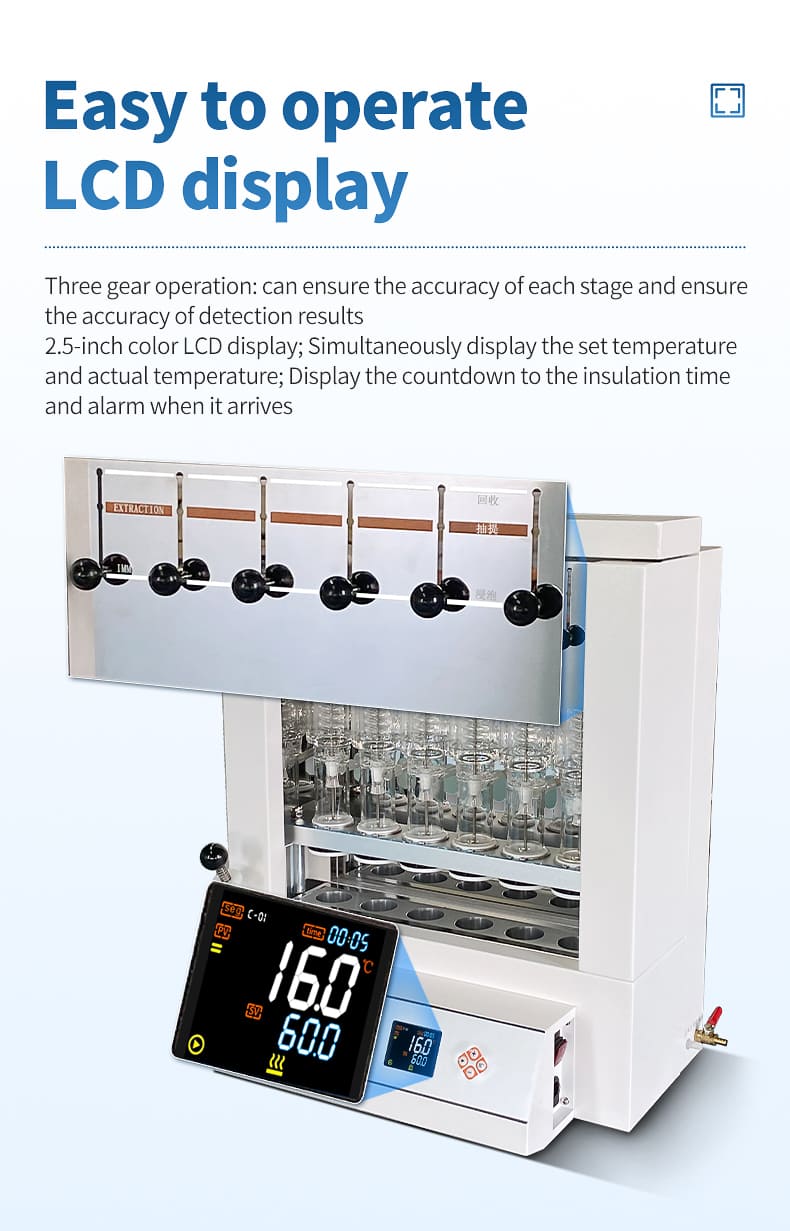

1. Three gear operation: can ensure the accuracy of each stage and ensure the accuracy of detection results

2. ★ 2.5-inch color LCD display; Simultaneously display the set temperature and actual temperature; Display of insulation time countdown, until Time alarm;

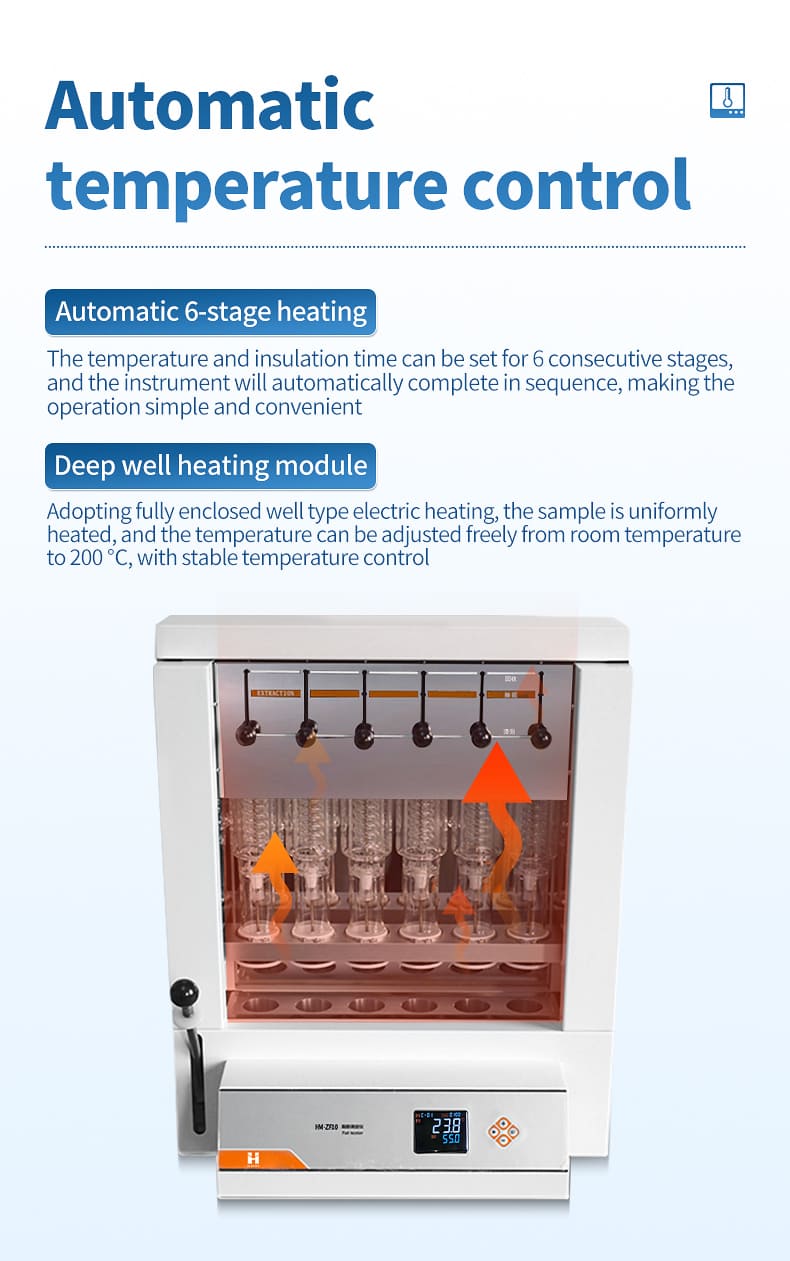

3. ★ Automatic 6-stage heating: The temperature and insulation time for 6 consecutive stages can be set, and the instrument will automatically complete in sequence, making the operation simple and convenient;

4. Deep well heating module: using fully enclosed well electric heating, the sample is uniformly heated, and the temperature can be adjusted freely from room temperature to 200 ℃, ensuring stable temperature control;

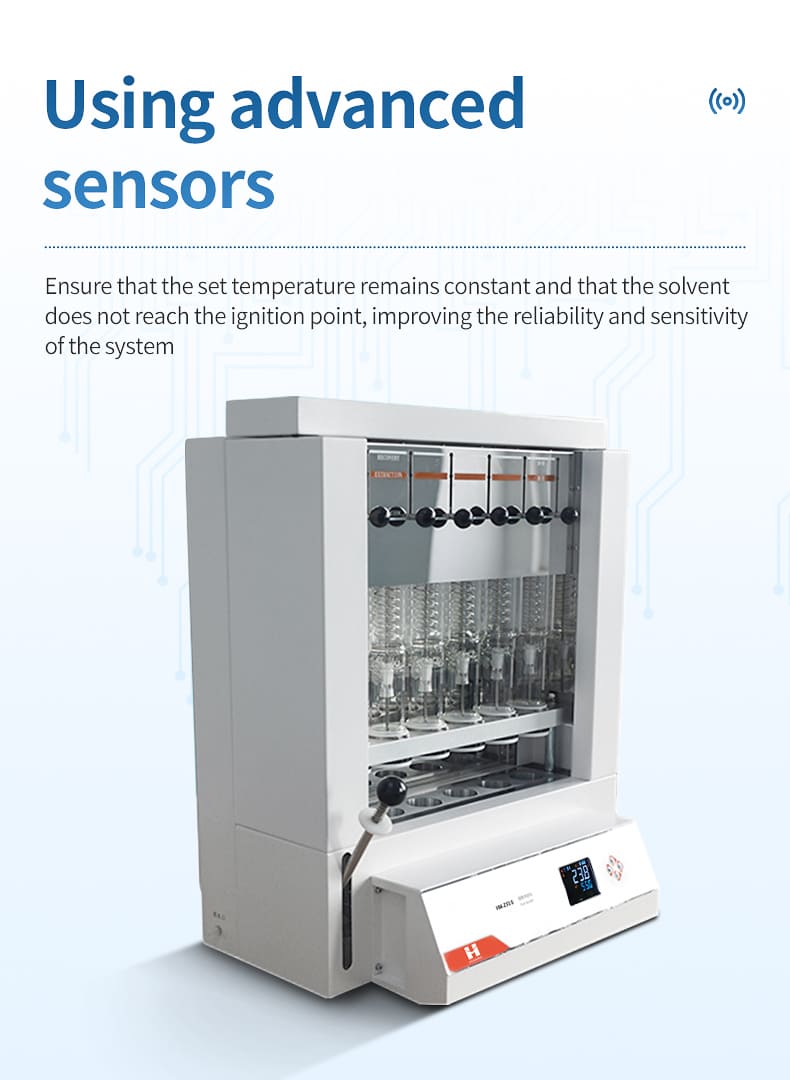

5. ★ Advanced sensors are used to ensure that the set temperature remains unchanged, and the use of solvents will not reach the ignition point, thereby improving the system reliability and sensitivity of the system;

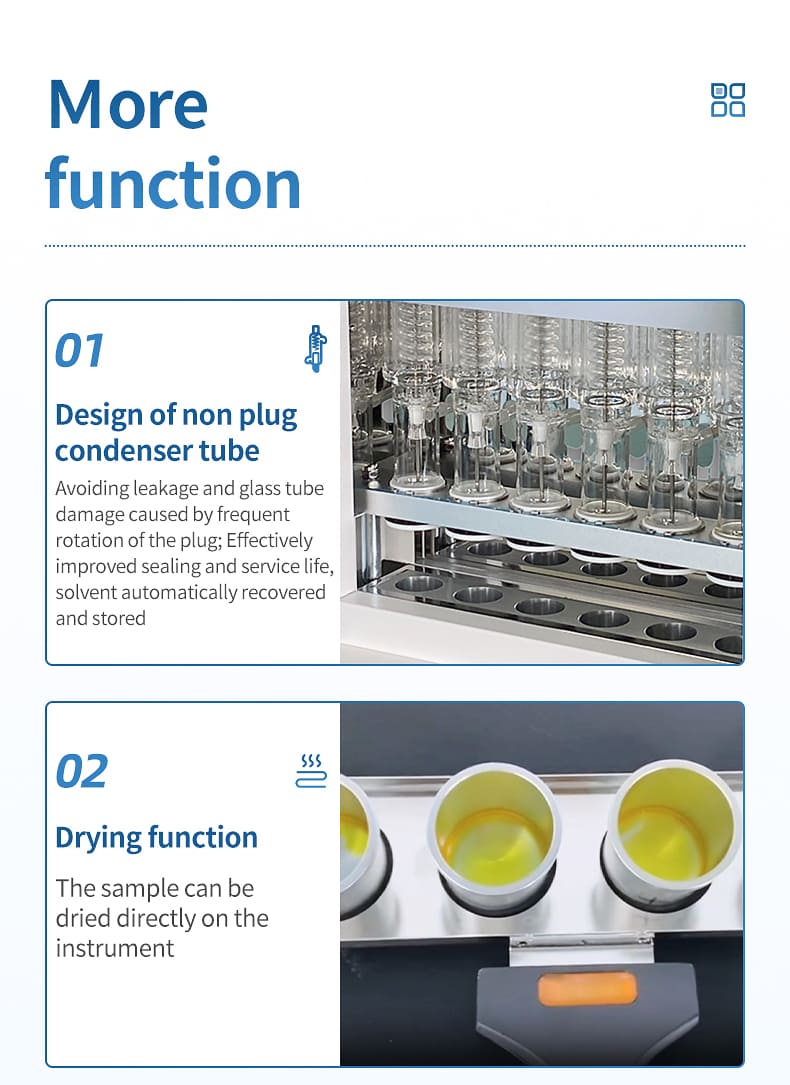

6. ★ Non plug condenser tube design: avoids leakage and glass tube damage caused by frequent rotation of the plug; Effectively improving sealing and service life, the solvent is automatically recovered and stored;

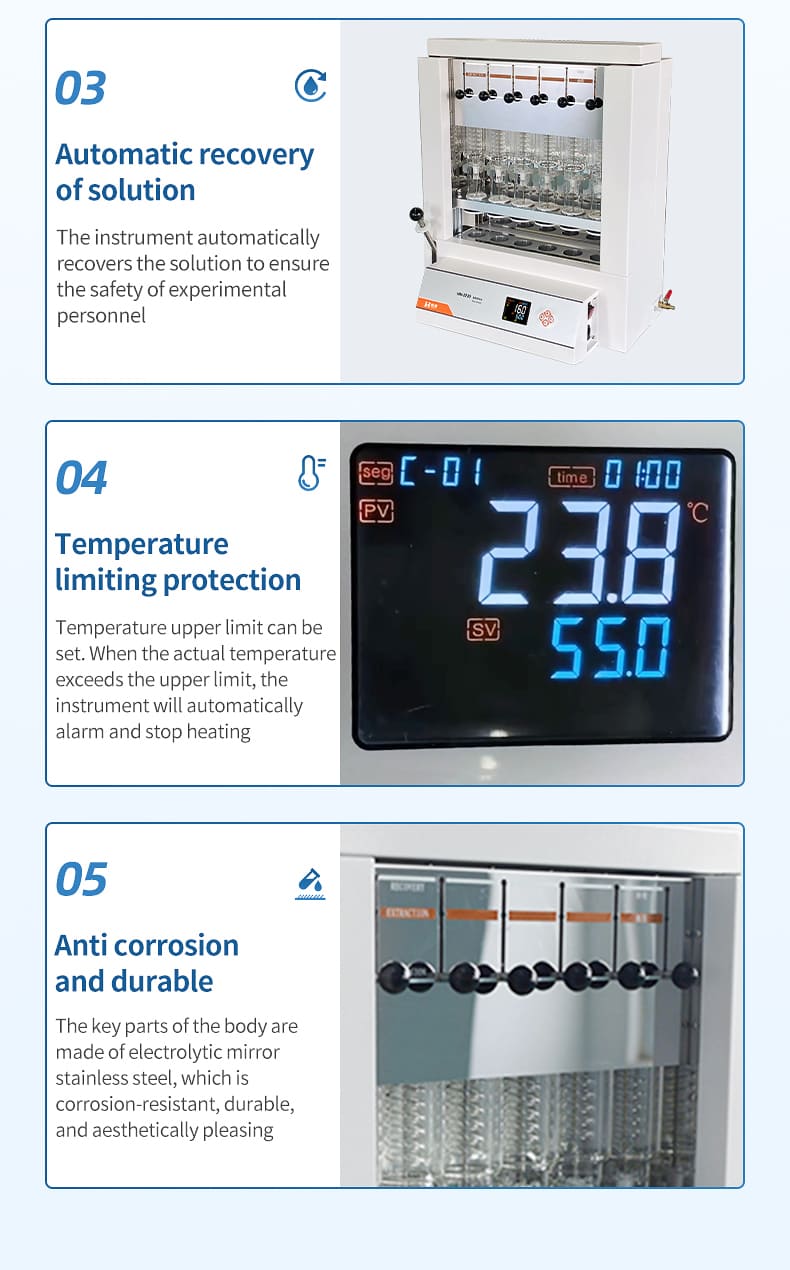

7. Temperature limit protection: The upper temperature limit can be set. When the actual temperature exceeds the upper limit, the instrument will automatically alarm and stop heating;

8. ★ Drying function: The sample can be directly dried on the instrument to complete the drying process;

9. Automatic solution recovery: The instrument automatically recovers the solution to ensure the safety of experimental personnel

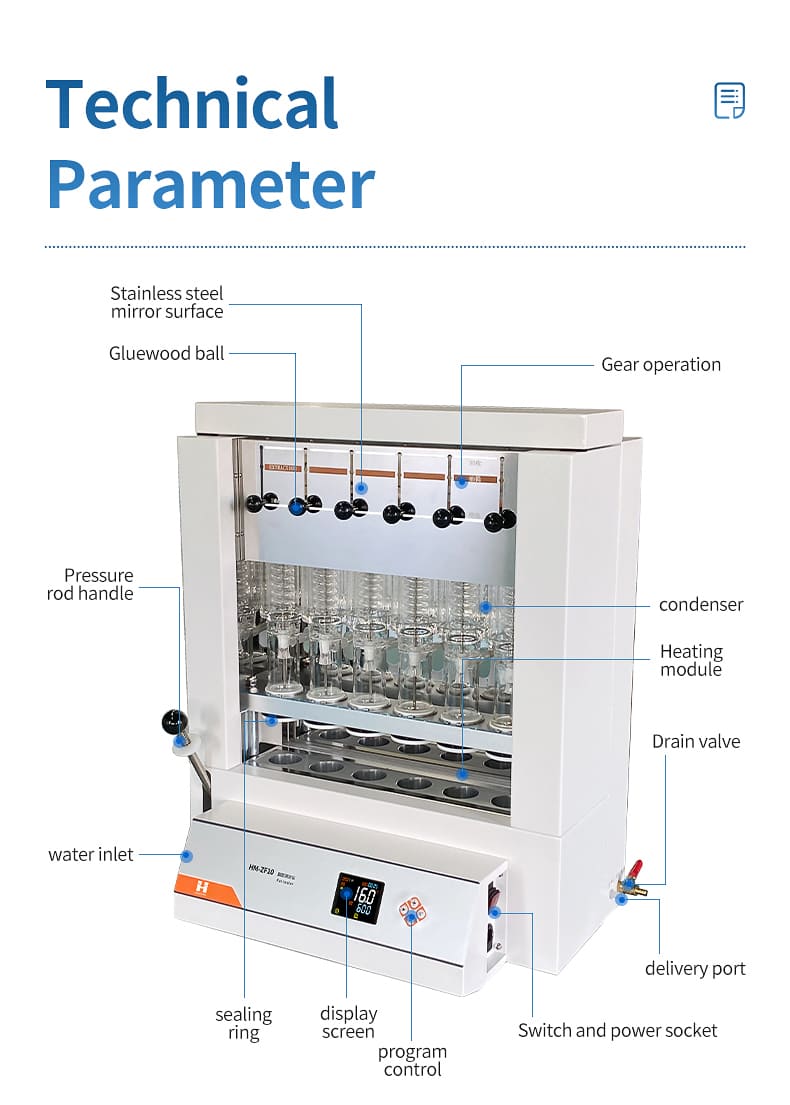

10. The key parts of the body are made of electrolytic mirror stainless steel, which is corrosion-resistant, durable, and aesthetically pleasing;

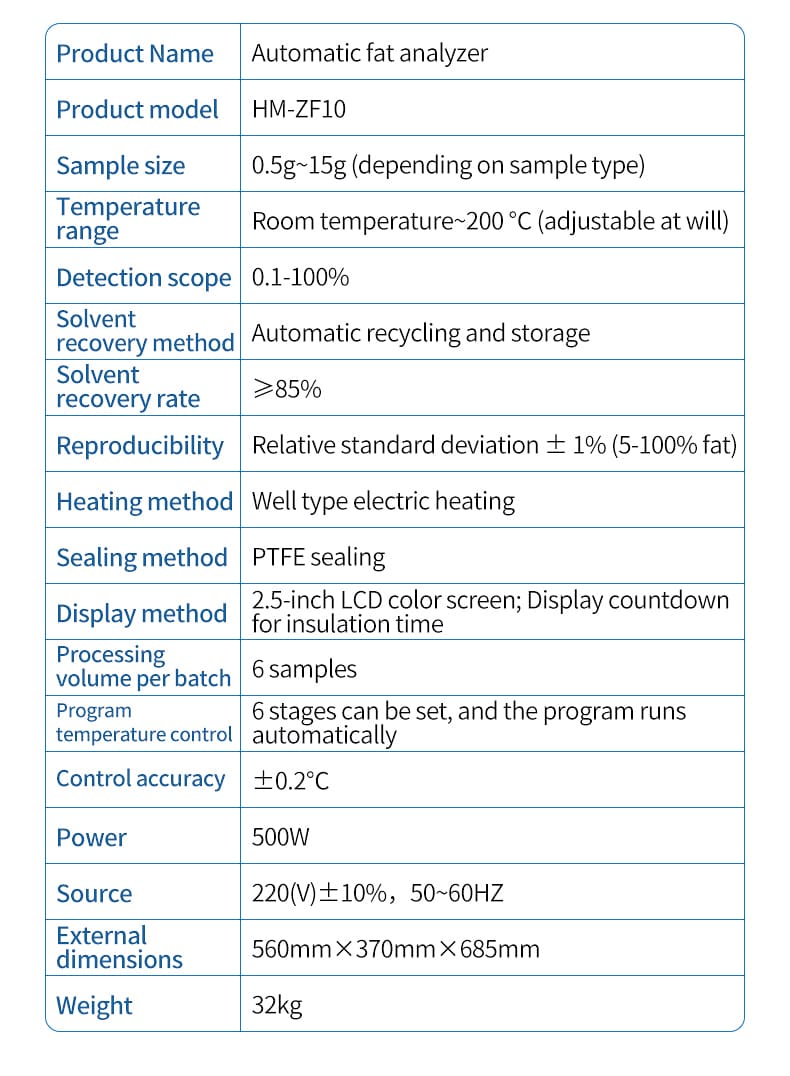

Technical parameters:

Sample size: 0.5g~15g (depending on sample type)

Temperature control range: room temperature~200 ℃ (adjustable at will)

Detection range: 0.1-100%

Solvent recovery method: automatic recovery and storage

Solvent recovery rate: ≥ 85%

Reproducibility: Relative standard deviation ± 1% (5- * * * fat)

Heating method: well type electric heating

Sealing method: PTFE sealing

Display method: 2.5-inch LCD color screen; Display countdown for insulation time

Each batch processing capacity: 6 samples

Program temperature control: 6 stages can be set, and the program runs automatically

Temperature control accuracy: ± 0.2 ℃

Power: 500W

Power supply: 220 (V) ± 10%, 50-60Hz

External dimensions: 560 x 370 x 685 (mm)

Weight: 32kg
