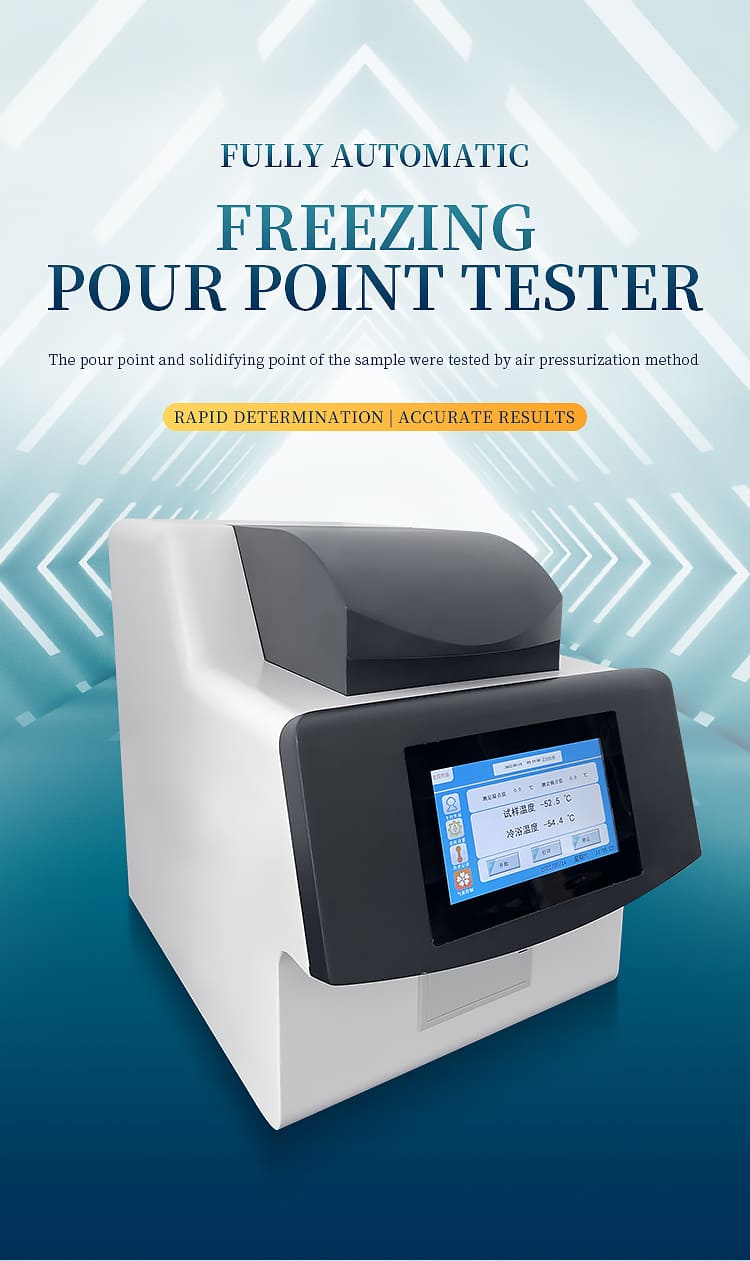

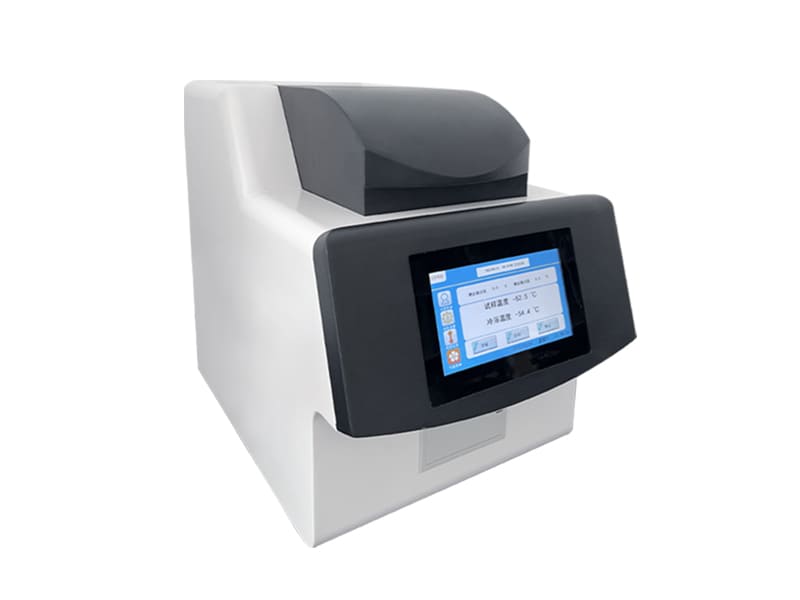

Pour point measuring instrument

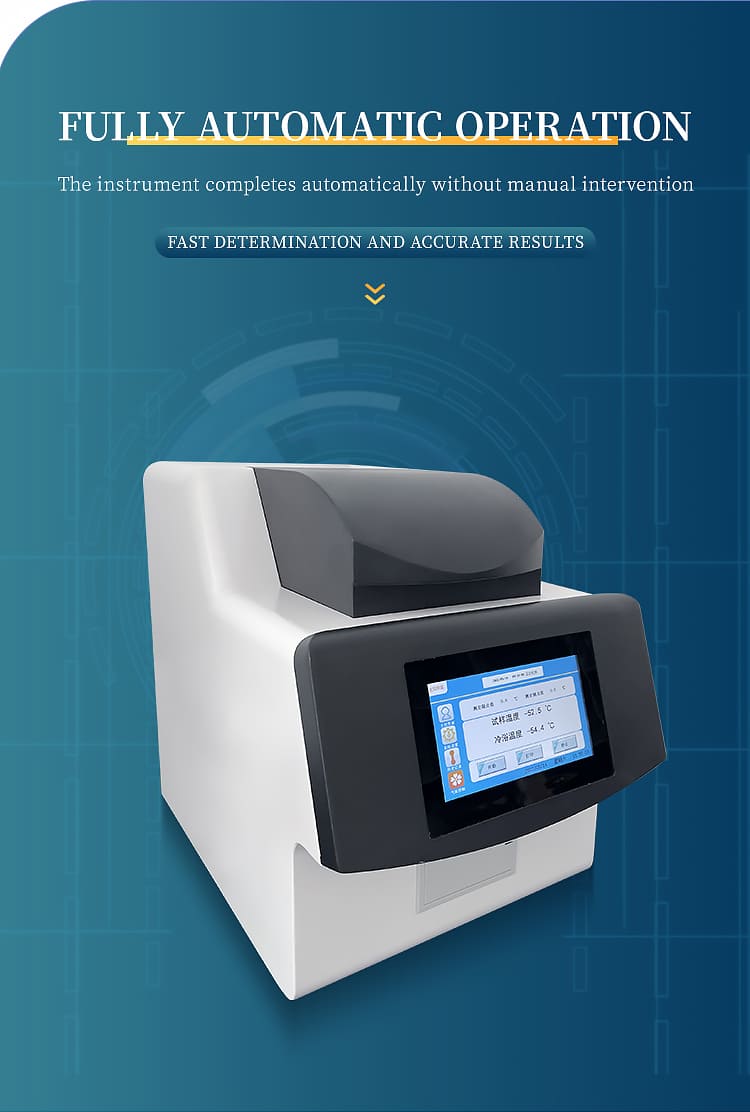

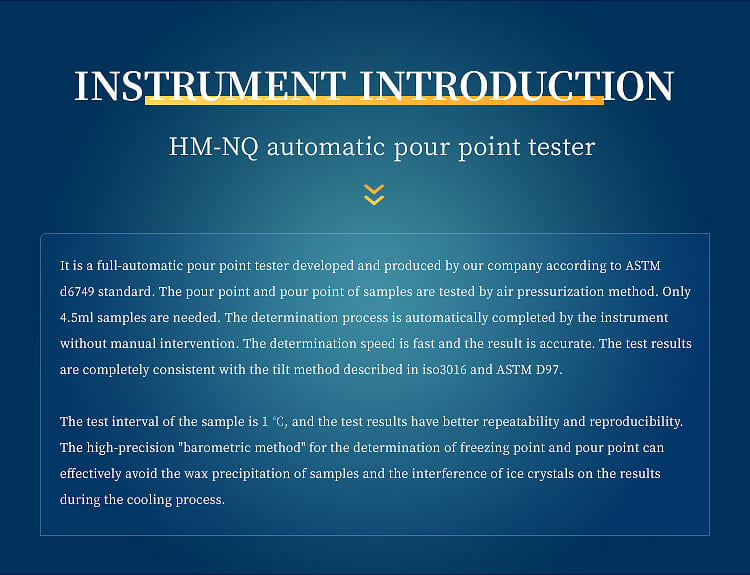

The pour point and pour point tester is a fully automatic pour point tester developed and manufactured by our company according to ASTM D6749 standard. The pour point and pour point of samples are tested by air pressurization method, only 4.5mL samples are required. The determination process is automatically completed by the tester without manual intervention, and the determination speed is fast and the result is accurate. The test results are in full agreement with the incline method described in ISO 3016 and ASTM D97. The samples were tested at 1 ° C intervals with better repeatability and reproducibility. High-precision condensation point and pour point determination "pneumatic method" can effectively avoid the interference of wax precipitation and ice crystal on the results during cooling.

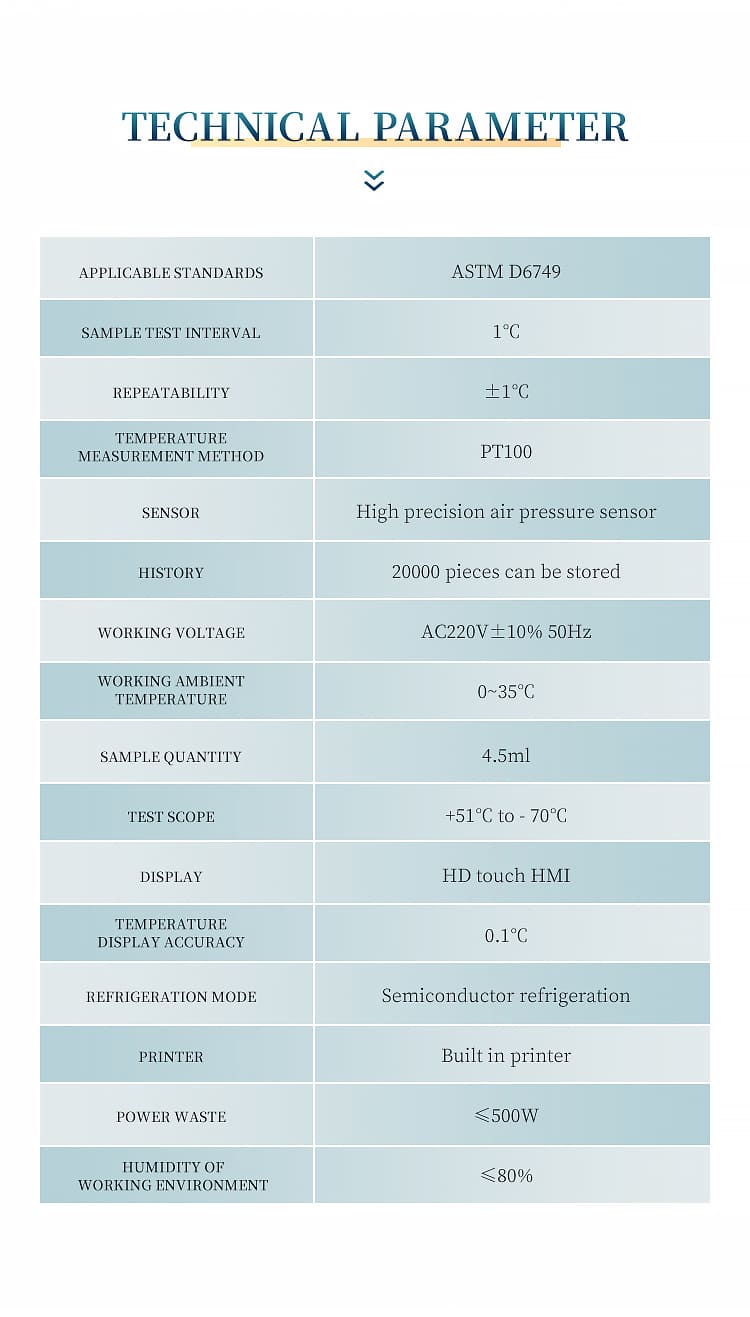

Technical parameters:

Applicable standard: ASTM D6749

Sample size: 4.5ml

Sample test interval: 1 ℃

Test range:+51 ℃ to - 70 ℃

Repeatability: ± 1 ℃

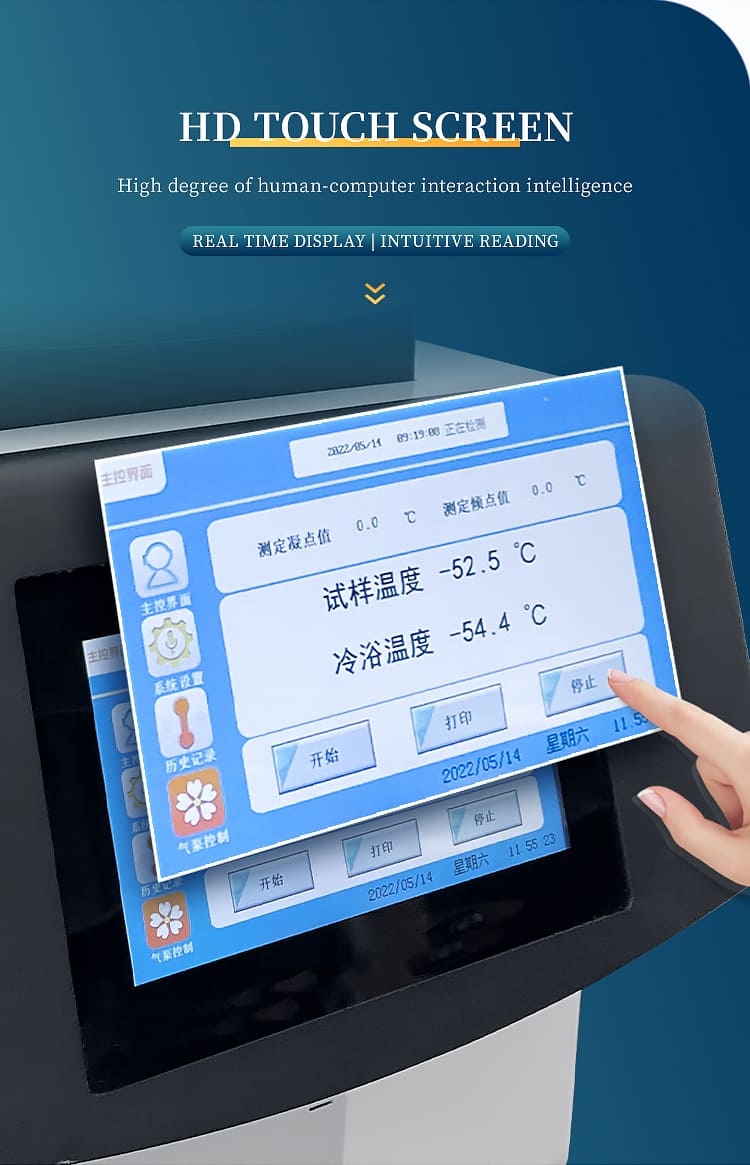

Display: HD touch HMI

Temperature measurement mode: PT100

Temperature display accuracy: 0.1 ℃

Sensor: high-precision air pressure sensor

Refrigeration mode: semiconductor refrigeration

History record: 20000 records can be stored

Printer: Built-in printer

Operating voltage: AC220V ± 10% 50Hz

Power consumption: ≤ 500W

Operating environment temperature: 0~35 ℃

Working environment humidity: ≤ 80%

Automatic sample heating: according to the requirements of test method on sample preheating steps, the instrument also includes sample preheating function. For each test, the sample is preheated to (45 ° C) or (expected pour point+10 ° C) as required.
