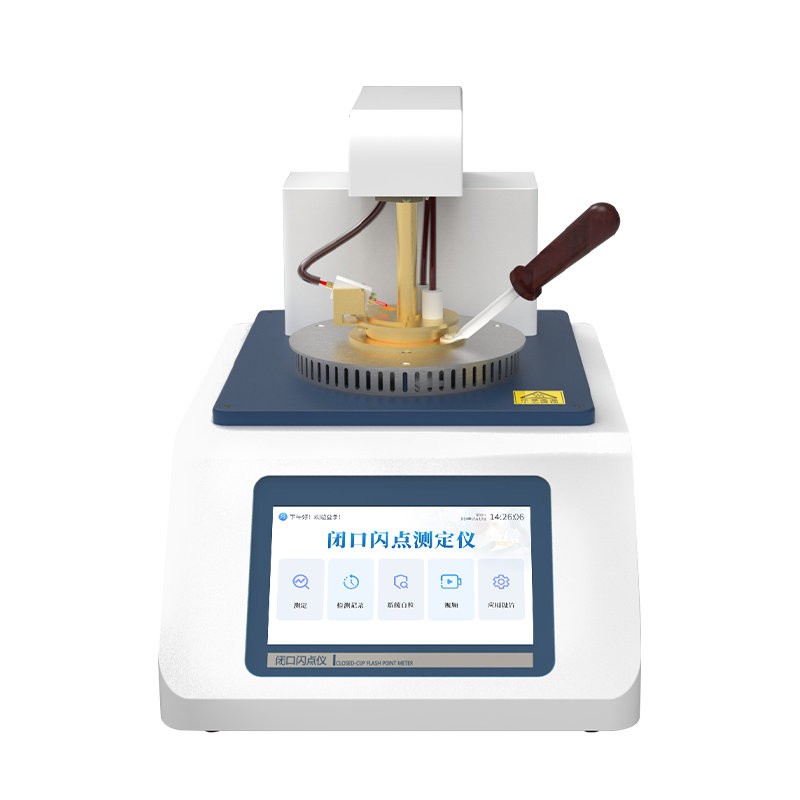

HM-BS2 Closed Cup Flash Point Tester

Product Introduction

HM-BS2 is an automatic closed-cup flash point tester for laboratories and quality-control teams that need a repeatable way to assess flammable petroleum products and chemical solvents. It heats a sample along the GB/T 261-2021 curve, ignites automatically as the temperature approaches the expected flash point, and uses a K-type thermocouple to detect the flash. When a flash is detected, the instrument locks the result, displays it, prints it, and starts fan cooling for the heater. A 7-inch high-definition Android touchscreen presents the live temperature curve and supports Chinese-English interface switching. A-grade PT100 sensing in a three-wire system provides temperature compensation, while intelligent temperature control supports the defined heating stages. Unlimited data storage depends on available EMMC space, and data can be exported or uploaded to a cloud platform. The built-in thermal printer supports Chinese characters, graphics, QR codes, and unlimited lines. HM Instruments positions this model for petroleum, chemical, electrical, inspection, and research laboratories. For a related product view, see HM-BS2 closed-cup flash point testing.

Applications / Testing Items

• Petroleum product flash point testing in oil and energy laboratories.

• Closed-cup testing of flammable chemical solvents.

• Electrical-sector material safety checks where flash point data is required.

• Inspection and commercial testing laboratories supporting storage, transport, and use decisions.

• Scientific research work involving controlled heating and flash detection of applicable liquids.

Functional Performance / Features

1. Closed-cup flash point measurement for petroleum products and chemical solvents.

2. Heating follows the GB/T 261-2021 prescribed temperature curve.

3. Automatic electric ignition is activated as the sample approaches its expected flash point.

4. K-type thermocouple detection identifies the flash event.

5. A-grade PT100 with a three-wire system provides temperature compensation.

6. Intelligent temperature control supports the defined multi-stage heating rates.

7. The result is automatically locked, displayed, and printed when a flash is detected.

8. The 7-inch Android touchscreen displays a real-time temperature curve and supports Chinese-English switching.

9. Data storage is unrestricted within available EMMC space; data export and cloud upload are provided.

10. The thermal printer supports Chinese characters, graphics, QR codes, and unlimited lines.

11. Self-checking covers the detection arm, ignition wire, printer, fan, cover switch, and related functions.
