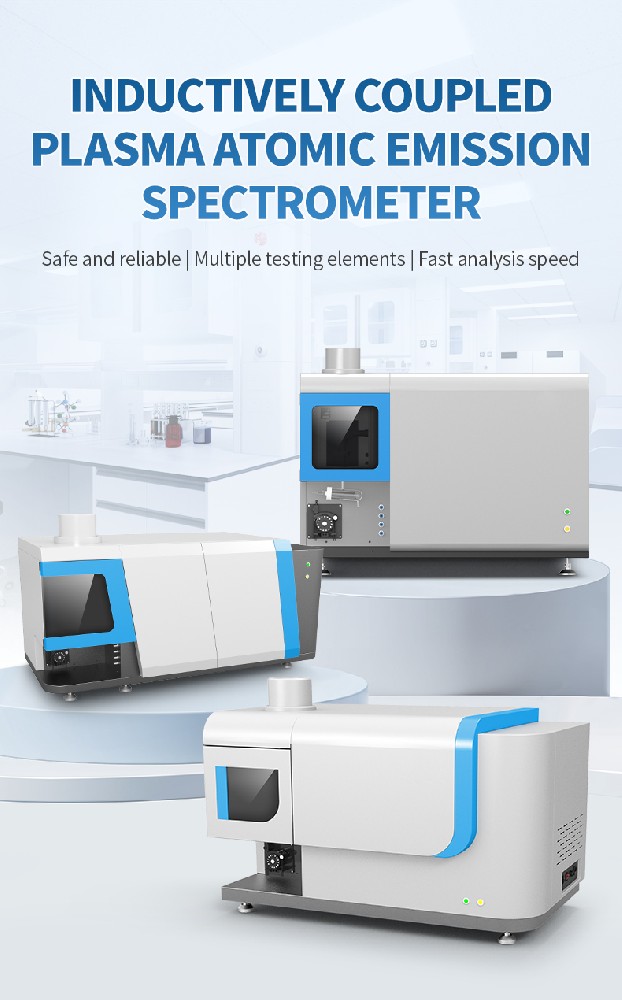

HM-ICP3 Full Spectrum CID ICP-OES Spectrometer

Product Introduction

The HM-ICP3 is a full-spectrum direct-reading ICP-OES spectrometer designed for laboratories that require both qualitative and quantitative elemental analysis capabilities. It features a charge-injection device (CID) detector — the same detector technology used in Thermo Fisher ICP instruments — providing million-pixel coverage across the 165–900nm wavelength range with one-exposure simultaneous multi-element detection.

The echelle grating cross-dispersion optical system delivers ≤0.007nm resolution at 200nm, with all optical components sealed in a constant-temperature chamber at 35°C ±0.1°C. Unlike systems with moving optical parts, this fixed-configuration design eliminates mechanical drift and ensures reproducible performance over extended operational periods. The RF generator provides 700–1500W output power with automatic impedance matching for stable plasma conditions.

A distinguishing capability of the HM-ICP3 is its built-in qualitative analysis software. Using an advanced algorithm, the instrument can identify the elemental composition of unknown samples without requiring reference standards, then transition directly into targeted quantitative analysis. This is particularly valuable for exploratory testing, failure analysis, and material verification where the element suite is not predetermined.

Applications / Testing Items

• Environmental protection: trace element analysis in water, soil, and atmospheric samples

• Geological and mineral exploration: ore composition determination and rare earth element profiling

• Metallurgy: alloy grade verification and impurity screening

• Toy and consumer product safety: heavy metal content verification per regulatory limits

• Precious metals: impurity element analysis for purity assessment and valuation

• Rare earth industry: high-purity rare earth element analysis and impurity quantification

• Food safety: mineral nutrient and contaminant screening

• Chemical industry: reagent and process stream purity verification

• Pharmaceuticals: elemental impurity testing per pharmacopeial standards

Features

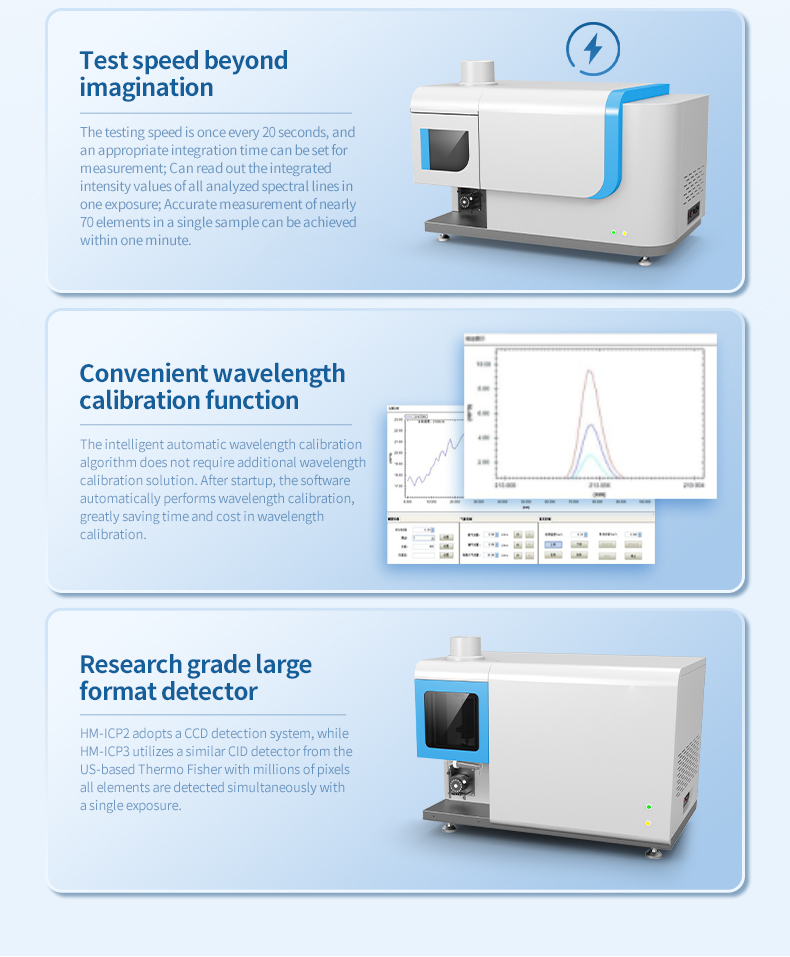

1. CID detector with Thermo Fisher-grade performance — million-pixel coverage of 165–900nm; one-exposure simultaneous multi-element detection

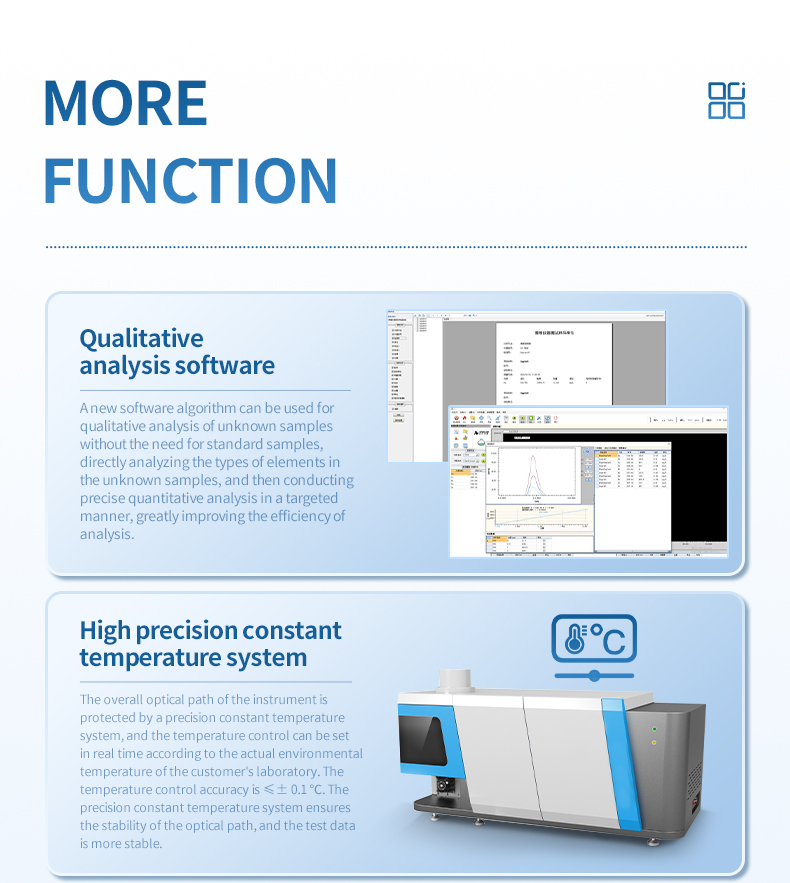

2. Built-in qualitative analysis software — identifies element types in unknown samples without standard samples; streamlines exploratory and forensic analysis workflows

3. 72+ element capability — broader element coverage than sequential PMT systems for comprehensive material characterization

4. Echelle grating cross-dispersion optics — ≤0.007nm resolution at 200nm; no moving optical parts for drift-free stability

5. Constant-temperature sealed optical chamber — 35°C ±0.1°C precision thermostat; argon purge for UV wavelength access

6. 20-second full-spectrum cycle — single sample measured in one minute; all elements captured simultaneously

7. Automatic wavelength calibration — software auto-calibrates at startup; no external calibration solution needed

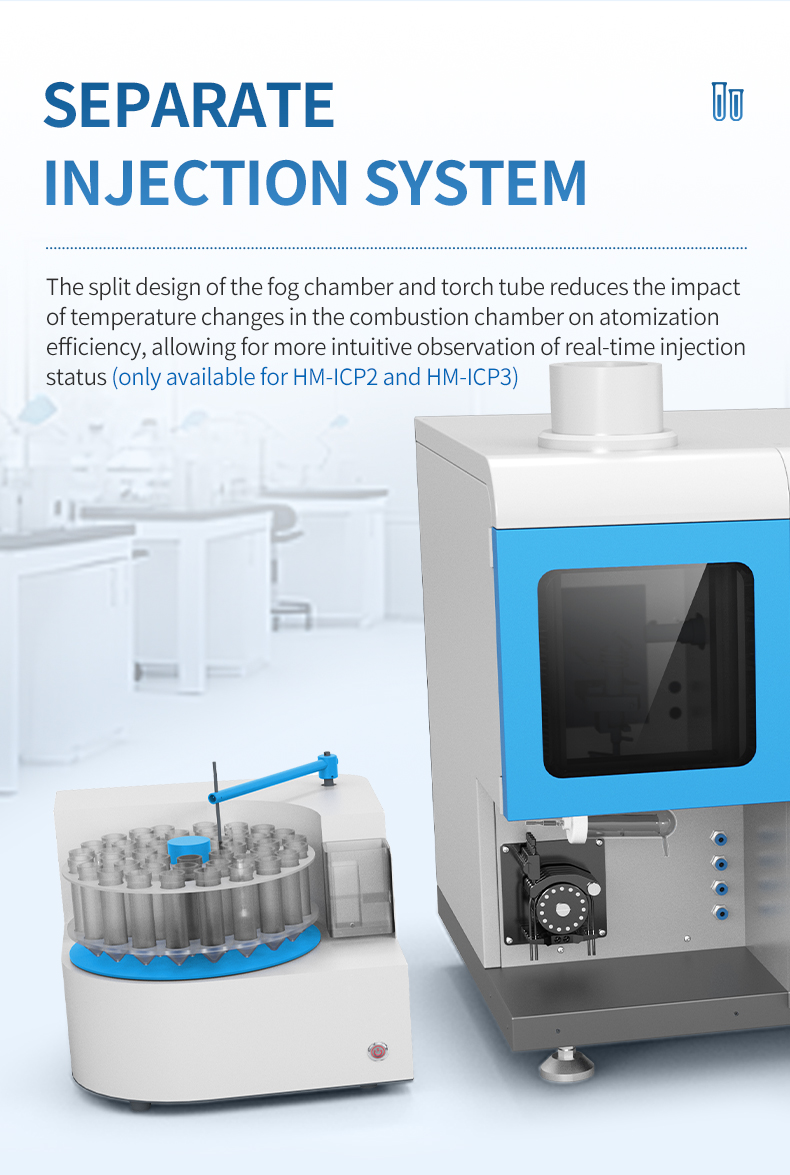

8. Split-chamber injection with patented spray chamber — extended dual-tube design reduces moisture interference; enables real-time observation of sample introduction

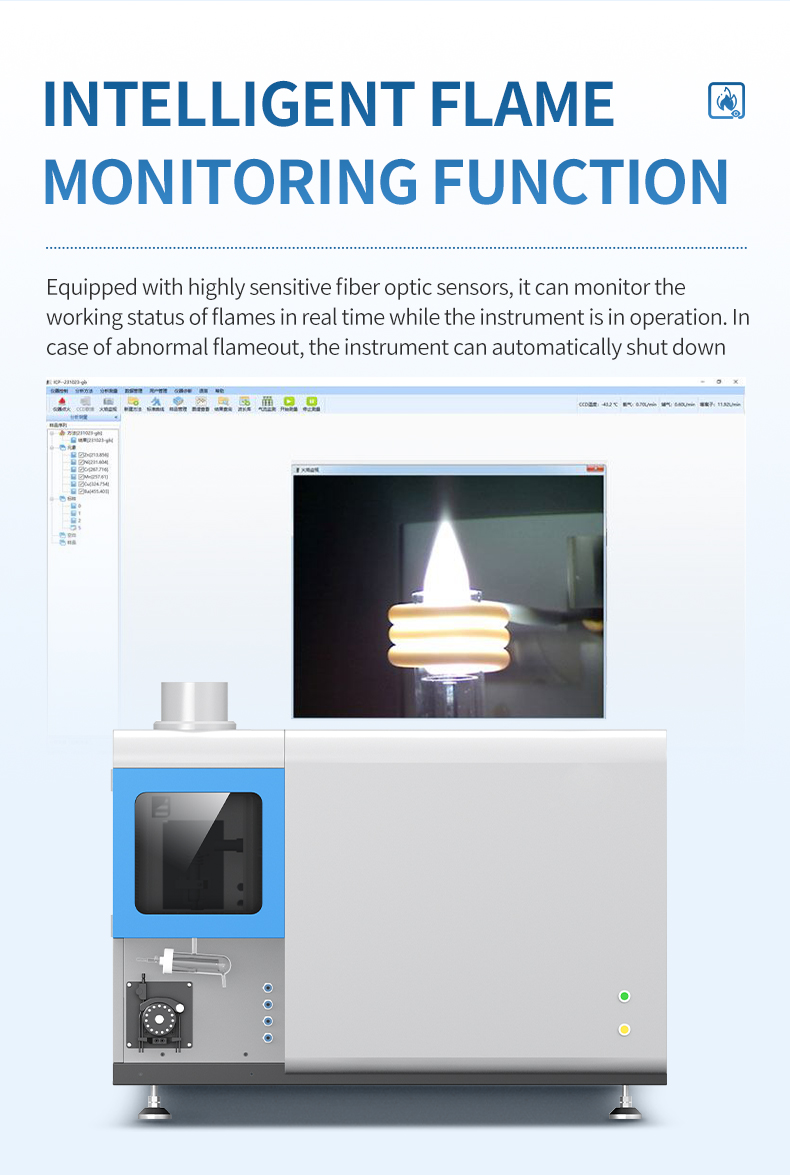

9. Intelligent flame monitoring — fiber optic sensor detects abnormal flameout and triggers automatic shutdown

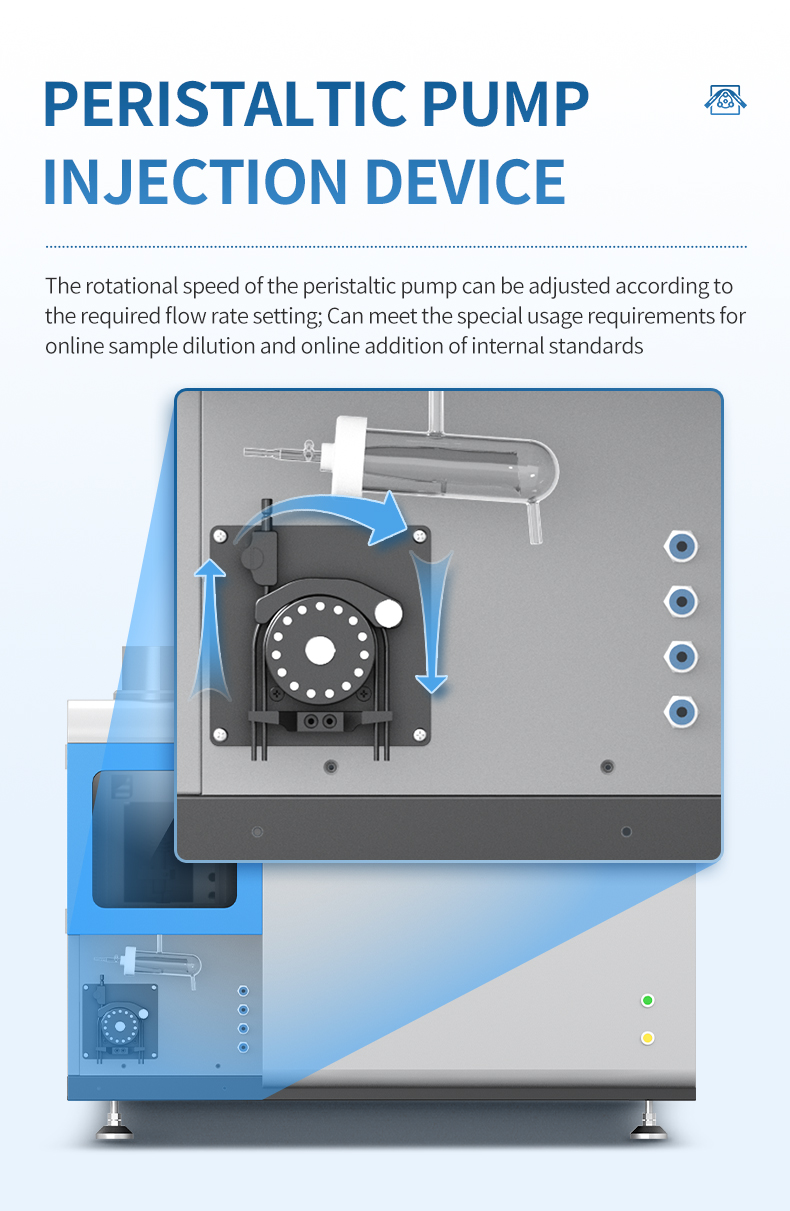

10. 5-channel 16-roller peristaltic pump — patented design with continuously adjustable speed; supports online dilution and internal standard addition

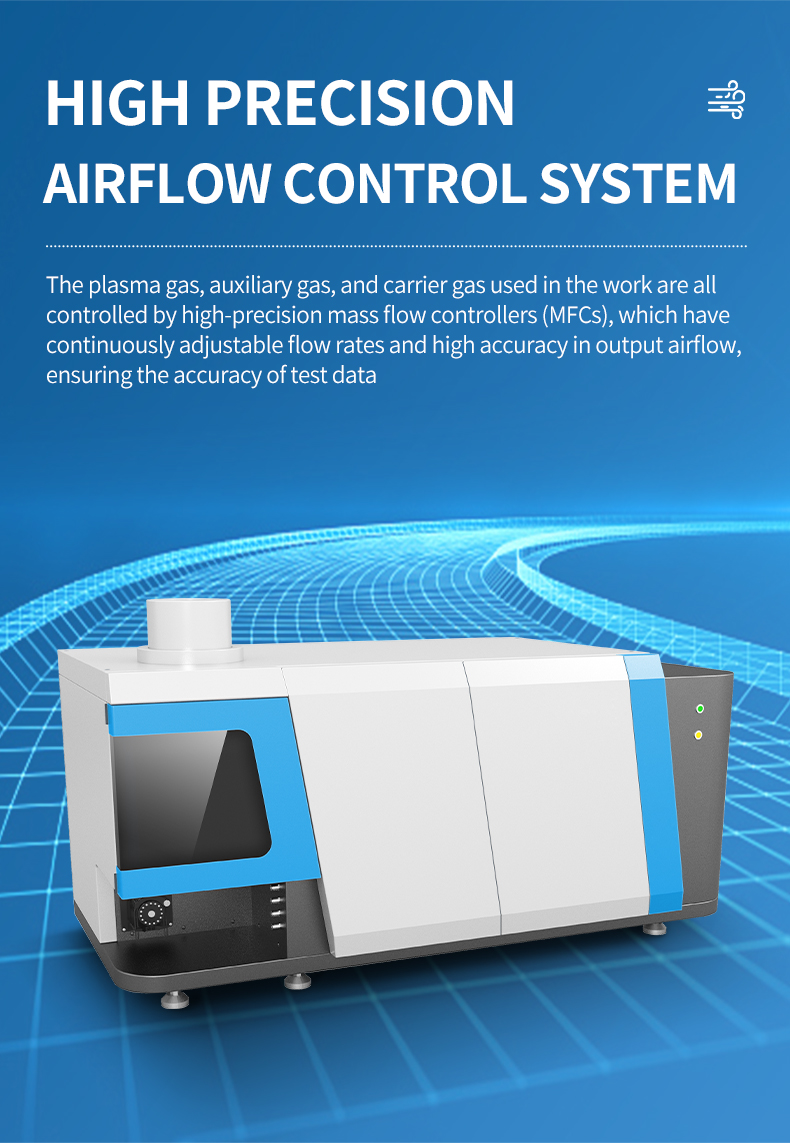

11. High-precision MFC gas control — total argon consumption below 12L/min; efficient gas usage with precision flow management

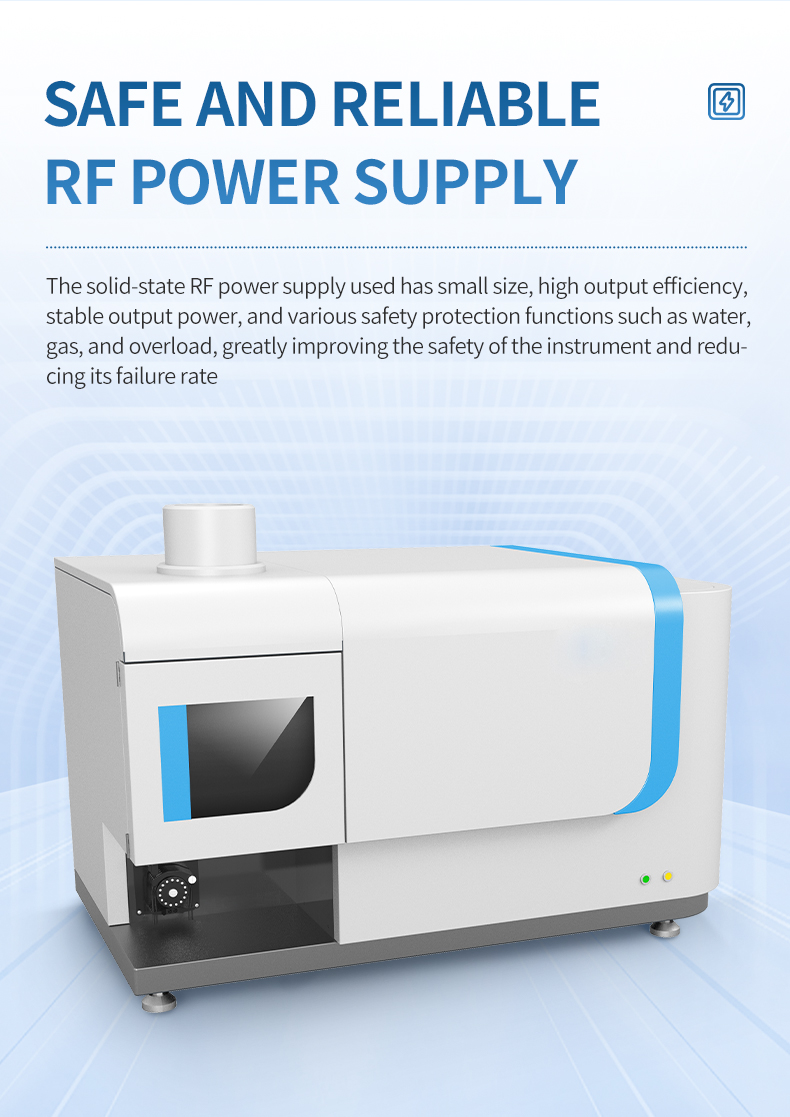

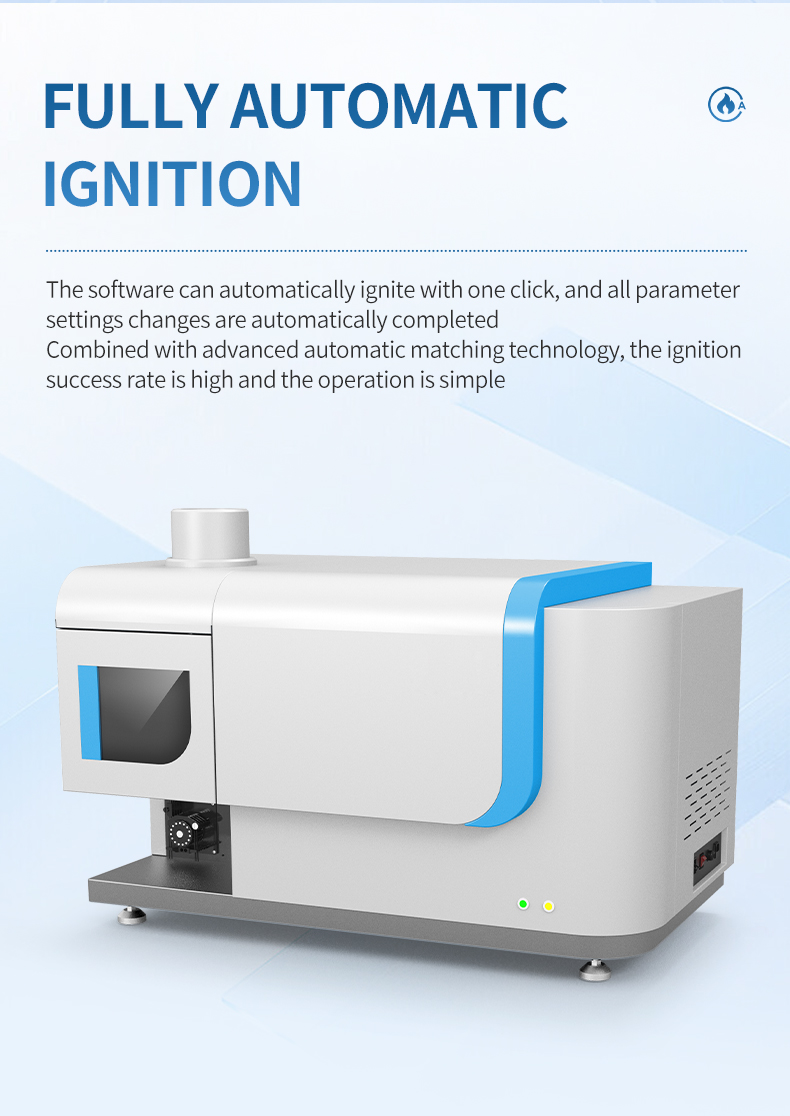

12. Full-auto ignition with impedance matching — one-click startup with reliable plasma ignition

Main Parameters

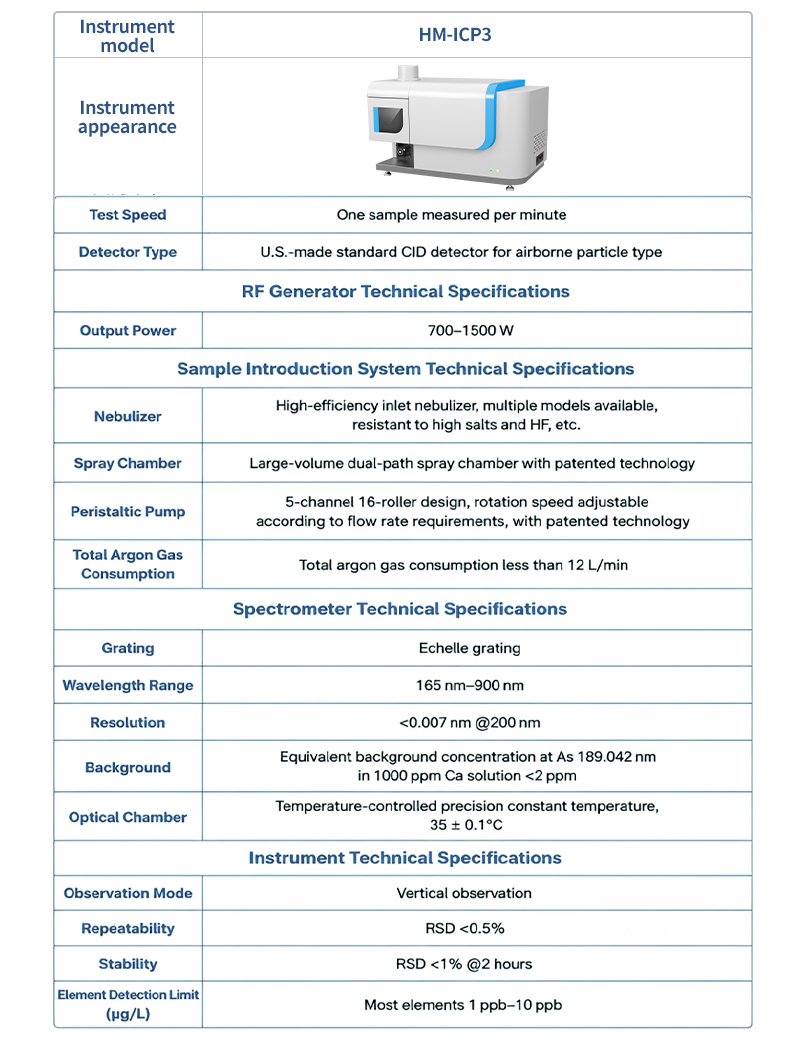

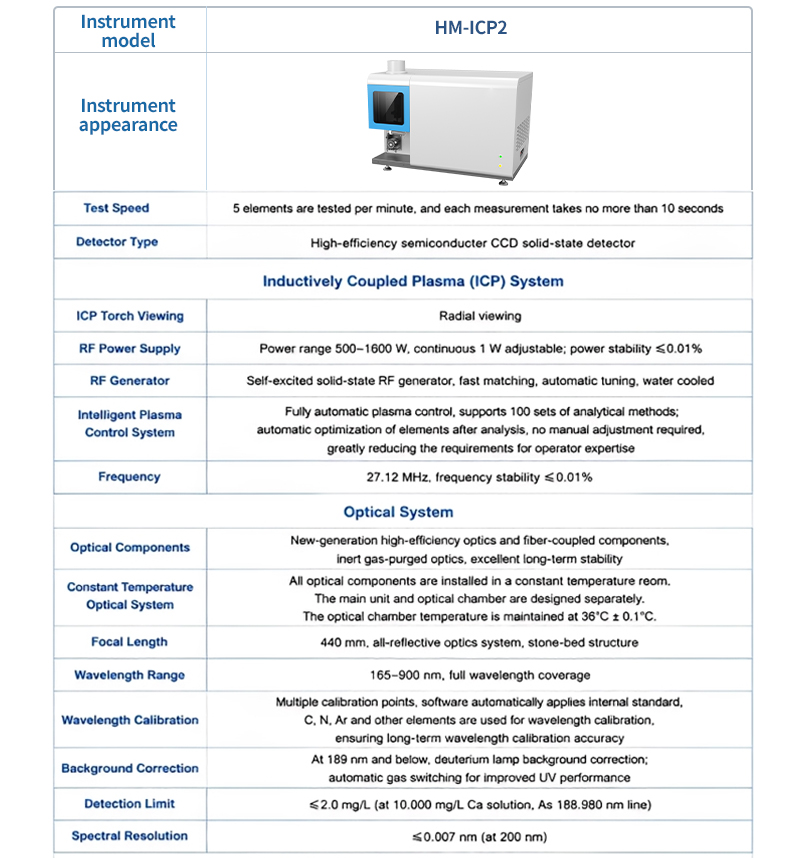

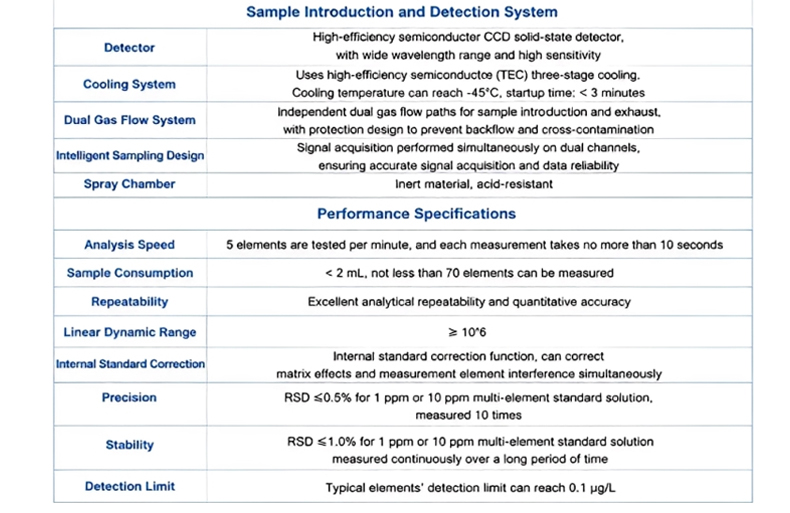

Technical Parameters
