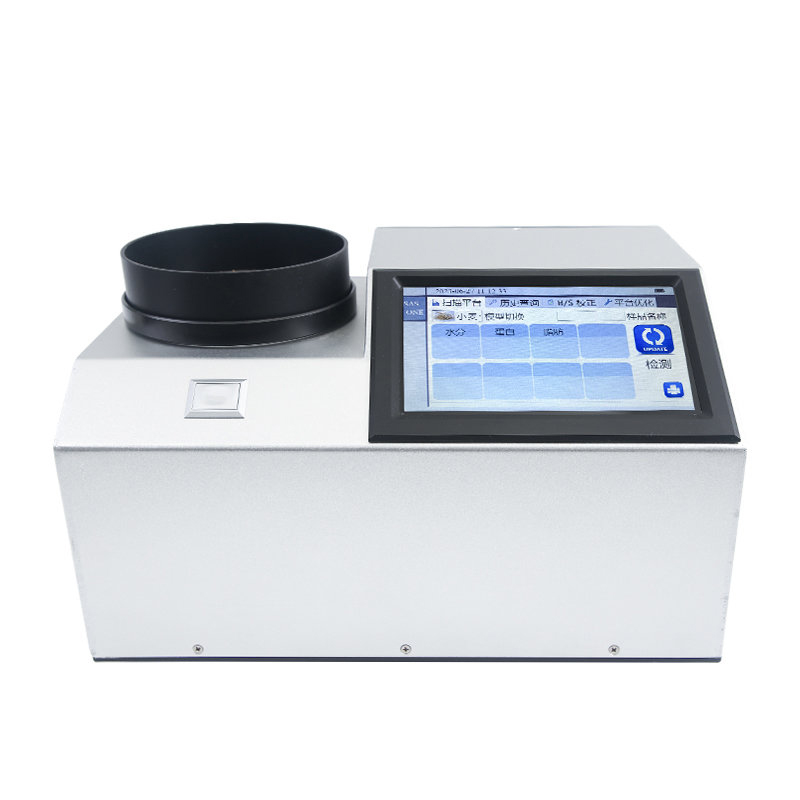

Near infrared mash detector

Product introduction:

Near infrared mash detector can quickly and non-destructively detect various key indicators in raw materials and mash during the liquor brewing process. Supports stand-alone (no computer) operation, built-in battery is suitable for in-situ detection. Can be connected to PC and network through network port and WIFI for remote management, calibration, upgrade and maintenance of software and models.

Features:

1: Built-in LCD screen:
2: Support stand-alone operation, suitable for one-click detection by non-technical personnel
3: Directly output measurement results
4: Targeted at the unevenness of fermented mash
5: Specially designed 20mm diameter large light spot
6: Stable and fast detection
7: Remote modeling, maintenance, model upgrade, and instrument calibration
8: Multiple ways to access the network
9: Convenient for quality inspection departments and leaders at all levels to directly
10: Obtain the status of the production line
11: Small size and light weight
12: Built-in battery
13: Suitable for on-site detection in the workshop

Application areas:

Winemaking industry
Liquor raw materials: sorghum, wheat, corn, glutinous rice, rice, peas, etc., measurement indicators: moisture, protein, starch, fat, etc.
Liquor fermentation process: fermented mash, measurement indicators: moisture, acidity, starch, alcohol content, etc.

Services:

1. Responsible for helping users to establish raw materials and mash models, and can transfer models between multiple devices (limited to devices of the same model)

2. Help users to calibrate, update and maintain models; hardware equipment maintenance

3. Can help establish a near-infrared network management system and a quality management system based on a near-infrared detection network

Technical parameters:
1. Measurement object: raw materials and mash of liquor

2. Wavelength range: 950-1650nm

3. Signal-to-noise ratio: 5000:1

4. Light source life: >10000

5. Working temperature: 5-45°C

6. Sample cup capacity: >200ml

7. Spot size: 20mm

8. Wavelength calibration method: built-in fully automatic calibration

9. Working humidity: 5-85%

10. Weight: 10kg
