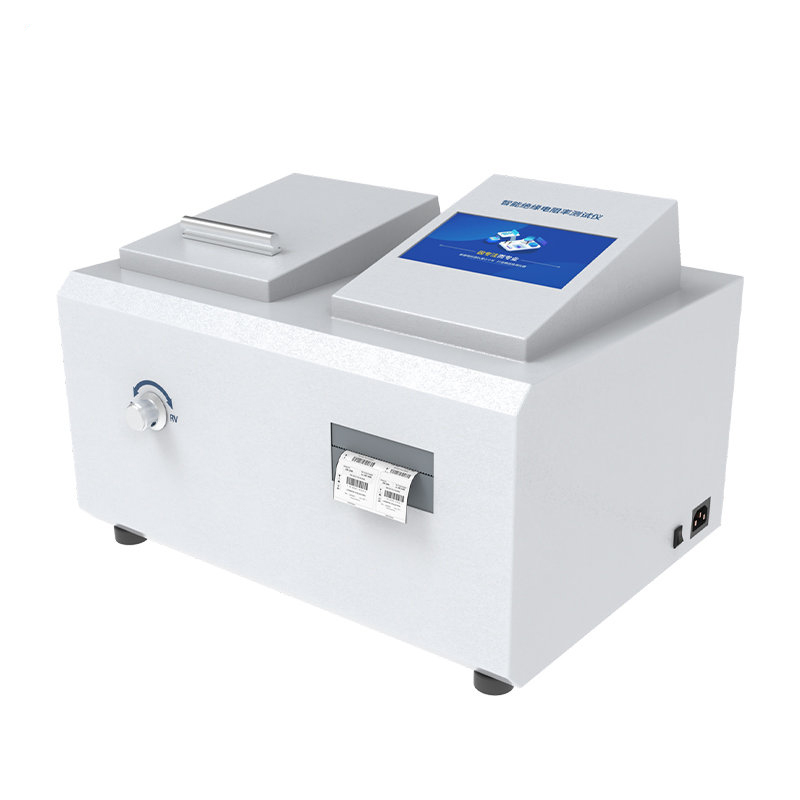

Insulation Volume Surface Resistivity Tester

Scope of application and function:

Mainly applicable to solid insulating materials (such as: plastics, rubber, laminated materials, films, resins, mica, ceramics, glass, insulating paints and other insulating materials and insulating parts), powders and liquids and a variety of insulating materials volume and surface resistance, resistivity determination.

Product advantages:

1, with over-current protection, short circuit prevention, measuring voltage can rise 10KV

2, using the touch screen design to realize the parameter setting

3、Measurement shielding room and host integrated design, shielding effect greatly improved

4、Automatic measurement of volume resistivity and surface resistivity of solid material, liquid material and powder material.

5、Support irregular size measurement

6、Support real-time printing of measurement results

7、Support personalized customization

Meet the standard:

GB/T 1410-2006 Test Method for Volume Resistivity and Surface Resistivity of Solid Insulating Materials

GB 12014 anti-static work clothes

GB/T 20991-2007 Personal protective equipment Test methods for shoes

GB 4385-1995 Technical requirements for anti-static shoes and conductive shoes

GB/T 12703.4-2010 Textiles Evaluation of electrostatic properties Part 4 Resistivity

GB/T 12703.6-2010 Textiles Evaluation of electrostatic properties Part 6 Fiber leakage resistance

GB/T 15738-2008 Conductive and antistatic fiber reinforced plastics resistivity test method

GB/T 18044-2008 Carpets and rugs: Evaluation of static electricity habit Walking test

GB/T 18864-2002 Vulcanized rubber Antistatic and conductive products for industrial use Resistance limit range

GB/T 22042-2008 Test Method for Surface Resistivity of Clothing with Anti-static Property

GB/T 24249-2009 Anti-static clean fabrics

GB/T 26825-2011 Antistatic anticorrosive rubber

GB 50515-2010 Conductive (anti-)static ground design specification

GJB 5104-2004 General requirements for antistatic coatings for radio fuzed hoods and hood static performance

Technical parameters:

Resistance measurement range: 1×104Ω ～1×1018Ω.

Current measurement range: 1 × 10-4A ~ 1 × 10-16A

Display: touch screen display

Built-in test voltage: 10V, 50V, 100V, 250V, 500V, 1000V

Measurement accuracy: 1-10%

Power supply: AC 220V, 50HZ, power consumption of about 12W

Display content: measured voltage, resistance, current, resistivity.

Test requirements: diameter greater than 100mm (less than this size, the electrode needs to be customized)

Use conditions: ambient temperature: 15-40 ℃ ambient humidity: 30-70%
