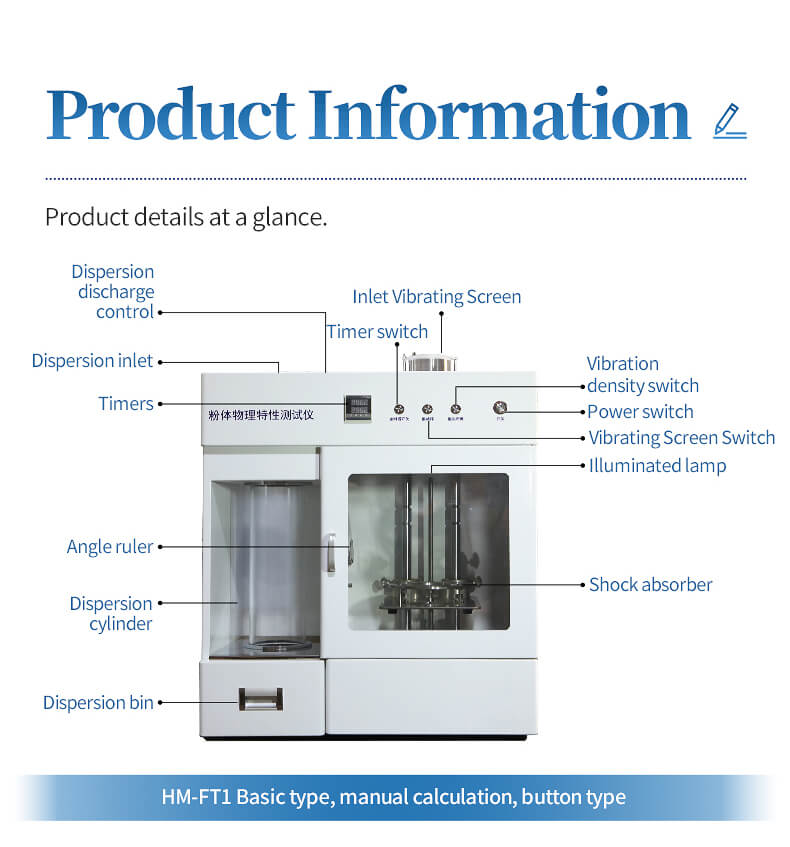

Powder comprehensive characteristic tester

Supporting standards:

1. ASTM D6393-14 Standard Test Method for Bulk Solids Characterization by Carr Indicators;

2. Chinese National Standard GB/T 31057.2-2008 Physical Property Testing of Granular Materials Part 2: Measurement of compacted density;

3. Chinese National Standard GB/T 31057.3-2008 Physical Property Testing of Granular Materials Part 3: Measurement of Liquidity Index;

4. Chinese national standard GB/T 5162-2006/ISO 3953-1993 Determination of compacted density of metal powders;

5. Chinese national standard GB/T 1482-2010 Determination of flowability of metal powders - Standard funnel method (Hall flowmeter);

6. Chinese National Standard GB/T 1479.1-2010 Determination of Bulk Density of Metal Powders Part 1: Funnel Method;

7. Chinese National Standard GB/T 16913-2008 4.5 Dust Property Test Method - Determination of Resting Angle (Injection Restricted Bottom Method)

Supported testing projects:

1. Carr Angle of repose;

2. Carr Angle of Fall;

3. Loose Bulk Density;

4. Tapped Density;

5. Carr Cohesion;

6. Carr Uniformity;

7. Carr Angle of Spatula;

8. Carr Dispersibility;

9. Voidage

Supported computing projects:

1. Carr Angle of Di? Reference;

2. Carr Compressibility;

3. Liquidity index;

4. Floodability index

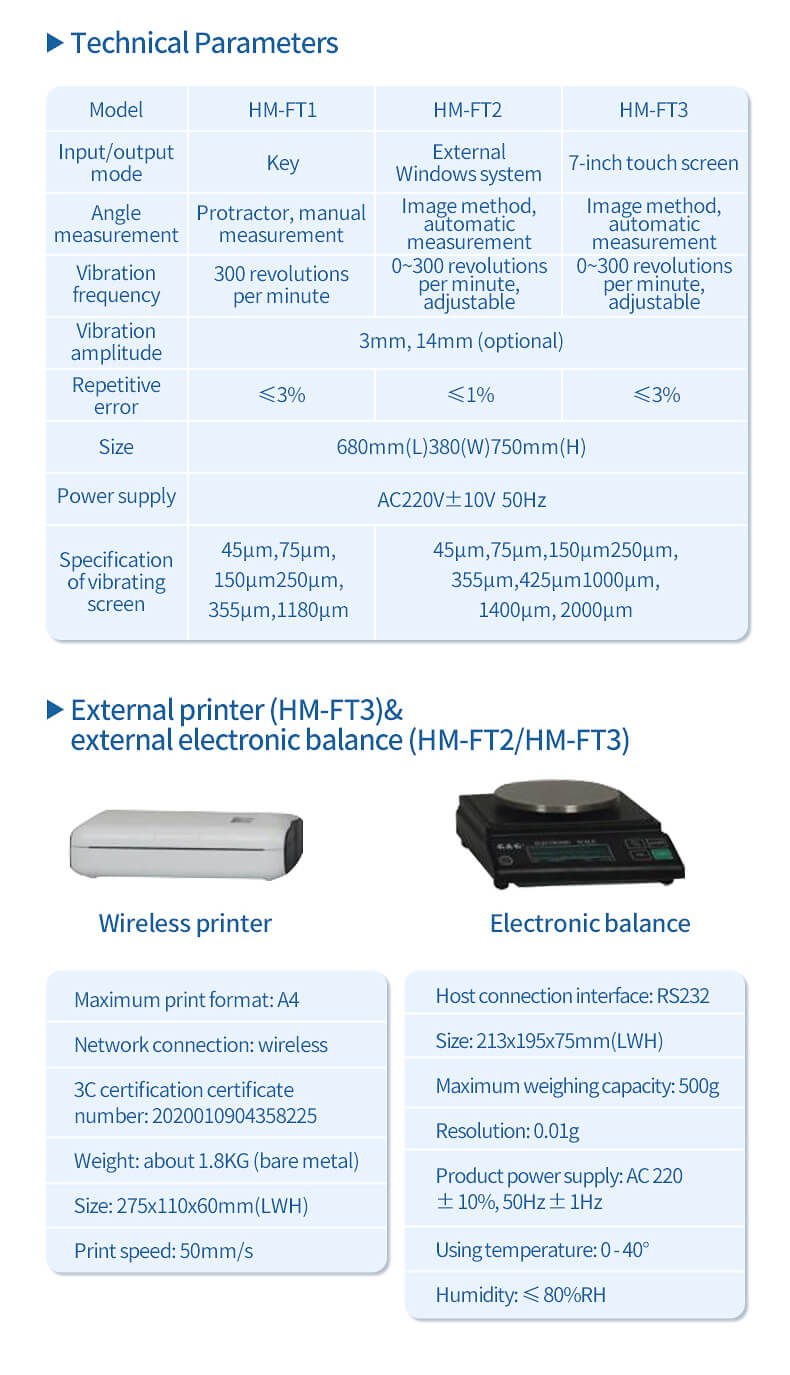

Technical parameters:

Angle measurement: protractor, manual measurement

Vibration density: Vibration frequency: 300 revolutions per minute, fixed vibration amplitude: 3mm, 14mm (optional)

Repeatability error: ≤ 3%

Size: 680mm (L) 380mm (W) 750mm (H)

Power supply: AC220V ± 10V 50Hz

Vibration screen specification (aperture): 45 μ m. 75 μ m. 150 μ m. 250 μ m. 355 μ m. 1180 μ M
