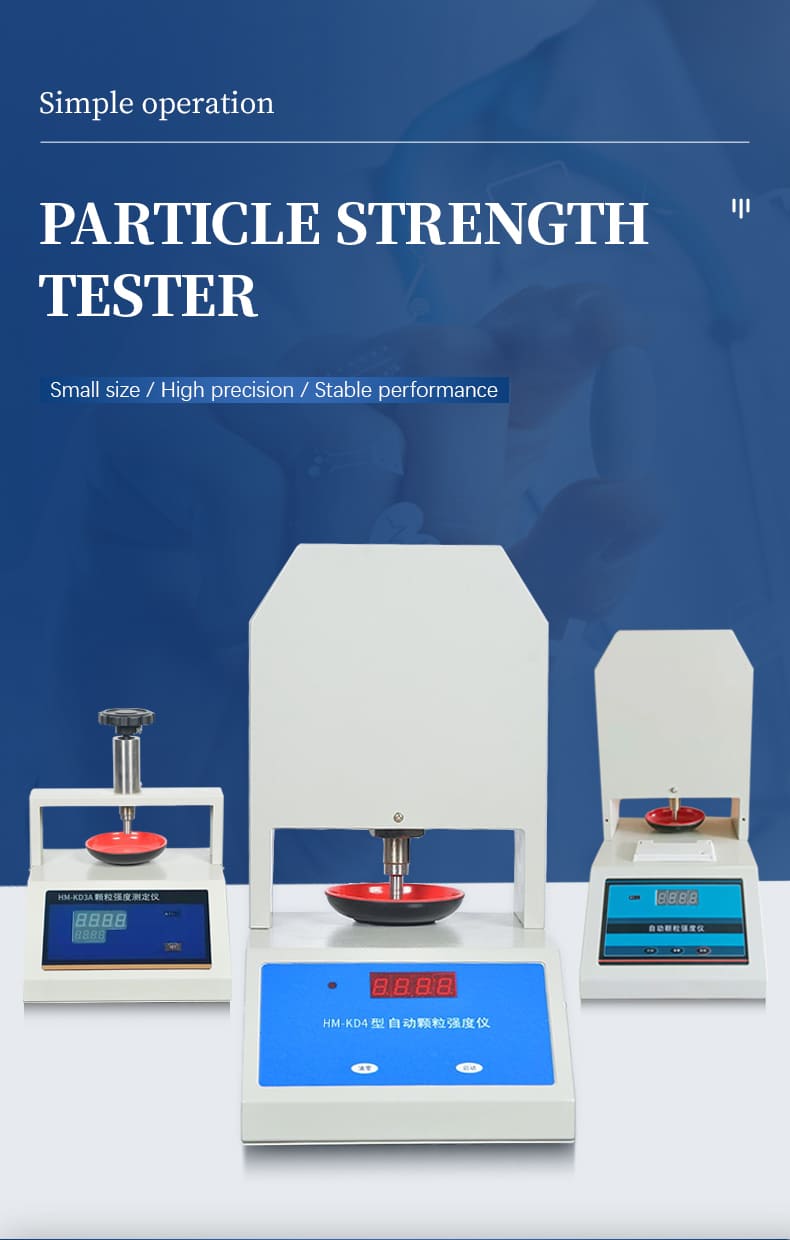

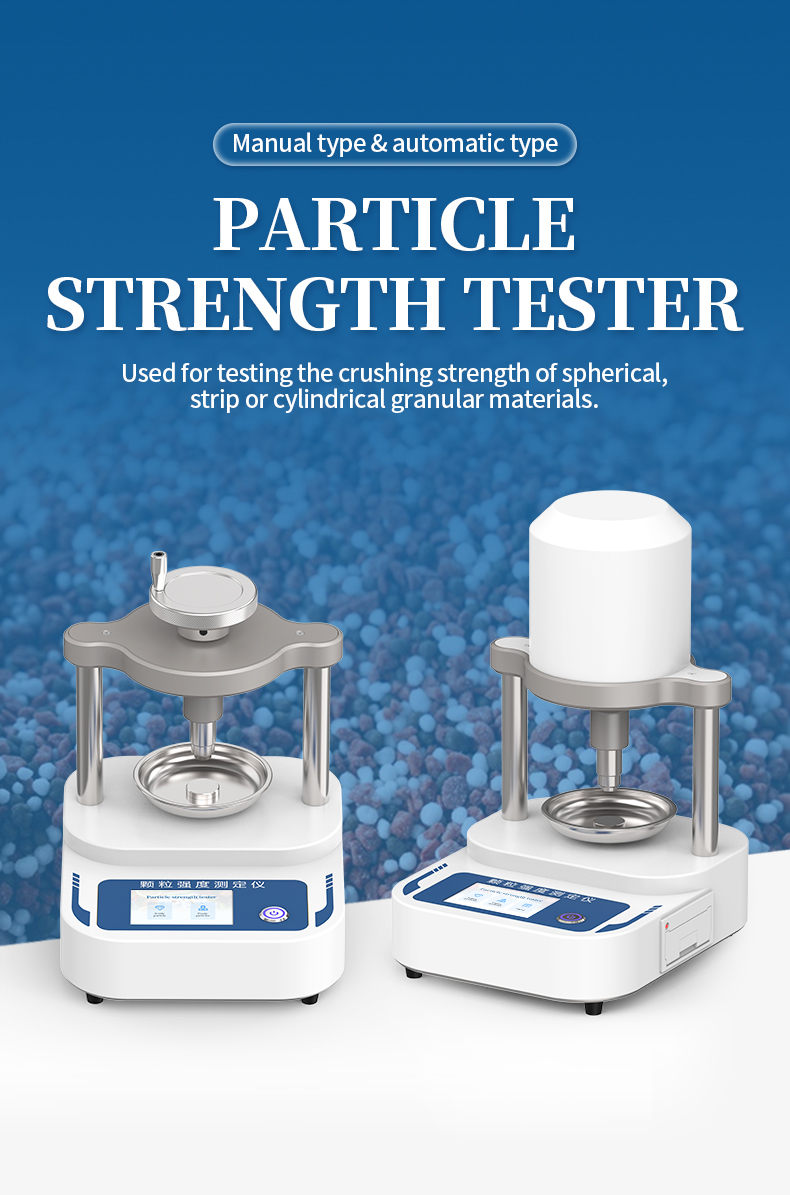

Particle strength analyzer

Overview:

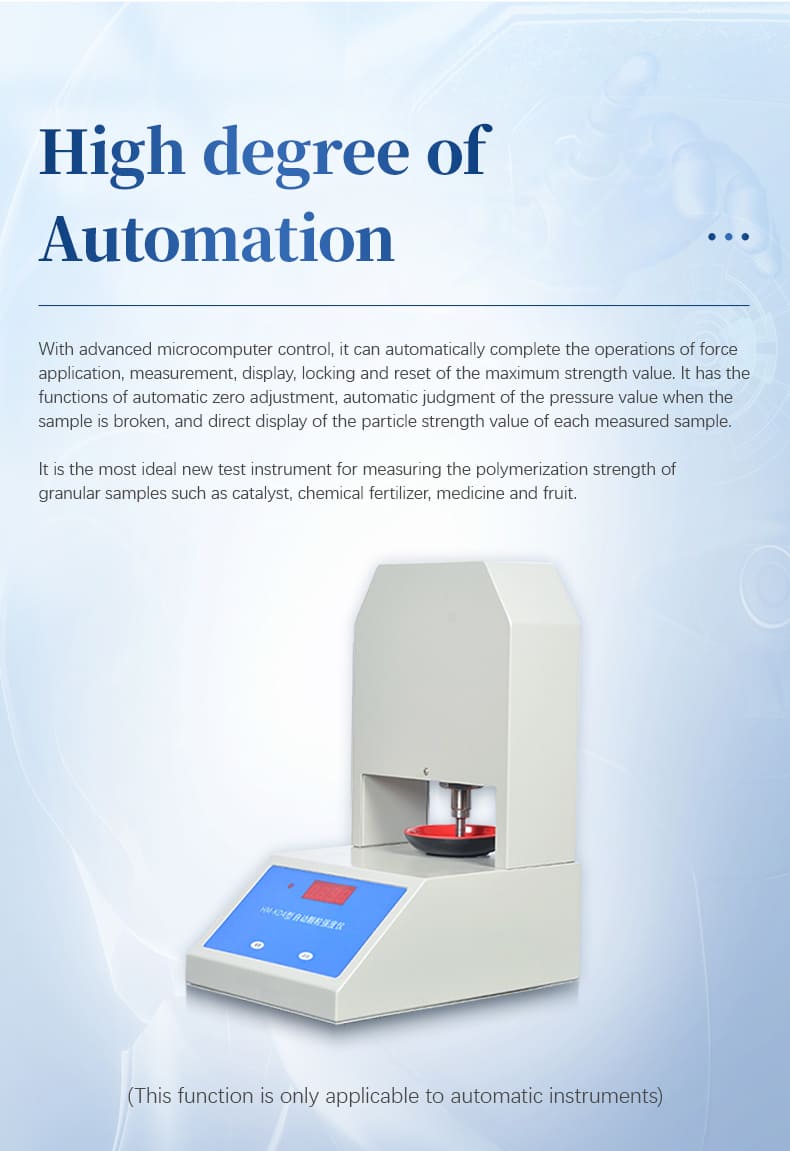

Particle strength analyzer is a dual row digital display instrument that uses advanced sensing measurement technology to achieve instantaneous value display and peak locking. This instrument has the advantages of small volume, direct reading of measurement values, high accuracy, and convenient use. It is an ideal new experimental instrument for measuring the polymerization strength of particle samples such as catalysts, fertilizers, and drugs.

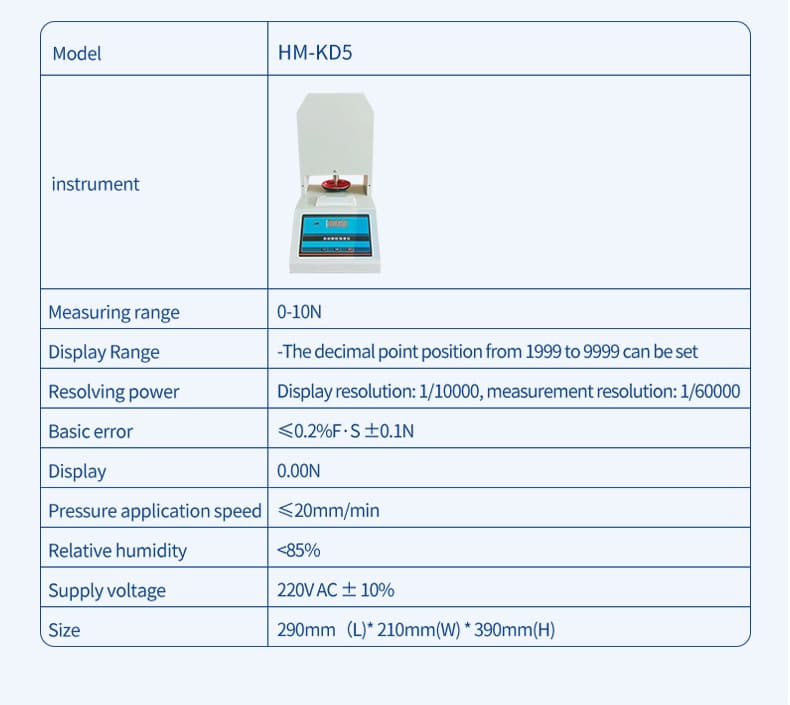

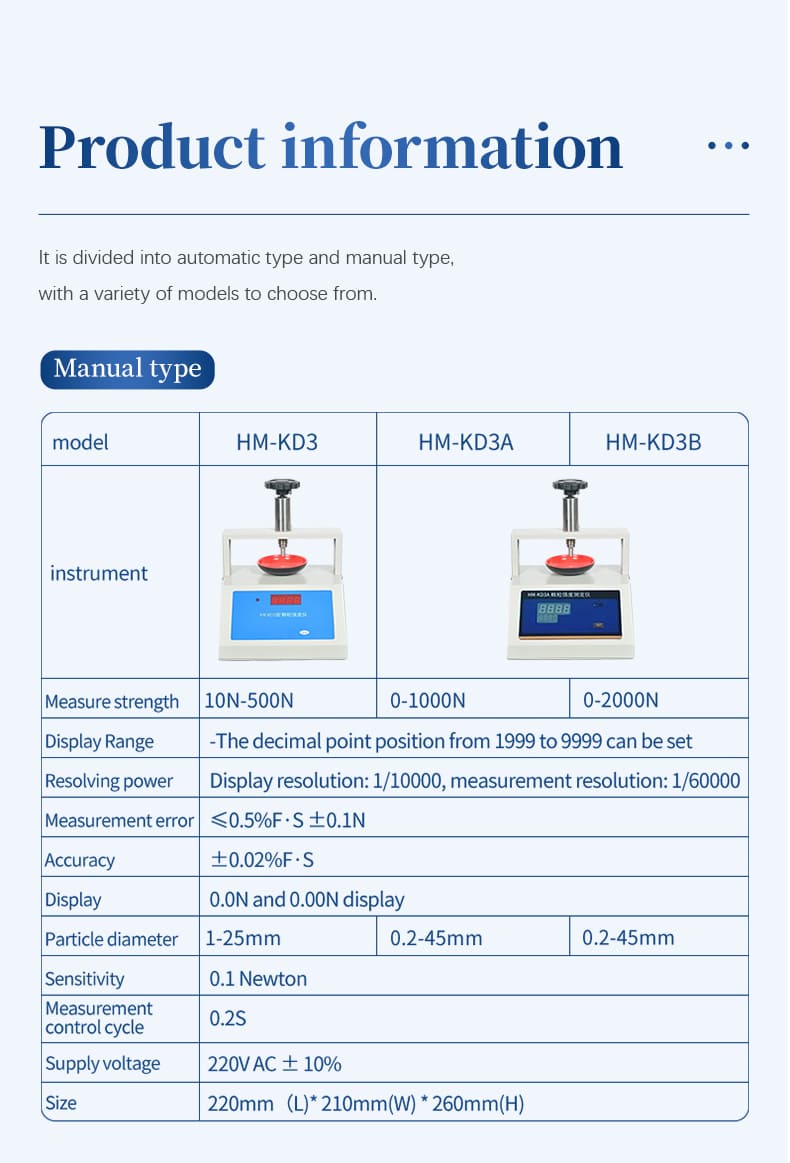

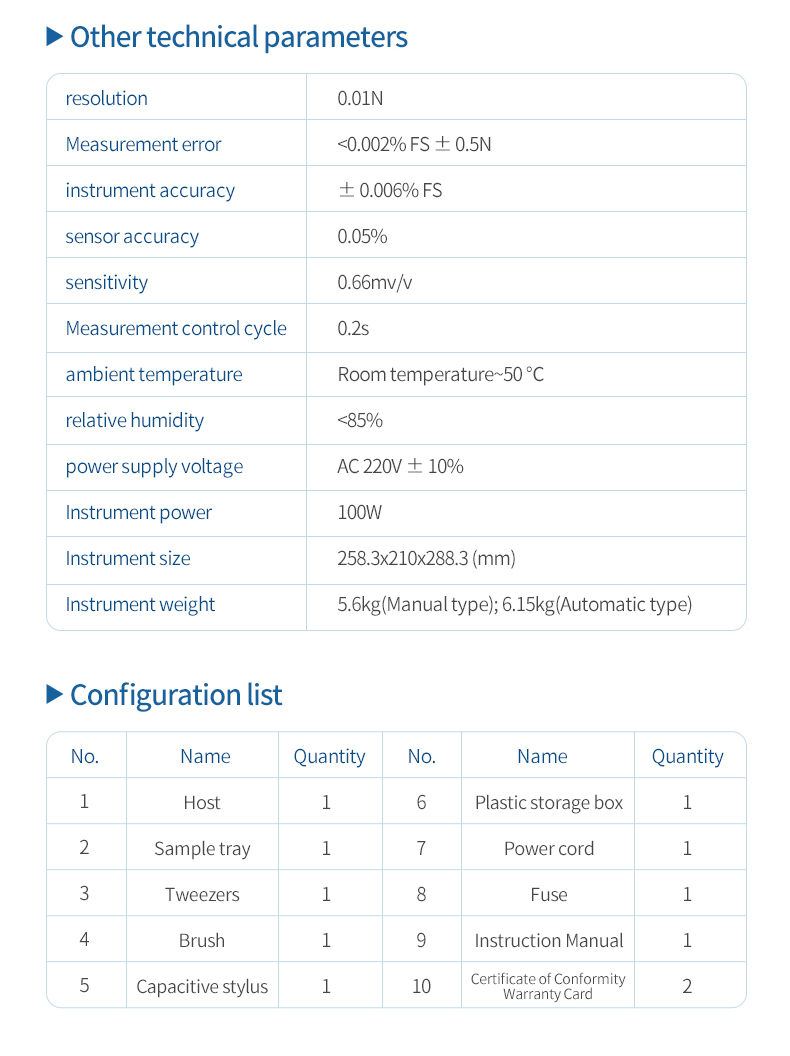

Main technical indicators:

1. Measurement range: 10-500N;

2. Particle diameter: 1-25mm;

3. Display range: -1999-9999 decimal point position can be set;

4. Display resolution: 1/10000, measurement resolution: 1/60000;

5. Measurement error:<0.5% FS ± 0.1N;

6. The instrument accuracy is ± 0.02% F · S, and the instrument display is designed to display 0.0N and 0.00N;

7. Sensitivity: 0.1 Newton

8. Measurement control cycle: 0.2S;

9. Power source voltage 220V AC ± 10%;

10. Boundary dimensions: 220mm (L) * 210mm (W) * 260mm (H).

Feature Description

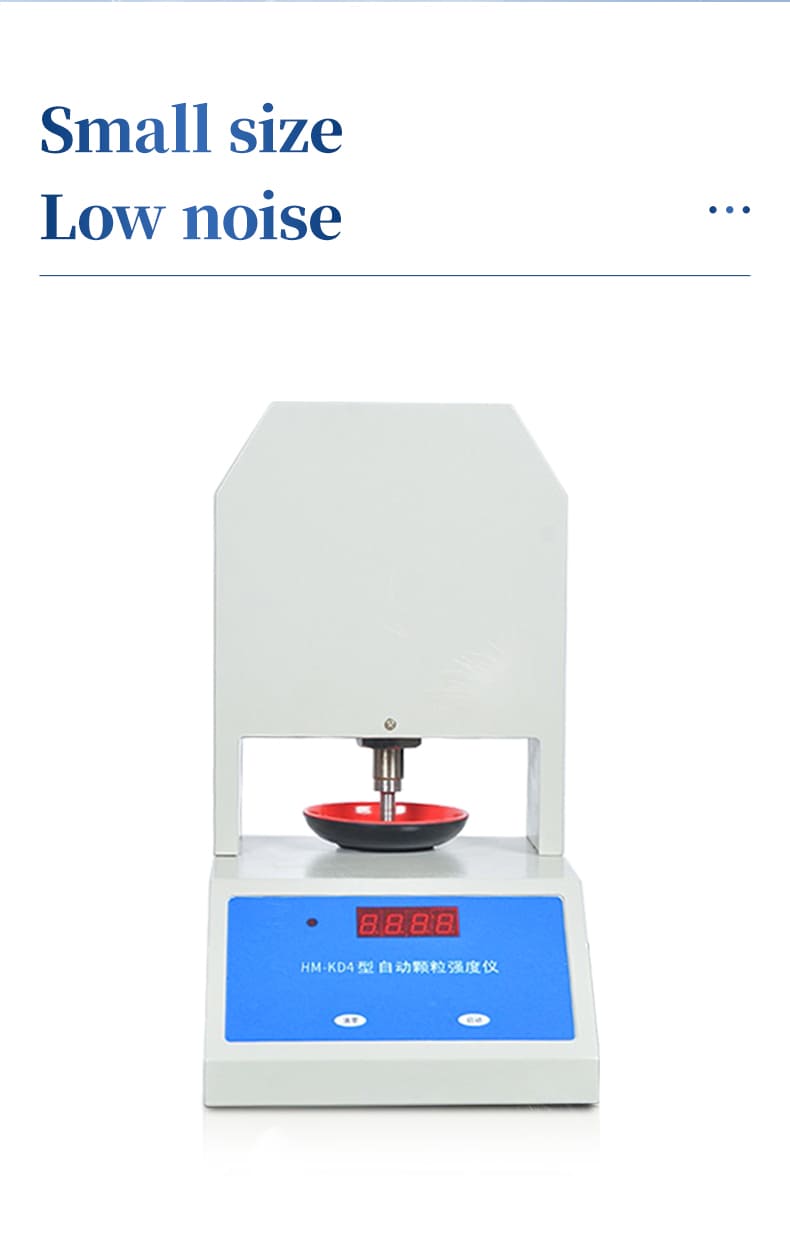

1. Small volume

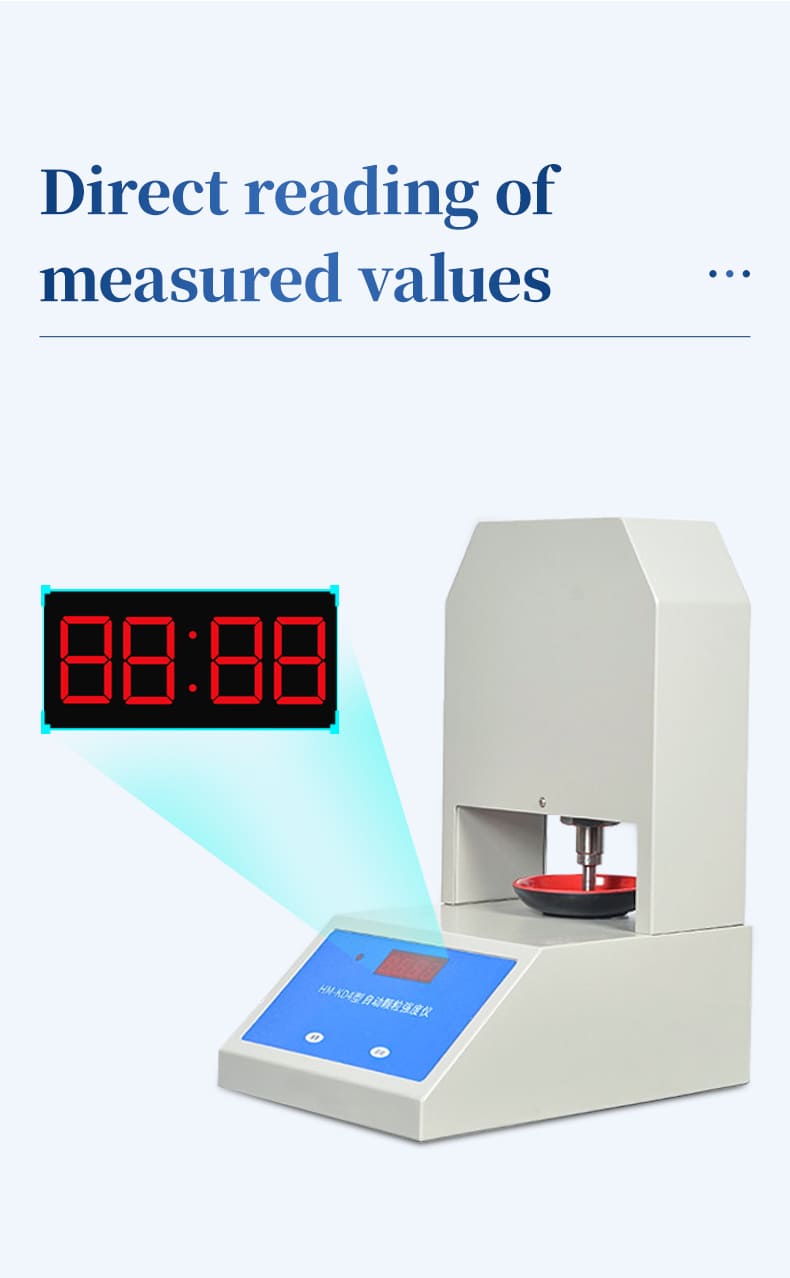

2. Direct reading of measured values

3. High precision

4. Easy to use

• Previous: no more

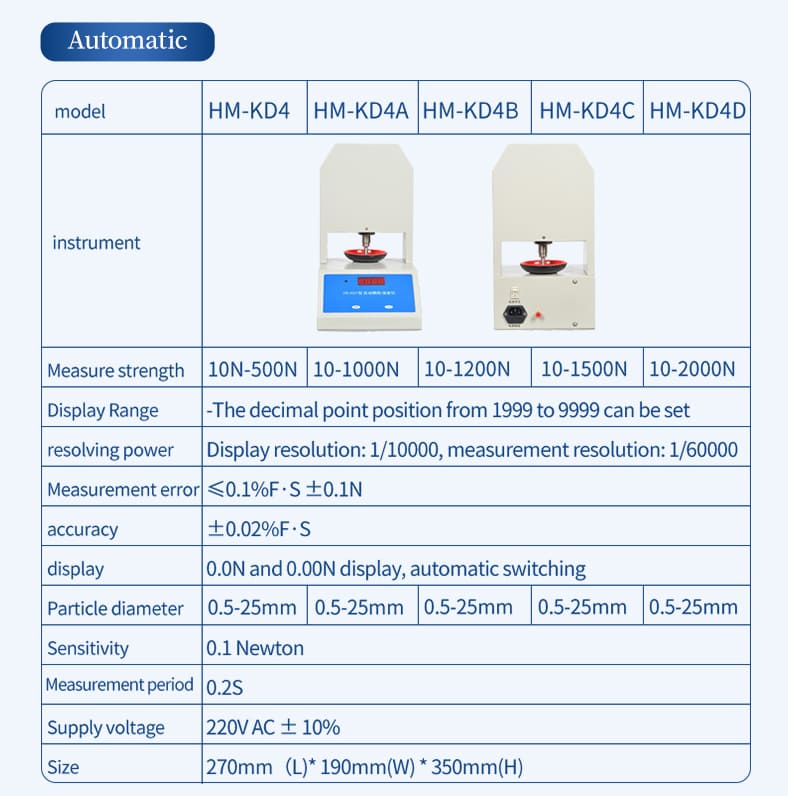

• Next: Fully automatic particle strength tester
