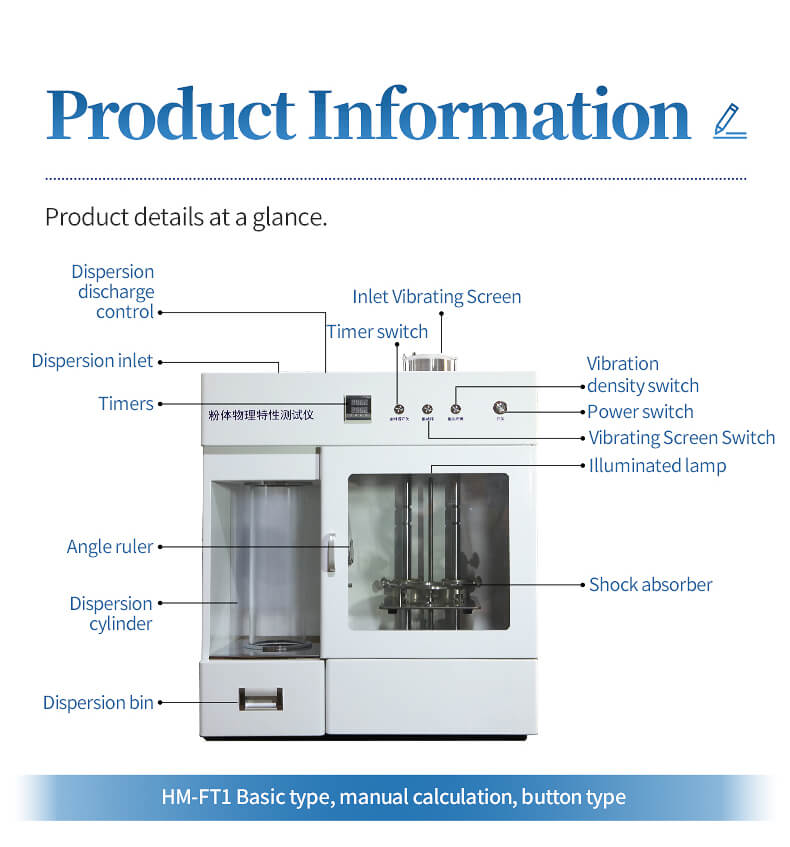

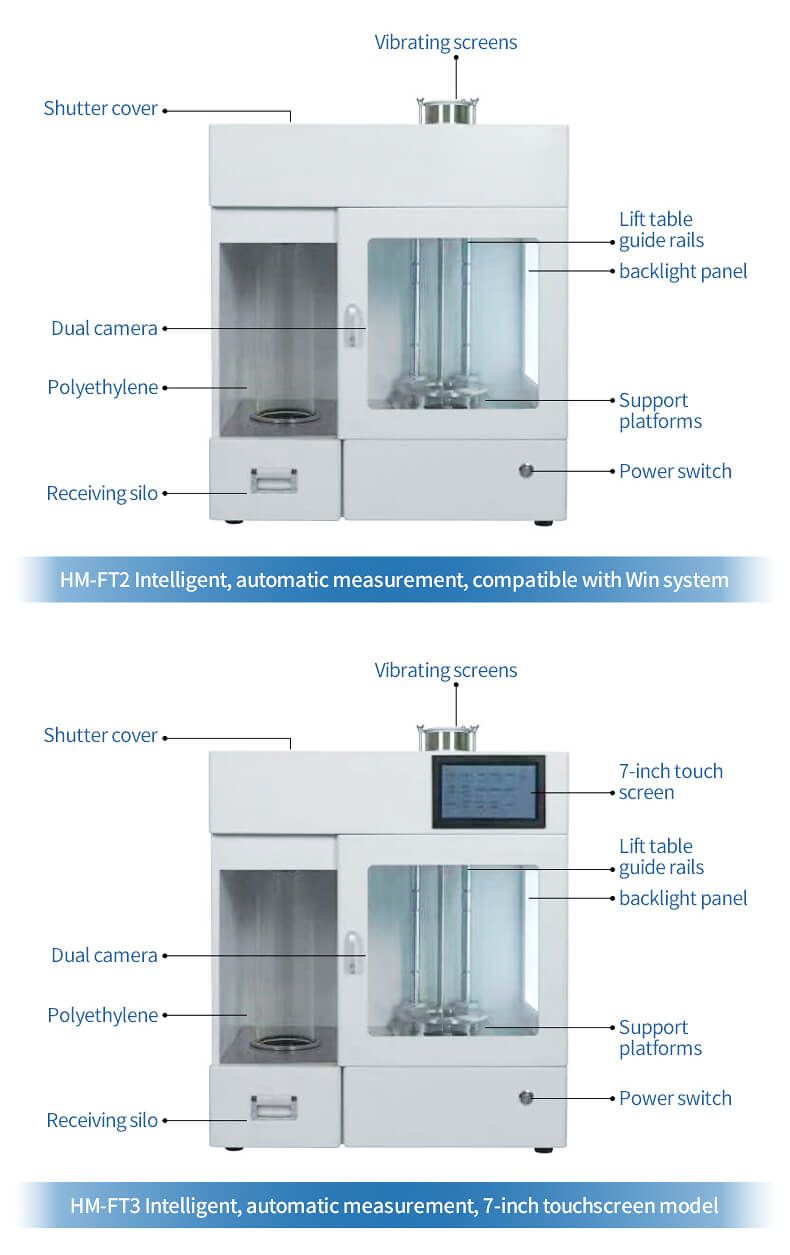

Intelligent powder comprehensive property tester

Supporting Standards:

1.ASTM Standard ASTM D6393 - 14 Standard Test Method for Bulk Solids Characterization by Carr Indices;

2. Chinese National Standard GB/T 31057.2 - 2008 Physical Property Testing of Granular Materials Part 2: Measurement of Vibrational Density;

3. Chinese National Standard GB/T 31057.3 - 2008 Physical Property Tests for Granular Materials, Part 3: Measurement of Flowability Index;

4. Chinese National Standard GB/T 5162 - 2006/ISO 3953:1993 Determination of vibration density of metal powders;

5. Chinese national standard GB/T 1482 - 2010 Determination of the fluidity of metal powders Standard funnel method (Hall flow meter);

6. Chinese National Standard GB/T 1479.1 - 2010 Determination of loose packing density of metal powders Part 1: Funnel method;

7. Chinese national standard GB/T 16913 - 2008 4.5 Test method for physical properties of dust Determination of angle of repose (injection limited bottom method)

Supported test items:

1. Angle of repose (Carr Angle of Repose);

2. Angle of collapse (Carr Angle of Fall);

3. Loose Bulk Density (Loose Bulk Density);

4. Vibration density (Tapped Density);

5. Cohesion (Carr Cohesion);

6. Uniformity (Carr Uniformity);

7. Carr Angle of Spatula;

8. Carr Dispersibility;

9. Voidage;

10. Sieving particle size (Sieving)

Supported Calculation Items:

1. Angle of Difference (Carr Angle of Di?erence);

2. Degree of compression (Carr Compressibility);

3. Flowability index (Flowability);

4. Jet flow index (Floodability)

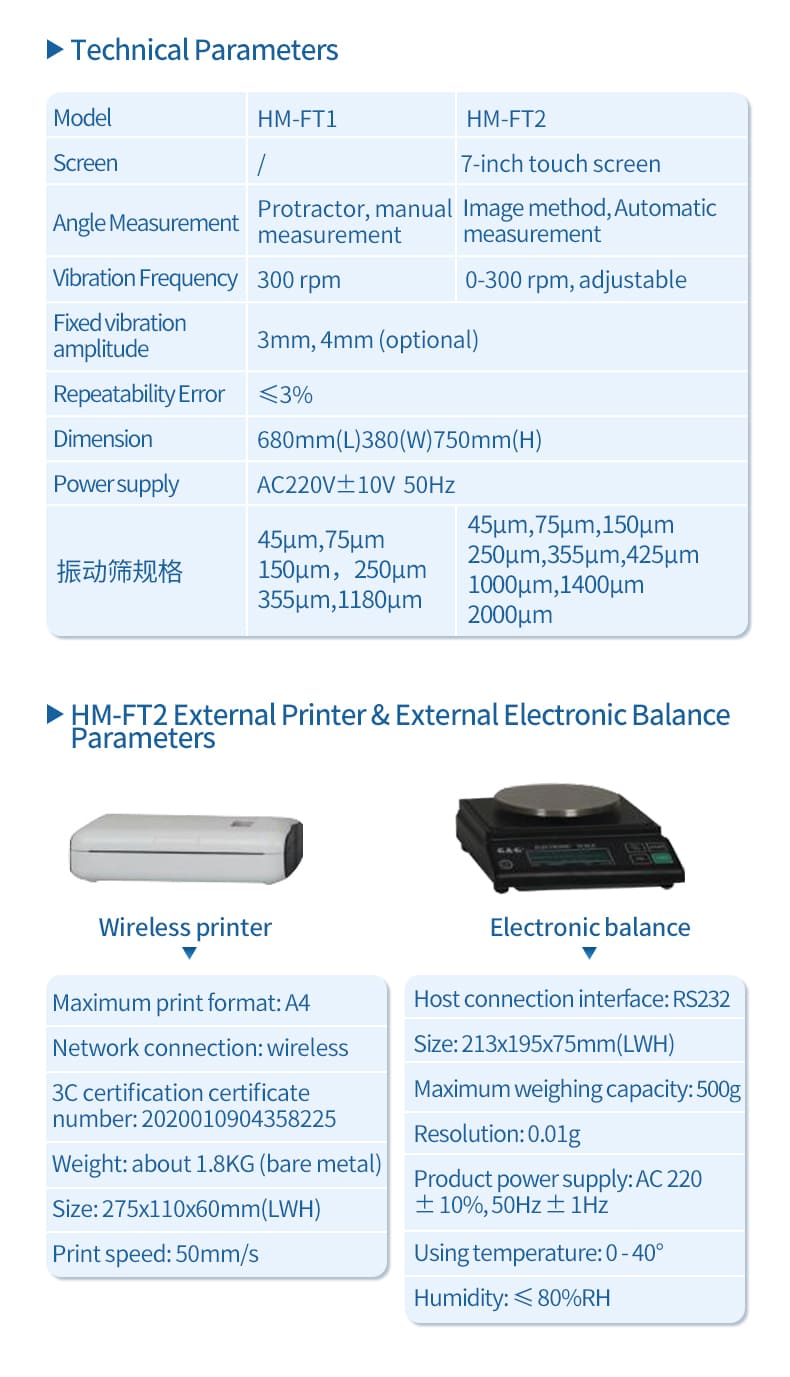

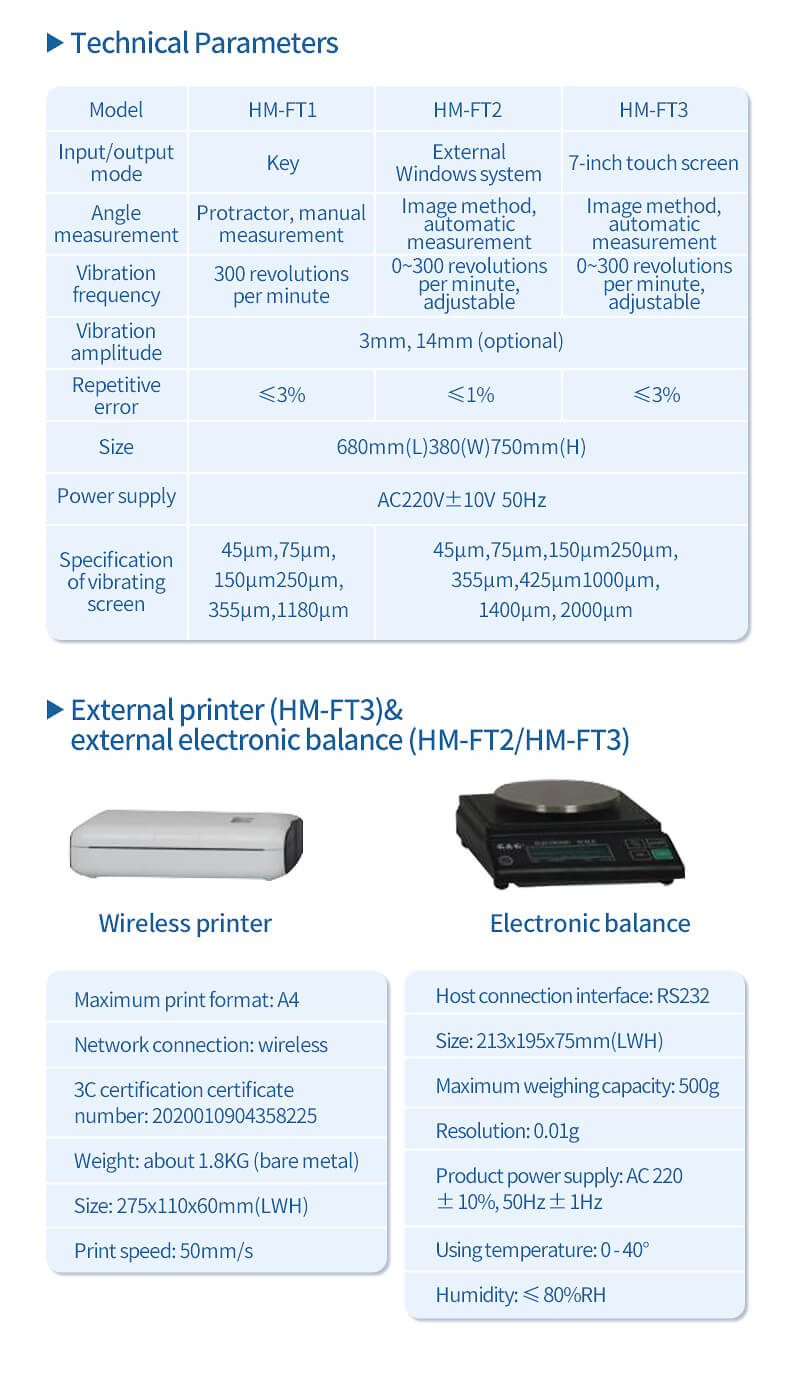

Technical parameters:

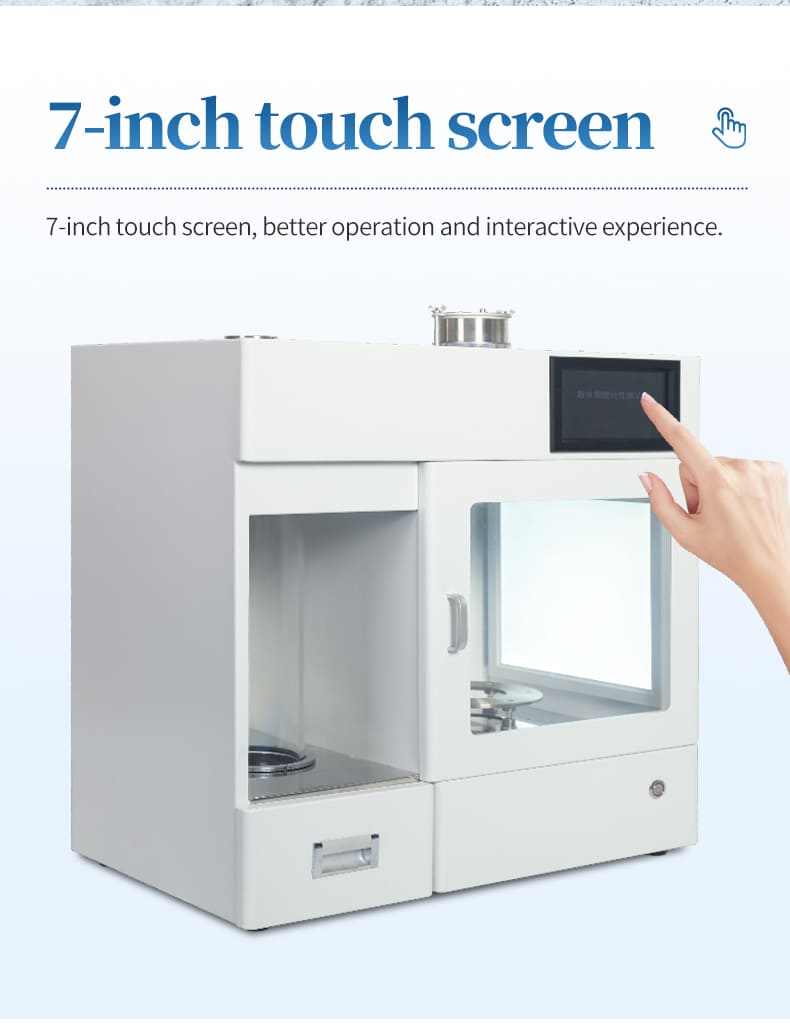

Input and output subsystem: 7-inch touch screen

Angle measurement: image method, automatic measurement

Vibration density: vibration frequency: 0 ~ 300 rpm, adjustable Vibration amplitude: 3mm, 14mm (optional)

Repeatability Error: ≤3%

Size: 680mm(L)380mm(W)750mm(H)

Power supply: AC220V±10V 50Hz

Vibrating screen specification (aperture).

45μm, 75μm, 150μm, 250μm, 355μm, 425μm, 1000μm, 1400μm, 2000μm

Electronic reporting software PCTSee support platform:

1.Windows 10

2.Android

External printer:
1.Maximum print format, A4

2.Network connection mode, wireless

3.3C certificate number, 2020010904358225

4.Weight, about 1.8KG (bare metal)

5. Dimensions, (LWH): 275x110x60mm

6.Printing speed, 50mm/s

External electronic balance.

1. Host connection interface, RS232

2. Dimensions, 213mm (L) 195mm (W) 75mm (H)

3. Maximum weighing capacity, 500g

4.Resolution, 0.01g

5. Product power supply, AC 220 ± 10%, 50Hz ± 1Hz

6.Using temperature, 0 - 40°.

7.Humidity, ≤80%RH
