Product Details
Product Introduction

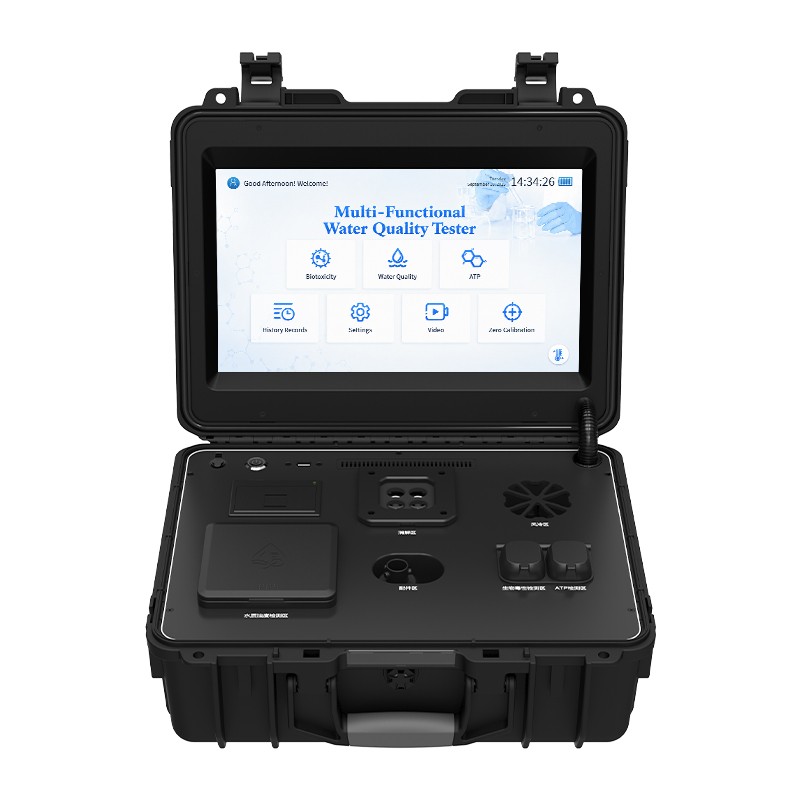

The HM-B300 Multifunctional Portable Water Quality Detector integrates conventional water quality analysis, biological toxicity screening, and ATP hygiene testing into a single portable platform. Built on multi-wavelength spectrophotometry with a 420–860 nm LED light source system, the instrument directly calculates parameters such as COD, total phosphorus, total nitrogen, and ammonia nitrogen using pre-configured calibration curves compliant with national standard methods. The biological toxicity module uses luminescent bacteria to assess acute toxicity levels in water samples within 15 minutes of sample preparation. The ATP detection module leverages the firefly luciferin-luciferase system to deliver hygiene verification results in 15 seconds. A 15.6-inch Android touchscreen provides intuitive operation, while the built-in 4-position digester enables simultaneous sample digestion and cooling. With 800,000 records of local storage, a thermal printer, and Wi-Fi data upload capability, the HM-B300 is designed for on-site rapid screening, emergency monitoring, and routine laboratory analysis. For users requiring heavy-metal detection capability, the HM-B500 full-configuration model adds voltammetric heavy-metal analysis to all features of the HM-B300.
Applications / Testing Items
- On-site rapid water quality screening for surface water and industrial wastewater
- Emergency water pollution incident monitoring and response
- Laboratory routine analysis and comparative testing
- Industrial wastewater discharge compliance verification
- Biological toxicity assessment of surface water, industrial effluent, and domestic sewage
- ATP cleanliness verification for water treatment facilities and distribution systems
- Field detection at rivers, lakes, and discharge outlets
Functional Performance / Features
- Android 10 operating system with 15.6-inch color touchscreen for integrated intelligent operation
- Three-in-one detection: conventional water quality, biological toxicity, and ATP in a single instrument
- Multi-wavelength LED light source (420–860 nm) with pre-configured analytical wavelengths per national standards
- Built-in 4-position digester and 4-position cooling fan with independent control for parallel operation
- Detection, digestion, and cooling can run simultaneously for improved workflow efficiency
- Dual-mode biological toxicity testing: bacterial luminescence (quantitative) and chemiluminescence (qualitative)
- Rapid ATP detection delivering results in 15 seconds with configurable upper/lower thresholds for automatic pass/fail
- Local storage capacity of 800,000 records with built-in thermal printer for instant result printout
- Wi-Fi connectivity for remote software upgrade and wireless data upload to platform client
- USB Excel export for efficient data management and reporting
- Built-in 6,000 mAh lithium battery with 3-hour standby time supporting outdoor field testing
- Customizable water quality test items to meet specific user requirements
Main Parameters
| Parameter | Value |
|---|---|
| Turbidity measurement range | 0–2,000 NTU |
| Turbidity resolution | 0.001 NTU |
| Indication error | ≤±5% (some indicators ≤±10%) |
| Repeatability | ≤3% |
| Stability | ≤3% |
| Digestion heating speed | Reaches 165°C within 10 min |
| Digestion temperature | Room temperature to 200°C adjustable |
| Digestion capacity | 0–10 mL |
| Digestion temperature control accuracy | ±0.5°C |
Technical Parameters
ATP Detection Module
| Parameter | Value |
|---|---|
| Detection precision | 1×10⁻¹⁵–1×10⁻¹⁸ mol ATP |
| Detection range | 0–999,999 RLU |
| Detection interference | ±5% or ±5 RLUs |
| ATP recovery rate | 90%–110% |
| Detection time | 15 s |
| Output mode | RLU |
Biological Toxicity Detection Module
| Parameter | Value |
|---|---|
| Measurement range | 0–1×10⁷ mV |
| Measurable spectrum range | 340–1,000 nm |
| Precision | RSD ≤5% |
| Detection time | Results within 15 min after sample preparation |
| Result representation | Relative luminosity (%) and equivalent reference toxicant concentration (mg/L) |
Physical Parameters
| Parameter | Value |
|---|---|
| Screen | 15.6-inch Android LCD touchscreen |
| Working voltage | 48 V |
| Battery capacity | 6,000 mAh |
| Average power consumption | ≤120 W |
| Dimensions | 427 mm × 344 mm × 188 mm |
| Weight | 10.5 kg |
| Operating temperature | 5–40°C |
| Ambient humidity | <85% (non-condensing) |
