Product Details
Product Introduction

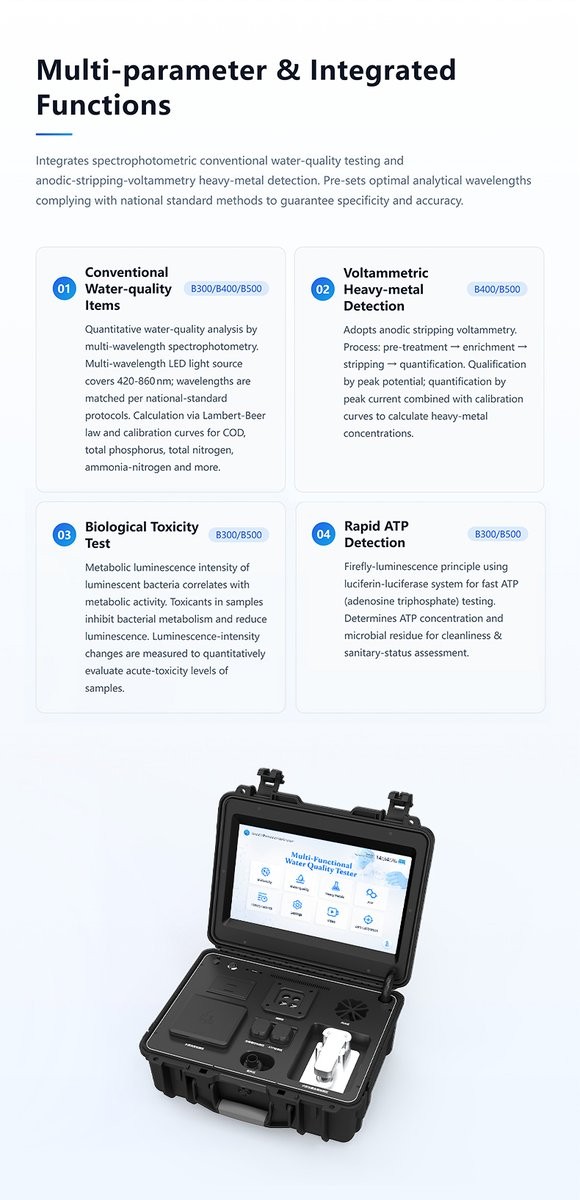

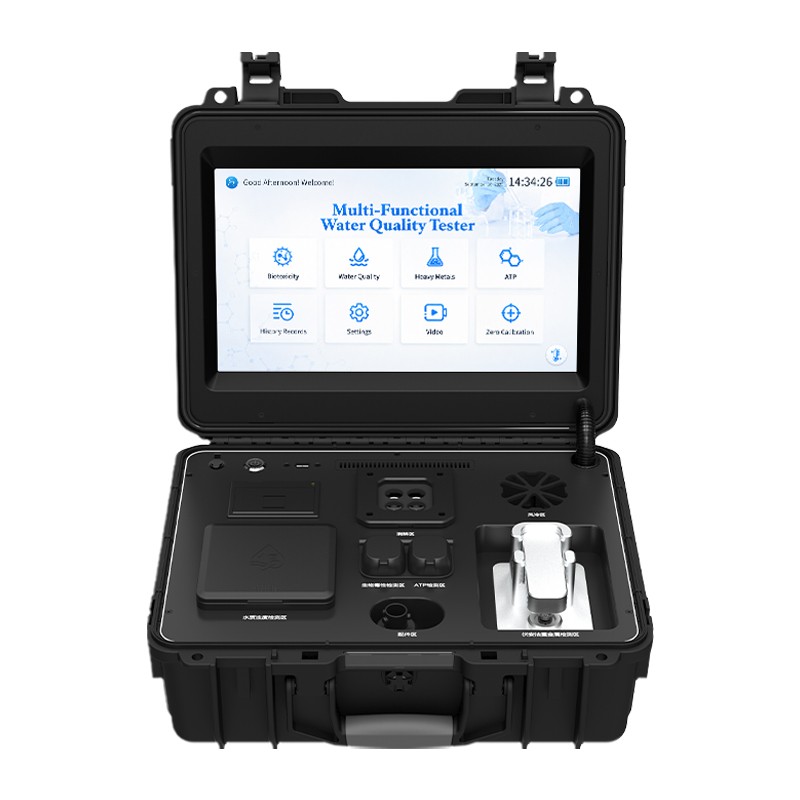

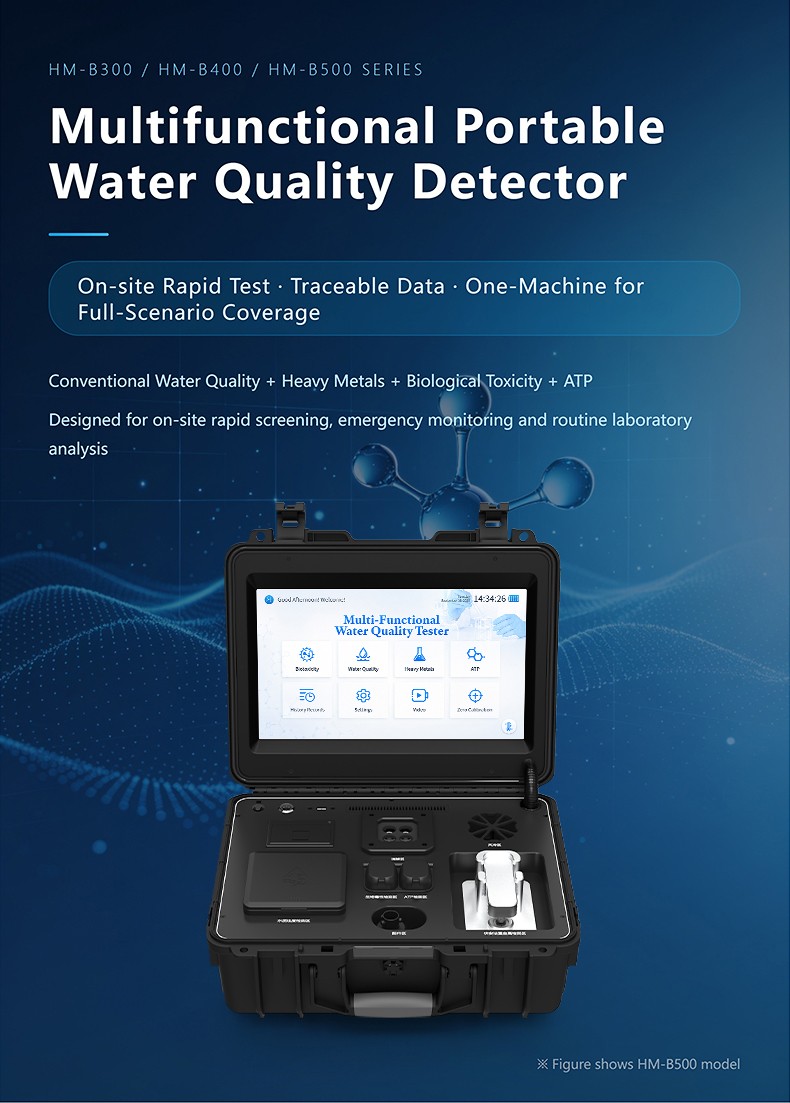

The HM-B500 Multifunctional Portable Water Quality Detector is the full-configuration model in the HM-B series, integrating all four analytical modules on a single portable platform: spectrophotometric water quality analysis, voltammetric heavy-metal detection, biological toxicity screening, and ATP hygiene testing. This comprehensive configuration enables a complete water quality assessment workflow — from chemical parameter quantification through trace metal analysis to biological effect evaluation and hygiene verification — without the need for multiple separate instruments.
The spectrophotometric module uses a multi-wavelength LED light source (420–860 nm) with pre-configured analytical wavelengths matched to national standard methods, covering 49 routine water quality items including COD, total nitrogen, total phosphorus, ammonia nitrogen, turbidity, and colorimetric metal indicators. The voltammetric heavy-metal module employs anodic stripping voltammetry with disposable screen-printed electrodes, achieving 0.5 ppb detection limits for cadmium and lead in water samples and 0.01 mg/kg in grain samples. The biological toxicity module uses luminescent bacteria to assess acute toxicity within 15 minutes of sample preparation, with dual-mode testing available (bacterial luminescence for quantitative results, chemiluminescence for qualitative screening). The ATP module delivers hygiene verification in 15 seconds using the firefly luciferin-luciferase system. All four modules are managed through a 15.6-inch Android touchscreen with a unified interface. For users whose monitoring scope is narrower, the HM-B300 covers water quality, toxicity, and ATP, while the HM-B400 covers water quality and heavy metals.

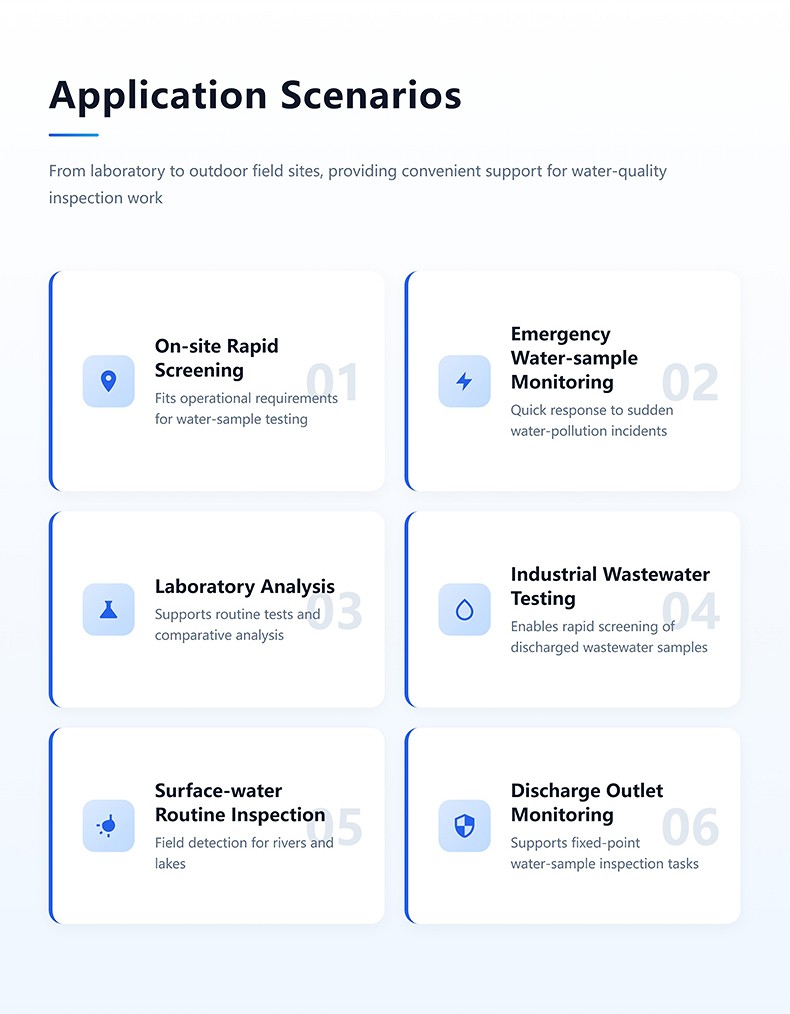

Applications / Testing Items

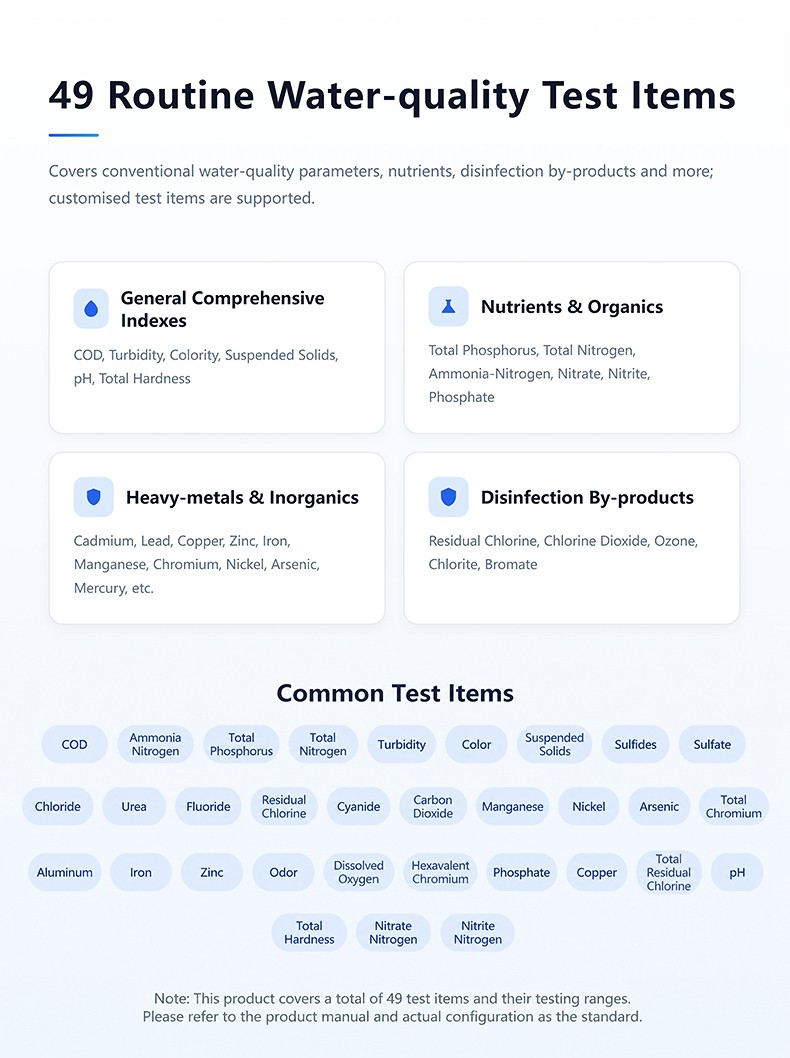

- Comprehensive on-site water quality analysis: 49 spectrophotometric parameters including COD, nutrients, and metals
- Trace heavy-metal detection: cadmium and lead at ppb level in water, mg/kg level in grain
- Biological toxicity screening: acute toxicity assessment for surface water, industrial effluent, and emergency samples
- ATP hygiene verification: 15-second cleanliness testing for treatment facilities and distribution systems
- Industrial wastewater discharge compliance: multi-parameter compliance verification from a single field visit
- Emergency pollution incident response: rapid screening across chemical, toxicological, and hygiene dimensions
- Laboratory routine analysis and field comparative testing

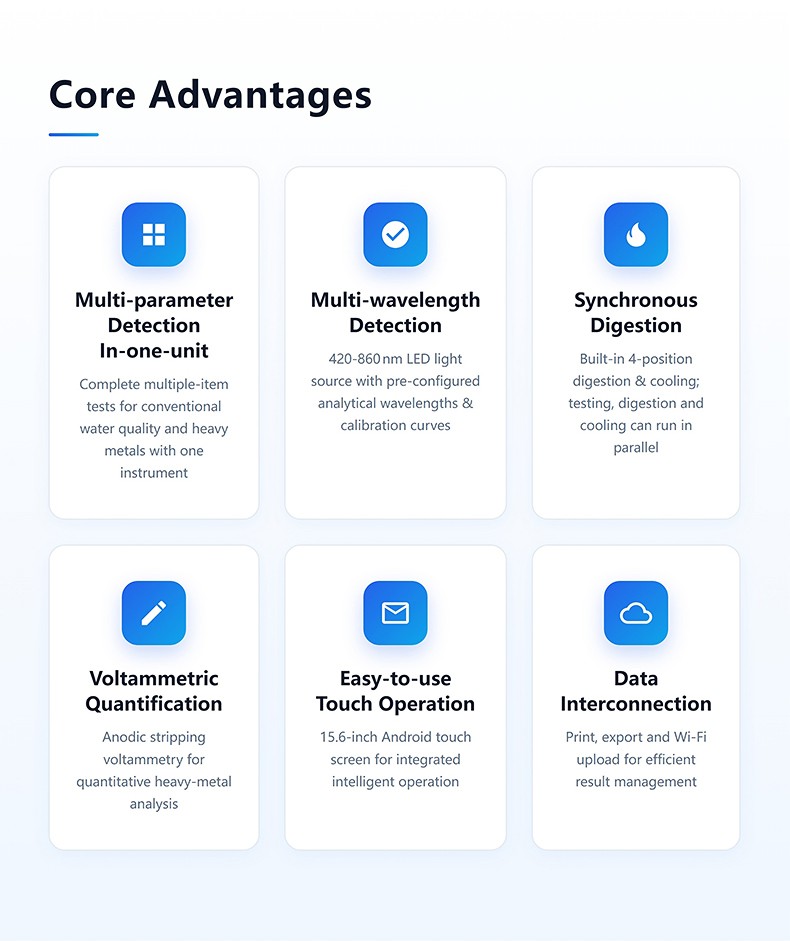

Functional Performance / Features
- Four-in-one platform: conventional water quality, voltammetric heavy metals, biological toxicity, and ATP detection in a single instrument
- Complete analytical workflow from chemical parameters through trace metals to biological effects and hygiene indicators

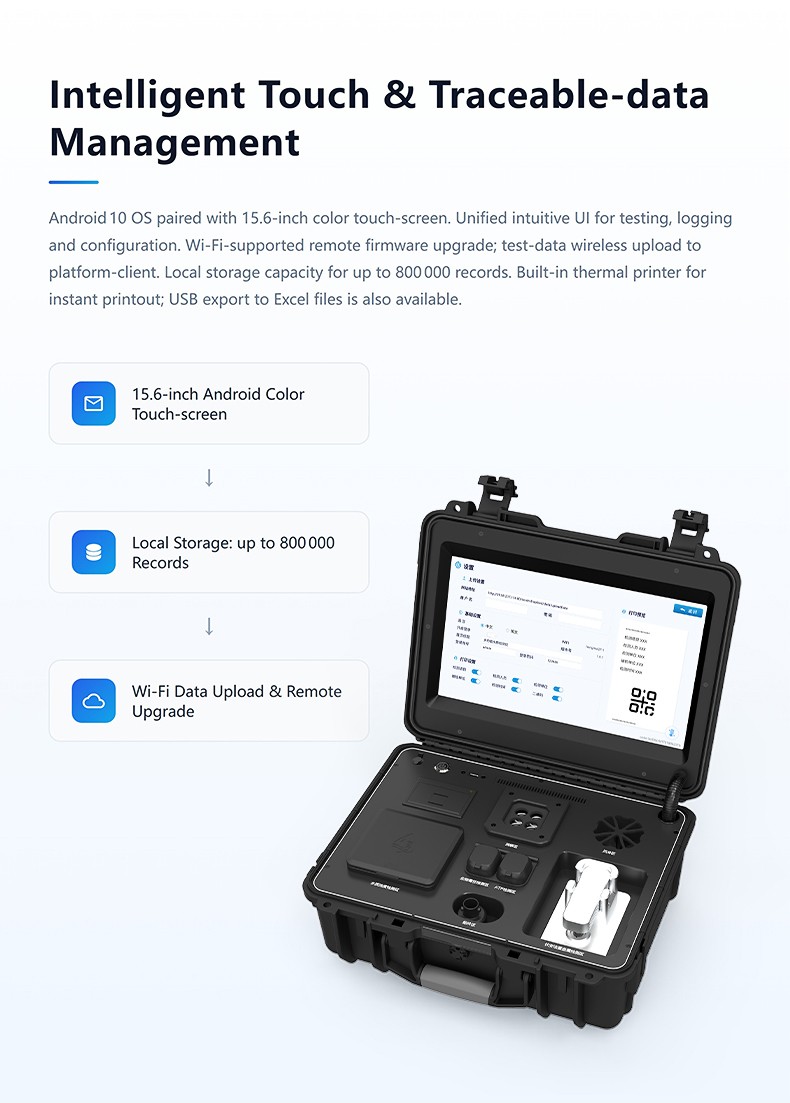

- Android 10 operating system with 15.6-inch color touchscreen managing all four modules through a unified interface
- Multi-wavelength LED light source (420–860 nm) with pre-configured wavelengths per national standard methods

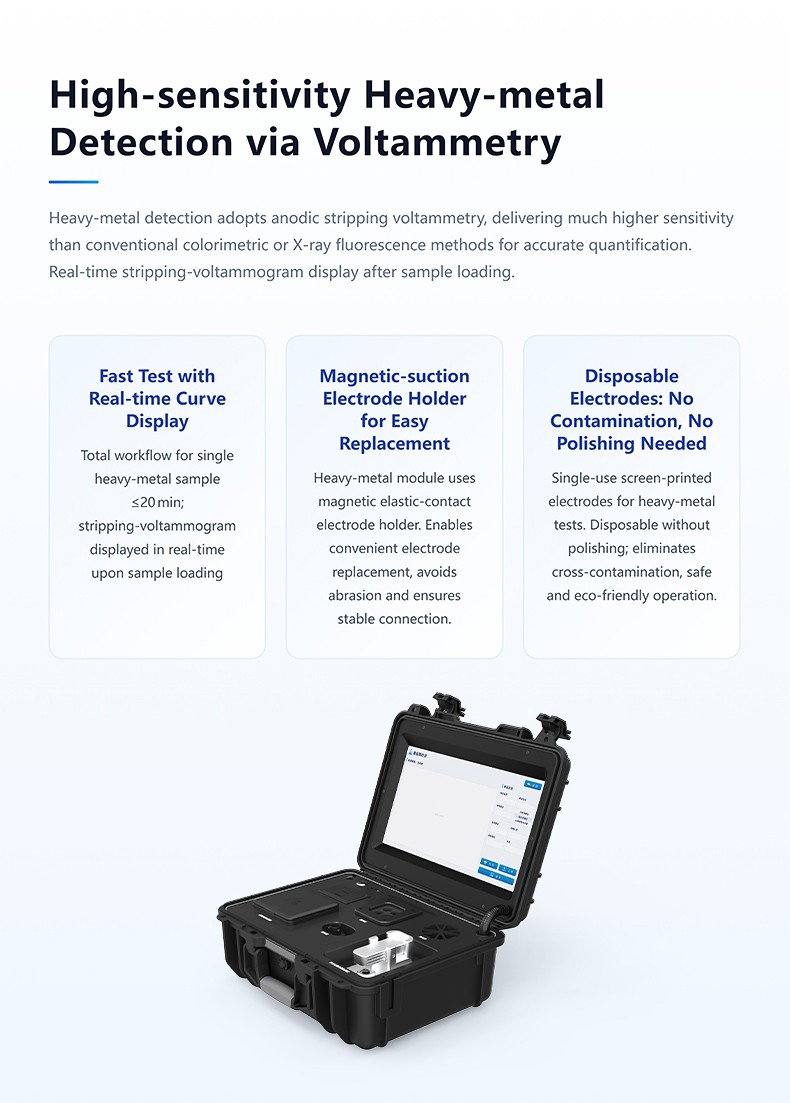

- Voltammetric heavy-metal module with anodic stripping voltammetry, 0.5 ppb detection limits, and disposable screen-printed electrodes
- Magnetic elastic-contact electrode holder for tool-free electrode replacement without abrasion

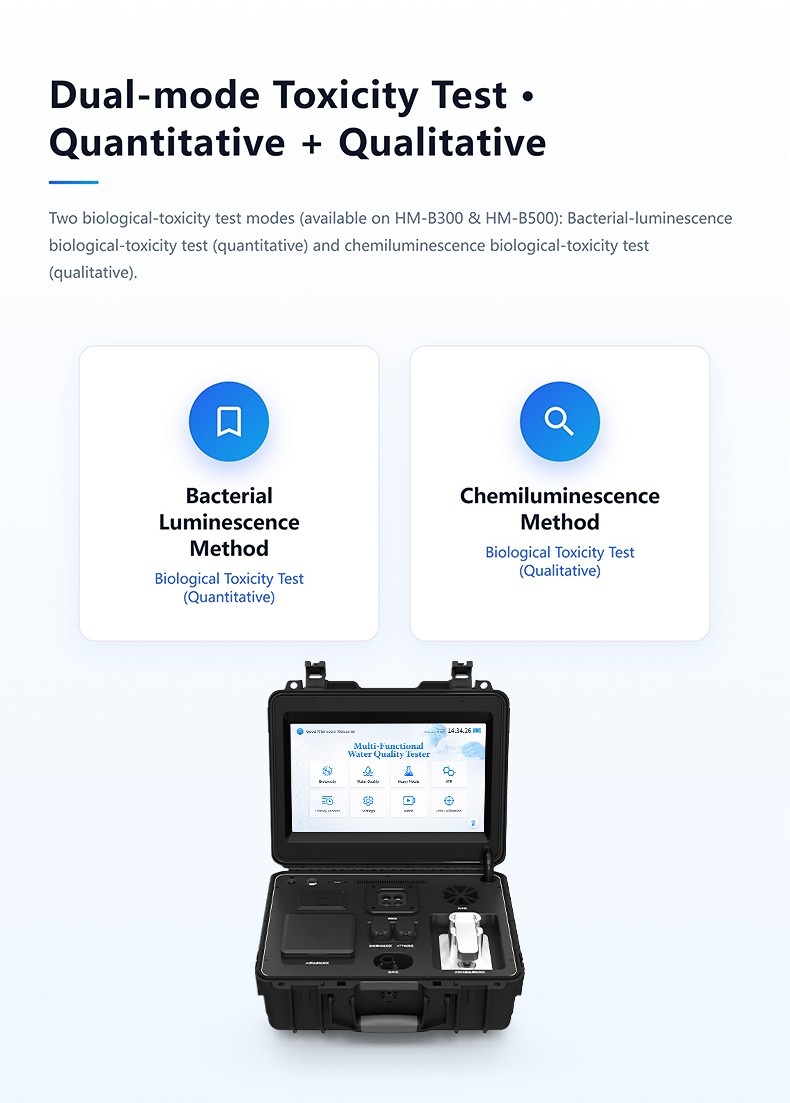

- Dual-mode biological toxicity testing: bacterial luminescence (quantitative) and chemiluminescence (qualitative)

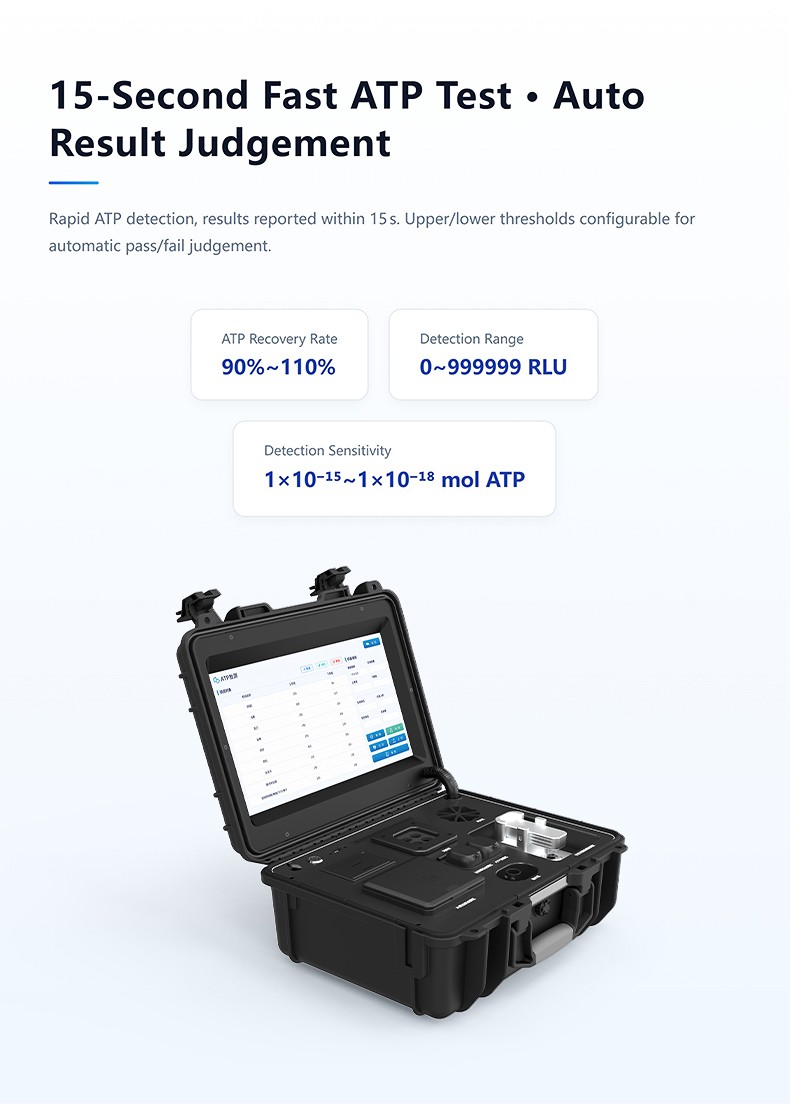

- Rapid ATP detection in 15 seconds with configurable upper/lower thresholds for automatic pass/fail judgement

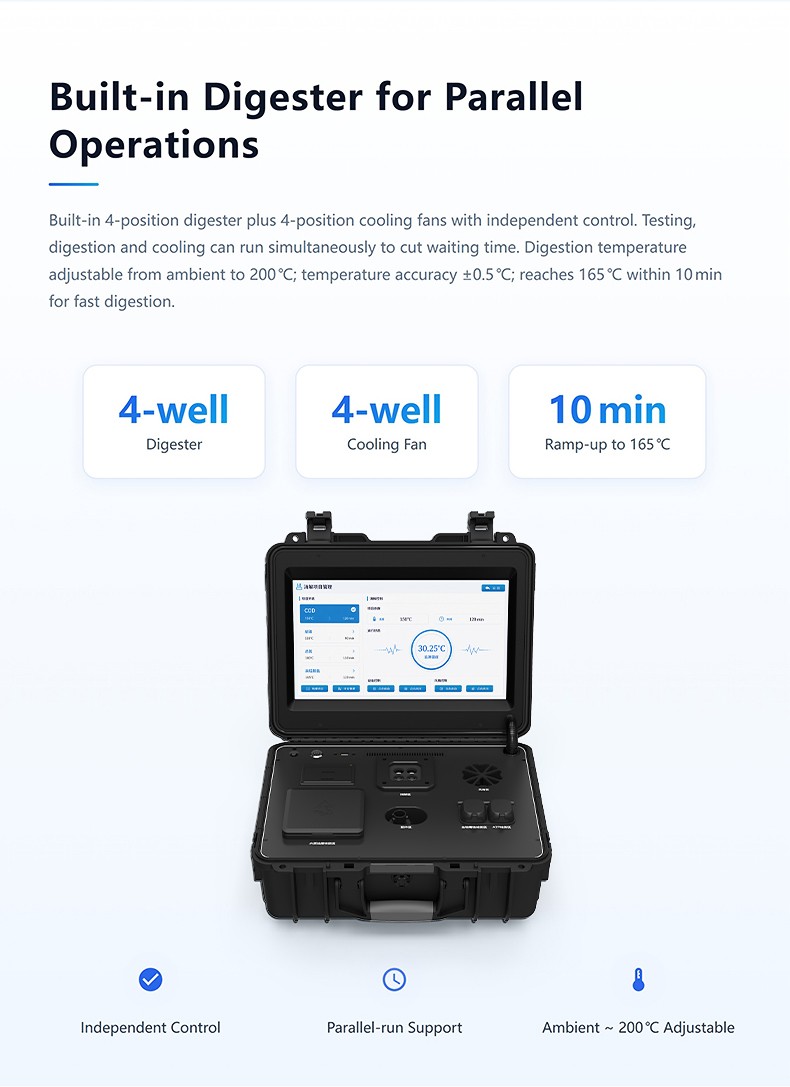

- Built-in 4-position digester and 4-position cooling fan with independent control for parallel operation
- Local storage of 800,000 records consolidating results from all four modules with consistent timestamps
- Built-in thermal printer, Wi-Fi data upload, and USB Excel export for complete data traceability
- Built-in 6,000 mAh lithium battery with 3-hour standby for outdoor field deployment

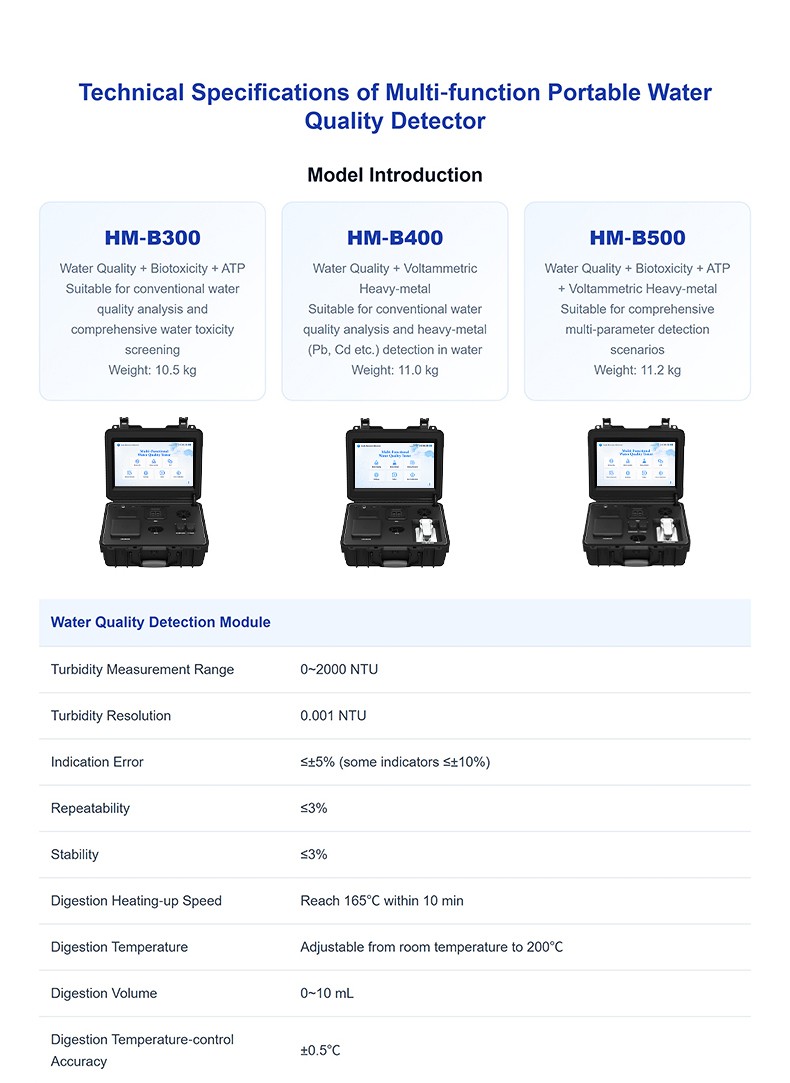

Main Parameters
| Parameter | Value |
|---|---|
| Turbidity measurement range | 0–2,000 NTU |
| Turbidity resolution | 0.001 NTU |
| Indication error | ≤±5% (some indicators ≤±10%) |
| Repeatability | ≤3% |
| Stability | ≤3% |
| Digestion heating speed | Reaches 165°C within 10 min |
| Digestion temperature | Room temperature to 200°C adjustable |
| Digestion capacity | 0–10 mL |
| Digestion temperature control accuracy | ±0.5°C |

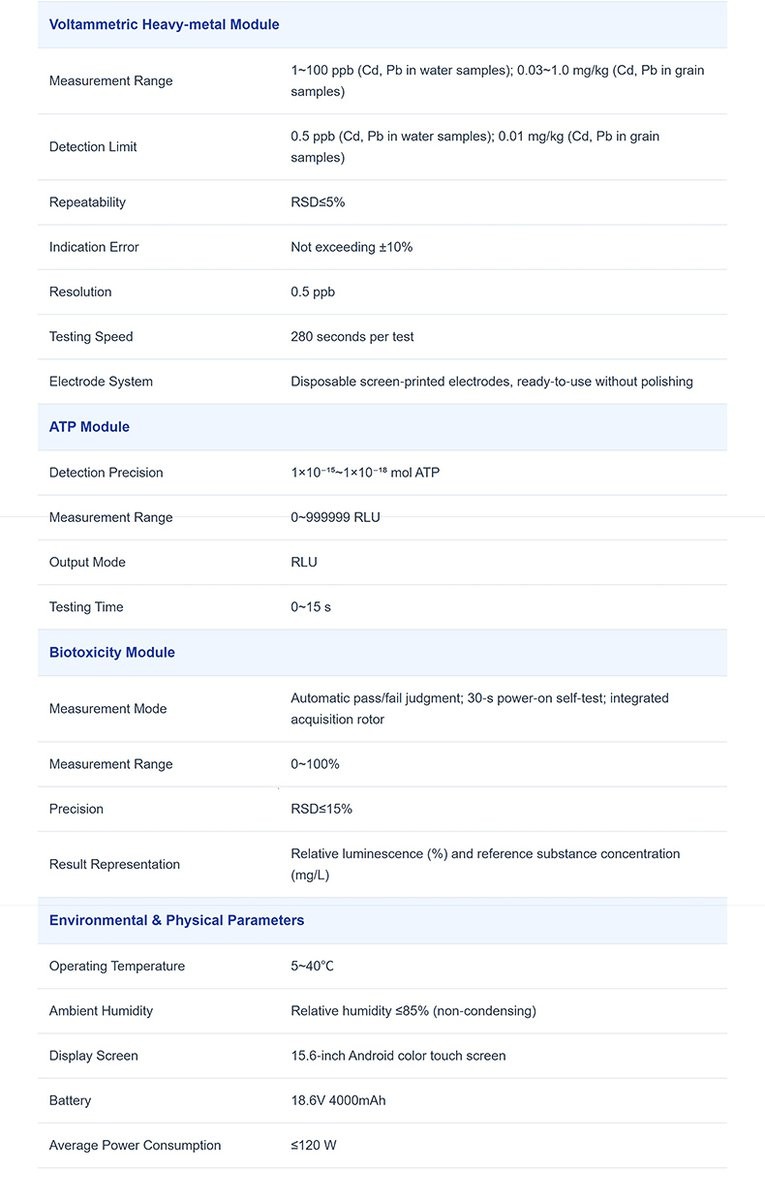

Technical Parameters
Voltammetric Heavy-Metal Module
| Parameter | Value |
|---|---|
| Detection range (water Cd, Pb) | 1–100 ppb |
| Detection range (grain Cd, Pb) | 0.03–1.0 mg/kg |
| Detection limit (water Cd, Pb) | 0.5 ppb |
| Detection limit (grain Cd, Pb) | 0.01 mg/kg |
| Repeatability | RSD ≤5% |
| Resolution | 0.5 ppb |
| Testing speed | 280 seconds per test |
| Electrode system | Disposable screen-printed electrodes |
ATP Detection Module
| Parameter | Value |
|---|---|
| Detection precision | 1×10⁻¹⁵–1×10⁻¹⁸ mol ATP |
| Detection range | 0–999,999 RLU |
| Detection time | 15 s |
| ATP recovery rate | 90%–110% |
Biological Toxicity Module
| Parameter | Value |
|---|---|
| Measurement range | 0–1×10⁷ mV |
| Measurable spectrum range | 340–1,000 nm |
| Precision | RSD ≤5% |
| Detection time | Results within 15 min after sample preparation |
| Result representation | Relative luminosity (%) and reference toxicant concentration (mg/L) |
Physical Parameters
| Parameter | Value |
|---|---|
| Screen | 15.6-inch Android LCD touchscreen |
| Working voltage | 48 V |
| Battery capacity | 6,000 mAh |
| Average power consumption | ≤120 W |
| Dimensions | 427 mm × 344 mm × 188 mm |
| Weight | 11.2 kg |
| Operating temperature | 5–40°C |
| Ambient humidity | <85% (non-condensing) |
