Leakage and Seal Strength Tester

Product Number：

HM-MF03C

Product Difference：

Features a comprehensive sealed test chamber (inner diameter Φ230×280 mm) accommodating both bottle caps and complete bottle containers for full packaging system seal and compressive burst testing.

+86 17853698681 Consultation icon

Product Details

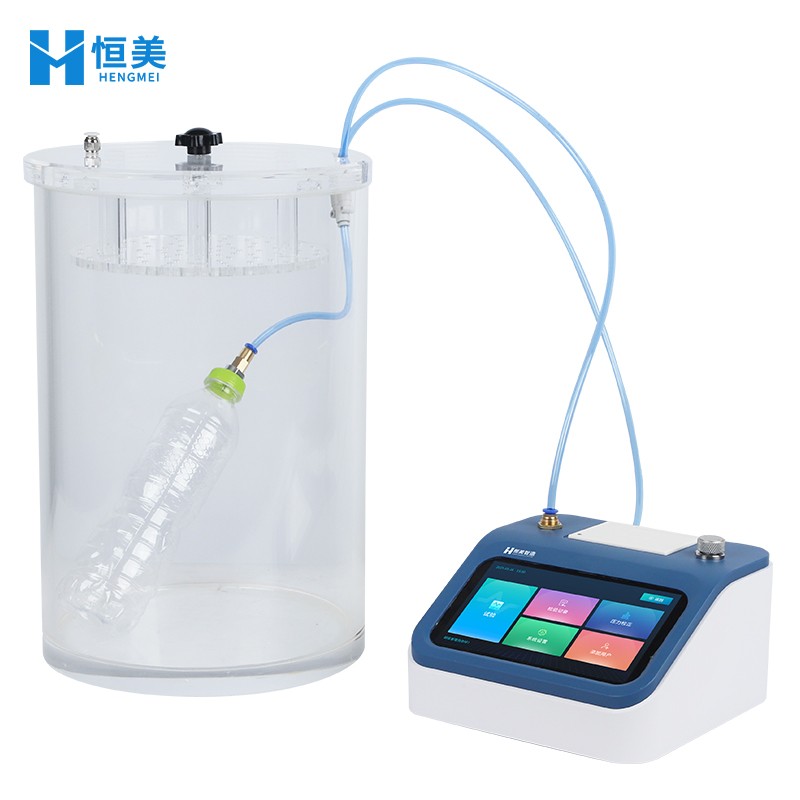

HM Instruments Leakage and Seal Strength Tester benchtop unit with 7-inch touchscreen connected to transparent cylindrical testing chamber

Core features overview of the Leakage and Seal Strength Tester including touchscreen, pressure sensor, curve display, multi-mode testing, printer, and user permissions

Application areas for leak and seal testing across plastic composite bags, creep testing, blister packs, and anti-theft bottle caps

Close-up of the 7-inch color touchscreen control interface showing test execution, inspection records, and calibration menu

Positive pressure test method schematic with imported SMC components and internal pressure sensor inside transparent seal chamber

Real-time pressure curve display interface and test stand fixture tracking pressure variation during seal testing

Three experimental testing modes including cracking test, creep test, and creep to crack test mode with test fixture stand

Execution standards compliance diagram including ASTM F1140, ASTM F2054, ISO 11607, and China GMP data traceability

Key system advantages including micro printer, USB data interface, 2000-entry storage, multi-level permissions, and bilingual interface

Technical specifications and hardware components table comparing test stand, main engine, and test rack for HM-MF03A, HM-MF03B, and HM-MF03C

Shandong Hengmei Electronic Technology Co., Ltd. headquarters enterprise team and scientific instrument manufacturing facility

Advanced testing laboratories and research facilities at Shandong Hengmei Electronic Technology Co., Ltd.

Product Overview

The HM-MF03C Leakage and Seal Strength Tester is a comprehensive dual-purpose positive-pressure testing system engineered for the integrated evaluation of bottle closures and container bodies. Configured with a large-capacity transparent sealed test chamber (inner diameter Φ230×280 mm), the HM-MF03C accommodates both standalone bottle caps and assembled blow-molded bottles (PET, HDPE, glass, etc.). It quantitatively determines cap seal integrity, thread strip resistance, full bottle compressive resistance, and catastrophic container burst pressure. By applying controlled internal pneumatic pressure, the system simulates internal carbonation expansion, mechanical stacking loads, and transport shocks, providing bottling plants, packaging converters, and quality inspection laboratories with complete container verification.

Key Features

Dual-Purpose Testing Capability: Seamlessly transitions between standalone bottle cap sealing evaluation and complete container bottle body burst pressure testing using interchangeable tooling inside the Φ230×280 mm chamber.
Large-Capacity Transparent Test Chamber: Heavy-wall acrylic cylinder provides generous internal volume (Φ230×280 mm) and 360-degree visibility for submerged bubble leak identification and container deformation monitoring.
High-Precision SMC Pneumatics: Incorporates imported SMC pneumatic regulation components for smooth pressure delivery up to 1 MPa with ±1% FS system accuracy.
7-Inch Color Touchscreen Interface: Interactive industrial UI facilitates rapid test mode selection, pressure setpoint entry, and real-time operational status review.
Dynamic Pressure Curve Tracking: On-screen graphical display renders real-time pressure-time profiles, automatically logging initial seal yield points, creep pressure drops, and catastrophic burst pressures.
Versatile Test Modes: Provides automated execution for burst (cracking) test, timed creep test, and creep-to-failure testing modes.
Data Traceability to GMP Standards: Multi-tiered user authentication with password login meets China GMP criteria for pharmaceutical and food contact packaging quality data integrity.
Integrated Data Documentation: Features an onboard thermal micro-printer for immediate test ticket printing and a USB port for digital record export.

Applications

Plastic Bottle Caps and Closures: Seal tightness, thread stripping resistance, and burst pressure testing for anti-theft caps, beverage closures, and condiment lids.
Complete PET and Plastic Bottles: Internal pressurization burst testing, base expansion analysis, and sidewall compressive resistance for beverage, mineral water, and pharmaceutical bottles.
Container Closure Systems (Assembled Packaging): Total seal performance evaluation of the cap-bottle interface under internal positive pressure to simulate carbonated beverage containment.
Blown Plastic Containers & Jars: Resistance to cracking, bottom roll-out, and volumetric expansion under sustained internal pressure.
Paper Cans and Easy-Open Metal Ends: Seaming integrity and burst resistance for composite food canisters and beverage cans.

Technical Specifications

Parameter	Specification
Instrument Model	HM-MF03C
Sample Type	Bottle Caps + Full Bottle Bodies / Containers
Testing Method	Positive pressure method (internal pressurization)
Test Tooling Size	Sealed chamber (inner diameter): Φ230 mm × 280 mm (H)
Testing Range	0 ～ 1 MPa / 0 ～ 145.2 psi (Standard)
Resolution	0.1 kPa / 0.01 psi
Pressure Accuracy	±1% FS
Inflation Head	Φ10 mm (Customizable)
Inflation Flow Rate	0.1 ～ 10 L/min
Pressure Holding Time	0 s ～ 9999 s
Test Modes	Burst (Cracking) Test, Creep Test, Creep to Burst Test
Gas Source Requirement	Clean compressed air (User-supplied)
Gas Source Pressure	0.6 MPa ～ 0.7 MPa (87 psi ～ 101 psi)
Air Inlet Interface	Φ6 mm polyurethane tubing
Data Storage Capacity	Up to 2,000 test records
Display & Control	7-inch industrial color touchscreen
Data Interface & Output	Built-in thermal micro-printer, USB interface
Main Unit Dimensions	204 mm (L) × 211 mm (W) × 112 mm (H)
Net Weight	1.8 kg (Host unit)
Power Supply	AC 220V, 50 Hz
Compliance Standards	GB/T 17876, GB 18454, BB/T 0025, GB/T 10440, ASTM F1140, YBB 00162002

Configuration / Accessories

Standard Main Unit: Benchtop controller with built-in touchscreen, SMC pneumatic valves, micro-printer, and pressure sensor.
Comprehensive Test Tooling: Large-capacity sealed acrylic chamber (Φ230×280 mm) equipped with perforated plate, bottle body support fixtures, and bottle cap clamping head.
Pneumatic Accessories: Inflation probe, custom bottle mouth seal adapters, and Φ6 mm polyurethane connecting tubing.
Documentation & Power: Thermal printing paper rolls, AC power cord, and operating manual.
Optional Accessories: Specialized bottle neck adapters, customized container height extenders, and precision calibration pressure gauges.

Related Models

The HM-MF03 series accommodates a wide spectrum of container and packaging geometries:

HM-MF03A Packaging Bag Seal Tester: Configured with a 210×300×311 mm test frame for flexible packaging pouches and sterile bags.
HM-MF03B Bottle Cap Seal Tester: Configured with a Φ230×280 mm sealed cylinder chamber specifically for anti-theft bottle caps, closures, and can lids.
HM-MF03C (This Model): Versatile dual-purpose system with a Φ230×280 mm sealed chamber accommodating both bottle caps and complete container bodies for comprehensive seal and burst testing.
