Leakage and Seal Strength Tester

Product Overview

The HM-MF03B Leakage and Seal Strength Tester is a specialized positive-pressure testing system engineered for the rigorous seal performance evaluation of bottle closures. Featuring a transparent cylindrical test chamber (inner diameter Φ230×280 mm) and dedicated closure fixtures, the HM-MF03B quantitatively measures seal leakage limits, cap-to-neck thread trip strength, and burst pressure in plastic anti-theft caps, beverage closures, and container lids. By injecting controlled positive air pressure into the closure interface, the instrument accurately simulates pressure buildup during hot filling, carbonation retention, warehousing, and transportation, delivering indispensable quality data for beverage bottlers, edible oil packaging, and cap manufacturers.

Key Features

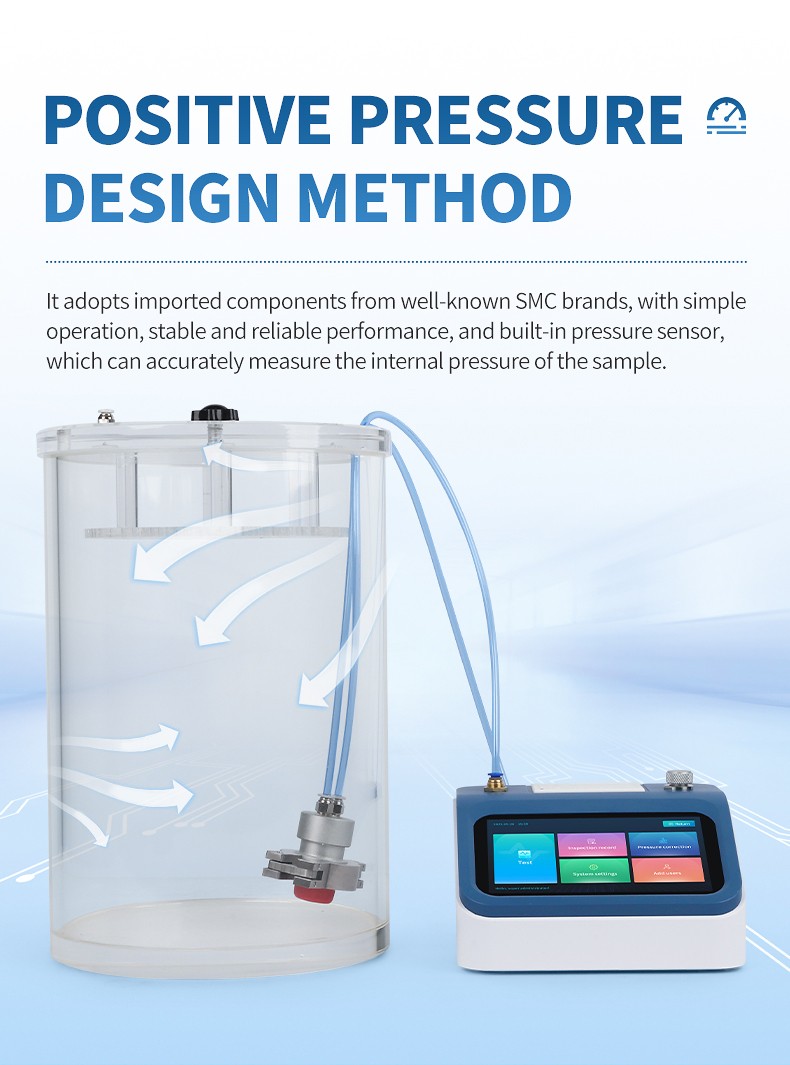

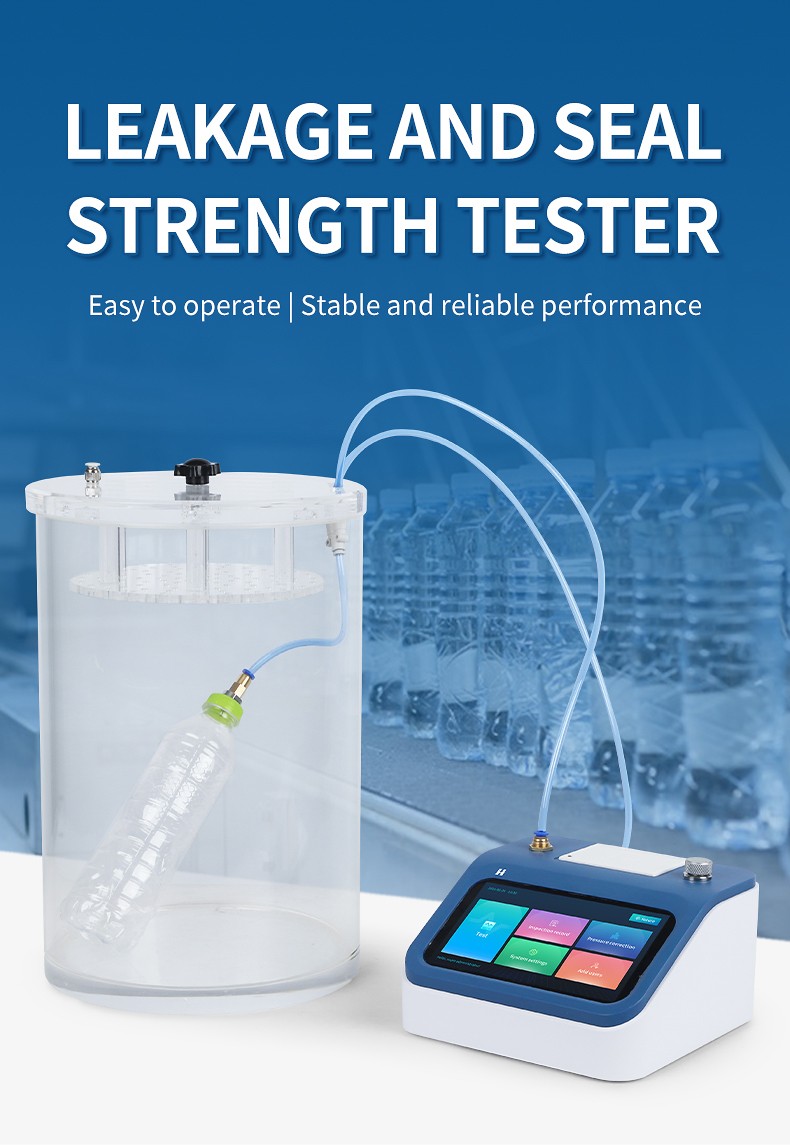

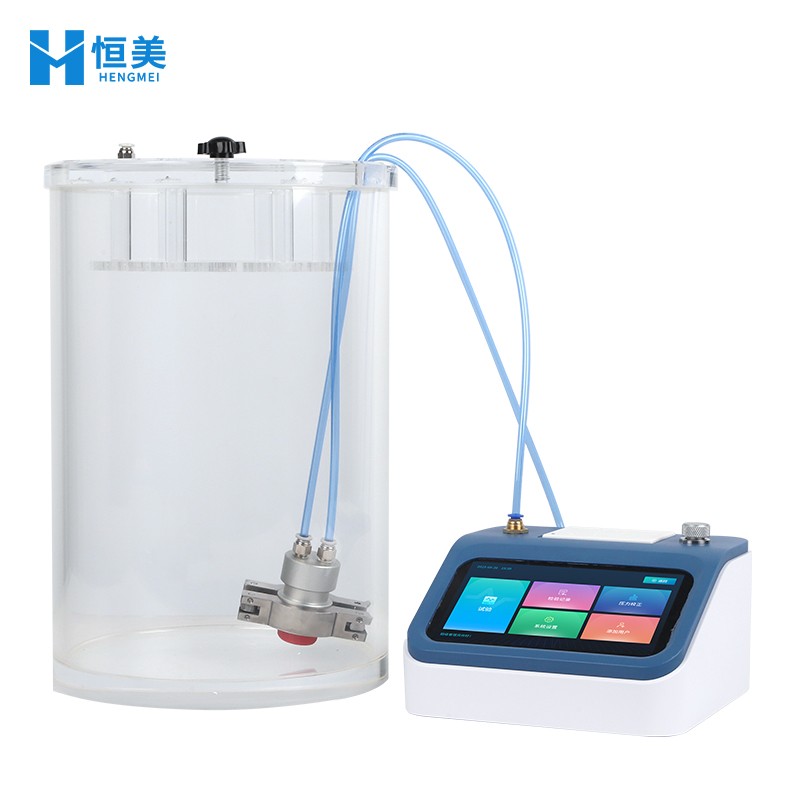

• Transparent Cylindrical Test Chamber: Includes a Φ230×280 mm high-clarity acrylic sealed barrel, providing 360-degree observation of bubble release, seal deformation, and cap detachment during pressurized submersion testing.
• Specialized Anti-Theft Cap Fixture: Engineered to securely clamp beverage bottle caps, edible oil closures, and condiment lids, applying internal pressure directly to evaluate thread engagement and liner sealing integrity.

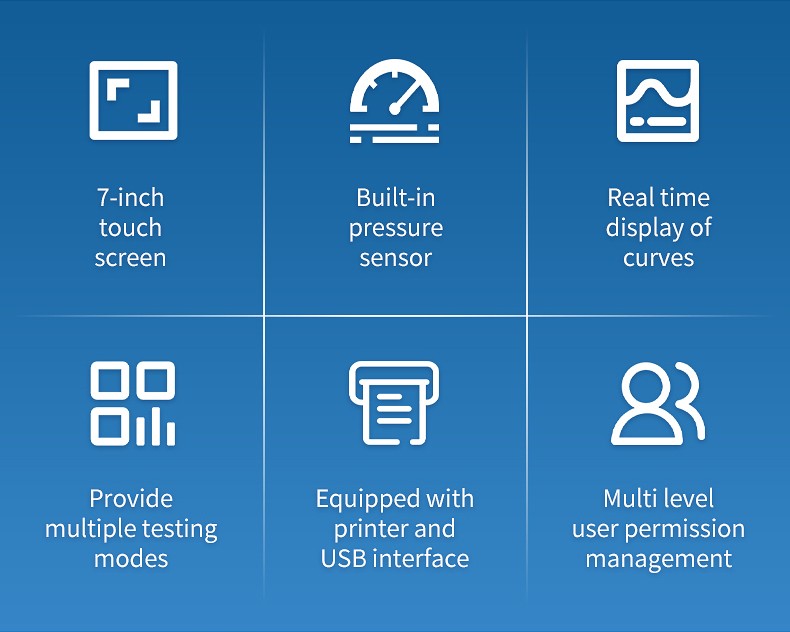

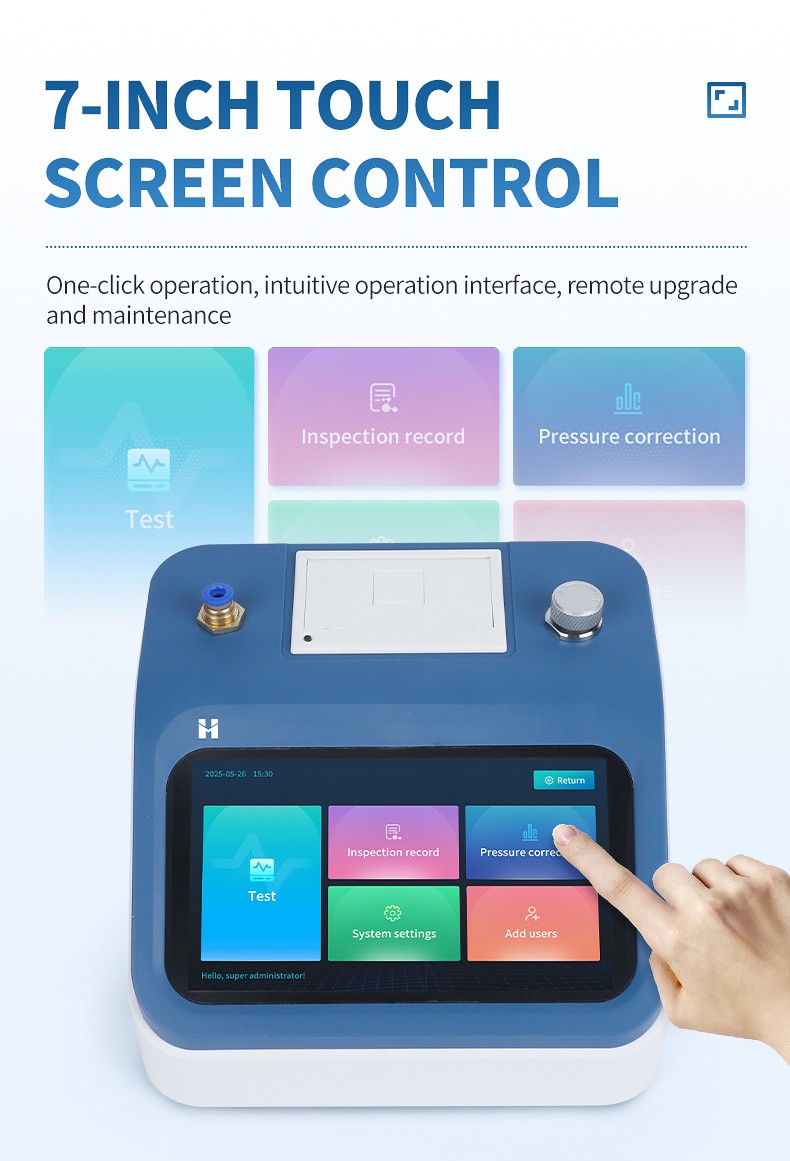

• 7-Inch Color Touchscreen: Intuitive interface with single-button test initiation, programmable pressure holding phases, and support for remote firmware maintenance.
• High-Precision SMC Pneumatics: Powered by premium SMC brand imported pneumatic components for smooth pressure regulation up to 1 MPa with ±1% FS accuracy.

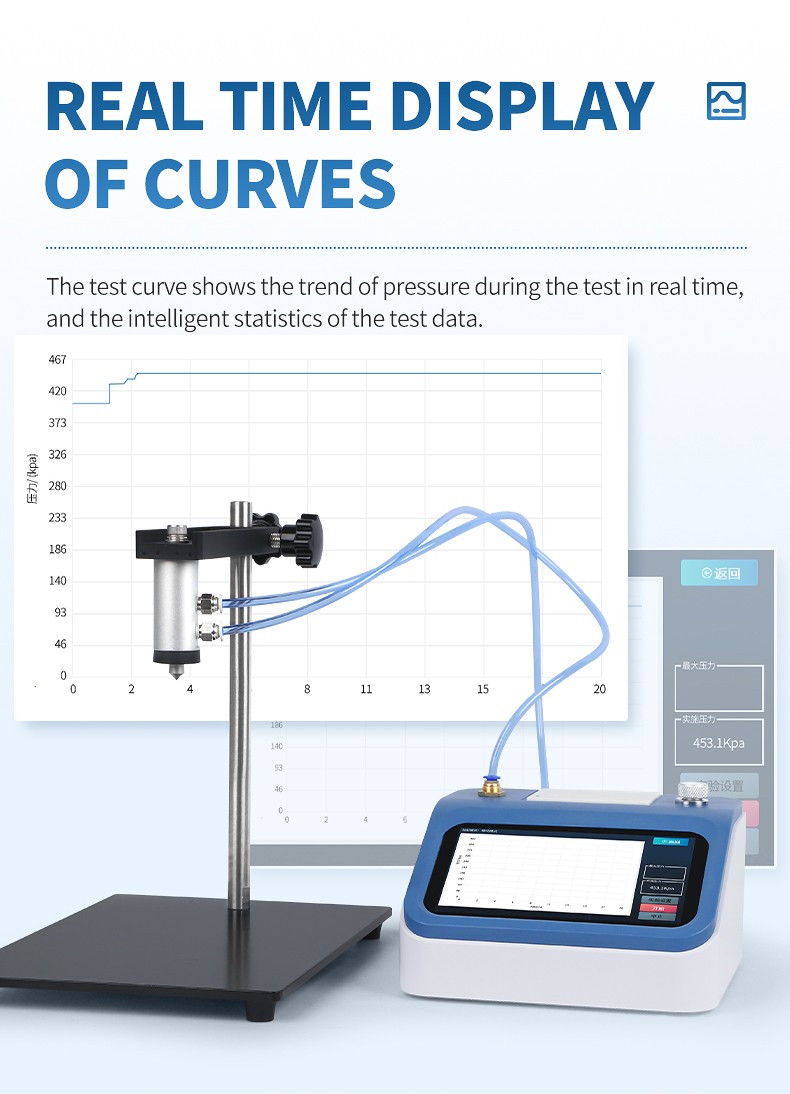

• Real-Time Dynamic Pressure Curve: Real-time on-screen graphic tracking of internal pressure changes, clearly showing sealing retention, leakage drop, and cap trip rupture points.

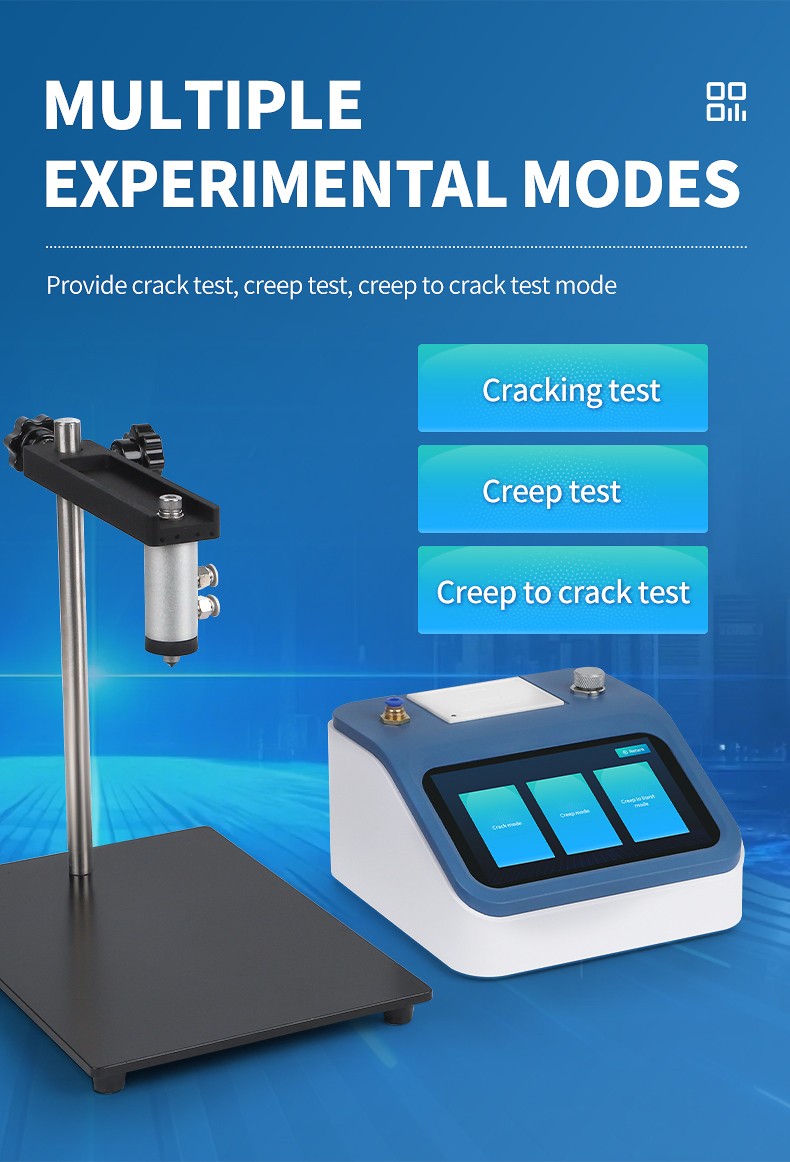

• Three Testing Modes: Supports burst test, creep test, and creep-to-failure testing to assess instantaneous cap blow-off thresholds and prolonged pressure containment.
• China GMP Compliance: Features multi-level user authority management with password authentication for verifiable packaging quality inspection records.

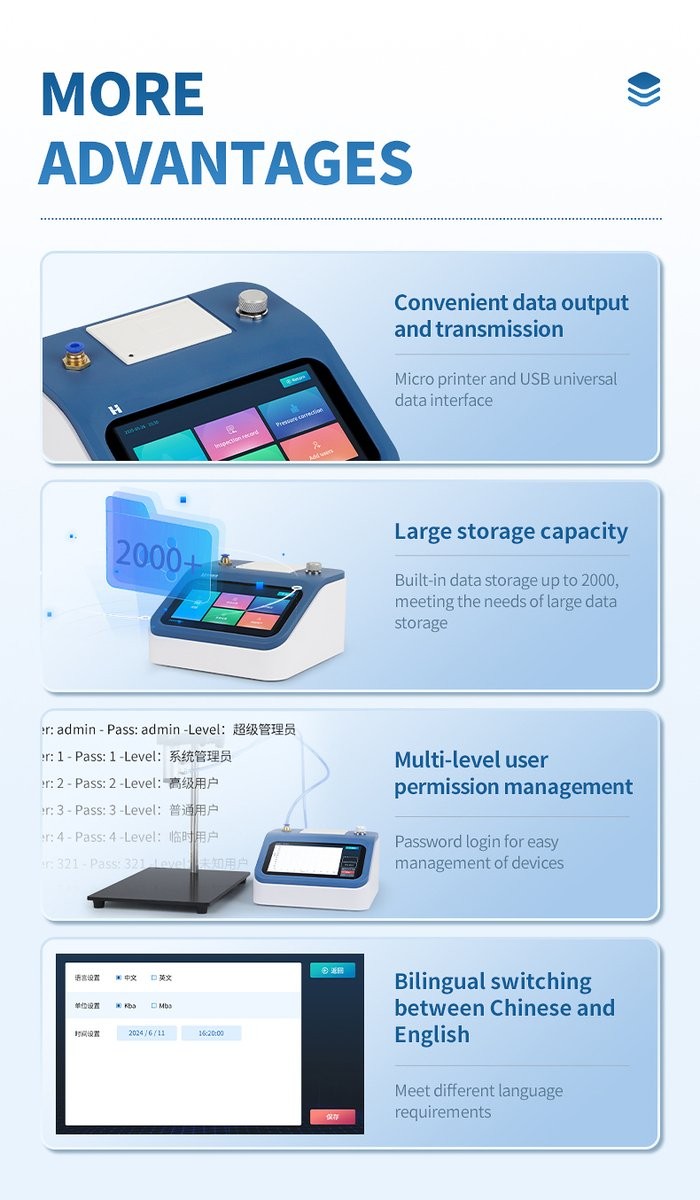

• Built-In Reporting: Integrated thermal micro-printer and USB interface for direct printing and convenient digital test data archiving.

Applications

• Plastic Anti-Theft Bottle Caps: Seal integrity, thread stripping torque resistance, and burst pressure testing for pure water, carbonated soft drink, and juice bottle closures.
• Edible Oil Barrel Closures: Sealing tightness, pouring spout leak resistance, and pressure endurance for vegetable oil container caps.
• Condiment & Food Packaging Caps: Leakage and pressure retention evaluation for soy sauce, vinegar, cooking wine, and sauce bottle closures.
• Metal Easy-Open Ends: Buckle and burst pressure verification for 3-piece beverage cans and composite paper snack canister closures.
• Pharmaceutical Bottle Closures: Child-resistant and tamper-evident cap sealing verification complying with YBB pharmaceutical packaging standards.

Technical Specifications

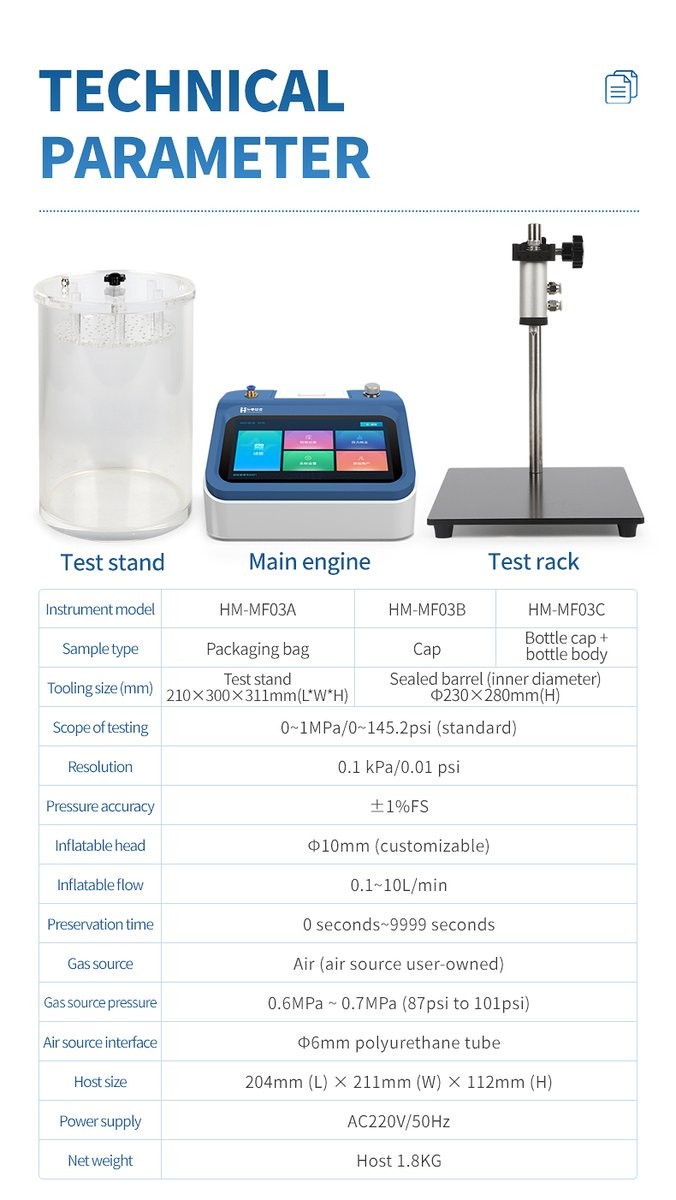

Parameter	Specification
Instrument Model	HM-MF03B
Sample Type	Bottle Caps / Closures / Can Lids
Testing Method	Positive pressure method (internal pressurization)
Test Tooling Size	Sealed chamber (inner diameter): Φ230 mm × 280 mm (H)
Testing Range	0 ～ 1 MPa / 0 ～ 145.2 psi (Standard)
Resolution	0.1 kPa / 0.01 psi
Pressure Accuracy	±1% FS
Inflation Head	Φ10 mm (Customizable)
Inflation Flow Rate	0.1 ～ 10 L/min
Pressure Holding Time	0 s ～ 9999 s
Test Modes	Burst (Cracking) Test, Creep Test, Creep to Burst Test
Gas Source Requirement	Clean compressed air (User-supplied)
Gas Source Pressure	0.6 MPa ～ 0.7 MPa (87 psi ～ 101 psi)
Air Inlet Interface	Φ6 mm polyurethane tubing
Data Storage Capacity	Up to 2,000 test records
Display & Control	7-inch industrial color touchscreen
Data Interface & Output	Built-in thermal micro-printer, USB interface
Main Unit Dimensions	204 mm (L) × 211 mm (W) × 112 mm (H)
Net Weight	1.8 kg (Host unit)
Power Supply	AC 220V, 50 Hz

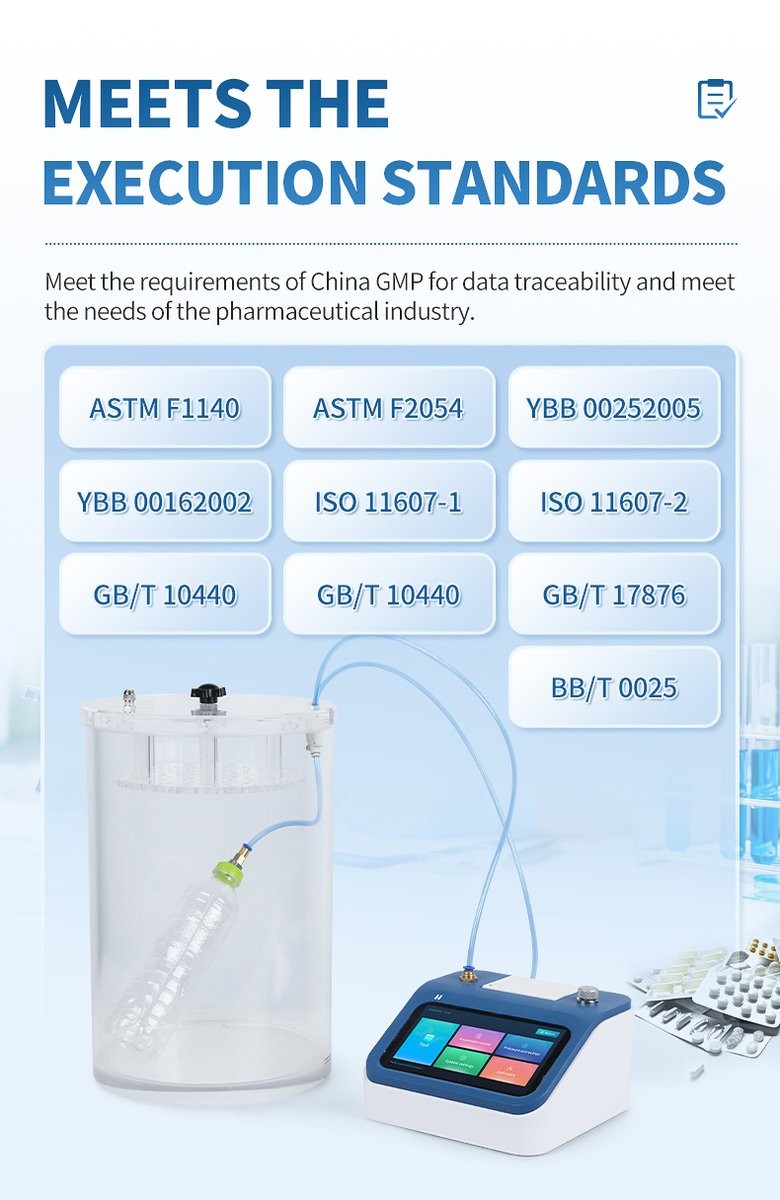

Compliance Standards	GB/T 17876, BB/T 0025, GB/T 10440, ASTM F1140, YBB 00162002

Configuration / Accessories

• Standard Main Unit: Benchtop controller with built-in touchscreen, SMC pneumatic valves, micro-printer, and pressure sensor.
• Bottle Cap Test Tooling: Transparent acrylic sealed test barrel (Φ230×280 mm) equipped with perforated holding plate and anti-theft cap clamping head.
• Connection Kit: Standard inflation probe, seal rings, and Φ6 mm polyurethane pneumatic tubing.
• Documentation & Power: Thermal printing paper, AC power cable, and operation manual.
• Optional Accessories: Custom threaded bottle neck adapters, customized cap inflation heads, and precision pressure calibrator.
