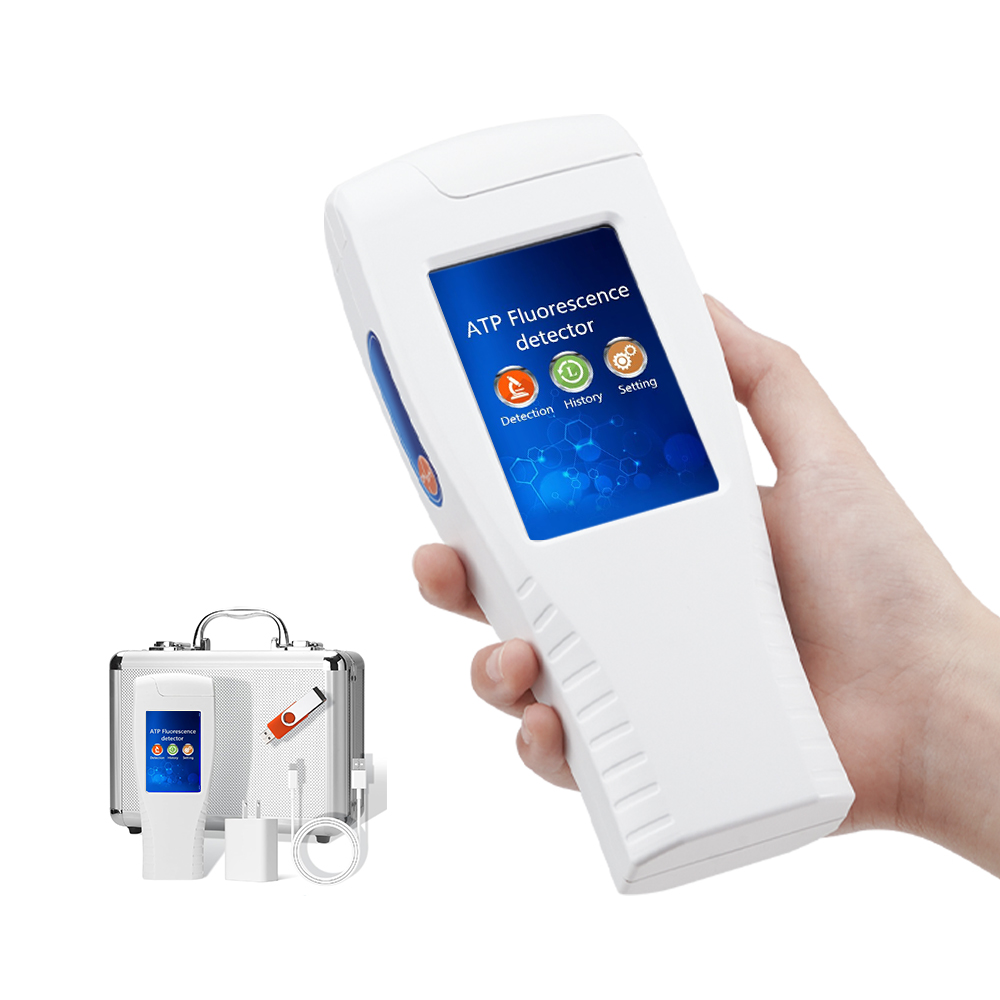

HM-ATP+ ATP Fluorescence Detector

Product Introduction

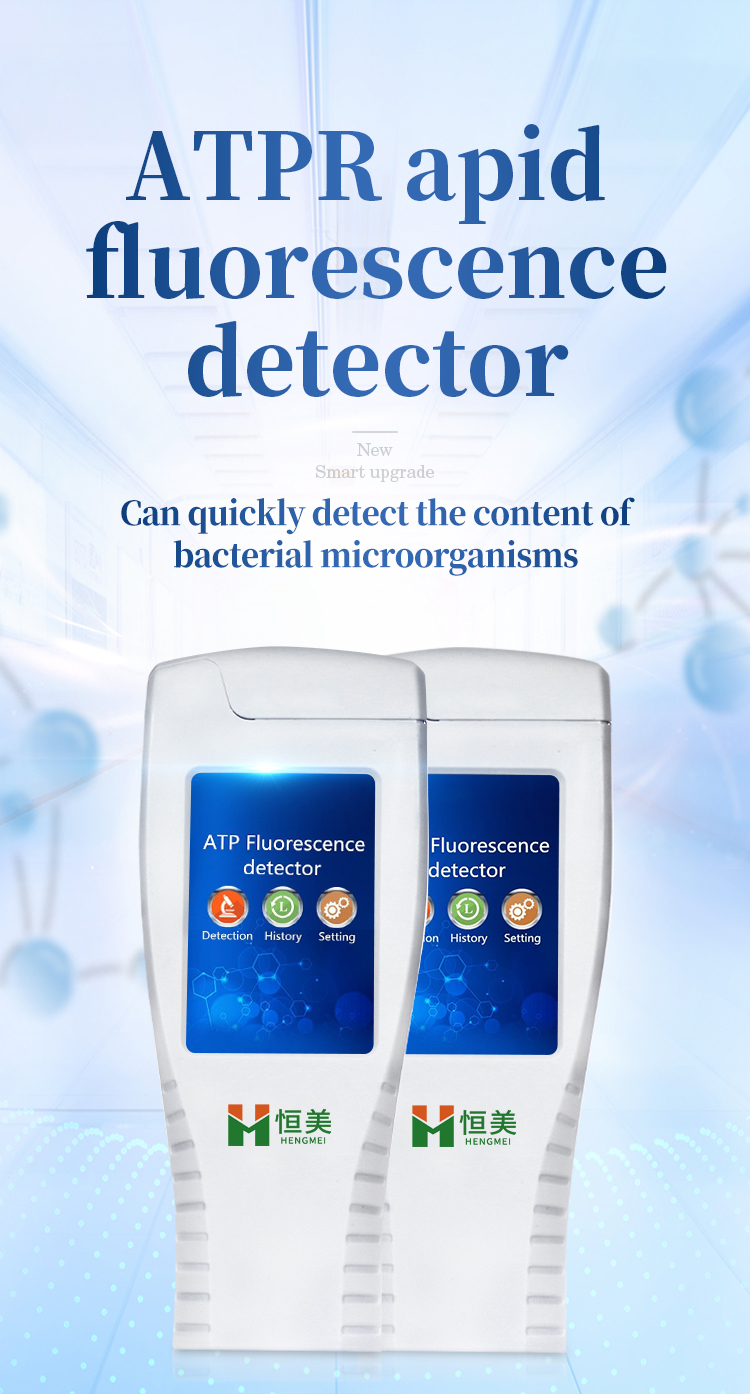

The HM-ATP+ ATP Fluorescence Detector is the premium model in HM Instruments' ATP hygiene monitoring lineup—a portable, Android-powered smart instrument designed for enterprise-grade hygiene verification across food processing, healthcare, pharmaceutical, and water treatment facilities. Built on an ARM Cortex-A7 quad-core 1.88 GHz processor running a full Android smart operating system, the HM-ATP+ combines professional ATP bioluminescence detection with modern smartphone-like usability. Detection sensitivity reaches 1×10⁻¹⁸ mol ATP with results delivered in 15 seconds, while 4G onboard memory stores up to 100,000 test records. Tri-mode connectivity—WiFi, Bluetooth, and USB—enables seamless data synchronization to the free cloud monitoring platform for multi-site trend analysis. The HM-ATP+ is the complete digital hygiene solution for organizations that need not just detection data, but enterprise-wide visibility, automated analytics, and data-driven hygiene program optimization.

Applications / Testing Items

• Food processing equipment and surface hygiene verification
• Healthcare environmental surface cleanliness monitoring
• Pharmaceutical cleanroom and manufacturing area hygiene assessment
• Drinking water and industrial process water microbial screening
• Cooling tower and HVAC system water quality testing
• Restaurant and food service sanitation compliance verification
• Customs and border inspection quarantine screening
• Multi-site enterprise hygiene performance monitoring

Functional Performance / Features

1. Android Smart Operating System: ARM Cortex-A7 quad-core 1.88 GHz processor delivers responsive touchscreen performance with over-the-air software update capability and future application expandability.

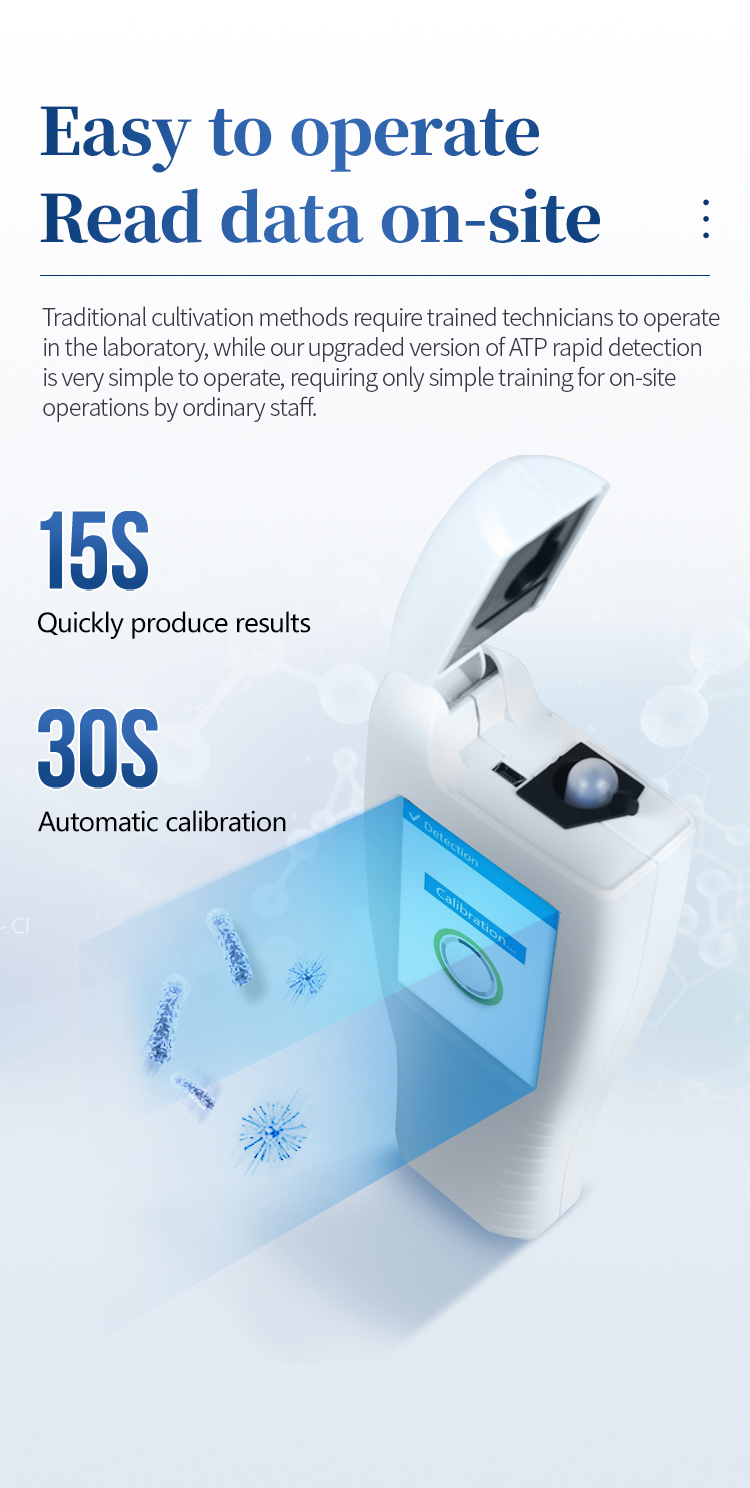

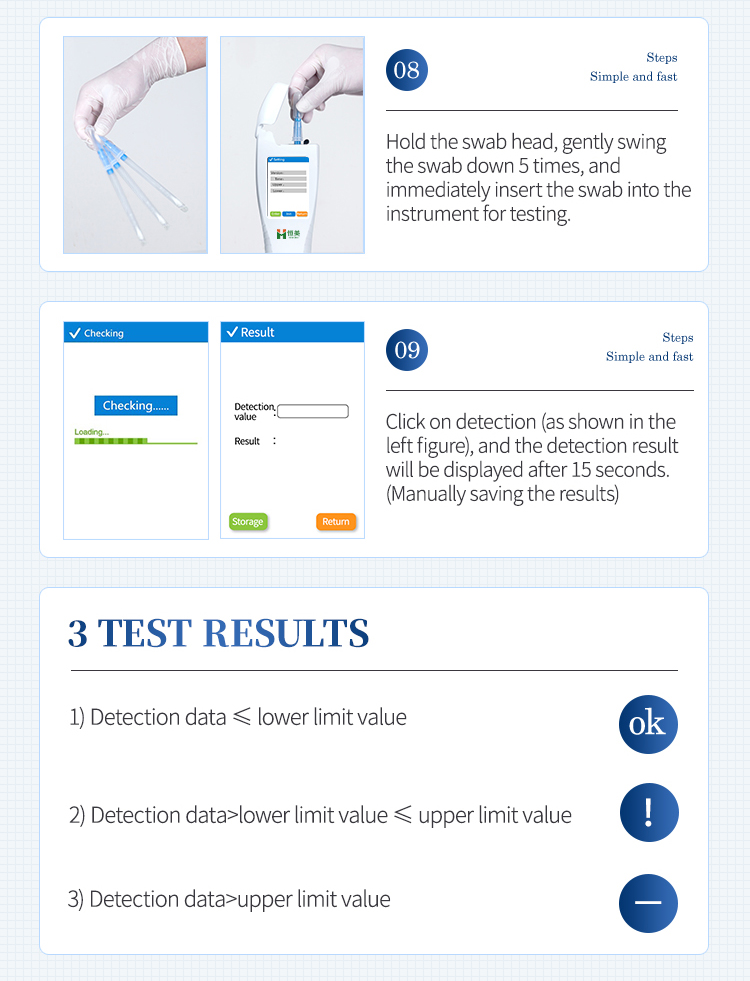

2. Ultra-Fast 15-Second Detection: Delivers RLU readings in 15 seconds, enabling real-time hygiene decisions—compared to 18–48 hours for traditional lab cultures.
3. Exceptional Detection Sensitivity: Achieves 1×10⁻¹⁵ to 1×10⁻¹⁸ mol ATP sensitivity with 90–110% ATP recovery rate and ±5% or ±5 RLUs interference.

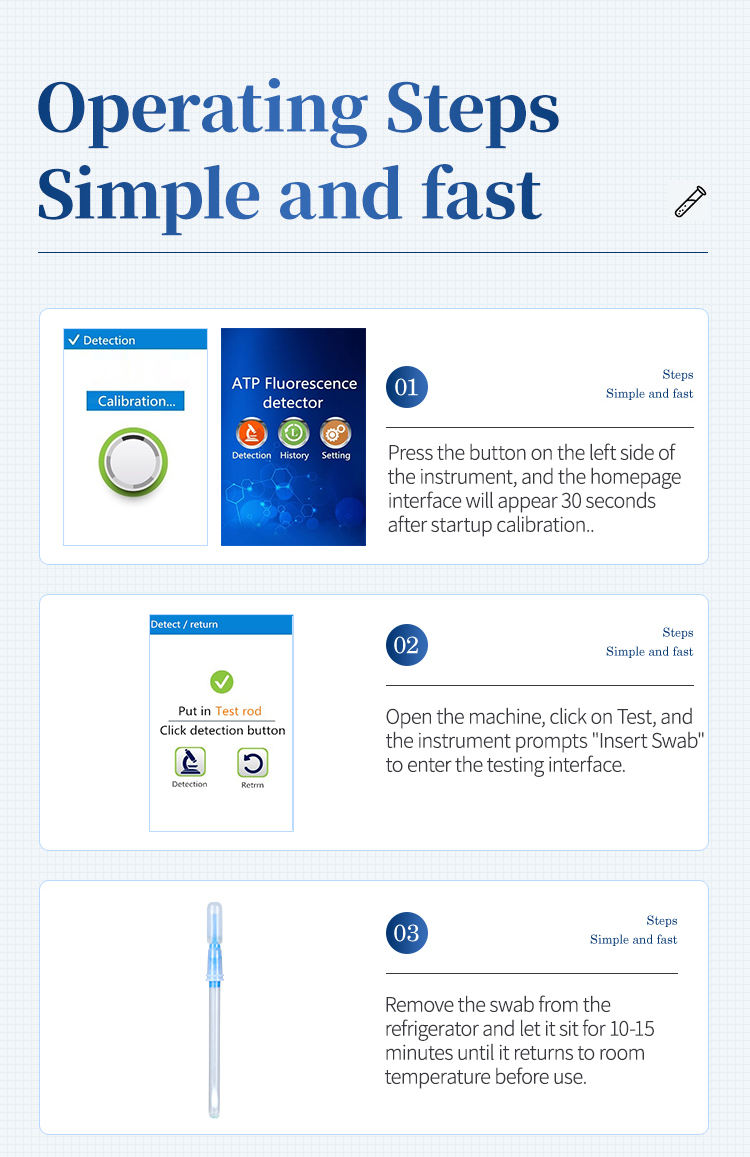

4. Automatic 30-Second Self-Calibration: Built-in self-calibration light source checks sensor performance at every startup, eliminating external calibration costs.

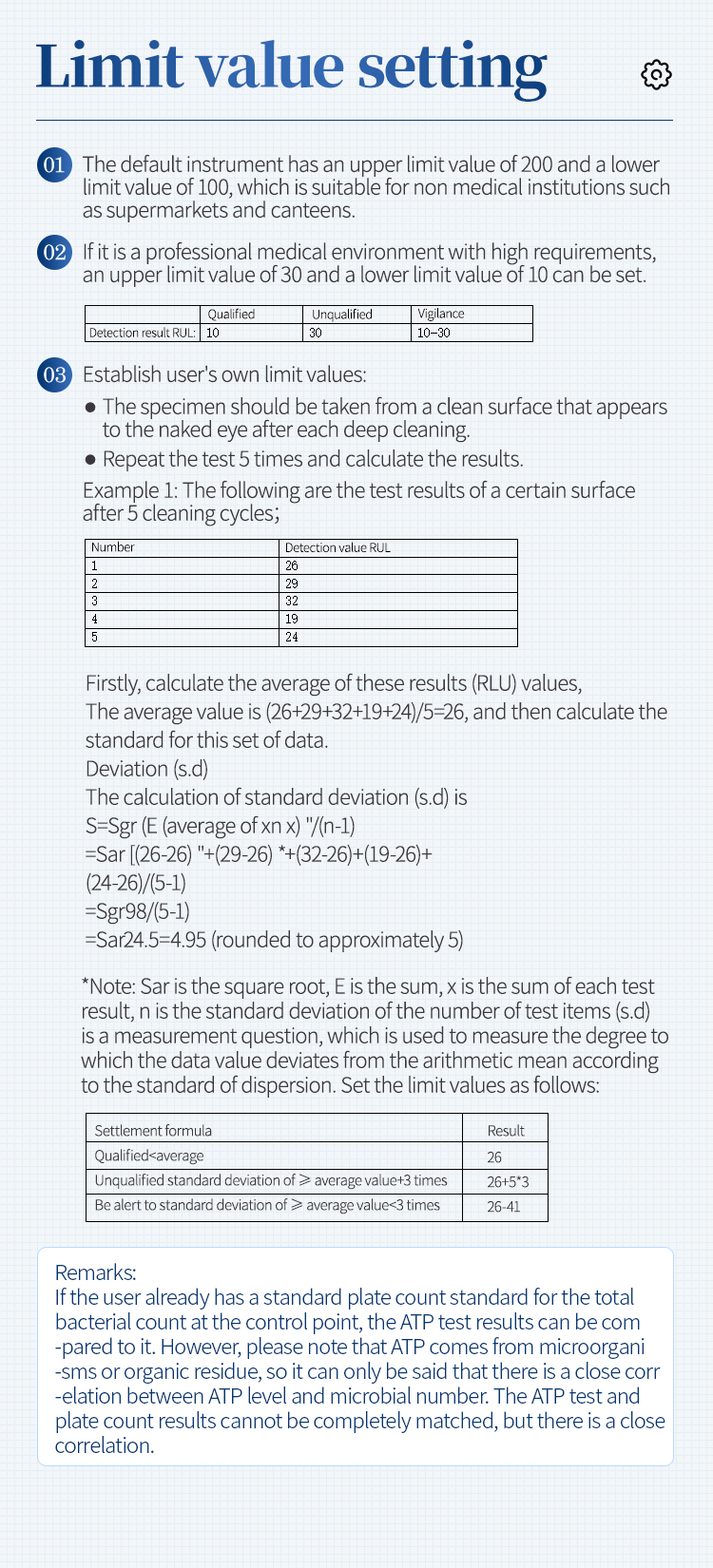

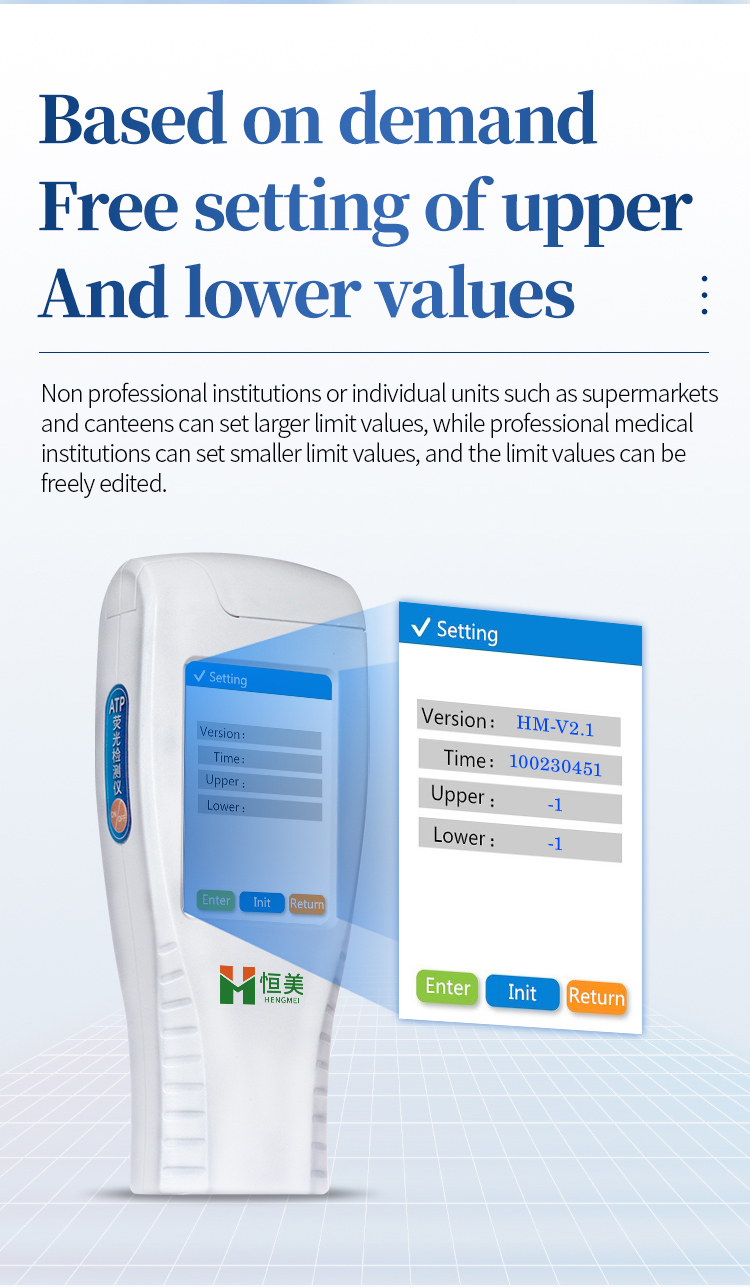

5. Configurable Pass/Fail Thresholds: Set custom upper and lower RLU limits with automatic on-screen pass/fail judgment for different surface types.
6. 100,000-Record Onboard Storage (4G Memory): Store over two years of complete testing history without data offloading—enabling long-term trend analysis.

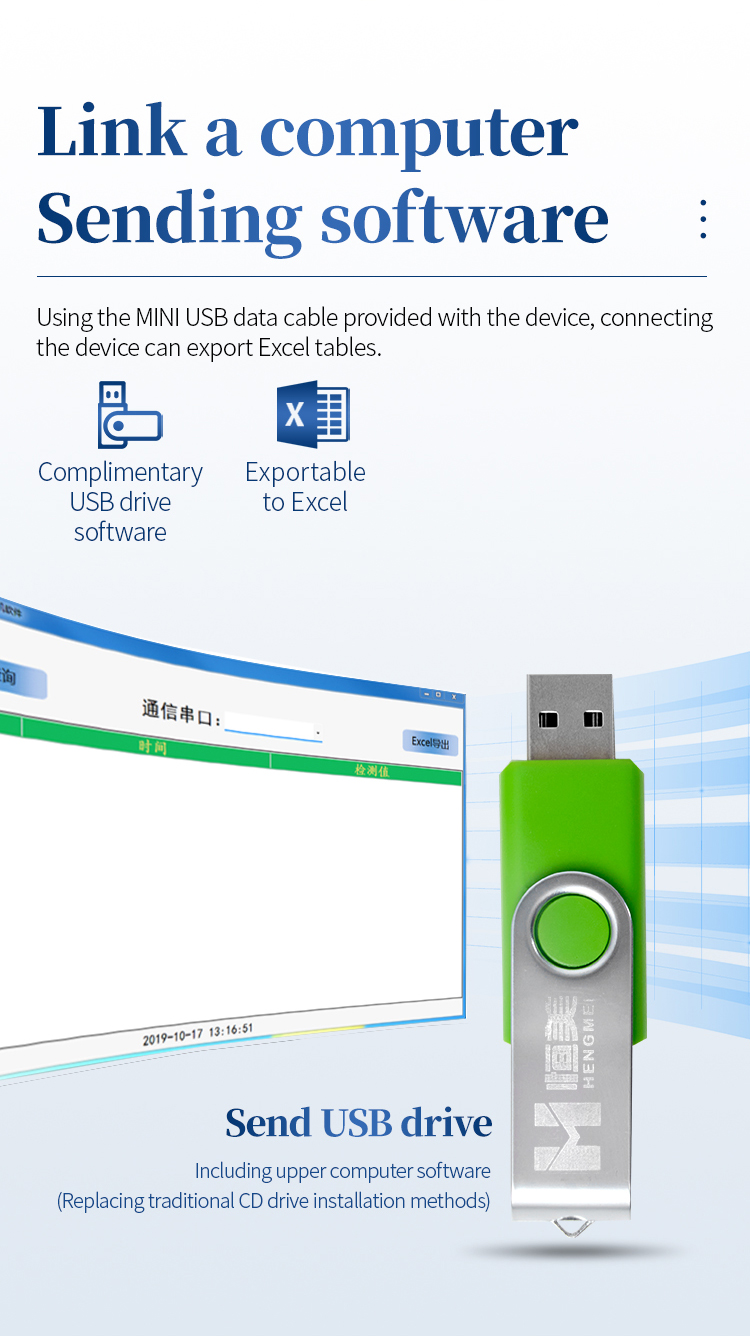

7. Tri-Mode Wireless Connectivity: WiFi for cloud platform sync, Bluetooth for mobile device sharing, and USB for direct PC connection.
8. Cloud-Based Analytics Platform: Free online monitoring platform with multi-site data centralization, curve graphs, pie charts, statistical summaries, and Excel export.

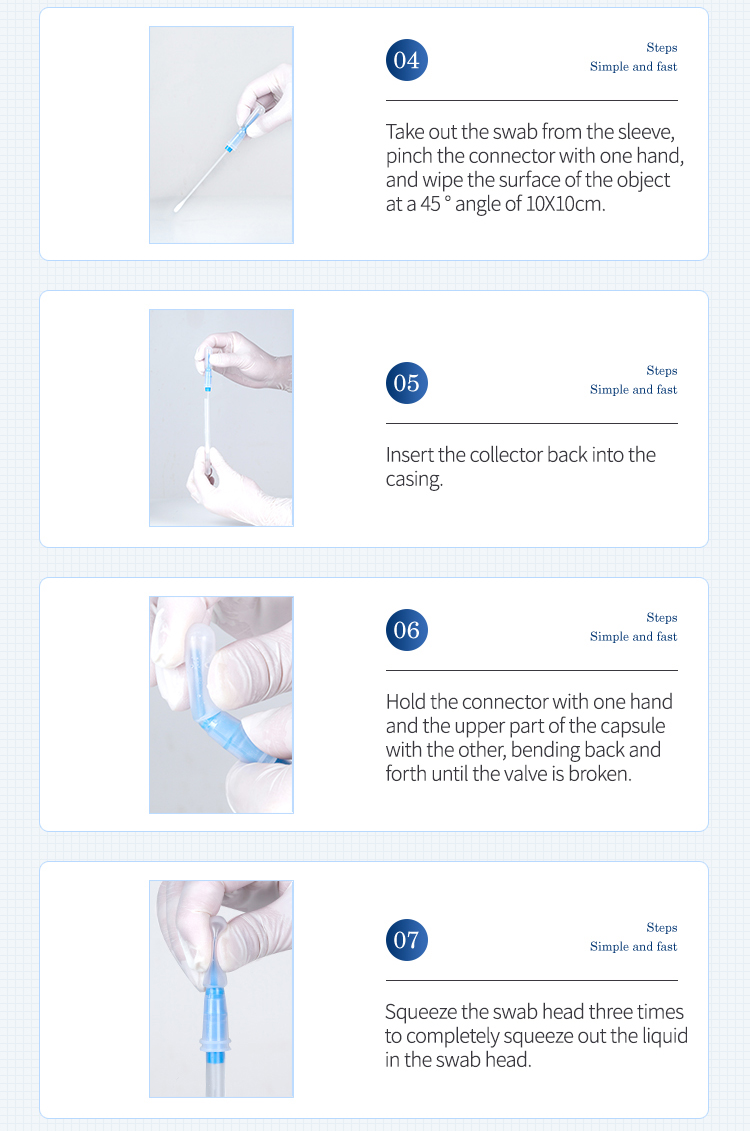

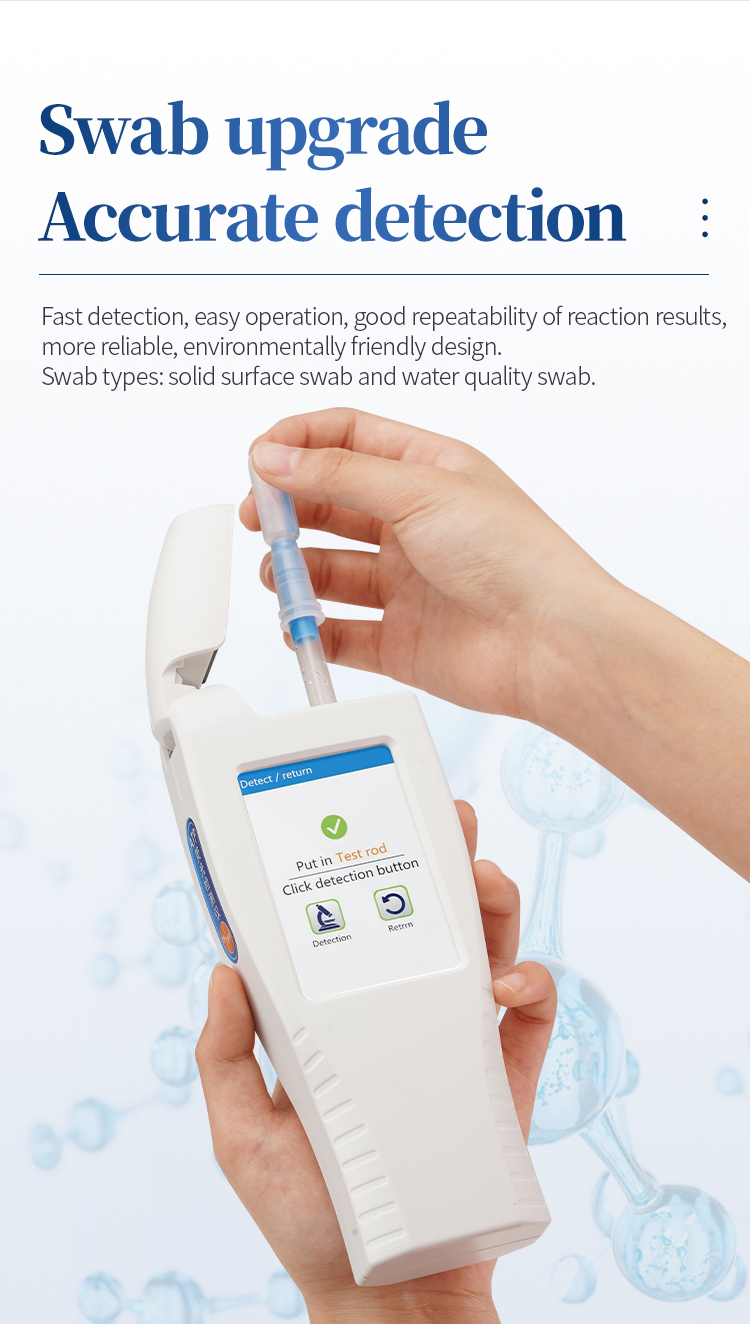

9. Dual Swab Compatibility: Supports solid surface swabs and water quality swabs for comprehensive testing across sample types.
10. Liquid-Stable Luciferase Reagent: Pre-moistened integrated swabs with consistent enzyme chemistry for reproducible results across operators.

Main Parameters

Parameter	Specification

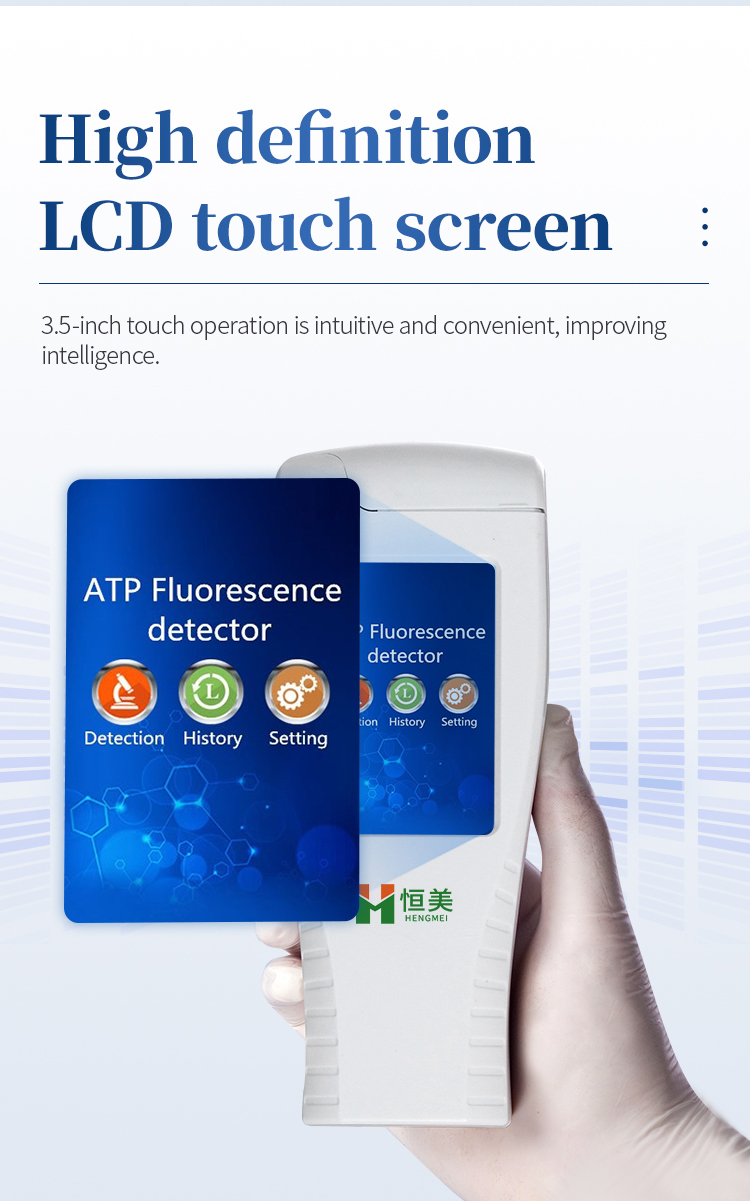

Display	3.5-inch high-precision graphical touchscreen
Operating System	Android smart OS
Processor	ARM Cortex-A7, 1.88 GHz, quad-core
Detection Sensitivity	1×10⁻¹⁵ ~ 1×10⁻¹⁸ mol ATP
Detection Range	0 ~ 999,999 RLU
Detection Time	15 seconds
Detection Interference	±5% or ±5 RLUs
ATP Recovery Rate	90% ~ 110%
Self-Calibration	Automatic, 30 seconds at startup
Data Storage	4G memory, 100,000 test records

Technical Parameters

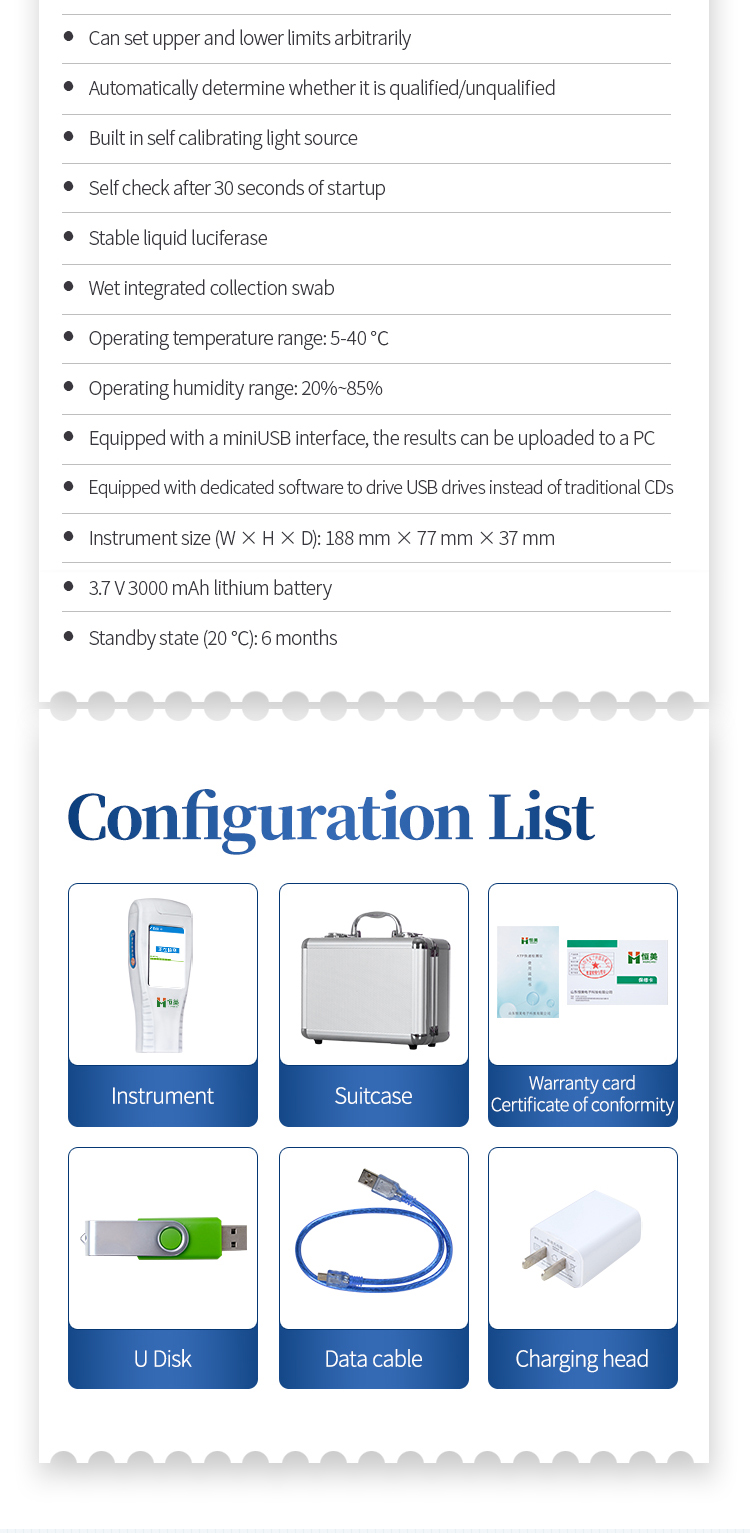

Parameter	Specification
Connectivity	WiFi, Bluetooth, miniUSB
Cloud Platform	Online monitoring with trend analysis, Excel export
Operating Temperature	5 ~ 40°C
Operating Humidity	20% ~ 85%
Battery	3.7V, 3,000 mAh lithium battery
Standby (20°C)	Up to 6 months

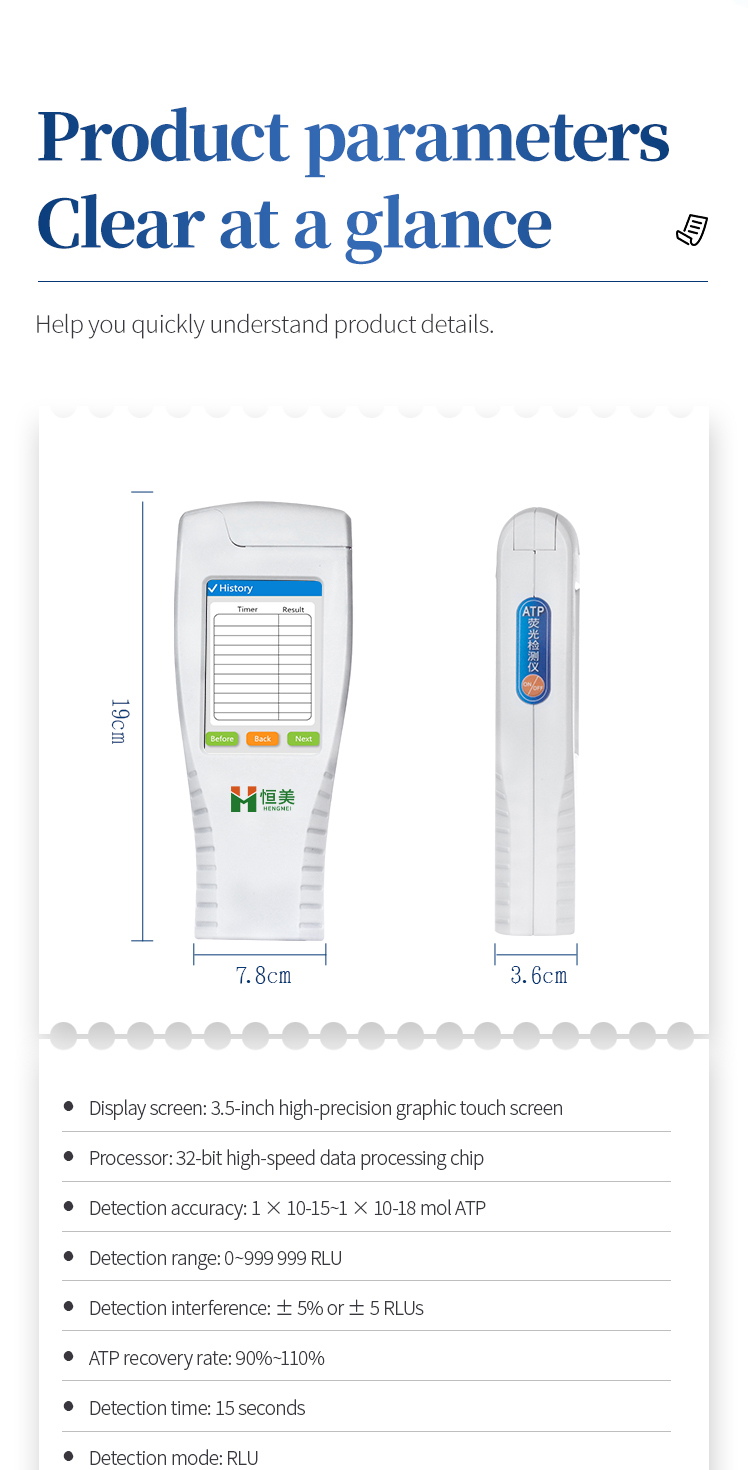

Dimensions (W×H×D)	188 mm × 77 mm × 37 mm
Swab Types	Solid surface swabs, water quality swabs
Certifications	FCC, RoHS, Design Patent, Software Copyright
Language Support	Chinese / English operation manual
