HM-D3 Automatic Potentiometric Titrator with Dead-Stop Endpoint Detection

Product Introduction

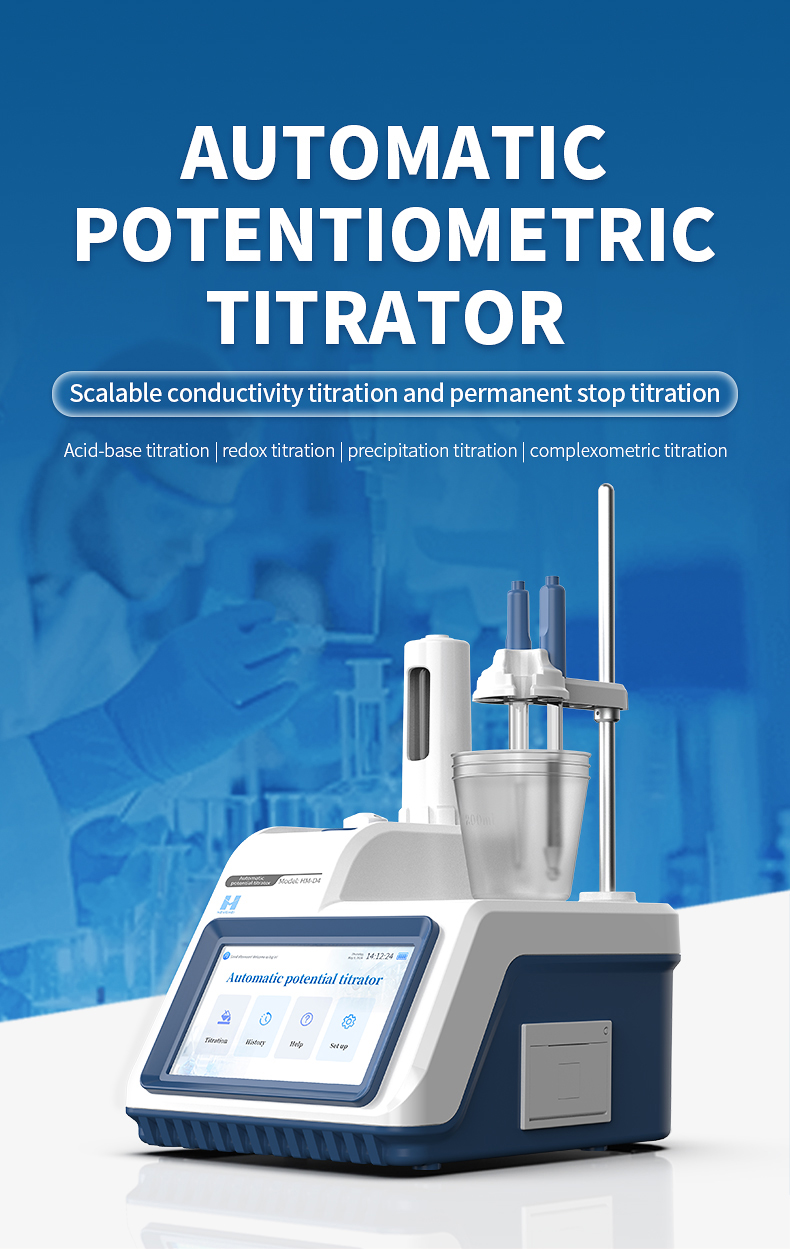

The HM-D3 Automatic Potentiometric Titrator integrates a dedicated dead-stop detection module alongside the standard four-method titration platform. Dead-stop titration employs a dual platinum electrode system under a small constant polarization voltage, monitoring the current change as reversible redox couples appear or disappear at the equivalence point. This method delivers high sensitivity and is particularly suited for volumetric analyses based on iodometry and sodium nitrite titration.

The dead-stop module provides three selectable polarization voltages — 30 mV, 50 mV, and 100 mV — with ±1 mV accuracy, and a current measurement range of 0.00 μA to 200 μA. The sharp current transition at the endpoint allows the HM-D3 to achieve precise endpoint determination even in dilute systems where conventional potentiometric signals may be insufficient.

Combined with the instrument's Android 10 platform, 7-inch touchscreen, 100,000-record storage, and full GLP/GMP data integrity suite, the HM-D3 is a specialized analytical tool for pharmaceutical quality control, clinical chemistry, and regulatory compliance testing.

Applications

• Iodometric Titration: Determination of vitamin C, dissolved oxygen, and sulfite content using iodine-based reactions

• Diazotization Titration: Sodium nitrite method for sulfonamide drug assay and aromatic amine quantification

• Pharmaceutical QC: Active pharmaceutical ingredient content determination per pharmacopeia methods

• Food Safety: Sulfite and preservative content analysis in food products

• Environmental Testing: Residual chlorine and oxidant measurement in water samples

Features

1. Dead-Stop Detection Module: Dual platinum electrodes with 30/50/100 mV polarization voltages and 0.00–200 μA current range for sensitive endpoint identification.

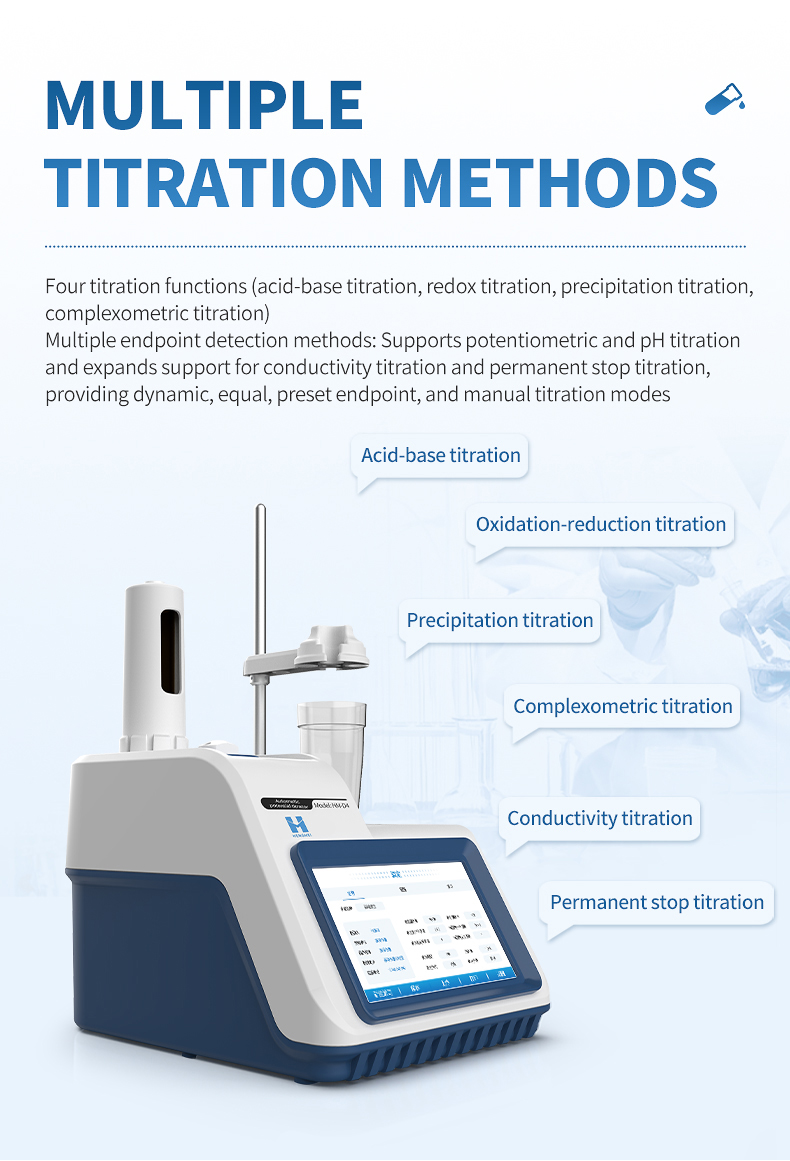

2. Five Titration Methods: Acid-base, redox, precipitation, complexometric, plus dead-stop titration for pharmaceutical-grade analysis.

3. High Sensitivity: Current transition detection at the equivalence point enables accurate endpoints even in dilute or buffered systems.

4. Android 10 Platform: 7-inch capacitive touchscreen with real-time current-volume curve display and automatic inflection point recognition.

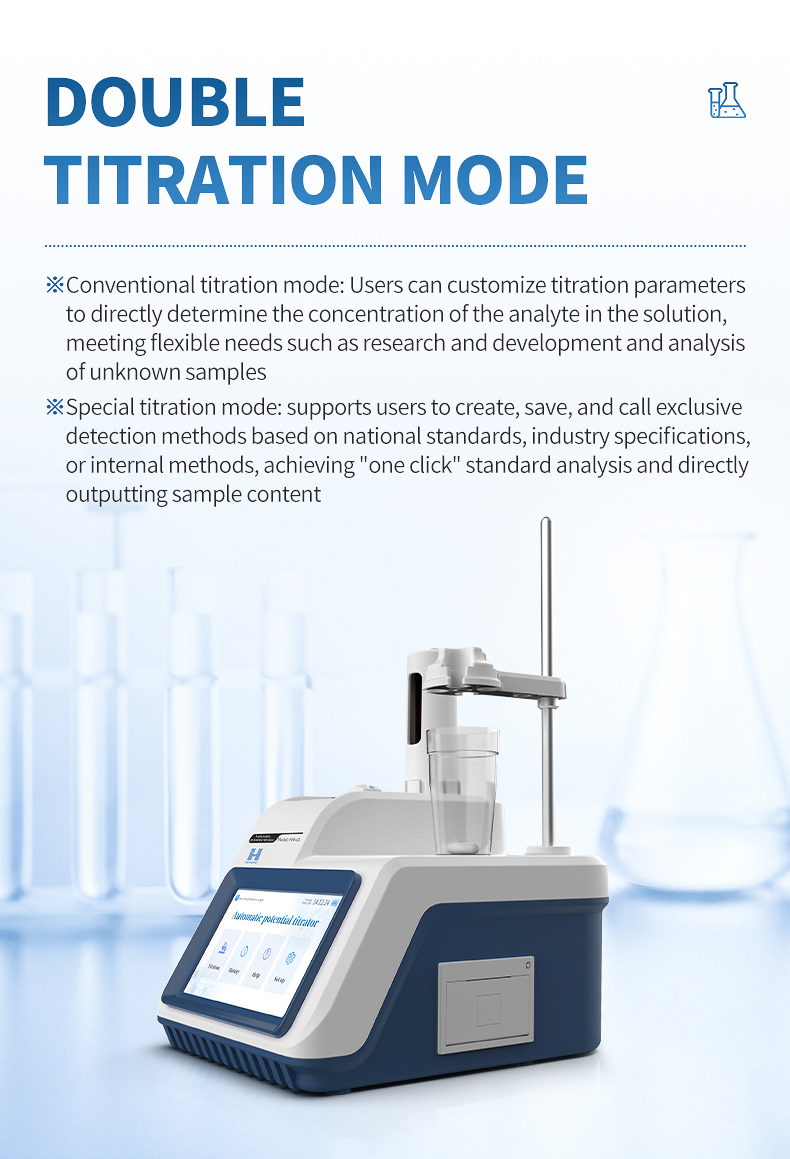

5. Dual Titration Mode: Conventional mode for custom parameter setup; Specialized mode for pharmacopeia-compliant one-click analysis.

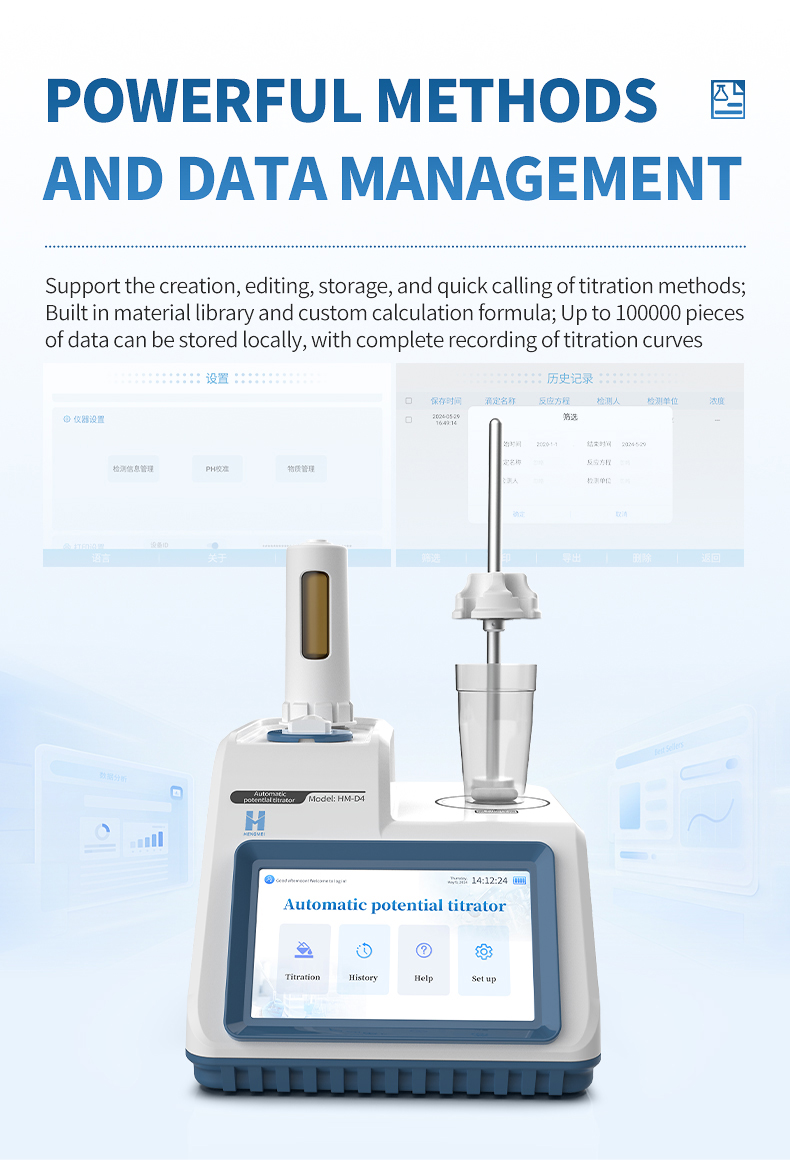

6. Pharmacopeia-Ready Methods: Create and store methods aligned with USP, EP, and Chinese Pharmacopoeia standards.

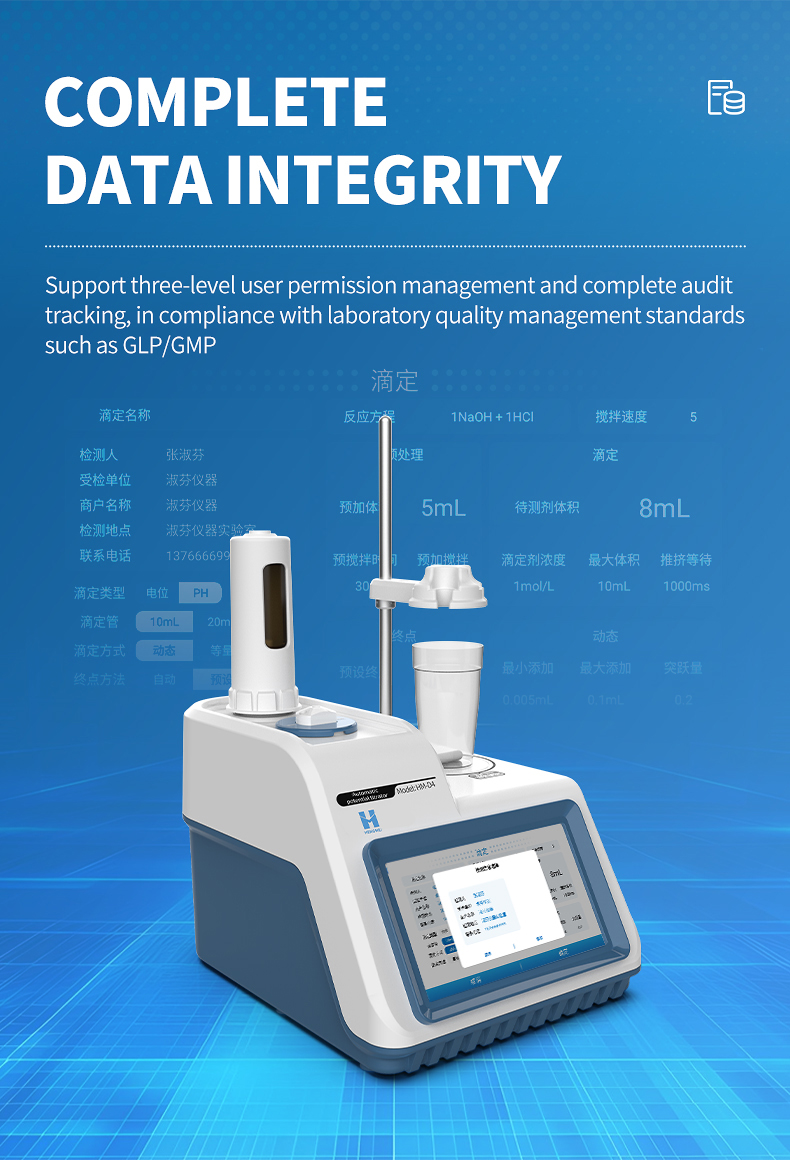

7. GLP/GMP Data Integrity: Three-level permissions, full audit trail, power-off protection for regulated laboratory environments.

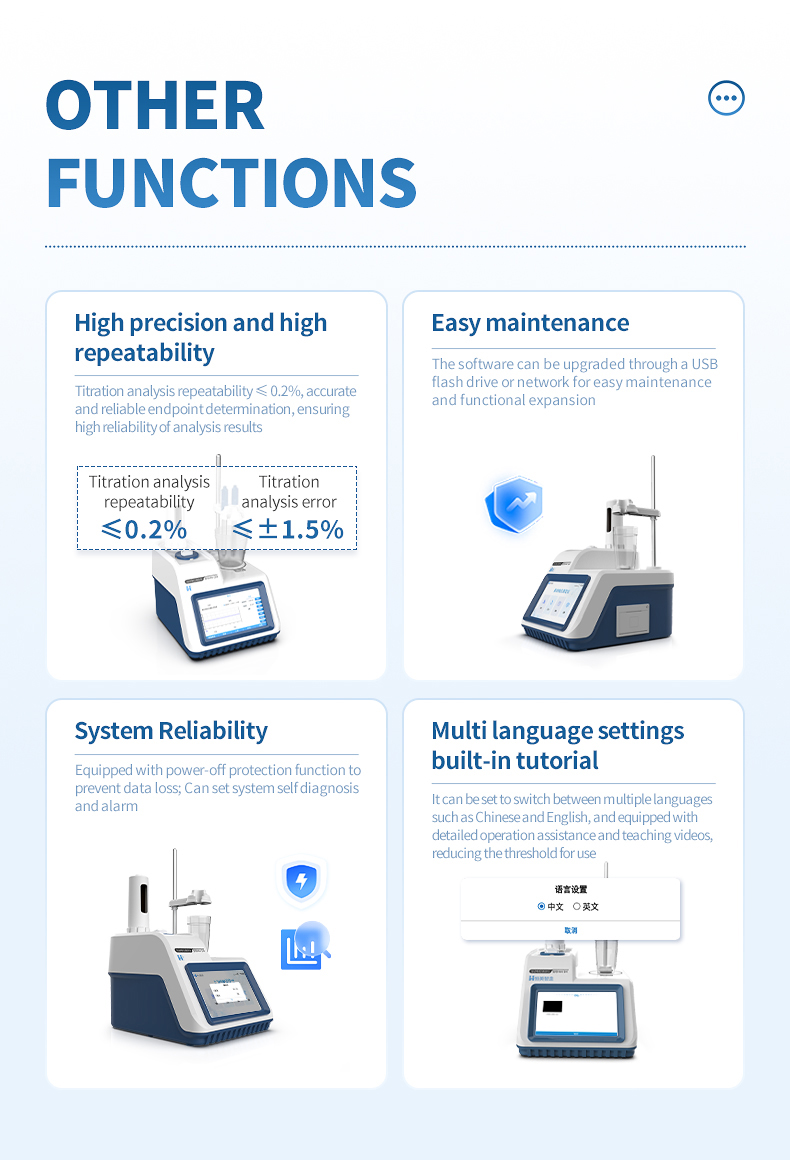

8. High Repeatability: ≤0.2% titration repeatability across all five methods ensures consistent pharmacopeia compliance.

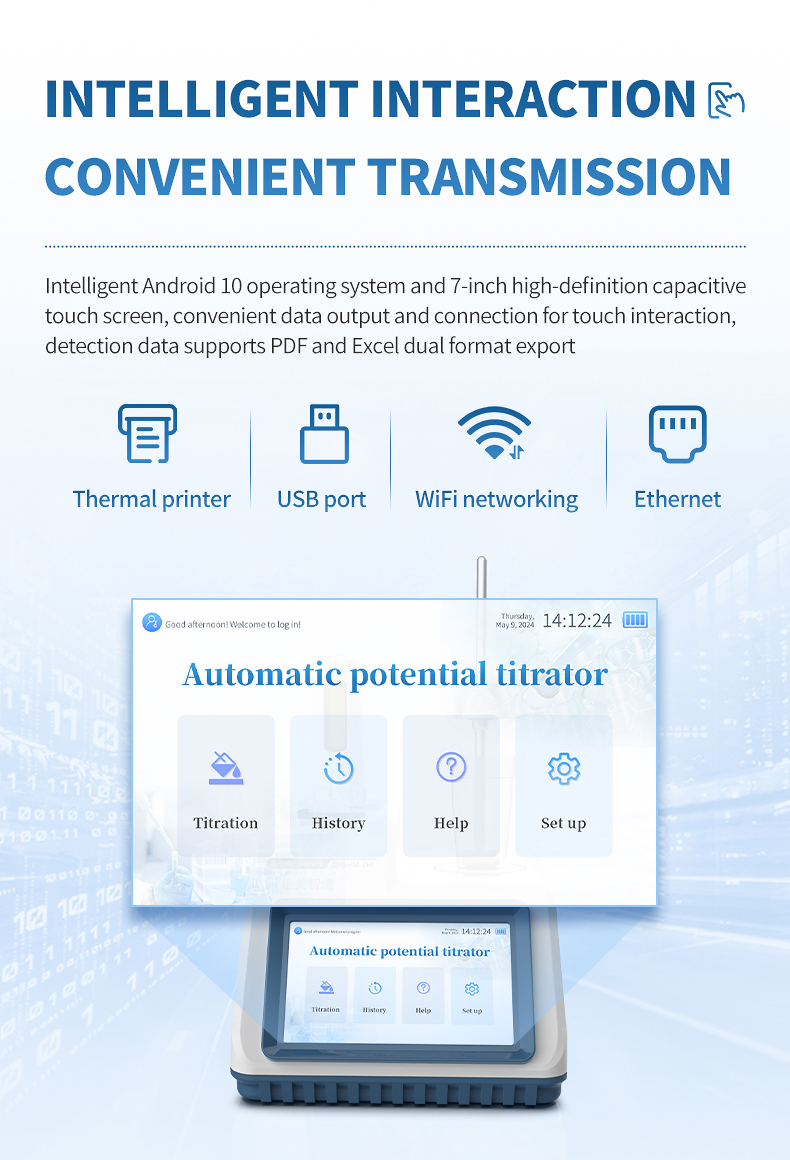

9. Comprehensive Connectivity: PDF/Excel export, built-in printer, Wi-Fi LIMS upload, USB and Ethernet interfaces.

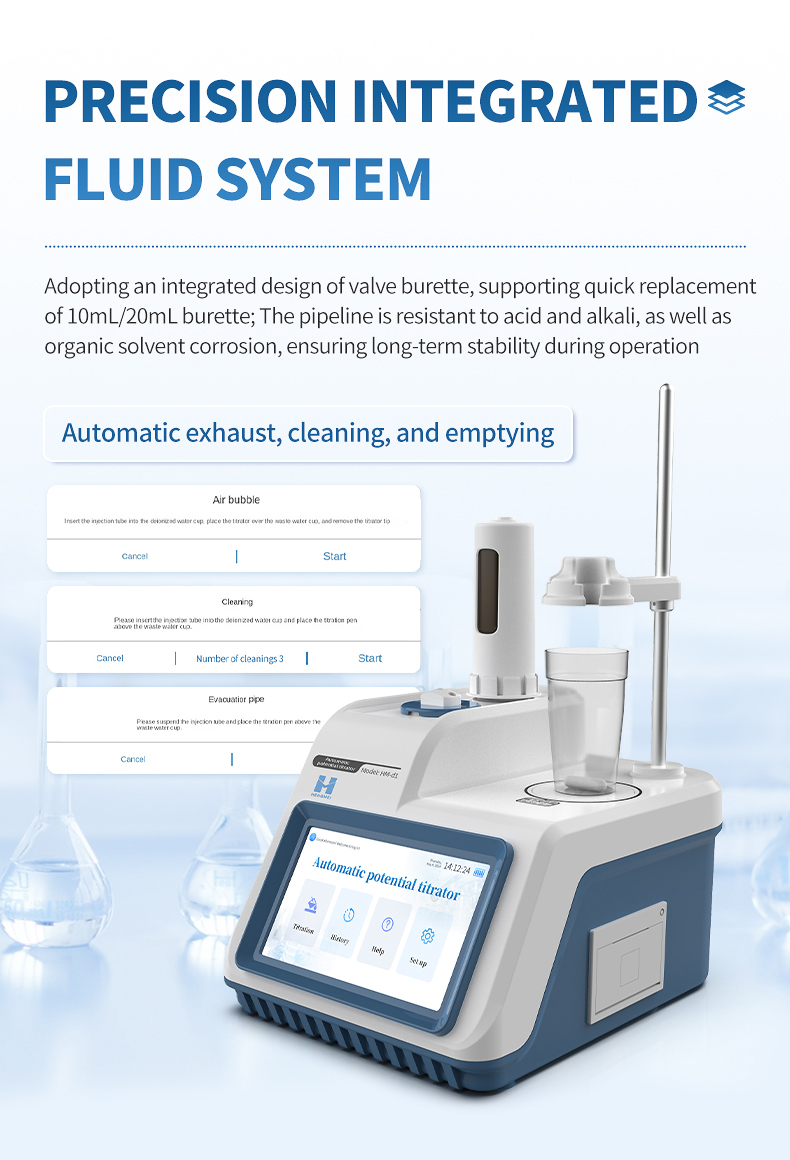

10. Corrosion-Resistant System: Chemical-resistant tubing with quick-swap 10 mL / 20 mL burette design for fast reagent changeover.

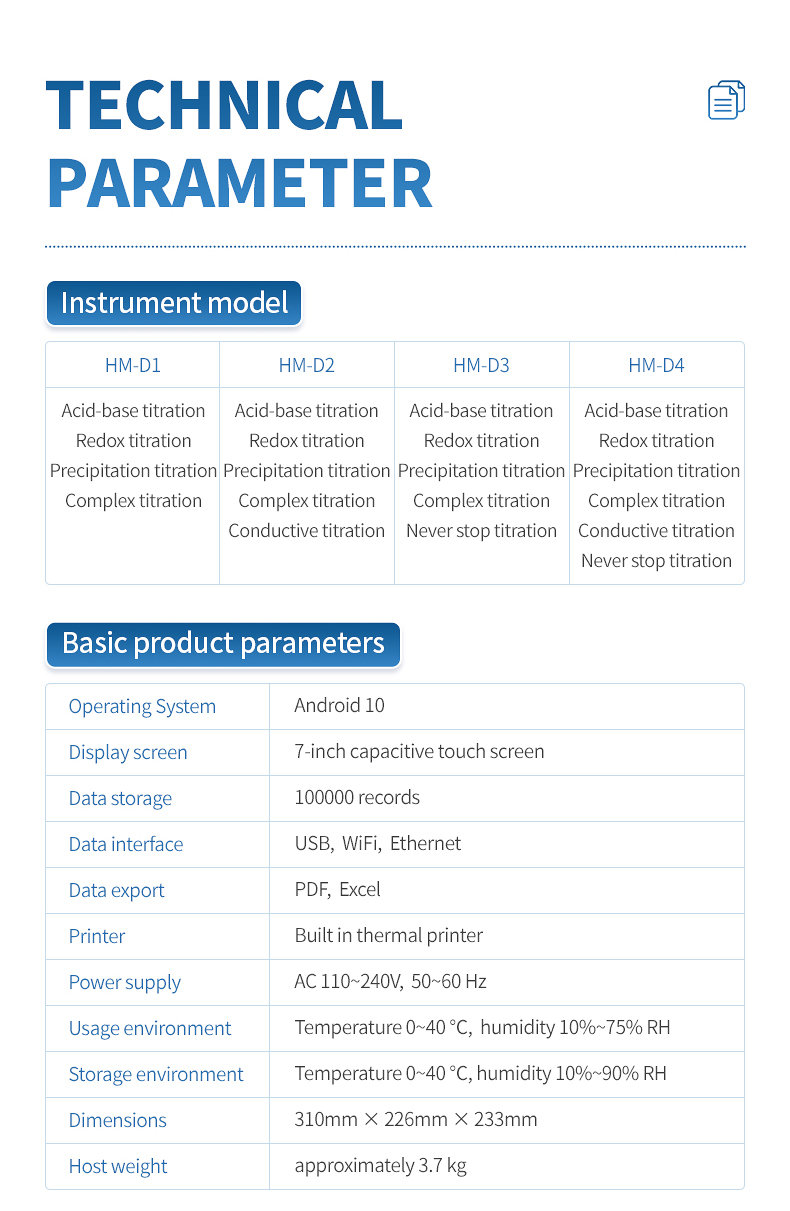

Main Parameters

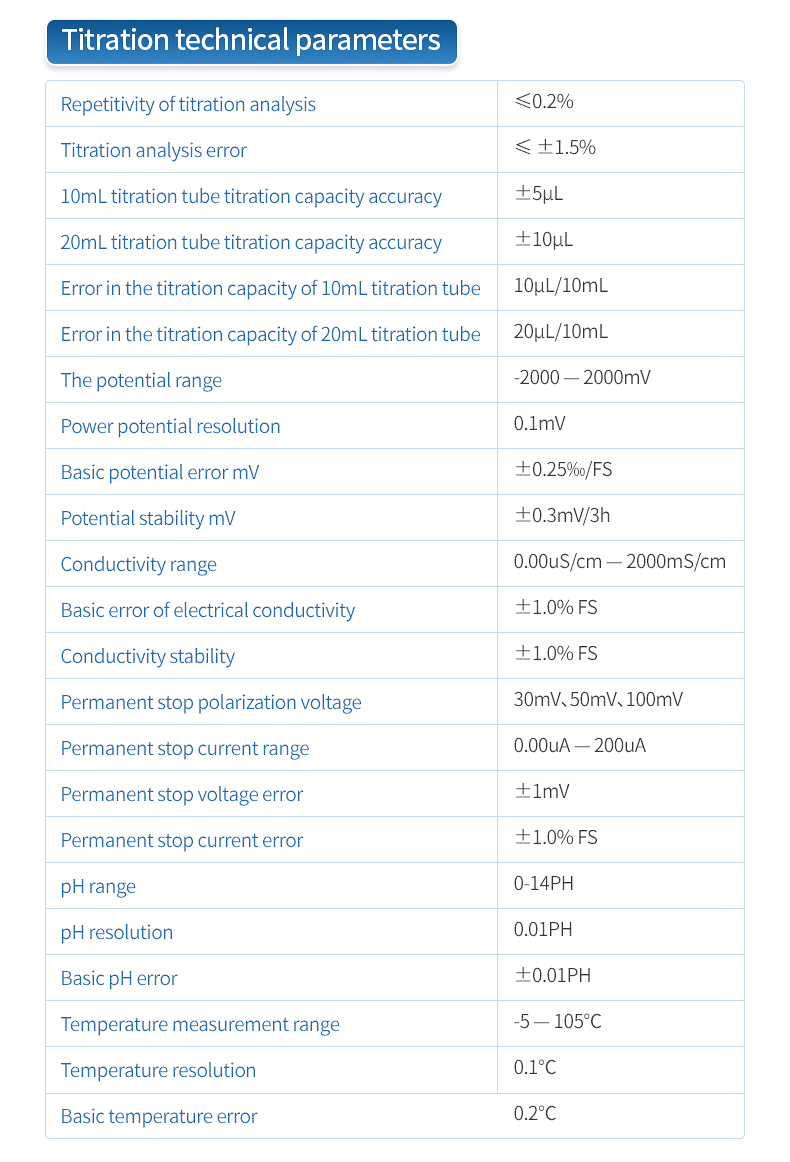

Technical Parameters
