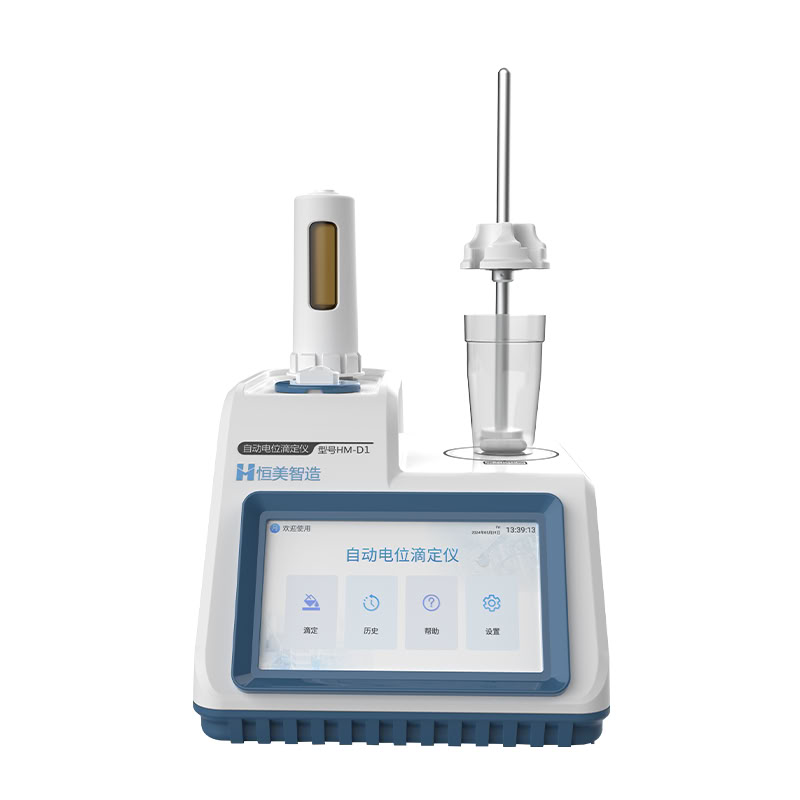

HM-D1 Automatic Potentiometric Titrator

Product Introduction

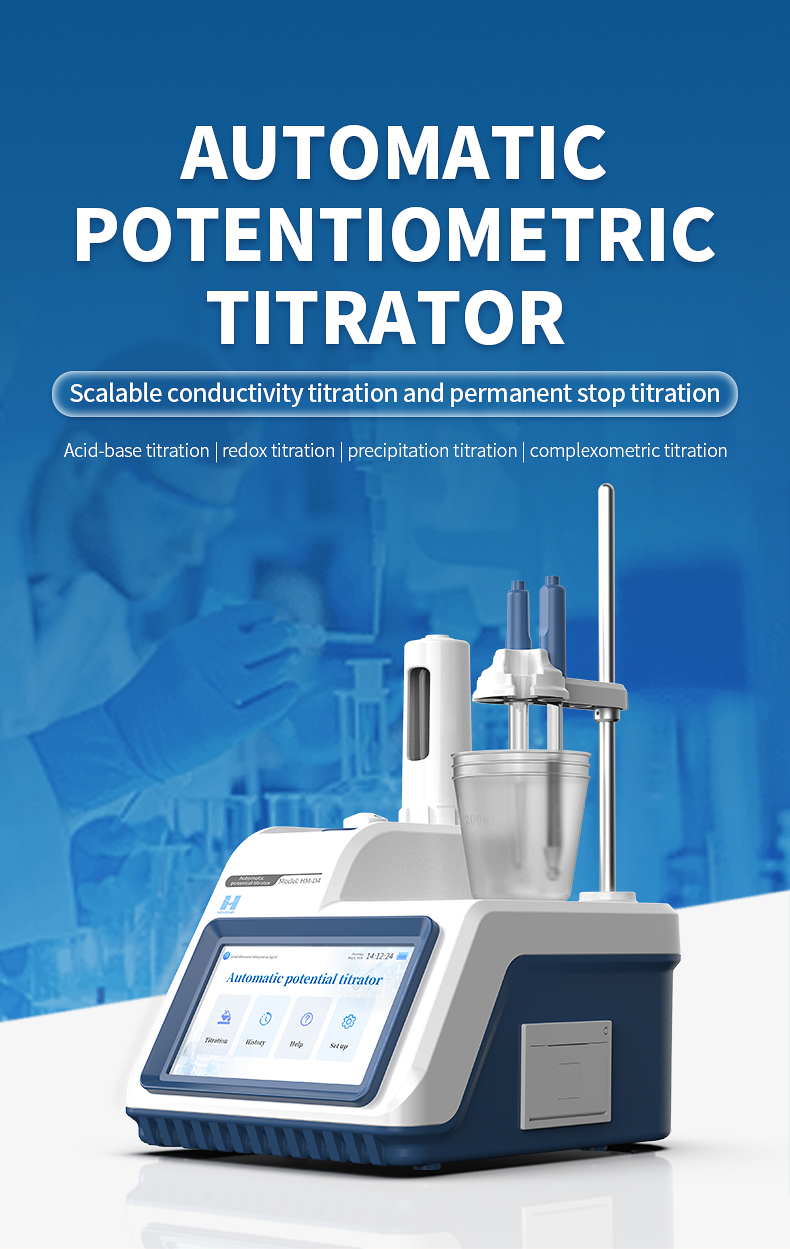

The HM-D1 Automatic Potentiometric Titrator is a precision analytical instrument designed for laboratories that require reliable, automated titration without the complexity of multi-module configurations. Built on a modular hardware platform, the HM-D1 supports the four fundamental titration methods — acid-base, redox, precipitation, and complexometric titration — covering the majority of routine volumetric analysis tasks.

Powered by an Android 10 operating system with a 7-inch capacitive touchscreen, the instrument offers an intuitive graphical interface that reduces the learning curve for new users. Its high-precision fluid control system achieves titration repeatability of ≤0.2%, ensuring consistent results across repeated runs. The dual titration mode — conventional and specialized — allows users to either customize parameters freely or run pre-configured standard methods with one-click operation.

With 100,000-record local storage, PDF and Excel export, built-in thermal printing, and Wi-Fi connectivity, the HM-D1 integrates seamlessly into modern laboratory workflows. For labs seeking an affordable entry point into automated potentiometric titration, the HM-D1 provides proven performance with straightforward operation.

Applications

• Food Safety: Determination of acid value, peroxide value in edible oils; amino acid nitrogen in soy sauce and vinegar; acidity and alkalinity in various food products

• Environmental Monitoring: Water quality analysis including COD, chloride ions, and ammonia nitrogen determination

• Pharmaceutical & Cosmetics: Raw material content assay, solution pH monitoring, and cleaning validation

• Petrochemical: Analysis of acid value, base value, and sulfur content in oil products; purity testing of chemical raw materials

• Education & Research: Chemistry teaching experiments and fundamental titration research in universities and research institutes

Features

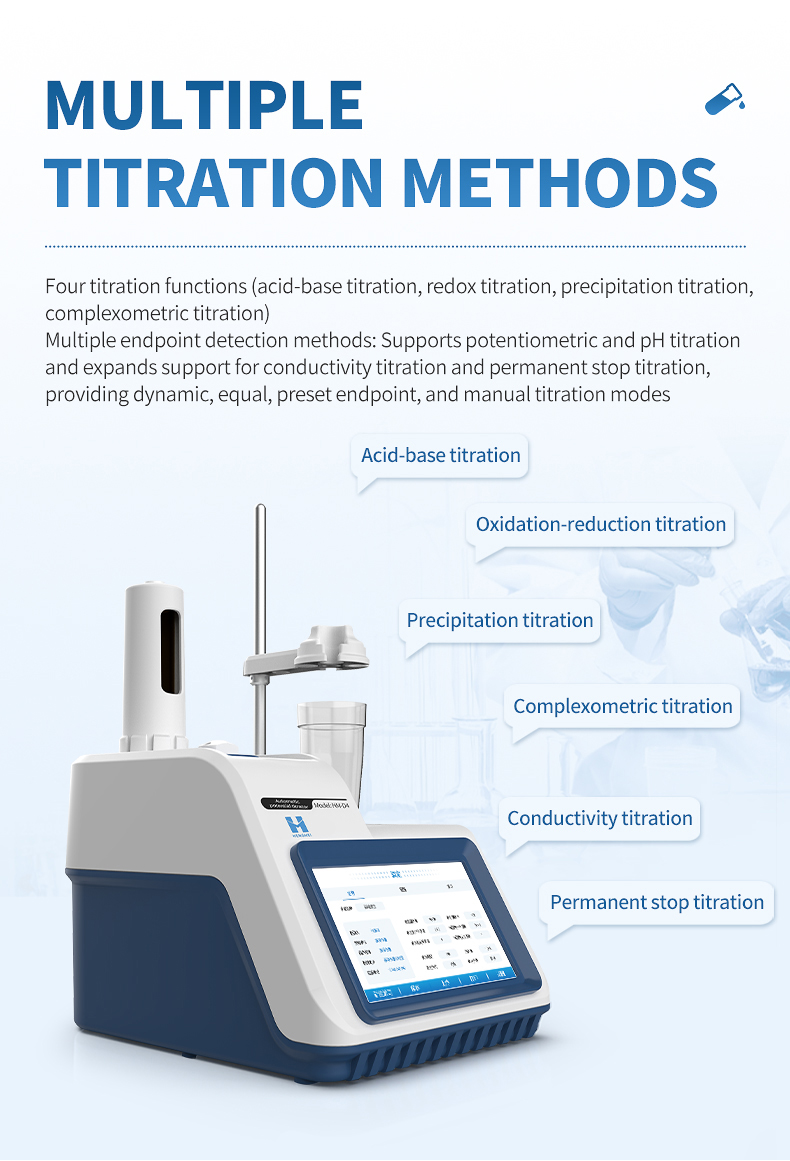

1. Four Core Titration Methods: Supports acid-base, redox, precipitation, and complexometric titration in a single instrument, covering most routine analysis needs.

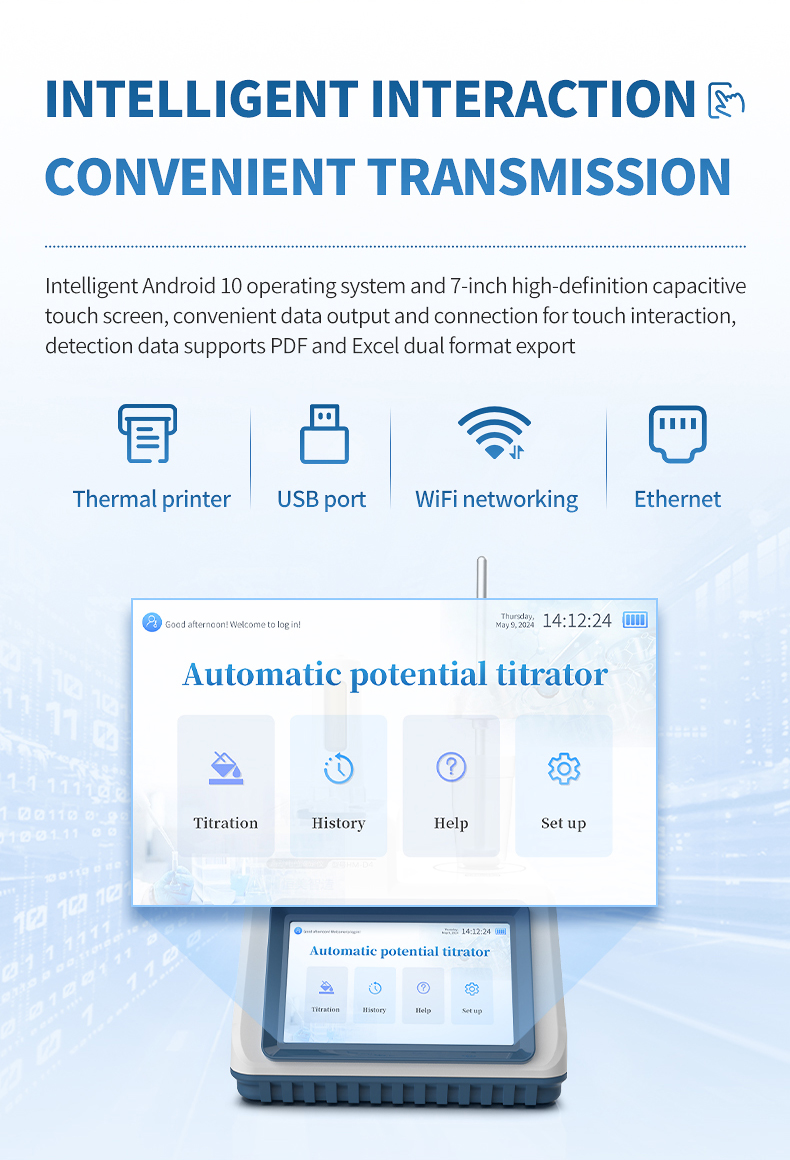

2. Android 10 Smart Platform: 7-inch HD capacitive touchscreen with intuitive graphical UI for straightforward method setup and real-time curve monitoring.

3. High Repeatability: Titration analysis repeatability ≤0.2% with endpoint accuracy, delivering reliable and reproducible results.

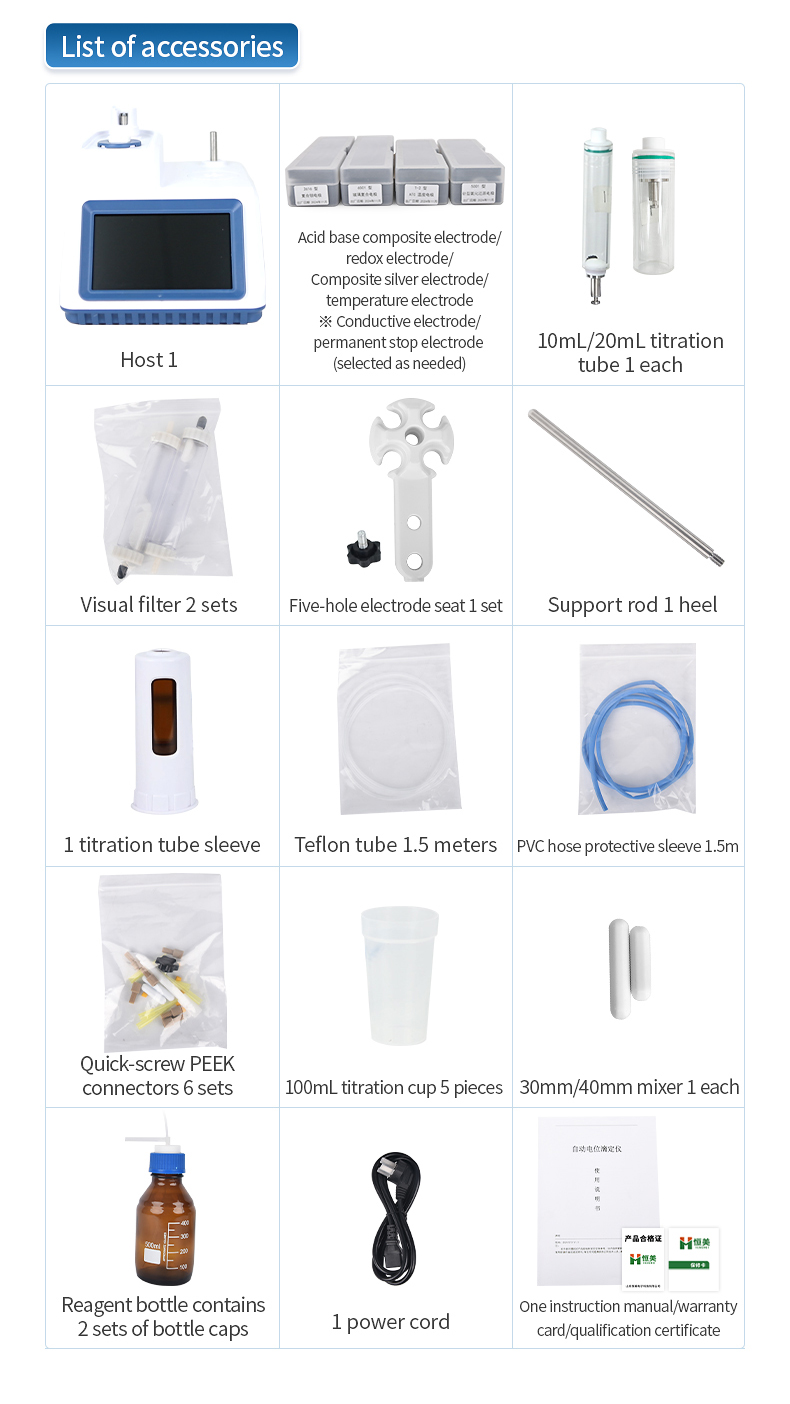

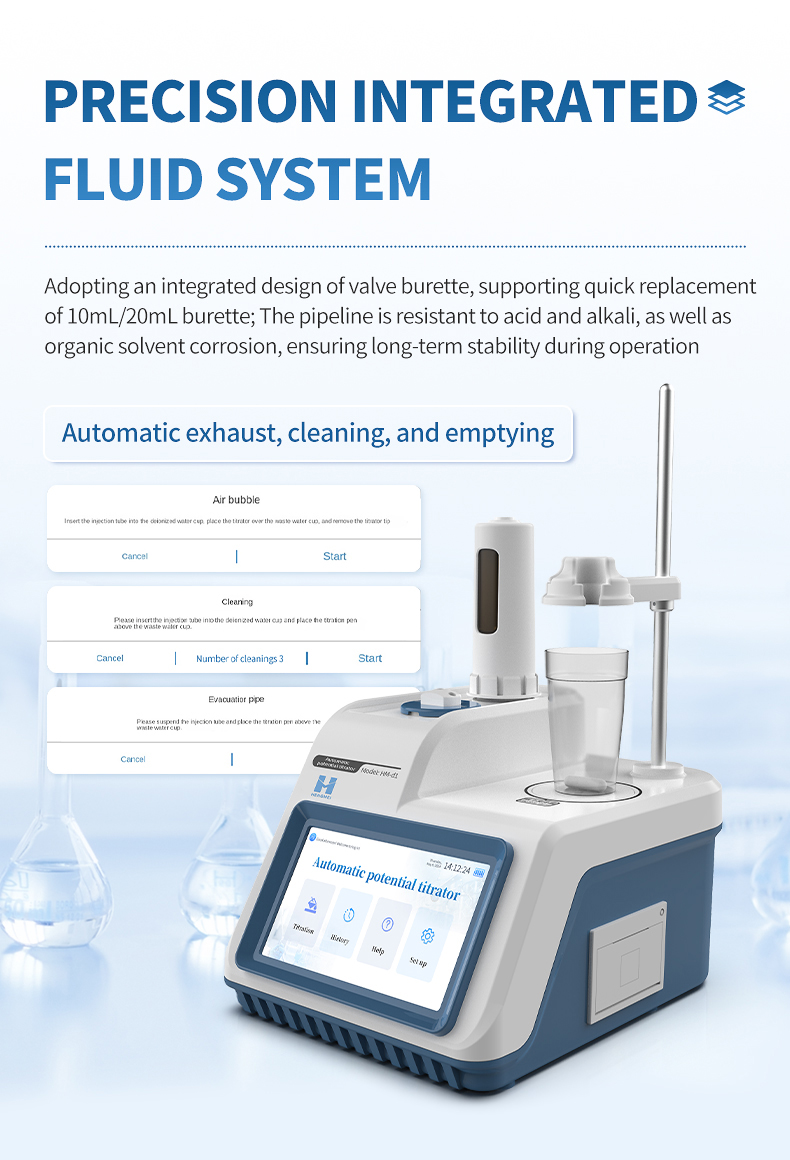

4. Integrated Fluid System: Valve-burette integrated design supporting quick 10 mL / 20 mL burette replacement; corrosion-resistant tubing for acids, alkalis, and organic solvents.

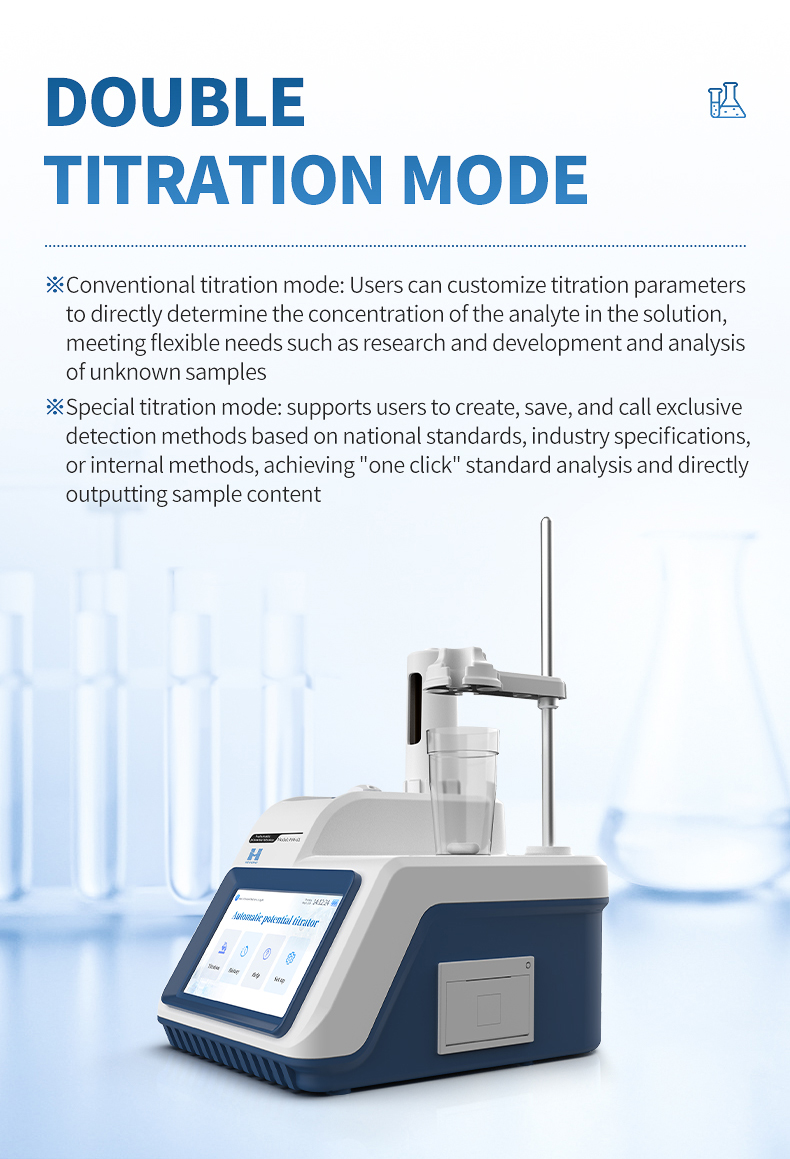

5. Dual Titration Mode: Conventional mode for flexible parameter customization; Specialized mode for one-click standard method execution with direct result output.

6. Multiple Endpoint Detection: Dynamic, equal-volume, preset endpoint, and manual titration modes with automatic curve inflection point identification.

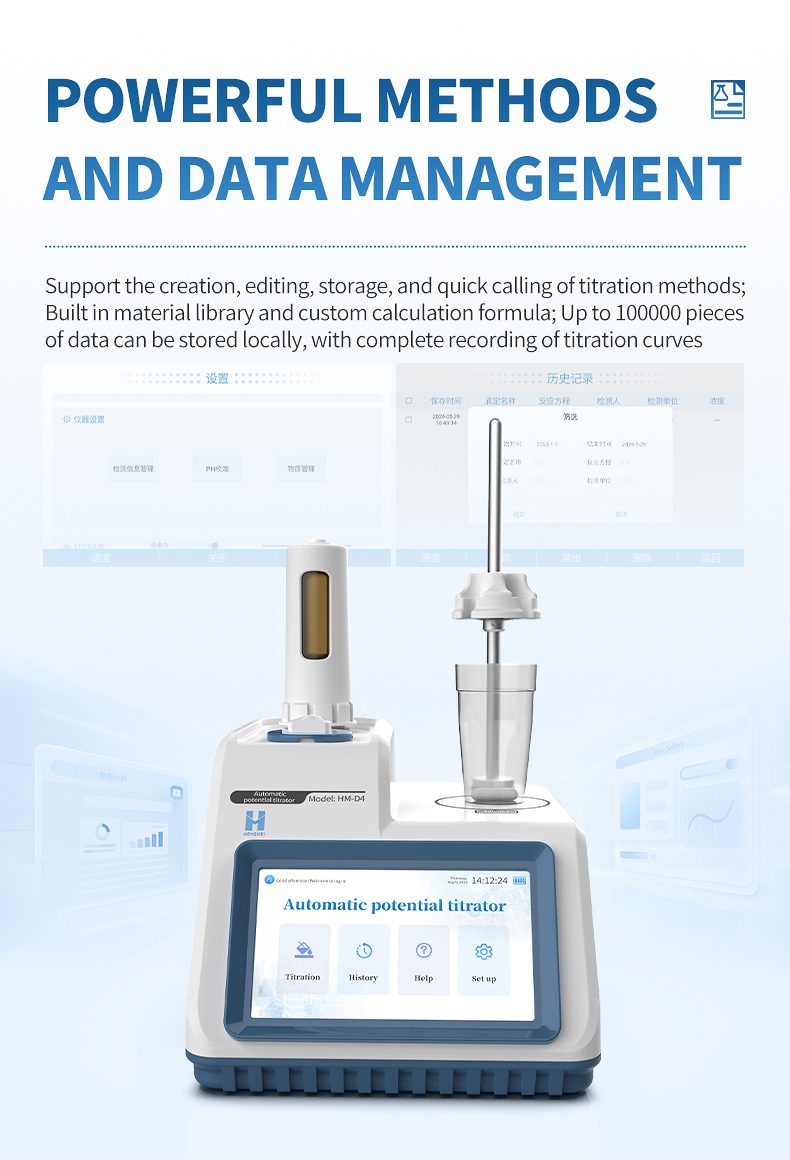

7. Method & Data Management: Create, edit, store, and recall titration methods; built-in substance library and custom calculation formulas; 100,000-record local storage.

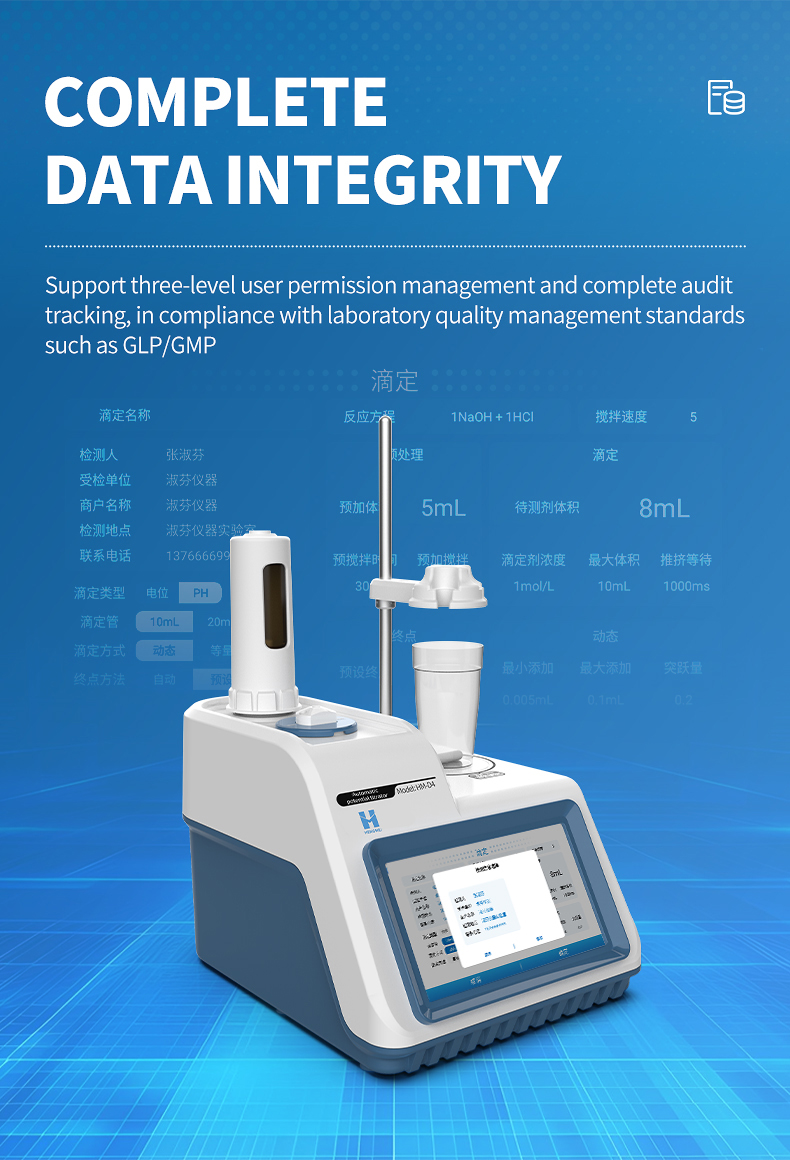

8. Data Integrity: Three-level user permission management with complete audit trail, compliant with GLP/GMP laboratory quality standards.

9. Convenient Data Output: Dual-format export (PDF & Excel), built-in thermal printer, Wi-Fi upload to LIMS, USB and Ethernet interfaces.

10. System Reliability: Power-off protection prevents data loss; system self-diagnosis and alarm settings; software upgradeable via USB or network.

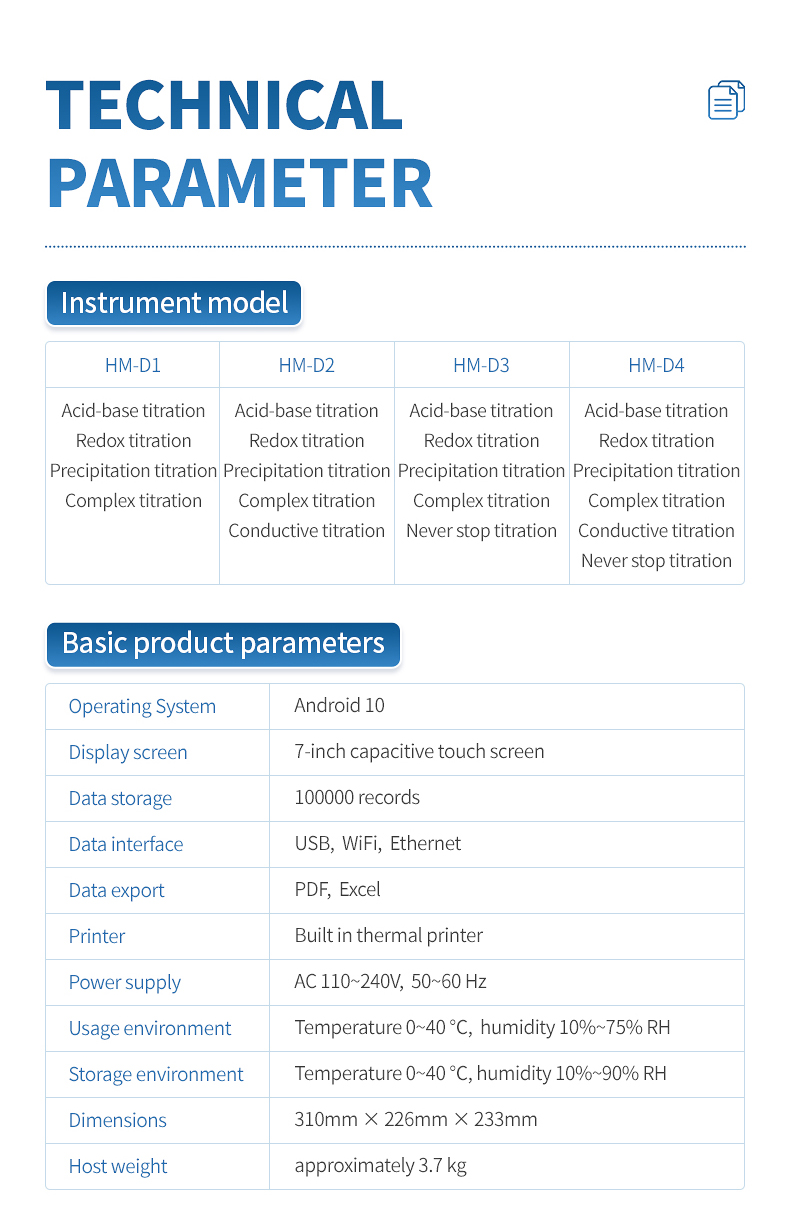

Main Parameters

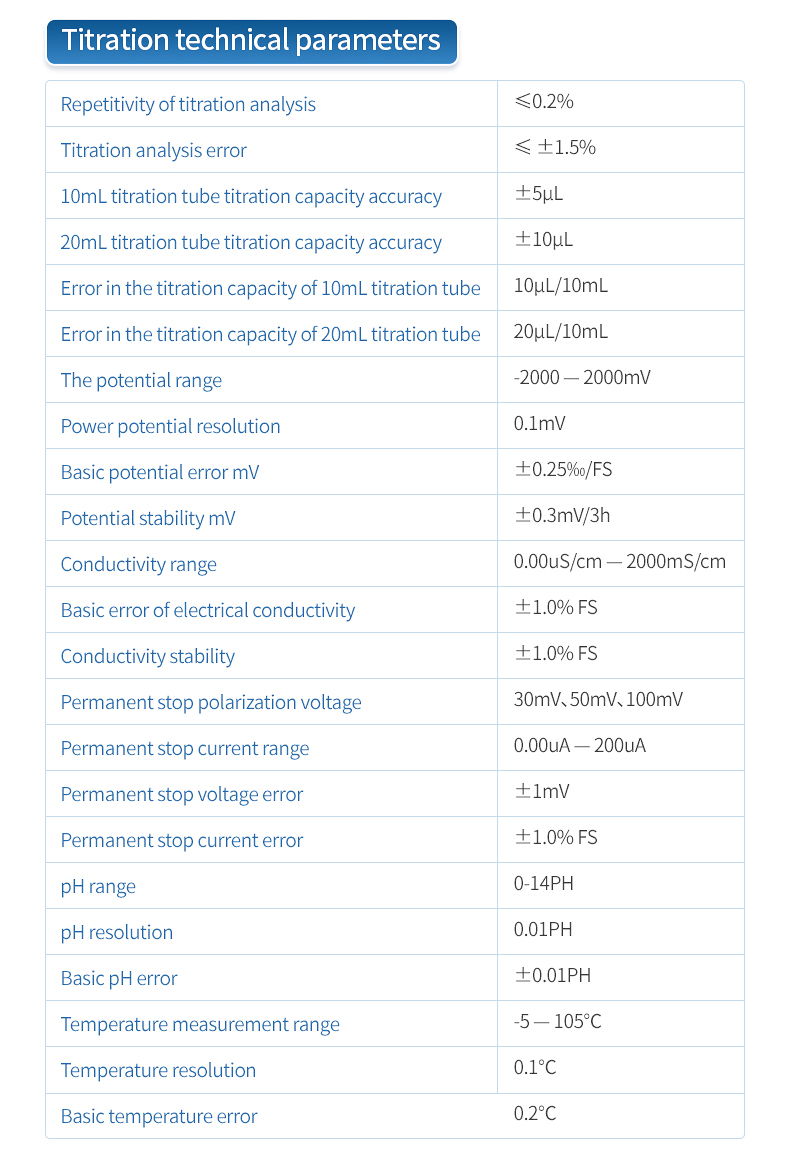

Technical Parameters

Reference Standards

• JJG 814-2015 Verification Regulation for Automatic Potentiometric Titrators

• GB/T 29252-2012 Quality Inspection Rules for Laboratory Instruments

• GB 4793.1-2007 Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use
