1. Product Introduction

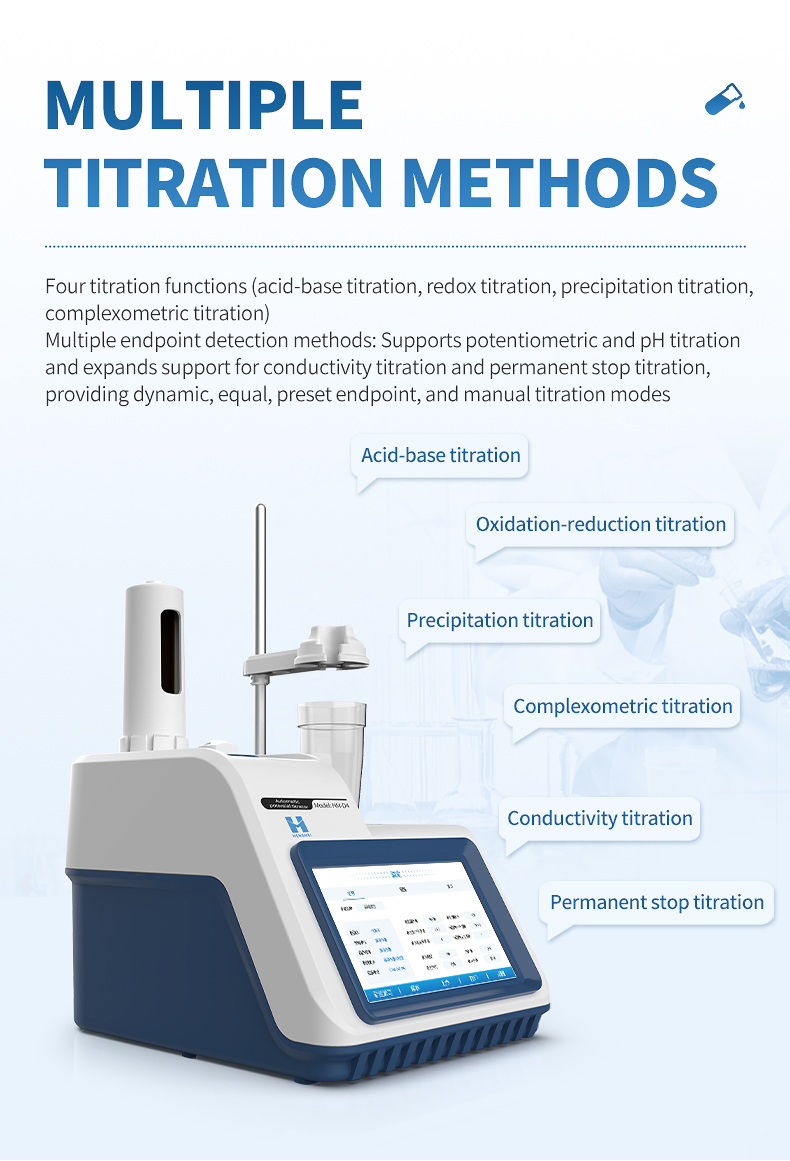

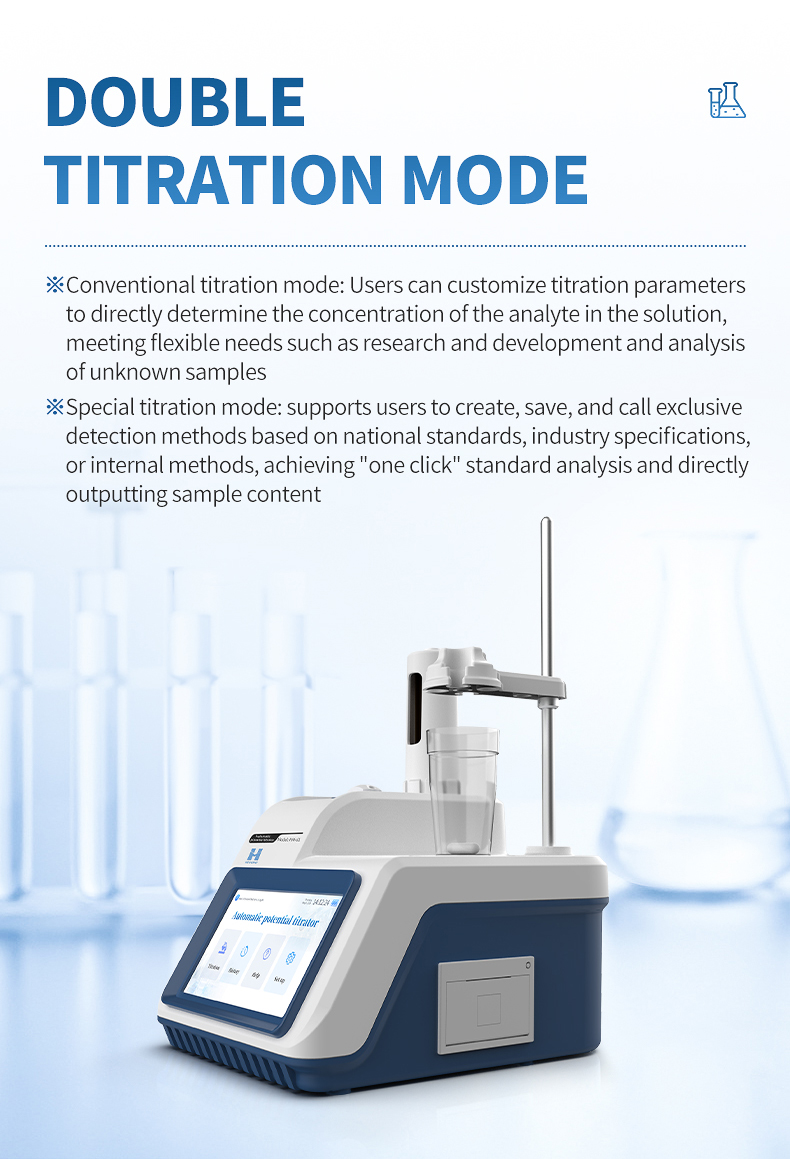

The HM-D3 series automatic potentiometric titrator is a high-precision laboratory analytical instrument with a modular design. It consists of three main parts: the titration device, the control device, and the measurement device. It can perform various titration types including acid-base, redox, precipitation, and complexometric titrations. The instrument features functions such as constant titration, micro-titration, endpoint setting titration, and volume setting titration. It also supports specialized modes like dead-stop titration (standard configuration). With an integrated valve-burette design, it allows for easy replacement and reduces the risk of interference between different titrations.
2. Operating System

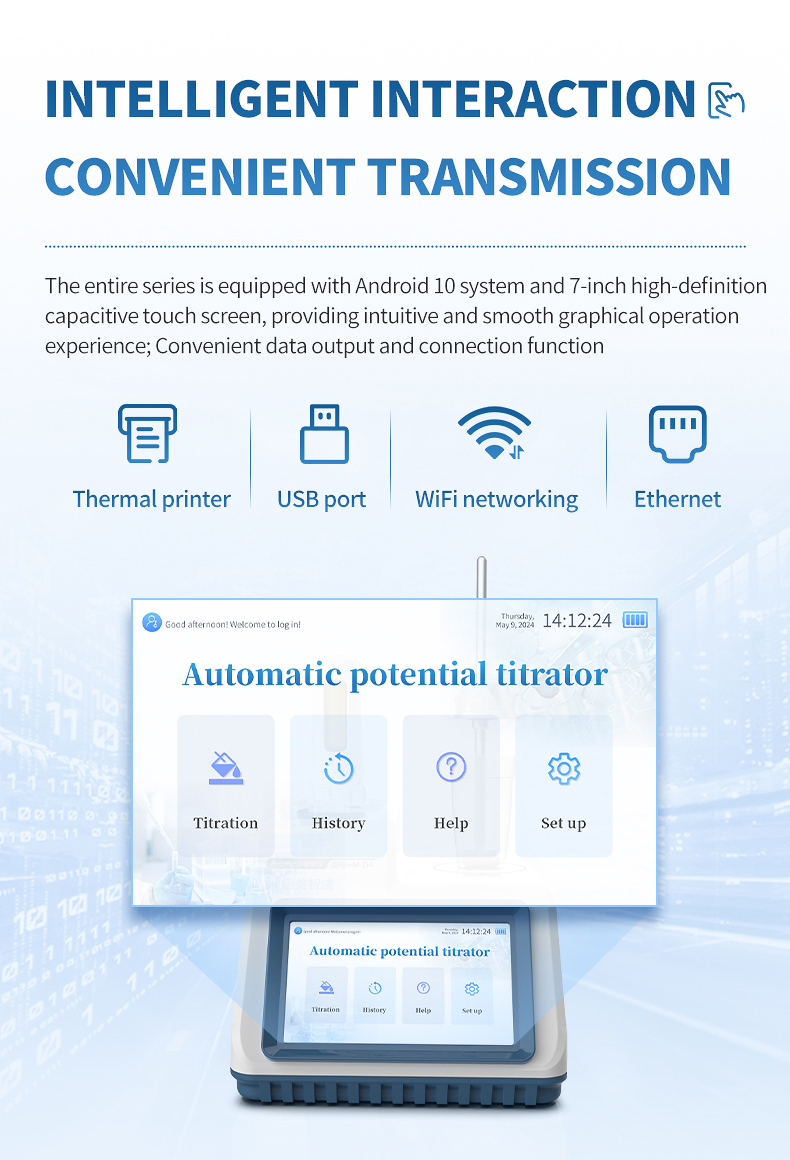

Built-in Android 10 operating system, providing a smooth and intelligent user experience with graphical interface and simplified workflows.
3. Display Mode
7-inch color high-definition capacitive touch screen with real-time display of titration curves and their first derivatives.

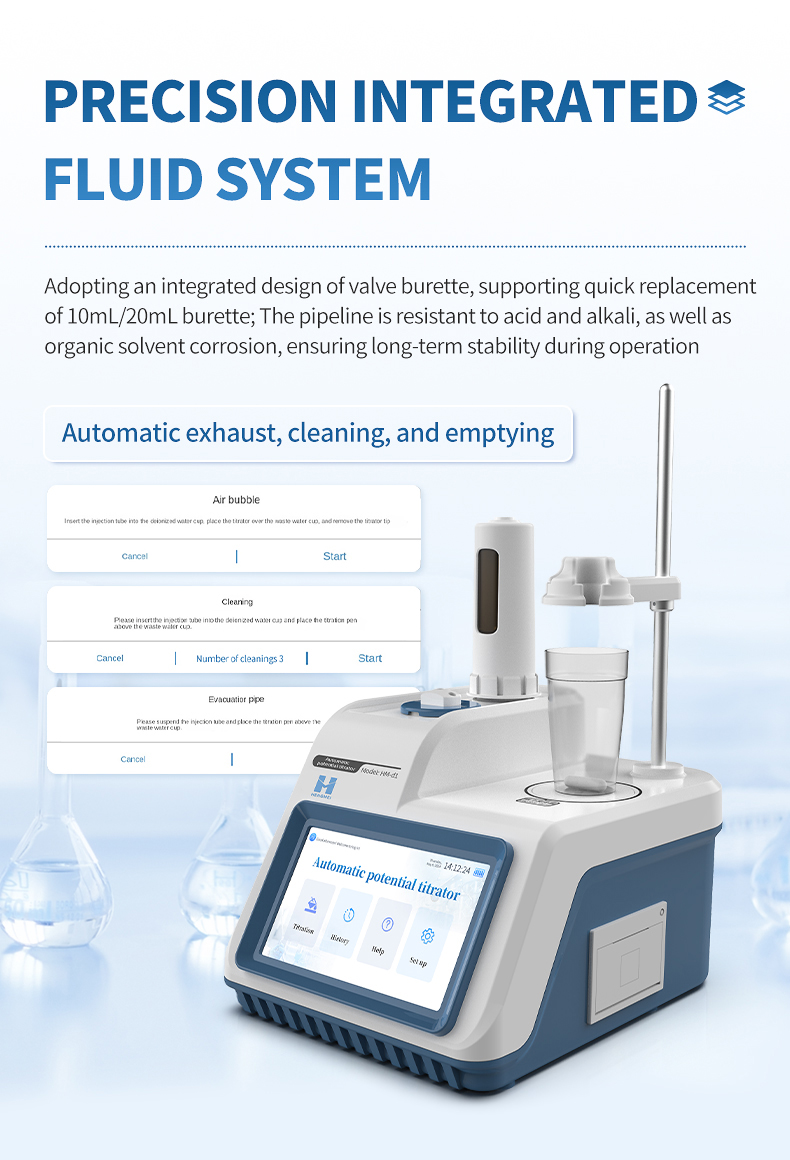

4. Burette System
Integrated valve-burette design, easy to replace, effectively avoiding cross-interference between different titration solutions. The burette is made of high-strength materials resistant to acids, alkalis, and organic solvents. It supports 10mL and 20mL burette specifications with high-precision titration performance (repeatability ≤0.2%).
5. Data Management

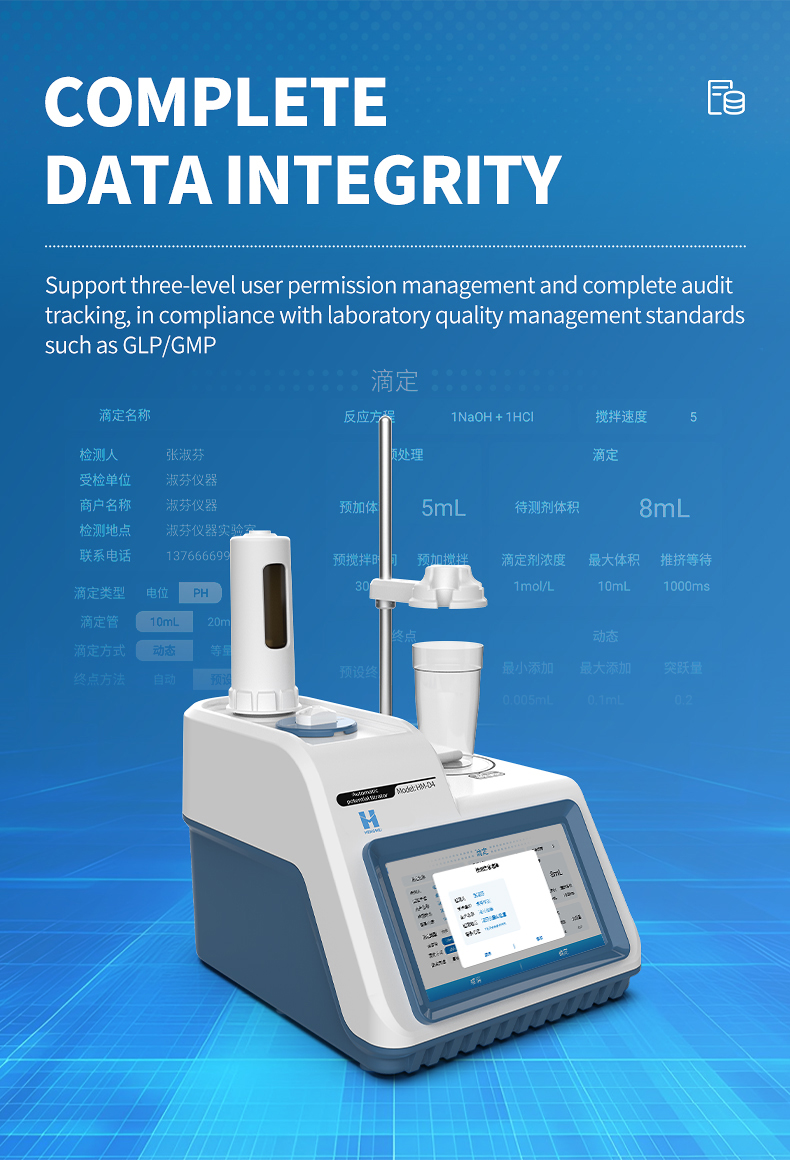

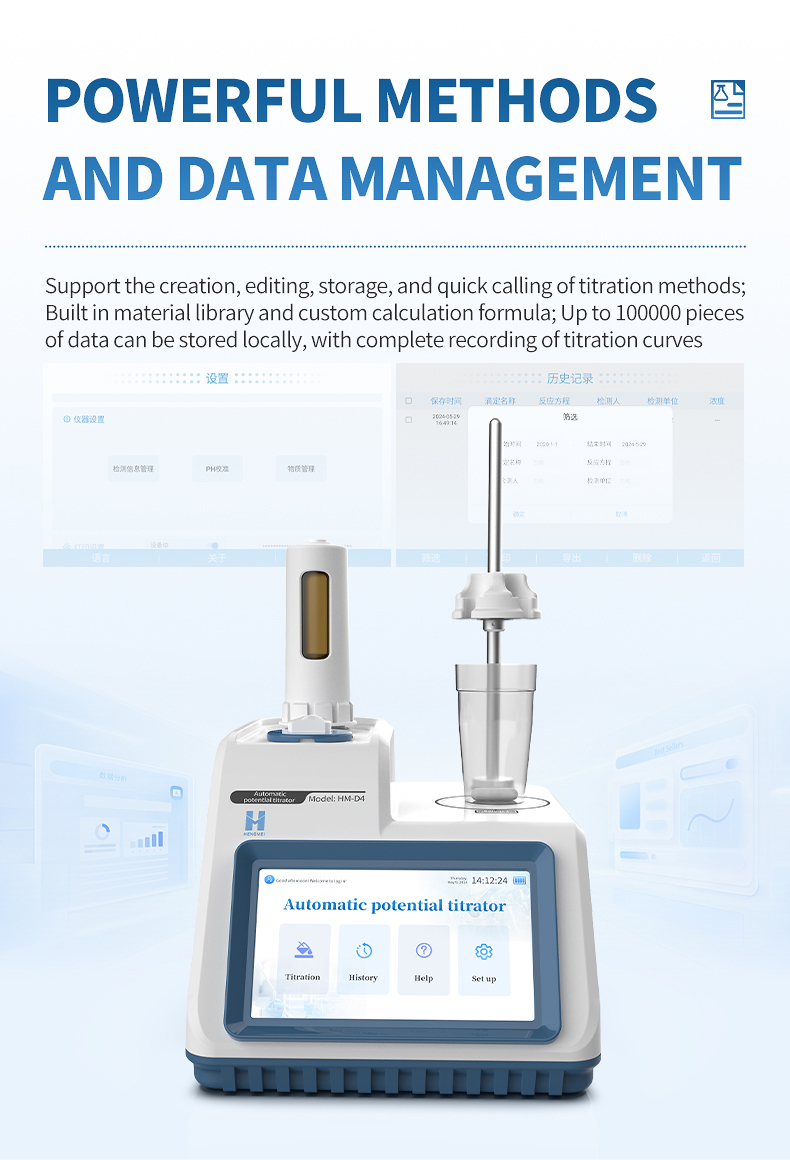

Supports storage of titration methods and results. Complies with GLP specifications, supporting user authority management and audit trails. Equipped with USB and RS-232 ports for PC connection, U-disk data export, and printer support.

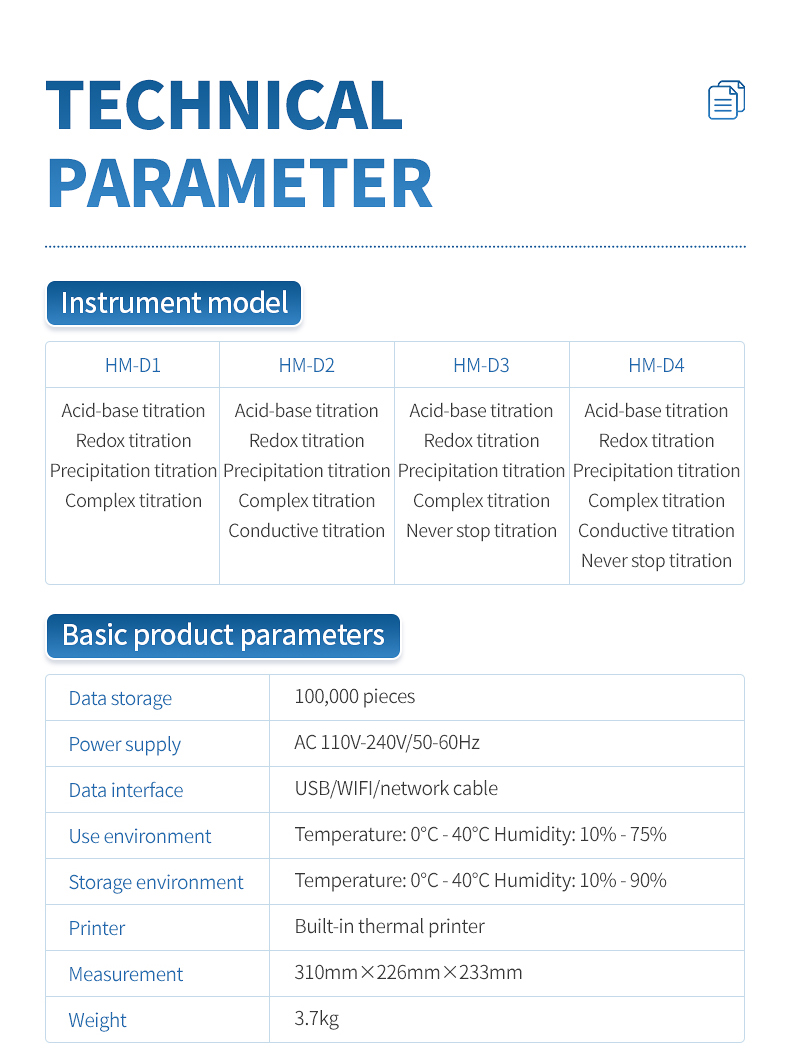

6. Technical Parameters
pH Measurement Range: 0.00 – 14.00 pH
pH Resolution: 0.01 pH
Potential (mV) Range: -1999.9 mV – 1999.9 mV
Potential Resolution: 0.1 mV
Temperature Range: 0.0 – 100.0 ℃
Temperature Resolution: 0.1 ℃
Titration Repeatability: ≤ 0.2%
Titration Sensitivity: ≤ 2 mV
Control Method: 7-inch HD Color Touch Screen
