Multi-Functional Root Analysis System for Roots, Conifers, and Pods | IN-GX03

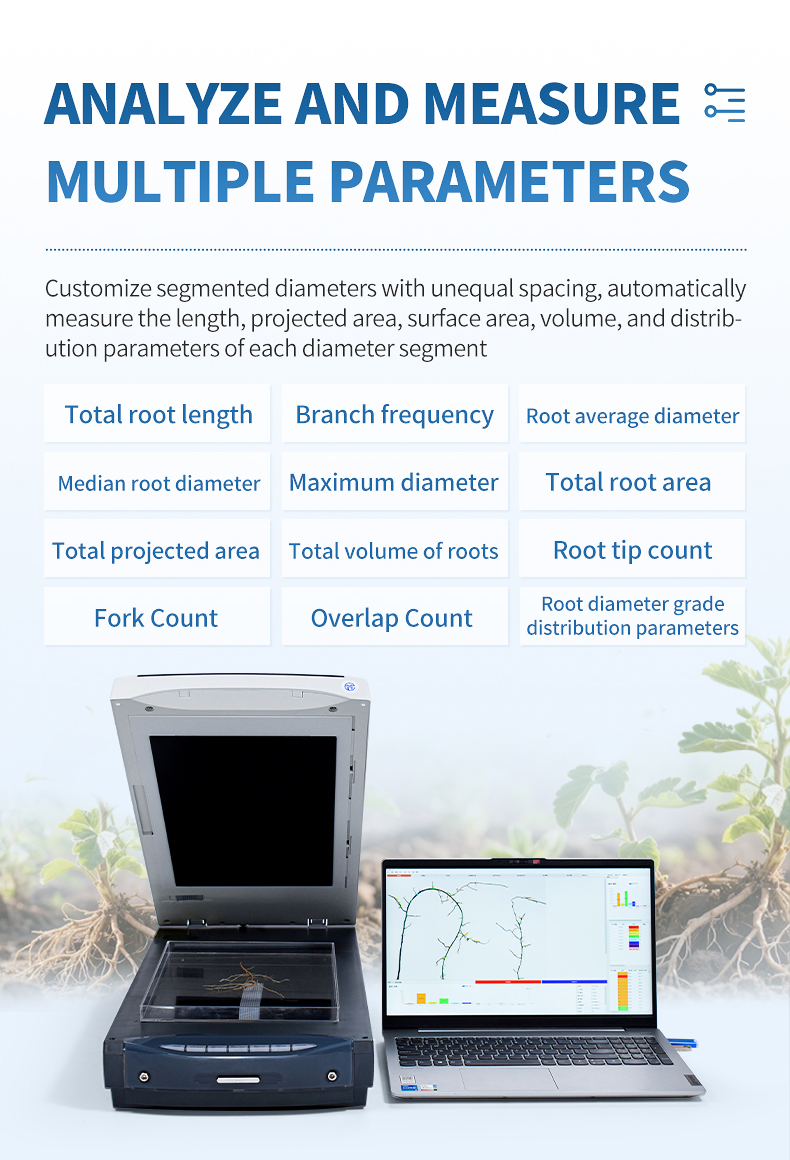

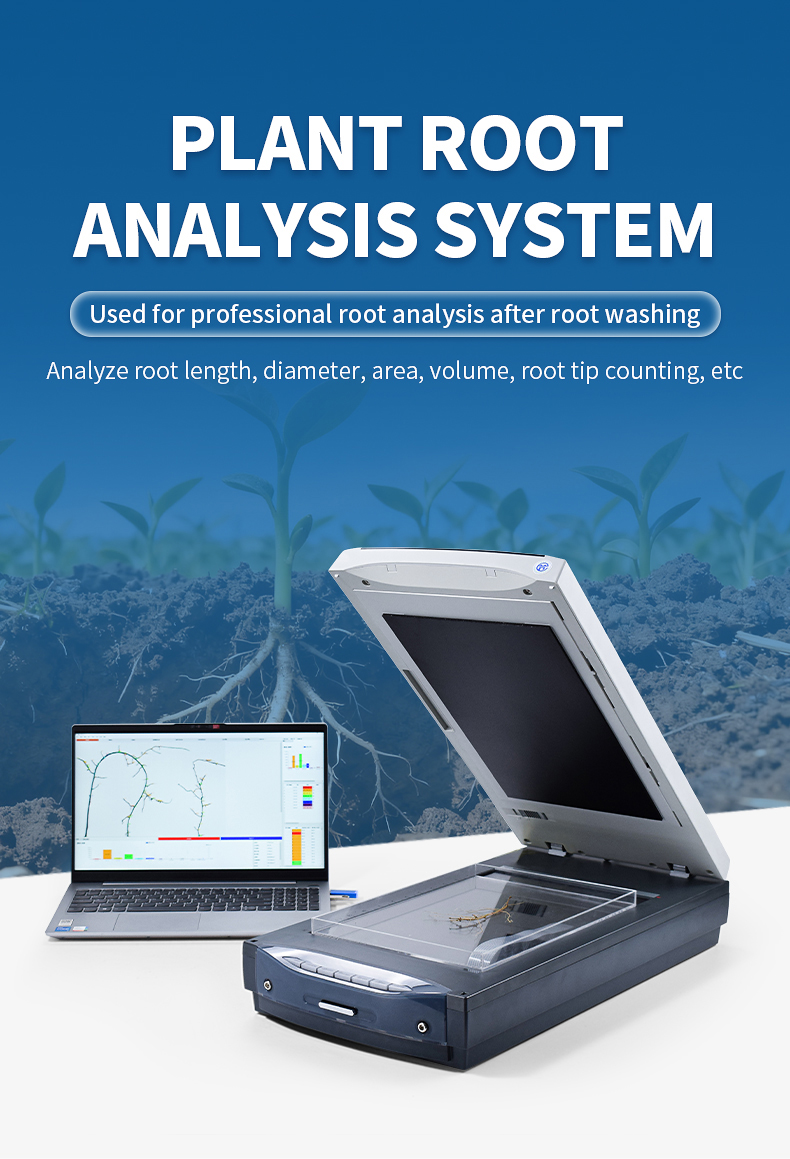

I. PurposeUsed for professional washed root analysis and phenotype analysis of roots in root boxes. It can analyze length, diameter, area, volume, and root tip count, and is also capable of measuring conifer needles and fruit pods. Widely used in morphological and structural research.

II. PrincipleUses a high-quality graphic scanner with a dual-light illumination system (below panel and in cover) to acquire high-resolution images. Avoids shadows and unevenness in wet samples. Uses decryption dongle software to calculate parameters using non-statistical methods

III. Technical Indicators

1. Dual-light color scanner (4800×9600 DPI, A4 extended). Reflective: 355.6mm × 215.9mm; Transparency: 320.0mm × 203.2mm; Pixel size: 0.005mm × 0.0026mm.

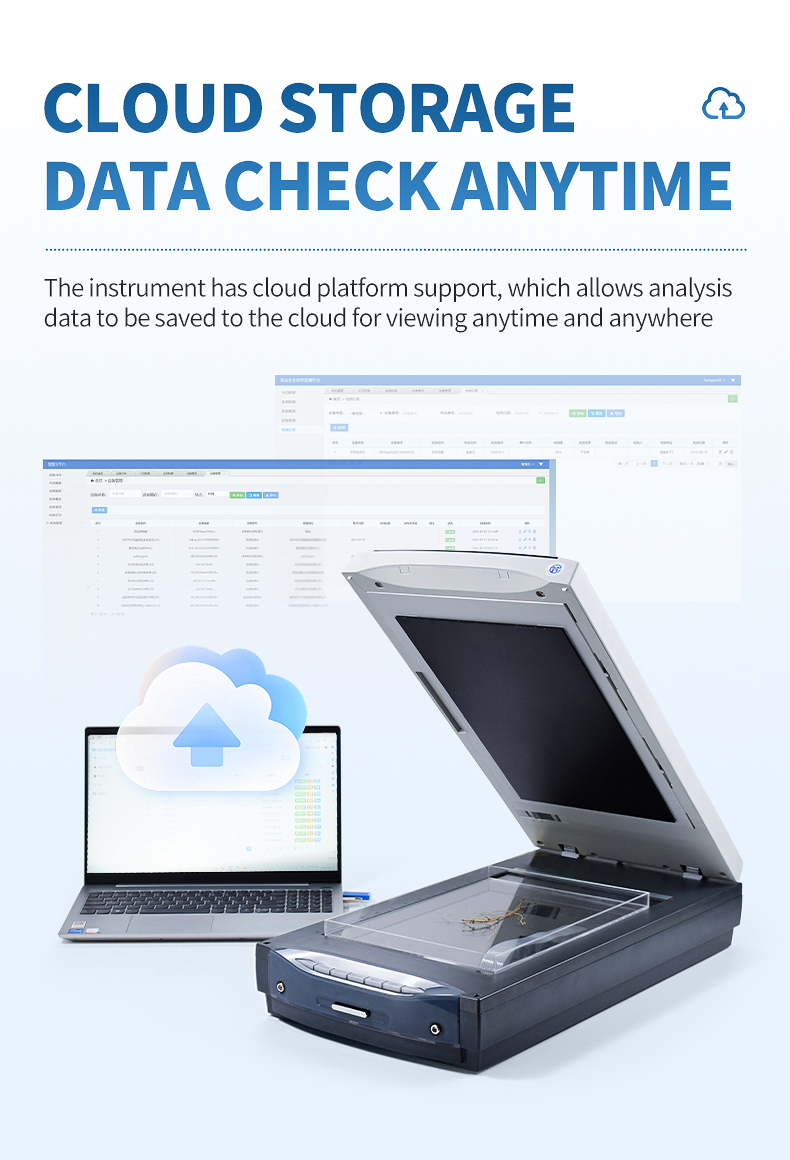

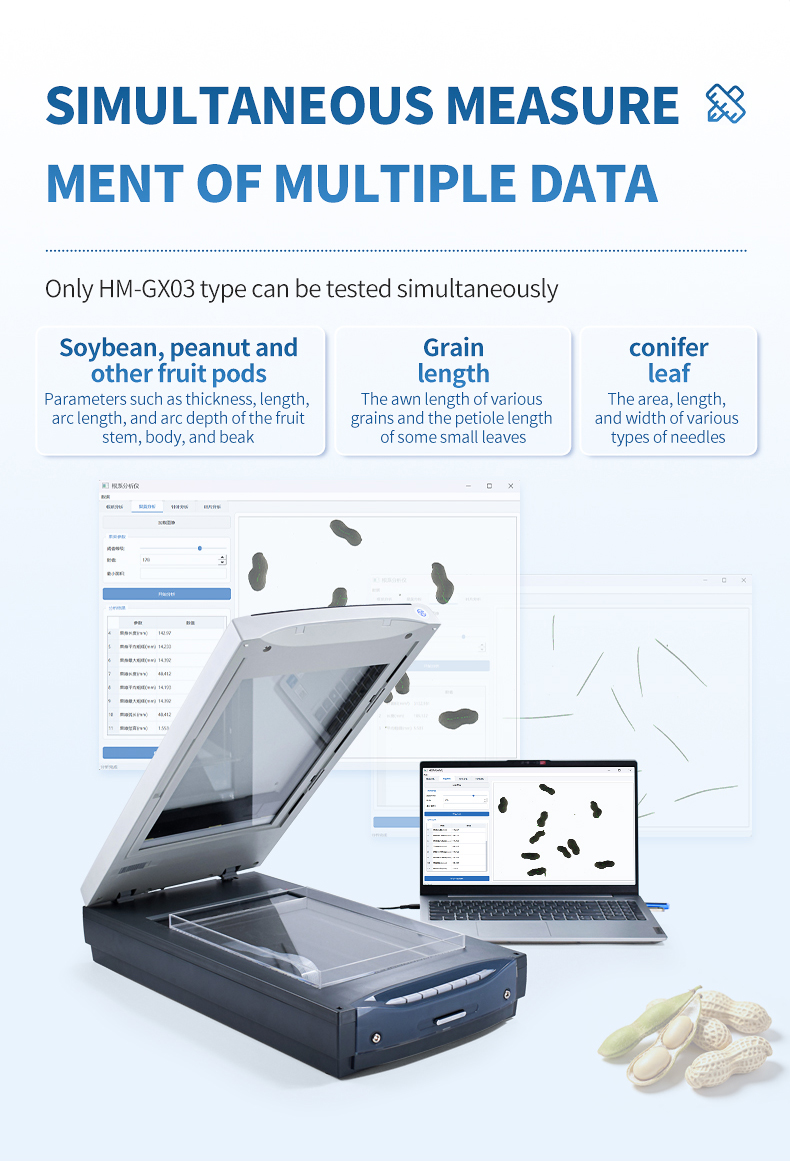

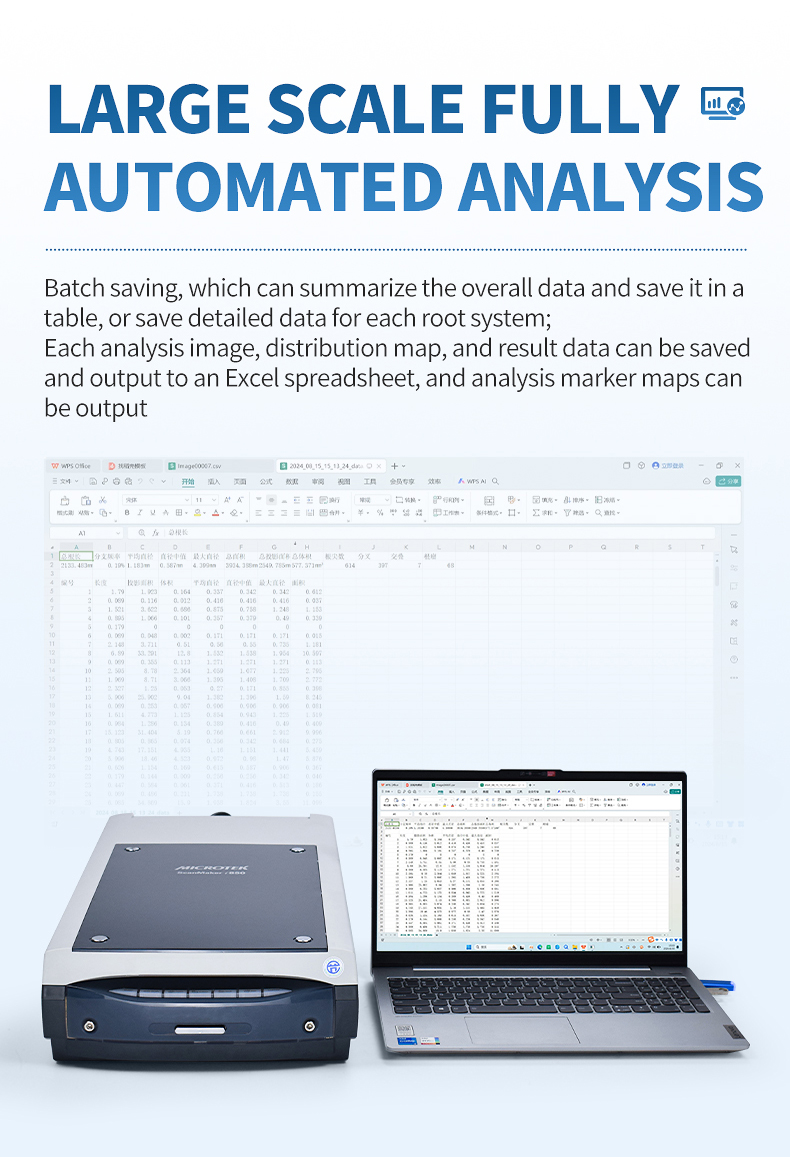

2. Analytical Measurements: (Items 1–19 same as standard root analysis). (20) Measurement of fruit pods (e.g., soybean, peanut): stalk, body, and beak thickness, length, arc length, etc. (21) Measurement of awn length of various grains and petiole length of small leaves. (22) Measurement of area, length, and width of various conifer needles. (23-25) Excel export, cloud platform support, and one-key Chinese-English switching.

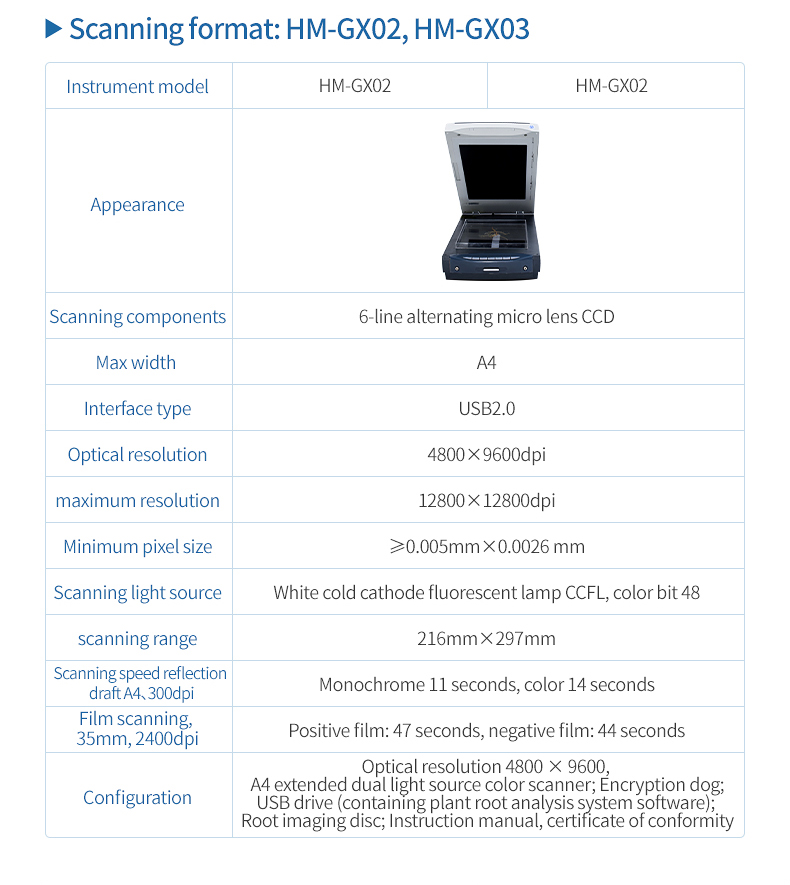

IV. Image Capture System ParametersScanning Element: 6-line alternating microlens CCD. Format: A4. Resolution: 4800x9600 DPI. Light Source: White CCFL; 48-bit color. Speed: A4 300dpi: 11s (B&W) / 14s (Color).

V. OtherRecommended Specs: i5 9th Gen+ / 16G RAM / Windows 10. Optional A3 scanner

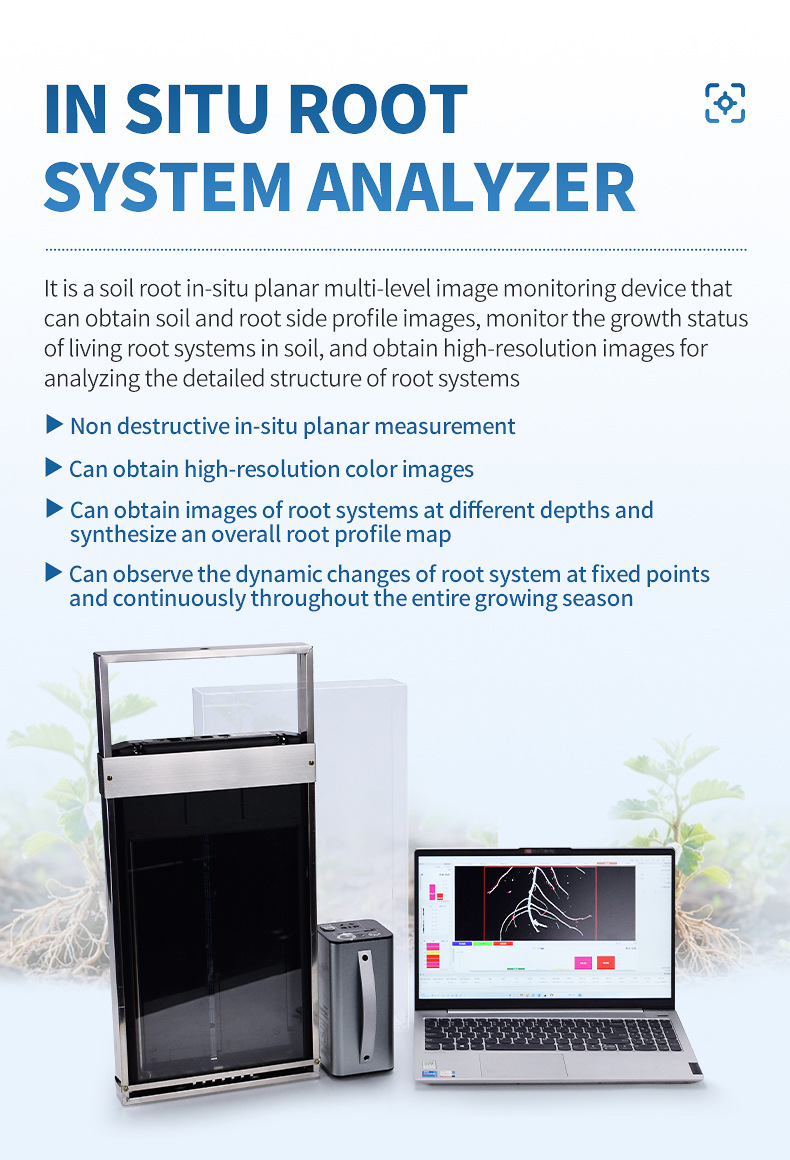

• Previous: In-Situ Plane Root Growth Monitoring System for Soil Profile Imaging | HM-GXY
