In-Situ Plane Root Growth Monitoring System for Soil Profile Imaging | HM-GXY

Product Introduction:

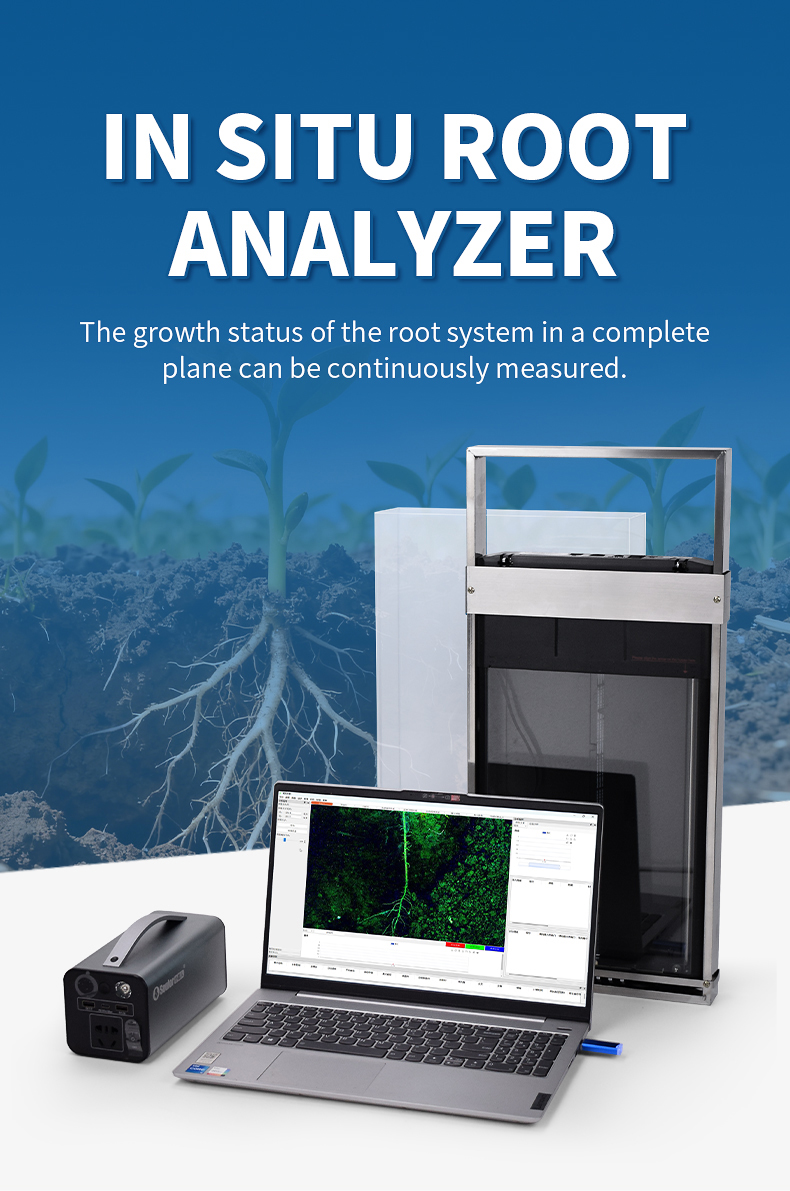

The planar in-situ root monitoring system is a soil root in-situ planar multi-level image monitoring device that can obtain soil and root profile images, monitor the growth status of living root systems in soil, and obtain high-resolution images for analyzing the detailed structure of root systems.

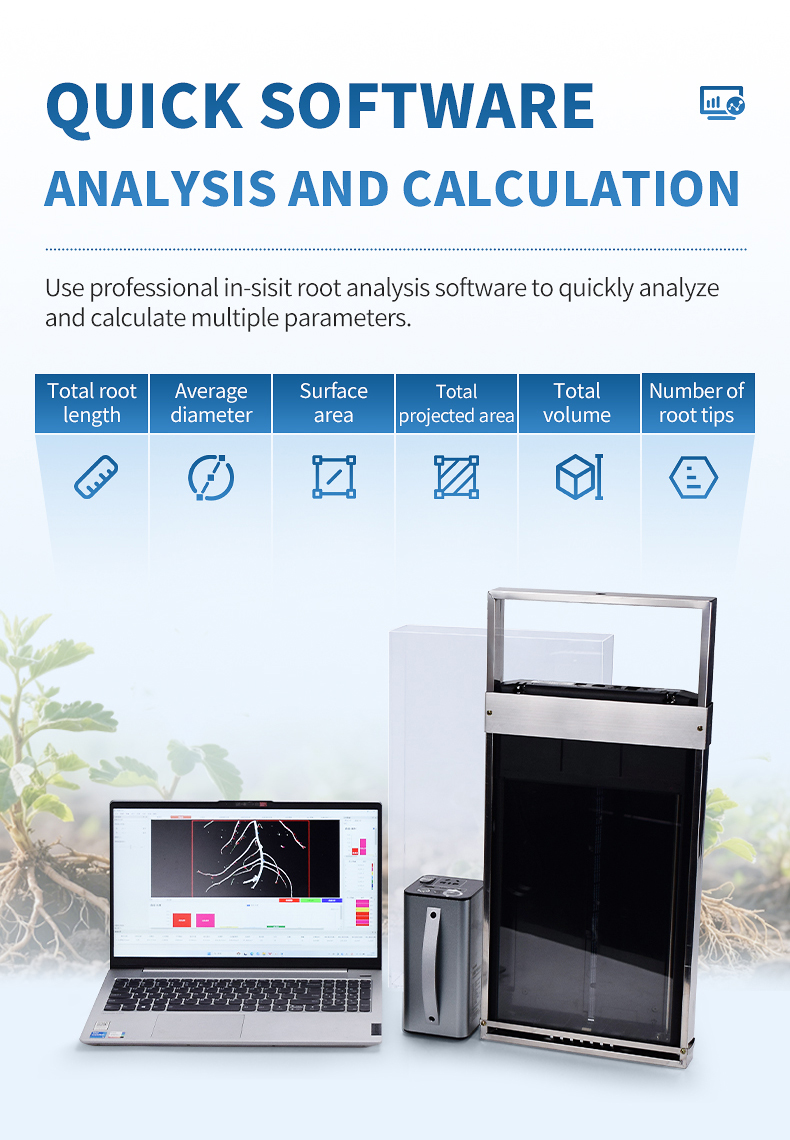

Professional in situ root analysis software can be used to quickly analyze and calculate root morphology parameters such as total root length, average diameter, surface area, total projected area, total volume, and number of root tips.

This instrument overcomes the limitations of rotary root monitoring devices and can continuously measure the growth status of a complete plane of roots, which is more practical for root research.

Product Features:

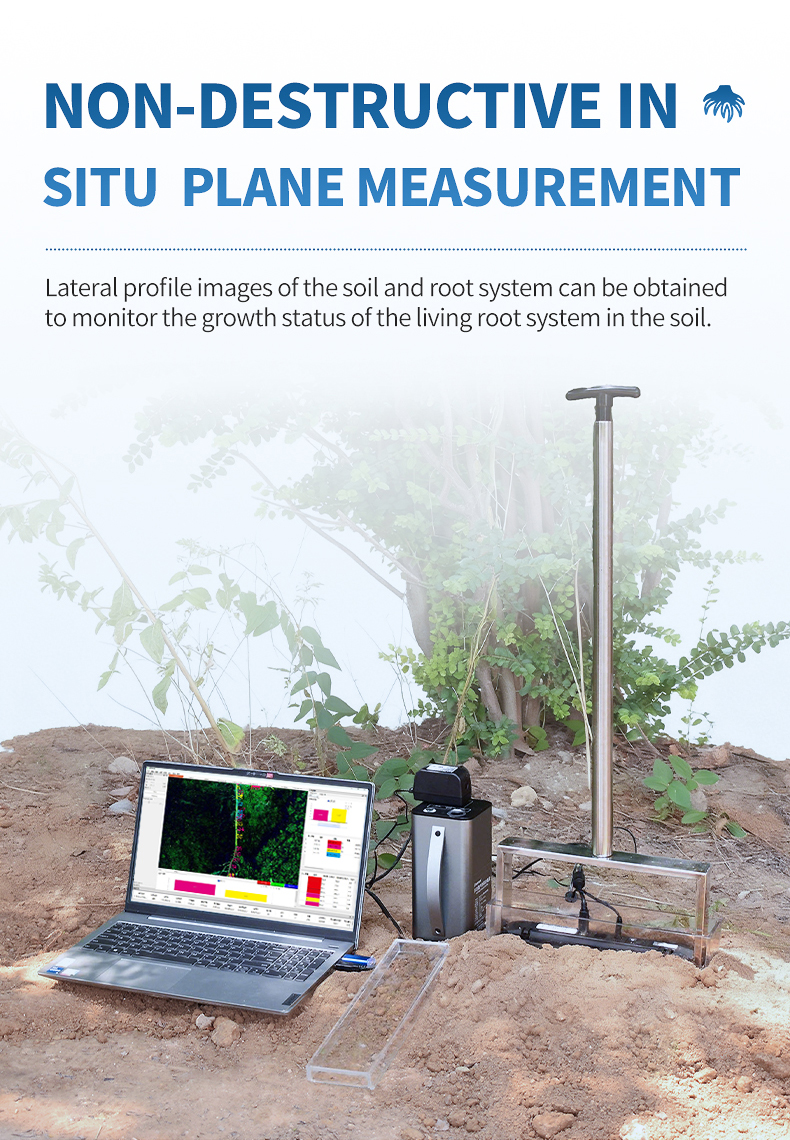

Non destructive in-situ planar measurement;

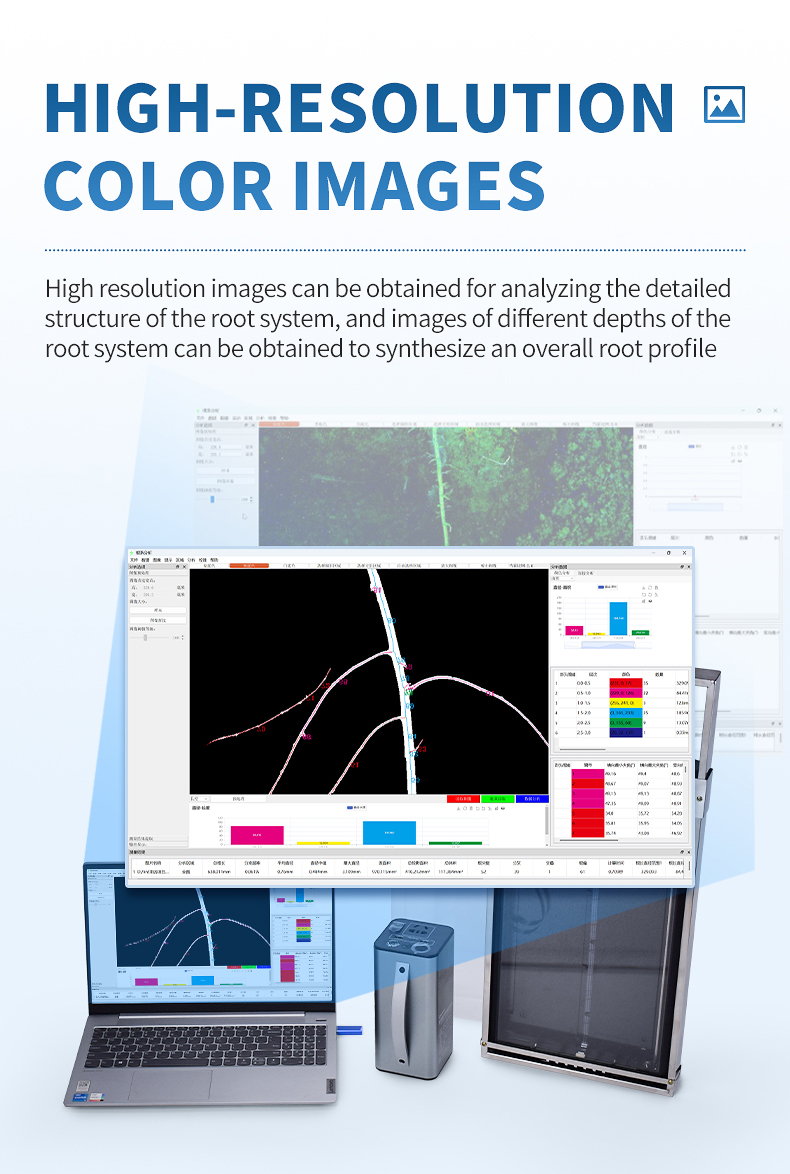

Capable of obtaining high-resolution color images;

Can obtain images of root systems at different depths and synthesize an overall root profile map;

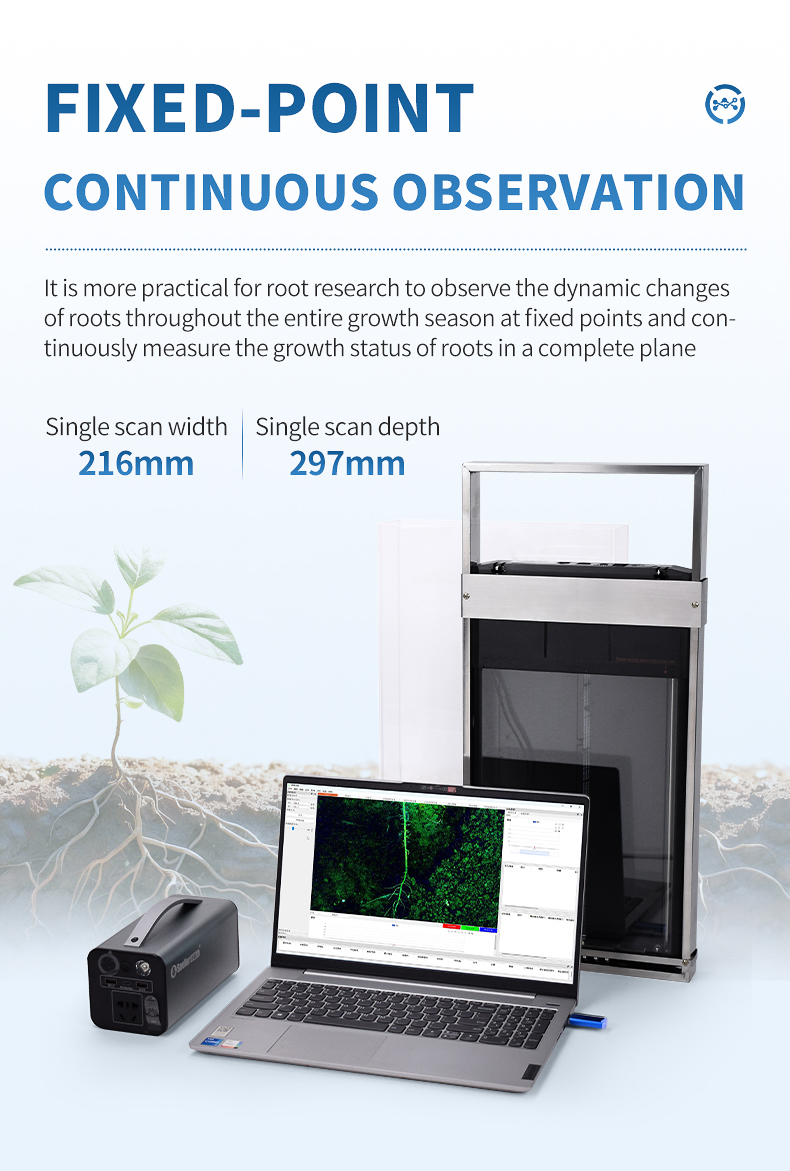

Can observe the dynamic changes of root system at fixed points and continuously throughout the entire growing season;

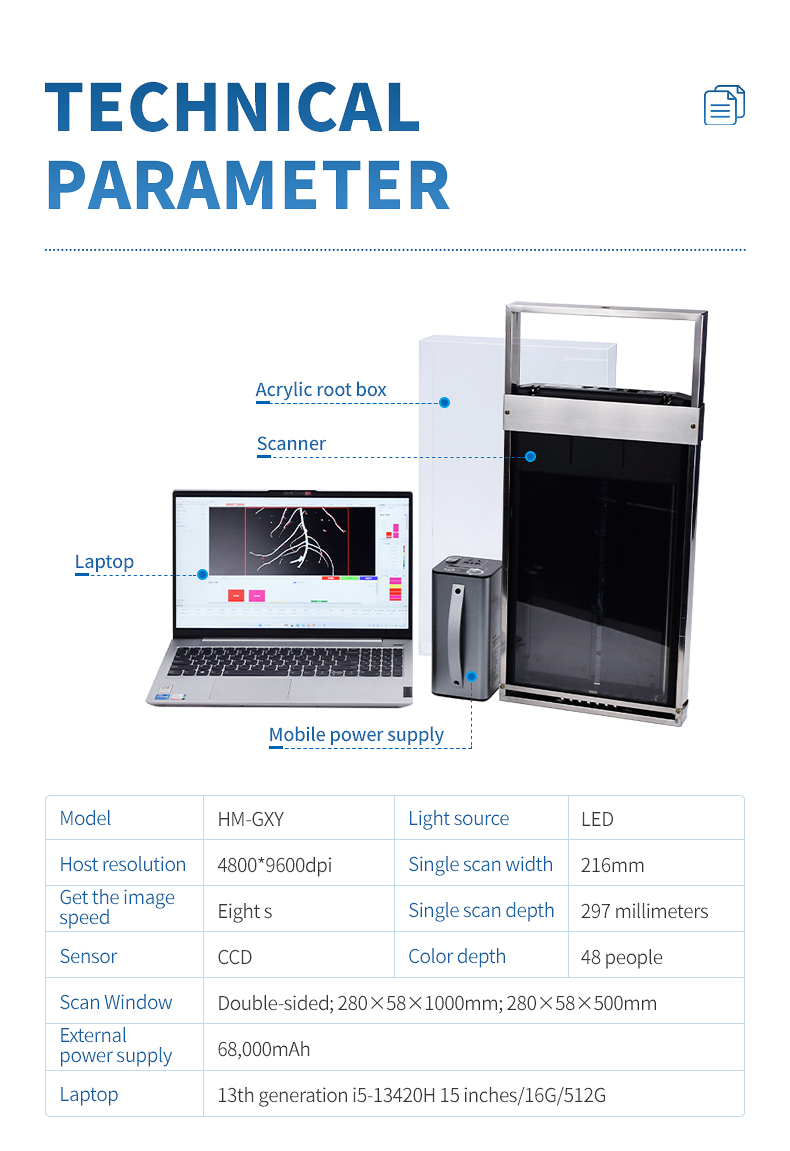

Technical Specifications:

Host resolution: 4800 * 9600dpi

Image acquisition speed: 8S

Sensor: CCD

Light source: LED

Single scan width: 216mm

Single scan depth: 297mm

Color depth: 48 bits

Scanning window: double-sided 280 * 58 * 1000mm 280 * 58 * 500mm

External power supply: 68000mAh

Laptop: 13th generation i5-13420H 15 inch/16G/512G
