Photosynthesis detector

Introduction:

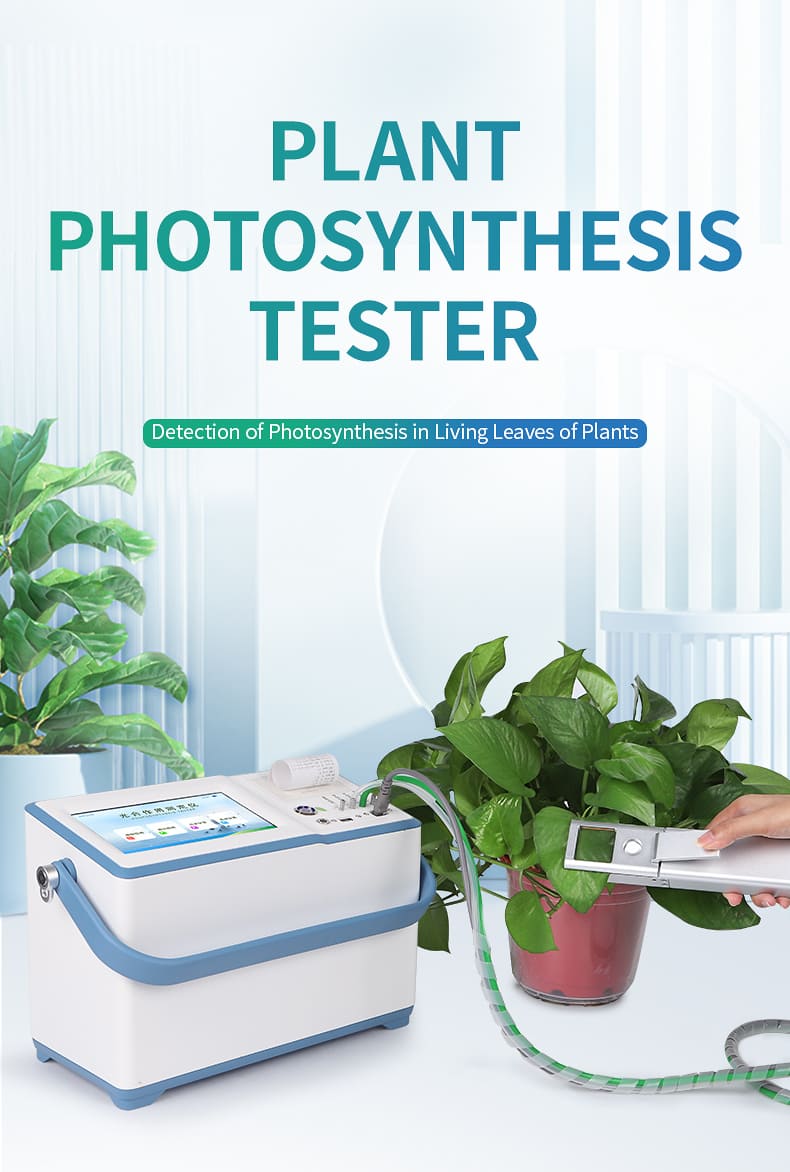

HM-GH1 plant photosynthesis meter is an experimental instrument for detecting photosynthesis of living leaves of plants in artificial climate chambers, greenhouses, sheds, fields, etc. The measurement content includes air CO2 concentration, environmental temperature and humidity, leaf room temperature and humidity, leaf surface temperature, atmospheric pressure, photosynthetically active radiation (PAR), leaf photosynthetic rate (Pn), stomatal conductance (Gs), leaf transpiration rate (Tr), intercellular CO2 concentration (Ci), water use efficiency (WUE), respiratory rate (Rd), transpiration ratio (TR), a total of 15 parameters, which can be used for scientific research such as plant growth physiology, photosynthetic physiology, and stress physiology. The plant photosynthesis meter is suitable for agricultural research, teaching, gardening, grass industry, forestry and a wider range of fields.

Product features:

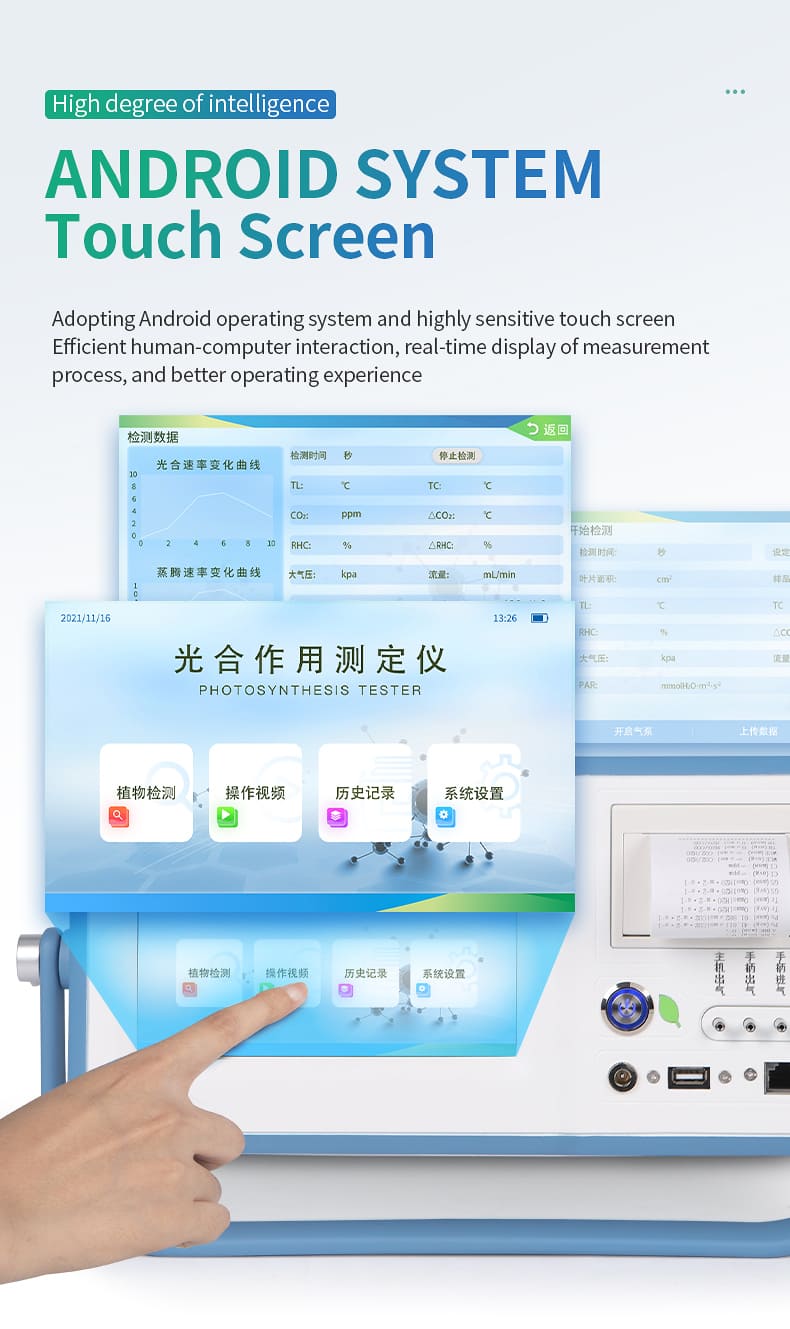

Intelligent: Using Android operating system, high-sensitivity touch screen. Efficient human-computer interaction, real-time display of the measurement process, better operation experience;

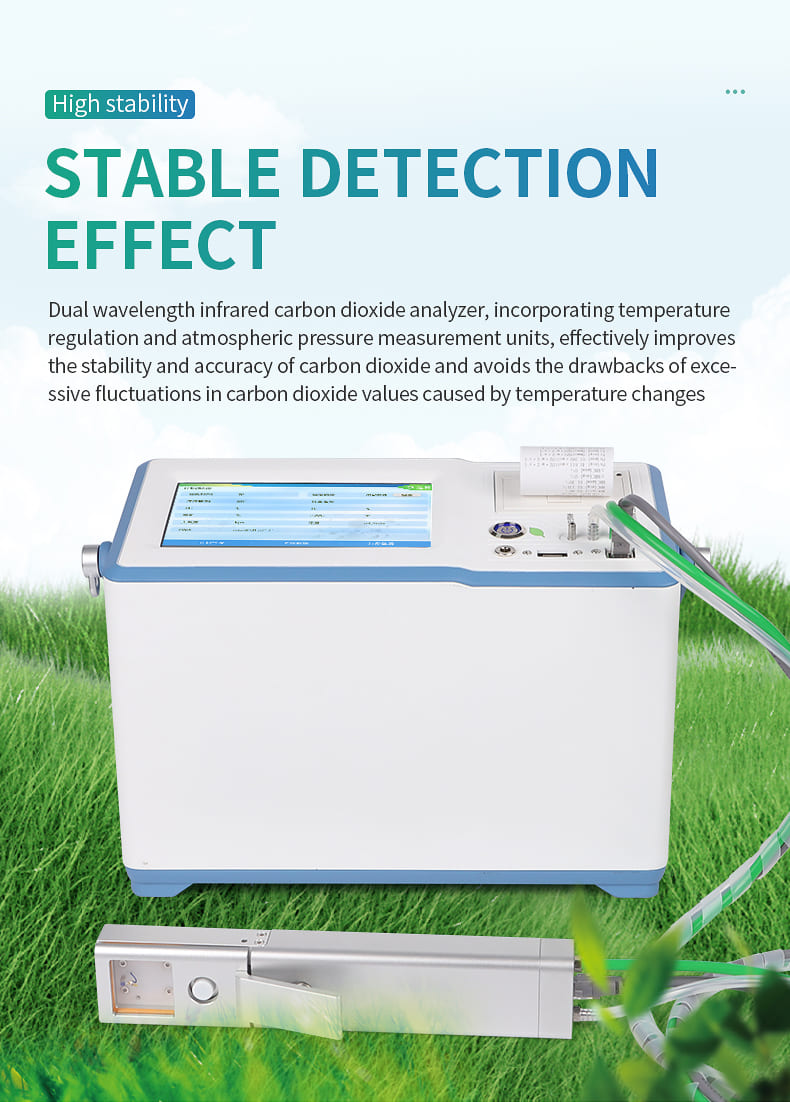

High stability: dual-wavelength infrared carbon dioxide analyzer, adding temperature regulation and atmospheric pressure measurement unit, effectively improves the stability and accuracy of carbon dioxide. It effectively avoids the drawback of excessive fluctuations in carbon dioxide values due to temperature changes;

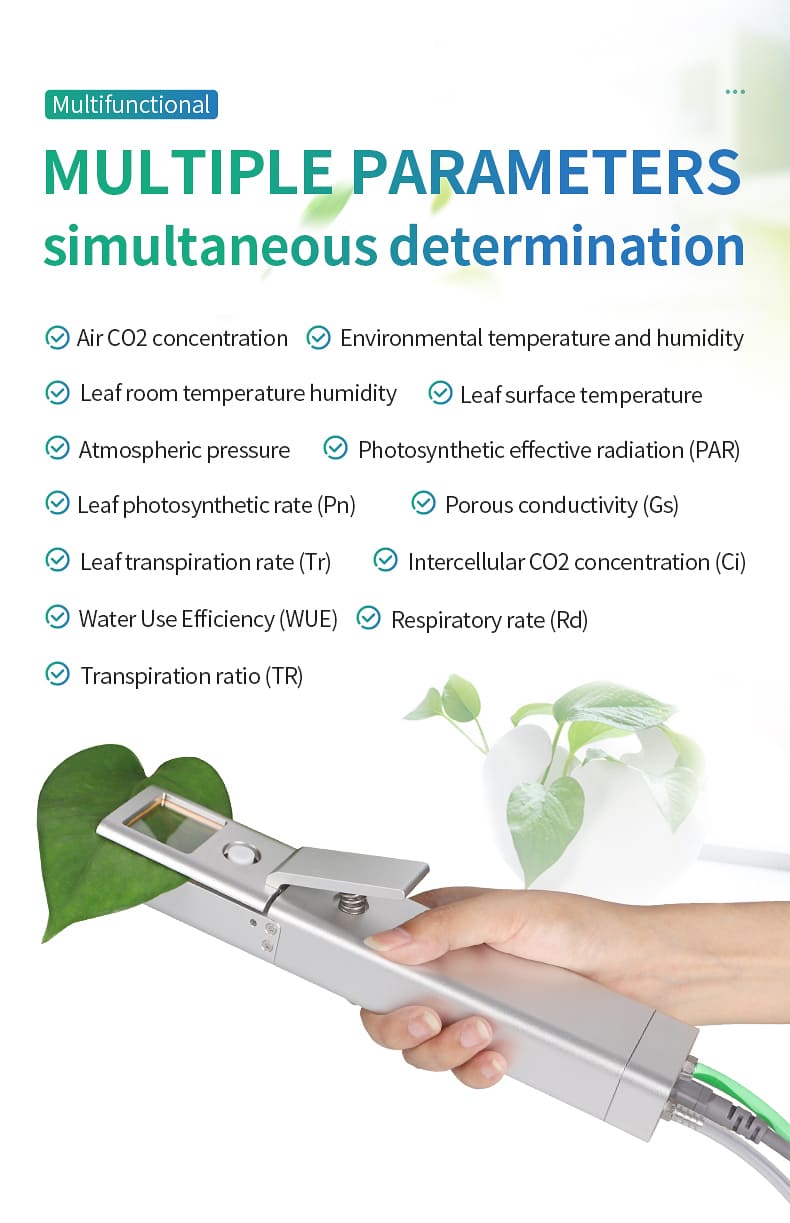

Multi-function: It simultaneously measures photosynthetic rate, transpiration rate, intercellular carbon dioxide concentration, stomatal conductance and water use efficiency, as well as carbon dioxide concentration, relative humidity, photosynthetically active radiation and air temperature, leaf temperature, atmospheric pressure and other indicators;

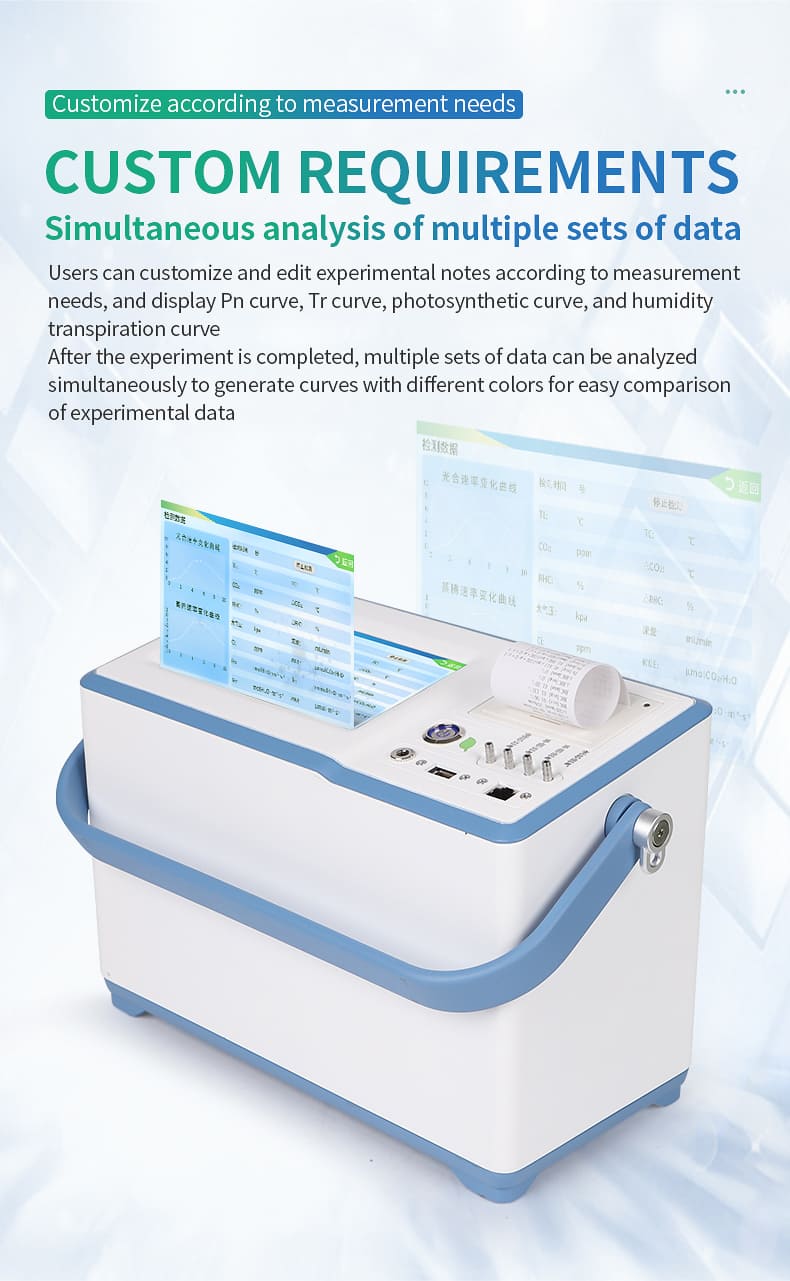

Customization: Users can customize and edit experimental notes according to measurement needs;

Data analysis: After the experiment is completed, multiple sets of data can be analyzed simultaneously to facilitate experimental data comparison;

Large screen: 7-inch high-sensitivity touch screen, humanized operation interface, to provide users with better data display.

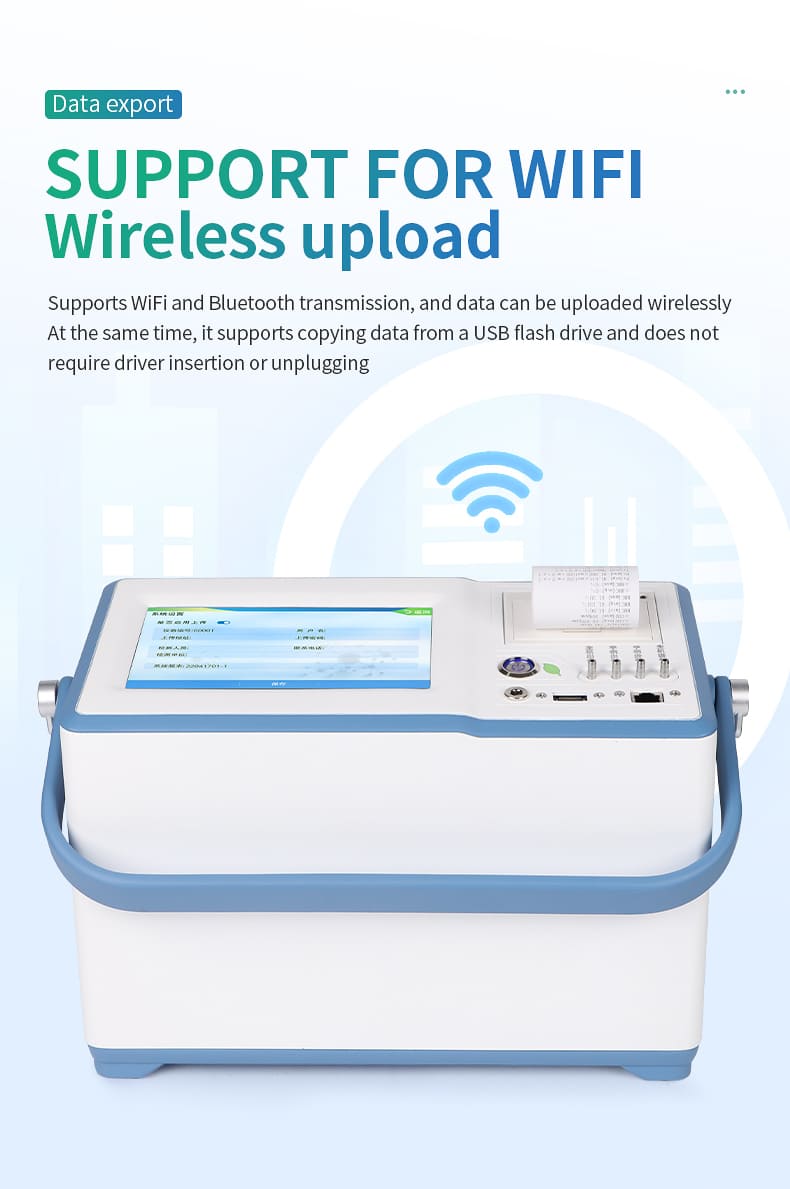

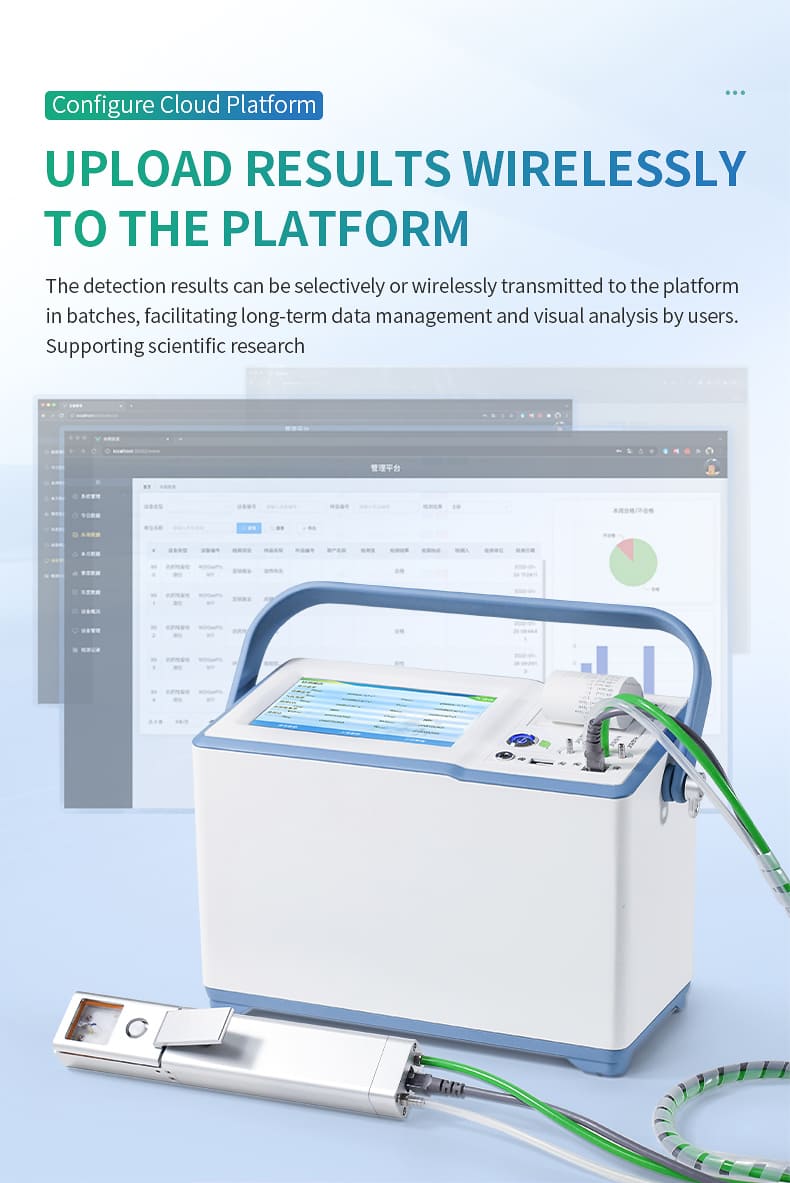

Data export: Supports USB flash drive copying of data, free of driver plugging and unplugging.

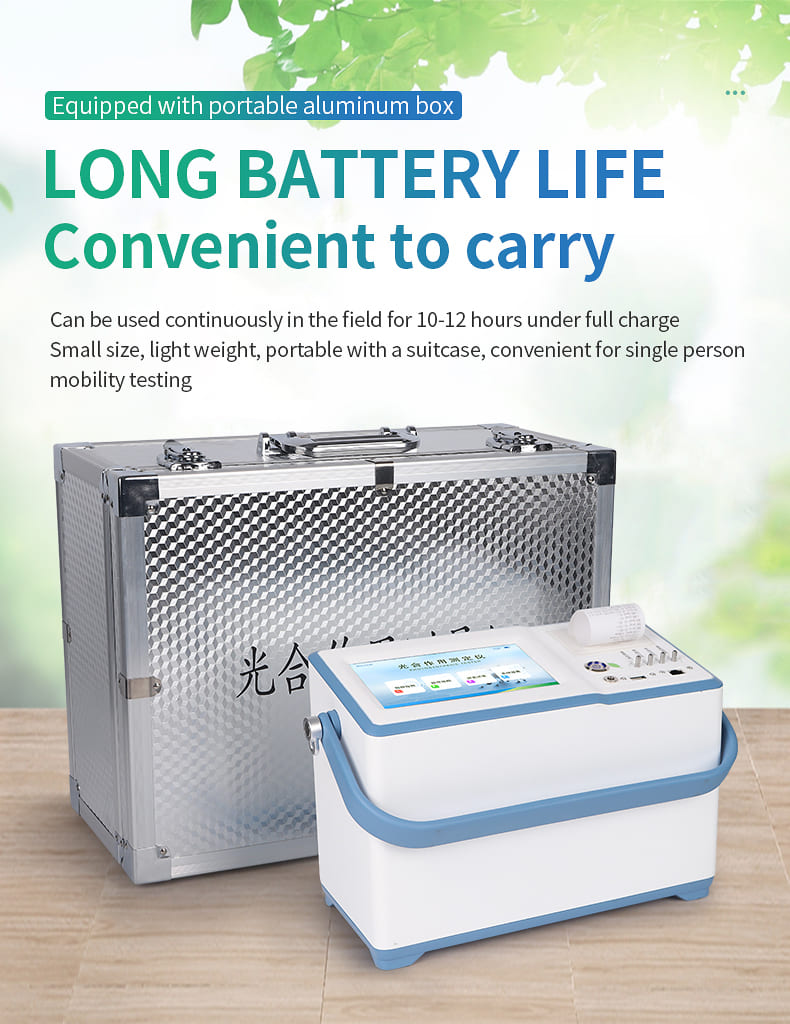

Long battery life: It can be used continuously in the field for 10-12 hours when fully charged.

Convenience: small size, light weight, can be carried with a suitcase, convenient for single-person mobile testing;

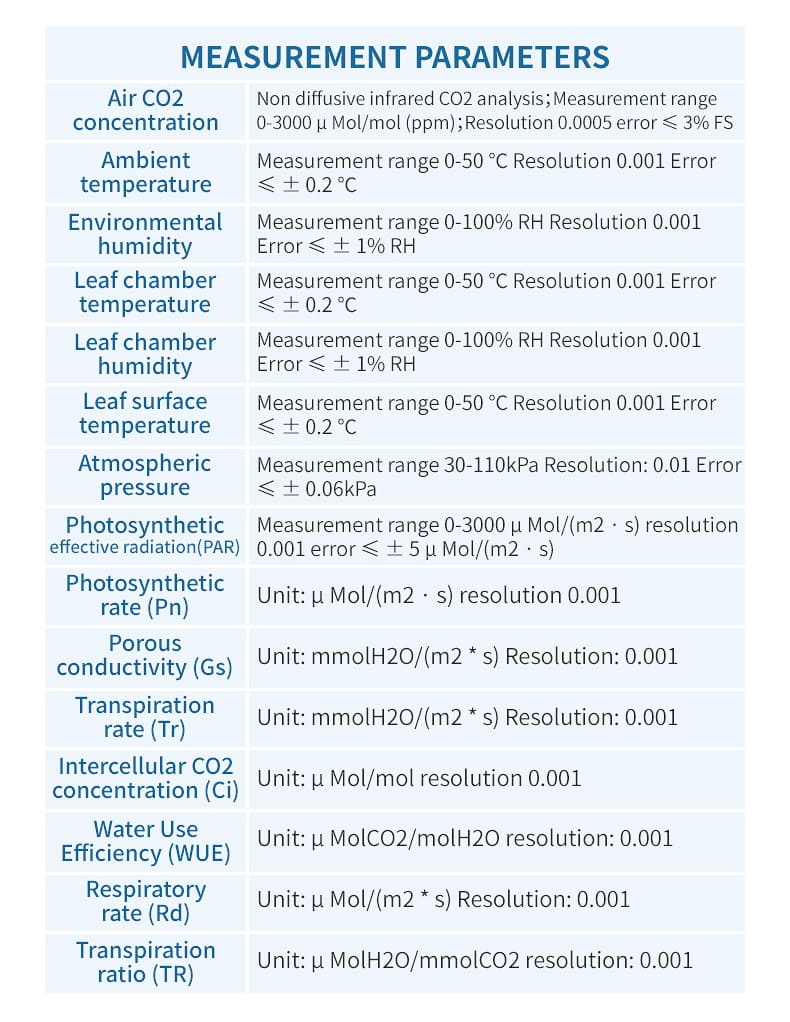

Measurement parameters:

Air CO2 concentration: non-diffusion infrared CO2 analysis, measurement range 0-3000μmol/mol (ppm), resolution 0.0005, error ≤3%FS

Ambient temperature: measurement range 0-50℃, resolution 0.001, error ≤±0.2℃

Ambient humidity: measurement range 0-100%RH, resolution 0.001, error ≤±1%RH

Leaf chamber temperature: measurement range 0-50℃, resolution 0.001, error ≤±0.2℃

Leaf chamber humidity: measurement range 0-100%RH, resolution 0.001, error ≤±1%RH

Leaf surface temperature: measurement range 0-50℃, resolution 0.001, error ≤±0.2℃

Atmospheric pressure: measurement range 30-110kPa, resolution: 0.01 Error ≤±0.06kPa

Photosynthetically active radiation (PAR): measurement range 0-3000μmol/(m2·s) resolution 0.001 error ≤±5μmol/(m2·s)

Photosynthetic rate (Pn): unit μmol/(m2·s) resolution 0.001

Stomatal conductance (Gs): unit: mmolH2O/(m2*s) resolution: 0.001

Transpiration rate (Tr): unit: mmolH2O/(m2*s) resolution: 0.001

Intercellular CO2 concentration (Ci): unit μmol/mol resolution 0.001

Water use efficiency (WUE): unit: μmolCO2/molH2O resolution: 0.001

Respiration rate (Rd): unit: μmol/(m2*s) resolution: 0.001

Transpiration ratio (TR): unit: μmolH2O/ mmolCO2 Resolution: 0.001

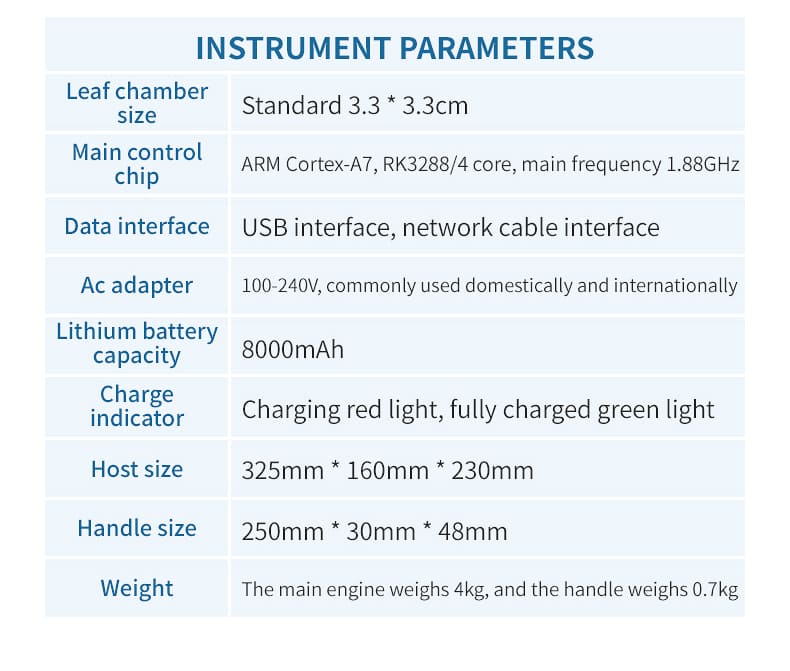

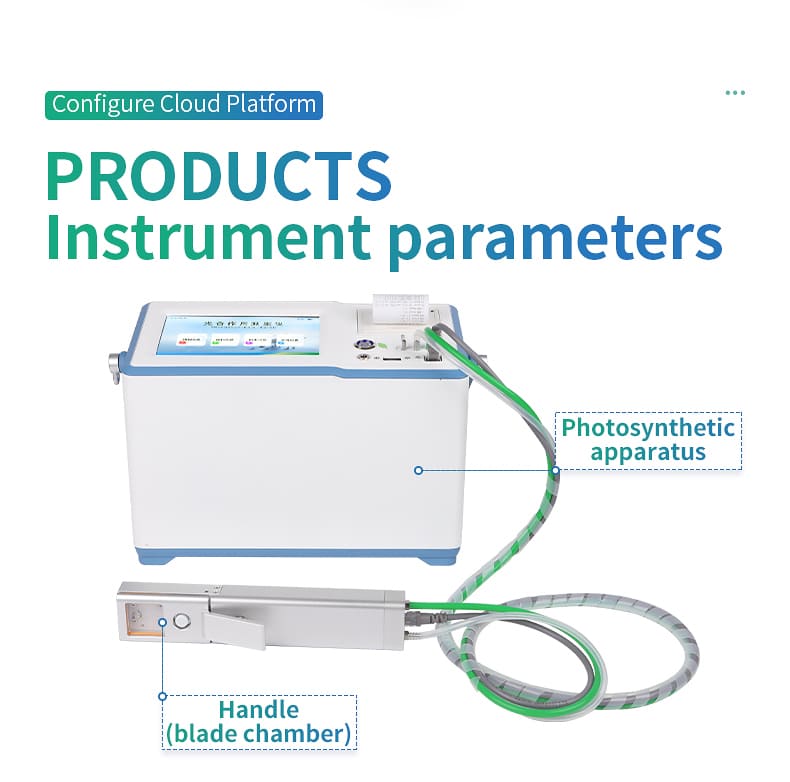

Instrument parameters:

Chamber size: standard 3.3*3.3cm

Main control chip: ARM Cortex-A7, RK3288/4 core, main frequency 1.88Ghz

Hardware memory: RAM 1G, ROM 16G

Data interface: USB interface

Power adapter: 100-240V, universal at home and abroad.

Lithium battery capacity: 8000mAh

Charging indicator: charging red light, fully charged green light

Host size: 312.3*308.5*186mm

Handle size: 250*30*48mm

Weight: host weight 4kg, handle weight 0.7kg
