Soil heavy metal analyzer

Product Number：

HM-ZSB

Product Price:

$1200

Product Difference：

12-channel colorimetric configuration with manufacturer-stated repeatability error ≤0.03% and linearity error ≤0.1% on reference solutions. Tests require sample preparation and analyte-specific reagents.

+86 17853698681 Consultation icon

Product Details

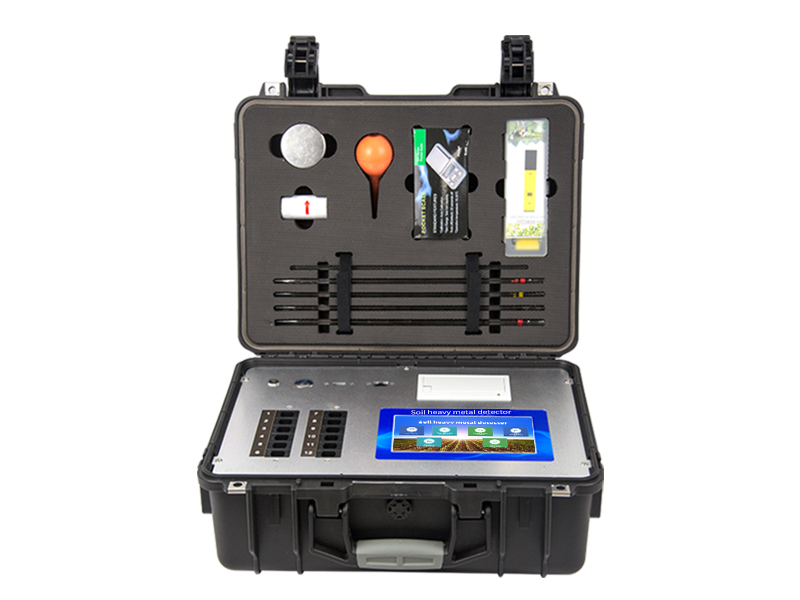

Soil heavy metal analyzer series and carrying-case instrument illustration

Series Android touchscreen, networking and data management features

Soil, fertilizer, crop, food and water sample application illustrations

Element testing menu for the soil heavy metal analyzer series

Series touchscreen interface and Android operating system illustration

Twelve-position rotating colorimetric system shown for the ZSD series configuration

Manufacturer legacy colorimetric method references for selected elements

ZSA, ZSB, ZSC and ZSD instrument configuration comparison

Series comparison table including six-channel ZSA and twelve-channel ZSB

Illustrative series accessory and configuration list

Hengmei company team and company introduction

Laboratory facilities and instrument testing application scenes

Choose HM-ZSA for six-channel testing or HM-ZSB for twelve-channel testing. Model-specific performance and accessories are described below.

Product Overview

The HM Instruments HM-ZSB is a 12-channel colorimetric analyzer for heavy metals and associated elements in prepared sample solutions. The documented sample scope includes soil, fertilizer, crops, vegetables, fruit, water and food. Sample digestion and the appropriate color-development reagent convert the target analyte into a measurable solution; optical measurement follows the Lambert–Beer relationship within the applicable calibration range.

This model provides 12 sample channels for multi-sample testing. It is not a direct-reading X-ray fluorescence instrument: sample preparation, analyte-specific reagents and suitable calibration are required.

Testing Items and Timing

The test menu covers arsenic, lead, cadmium, chromium, mercury, nickel, aluminium, titanium, selenium, iron, zinc, manganese and copper, with fluoride available as a related analyte. Select the methods and reagent kits for your target elements.

Manufacturer workflow estimates are approximately 60 minutes for the five tests of lead, arsenic, chromium, cadmium and mercury, and approximately 30 minutes for an individual iron, zinc, manganese, copper or aluminium test. These estimates include soil sample pretreatment and reagent preparation, rather than optical reading time alone.

Key Features

Android operating system, ARM Cortex-A7 RK3288 quad-core processor and 7-inch touchscreen.
12 detection channels with built-in optical-intensity calibration.
Four-wavelength cold light source and standard 1 cm cuvettes.
Wi-Fi, 4G/GPRS transmission and a cloud platform support record management.
USB and Ethernet interfaces, with data export to a USB drive.
Built-in sample-preparation videos and Chinese/English interface switching.
Thermal printing of sample information, channel, absorbance, result, time and QR code.
Clock, user accounts and location recording for traceable field work.
AC power and rechargeable lithium battery operation in a portable carrying case.

Technical Specifications

Repeatability is tested with potassium dichromate solution; linearity is tested with copper sulfate solution.

Parameter	Specification
Model	HM-ZSB
Detection channels	12
Repeatability error	≤0.03%; potassium dichromate solution
Linearity error	≤0.1%; copper sulfate solution
Wavelengths	Red 680±2 nm; blue 420±2 nm; green 510±2 nm; orange 590±4 nm
Cuvette optical path	1 cm
Display	7-inch touchscreen; 1024 × 600 pixels
Power consumption	≤5 W
AC supply	220±22 V
Other supply options	Built-in rechargeable lithium battery; vehicle power support
Stability over two hours	Transmittance drift ≤0.3%; absorbance drift ≤0.001
Instrument dimensions	48 × 34.5 × 22 cm
Instrument net weight	5.2 kg
Package dimensions	510 × 390 × 375 mm
Packed weight	10.7 kg

Configuration Highlights

The configuration includes the key items below and one reagent set for a selected analyte. Specify the required analyte when selecting the reagent set.

Item	Listed quantity / specification
Main instrument	1
Aluminium reagent case	1
Lithium battery charger	1; 12.6 V / 2 A output
Plastic droppers	12; 3 mL
Reagent bottle	1; 500 mL
Wash bottle	1; 250 mL
Measuring cylinder	1; 50 mL
Volumetric flask	1; 100 mL
Conical flasks	2; 100 mL
Glass test tubes	12; 13 × 100 mm
Capped centrifuge tubes	20; 10 mL
Glass pipettes	1 each: 1, 2, 5 and 10 mL
Glass stirring rod	1
Cuvettes	10; 10 mm optical path
TDS meter	1
pH test pen	1
pH paper	1 book
Qualitative filter paper	1 pack
Test tube rack / brush	1 each
Electronic balance	1; 200 g / 0.01 g
Thermal printer paper	1 roll
Heavy-metal reagent set	1 selected analyte type
Instruction manual, warranty card and conformity document	1 each

Sample Preparation

After appropriate digestion, samples are measured colorimetrically using reagents for the selected analyte. Tell our sales representative your sample type and target elements to discuss suitable reagents and sample preparation.
