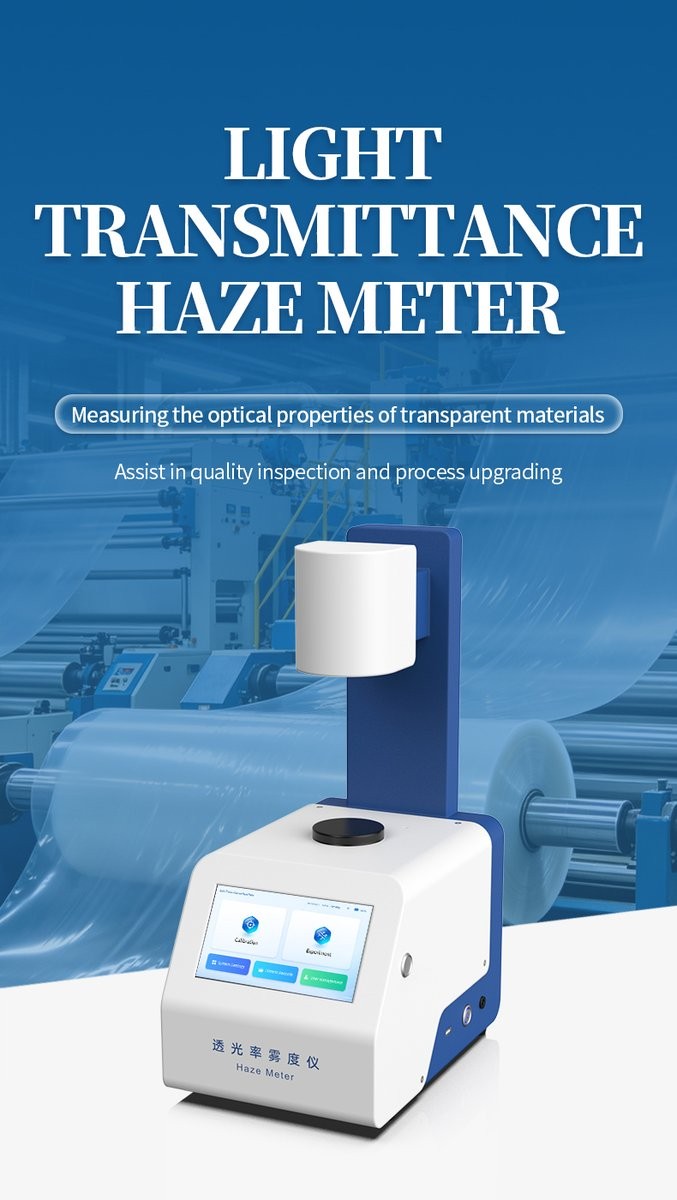

HM-HZ1 Transmittance Haze Meter

Product Introduction

The HM-HZ1 is an entry-level transmittance haze meter designed for routine quality control of transparent and translucent materials. Built around a 0/d optical geometry with an LED light source calibrated to CIE C illuminant (380nm–780nm), it measures both haze (0–100%) and transmittance (0–100%) with a single 21mm aperture. The 7-inch capacitive touchscreen provides intuitive operation — no preheating, no lamp warm-up. Simply power on and begin testing. At $1,000, the HM-HZ1 delivers ASTM D1003 and GB/T 2410 compliant measurements at a fraction of the cost of comparable instruments from European or Japanese manufacturers. For labs needing ISO 14782 compliance or dual aperture capability, see the HM-HZ2 or HM-HZ3.

Applications

• PE, PP, PET, PC plastic film and sheet testing
• Food and pharmaceutical packaging film inspection
• Lighting diffuser and lamp cover quality verification
• Architectural glass transmittance screening
• Coating clarity assessment on transparent substrates
• Routine incoming material inspection in manufacturing

Functional Performance

1. 7-inch IPS capacitive touchscreen with full Chinese/English switching

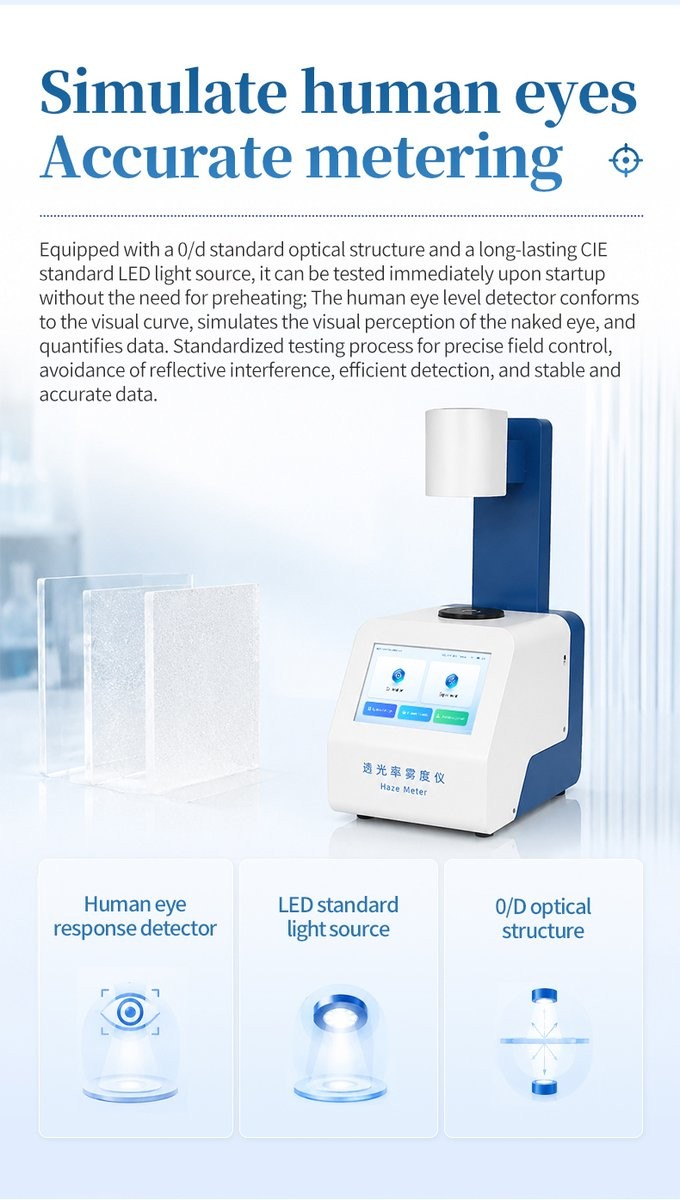

2. LED light source calibrated to CIE C illuminant — no preheating required

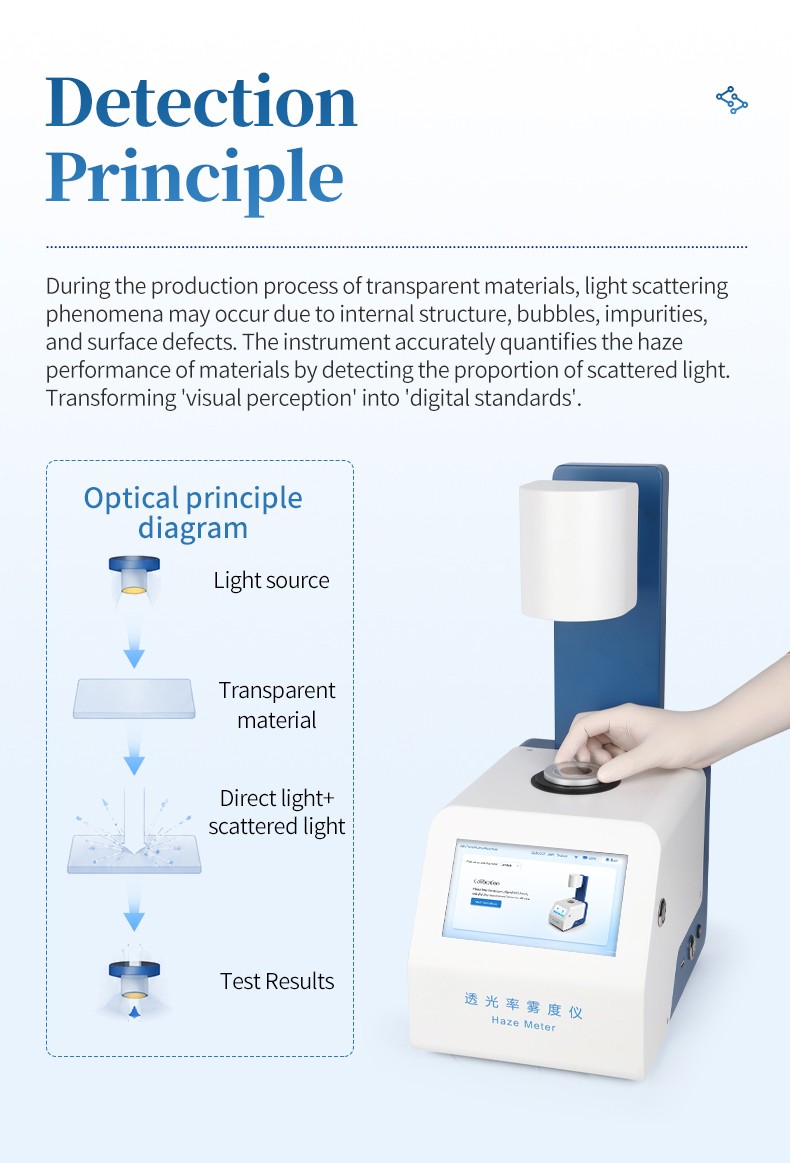

3. 0/d optical structure eliminates surface reflection interference
4. Human-eye-response detector matching CIE Y/V(λ) spectral function

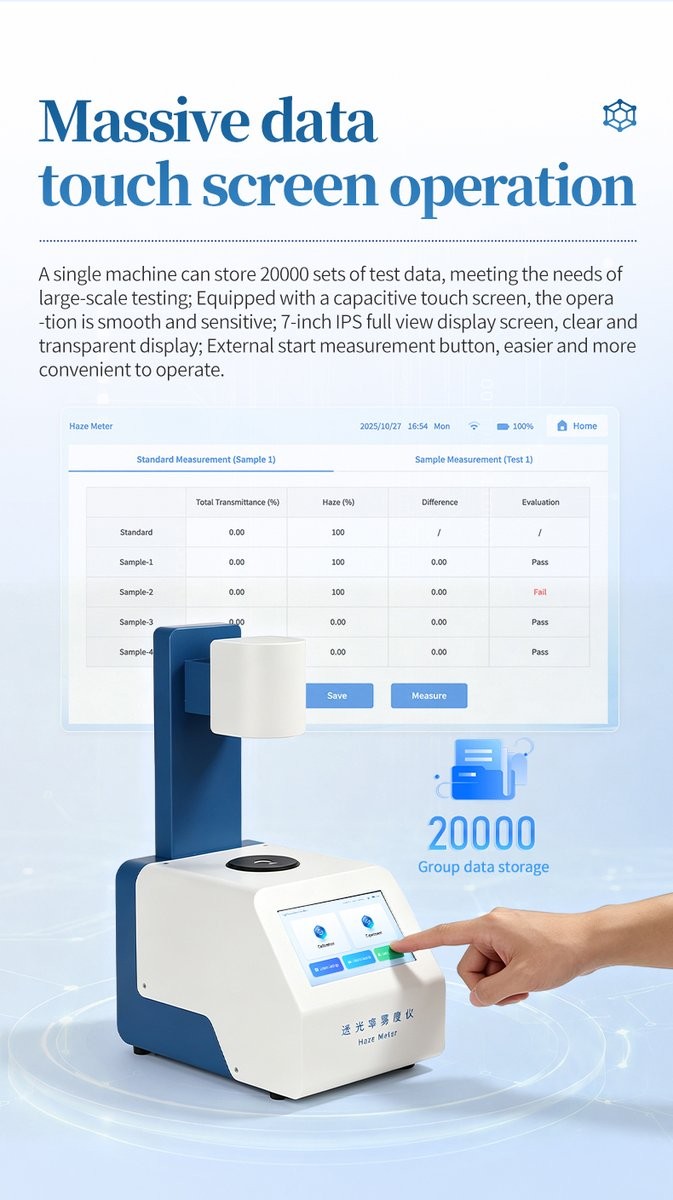

5. 20,000 data set internal storage with USB export

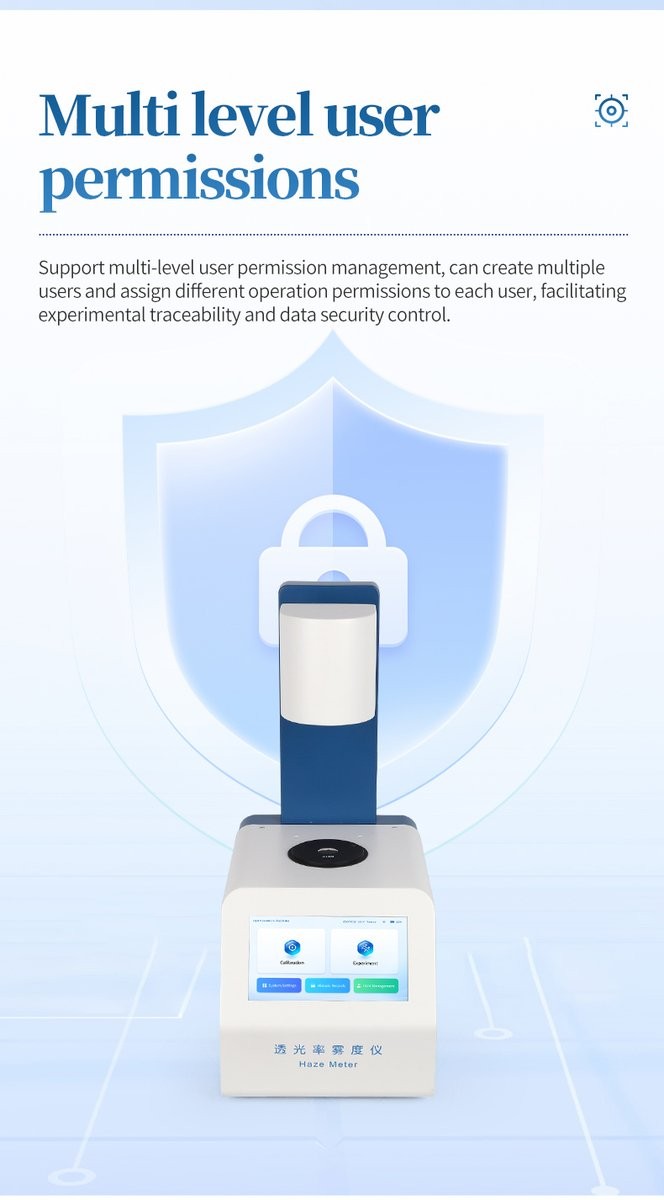

6. Multi-level user permission management for data traceability

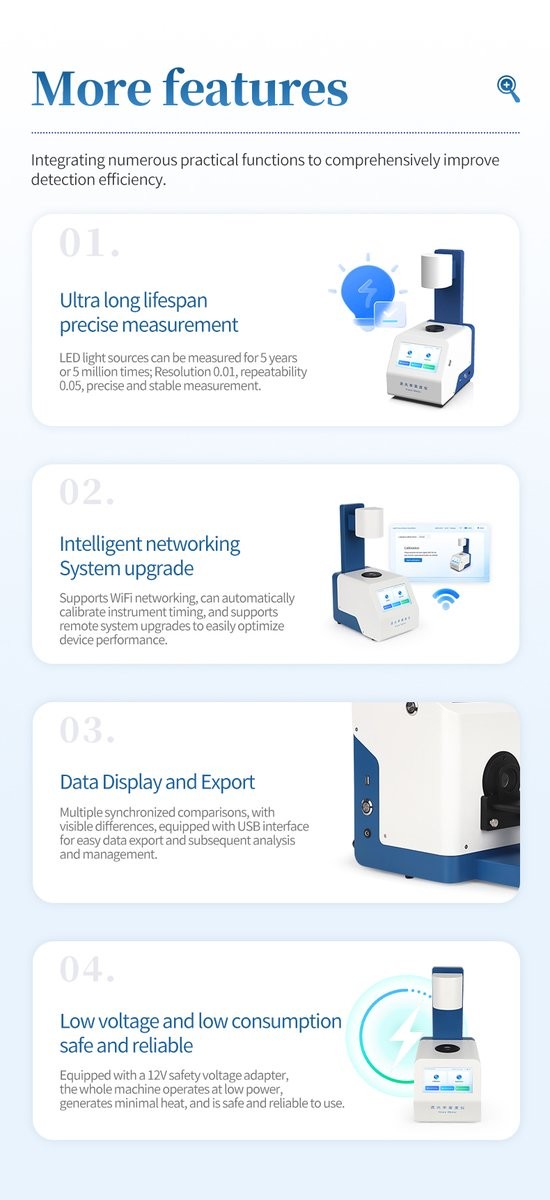

7. WiFi connectivity for automatic time sync and remote system updates

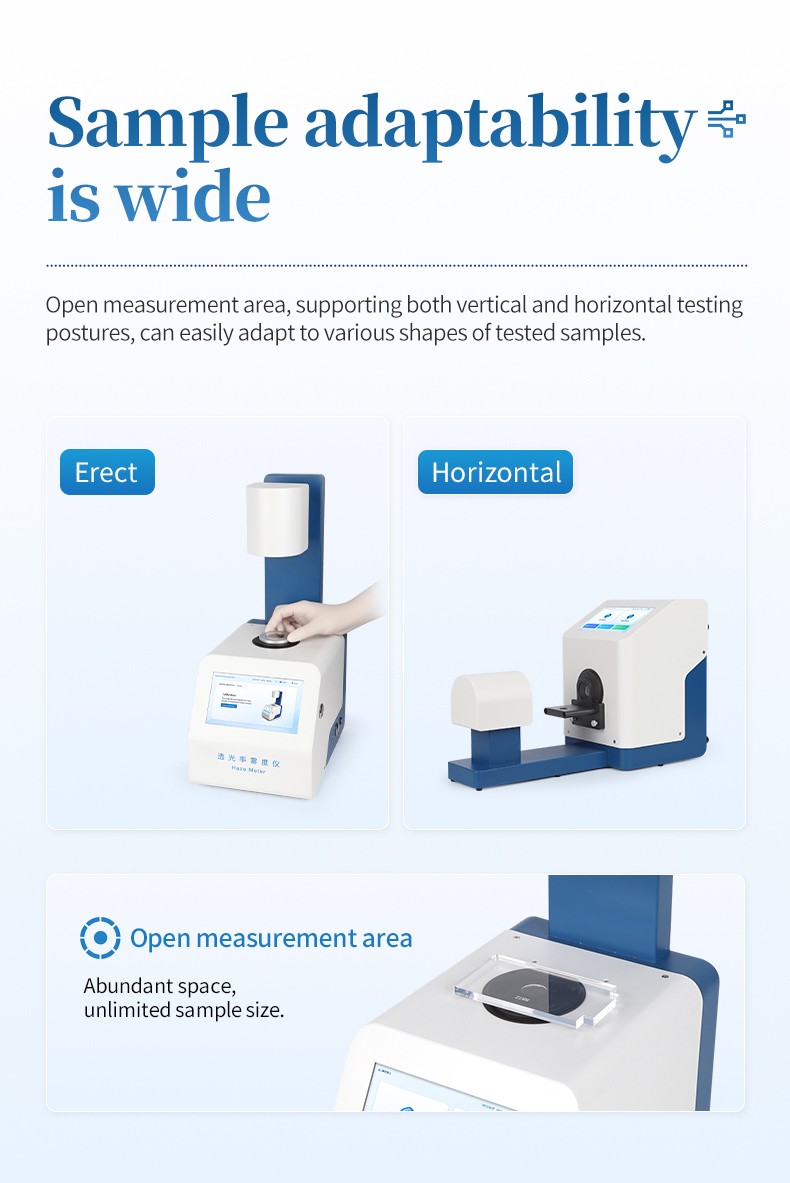

8. Open measurement area (150mm chamber height) supporting vertical and horizontal postures
9. External measurement trigger button for convenient operation
10. DC 12V/3A low-voltage safe operation, ≤5.5 KG

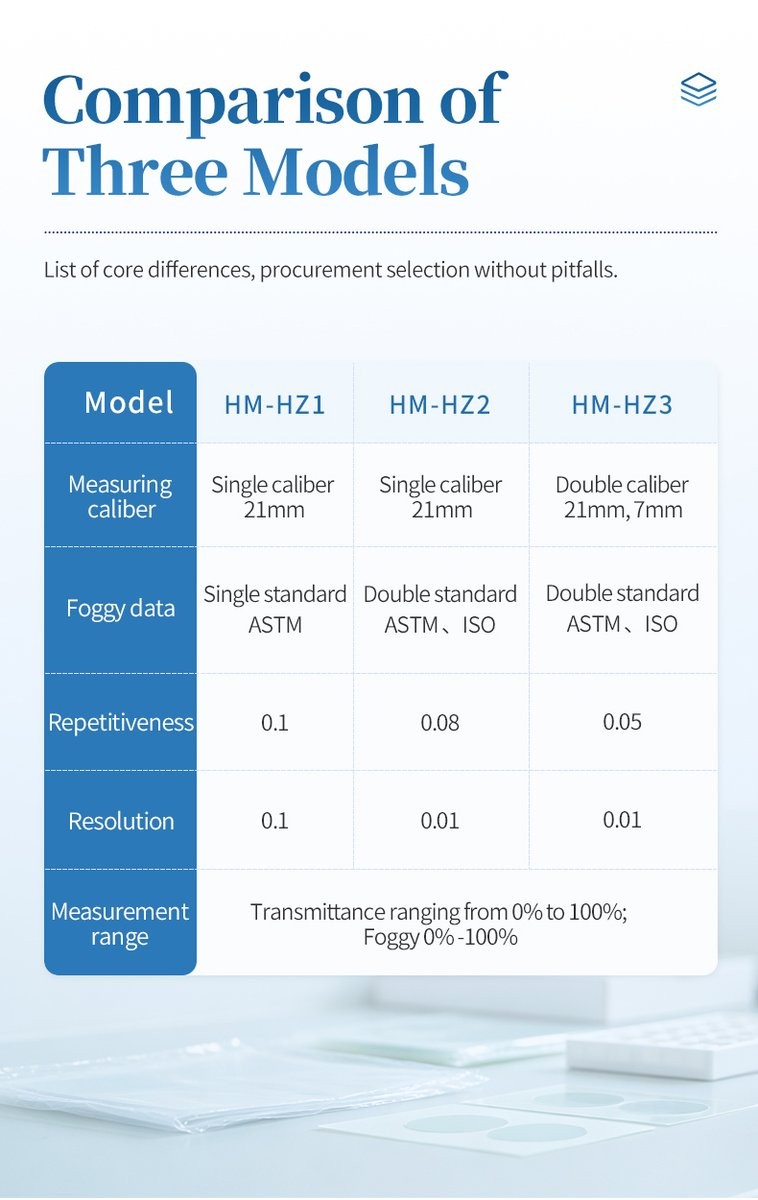

Main Parameters

Parameter	Value
Model	HM-HZ1
Aperture	21mm (single)
Haze Standard	ASTM
Repeatability	0.1
Resolution	0.1
Measurement Range	Transmittance 0–100%; Haze 0–100%

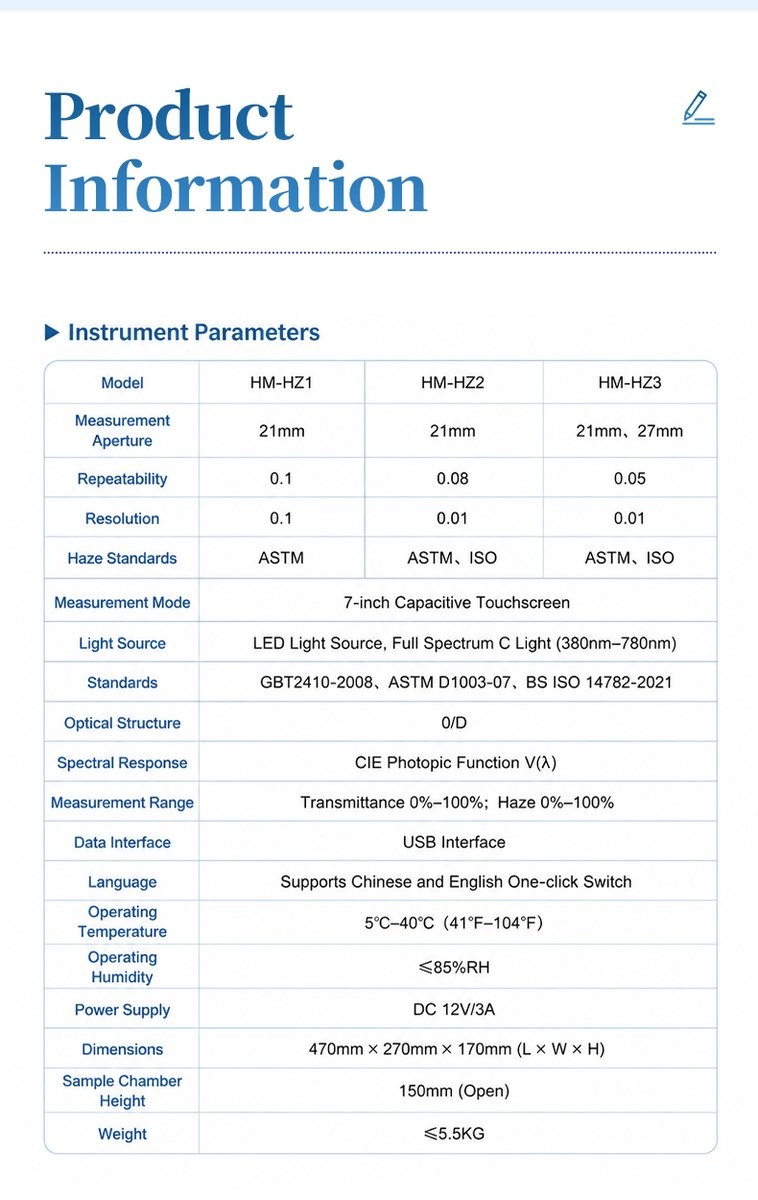

Technical Parameters

Parameter	Value
Operation	7-inch touchscreen
Light Source	LED calibrated to C illuminant (380nm–780nm)

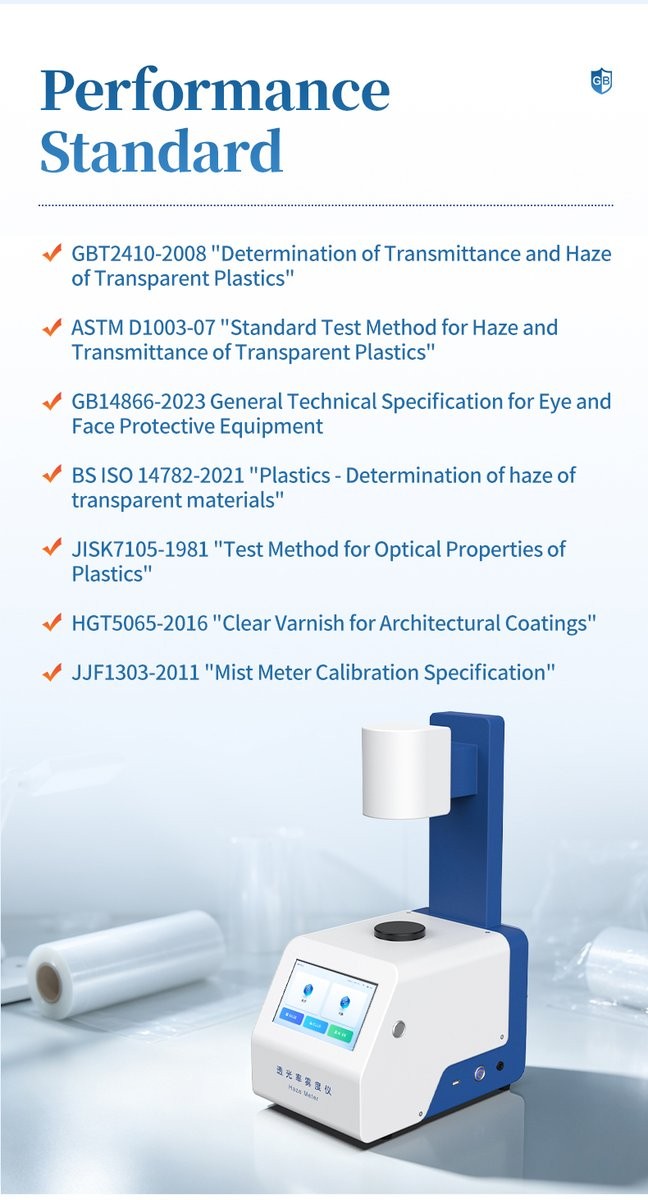

Standards	GB/T 2410-2008, ASTM D1003-07, BS ISO 14782-2021
Optical Structure	0/D
Spectral Response	CIE Y/V(λ)
Aperture	21mm
Repeatability	0.1
Resolution	0.1
Haze Data	ASTM
Data Interface	USB
Language	Chinese/English switching
Temperature	(5–40)°C
Humidity	≤85%RH
Power	DC 12V/3A
Dimensions	470mm × 270mm × 170mm
Sample Chamber Height	150mm (open)
Weight	≤5.5 KG
