Automatic Surface and Interfacial Tension Analyzer

Product Number：

HM-SIT10A

Product Price:

1000

Product Difference：

Supplied with a platinum ring for tension measurement; supplied without the built-in temperature-control module of the AH/BH models. Density measurement is optional.

+86 17853698681 Consultation icon

Product Details

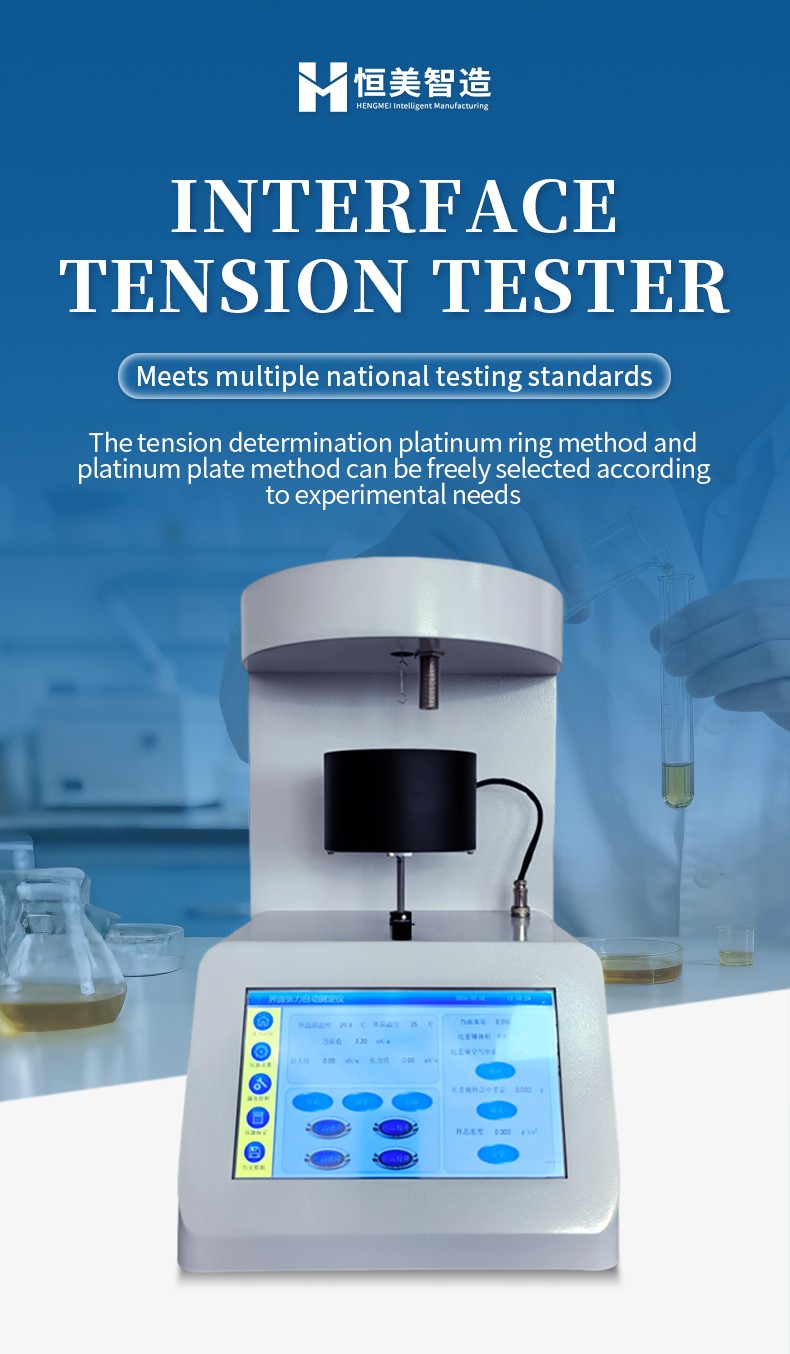

Surface and interfacial tension analyzer series overview

Series features including optional density and model-dependent temperature control

Applications in petroleum products, surfactants and natural latex

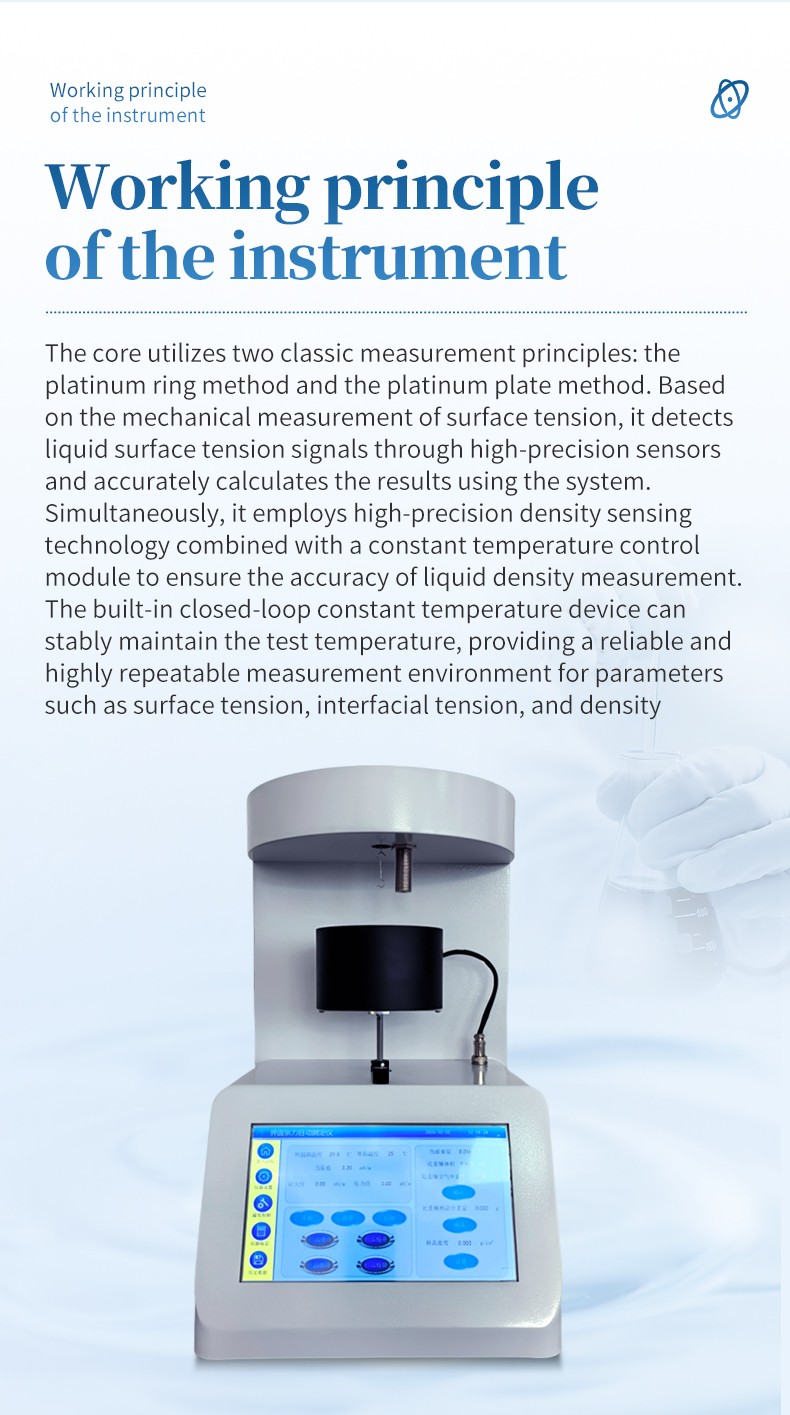

Platinum ring and plate measurement principles

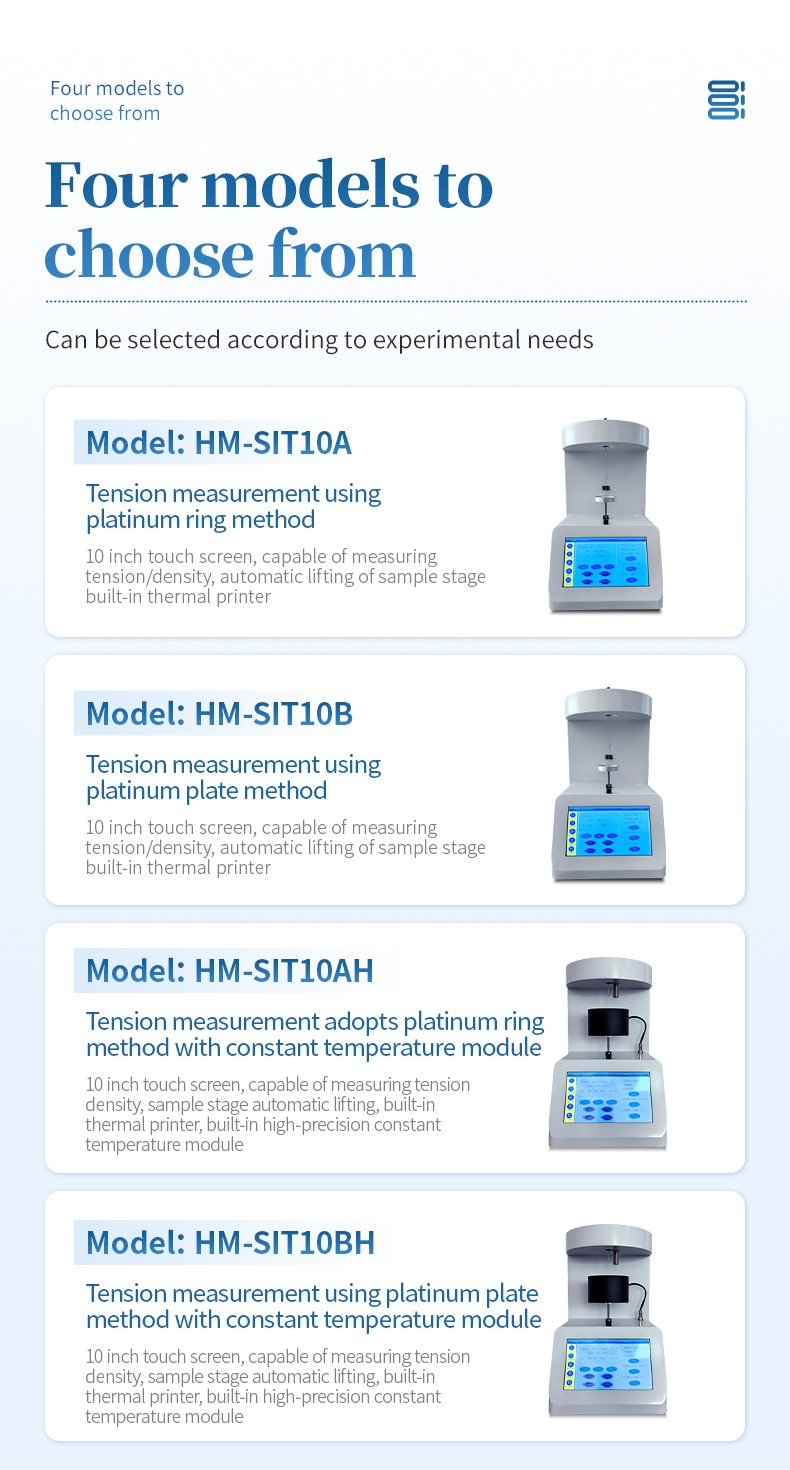

HM-SIT10A, B, AH and BH configuration comparison

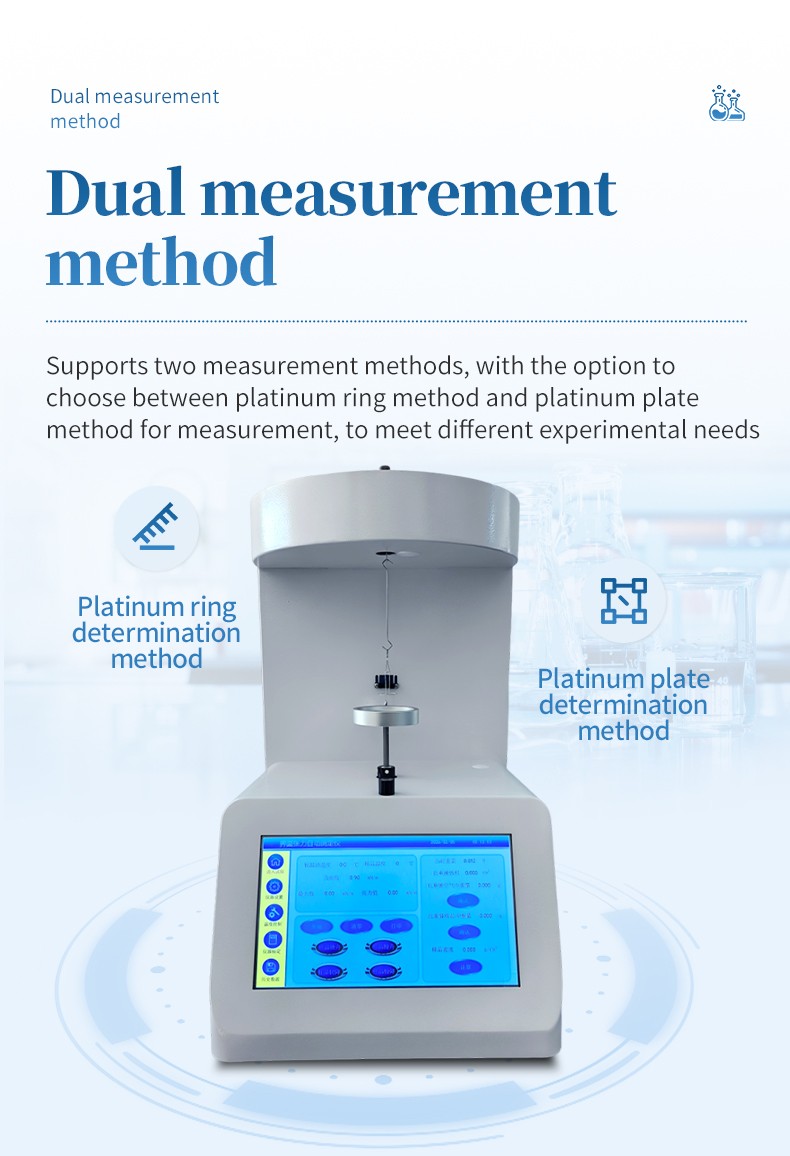

Platinum ring and plate accessories for the analyzer platform

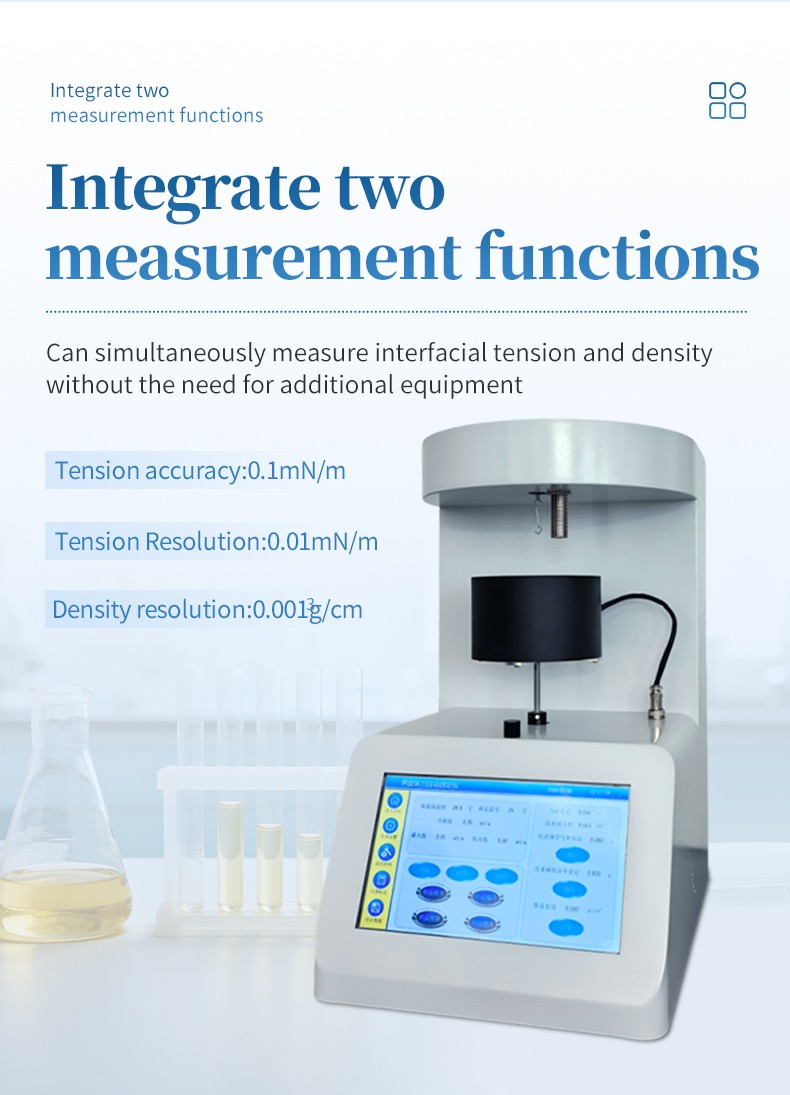

Optional liquid-density measurement function

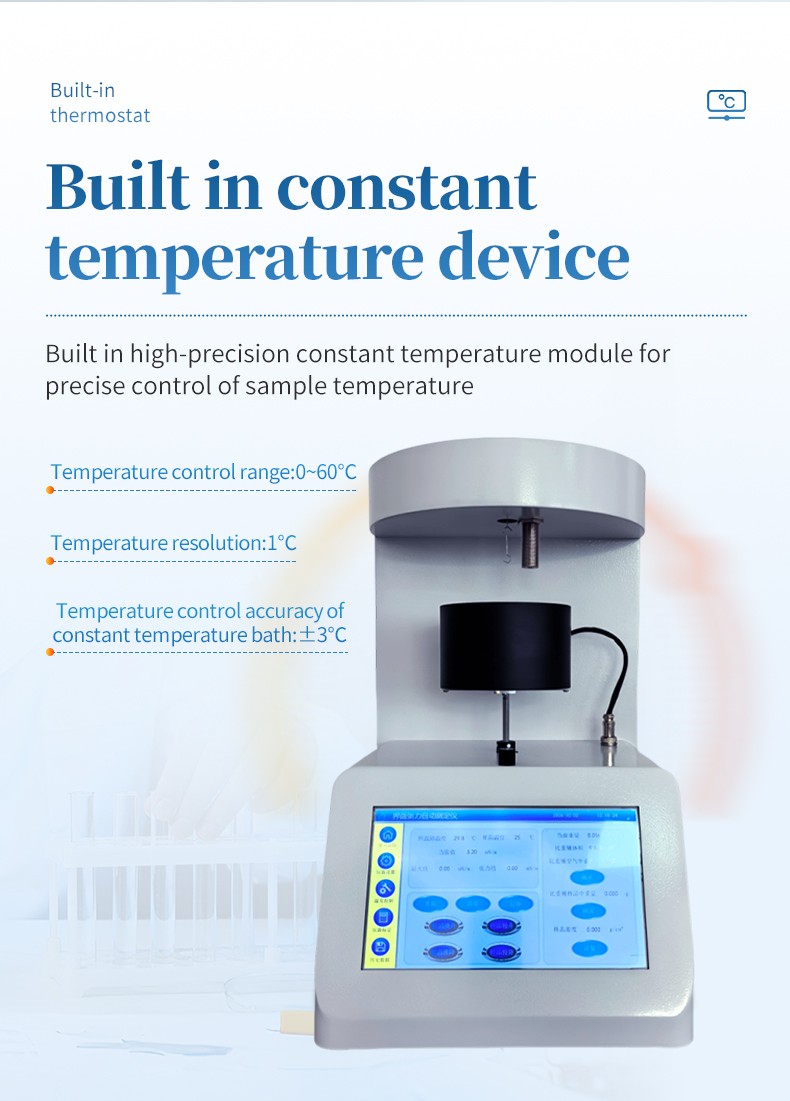

Temperature-control module for AH and BH configurations

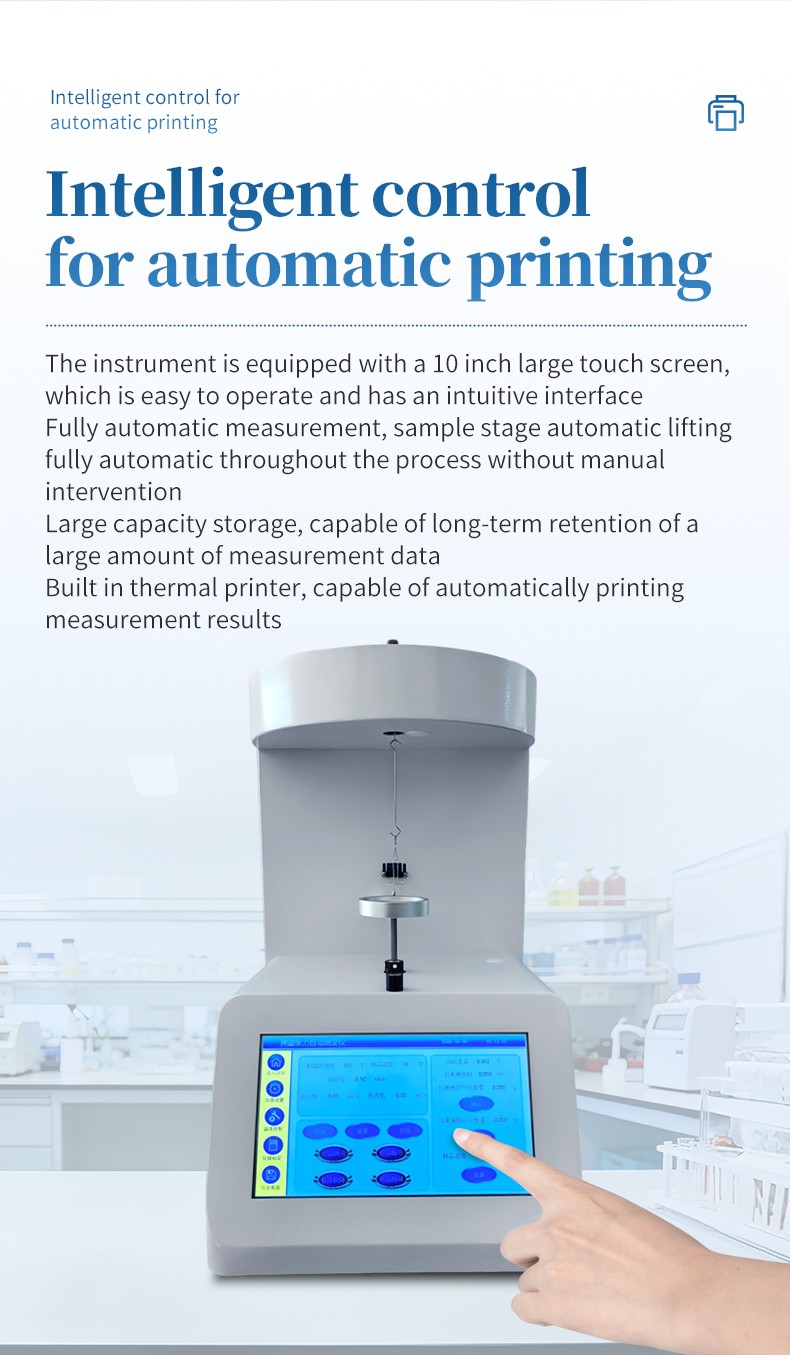

Touchscreen operation, storage and thermal printing

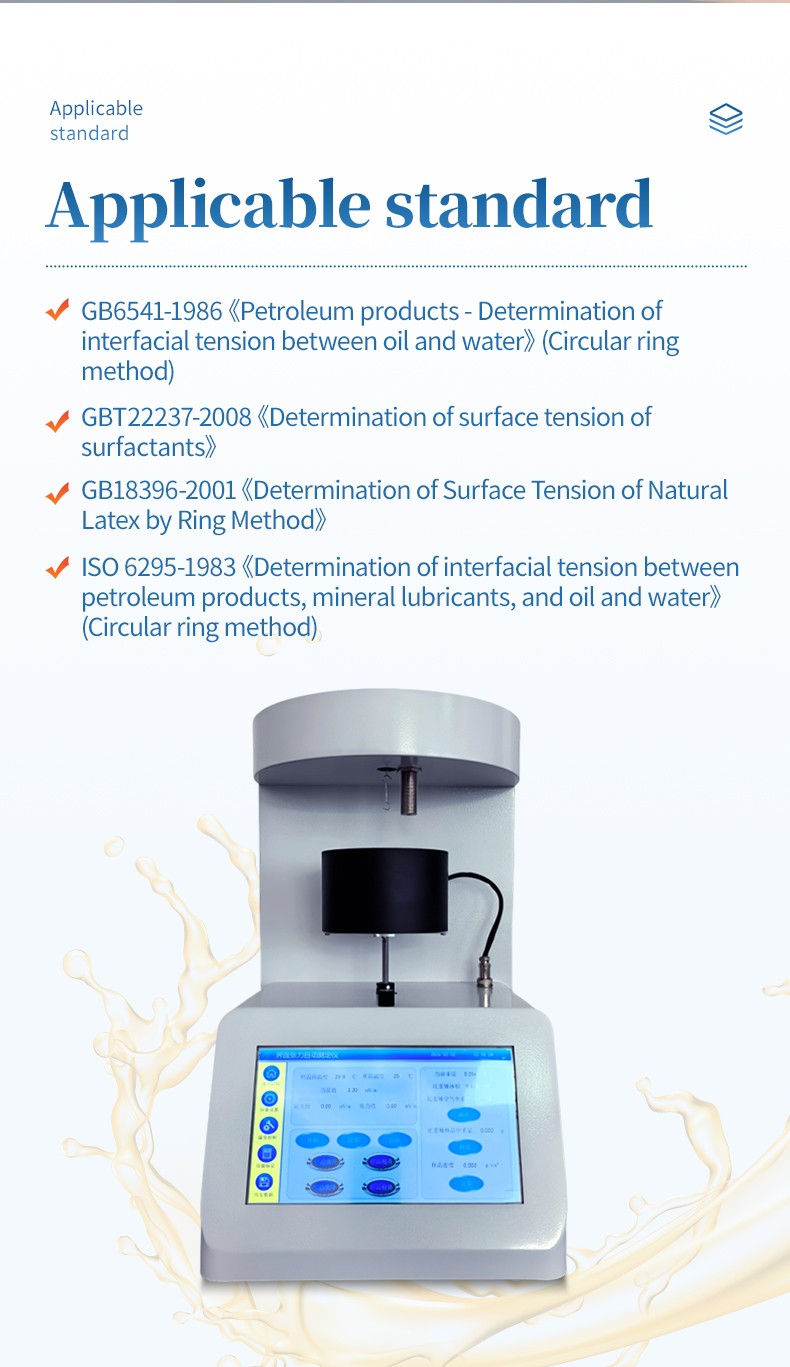

Measurement standards referenced in manufacturer literature

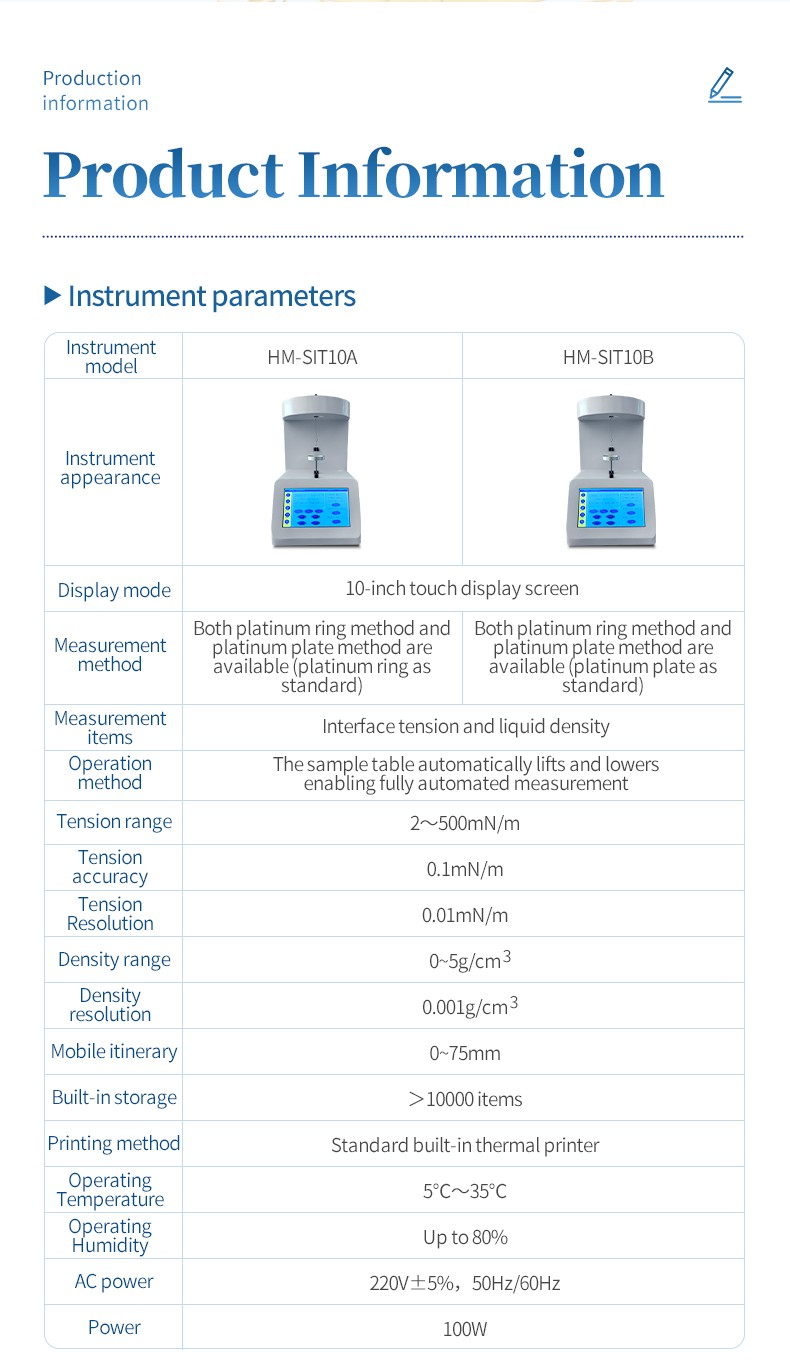

HM-SIT10A and HM-SIT10B specification comparison

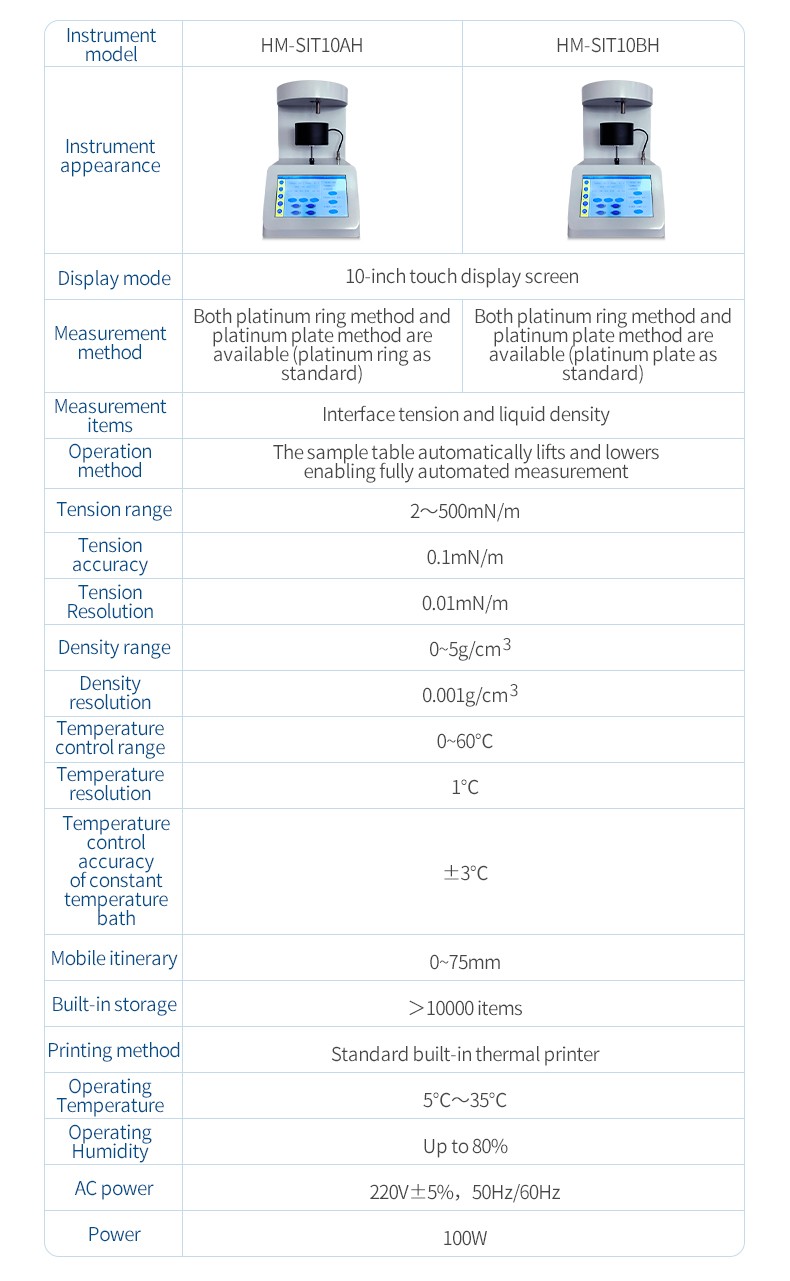

HM-SIT10AH and HM-SIT10BH specification comparison

Hengmei company and instrument manufacturing introduction

Laboratory and instrument application photographs

Series image clarification: For HM-SIT10AH and HM-SIT10BH, the temperature-control accuracy is ±0.3°C according to the current manufacturer product record. The ±3°C labels in the supplied series images are superseded by this value.

Product Overview

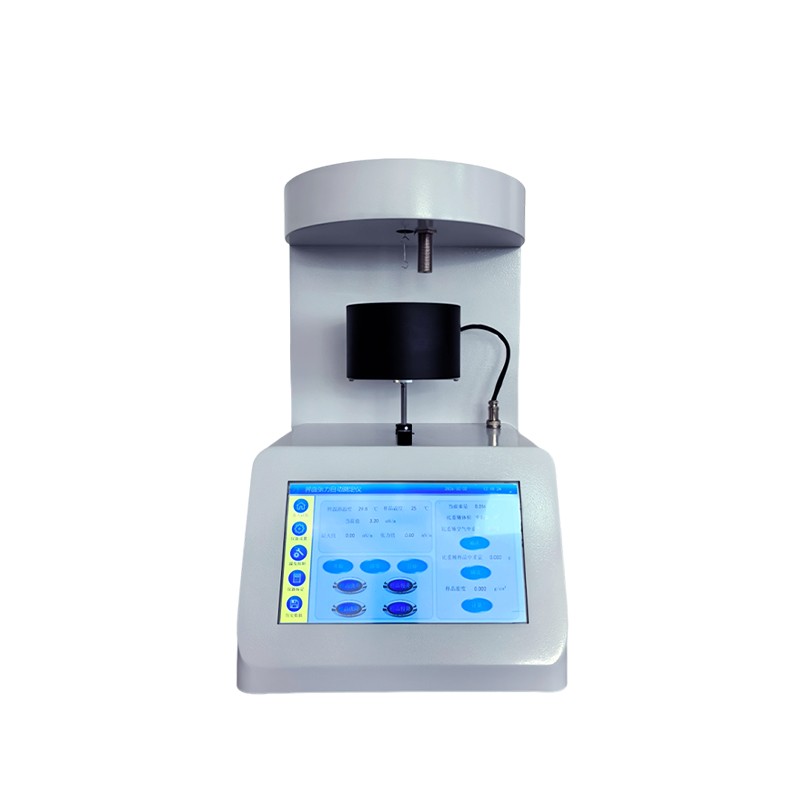

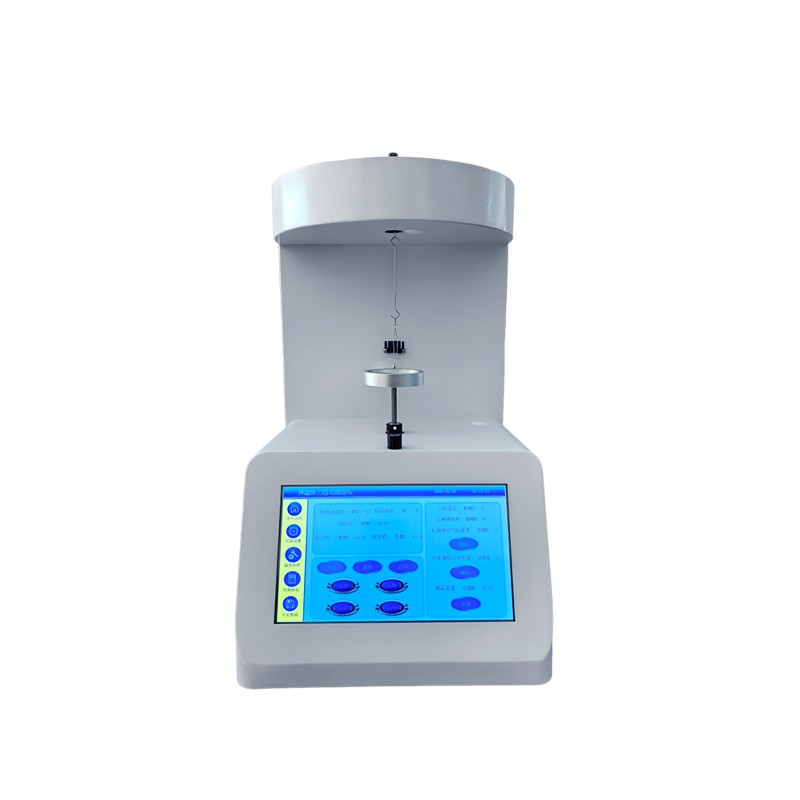

The HM Instruments HM-SIT10A is an automatic force-based analyzer for surface and interfacial tension measurement. This configuration is supplied with a platinum ring, a 10-inch touchscreen, an automatically moving sample stage and a built-in thermal printer.

Configuration note: The images above illustrate the complete HM-SIT10 series and optional functions. Density measurement is an optional upgrade and is not included in the standard configuration. Built-in temperature control is supplied only with HM-SIT10AH and HM-SIT10BH. This model does not include that module.

Key Features

10-inch touchscreen for instrument operation and result review.
Automatic sample-stage movement during the measurement sequence.
Platform supports platinum ring and platinum plate methods; the appropriate accessory must be fitted.
Built-in thermal printer for measurement results.
Storage capacity of more than 10,000 records.

Applications

Manufacturer documentation identifies petroleum products, surfactants and natural latex as application areas. Choose the measuring accessory, sample preparation and temperature conditions according to the applicable procedure. A listed standard does not establish certification or suitability for every sample.

Technical Specifications

Parameter	Specification
Standard measuring accessory	Platinum ring
Methods supported by the platform	Platinum ring and platinum plate, with corresponding accessory
Display	10-inch touchscreen
Tension range	2–500 mN/m
Tension accuracy, manufacturer specification	0.1 mN/m
Tension resolution	0.01 mN/m
Sample-stage travel	0–75 mm
Storage	More than 10,000 records
Printer	Built-in thermal printer
Operating temperature	5–35°C
Operating humidity	Up to 80%
AC supply	220 V ±5%, 50/60 Hz
Power	100 W
Density measurement	Optional upgrade, not standard
Optional density range	0–5 g/cm³
Optional density resolution	0.001 g/cm³

Configuration and Accessories

This HM-SIT10A configuration is supplied for the platinum ring method. Temperature-controlled configurations are available as HM-SIT10AH and HM-SIT10BH. The alternative platinum measuring accessory and the density-measurement upgrade are optional. Confirm the final accessory list and sample requirements with sales before ordering.
