Biological toxicity detector

Product Overview:

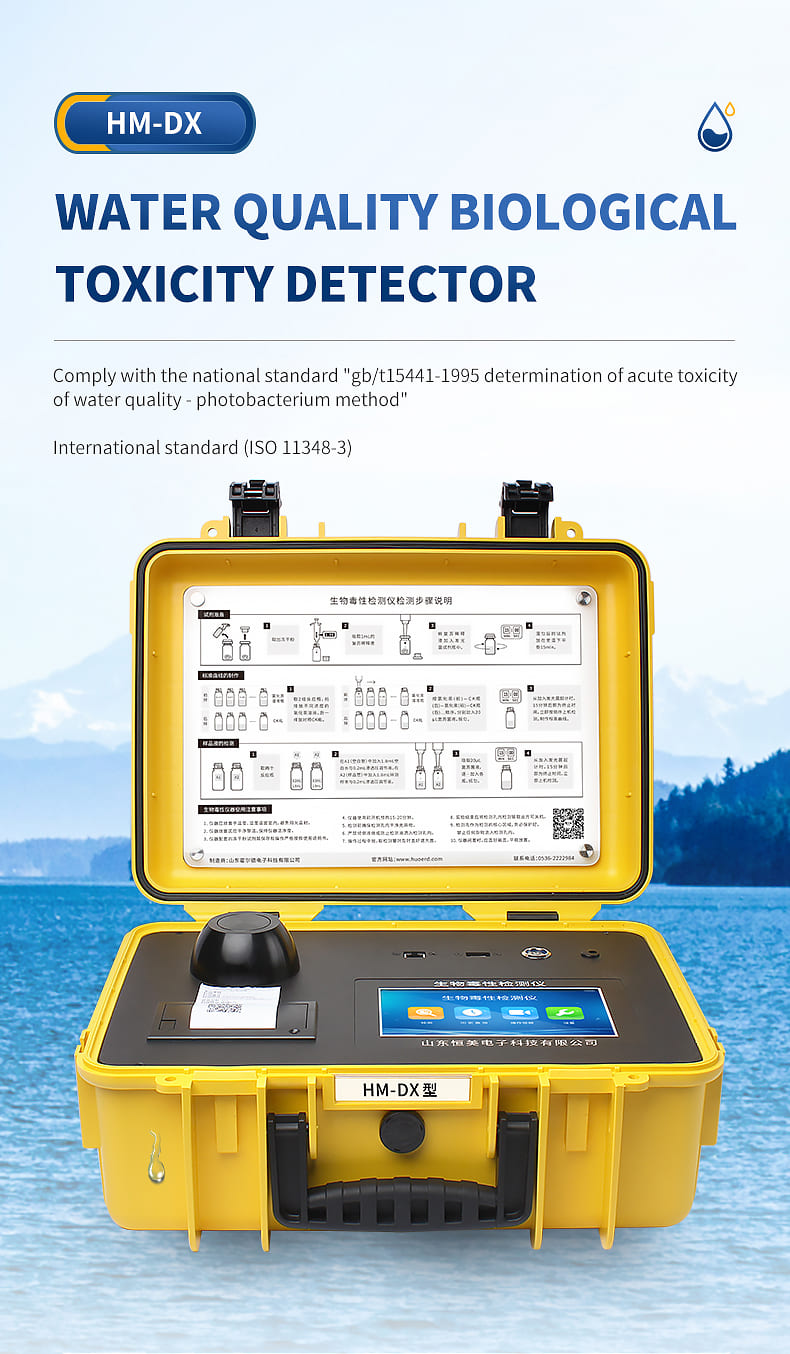

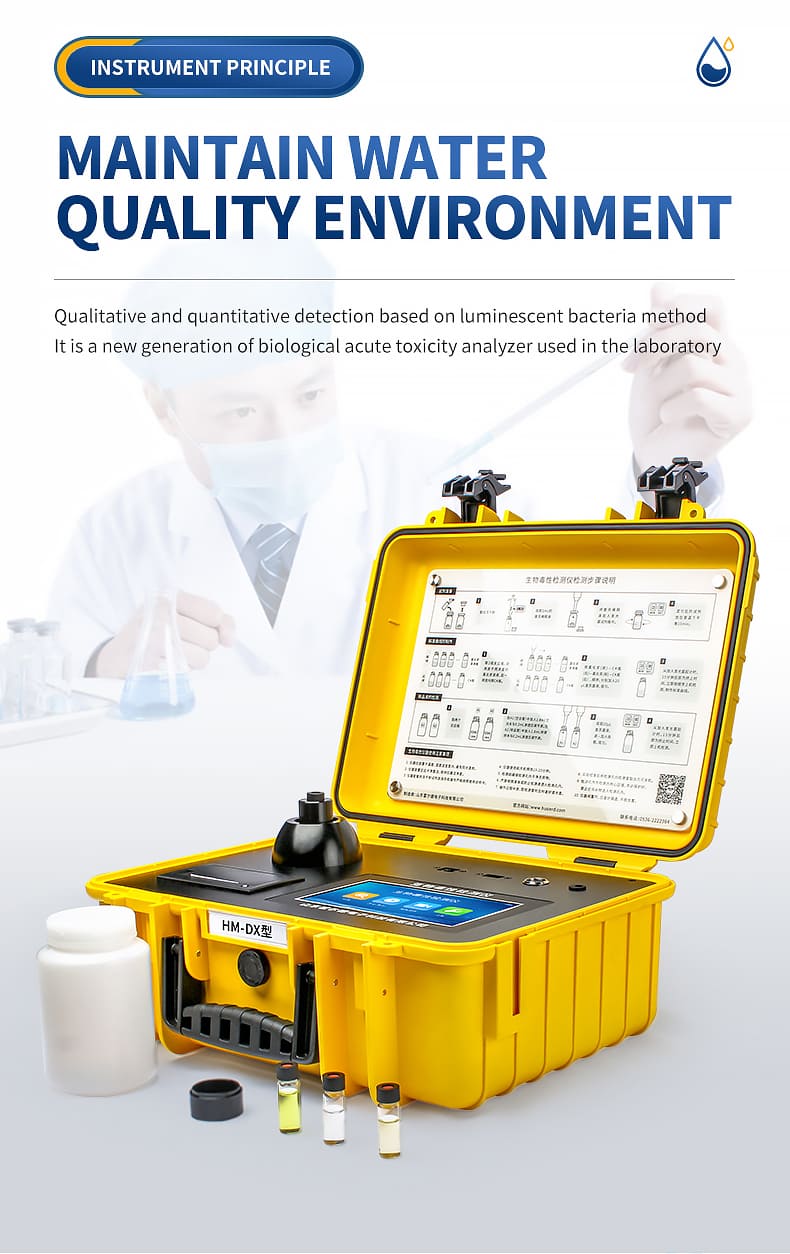

The HM-DX type water quality biological toxicity detector is a new generation of biological acute toxicity analyzer used in the laboratory. It is a toxicity detection system based on biological fluorescence sensing technology, which qualitatively and quantitatively detects the changes in luminescence intensity of luminescent bacteria during metabolism. Compared with traditional biological detection methods such as fish, fleas, and other aquatic organisms, the luminescent bacteria method is simple, fast, sensitive, adaptable, has good repeatability, high accuracy, low cost, and has a wide range of applications. It is a rapid water toxicity detection instrument designed for environmental pollution, emergency accidents, security checks, and routine testing purposes, and can be used for the overall toxicity detection of heavy metals, toxins, neurotoxins, pesticide formulations, and other substances in on-site water.

Complies with the national standard "GB/T15441-1995 Determination of acute toxicity of water quality - Luminescent bacteria method" and international standard (ISO 11348-3).

Application industry:

Drinking water testing

Emergency Response - Biocontamination

Emergency Response - Toxic Chemicals

Toxic and hazardous waste

Municipal drainage

Rainwater detection

Drilling fluid and mud testing

Mining industry, wastewater, soil and water detection

Industrial wastewater discharge detection

Process water detection

Seawater detection

Medical/Pharmaceutical Product Testing

Food packaging testing

Testing of personal protective equipment and household chemicals

Sediment detection

Rainwater runoff detection

Solid sample testing

Food processing water testing

Detection principle:

The HM-DX type should perform dual functions: toxicity testing and determination of microbial contamination; Toxicity testing is conducted using luminescent bacteria that exist in nature. These bacteria emit light during normal metabolic processes. If placed in a toxic environment, their cellular respiration process is affected, resulting in a decrease in the amount of light emitted. The HM-DX type luminescent detector measures the luminescence of luminescent bacteria before and after exposure to toxic environments, and the degree of reduction in luminescence corresponds to the strength of toxicity.

The detection results can be compared with the standard toxic substance HgCl2 or zinc sulfate heptahydrate to obtain the corresponding toxicity level.

Instrument features:

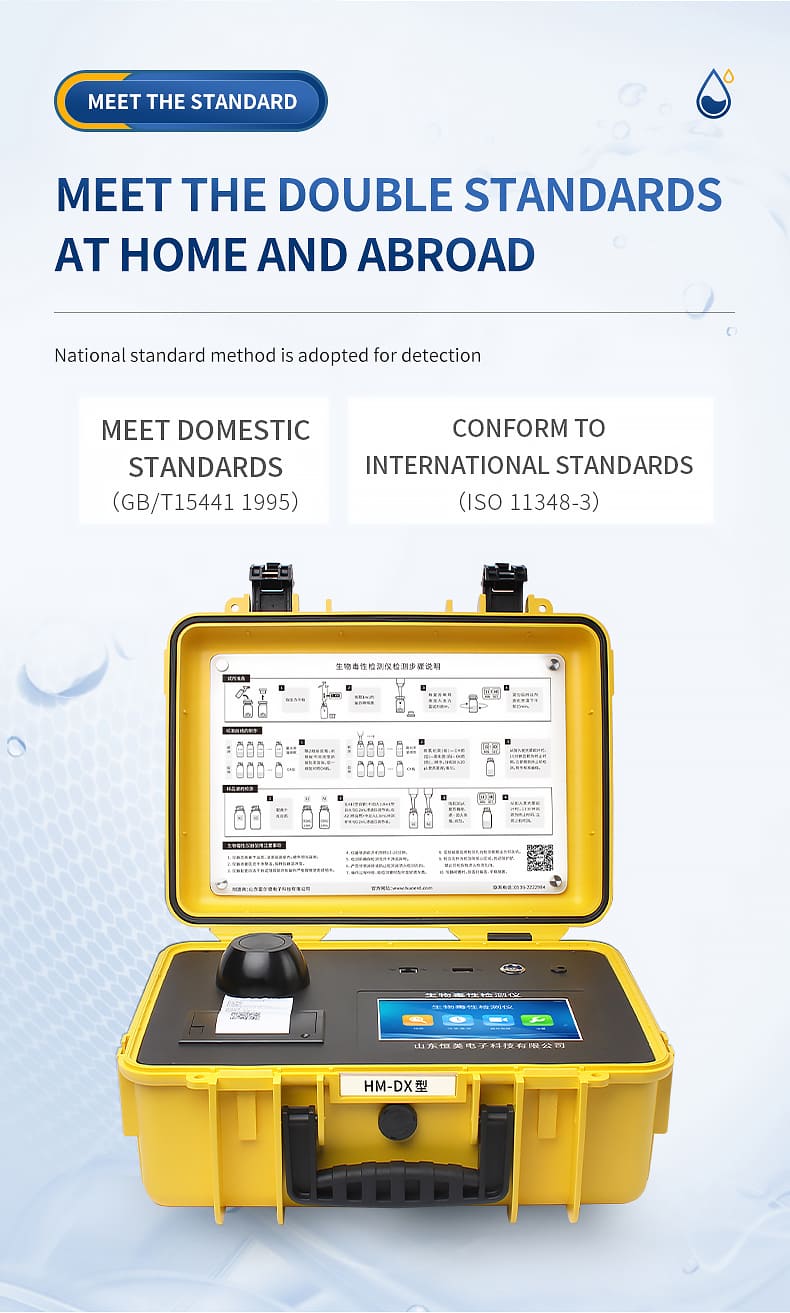

1. Complies with national standards (GB/T15441 1995) and international standards (ISO 11348-3);

2. Biological early warning systems sensitive to over 3000 toxic compounds;

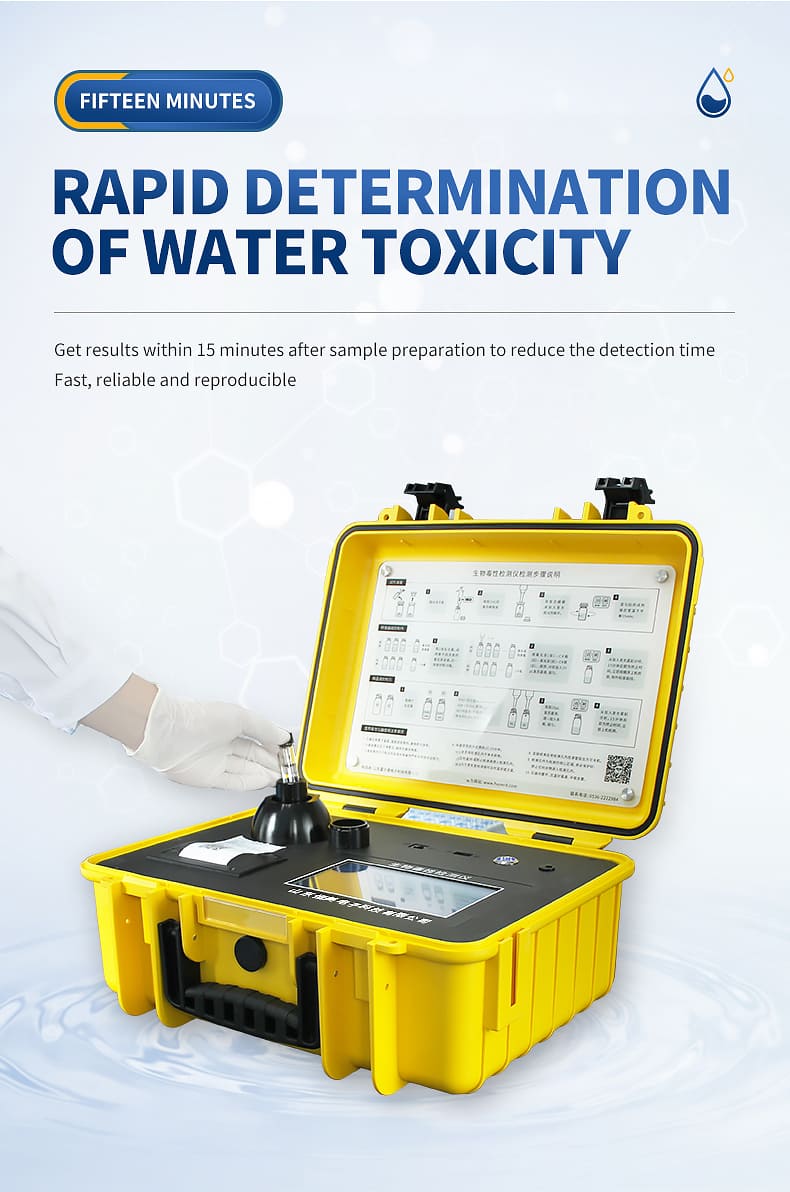

3. Obtain results within 15 minutes after sample preparation, which are fast, reliable, and reproducible;

4. The test results are highly correlated with other traditional toxicity analysis methods and can be applied to emergency water pollution detection, helping users monitor in real-time whether drainage complies with local regulations and emission standards;

5. Using silicon photomultiplier tubes to significantly improve detection sensitivity;

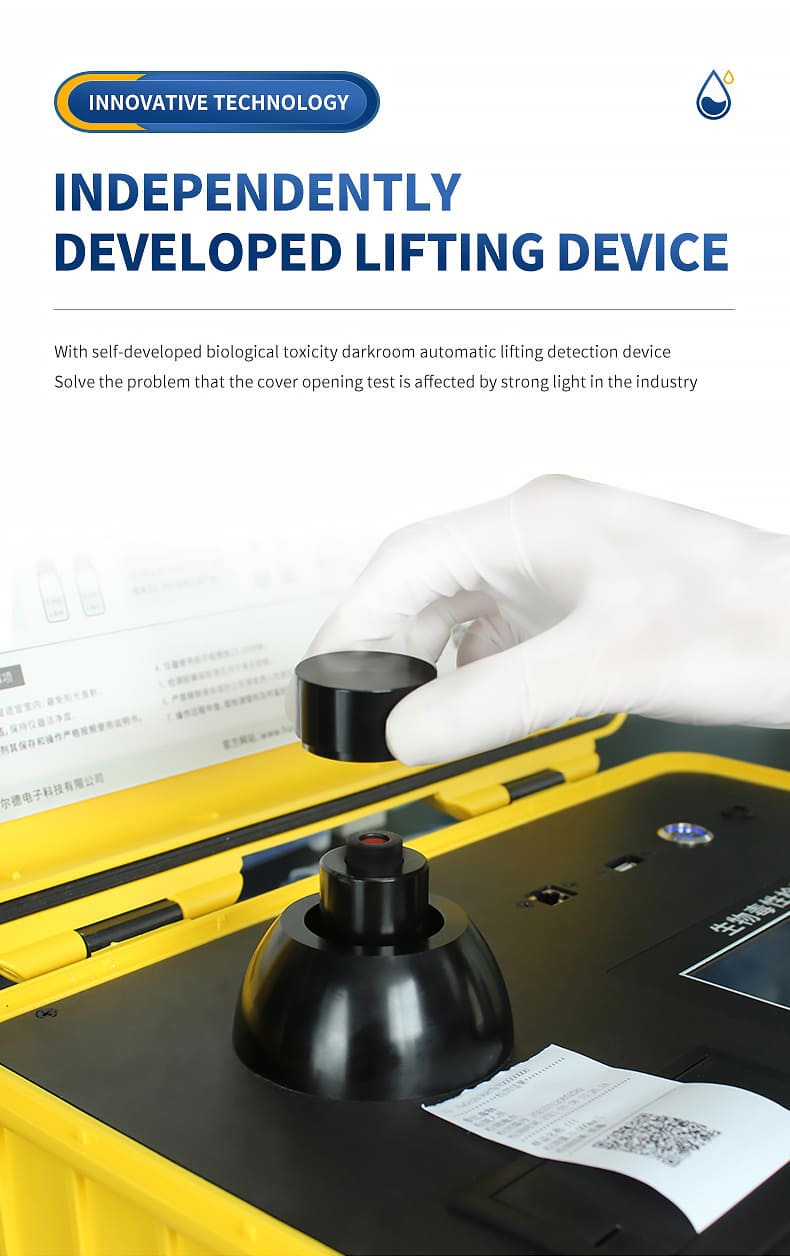

6. Equipped with an independently developed biological toxicity darkroom automatic lifting detection device, it solves the problem of being affected by strong light in the industry's lid opening testing;

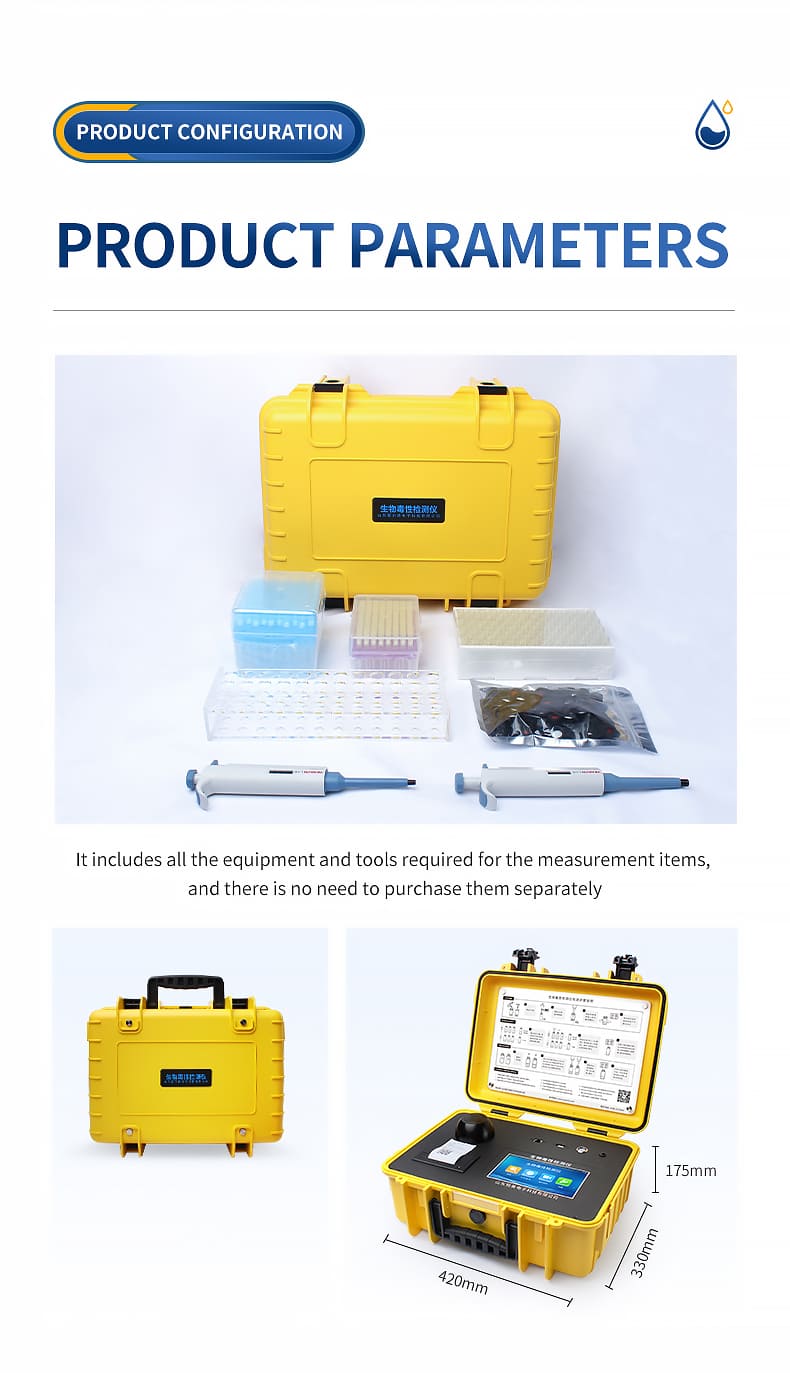

7. Portable PVC engineering box design, can also be carried out for on-site testing;

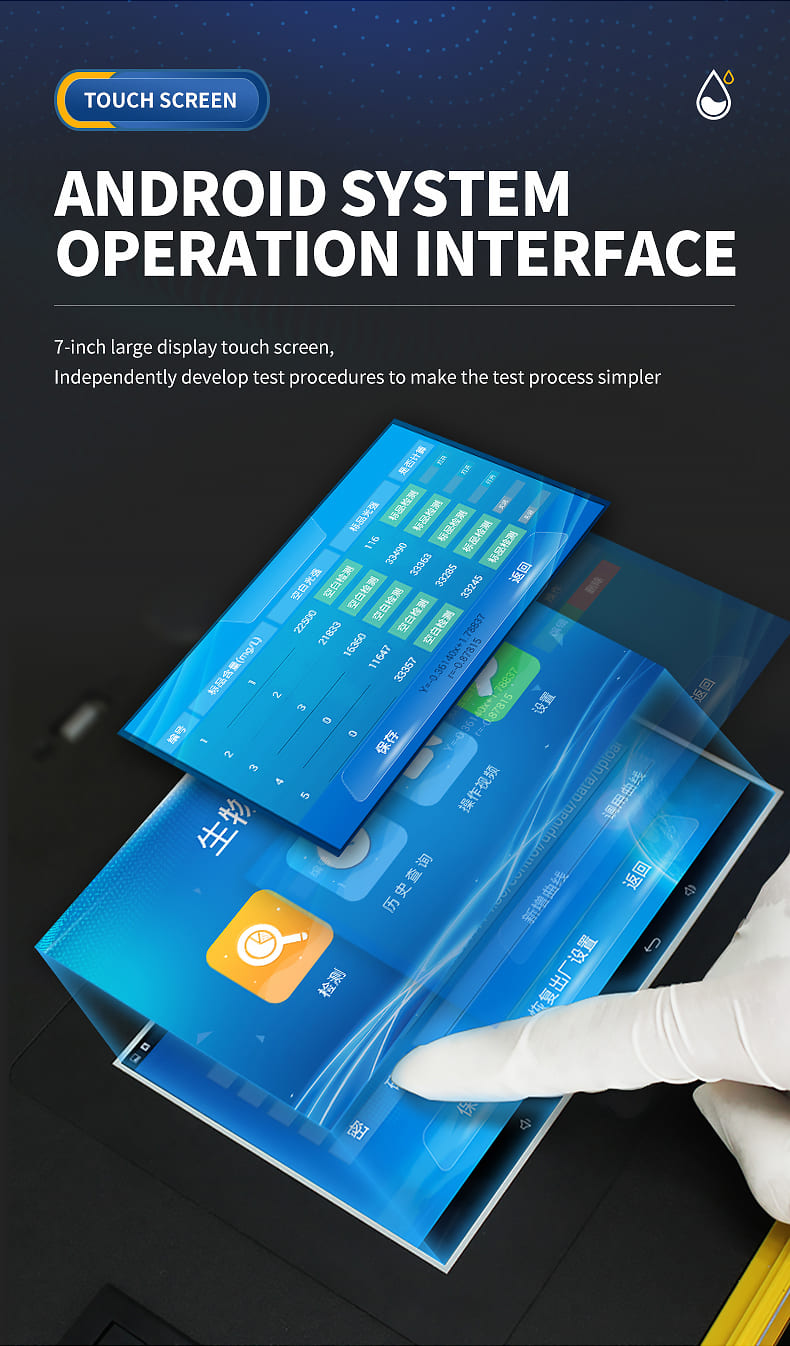

8. A 7-inch large display touch screen eliminates the need for cumbersome button operations, making it more convenient;

9. Android intelligent operating system, more intelligent and user-friendly;

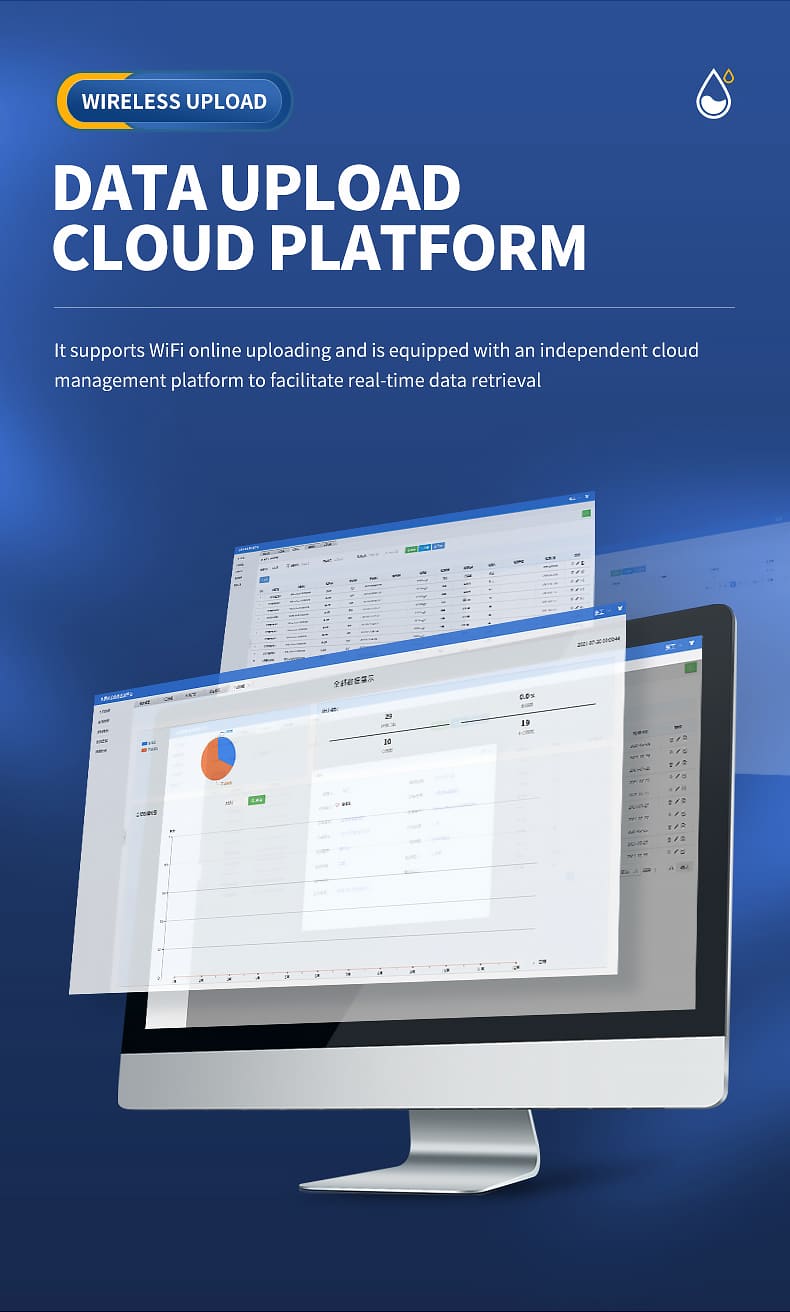

10. Equipped with RJ45 network cable interface, WIFI, 4G networking, and Bluetooth transmission function, it can achieve wireless transmission to relevant monitoring and regulatory platforms, achieve real-time data, and better meet the scene requirements of regulatory authorities;

11. The instrument is equipped with a built-in 6000mAH lithium battery pack, which can support continuous operation for more than 8 hours in the event of external power failure or no power supply;

12. A curve can create 20 concentration points, and you can freely choose whether the curve points participate in the calculation of the entire curve without the need for manual recording, ensuring more accurate curve values; (The curve concentration point can be customized and increased)

13. The instrument has a built-in ROM of ≥ 4GB and can store more than 80000 data results;

14. Equipped with a USB communication interface, convenient for data reading and export, with exported results in Excel spreadsheets;

15. Built in Pinyin input method, capable of editing information in both Chinese and English;

16. High speed thermal printer, capable of automatically printing inspection reports upon completion, with attached QR codes for easy scanning and tracing;

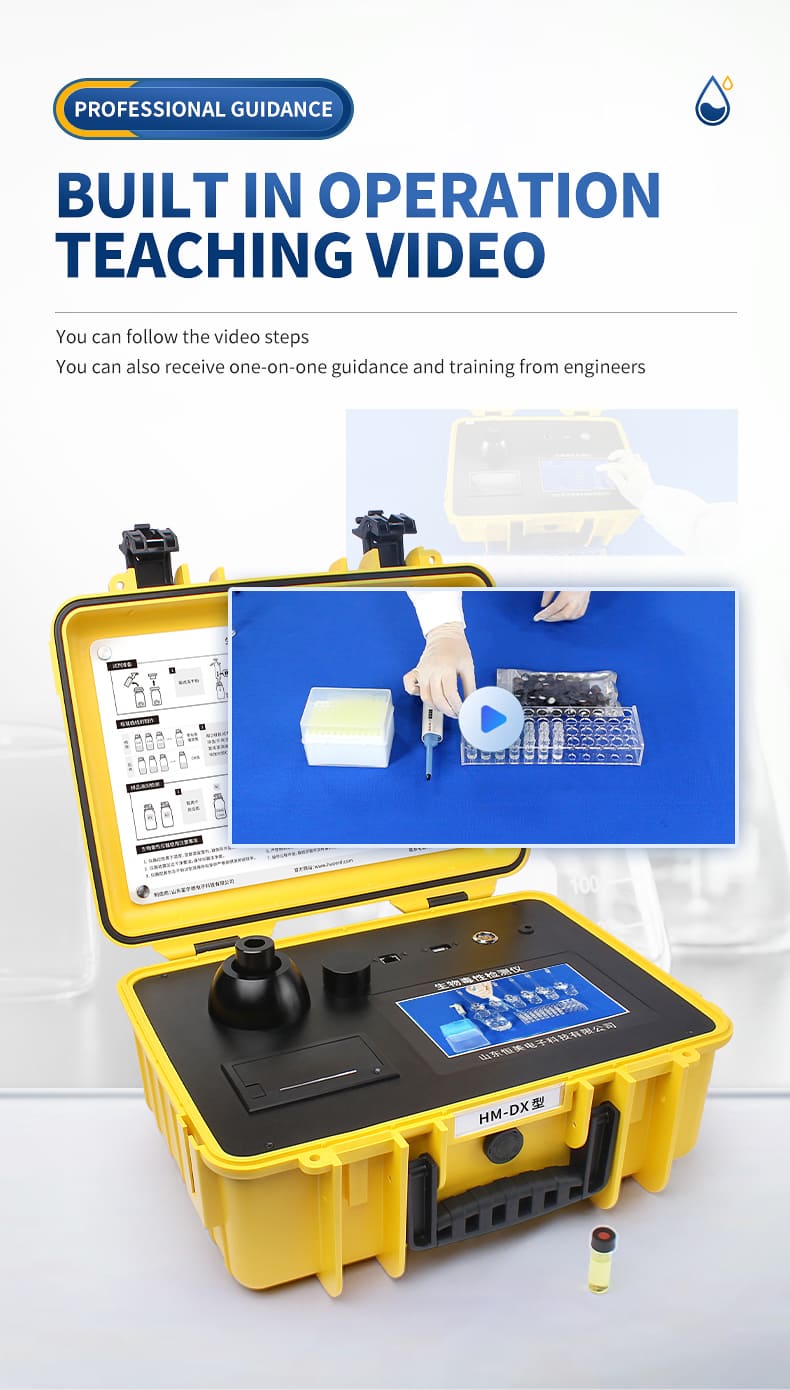

17. The built-in operation demonstration video of the instrument can be automatically played by clicking on the main interface operation video, which is convenient, fast, and more user-friendly;

18. The detection history query function allows you to select the start and end time to retrieve previous detection data, which is precise and convenient;

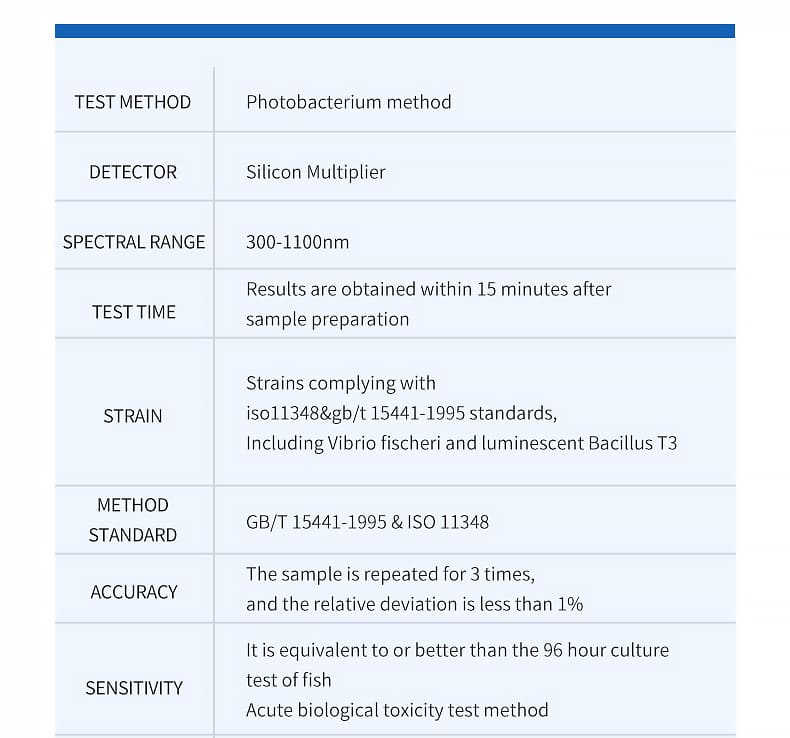

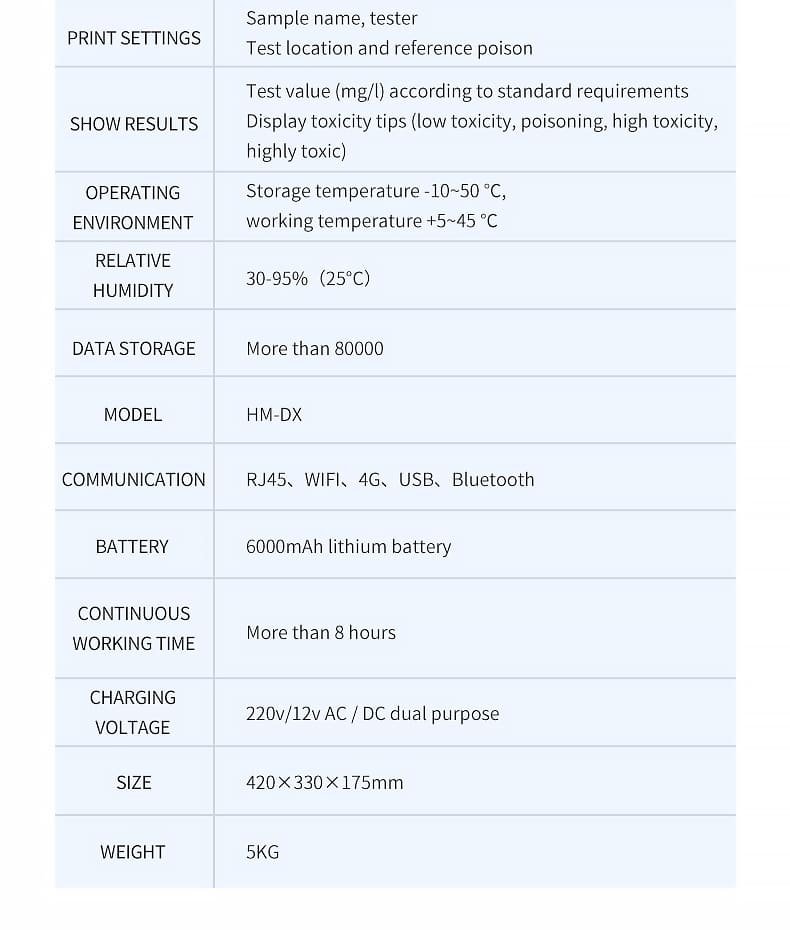

Parameter indicators:

Detection method: Luminescent bacteria method

Detector: Silicon photomultiplier tube

Spectral range: 300-1100nm

Strain: A strain that meets the requirements of ISO11348&GB/T 15441-1995 standards, including Vibrio fischeri and Luminescent Bacillus T3 subspecies

Method standard: GB/T 15441-1995&ISO 11348

Accuracy: Sample repeated 3 times, relative deviation less than 6%

Sensitivity: Equivalent to or better than the acute biological toxicity test method for fish cultured for 96 hours;

Test time: Obtain results within 15 minutes after sample preparation

Display result: Toxicity prompt (low toxicity, toxic, highly toxic, highly toxic) displayed according to standard requirements with detection value (mg/L)

Print settings: sample name, testing personnel, testing location, reference toxin

Operating environment: storage temperature -10~50 ℃, working temperature+5~45 ℃

Relative humidity: 30-95% (25 ° C)

Data storage: Over 80000 entries

Communication: RJ45, WIFI, 4G, USB, Bluetooth

Battery: 6000mAh lithium battery

Continuous working hours: more than 8 hours

Power supply: 220V/12V AC/DC dual-purpose

Size and weight: 420 * 330 * 175mm 5K
