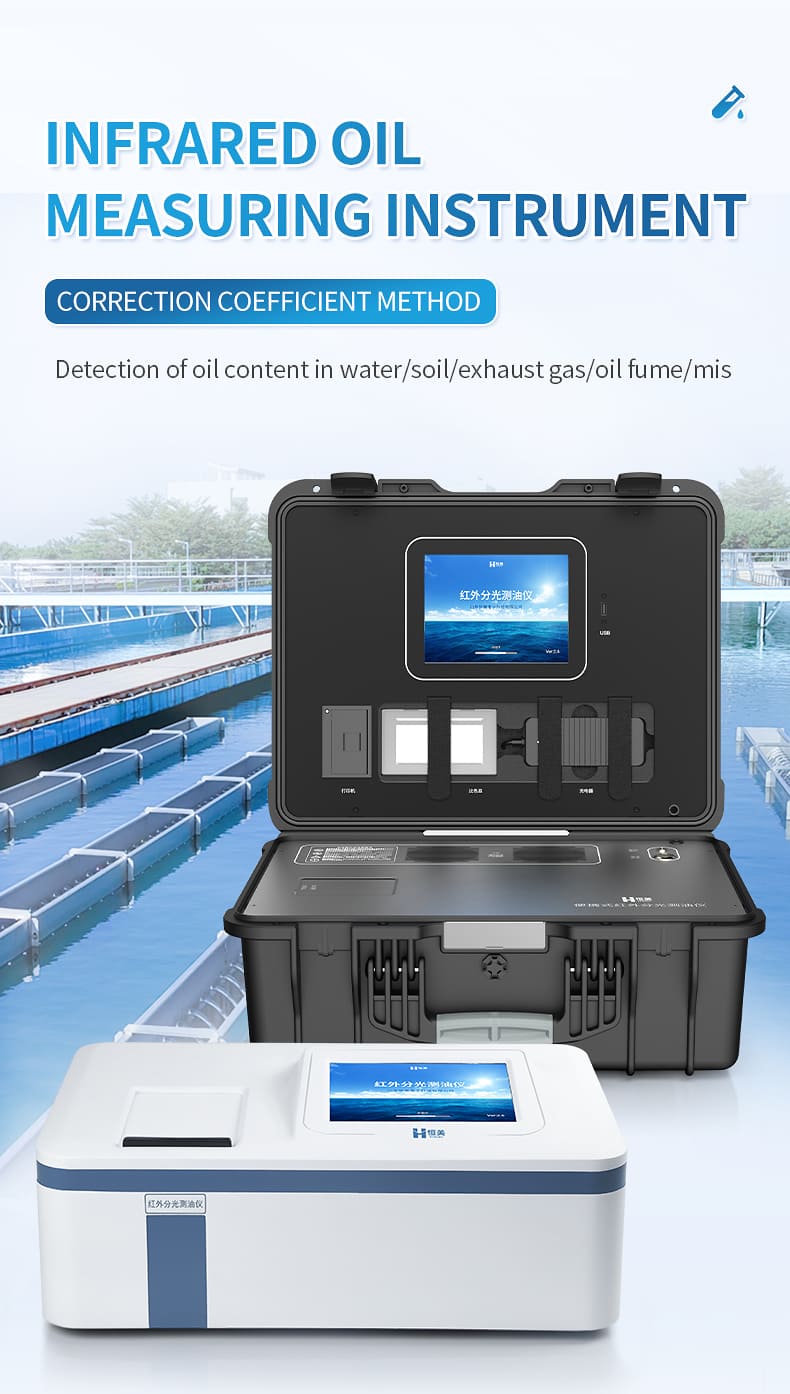

Portable infrared spectrophotometer for oil test

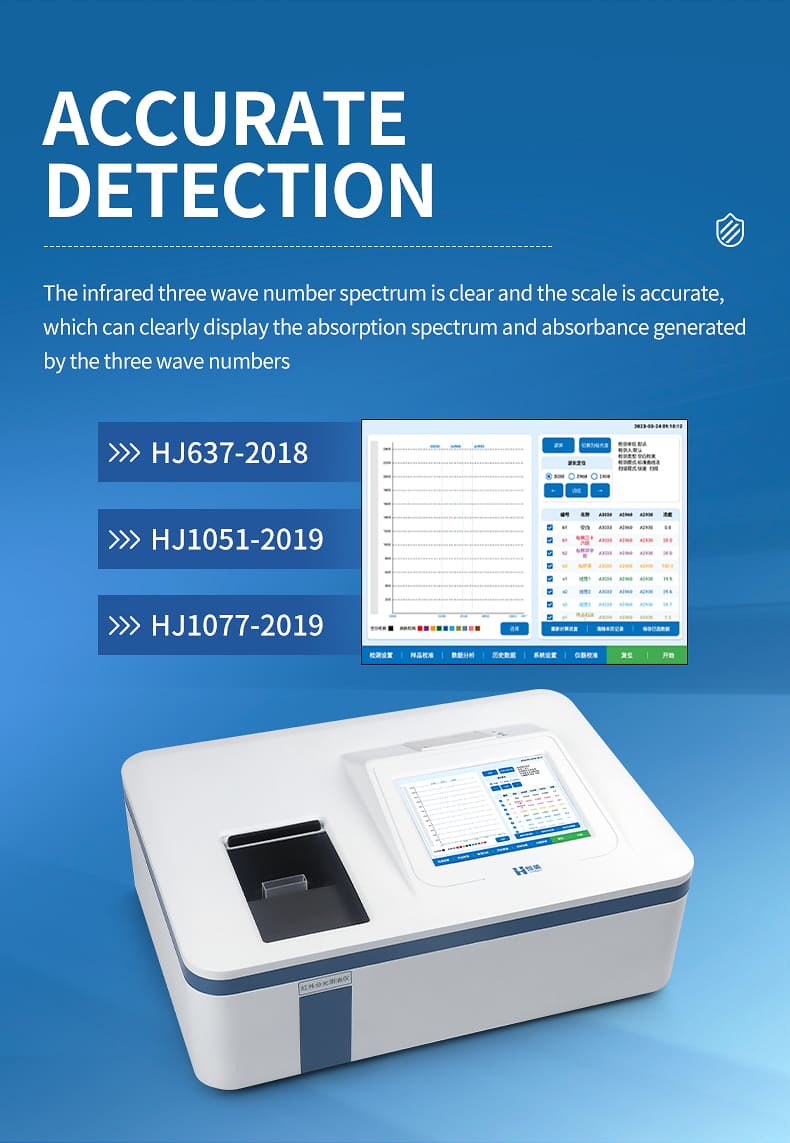

The analysis method of this product complies with the latest national method standards:

"HJ637-2018 Water Quality Determination of Petroleum and Animal and Vegetable Oils Infrared Photometry" "HJ1051-2019 Soil Determination of Petroleum Infrared Spectrophotometry"

"HJ1077-2019 Determination of Exhaust Gas, Fumes and Oil Mist from Fixed Pollution Sources Infrared Spectrophotometry"

Main Applications

Can be used for: emission detection of mineral oil and animal and vegetable oils in surface water, groundwater, domestic sewage, industrial wastewater, soil, and oil smoke and oil mist in exhaust gas;

Applicable to: environmental monitoring stations, hydrological stations, petrochemicals, machinery, automobile and aircraft manufacturing and other enterprises and institutions. Medicine, agricultural technology, marine transportation and other industries.

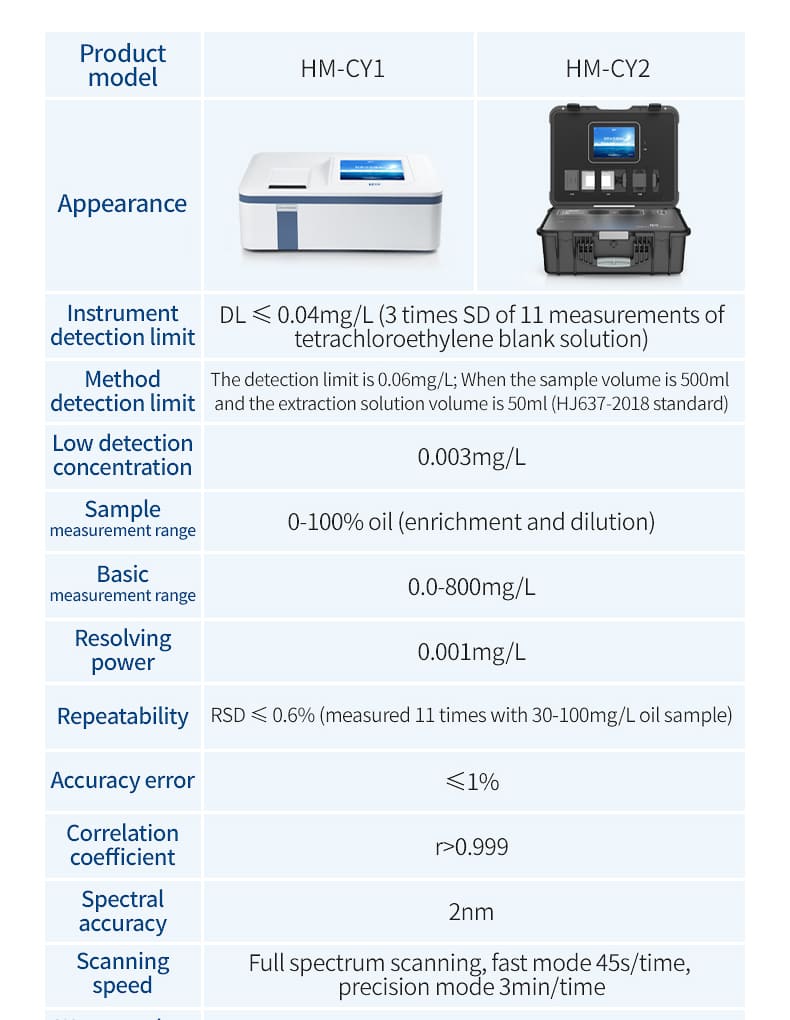

Performance indicators

Instrument detection limit DL≤0.04mg/L (3 times SD of tetrachloroethylene blank solution measured 11 times)

Method detection limit 0.06mg/L; when the sample volume is 500ml and the extract volume is 50ml (HJ637-2018 standard)

Minimum detection concentration 0.003mg/L

Sample measurement range 0～100% oil (enrichment and dilution)

Basic measurement range 0.0-800mg/L

Repeatability RSD ≤ 0.6% (30-80mg/L oil sample measured 11 times)

Accuracy error ≤2%

Correlation coefficient r>0.999

Scanning speed Full spectrum scan, fast mode 45 seconds/time, precision mode 3 minutes/time

Wave number range 3100cm-1 ～ 2800cm-1 (i.e. 3200nm ～ 3570nm ）

Absorbance range 0.0000 ~ 2.0000AU (i.e. transmittance 100 ~ 1%T )

Spectral accuracy 2nm

Temperature and humidity range 1℃ - 40℃, humidity ≤ 90%

Host size 500mm × 350mm × 200m (length, width and height)

Power supply 100~240V, (50 ± 1)Hz, 50VA

Instrument Features

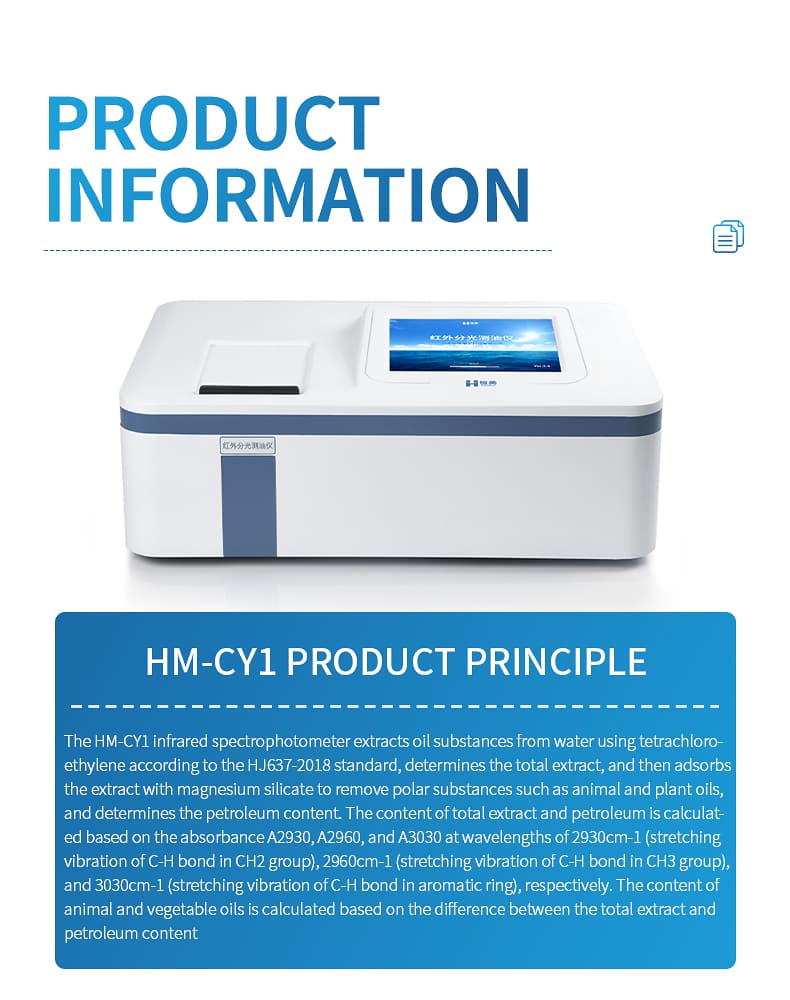

1) This product adopts the correction coefficient method detection principle stipulated by the national standard. It strictly follows the national standard formula and uses 20mg/L hexadecane, 20mg/L isooctane, and 100mg/L benzene for calibration. Finally, it is brought into the calibration formula to calculate the instrument correction coefficient for measuring samples (standard curve method can also be used for detection);

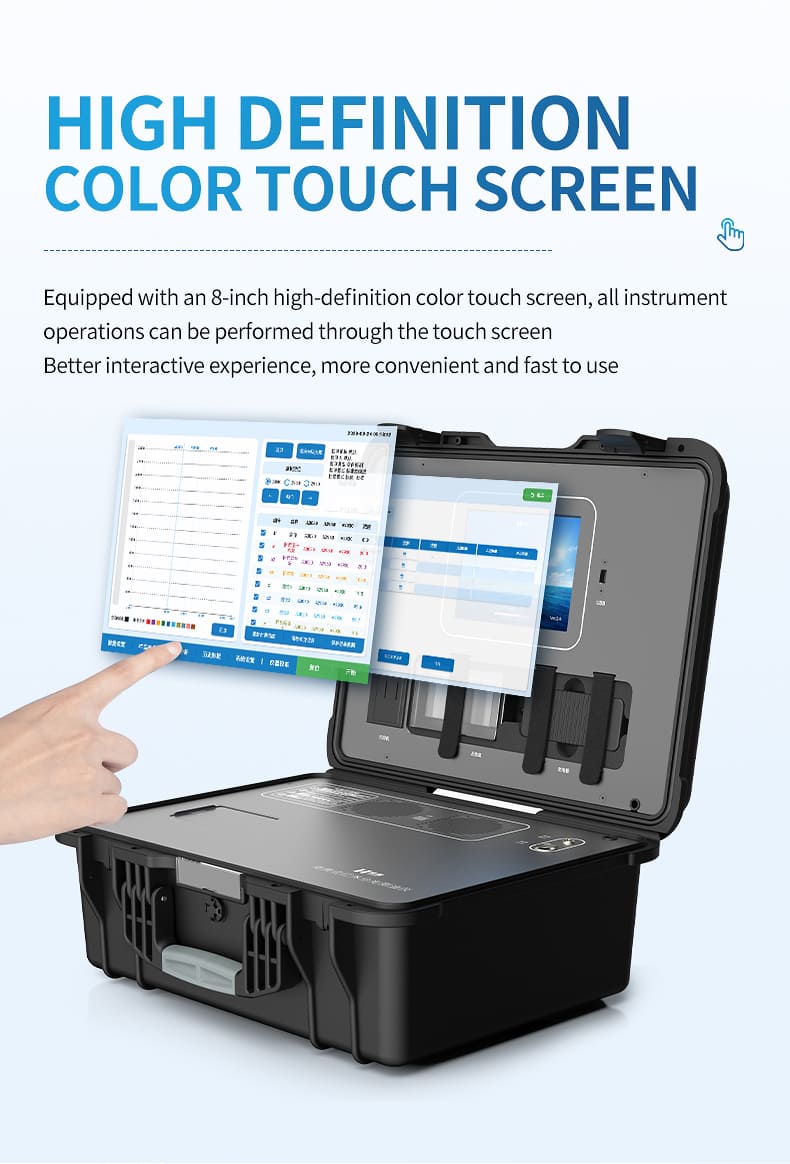

2) The instrument is operated using the mainstream Android 7.1 system plus an 8-inch color large screen mode. All instrument operations can be performed through the touch screen, which is convenient and fast, and as easy to use as operating a mobile phone;

3) Built-in wireless network function, external WIFI can be connected to realize the network upload function;

4) Internal 16G storage capacity can store 100W+ data, and USB can be directly exported through a USB flash drive

5) Automatically synchronize network time to avoid the inaccurate local time affecting the accuracy of the output voucher time due to the use of the instrument for too long;

6) Powerful background data support. After the user has tested the sample, he can not only print the results and save them locally through a printer, but also upload the data to the cloud platform through WIFI or 4G to connect to the Internet. library;

7) It not only has basic functions such as detection function setting, curve analysis, historical data, etc., but also can zoom in and out the spectrum, allowing users to infinitely refine the spectrum and observe the curve at low concentration more clearly;

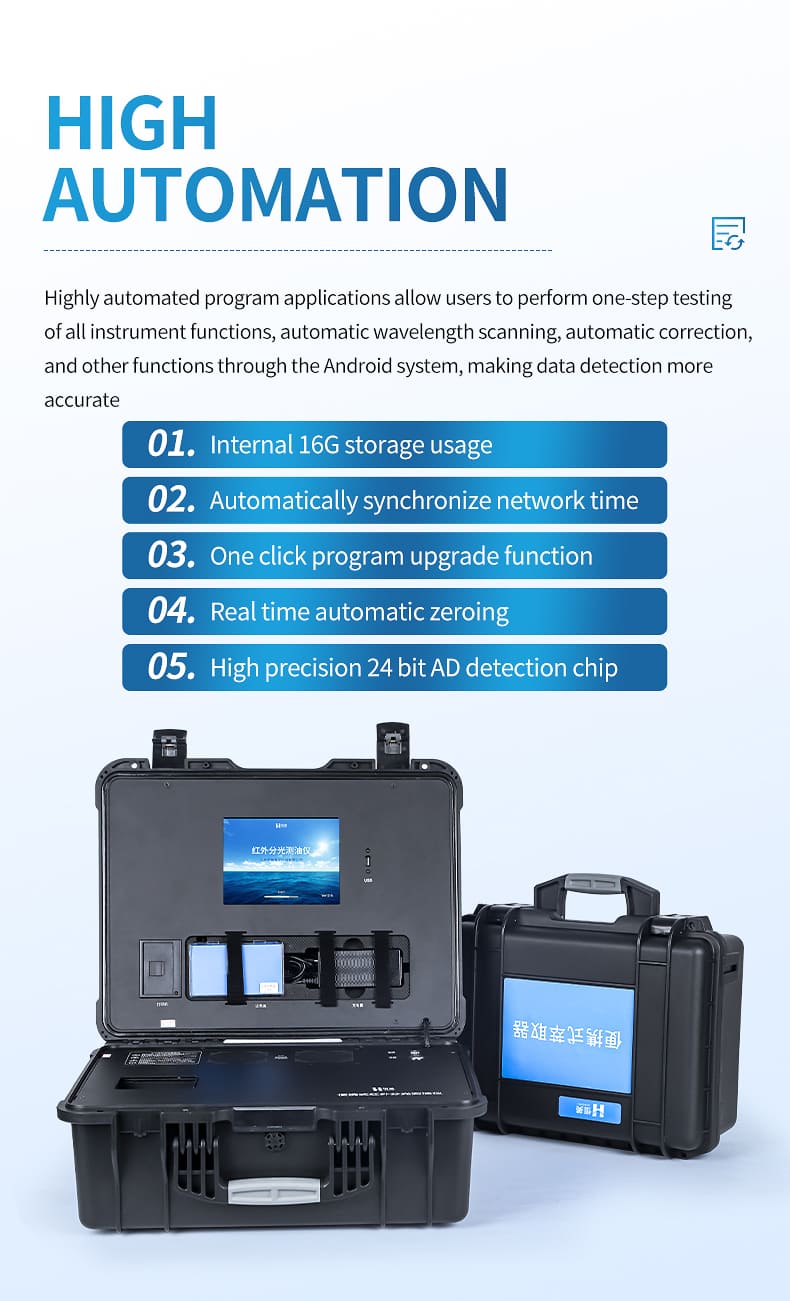

8) Highly automated program application, users can use the Android system to perform individual tests of all instrument functions, automatic wavelength scanning, automatic correction and other functions, making data detection more accurate;

9) One-click program upgrade function, no need for engineers to download on-site, the APP can be upgraded by inserting a USB flash drive;

10) The use of electrically modulated light source not only reduces the heat intensity of the light source to facilitate system heat dissipation, but also simplifies the instrument structure and improves the reliability of the instrument by reducing the mechanical light cutting motion devices;

11) Real-time automatic zeroing, the instrument collects signals when the light source is emitting, and collects signals when the light source is extinguished, realizing real-time automatic adjustment of the zero point, thereby simplifying the operation and improving the long-term stability of the signal;

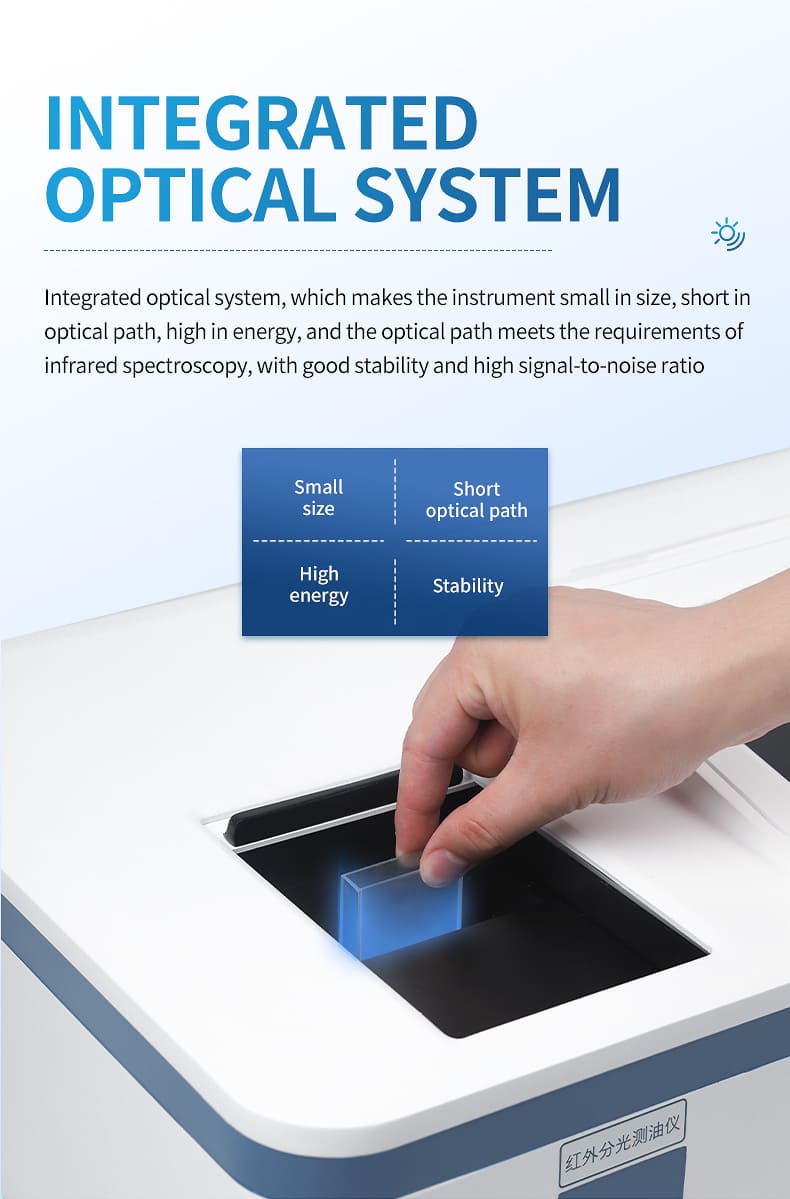

12) The detachable integrated optical system makes the instrument small in size, short in optical path, and large in energy. The optical path meets the requirements of infrared spectroscopy characteristics, with good stability and high signal-to-noise ratio;

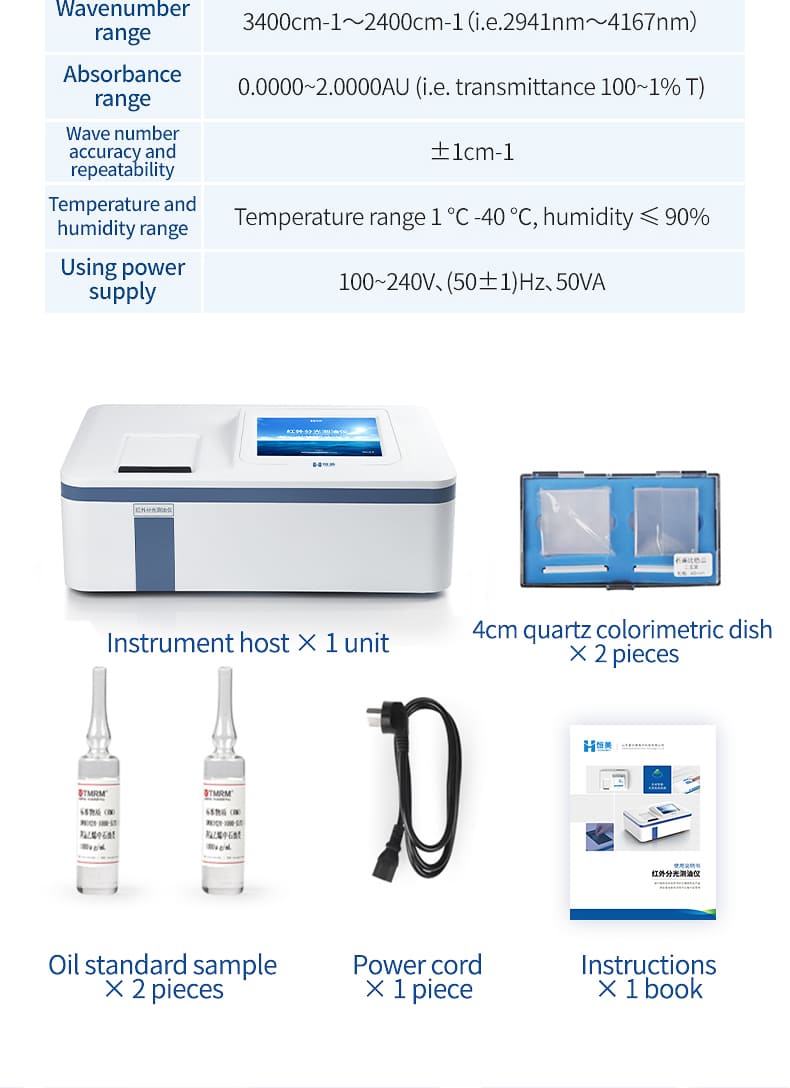

Delivery accessories

Cuvette 4CM oil tester 1 box

Standard material Perchloroethylene PetroChina 1000ug/ml/2 bottles

Instruction manual 1 copy
