Flame photometric detection instrument

Flame photometric detection instrument

Product Number：

HM-40

Product Difference：

Detecting potassium, sodium, lithium, and calcium elements

Tel icon17853698681 Consultation iconWhatsApp

/skin/Product Details

Product description:

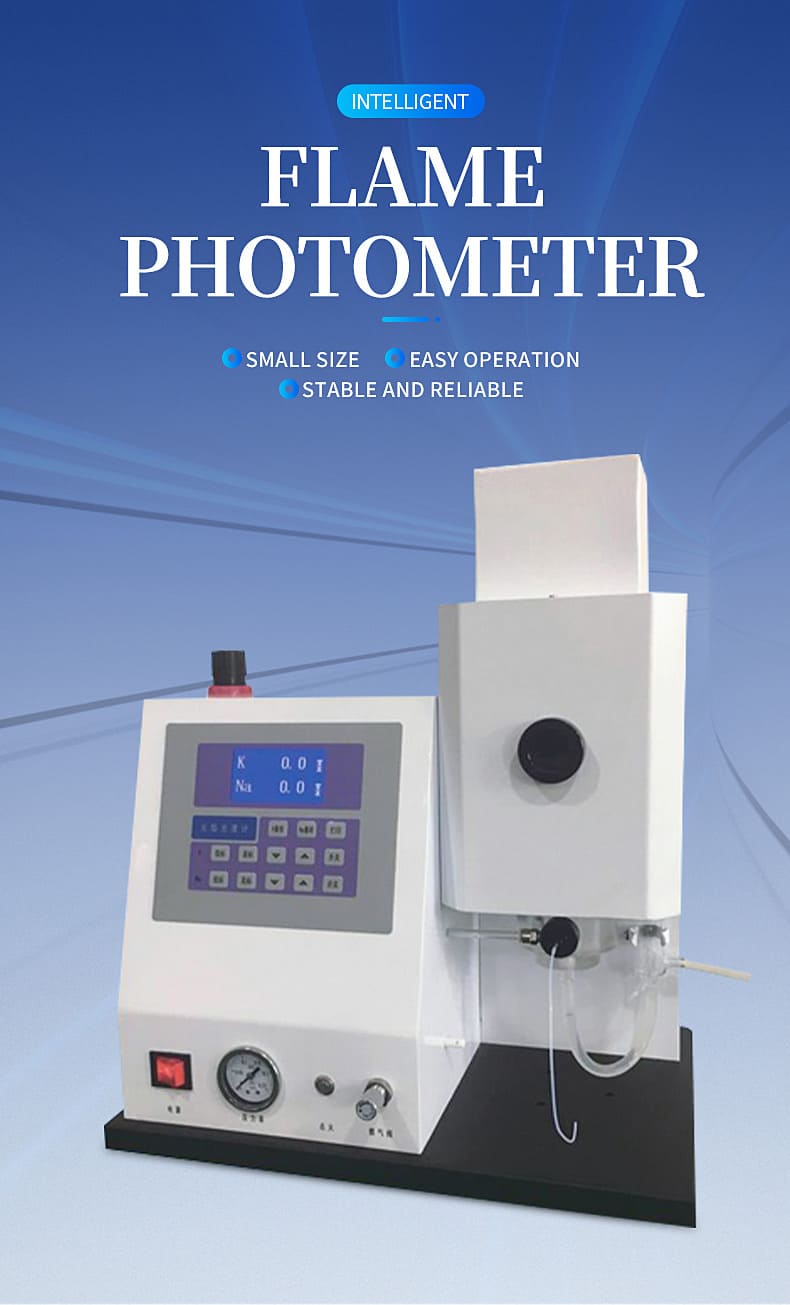

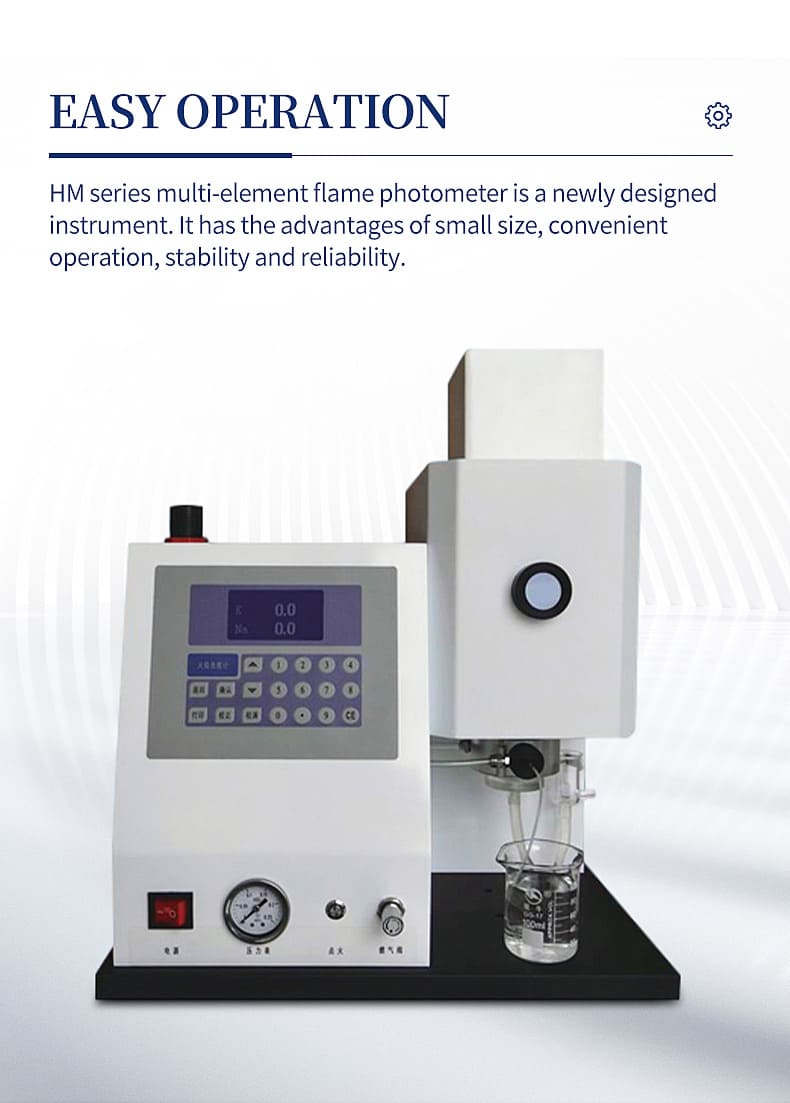

The HM series flame photometric detection instrument is a newly designed instrument. It has the advantages of small size, easy operation, and stability and reliability. The entire series is equipped with ion detection flameout protection device as standard, which is safe and reliable. Widely used in the analysis and determination of agricultural fertilizers, soil, cement, ceramics and other industries, as well as the silicic acid industry; Pathological research in healthcare. The HM series flame spectrophotometer uses liquefied gas as the fuel gas.

Features:

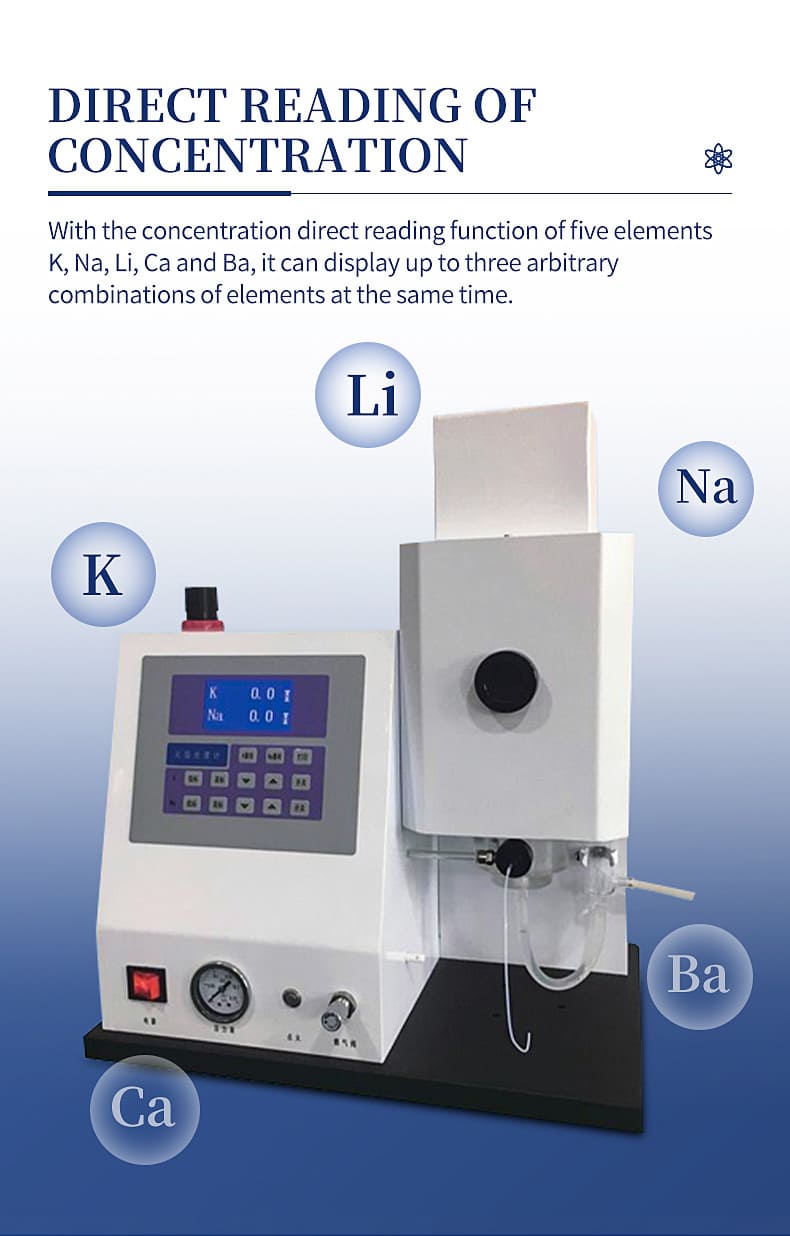

1) With the concentration direct reading function of K, Na, Li, Ca, and Ba elements, it can simultaneously display three arbitrary combinations of elements;

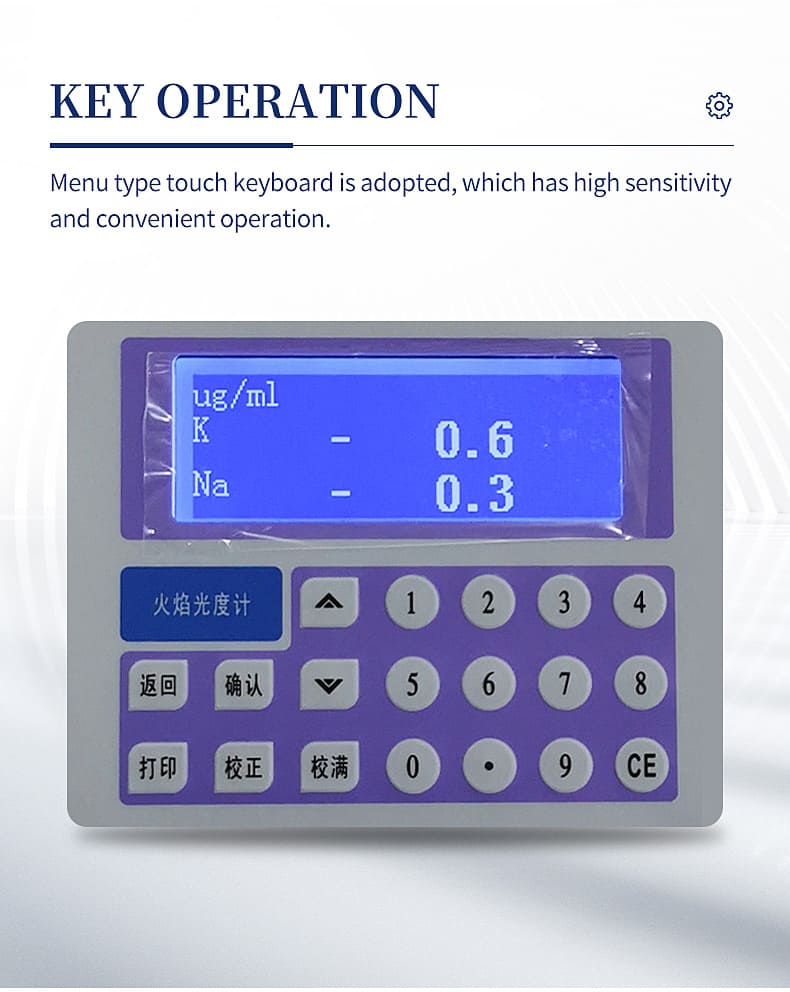

2) Using menu style keyboard operation;

3) Equipped with automatic calculation function for correlation coefficients;

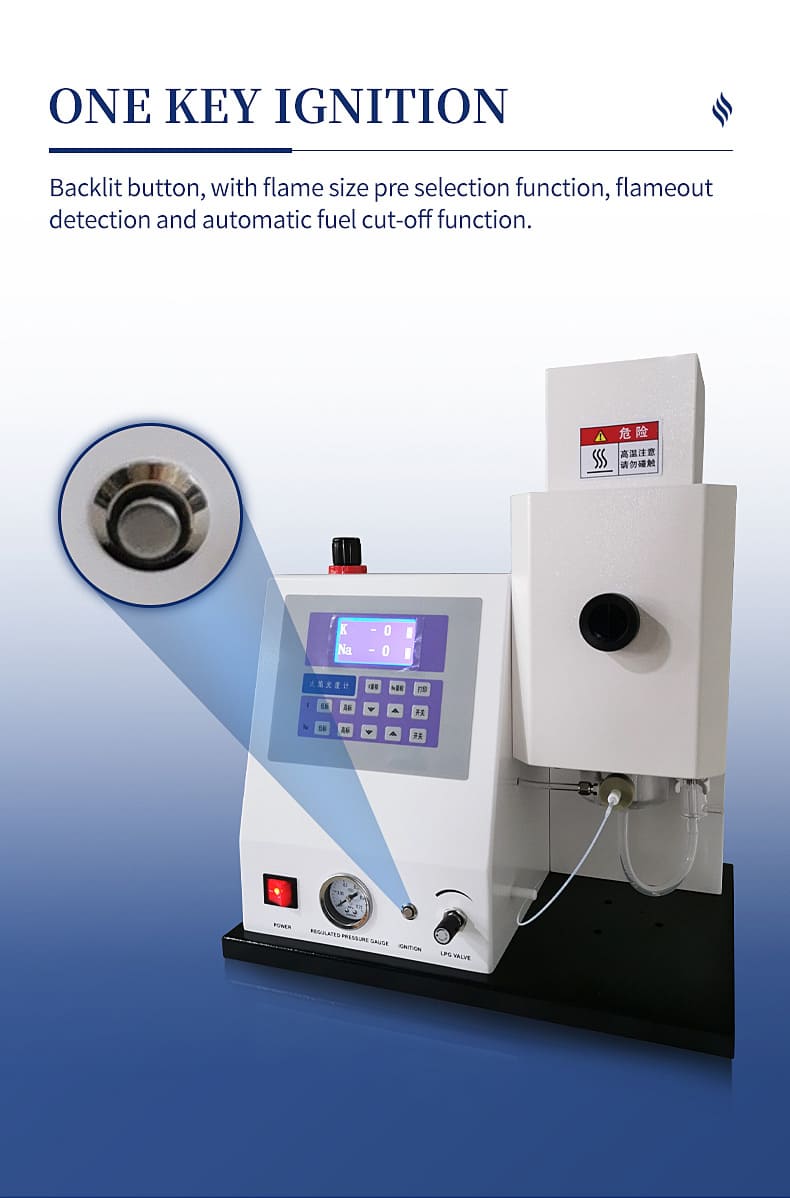

4) Equipped with pre selected flame size function;

5) Equipped with flameout protection device;

6) Equipped with single point correction function;

7) With the function of saving standard curves;

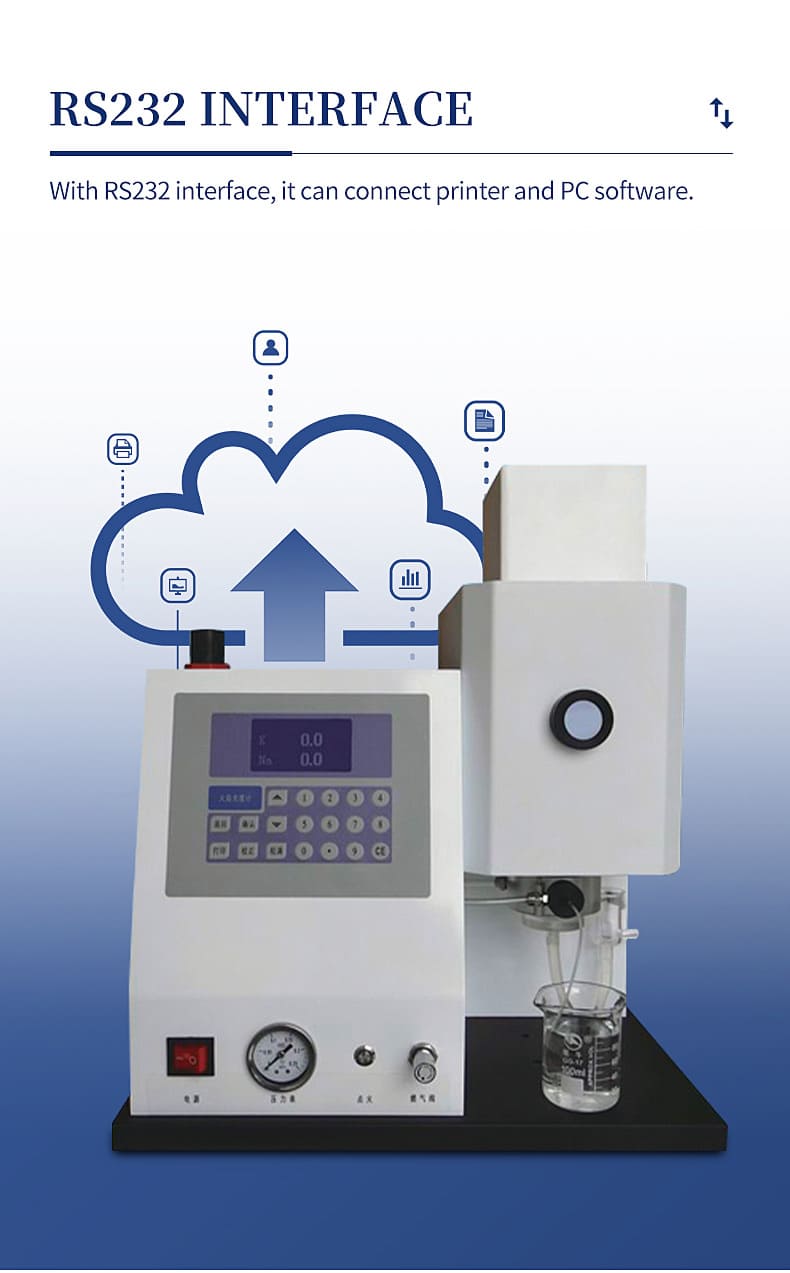

8) Equipped with RS232 interface, capable of connecting printers and computer PC software;

9) Equipped with a moisture separator.

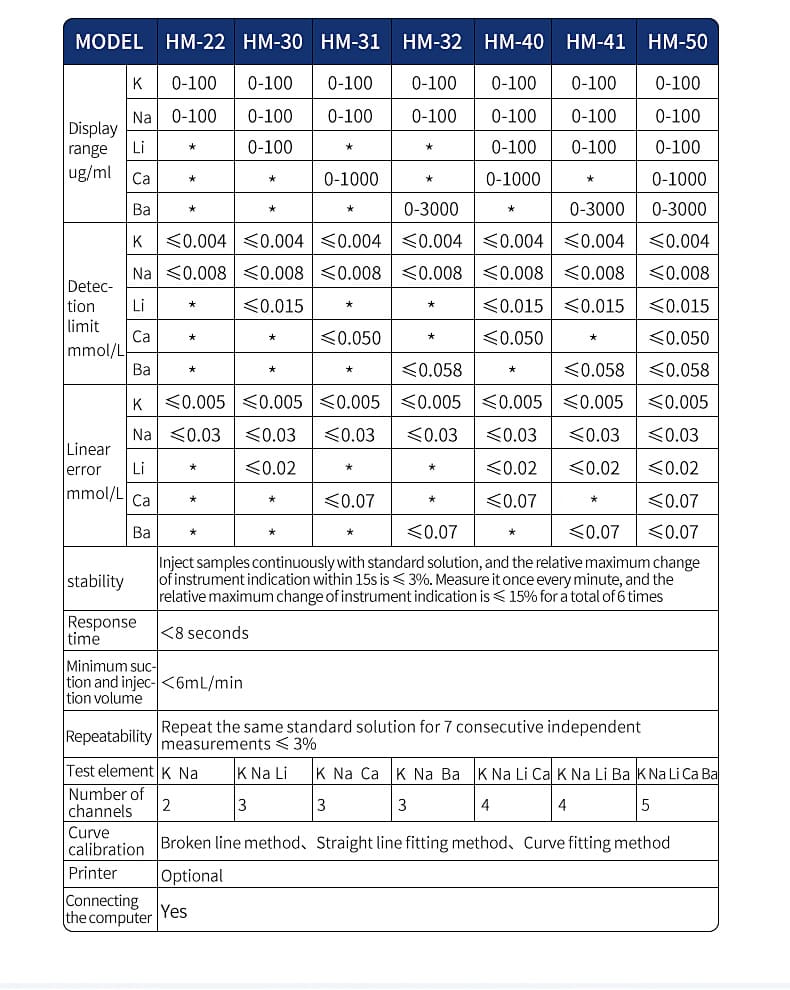

Technical parameters:

model

HM-22

HM-30

HM-31

HM-32

HM-40

HM-41

HM-50

Display range (ug/ml)

potassium

0-100

0-100

0-100

0-100

0-100

0-100

0-100

sodium

0-100

0-100

0-100

0-100

0-100

0-100

0-100

lithium

*

0-100

*

*

0-100

0-100

0-100

calcium

*

*

0-1000

*

0-1000

*

0-1000

barium

*

*

*

0-3000

*

0-3000

0-3000

detection limit(mmol/L)

potassium

≤0.004

≤0.004

≤0.004

≤0.004

≤0.004

≤0.004

≤0.004


sodium

≤0.008

≤0.008

≤0.008

≤0.008

≤0.008

≤0.008

≤0.008


lithium

*

≤0.015

*

*

≤0.015

≤0.015

≤0.015


calcium

*

*

≤0.050

*

≤0.050

*

≤0.050


barium

*

*

*

≤0.058

*

≤0.058

≤0.058

linearity error（mmol/L）

potassium

≤0.005

≤0.005

≤0.005

≤0.005

≤0.005

≤0.005

≤0.005


sodium

≤0.03

≤0.03

≤0.03

≤0.03

≤0.03

≤0.03

≤0.03


lithium

*

≤0.02

*

*

≤0.02

≤0.02

≤0.02


calcium

*

*

≤0.07

*

≤0.07

*

≤0.07


barium

*

*

*

≤0.07

*

≤0.07

≤0.07

stability

Continuous injection of standard solution, with a relative * significant change in instrument reading of ≤ 3% within 15 seconds, measured once per minute, for a total of 6 measurements, with a relative * significant change in instrument reading of ≤ 15%

响应时间

＜8seconds

Minimum suction and spray volume

＜6mL∕min

repeatability

Repeated 7 consecutive independent measurements of the same standard solution ≤ 3%

Test Elements

Potassium and sodium

Potassium sodium lithium

Potassium sodium calcium

Potassium sodium barium

Potassium sodium lithium calcium

Potassium sodium lithium barium

Potassium sodium lithium calcium barium

Number of channels

2

3

3

3

4

4

5

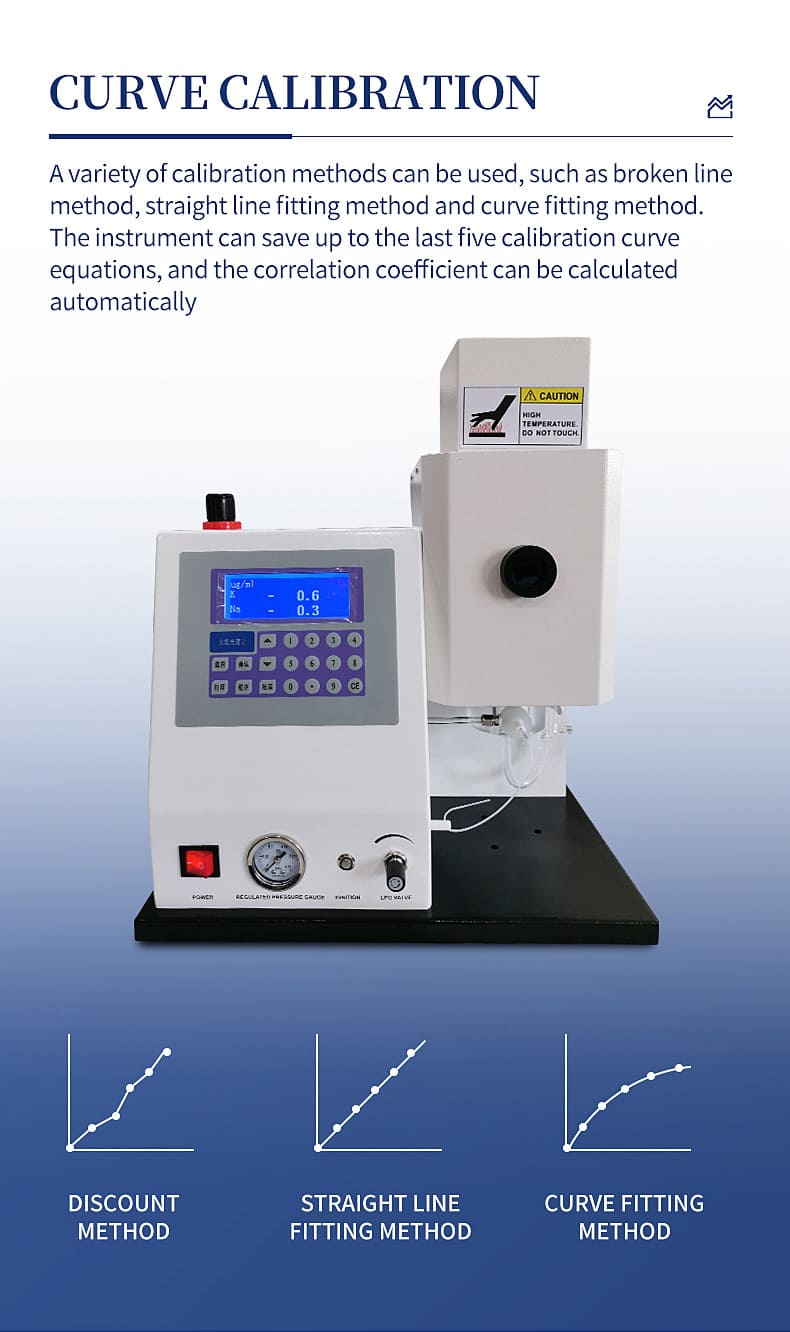

Curve calibration

Line fitting method, line fitting method, curve fitting method

printer

Optional

Connecting a computer

correct
