Intelligent Distiller

Product Number：

HM-ZLB

Product Price:

$2000

Product Difference：

Six positions with time / weighing-based endpoint control and closed-loop flow-rate control; external cooling is required.

+86 17853698681 Consultation icon

Product Details

HM-ZL series automatic distillation apparatus in six-position and three-position configurations

Touchscreen, independent heating, protection and operating-system features

Laboratory distillation applications in environmental and water analysis

Independent heating units for HM-ZLA to HM-ZLE distillation models

Seven-inch touchscreen and stored distillation method settings

Far-infrared ceramic heating bowls and distillation endpoint control

Distillation operating interface with configurable time and volume settings

Closed-loop control, cleaning and cooling features across the distillation series

Automatic cleaning on HM-ZLC and the three-position HM-ZLD and HM-ZLE

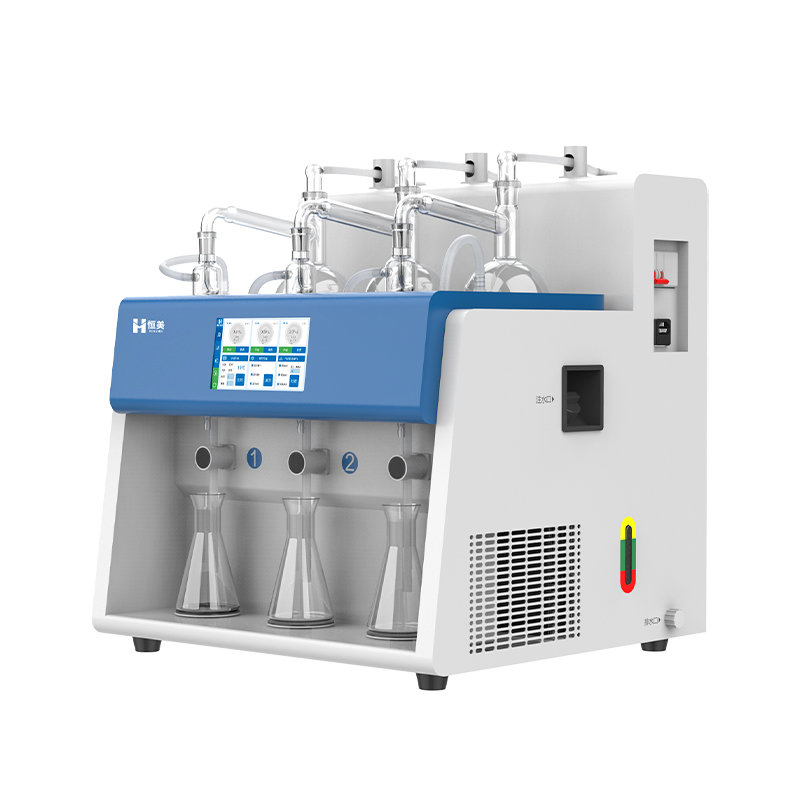

External cooling for six-position models and built-in cooling for three-position models

Examples of analytical methods referenced for laboratory distillation

HM-ZLA, HM-ZLB and HM-ZLC six-position distillation specification comparison

Six-position model endpoint, cleaning, cooling and electrical specifications

HM-ZLD and HM-ZLE three-position distillation specification comparison

Three-position model method storage, cooling and control specifications

Optional CW 6000 external cooling-water circulator specifications

Hengmei company introduction and staff group photograph

Hengmei laboratory scenes and company product overview

Product Overview

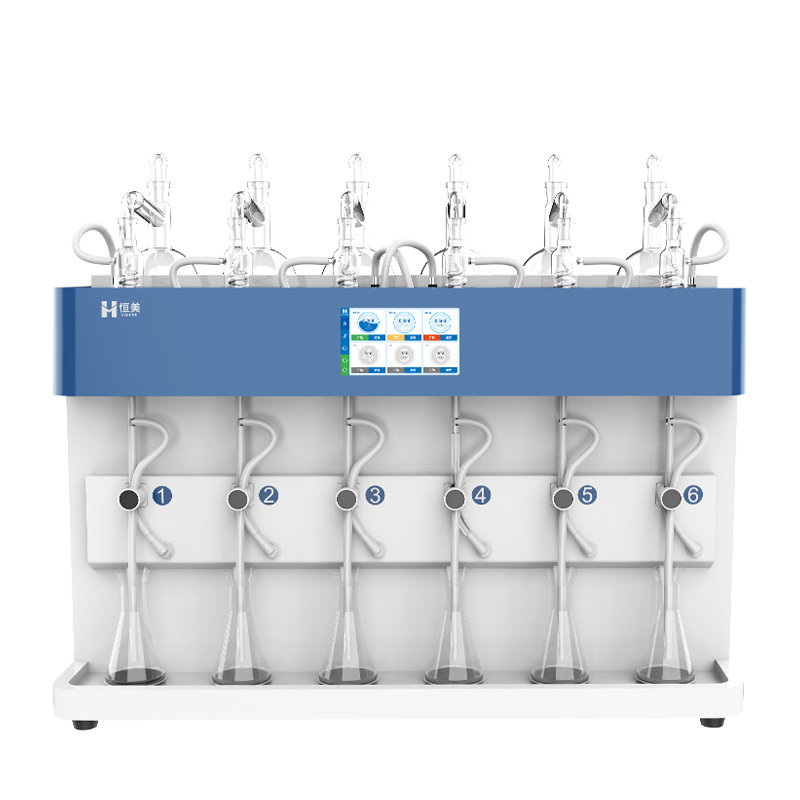

The HM Instruments HM-ZLB is an integrated laboratory distillation apparatus with 6 independently controlled heating positions and 500 mL distillation flasks. Six positions with time / weighing-based endpoint control and closed-loop flow-rate control; external cooling is required.

Select the required position count, endpoint control and cooling arrangement for your samples.

Key Features

A 7-inch colour touchscreen provides independent settings and status monitoring for each heating position.
Far-infrared ceramic heating bowls contact compatible round-bottom flasks, without an open flame.
Anti-backflow protection and dry-heating protection are included; tubing and liquid levels must still be checked before use.
Time settings cover 0–999 minutes, with up to 600 W of heating power per position.
Volume / time endpoint control uses distillate weighing feedback; density and calibration settings support the volume calculation.
Previously used method settings can be saved and loaded; cleaning follows the manual procedure.
Condenser cooling connects to an external cooling-water source; the external chiller is an optional item.

Applications

Designed for laboratory pretreatment procedures that require distillation, including environmental monitoring, water and wastewater analysis, inspection laboratories, research and teaching. Applications include distillation pretreatment for ammonia nitrogen, cyanide, volatile phenols and sulfides in water, with further soil, sediment and food method references.

Use the sample preparation, glassware and distillation procedure for the selected analyte. Analyse the collected distillate using the corresponding analytical method.

Technical Specifications

Parameter	Specification
Model	HM-ZLB
Heating positions	6; independently controlled
Display	7-inch colour touchscreen
Heating method	Far-infrared ceramic heating bowls
Distillation flasks	6 × 500 mL; two-neck round-bottom flasks
Receiving bottles	6 × 250 mL
Heating temperature range	Room temperature to 400°C
Timing range	0–999 min
Maximum heating power per position	600 W
Endpoint control	Distillate volume and time, using weighing feedback
Distillation range	0–500 mL
Manufacturer-stated distillation accuracy	±0.1 mL
Distillation rate	Up to 12 mL/min; depends on output power
Automatic cleaning	Not included
Airtightness testing	Not included
Cooling arrangement	External cooling-water circulator or suitable tap-water supply
Rated input power	3800 W
Power supply	220 V, 50 Hz
Leakage-current protection	Included
Heating-up test condition	≤6 min to boiling: 250 mL tap water in a 500 mL flask; ambient 25°C; 600 W at one position

Configuration / Accessories

Principal items listed for this model are shown below; the final packing list controls the complete tubing and consumables quantities.

Listed item	Quantity / scope
Main unit	1
Distillation flasks, 500 mL	6
Serpentine condensers	6
Receiving flasks, 250 mL	6
Glass elbow connectors / stoppers	6
Drip tips	6
Boiling stones	1 pack
Silicone tubing and clamps	As listed in the model packing list
Manual, conformity certificate, warranty card and packing list	1 each
Calibration weight	1 × 100 g

An external chiller, including the CW 6000, and export wooden packaging are optional. Provide a suitable 16 A power socket and a waste-liquid container for installation.

Related Models

Model	Positions	Endpoint	Cooling	Automatic cleaning
HM-ZLA	6	Time	External supply	No
HM-ZLB	6	Volume / time	External supply	No
HM-ZLC	6	Volume / time	External supply	Yes
HM-ZLD	3	Time	Built-in	Yes
HM-ZLE	3	Volume / time	Built-in	Yes

Operation and Support

Use the compatible flasks, assemble and secure the condensers and tubing, and verify that the paths are unobstructed. Establish cooling-water circulation before heating. Follow the method and instrument manual for liquid loading, parameter settings, collection and shutdown; keep the receiver clear of the delivery-tube walls and base.

For weighing-based operation, avoid touching or vibrating the receiver and weighing tray. Use the specified pure water in a chiller. Inspect tubing for wear, clean glassware after use and follow the manual for the model-specific cleaning procedure.
