Handheld liquid density meter

Product Number：

HM-DS

Product Difference：

Density measurement range: 0.0001~300000 g/cm ³ Resolution: 0.0001 g/cm ³

17853698681 Consultation icon

Product Details

Product Introduction

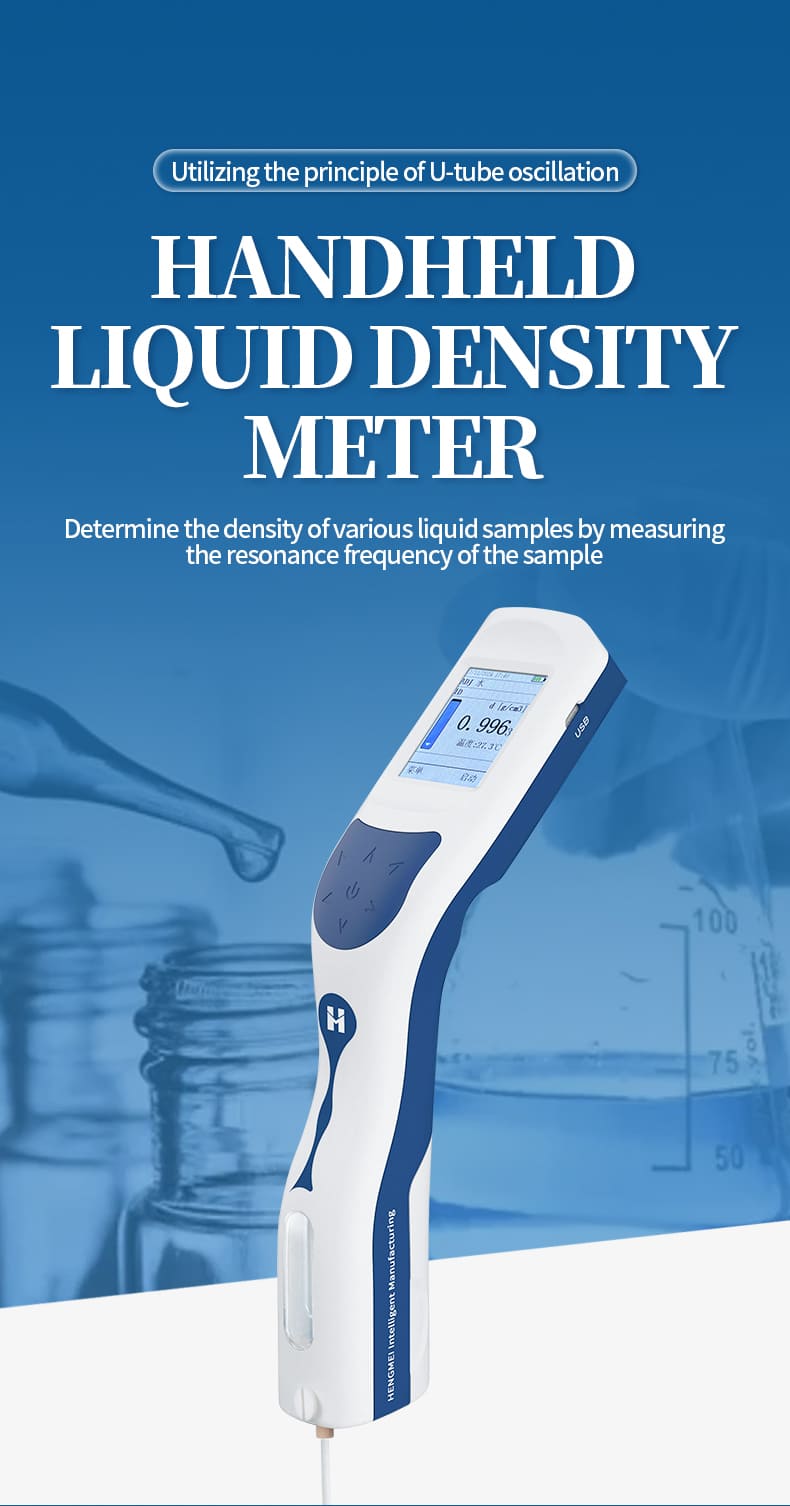

A handheld liquid density meter uses the principle of U-tube oscillation to measure the density of various liquid samples by measuring the resonance frequency of the sample. It has the characteristics of simple operation and accurate measurement, and is suitable for density measurement of various liquids.

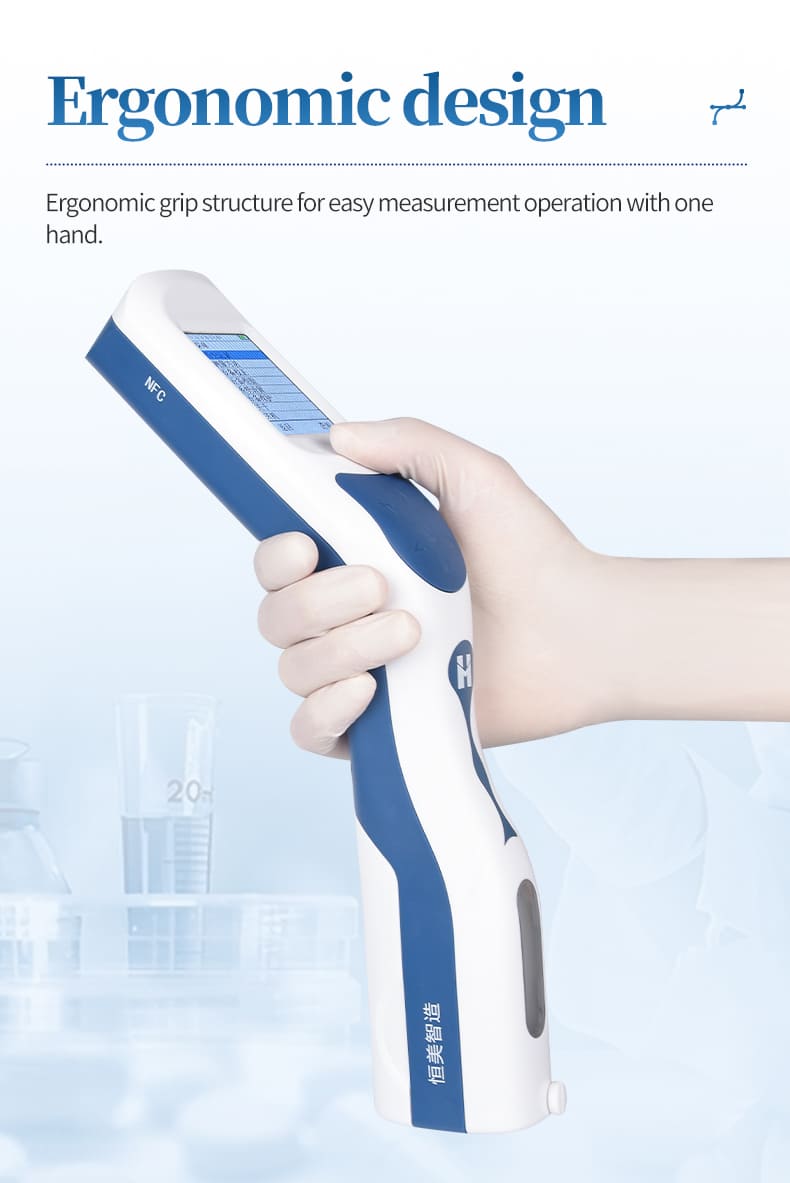

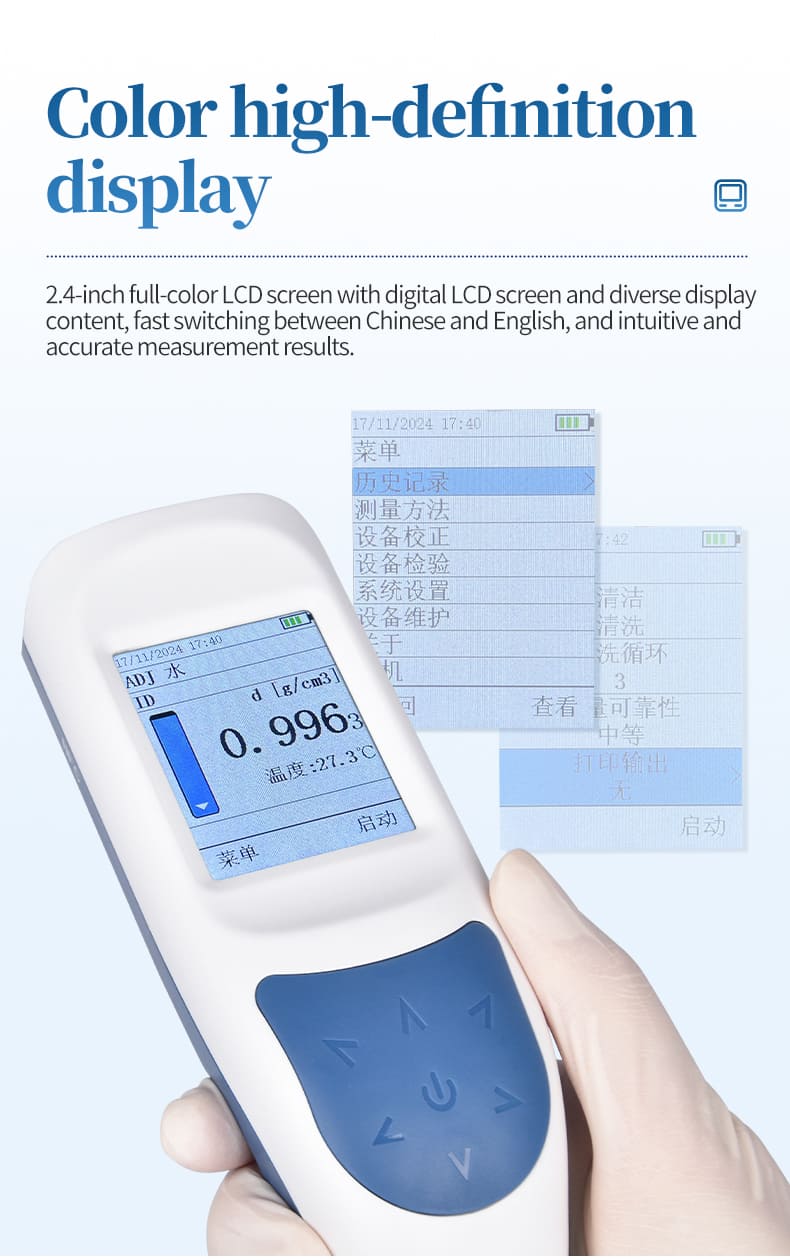

The instrument adopts a 2.4-inch color high-definition display and an ergonomic grip structure, making it easy to perform measurement operations with one hand. Equipped with a large capacity memory, it can store over a thousand pieces of historical data. The data can be imported into a USB flash drive or computer, and connected to a Bluetooth printer for immediate wireless printing of measurement results.

The instrument is equipped with scanning and NFC functions, which can quickly and accurately input sample ID information.

The contact area of the liquid sample is made of quartz glass and PTFE (polytetrafluoroethylene) material, which enhances the corrosion resistance of the equipment. The design allows for quick disassembly of the pump body, making it easy to clean and replace the pump body.

Product features

1. Featuring a digital LCD screen and diverse display content, the measurement results are intuitive and accurate.

2. The measurement range is wide, the operation is very simple, the detection accuracy is high, and the measurement speed is fast.

3. The built-in pure water density meter is easy to calibrate and can perform air or standard substance calibration.

4. Automatically perform density or relative density compensation.

5. The sample demand is small, and the sampling volume and sampling speed can be controlled with just one hand.

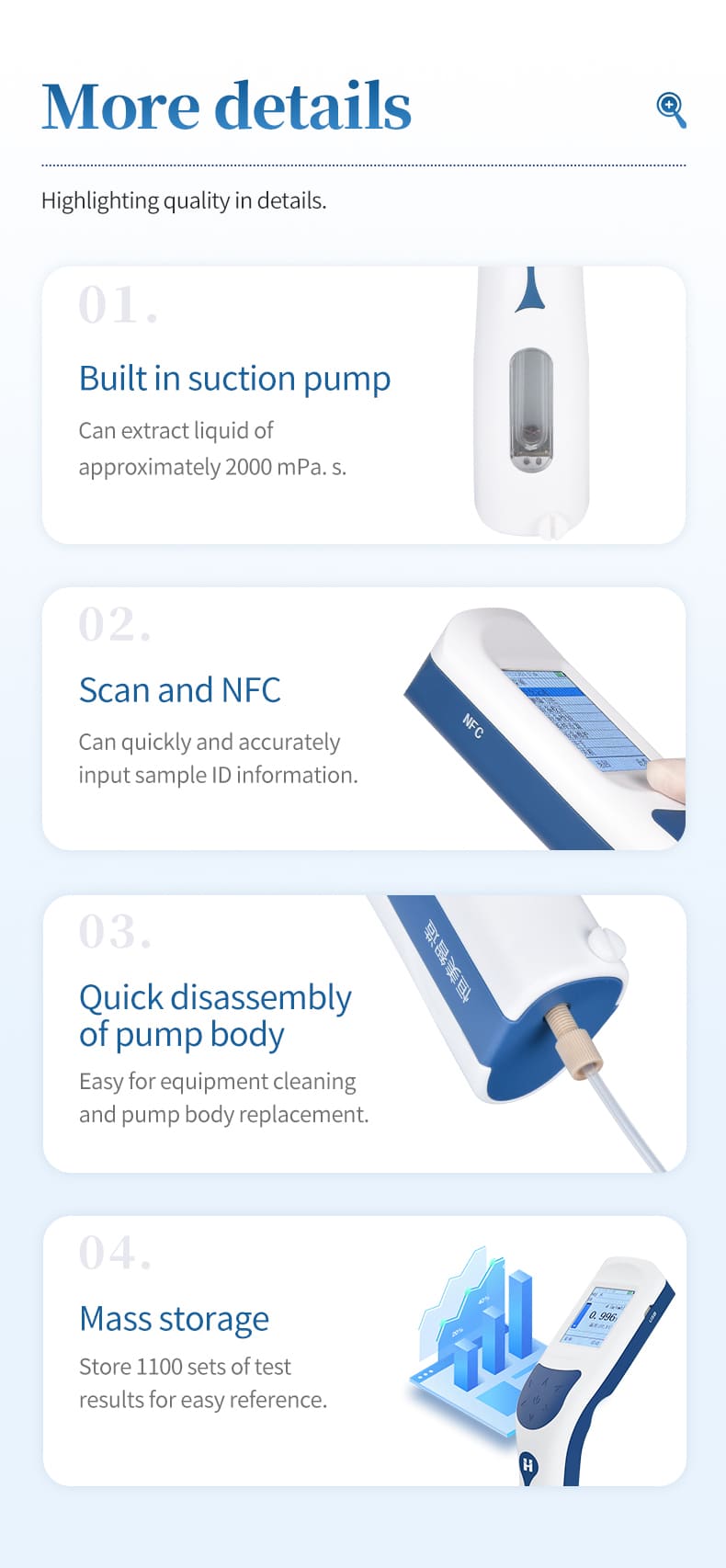

6. Built in suction pump, capable of extracting approximately 2000 mPa. s of liquid.

7. Store 1100 sets of test results for easy reference.

8. Quickly switch between Chinese and English.

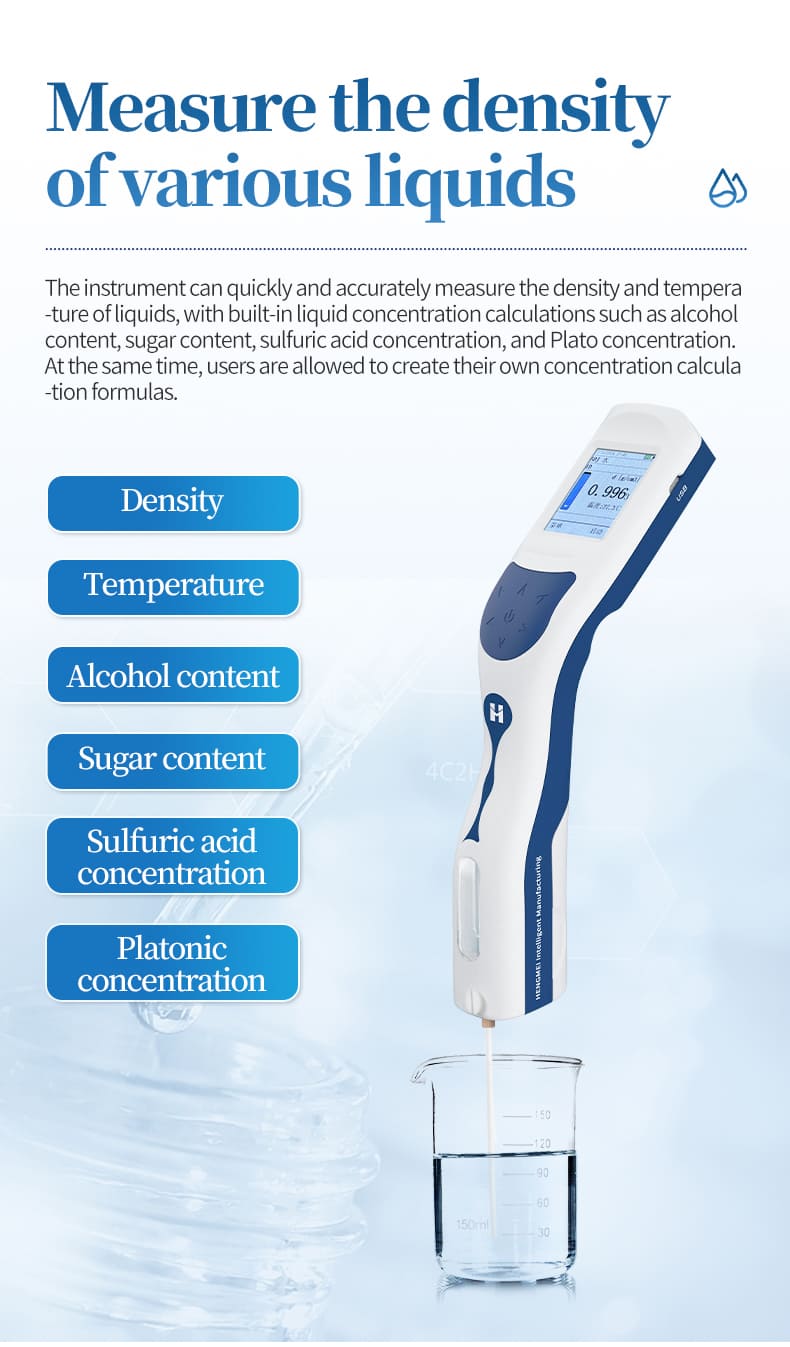

9. The instrument can quickly and accurately measure the density and temperature of liquids, with built-in liquid concentration calculations such as alcohol content, sugar content, sulfuric acid concentration, and Plato concentration. At the same time, users are allowed to create their own concentration calculation formulas

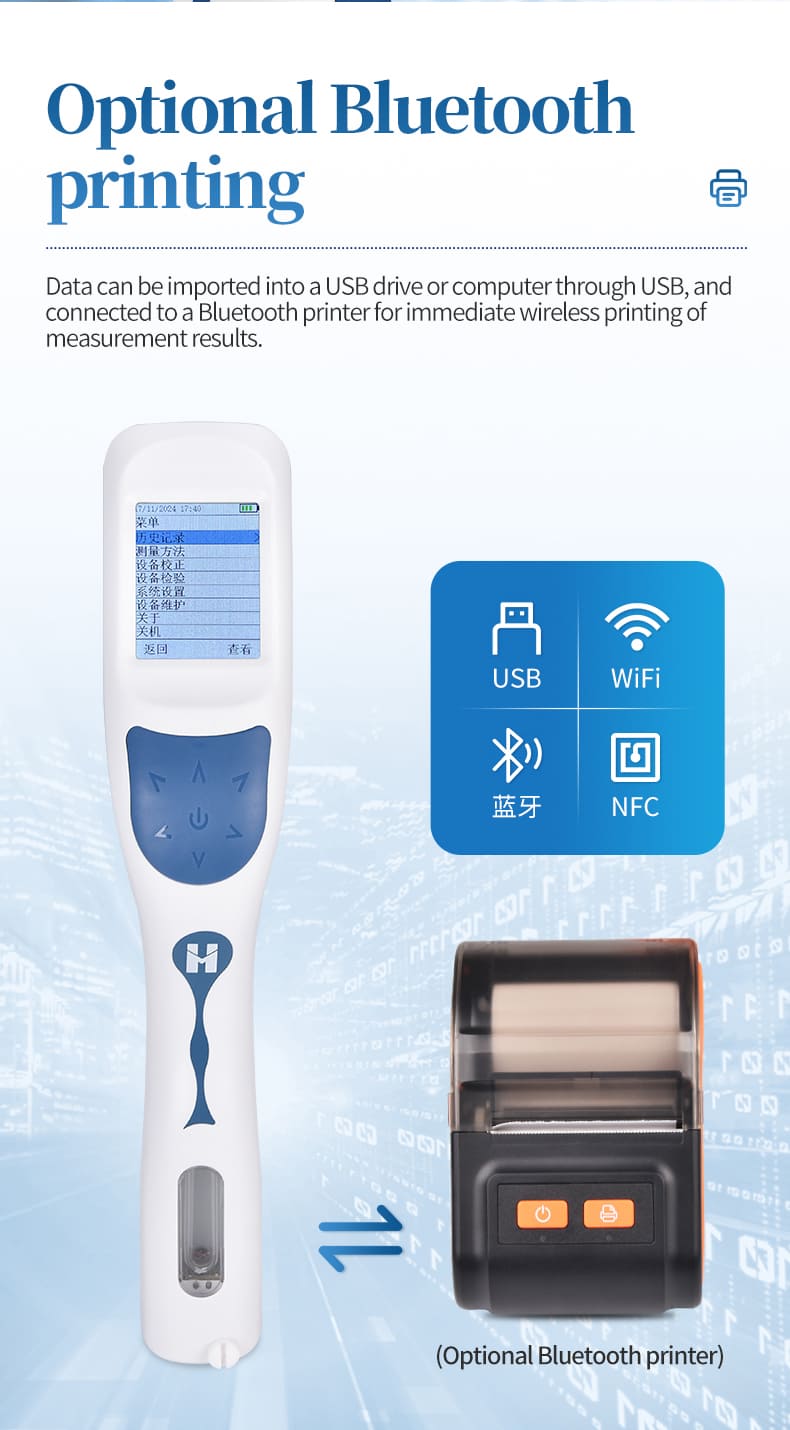

10. Optional Bluetooth printer

Application area

1. Chemical industry: used to measure the density of various chemical substances to ensure product quality and production process stability;

2. Food and Beverage Industry: Used to measure the density of foods such as fruit juices, beverages, and alcoholic beverages to control product quality and production processes;

3. Petroleum industry: used to measure the density of petroleum products such as crude oil and refined oil to ensure product quality and production process stability;

4. Other fields: It can also be applied to density measurement in multiple fields such as medicine, environmental protection, and education.

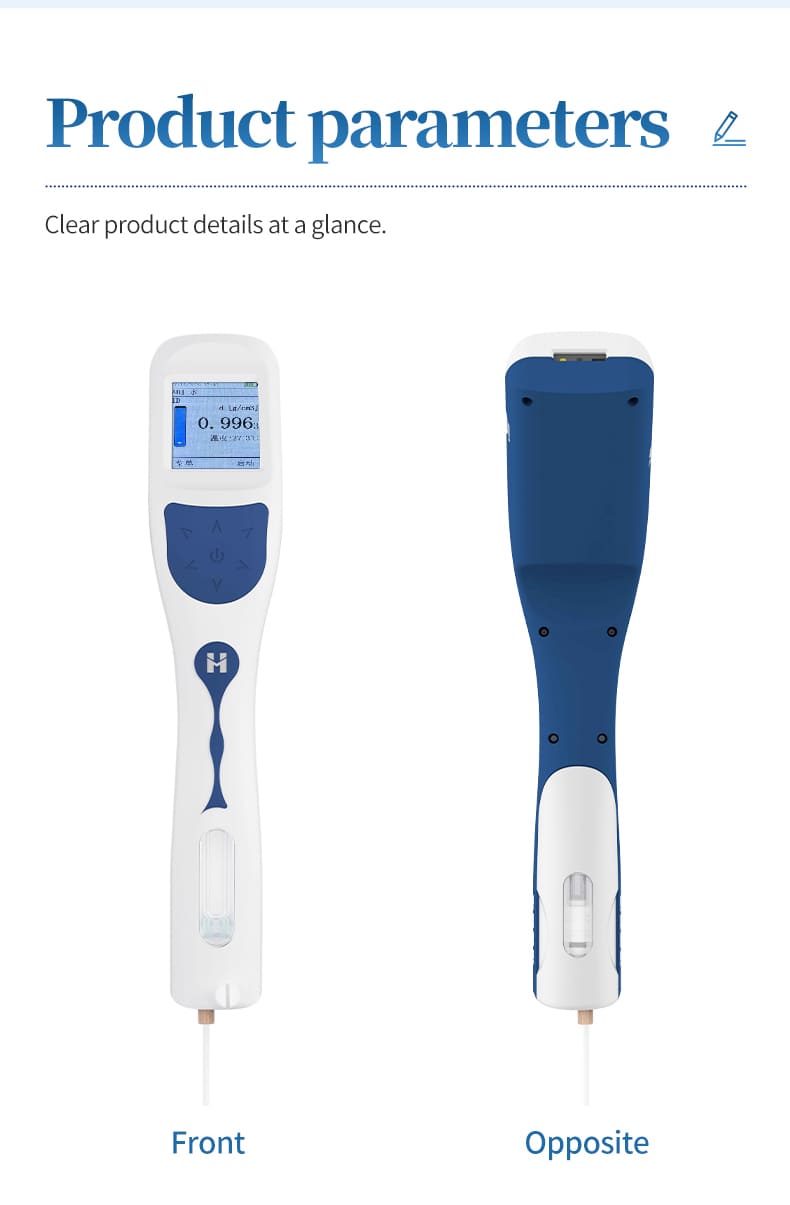

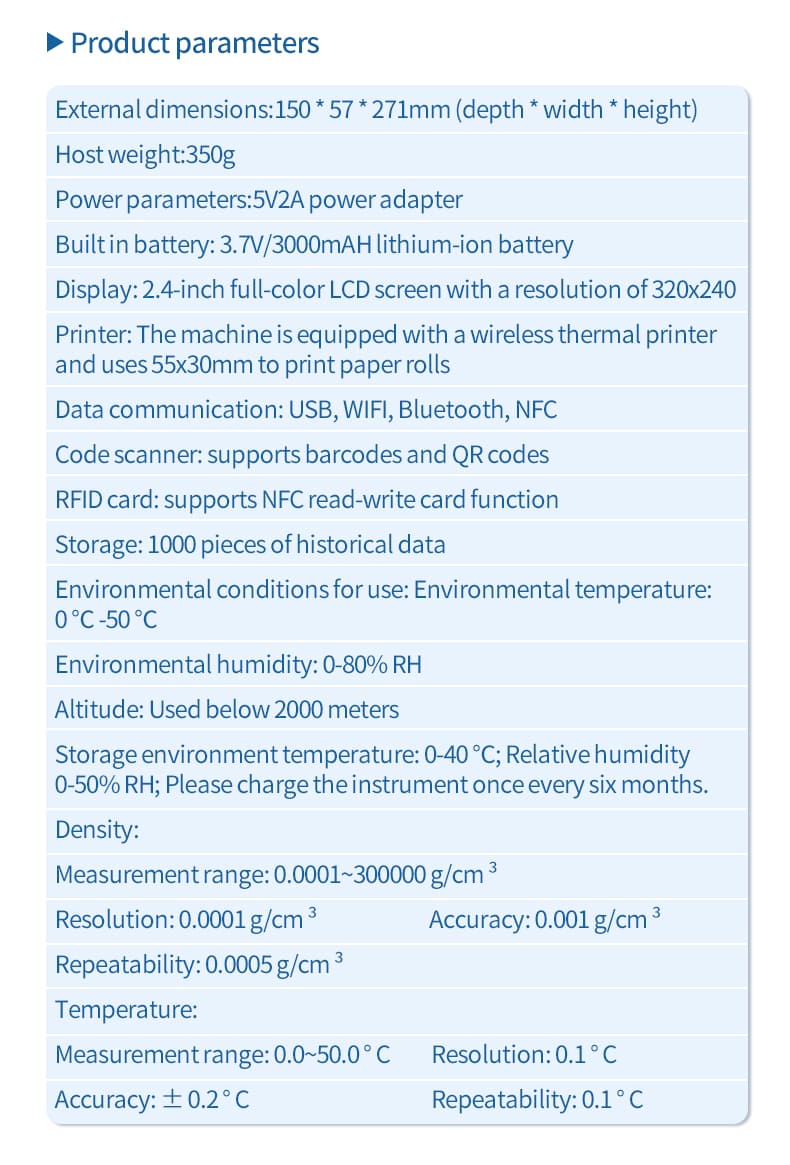

Product parameters

External dimensions	15057271mm（Depth * width * height）
Host quality	350g
Power supply parameters	5V2Aac adapter
Battery	3.7V/3000mAHLithium Ion Battery
monitor	2.4-inch full-color LCD screen with a resolution of 320x240
printer	The machine is equipped with a wireless thermal printer and uses 55x30mm to print paper rolls
Data Communication	USB、WIFI、Bluetooth、NFC
QR code scanner	Supports barcodes and QR codes
RFID card	Support NFC read-write card function
storage	1000 pieces of historical data
Environmental conditions for use	ambient temperature：0℃--50℃
	ambient humidity：0-80%RH
	Altitude: Used below 2000 meters
storage environment	Temperature 0-40 ℃; Relative humidity 0-50% RH; Please charge the instrument once every six months.
density	measuring range：0.0001~3.0000 g/cm³
	resolution ratio ：0.0001 g/cm³
	accuracy ：0.001 g/cm³
	repeatability：0.0005 g/cm³
temperature	measuring range：0.0~50.0 °C
	resolution ratio ：0.1 °C
	accuracy ：±0.2 °C
	repeatability：0.1 °C
