Fully automatic refractometer

Main features:

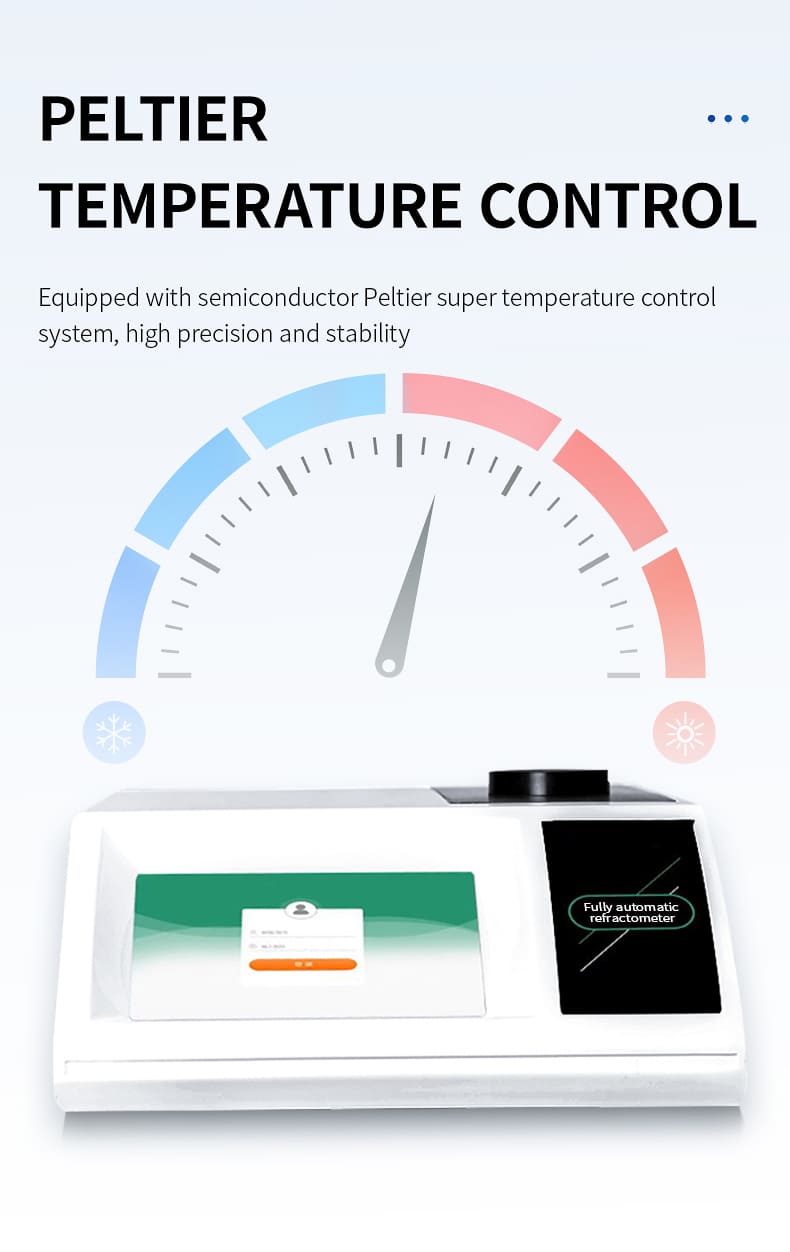

1: Built in Peltier temperature control to improve accuracy and stability;

2: Domestic * * * dual temperature control, sapphire prism;

3: LED cold light source replaces traditional sodium light lamps and halogen tungsten lamps;

4: Compliant with 21CFR Part 11 audit trail, pharmacopoeia and electronic signature, compliant with pharmacopoeia FDA functionality;

5: Support network printing and data statistical retrieval;

6: Multi level permission management, permissions can be freely configured;

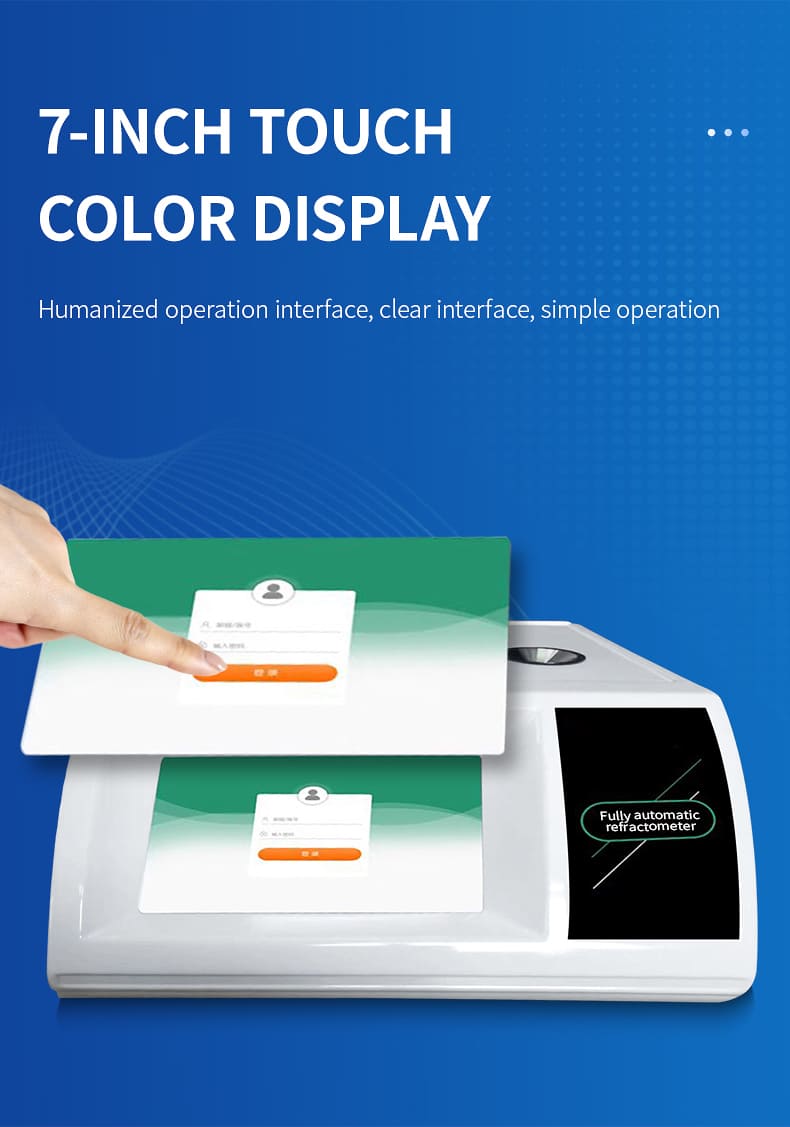

7: 7-inch touch color screen, user-friendly operation interface;

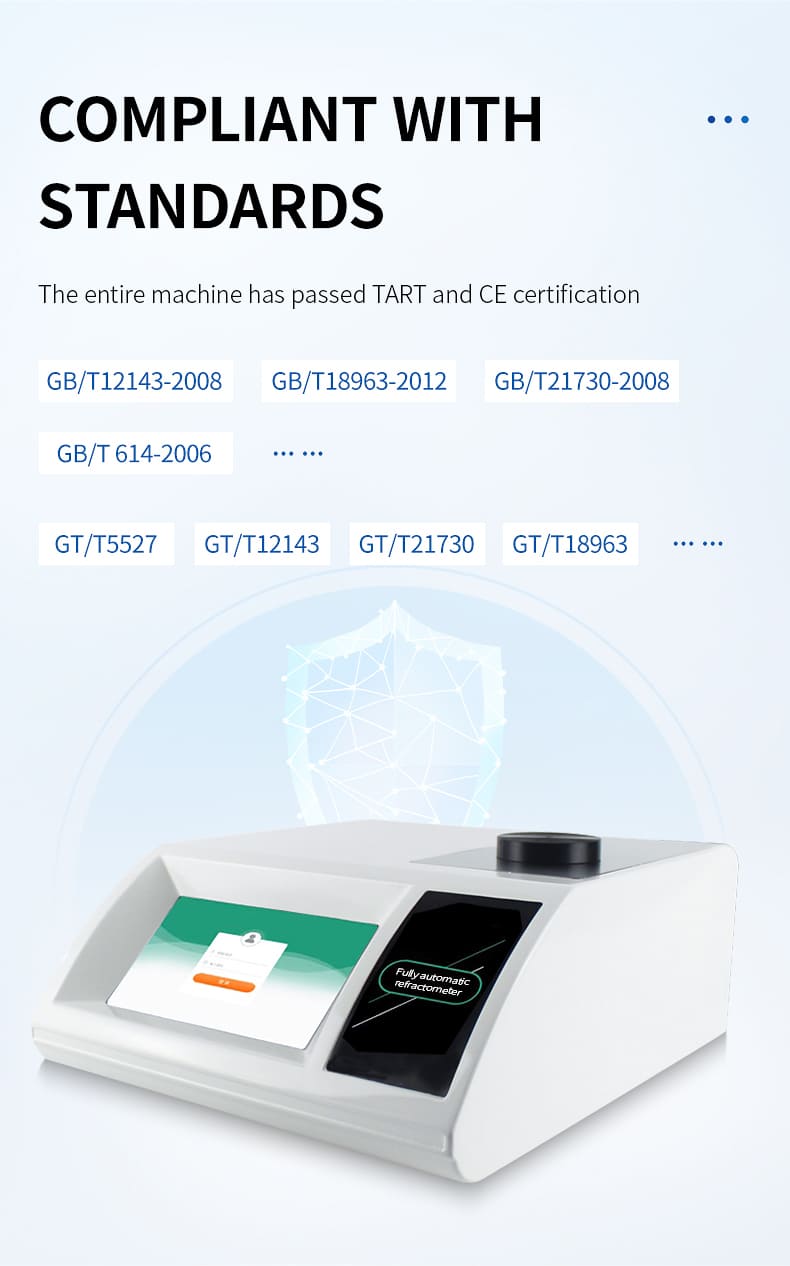

8: The entire machine has passed TART and CE certification.

9: General Rule 0622 of the 2020 edition of the Chinese Pharmacopoeia

Product Introduction:

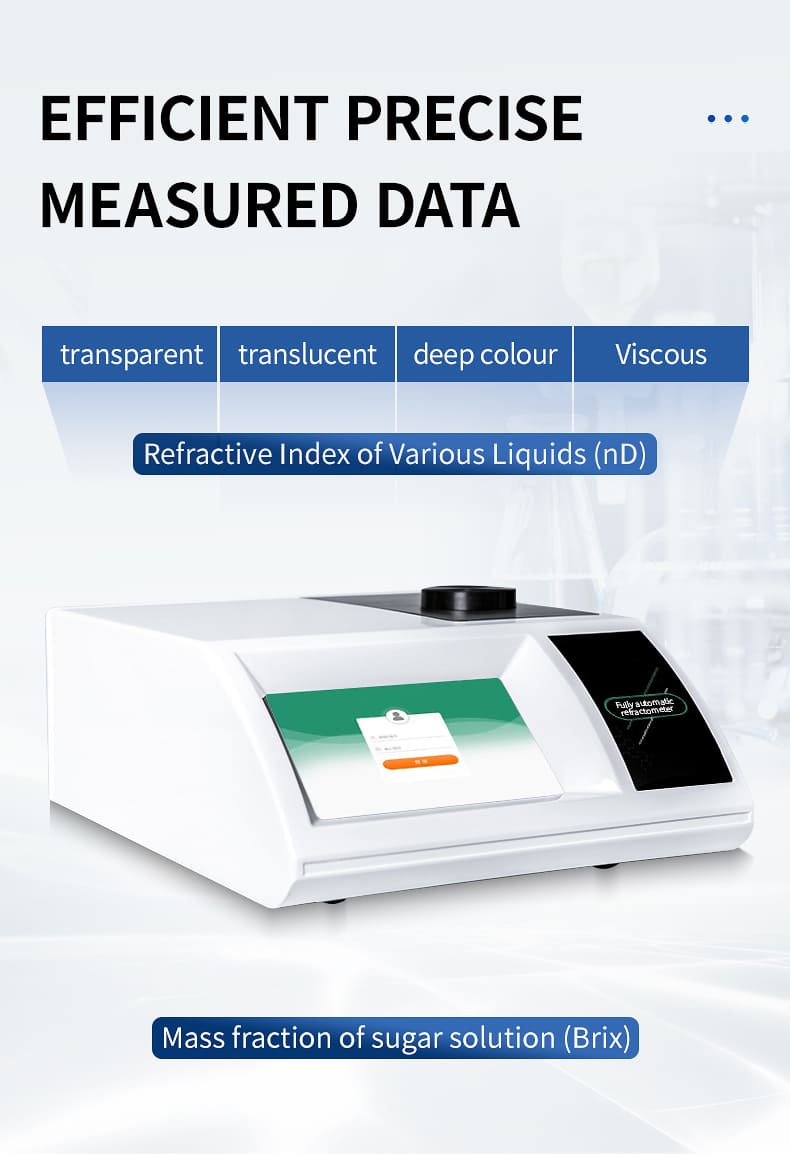

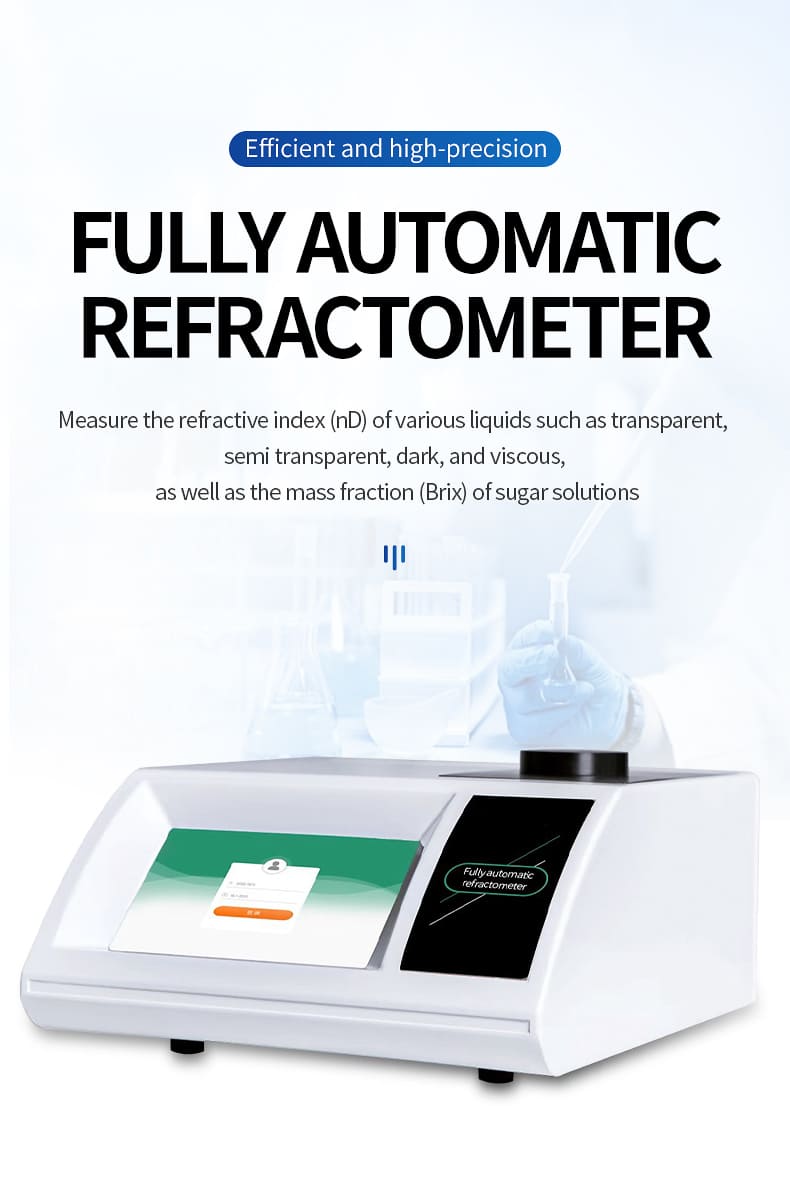

The HM series fully automatic refractometer is equipped with high-performance linear array CCD photosensitive components, and is equipped with a semiconductor Peltier super temperature control system through high-speed and high-precision signal acquisition and analysis processing technology. It can efficiently and accurately measure the refractive index (nD) of various liquids, such as transparent, semi transparent, dark, and viscous liquids, as well as the mass fraction (Brix) of sugar solutions.

Application field:

Complies with national standards such as GB/T12143-2008, GB/T18963-2012, GB/T21730-2008, GB/T 614-2006, etc

Complies with industry standards such as GT/T5527, GT/T12143, GT/T21730, GT/T18963, etc

The fully automatic refractometer is widely used in the petroleum industry, oil and fat industry, pharmaceutical industry, food industry, daily chemical industry, sugar industry, etc. It is also one of the commonly used equipment in schools and related scientific research units.

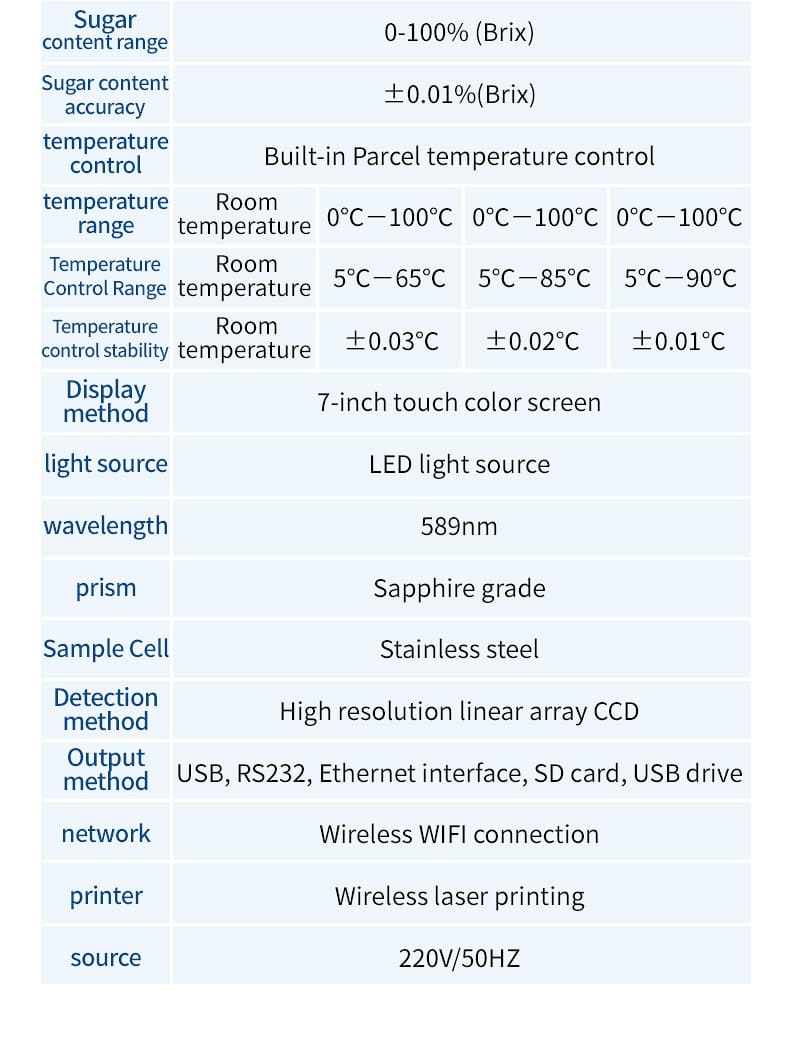

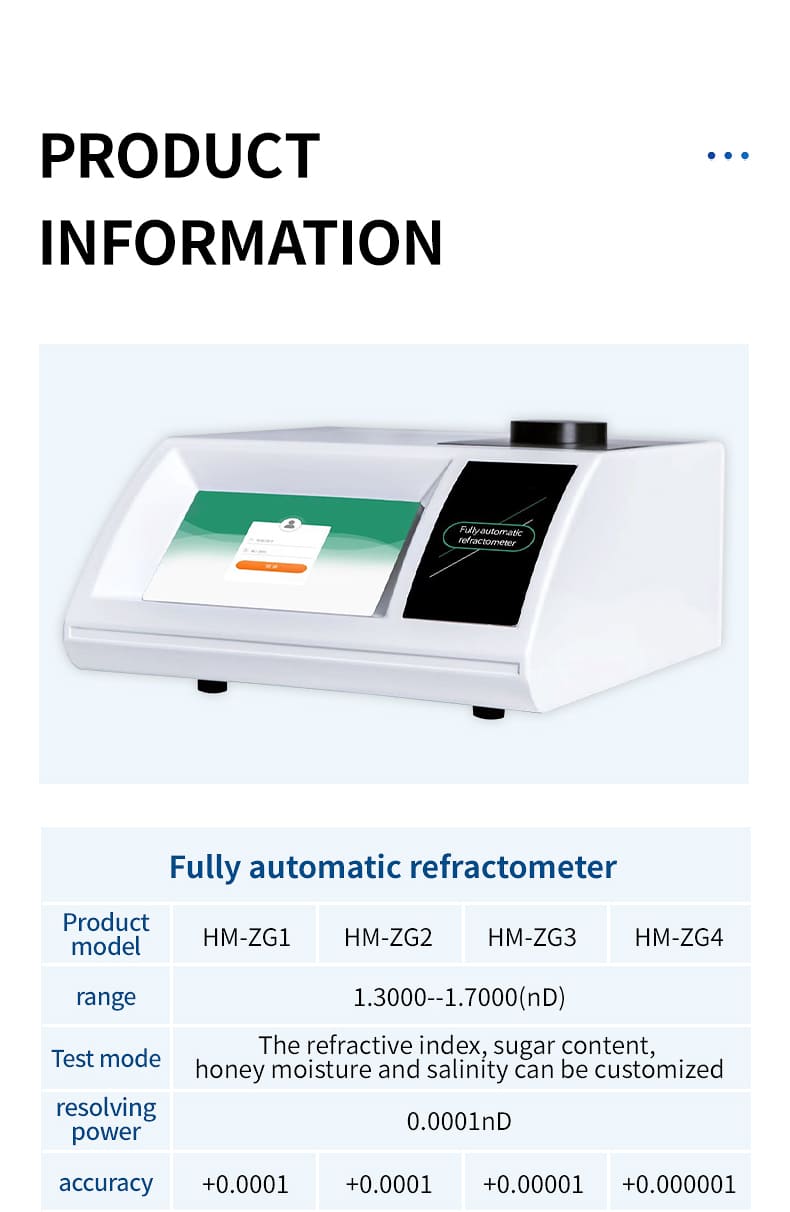

Main technical indicators:

Range: 1.30000-1.70000 (nD)

*Test mode: refractive index, sugar content, honey moisture and salinity can be customized

Resolution: 0.00001

Correction point: Multi point fitting system

Sugar content range: 0- * * * * (Brix)

Sugar content accuracy: ± 0.05% (Brix)

Temperature control method: Parcel temperature control

Temperature range: 0-100 ℃

Temperature control range: 5 ℃ -85 ℃

Temperature control stability: ± 0.02 ℃

Display method: 7-inch touch color screen

Light source: LED light source

Data export: PDF, EXCL

Wavelength: 589nm

Prism: Sapphire grade

Sample cell: stainless steel

Detection method: high-resolution linear array CCD

Output methods: USB, RS232, RJ45, SD card, USB drive

User management: three-level permission management, with freely configurable permissions

Audit Trail: Yes

Network: Wireless WIFI connection

Printer: Wireless laser printing

Electronic signature: Yes

Data storage: 32G

Power supply: 220V/50HZ

Data tamper proof MD5: Yes
