Abbe refractometer

Product Introduction:

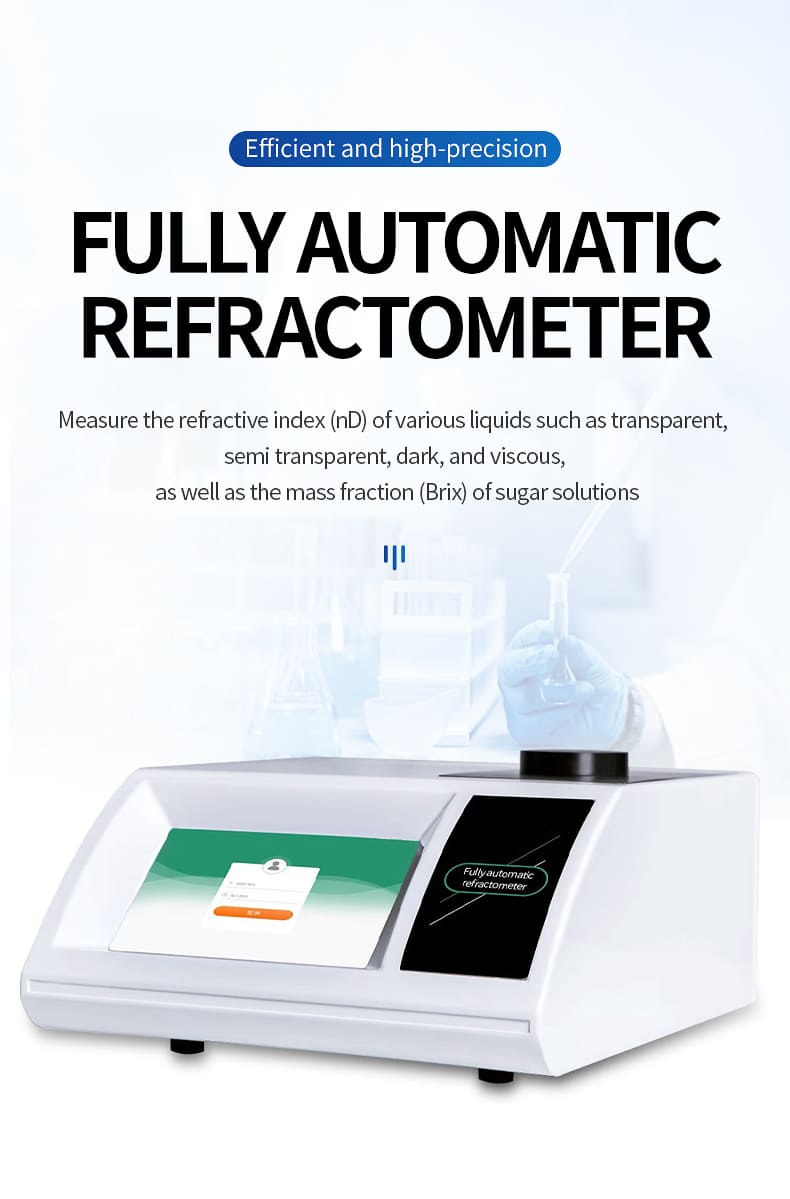

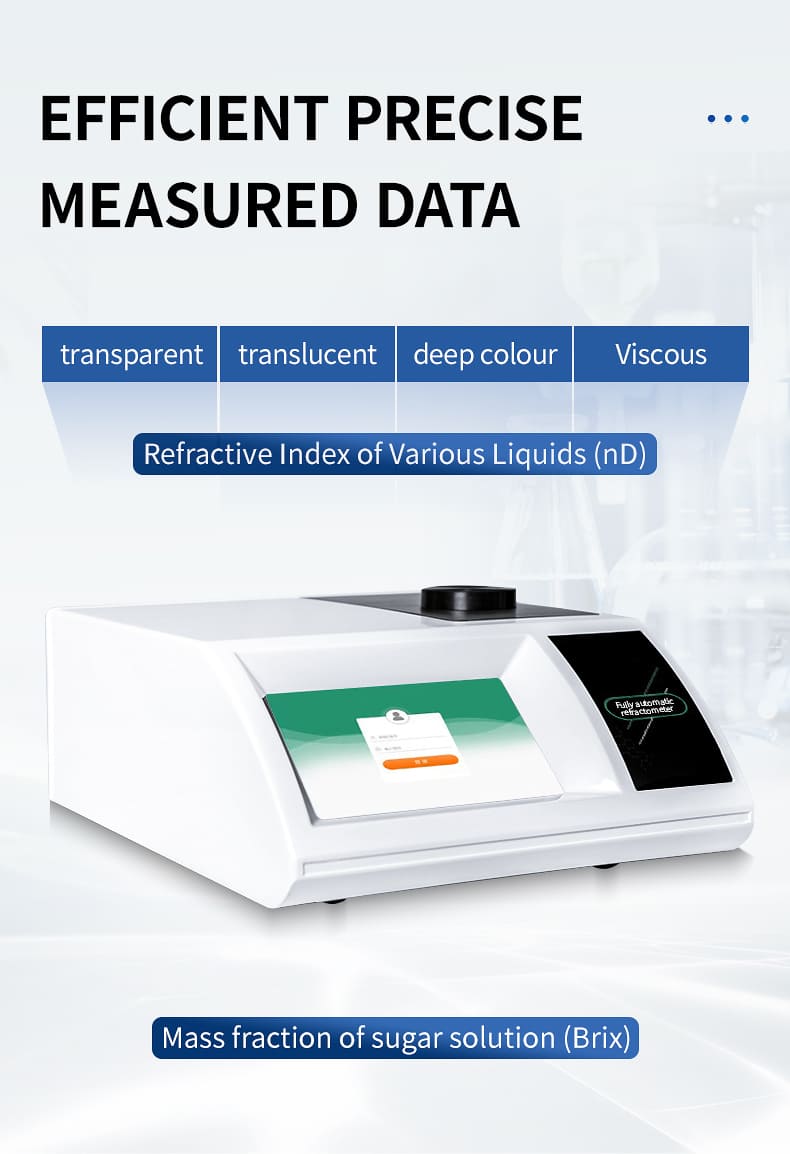

The HM-ZG series fully automatic Abbe refractometer is equipped with high-performance linear array CCD photosensitive components, and is equipped with a semiconductor Peltier super temperature control system through high-speed and high-precision signal acquisition and analysis processing technology. It can efficiently and accurately measure the refractive index (nD) of various liquids such as transparent, semi transparent, dark, and viscous, as well as the mass fraction (Brix) of sugar solutions.

Application field:

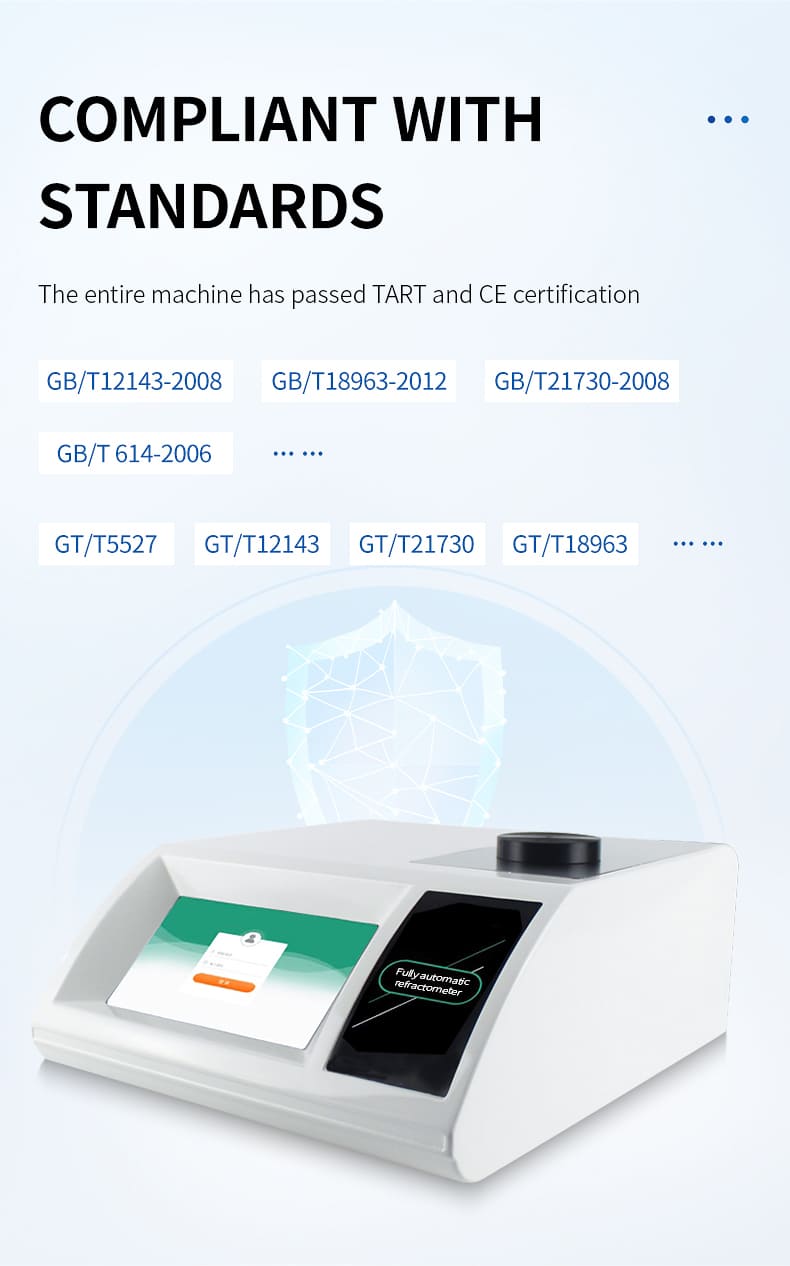

Complies with national standards such as GB/T12143-2008, GB/T18963-2012, GB/T21730-2008, GB/T 614-2006, etc

Complies with industry standards such as GT/T5527, GT/T12143, GT/T21730, GT/T18963, etc

The fully automatic Abbe refractometer is widely used in the petroleum industry, oil and fat industry, pharmaceutical industry, food industry, daily chemical industry, sugar industry, etc. It is also one of the commonly used equipment in schools and related scientific research units.

Features:

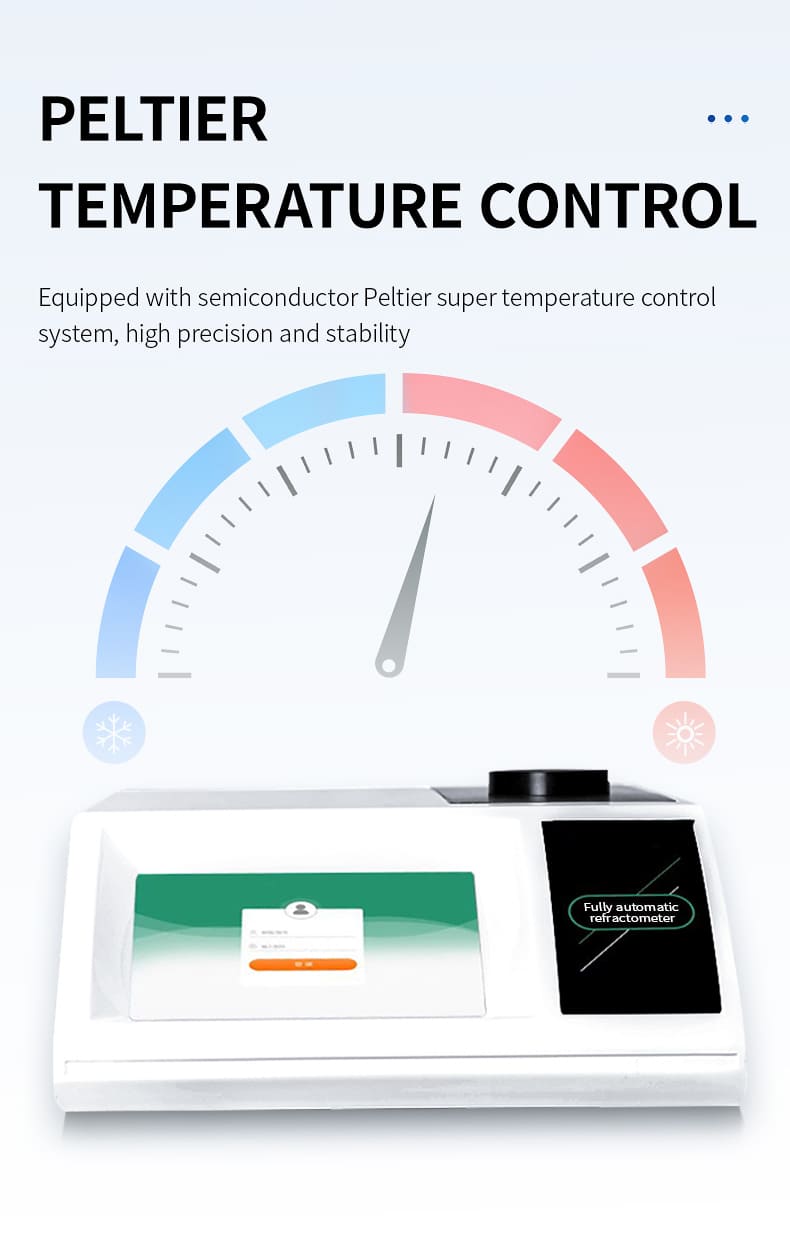

1. Built in Peltier temperature control to improve accuracy and stability;

2. LED cold light source replaces traditional sodium light lamps and halogen tungsten lamps;

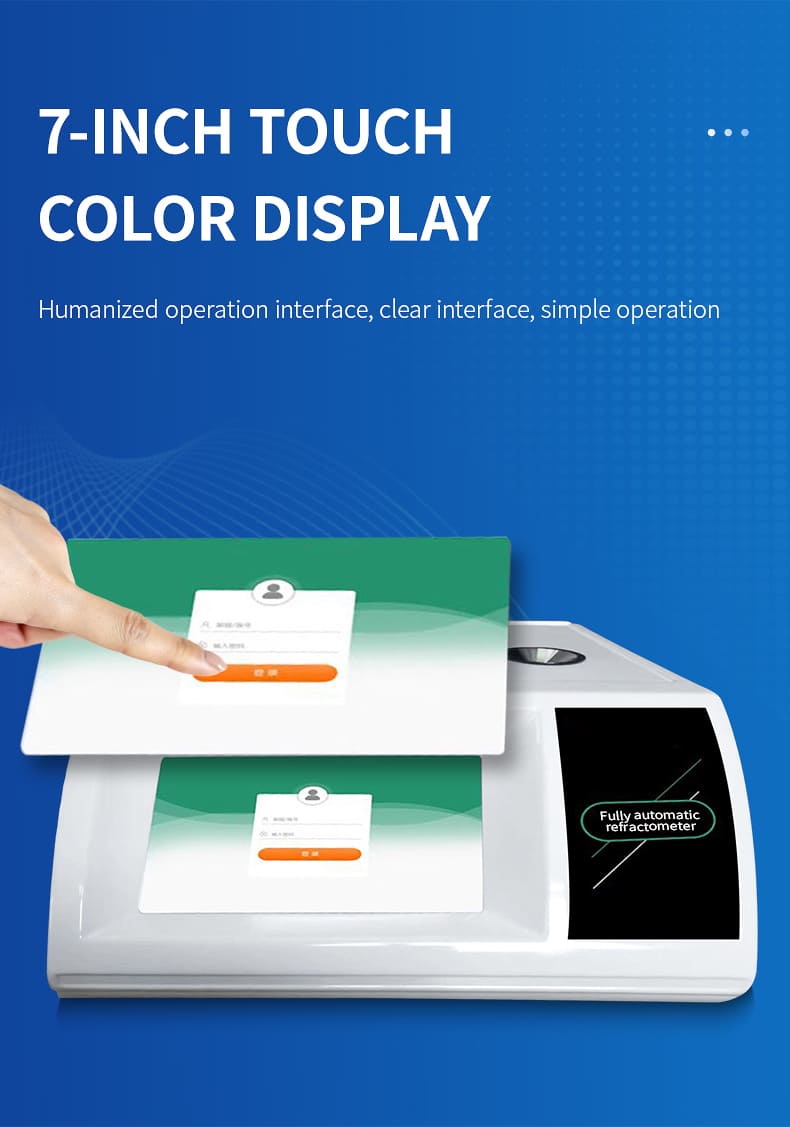

3. 7-inch touch color screen, user-friendly operation interface;

4. The entire machine has passed TART and CE certification.

5. General Rule 0622 of the 2020 edition of the Chinese Pharmacopoeia

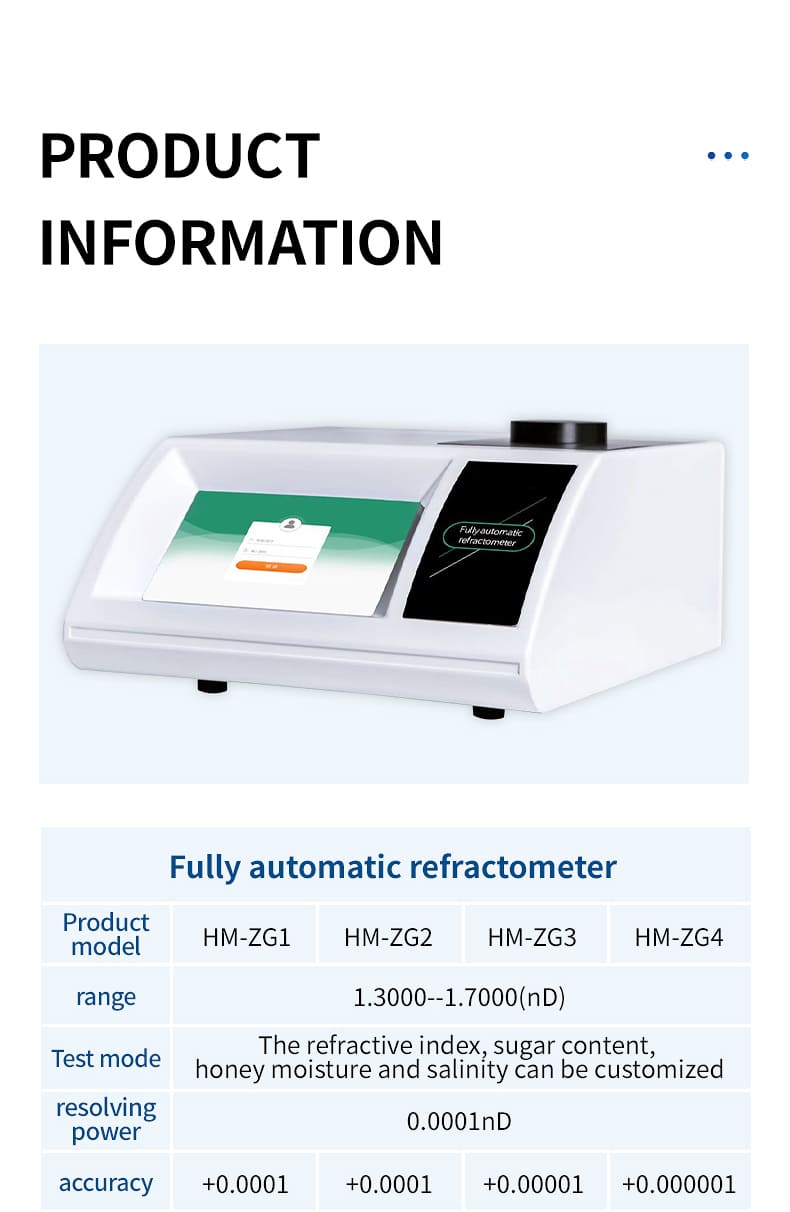

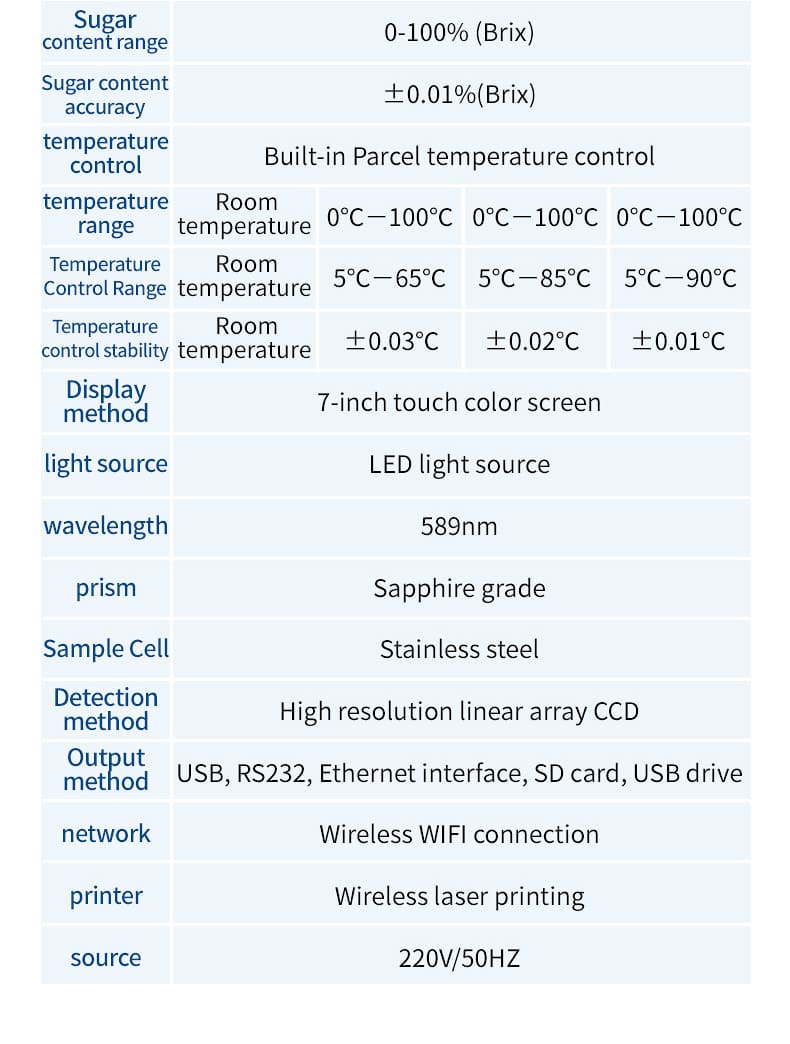

Technical parameters:

Range: 1.3000--1.7000 (nD)

Resolution: 0.0001nD

*Accuracy: ± 0.0002

*Test mode: refractive index, sugar content, honey moisture, salinity

Brix measurement range: 0- * * * (Brix)

Measurement indication error: ± 0.1% (Brix)

Temperature range: 0 ℃ -100 ℃

Temperature control range: 5 ℃ -65 ℃

*Temperature control accuracy: ± 0.03 ℃

Temperature control method: built-in Peltier temperature control

Light source: LED light source

Wavelength: 589nm

Prism: Sapphire grade

Sample cell: stainless steel

Detection method: high-resolution linear array CCD

Output methods: USB, RS232, Ethernet interface, SD card, USB drive

Printer: Needle type (non thermal sensitive)

Power supply: 220V/50HZ
