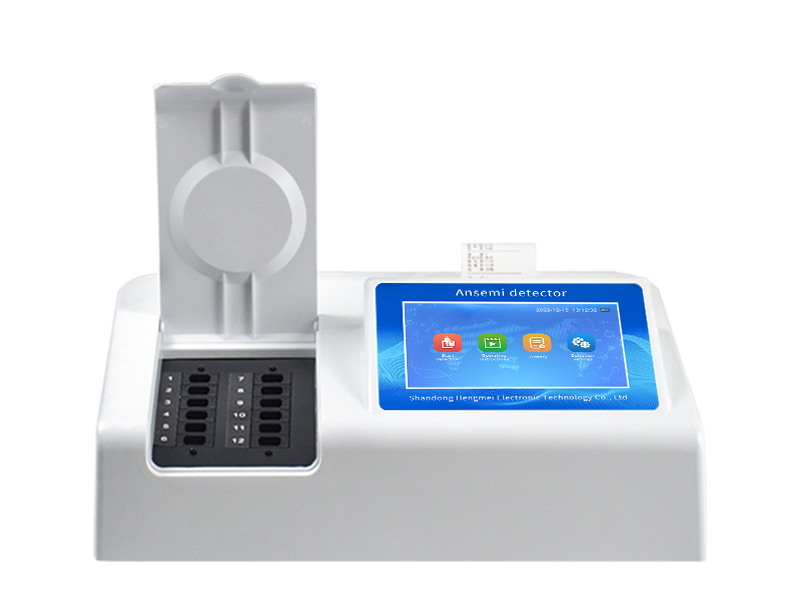

Acesulfame potassium testing instrument

Product introduction:

The Acesulfame potassium testing instrument can quickly detect the content of Acesulfame potassium in candied fruit, jam, candy, bread and pastry, beverages, etc. It is widely used in various testing units.

Function introduction:

1. Android smart operating system, adopts more efficient and humanized operation. The instrument has network cable connection, wifi network upload, GPRS wireless remote transmission function, and fast data upload.

2. High degree of intelligence, the instrument has self-test function: it has power-on self-test and zero adjustment function, and has automatic detection repeatability function.

3. Detection channel: ≥12 detection channels, multiple samples can be tested at the same time, and each sample is controlled by the program to work independently without interfering with each other.

4. Display mode: ≥8-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

5. Equipped with a new generation of embedded thermal printer, you can choose manual printing or automatic printing, and the test report and QR code can be automatically printed after the test is completed.

6. The light source adopts imported ultra-bright light-emitting diodes, which are high-precision, stable, controllable, can turn off unused light sources, and have lower power consumption.

7. The USB2.0 interface design is adopted to facilitate the storage and movement of data, and can be directly connected to the computer at any time, and the instrument can be controlled by the computer. Realize data query, browsing, analysis, statistics, printing, etc.

8. The sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

9. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operations, etc.

10. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

11. The instrument has the functions of recalibration, locking, and restoring factory settings.

12. The result judgment line can be modified, the control value calibration value can be saved, and the data will not be lost when the power is off.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, the main frequency is 1.88Ghz, the operation speed is faster and the stability is stronger.

2. DC 12V power supply, can be connected to the car power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.

3. Four-wavelength cold light source, each channel is equipped with 410, 520, 590, 630nm wavelength light source, standard advanced optical path switching device, patented optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve all channels at the same time.

4. Automatic adjustment and calibration of light source brightness

5. Intelligent constant current voltage regulation, automatic calibration of light intensity, long-term continuous working light source without temperature drift. .

6. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.

7. Uninterrupted sampling, continuous detection

8. Sample numbers are automatically accumulated.

9. The detection items can be expanded.

10. The test results can be printed and uploaded in batches.

11. Data wireless upload platform, and can be exported from the platform as Excel tables.

12. Storage capacity of 200,000 test results

13. Supports USB flash drive copying, standard USB interface, no driver plugging and unplugging.

14. Configurable large-capacity lithium battery, firmware upgradeable

15. Instrument size; 42×31×20cm;

16. Net weight of instrument: 3.6kg;

Technical parameters:

1. Accuracy error: ±3%

2. Linear error: ±5‰

3. Stability: ±0.001A/hr

4. Wavelength accuracy: <2.0nm

5. Absorbance range: 0.000~4.000ABS

6. Data storage 10,00

7. Sample detection time: ≤3 minutes
