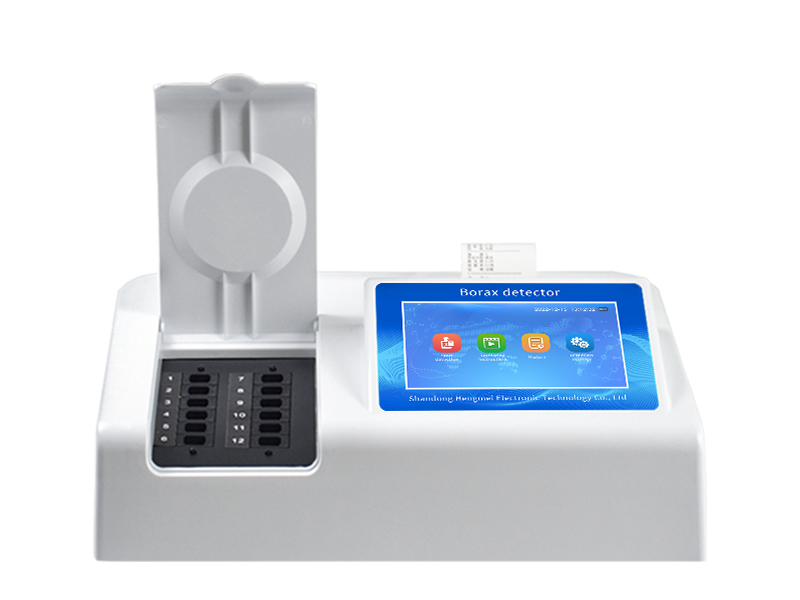

Borax content detector

Product introduction:

HM-P12 Borax content detector can quickly and quantitatively detect the borax content in food, dried and fresh meat, meat products, rice and flour products, rice dumplings, bean curd, tofu, various cakes and fast food consumer products.

Product use:

The HM-P12 Borax content detector is an integrated food safety rapid detection and analysis equipment, widely used in the Food and Drug Administration, health departments, quality supervision and inspection, noodle production bases, supermarkets, shopping malls, agricultural departments, food and meat product deep processing enterprises, major food safety monitoring systems and other units.

Function introduction:

1. Android smart operating system, using more efficient and humanized operation, the instrument has network cable connection, wifi network upload, GPRS wireless remote transmission function, fast data upload.

2. High degree of intelligence, the instrument has self-test function: it has power-on self-test and zero adjustment functions, and has automatic detection repeatability function.

3. Detection channel: ≥12 detection channels, multiple samples can be tested at the same time, each sample is controlled by the program and works independently without interfering with each other.

4. Display mode: ≥8-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

5. Equipped with a new generation of embedded thermal printer, you can choose manual printing or automatic printing, and the test report and QR code can be automatically printed after the test is completed.

6. The light source adopts imported ultra-bright light-emitting diodes, which are high-precision, stable, controllable, and can turn off unused light sources, with lower power consumption.

7. The USB2.0 interface design is adopted to facilitate the storage and movement of data, and can be directly connected to the computer at any time, and the instrument can be controlled by the computer. Realize data query, browsing, analysis, statistics, printing, etc.

8. The instrument has a supervision platform. Data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out long-term data analysis and processing, monitor the long-term and short-term dynamics of food safety, and achieve food safety problem estimation and early warning.

9. The instrument has a multi-category and multi-type sample menu library, which can flexibly select test samples, and different test channels can detect different sample items at the same time. You can also directly edit and enter sample names, test batches and other information on the instrument and save them in the sample database.

10. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

11. The result judgment line can be modified, the reference value calibration value can be saved, and the power is off without losing data.

12. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operations.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

14. The instrument has the functions of recalibration, locking, and restoring factory settings.

Main parameters:

1. The main control chip uses ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88Ghz, faster operation speed and stronger stability.

2. DC 12V power supply, can be connected to the vehicle power supply, and can be equipped with a 6ah large-capacity rechargeable lithium battery, which is convenient for outdoor mobile testing.

3. Four-wavelength cold light source, each channel is equipped with 410, 520, 590, 630nm wavelength light source, standard advanced optical path switching device, patented optical path switching function can achieve up to 64 wavelengths, and all test items can achieve simultaneous detection of all channels.

4. Automatic adjustment and calibration of light source brightness

5. Intelligent constant current voltage regulation, automatic calibration of light intensity, long-term continuous working light source without temperature drift. .

6. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.

7. Uninterrupted sampling, continuous detection

8. Automatic accumulation of sample numbers.

9. The test items can be expanded.

10. The test results can be printed and uploaded in batches.

11. Wireless data upload platform, and can be exported from the platform as Excel tables.

12. The test result storage capacity is 200,000

13. It also supports U disk copying, standard USB interface, and driver-free plug-in.

14. Configurable large-capacity lithium battery, firmware upgradeable

15. Instrument size: 42×31×20cm;

16. Net weight of instrument: 3.6kg;

Technical parameters:

Precision error: ±3%

Linear error: ±5‰

Stability: ±0.001A/hr

Wavelength accuracy: <2.0nm

Wavelength range: 530nm

Transmittance repeatability: ±1%

Data storage 80,00 records

Cuvette: 10×10mm standard sample pool
