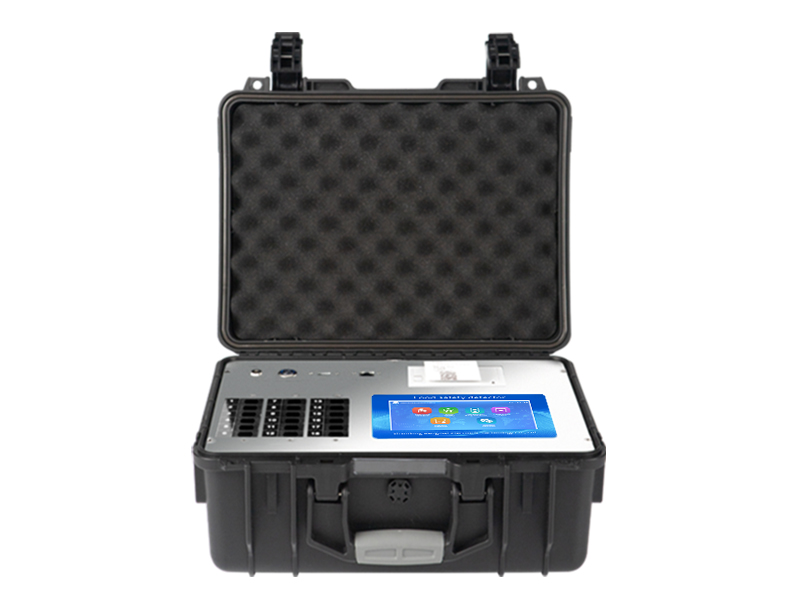

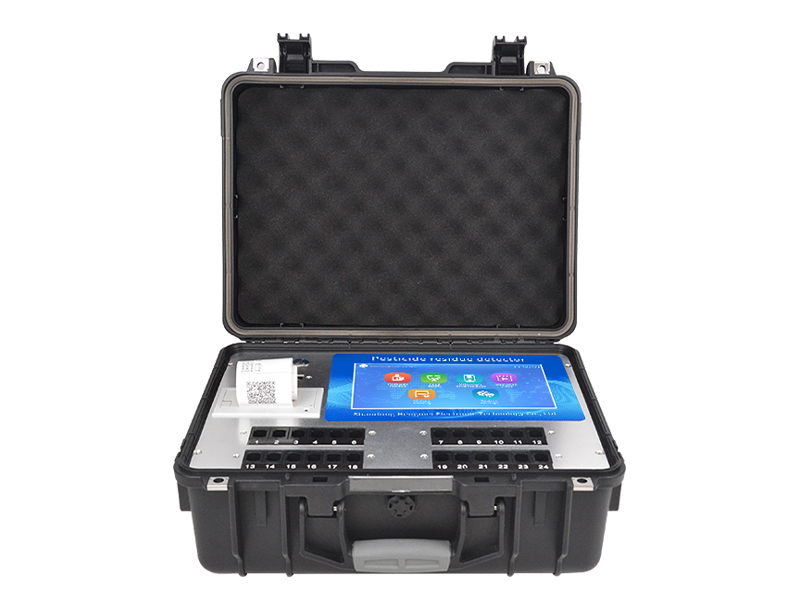

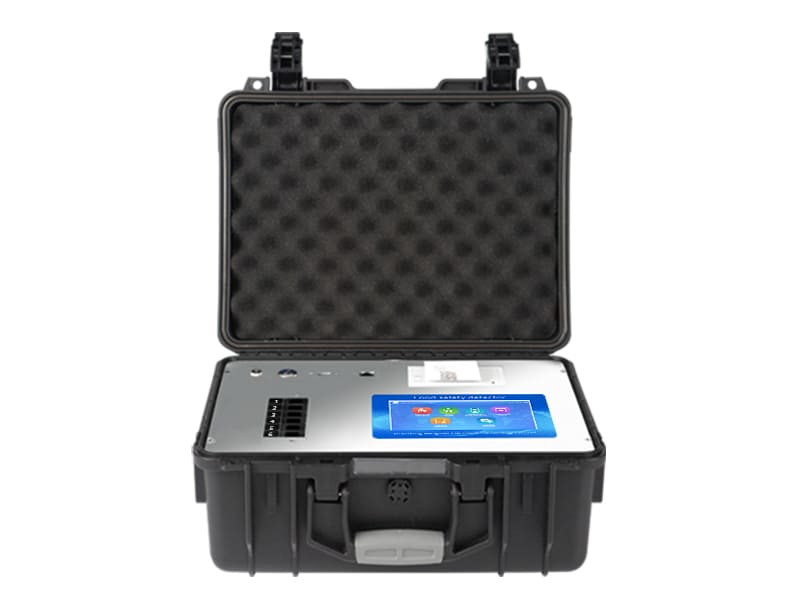

Food Safety Analyzer

Product Introduction:

The multifunctional food safety detector can quickly detect over 200 items, including qualitative and quantitative detection of non edible chemicals, abused food additives, pesticide residues, veterinary drug residues, heavy metals, diseased meat, nutritional fortifiers, antibiotic residues, hormone residues, fungal toxin residues, chemical residues, and other on-site tests.

This multifunctional food safety detector is an integrated fast detection and analysis equipment for food safety, widely used in units such as the Food and Drug Administration, health departments, higher education institutions, research institutes, agricultural departments, breeding farms, slaughterhouses, food and meat product deep processing enterprises, inspection and quarantine departments, etc.

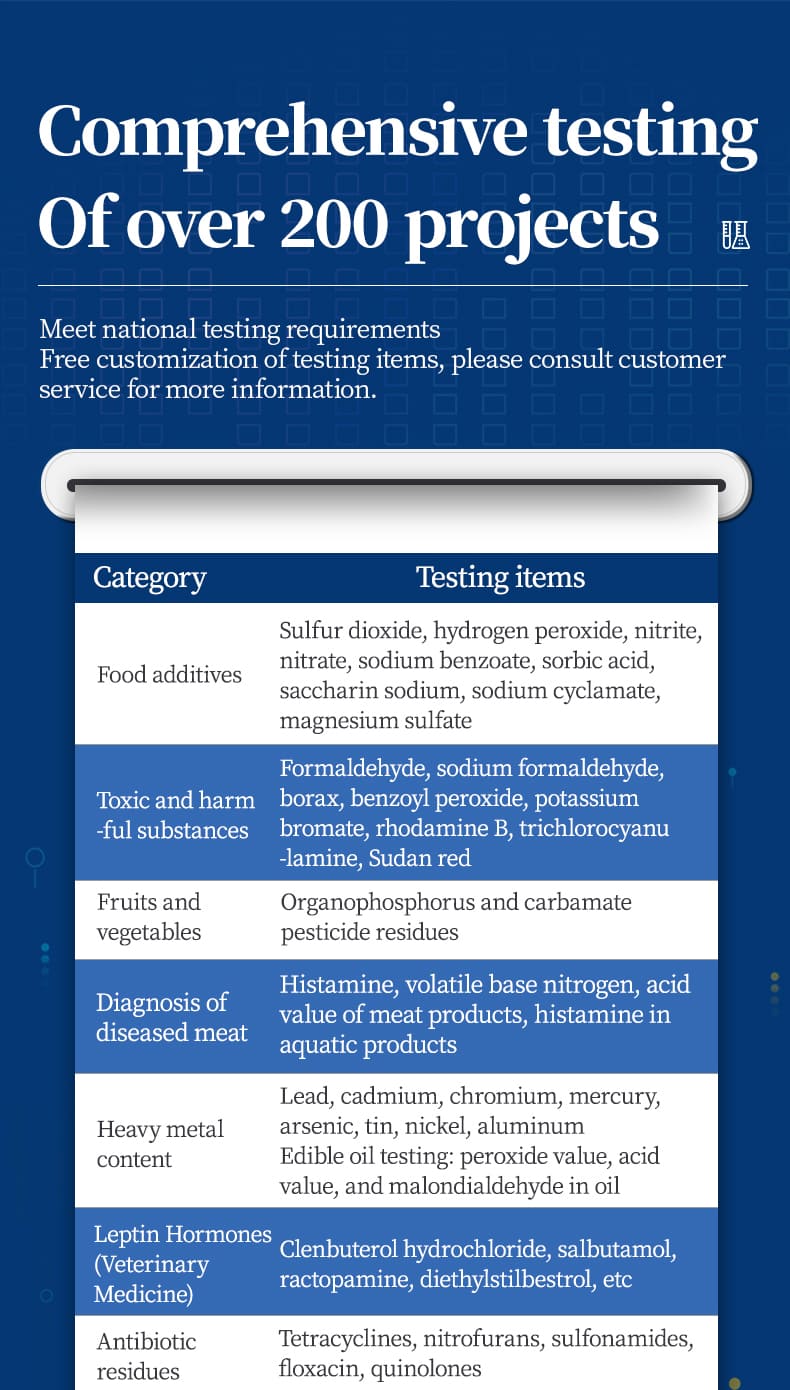

Testing items:

Food additives: sulfur dioxide, hydrogen peroxide, nitrite, nitrate, sodium benzoate, sorbic acid, saccharin sodium, saccharin sodium, saccharin sulfate, magnesium sulfate

Toxic and harmful substances: formaldehyde, sodium permanganate, borax, benzoyl peroxide, industrial alkali, potassium bromate, rhodamine B, melamine, Sudan red

Pesticide residues in fruits and vegetables, diagnosis of diseases in meat: histamine, volatile base nitrogen, acid value of meat products, histamine in aquatic products

Heavy metal content: lead, cadmium, chromium, mercury, arsenic, tin, nickel, aluminum. Edible oil testing: peroxide value, acid value, and malondialdehyde in the oil.

Leptin hormones (veterinary drugs): clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, quinoline, etc

Antibiotic residues (veterinary drugs): tetracyclines, nitrofurans, sulfonamides, floxacin, quinolones, gentamicin, streptomycin, amoxicillin, erythromycin, etc

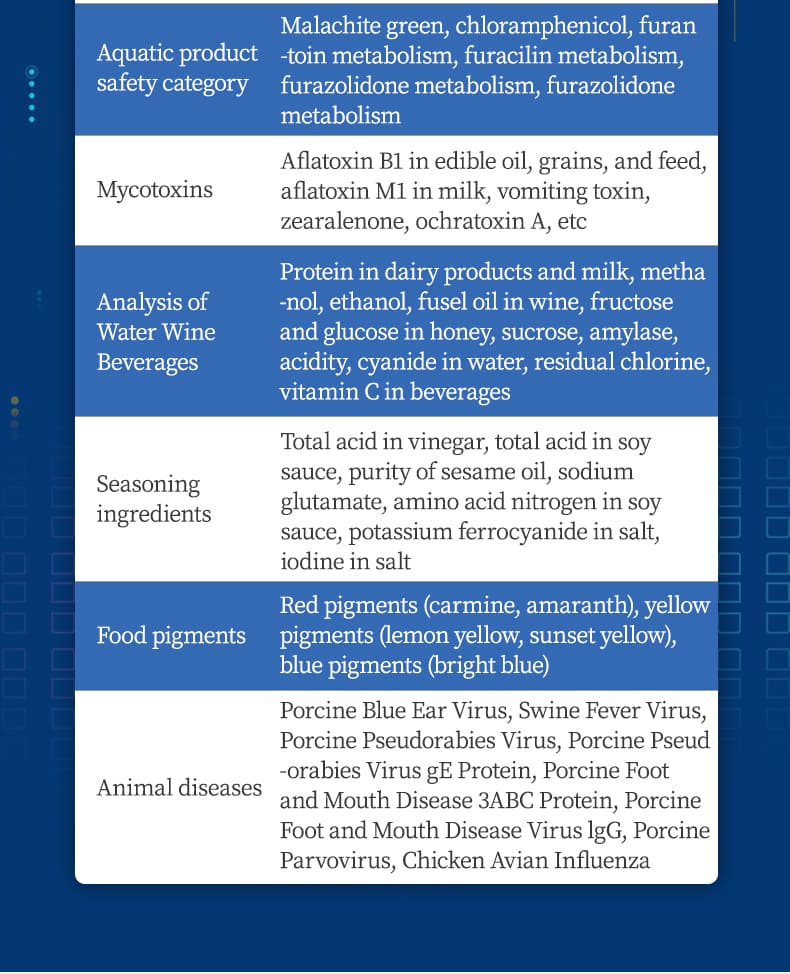

Aquatic product safety category: Malachite green, chloramphenicol, furantoin metabolism, furacillin metabolism, furanone metabolism, furazolidone metabolism

Fungal toxins: aflatoxin B1 in edible oil, grains, and feed, aflatoxin M1 in milk, vomiting toxins, zearalenone, ochratoxin A, etc

Analysis of alcoholic beverages: protein in dairy and milk, methanol, ethanol, and fusel oil in wine, fructose and glucose, sucrose, amylase, acidity in honey, cyanide and residual chlorine in water, vitamin C in beverages

Seasoning ingredients: total acid of vinegar, total acid of soy sauce, purity of sesame oil, sodium glutamate, amino acid nitrogen of soy sauce, potassium ferrocyanide in table salt, iodine in table salt

Food pigments: red pigments (carmine red, amaranth red), yellow pigments (lemon yellow, sunset yellow), blue pigments (bright blue)

Animal diseases: Porcine blue ear virus, swine fever virus, porcine pseudorabies virus, porcine pseudorabies virus gE protein, porcine foot-and-mouth disease 3ABC protein, porcine foot-and-mouth disease virus IgG, porcine parvovirus, chicken avian influenza

Functional performance:

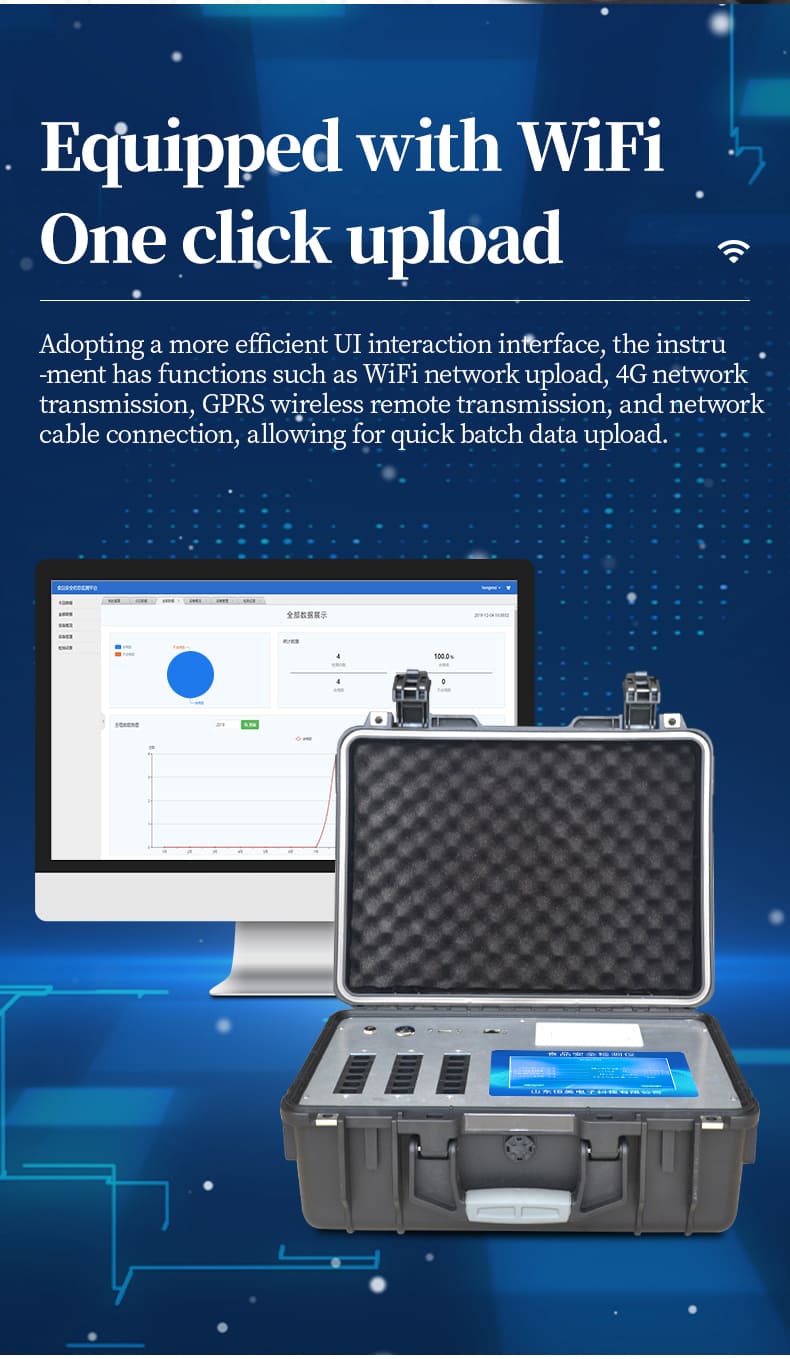

1. The Android intelligent operating system adopts a more efficient UI interface, and the instrument has functions such as WiFi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, allowing for quick batch data upload.

2. High level of intelligence, the instrument has self checking function: it has startup self checking and zero adjustment functions, and automatic detection of repeatability.

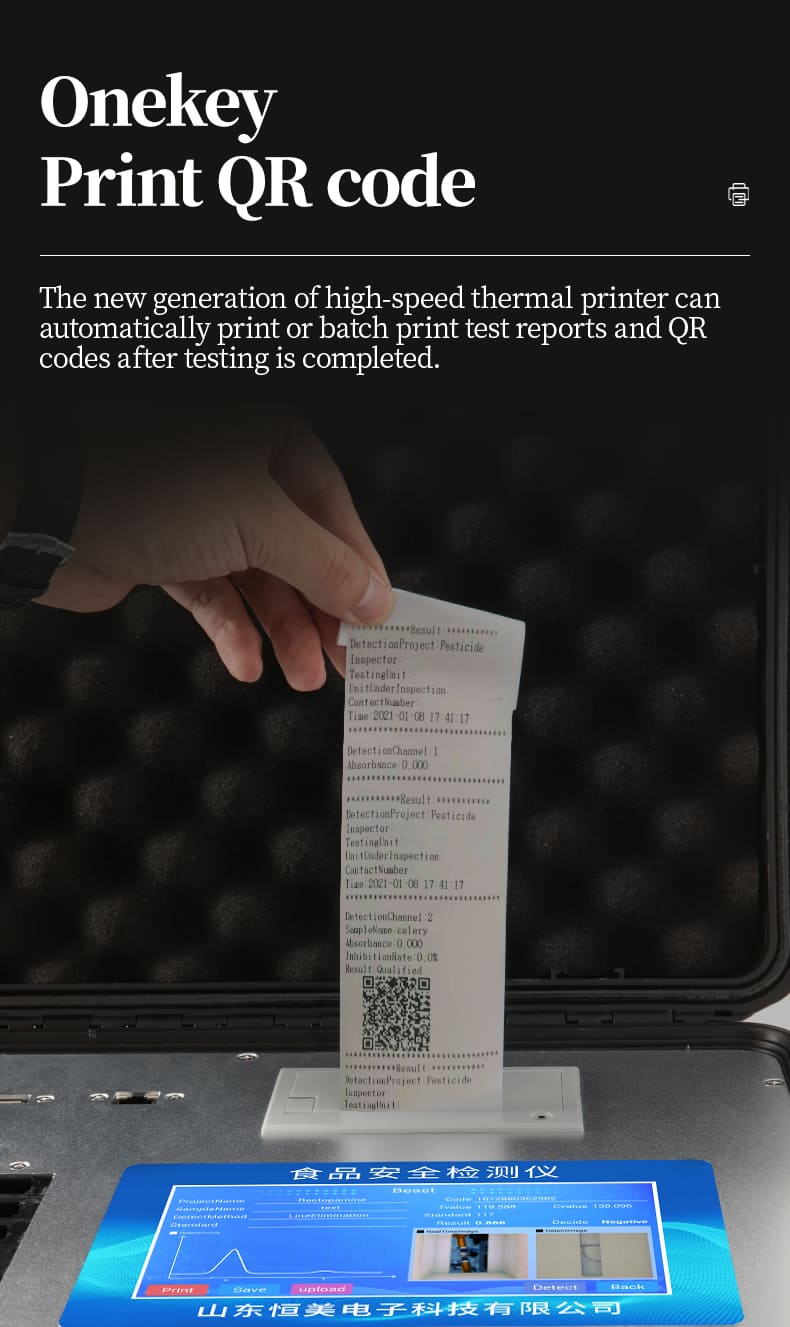

3. The new generation of high-speed thermal printers can automatically print or batch print detection reports and QR codes after detection is completed.

4. The instrument is equipped with a supervision platform, and the data can be uploaded on the LAN and Internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis, processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

5. Integrated host, including food safety detection module, multi-channel pesticide residue detection module, colloidal gold immunochromatographic detection module.

6. Integrated portable rapid inspection equipment, meeting the needs of on-site and mobile detection, can achieve the detection of all detection items under the same software, and can visually display the detection results through the same window.

7. Colloidal gold module detection method: track type automatic transmission scanning, automatically exiting the detection card after detection is completed.

8. CT line automatic recognition, no need for manual adjustment, automatic display of CT coordinate curve after detection.

9. The instrument has a menu library of multiple categories and types of samples, allowing for flexible selection of detection samples. Different detection channels can simultaneously detect different sample items. You can also directly edit and input sample names, testing indicators, testing units, and other information on the instrument and save them in the sample database.

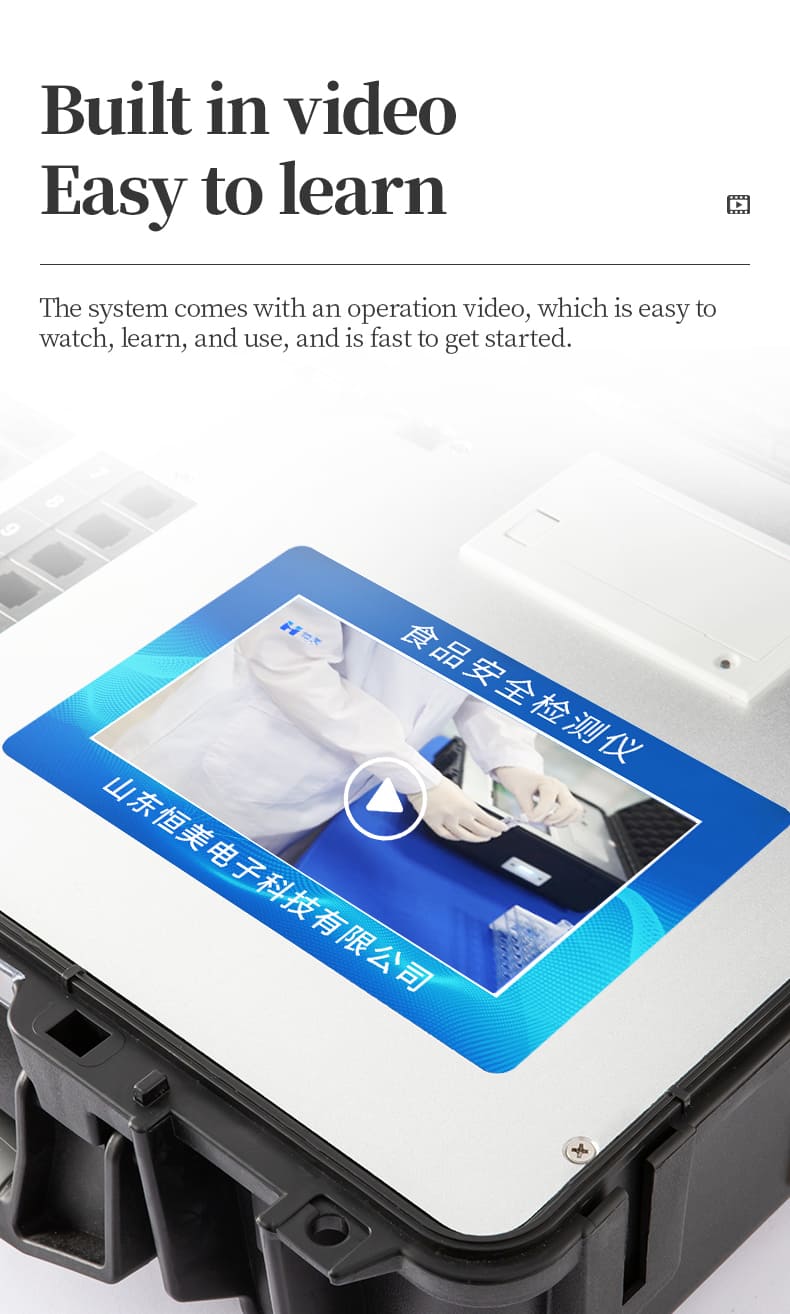

10. The built-in operation demonstration video of the product is your laboratory guidance expert.

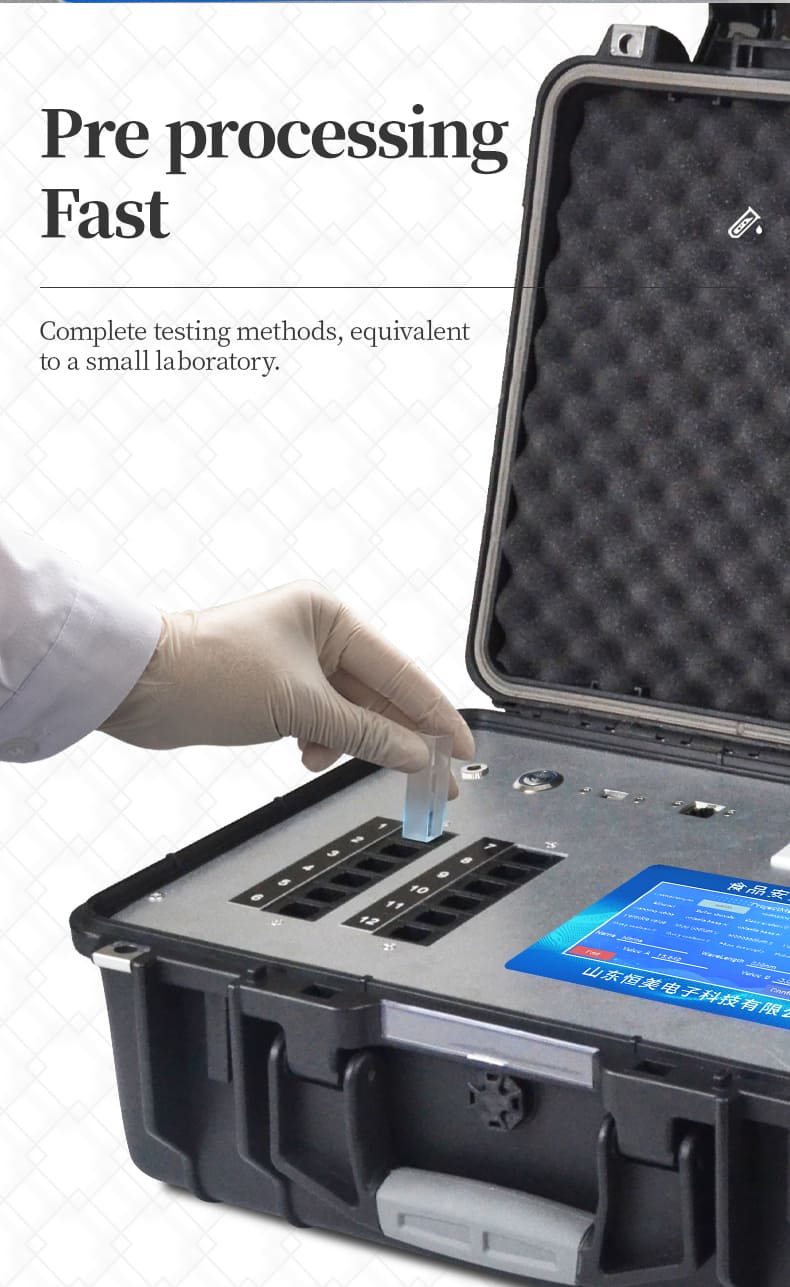

11. The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

12. The instrument has its own protection function, which can be set with a username and password to prevent non staff operations.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning type high-precision optical sensor.

14. The instrument has functions of recalibration, locking, and factory reset.

15. The result judgment line can be modified, the calibration value of the reference value can be saved, and data will not be lost when power is turned off.

16. Compatible with all colloidal gold cards on the market, with unrestricted use of consumables, greatly enhancing the user experience.

Main parameters:

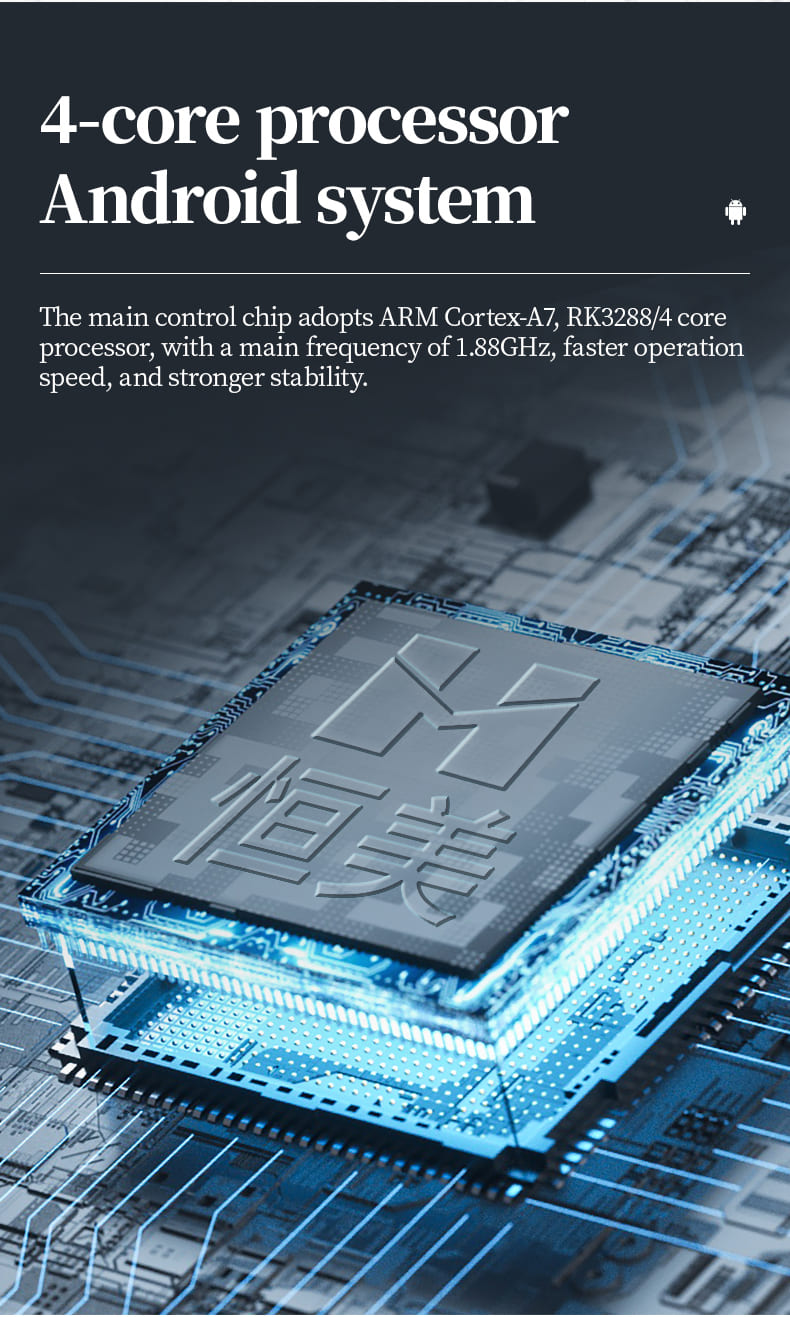

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, which runs faster and has stronger stability.

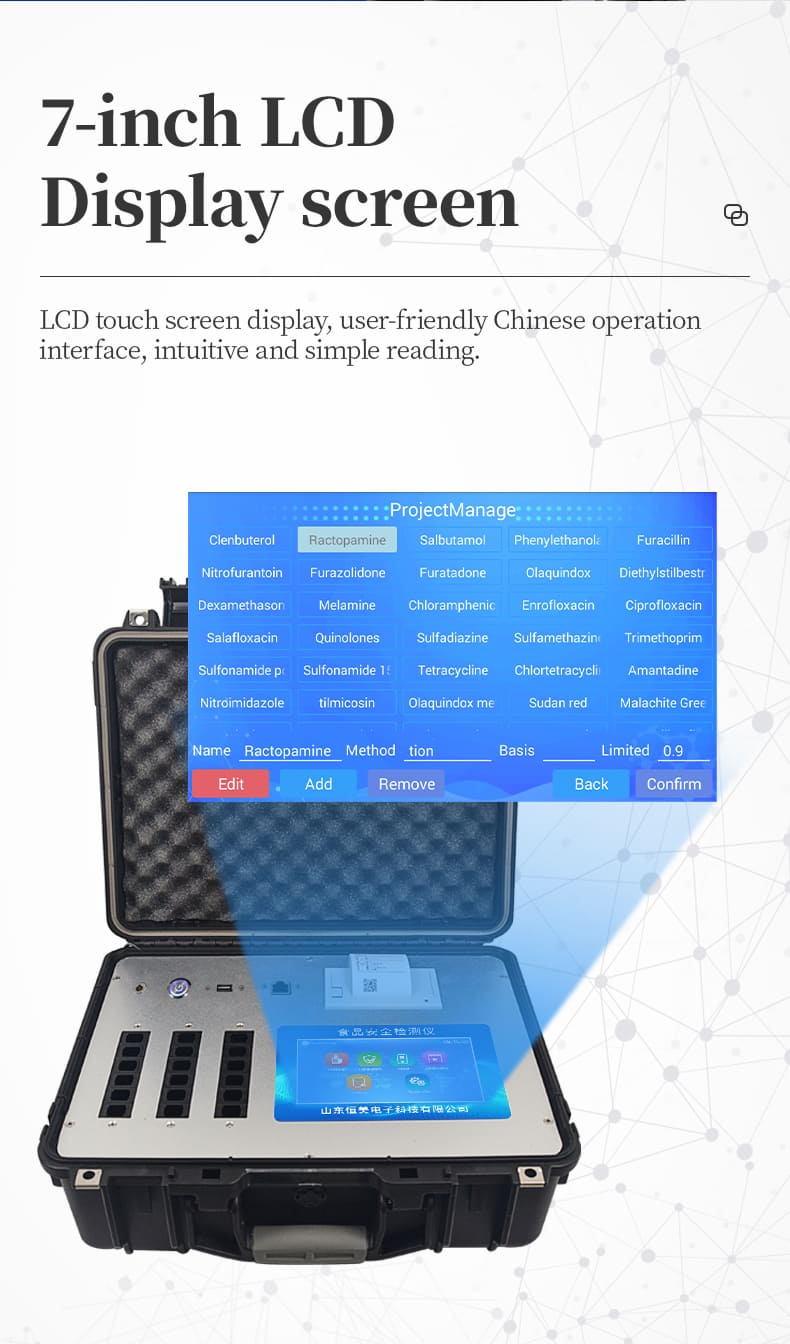

2. Display method: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

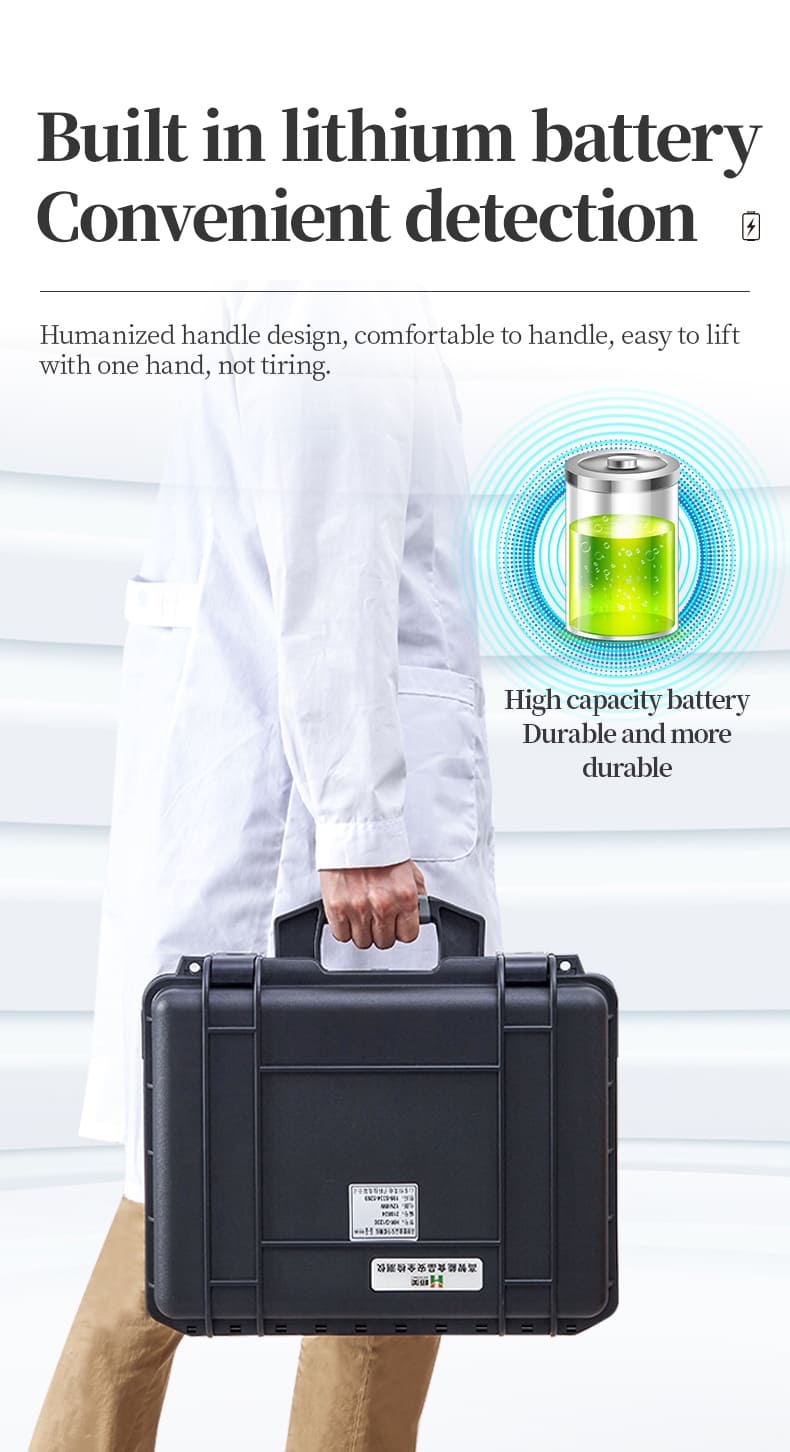

3. Dual use of AC and DC, powered by 12V DC, can be connected to vehicle power supply, and can be equipped with a 6Ah large capacity rechargeable lithium battery for convenient outdoor flow testing.

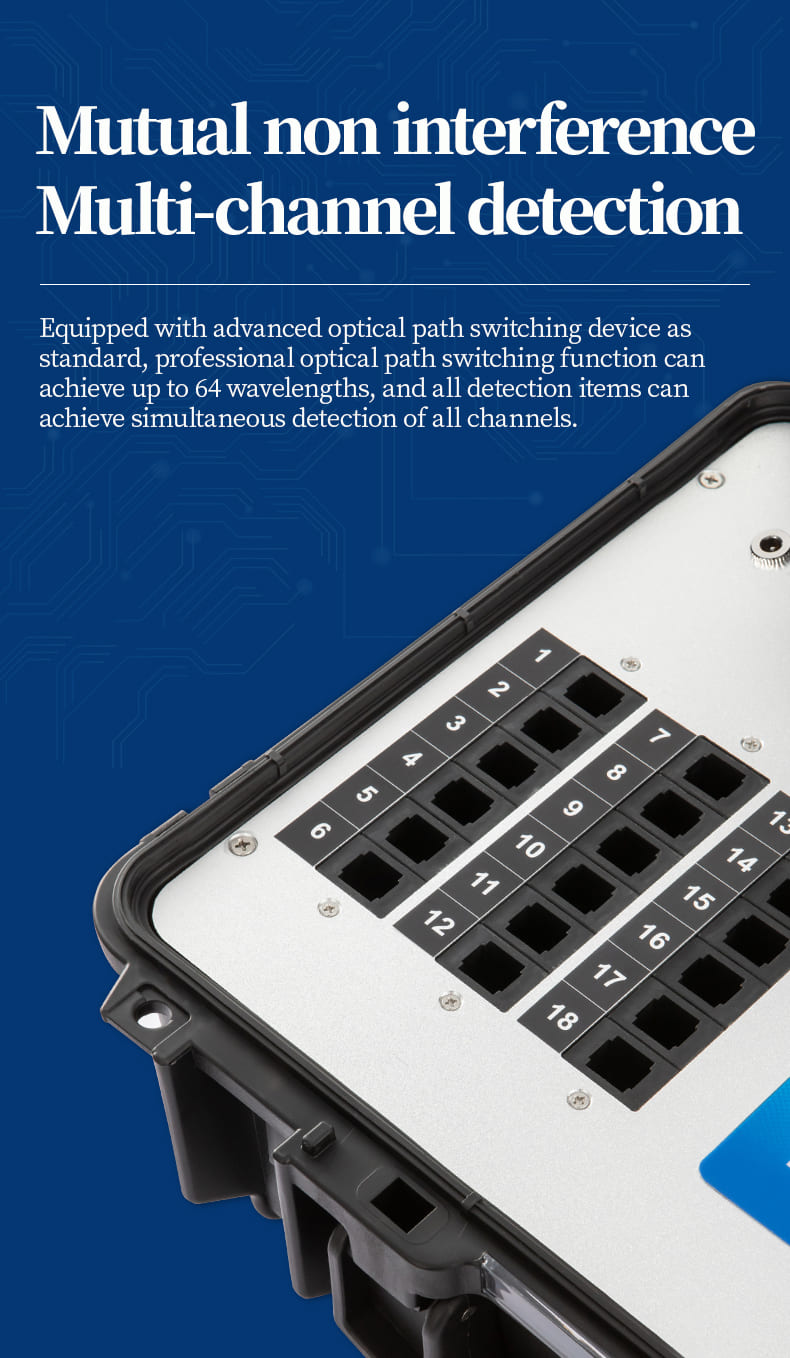

4. Four wavelength cold light source, 6 detection channels, each equipped with 410, 520, 590, and 630nm wavelength light sources, equipped with advanced optical path switching device as standard, professional optical path switching function can achieve * multiple 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current voltage regulation, automatic calibration of light intensity, and long-term continuous operation of the light source without temperature drift phenomenon.

7. Built in new national limited edition standards, on-site comparison with measured results, and continuous updating of standards.

8. Continuous injection and detection

9. Sample numbers are automatically accumulated.

10. The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

11. Storage capacity of 200000 test results

12. Supports USB storage, standard USB interface, and driver free installation.

13. The detection items can be expanded and the firmware can be upgraded

14. Instrument size: 43× 35× 20cm, net weight of the host: 5.1kg

Technical parameters:

1. Pesticide residues: lower detection limit: inhibition rate of 5%, detection range: inhibition rate (0-100)%

2. Formaldehyde: detection limit: 1mg/kg, detection range: (0-100) mg/kg

3. Nitrite: detection limit: 1mg/kg, detection range: (0-100) mg/kg

4. Sulfur dioxide: lower detection limit: 1mg/kg; 5mg/kg, detection range: (0-100) mg/kg; (0-500) mg/kg

5. Hangbai block: detection limit: 5 mg/kg, detection range: (0-500) mg/kg

6. Protein: Lower detection limit: 0.5%, detection range: (0-50)%

7. Borax: detection limit: 5 mg/kg, detection range: (0-100) mg/kg

8. Hydrogen peroxide: detection limit: 5 mg/kg; 10 mg/kg; 100 mg/kg, detection range: (0-500) mg/kg; (0-1000) mg/kg; (0-10000) mg/kg

9. Nitrate: detection limit: 10 mg/kg; 40 mg/kg, detection range: (0-1000) mg/kg; (0-4000) mg/kg

10. Heavy metal lead: detection limit: 0.5 mg/kg; 0.2 mg/L, detection range: (0-50) mg/kg; (0-20) mg/L
