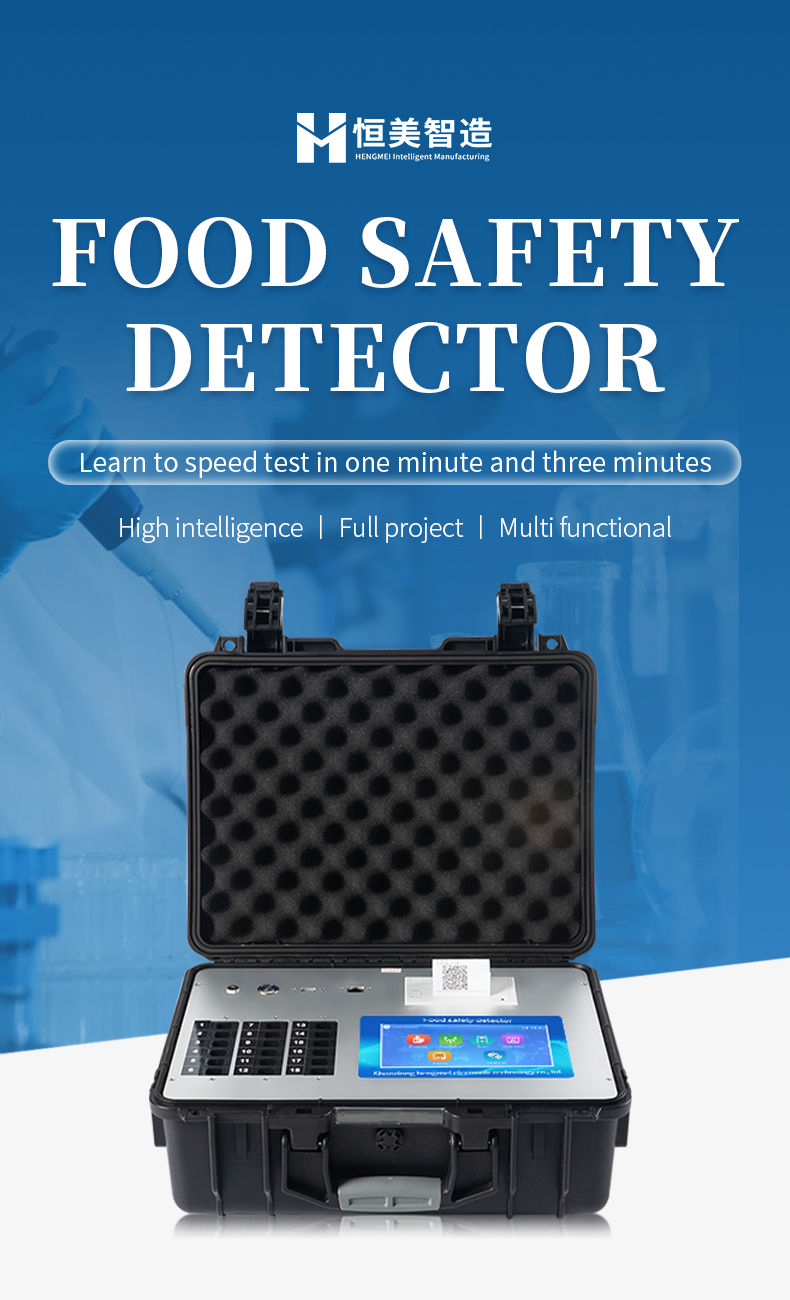

HM-GS300 Food Safety Detector

Product Introduction

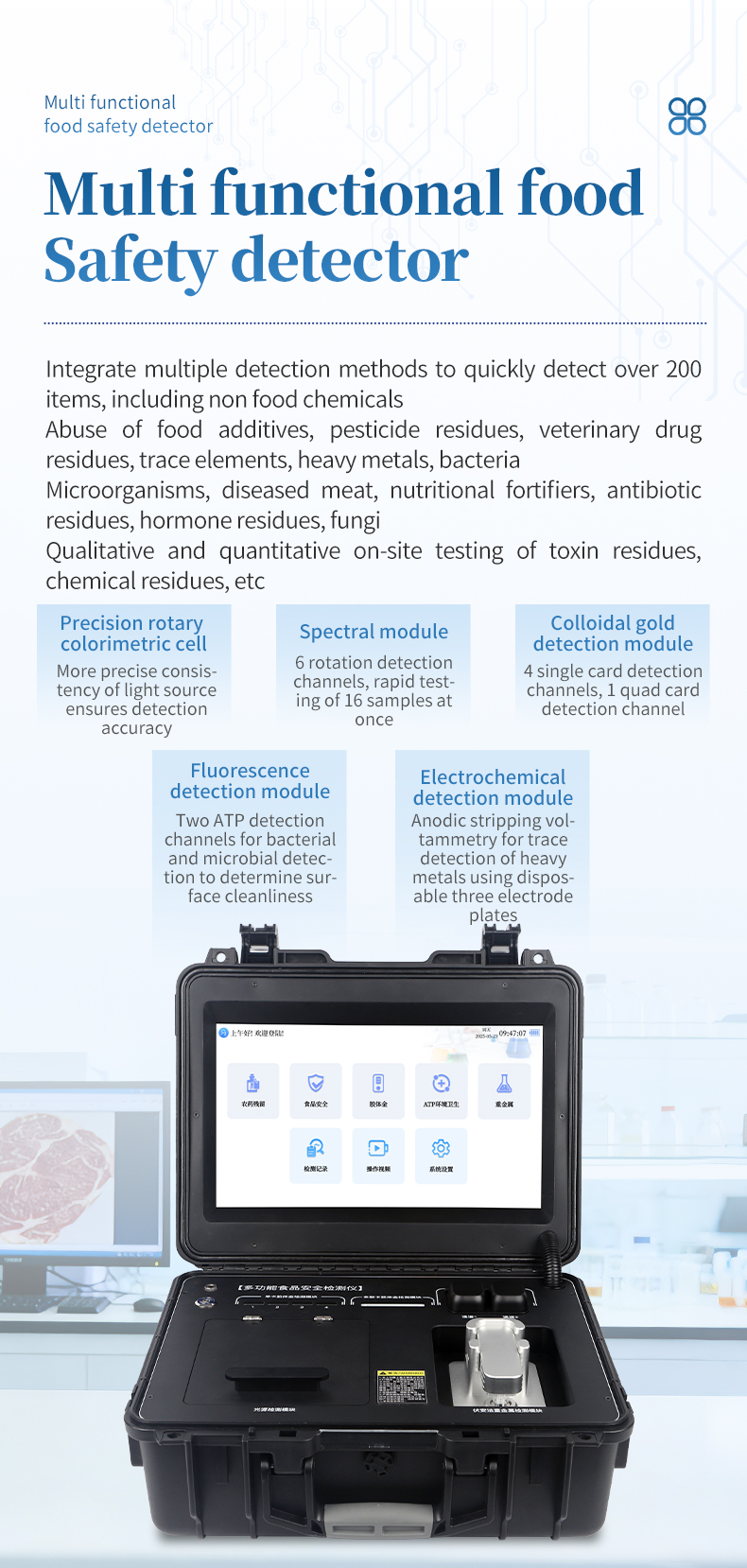

The HM-GS300 is an integrated food safety rapid detection instrument developed by HM Instruments (恒美智造) for comprehensive multi-category food quality screening. Built around a 24-channel optical detection platform with a 4-wavelength cold light source (410 nm, 520 nm, 590 nm, and 630 nm), the instrument supports optical path switching across up to 64 equivalent wavelengths, enabling precise absorbance measurements for a diverse range of analytes. With over 200 pre-programmed test items spanning 14 detection categories — including food additives, pesticide residues, veterinary drug residues, heavy metals, mycotoxins, and spoiled meat indicators — the HM-GS300 serves as a centralized testing workstation for food safety laboratories, regulatory inspection agencies, and food production quality control departments.

Powered by an ARM Cortex-A7 RK3288 processor running at 1.88 GHz, the instrument delivers fast data processing and responsive touchscreen operation on its 10-inch display. The onboard memory stores up to 200,000 test records, supporting traceability and audit requirements. The dual power supply design — AC mains operation with a built-in 6 Ah lithium battery — provides flexibility for both benchtop laboratory use and mobile field inspection. For a deeper understanding of how multi-parameter food analyzers support regulatory compliance, refer to our guide to food safety rapid testing technology.

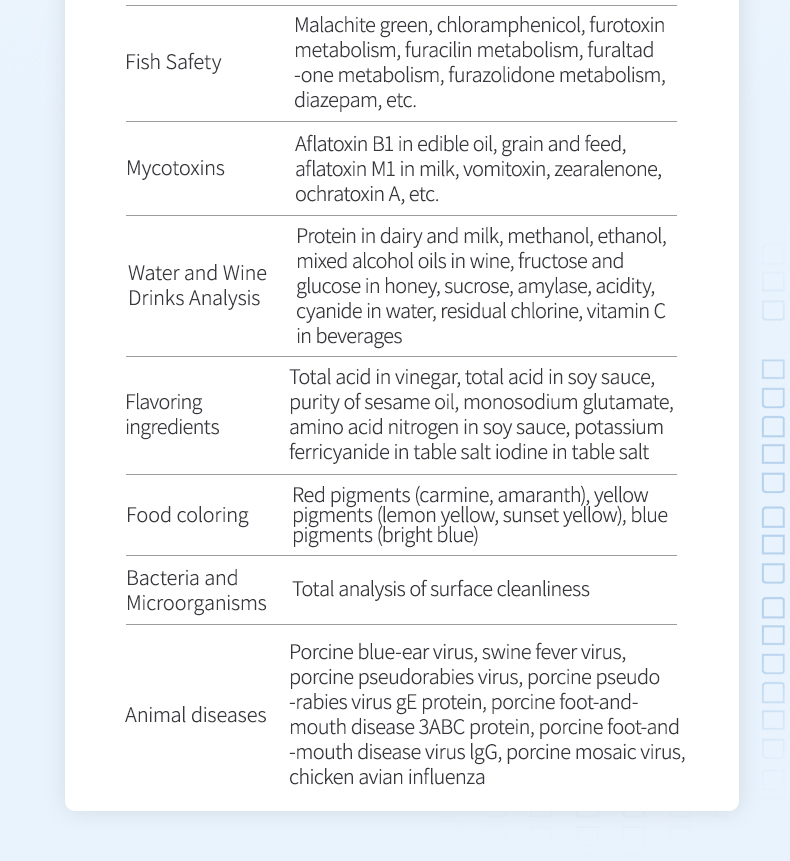

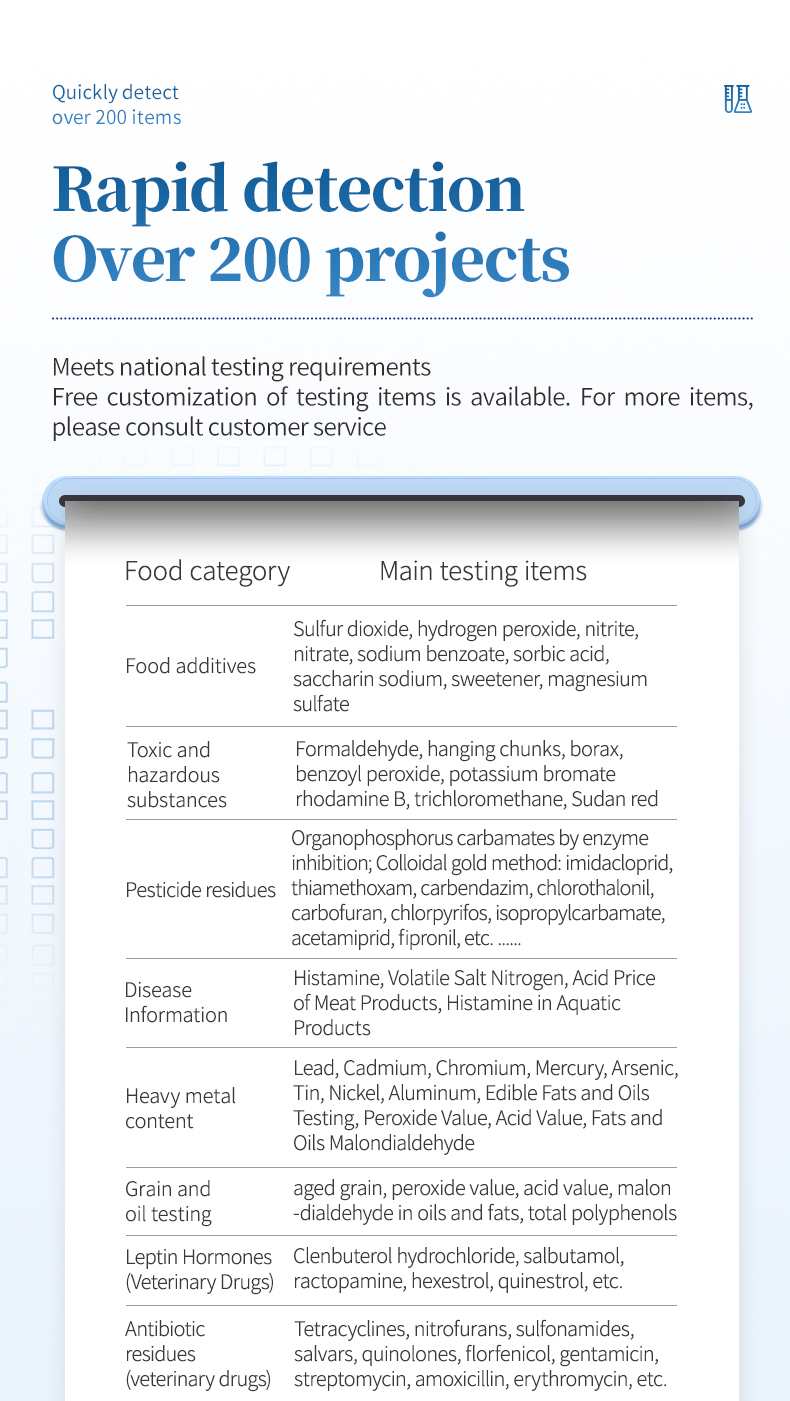

Detection Categories

• Food Additives: preservatives, sweeteners, colorants, bleaching agents, and processing aids
• Toxic and Harmful Substances: formaldehyde, sulfur dioxide, nitrite, hydrogen peroxide, and sodium formaldehyde sulfoxylate
• Pesticide Residues: organophosphorus and carbamate pesticide screening via enzyme inhibition rate
• Veterinary Drug Residues: antibiotics, hormones, and growth promoters in meat and aquatic products
• Heavy Metals: lead, cadmium, mercury, arsenic, and chromium in food matrices
• Spoiled Meat Indicators: volatile basic nitrogen and protein degradation markers
• Nutritional Fortifiers: protein content, vitamins, and mineral supplements
• Antibiotic Residues: tetracyclines, sulfonamides, quinolones, and nitrofurans
• Hormone Residues: synthetic hormone detection in animal-derived foods
• Mycotoxins: aflatoxin B1, deoxynivalenol, zearalenone, and ochratoxin A
• Aquatic Product Safety: histamine, volatile basic nitrogen, and freshness indices
• Grain and Oil Products: peroxide value, acid value, and mycotoxin contamination
• Beverages and Liquor: methanol, formaldehyde, and artificial sweetener content
• Edible Pigments: synthetic colorant identification and quantification

Functional Performance / Features

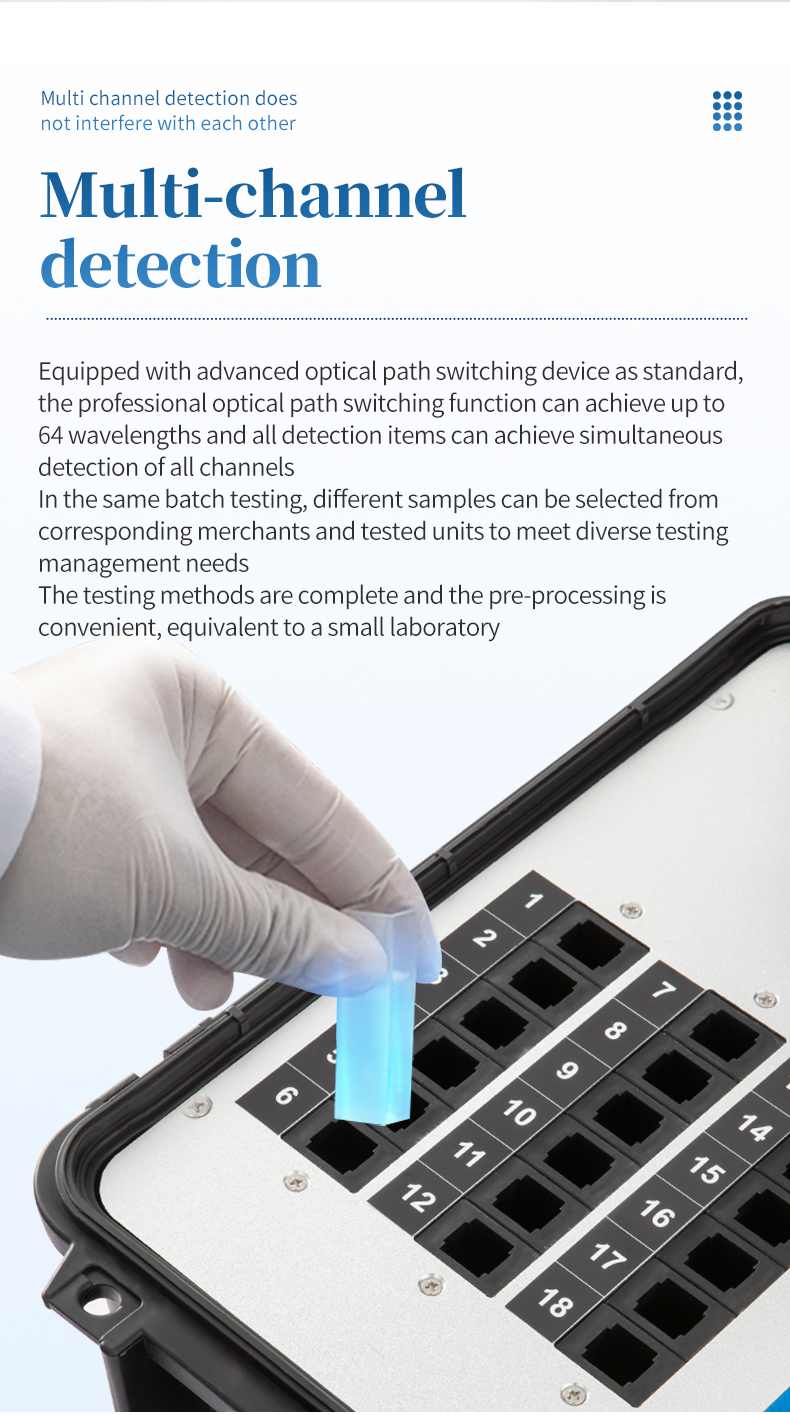

1. 24 independent detection channels enabling batch processing of multiple samples simultaneously for high-throughput testing
2. 4-wavelength cold light source system (410/520/590/630 nm) with optical path switching supporting up to 64 equivalent wavelengths for broad analyte coverage
3. 10-inch high-resolution touchscreen with intuitive graphical interface for streamlined operation and clear result visualization

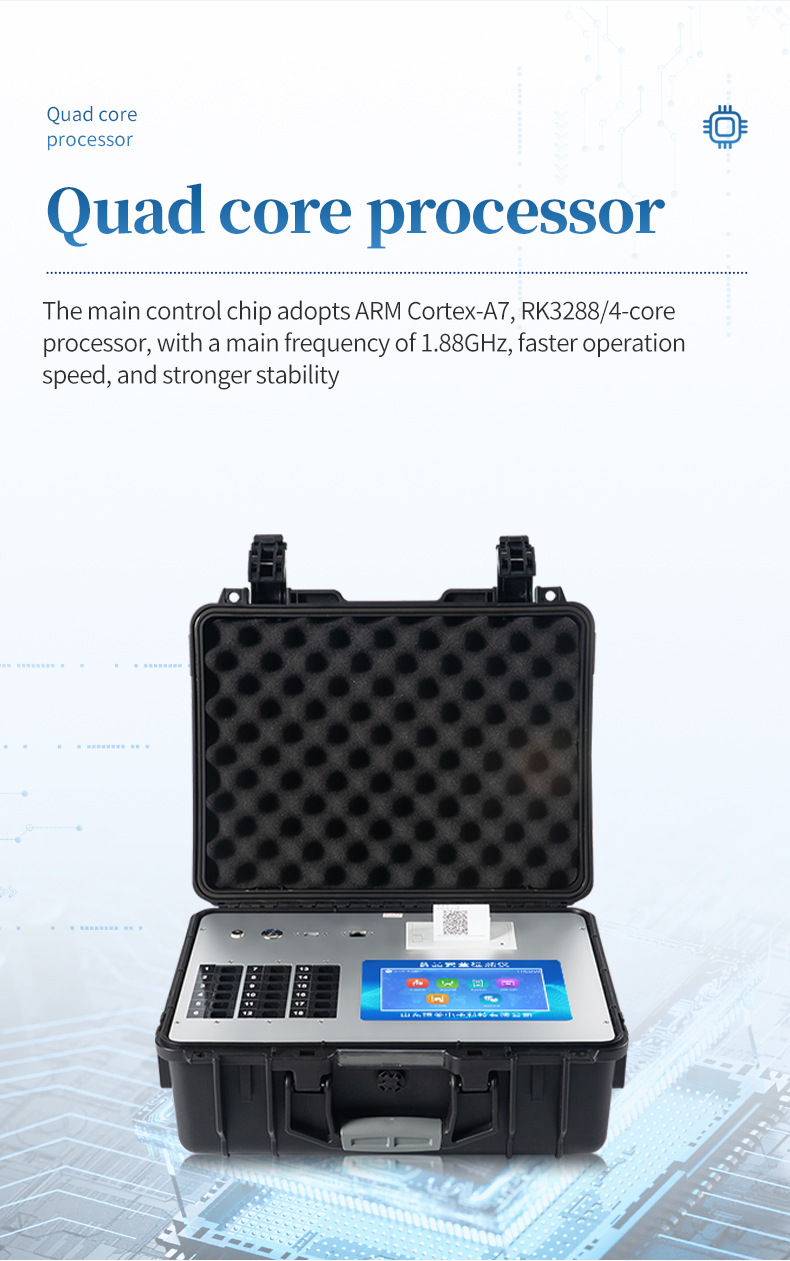

4. ARM Cortex-A7 RK3288 processor at 1.88 GHz delivering rapid data acquisition, curve fitting, and concentration calculation
5. 200,000-record onboard storage capacity supporting long-term data archiving, retrieval, and export for quality audit trails

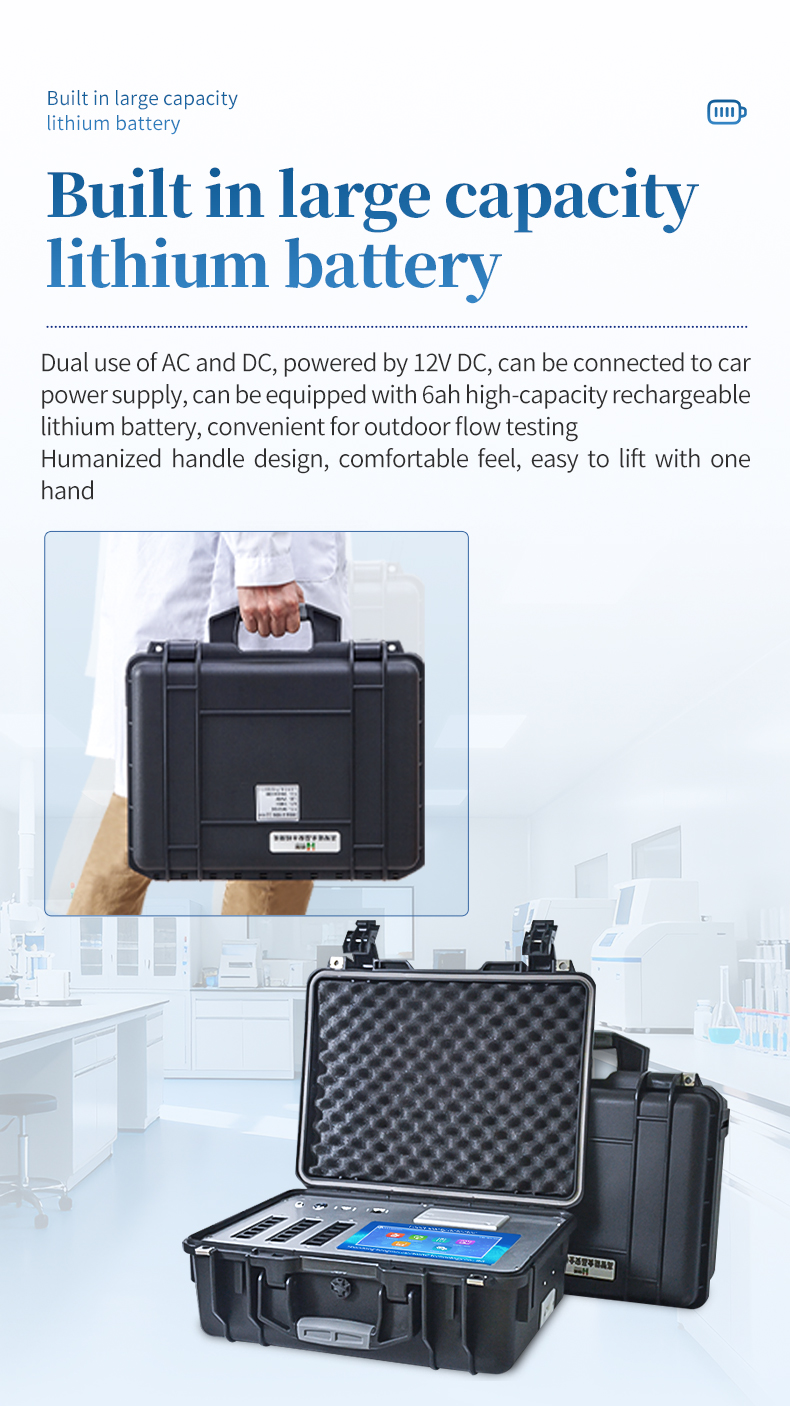

6. AC/DC dual power supply with built-in 6 Ah lithium battery enabling uninterrupted field operation and mobile inspection workflows
7. 200+ pre-calibrated test items across 14 categories covering the most commonly regulated food safety parameters
8. Automatic wavelength switching and channel blank calibration reducing operator intervention and improving measurement consistency

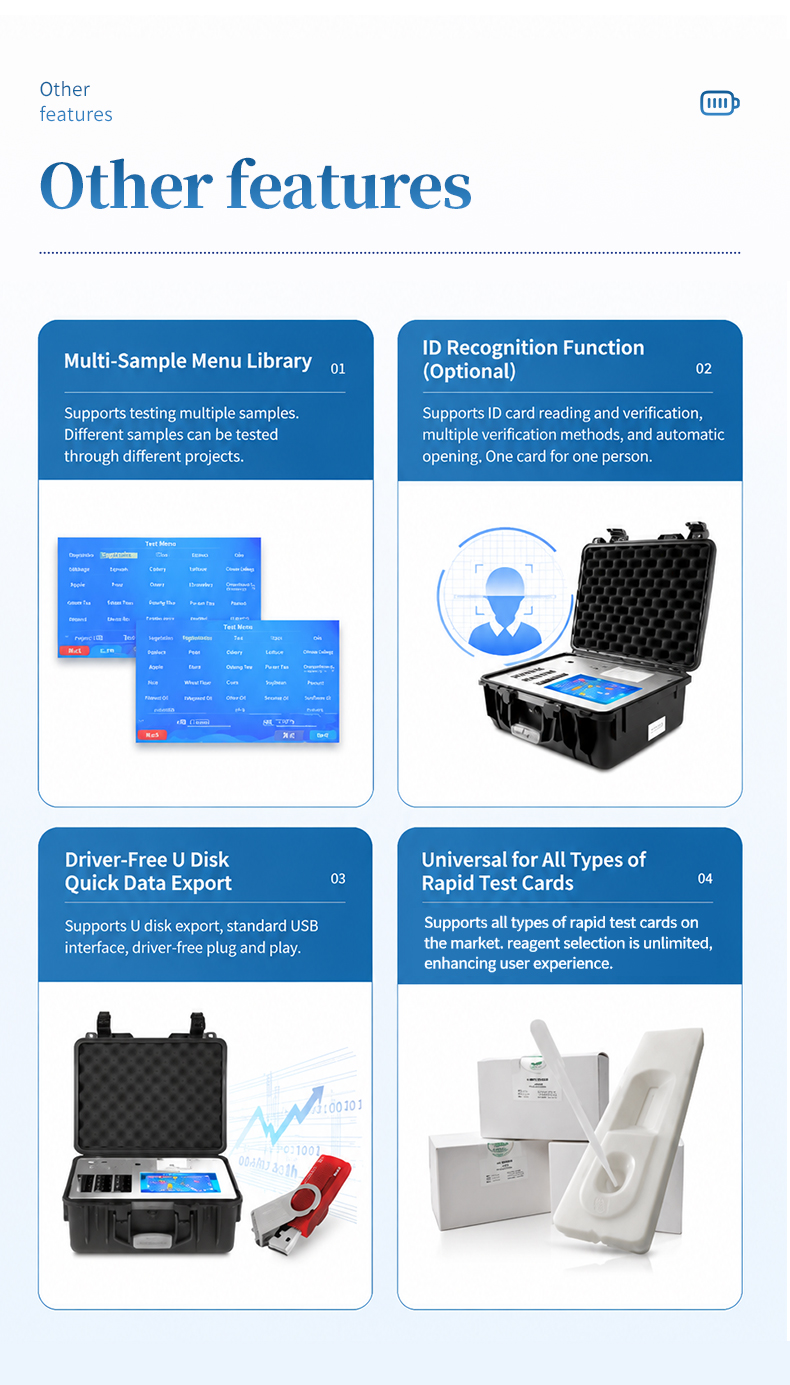

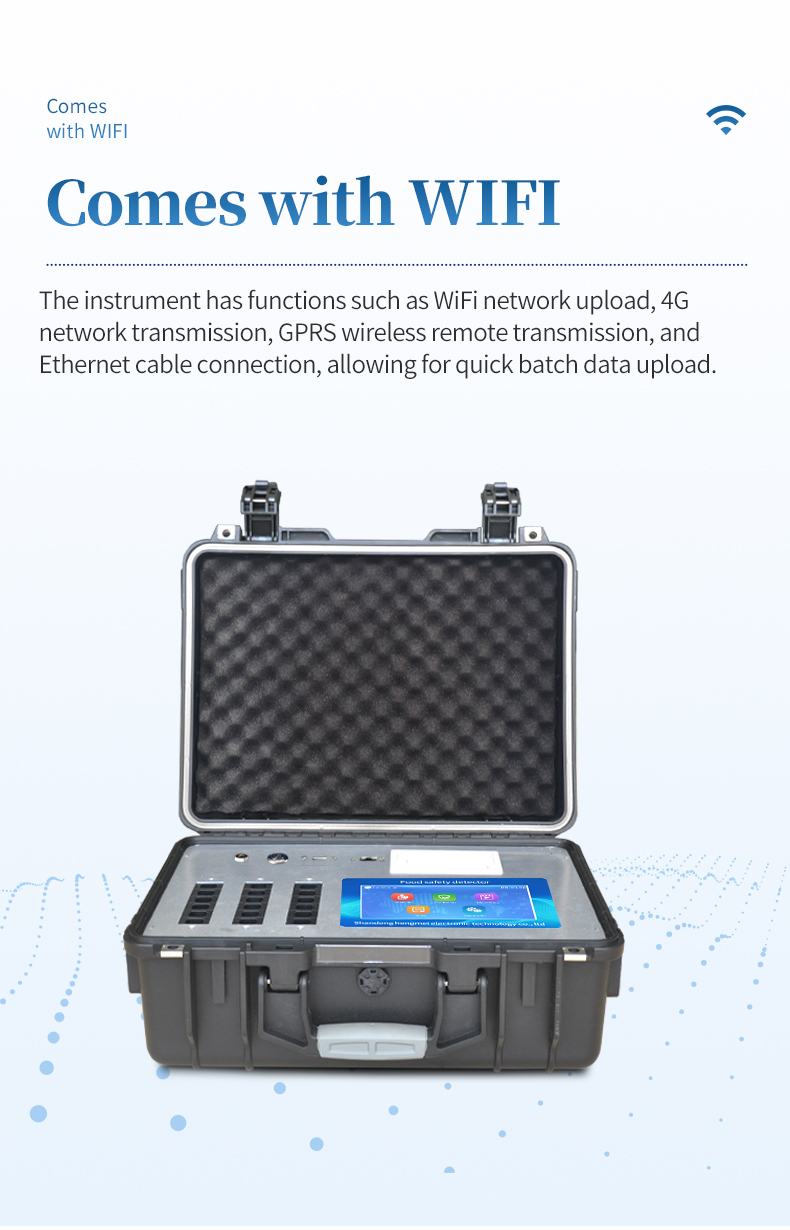

9. USB and Ethernet data interfaces supporting LIMS integration and report generation for regulatory documentation
10. Compact benchtop design (43 × 35 × 19 cm, 5.1 kg net weight) for space-efficient deployment in standard laboratory environments
11. User-configurable test item library allowing custom calibration curves and new parameter additions as testing needs evolve
12. Built-in quality control protocols with automatic standard verification ensuring measurement reliability across detection runs

Main Parameters

Parameter	Specification
Display	10-inch touchscreen
Detection Channels	24 channels, independent simultaneous reading
Light Source	4-wavelength cold light source (410/520/590/630 nm), optical path switching up to 64 wavelengths
Test Items	200+ items across 14 detection categories
Processor	ARM Cortex-A7 RK3288, 1.88 GHz
Data Storage	200,000 test records
Power Supply	AC mains / built-in 6 Ah lithium battery
Dimensions	43 × 35 × 19 cm
Net Weight	5.1 kg
Packaged Weight	9.1 kg

Technical Parameters — Detection Limits and Ranges

Test Item	Detection Limit	Detection Range
Pesticide Residue (Inhibition Rate)	5%	0 — 100%
Formaldehyde	1 mg/kg	0 — 100 mg/kg
Nitrite	1 mg/kg	0 — 100 mg/kg
Sulfur Dioxide	1 mg/kg	0 — 100 mg/kg
Sulfur Dioxide (High Range)	5 mg/kg	0 — 500 mg/kg
Sodium Formaldehyde Sulfoxylate	5 mg/kg	0 — 500 mg/kg
Protein	0.5%	0 — 50%
Borax	5 mg/kg	0 — 100 mg/kg
Hydrogen Peroxide (Low Range)	5 mg/kg	—
Hydrogen Peroxide (Mid Range)	10 mg/kg	—
Hydrogen Peroxide (High Range)	100 mg/kg	—
Nitrate (Low Range)	10 mg/kg	—
Nitrate (High Range)	40 mg/kg	—
Heavy Metal — Lead (Solid Sample)	0.5 mg/kg	—
Heavy Metal — Lead (Liquid Sample)	0.2 mg/L	—
