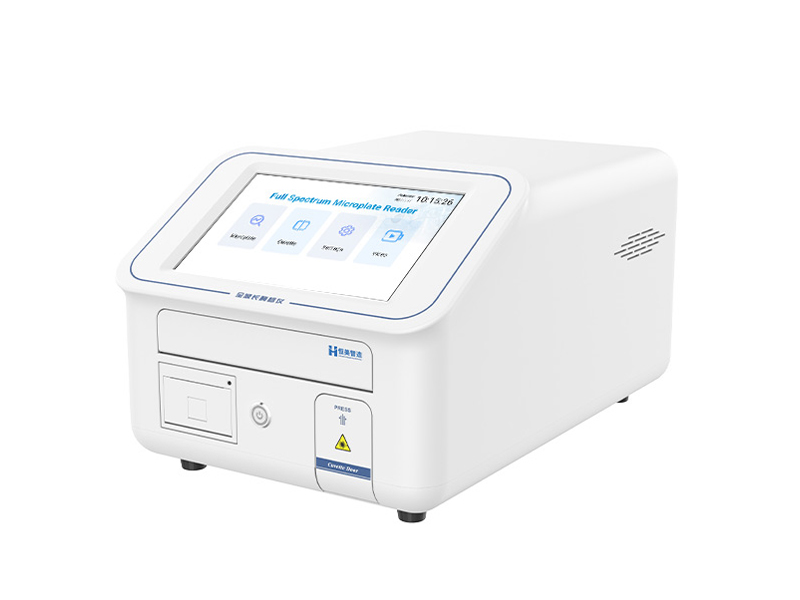

Full Spectrum Enzyme-Linked Immunosorbent Assay (ELISA) Reader

Instrument Introduction:

Full spectrum enzyme-linked immunosorbent assay (ELISA) is an analytical instrument based on the principle of ultraviolet visible spectrophotometry. The equipment adopts high-quality optical components and precision mechanical structures, which can achieve fast and accurate full band scanning and fixed-point absorbance detection in a wide wavelength range (200-1000nm). The instrument performs quantitative or qualitative analysis on samples by detecting the absorbance values of specific wavelengths of light in the microplate. The ability to perform high-speed and automated testing on 96 well or more well plates simultaneously greatly improves experimental efficiency and accuracy, making it an indispensable high-throughput basic equipment for laboratories in fields such as molecular biology, immunology, and drug development.

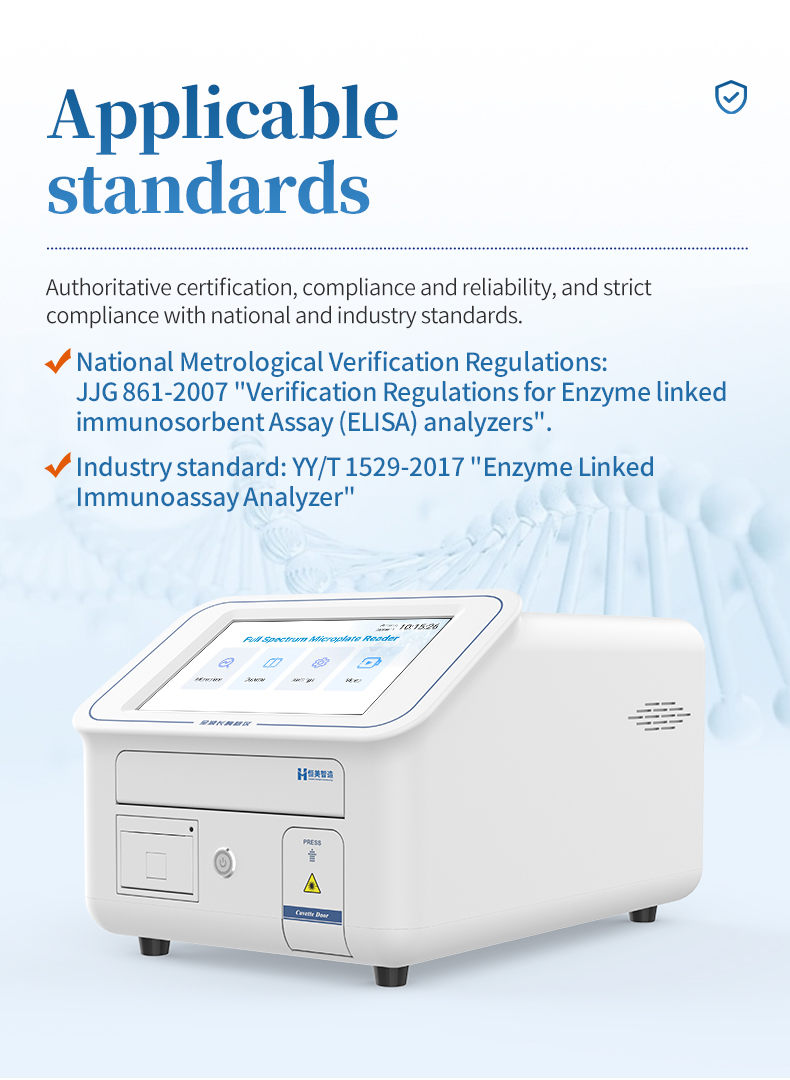

Applicable Standards:

JJG 861-2007 "Calibration Regulations for Enzyme linked immunosorbent Assay (ELISA) analyzers"; YY/T 1529-2017 Enzyme linked immunosorbent assay analyzer.

Application Scope:

Full spectrum enzyme-linked immunosorbent assay (ELISA) is mainly used in the fields of life sciences and medical research. It is the cornerstone for protein quantification, nucleic acid concentration measurement, enzyme kinetics research, cell activity and toxicity detection, and ELISA experiments. It is widely used in universities, research institutes, and hospital laboratories. In the pharmaceutical and biotechnology industry, it is an essential tool for high-throughput screening, pharmacological and toxicological evaluation, and quality control of biological products during drug development; In the field of agriculture and food safety, it is used to detect crop diseases, allergens, toxins, and pesticide residues in food; In terms of environmental monitoring, it can also be used to analyze pollutants in water and soil, becoming an important tool for ensuring public safety.

Instrument Features:

1. Android 10 operating system, with Wi Fi and Ethernet cable multi way upload function, fast batch upload of data;

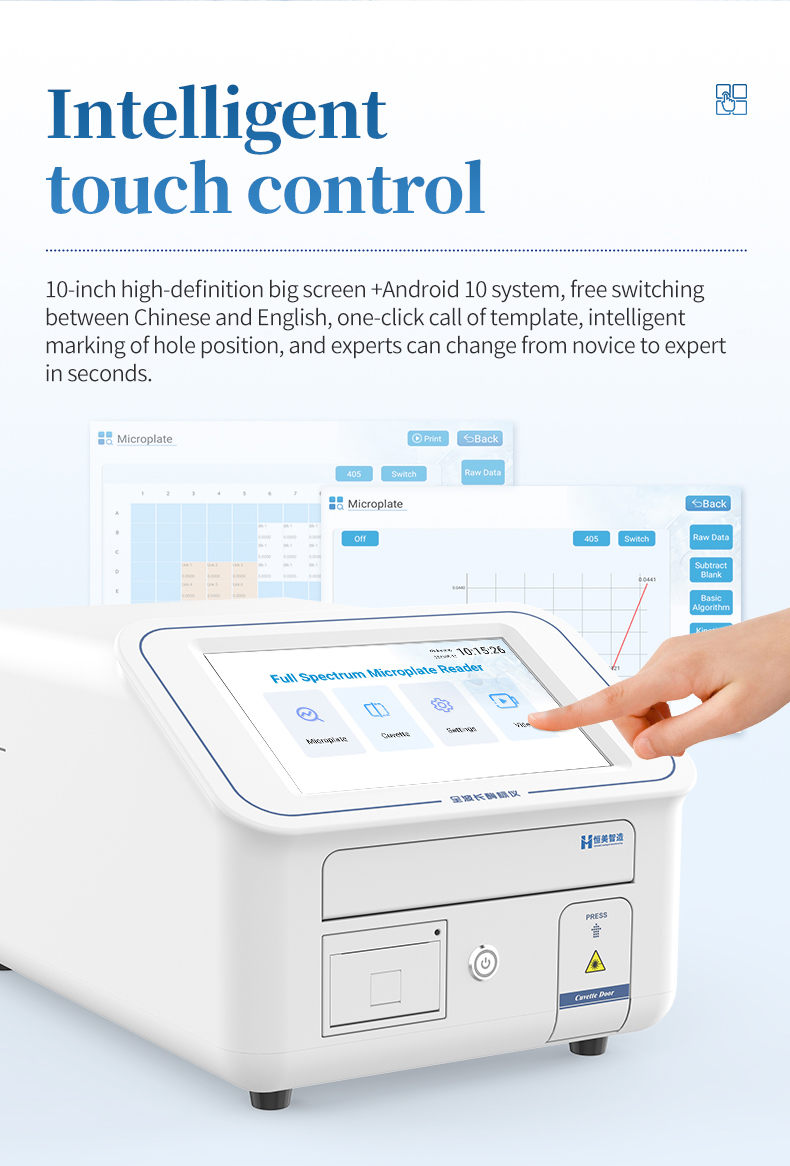

2. Configure a 10 inch high-definition touch screen, combined with a visual graphical operation page, supporting one click preset of experimental templates and process customization, greatly improving operational efficiency;

3. A bilingual operating system in both Chinese and English, which automates detection, data storage, and report generation;

4. Quickly identify blank holes, standard samples, test samples, positive and negative controls, and quality control holes through color block marking, supporting multiple concentration gradient control settings;

5. The temperature uniformity error between pores is ≤ 0.5 ℃ to ensure reaction stability;

6. The vibration speed and duration can be adjusted in multiple levels to optimize the reaction mixing efficiency;

7. Dual beam reference optical path design, real-time compensation for environmental interference, ensuring data stability and repeatability;

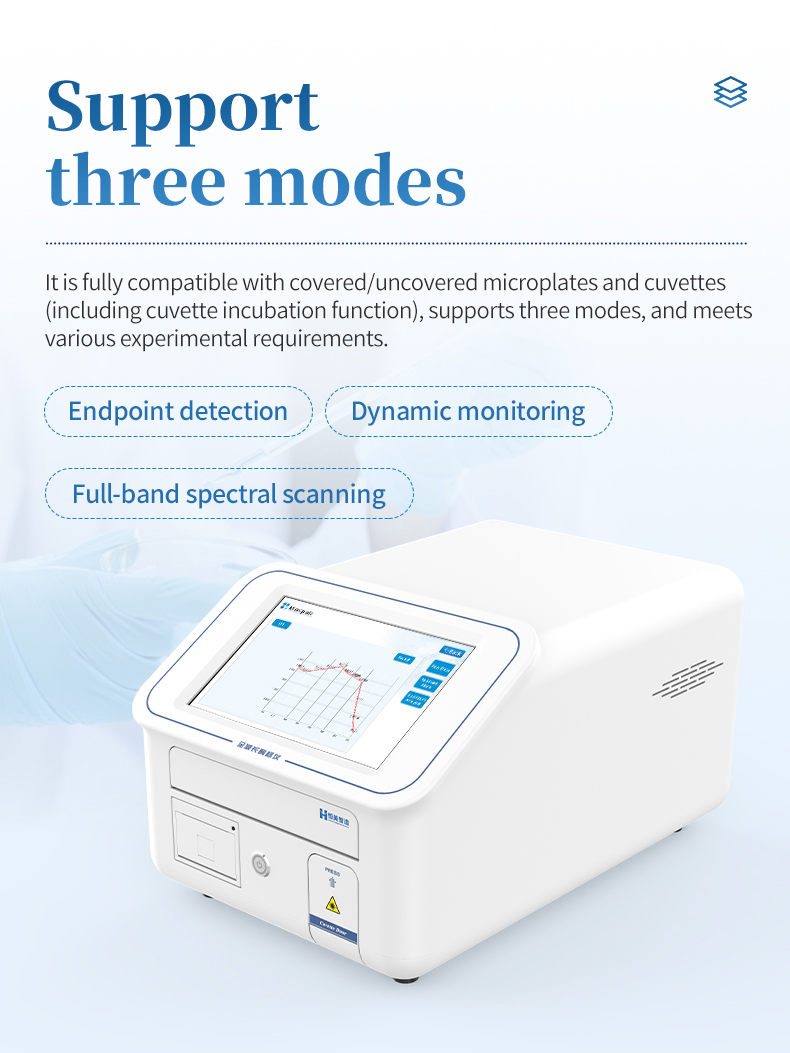

8. Supports endpoint detection, dynamic monitoring, and full band spectral scanning modes, compatible with covered/uncovered microplates and colorimetric dishes (including colorimetric dish incubation function);

9. Equipped with a long-life pulse xenon lamp, the flash life reaches 1 × 10 ⁹ times, significantly reducing maintenance costs;

10. Built in self diagnostic program: automatically calibrate the optical path, verify the mechanical motion accuracy, and ensure long-term stable operation of the equipment;

11. With precision, efficiency, and intelligence as its core, this product is committed to providing more reliable enzyme immunoassay analysis solutions for scientific research and quality control fields;

12. Light source fluctuation PP value (maximum intensity minus minimum intensity)<0.5%;

13. High stability pulsed xenon lamp light source;

14. Configure the supervision platform, and the detection results can be directly transmitted wirelessly to the platform;

15. Built in new generation high-speed thermal printer;

16. Use image and table storage formats.

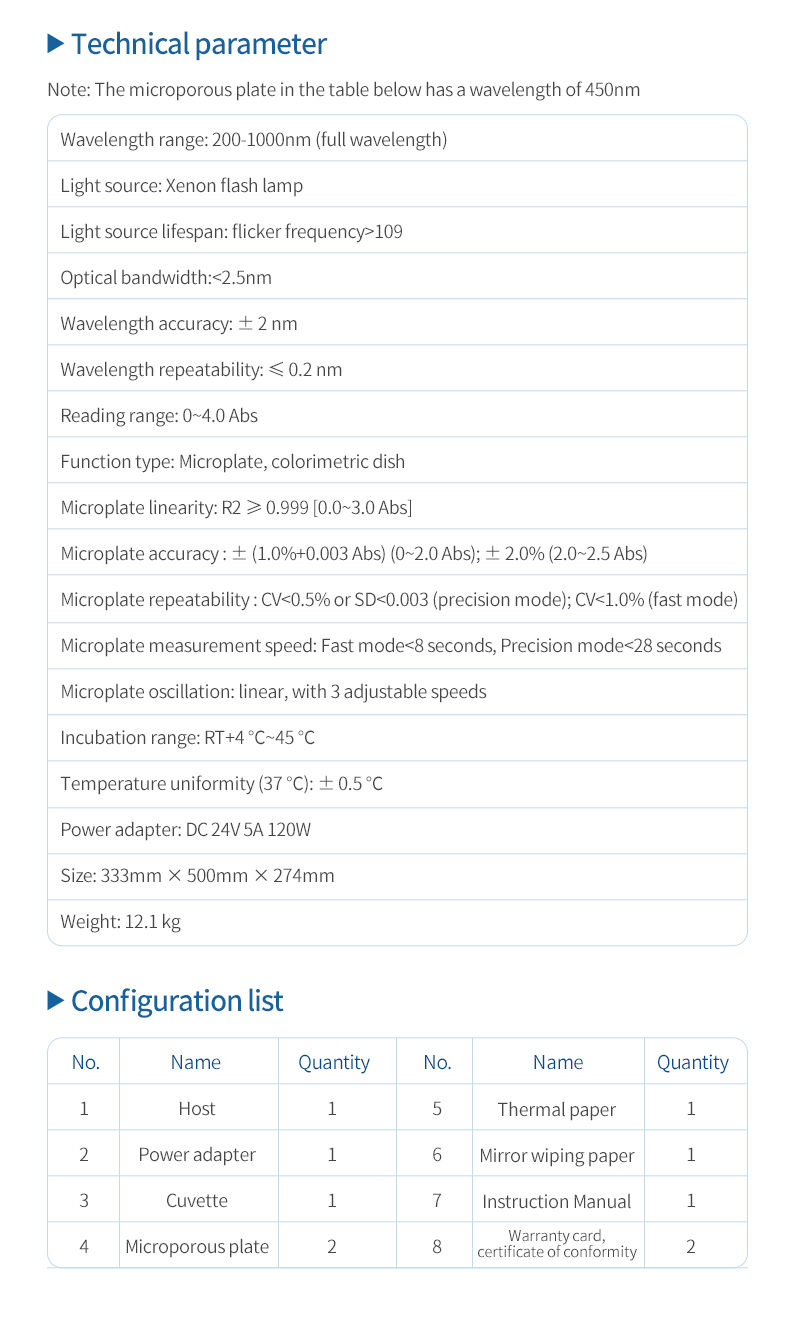

Technical Specifications:

1. Wavelength range: 200-1000nm (full wavelength)

2. Light source: Xenon flash lamp

3. Light source lifespan: flicker frequency>109

4. Optical bandwidth:<2.5nm

5. Wavelength accuracy: ± 2 nm

6. Wavelength repeatability: ≤ 0.2 nm

7. Reading range: 0~4.0 Abs

8. Function type: Microplate, colorimetric dish

9. Microplate linearity: R2 ≥ 0.999 [0.0~3.0 Abs]

10. Microplate accuracy (450 nm): ± (1.0%+0.003 Abs) (0~2.0 Abs); ± 2.0% (2.0~2.5 Abs)

11. Microplate repeatability (450 nm): CV<0.5% or SD<0.003 (precision mode); CV<1.0% (fast mode)

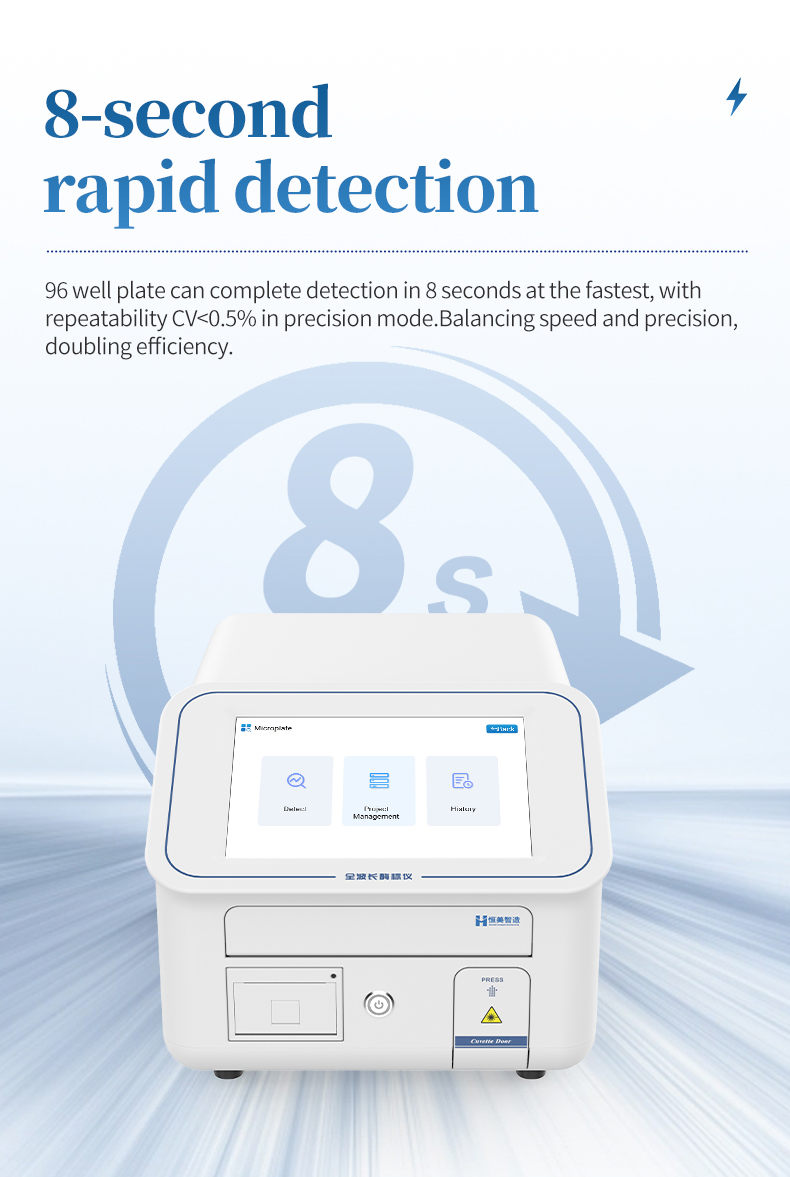

12. Microplate measurement speed: Fast mode<8 seconds, Precision mode<28 seconds

13. Microplate oscillation: linear, with 3 adjustable speeds

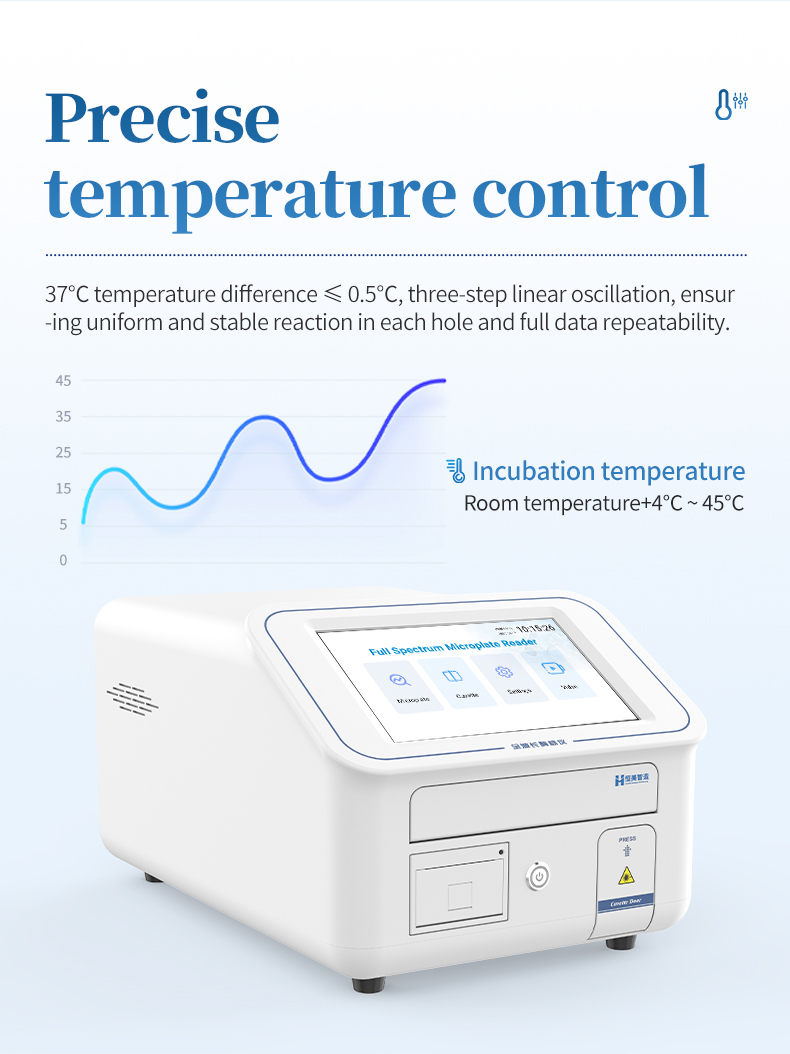

14. Incubation range: RT+4 ℃~45 ℃

15. Temperature uniformity (37 ℃): ± 0.5 ℃

16. Power adapter: DC 24V 5A 120W

17. Size: 333mm × 500mm × 274mm

18. Weight: 12.1 kg
