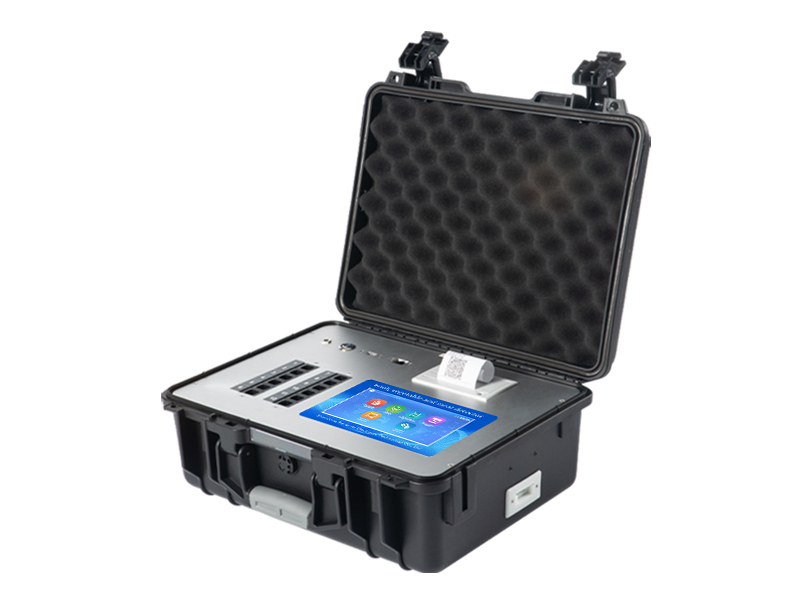

Multifunctional fruit, vegetable and meat detector

Product introduction:

The multifunctional fruit, vegetable and meat detector can quickly detect dozens of items, including organophosphorus and carbamate pesticides in various fruits and vegetables, diseased meat diagnosis: meat freshness, histamine and volatile basic nitrogen in meat; clenbuterol hormone residues in various meat products; antibiotic residues and other on-site qualitative and quantitative detection.

The multifunctional fruit, vegetable and meat detector is an integrated meat safety and rapid detection and analysis equipment, which is widely used in various supermarkets, wholesale markets, farms, slaughterhouses, food and meat product deep processing enterprises, inspection and quarantine departments, food and drug administration, health departments, colleges and universities, scientific research institutes, agricultural departments and other units.

Test items:

In various types of vegetables and fruits: organophosphorus and carbamate pesticides

Disease meat diagnosis: histamine, volatile basic nitrogen, acid value of meat products, histamine in water-soaked products, etc.

Clenbuterol (hormone veterinary drugs): clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, quinolone, etc.

Antibiotics (drug residue veterinary drugs): tetracyclines, nitrofurans, sulfonamides, floxacins, quinolones, gentamicin, streptomycin, amoxicillin, erythromycin, etc.

Aquatic product safety: malachite green, chloramphenicol, nitrofurantoin metabolism, nitrofurazone metabolism, furaltadone metabolism, furazolidone metabolism, etc.

Product performance:

1. Android smart operating system, using a more efficient UI interactive interface, the instrument has wifi network upload, 4G network transmission, GPRS wireless remote transmission, network cable connection functions, fast batch upload of data.

2. High degree of intelligence, the instrument has self-test function: it has power-on self-test and zero adjustment functions, and has automatic detection repeatability function.

3. A new generation of high-speed thermal printer, which can automatically print or batch print test reports and QR codes after the test is completed.

4. The instrument has a supervision platform, data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis and processing and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

5. Integrated host, including food safety detection module, multi-channel pesticide residue detection module, colloidal gold immunochromatography detection module.

6. Integrated portable rapid detection equipment, which meets the needs of on-site and mobile detection, can realize the detection of all detection items under the same software, and can intuitively display the test results through the same window.

7. Colloidal gold module detection method: track-type automatic transmission scanning, automatically exit the test card after the test is completed.

8. CT line automatic recognition, no manual adjustment required.

9. The instrument has a multi-category and multi-category sample menu library, which can flexibly select test samples, and different detection channels can detect different sample items at the same time. You can also directly edit and enter sample name, test index, inspection unit and other information on the instrument and save them in the sample database.

10. The instrument has built-in operation video, which is a laboratory guidance expert around you.

11. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

12. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operation.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

14. The instrument has the functions of recalibration, locking, and restoring factory settings.

15. The result judgment line can be modified, the control value calibration value can be saved, and the power is off without losing data.

16. Compatible with all colloidal gold cards on the market, the use of consumables is not restricted, and the user experience is greatly enhanced.

Main parameters:

1. The main control chip uses ARM Cortex-A7, RK3288/4 core processor, the main frequency is 1.88Ghz, the operation speed is faster, and the stability is stronger.

2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. AC and DC dual-use, DC 12V power supply, can be connected to the vehicle power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Four-wavelength cold light source, 12 detection channels, each channel is equipped with 410, 520, 590, 630nm wavelength light source, standard advanced optical path switching device, professional optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve all channels at the same time.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current voltage regulation, automatic calibration of light intensity, long-term continuous working light source without temperature drift phenomenon.

7. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.

8. Uninterrupted sampling, continuous detection

9. Sample numbers are automatically accumulated.

10. The test results are Excel tables, which can be copied by connecting to a computer.

11. Storage capacity of 200,000 test results

12. Supports USB storage, standard USB interface, driver-free installation.

13. Test items can be expanded, firmware can be upgraded

14. Instrument size: 43×35×20cm, main unit net weight: 5.2kg
