HM-NY24P Multi-Function Pesticide Residue Detector

Product Introduction

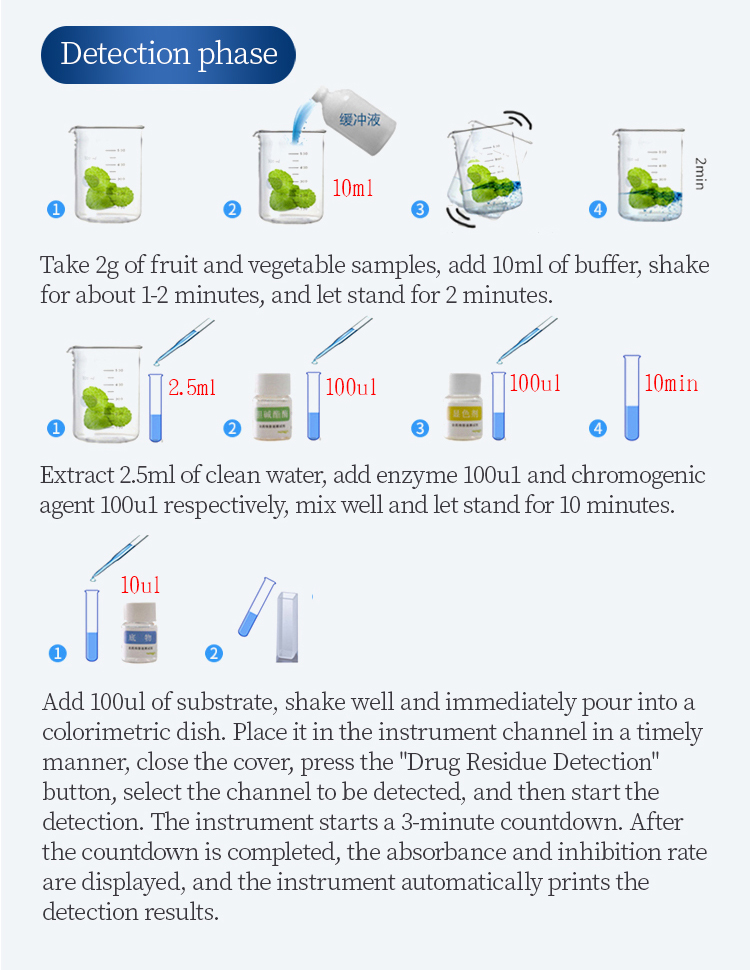

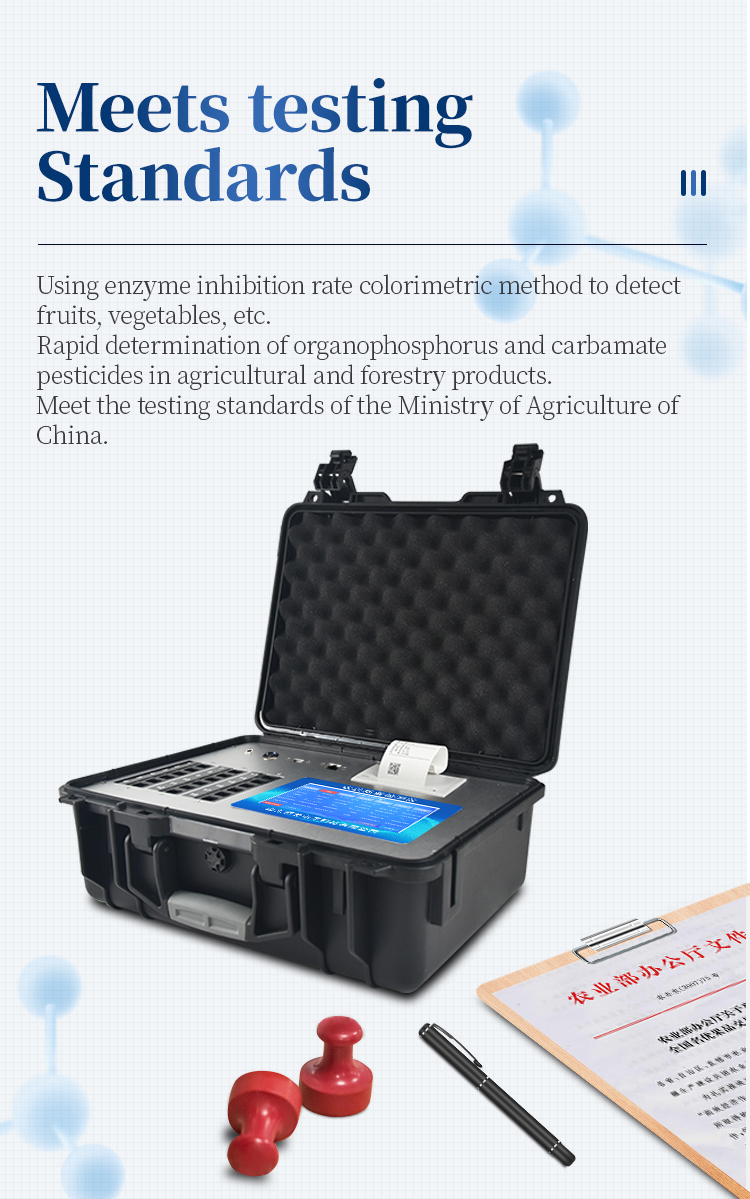

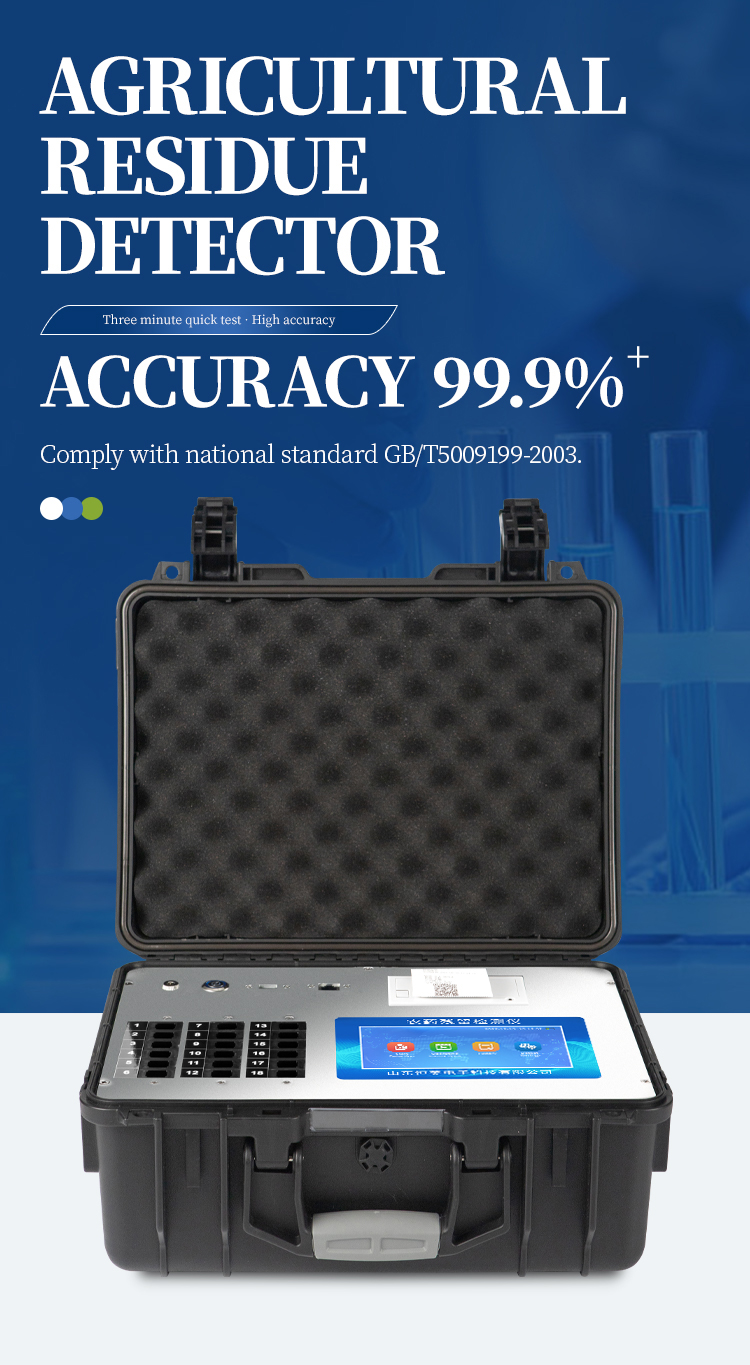

The HM-NY24P multi-function pesticide residue detector is a high-throughput analytical platform that integrates two complementary detection methodologies—enzyme inhibition rate colorimetry and colloidal gold immunochromatography—within a single instrument. Designed for food safety laboratories, agricultural inspection stations, and centralized testing facilities, the system features 24 independent detection channels operated through a 10-inch color touchscreen interface. The enzyme inhibition module operates at 412 nm in accordance with GB/T5009.199-2003, providing broad-spectrum organophosphate and carbamate toxicity assessment across multiple samples simultaneously.

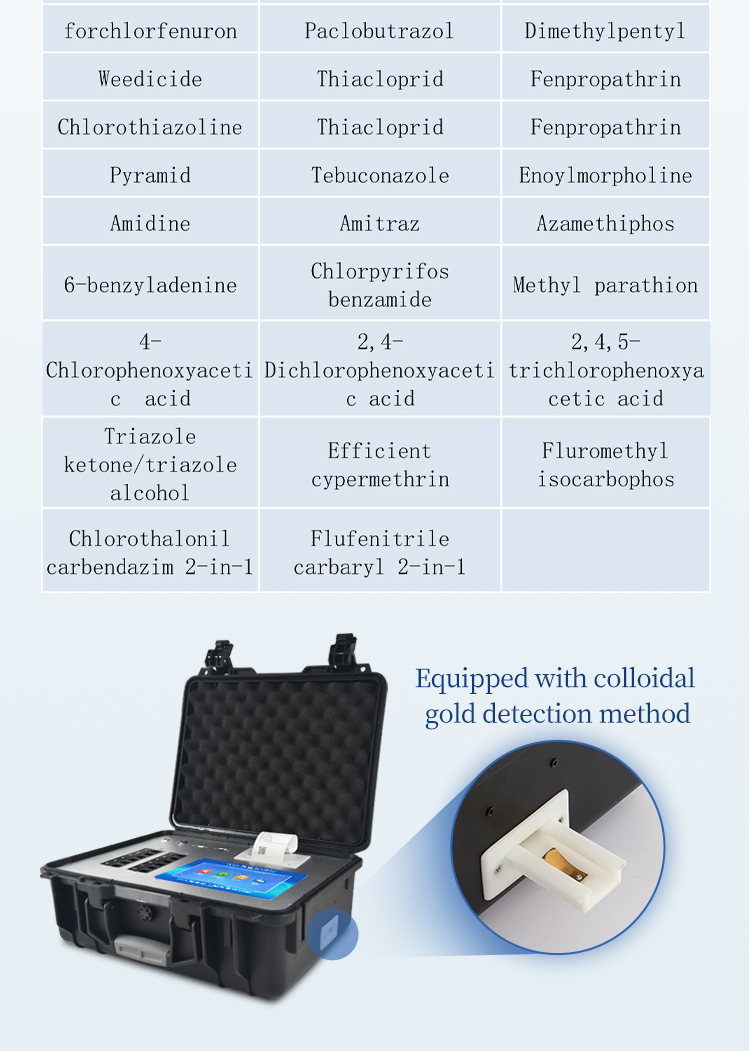

The colloidal gold module extends analytical capability by enabling targeted identification of individual pesticide residues through antigen-antibody specific binding reactions. The system can detect over 60 specific pesticide compounds including commonly monitored organophosphorus varieties such as chlorpyrifos, parathion, and dichlorvos, as well as carbamate compounds like carbofuran and carbaryl. Powered by the ARM Cortex-A7 RK3288 processor, the instrument stores up to 200,000 test records with USB export functionality for seamless laboratory information management system integration. The HM-NY24P is equipped with a built-in 6 Ah rechargeable lithium battery, supporting both AC and DC power modes. With a net weight of 5.2 kg and compact dimensions of 43×35×19 cm, the instrument balances substantial screening throughput with practical portability. For guidance on selecting the appropriate detection method for different sample types, consult our pesticide residue detection methodology overview.

Applications

• Food safety regulatory laboratories: high-volume screening of agricultural products for compliance with maximum residue limits
• Centralized agricultural wholesale market testing centers: simultaneous multi-sample analysis during peak trading hours
• Food processing and export enterprises: comprehensive raw material inspection covering both broad-spectrum and targeted pesticide screening
• County and municipal agricultural quality monitoring stations: routine surveillance programs for local produce safety
• Third-party food testing service providers: contract analysis requiring documented traceability and high daily throughput
• Research institutions and agricultural universities: comparative studies of pesticide degradation and residue profiles across crop varieties

Functional Performance / Features

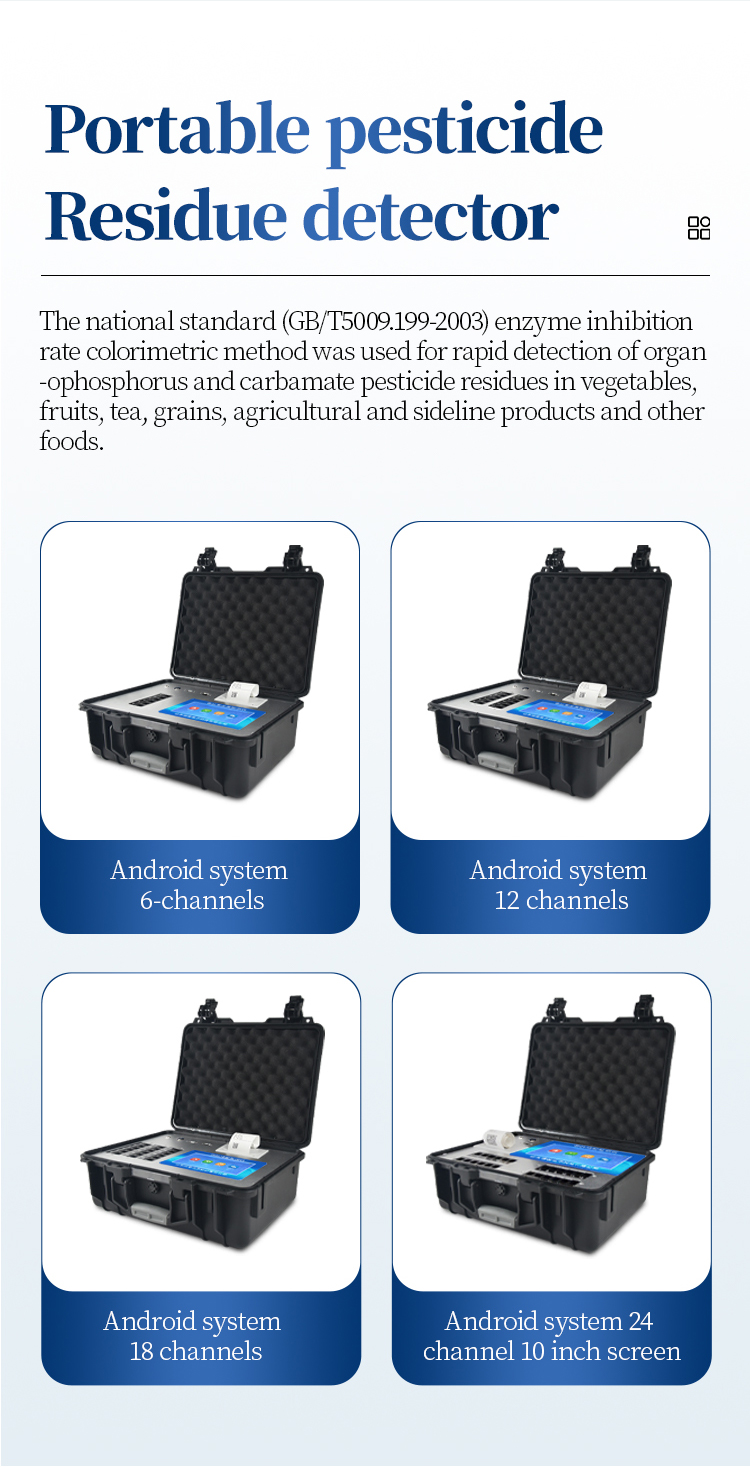

1. 24 independent detection channels enabling simultaneous parallel screening of multiple agricultural product samples for substantially increased throughput
2. 10-inch color touchscreen with intuitive graphical user interface designed for efficient multi-sample workflow management
3. Dual detection methods integrating enzyme inhibition colorimetry (412 nm, GB/T5009.199-2003) and colloidal gold immunochromatography on one platform

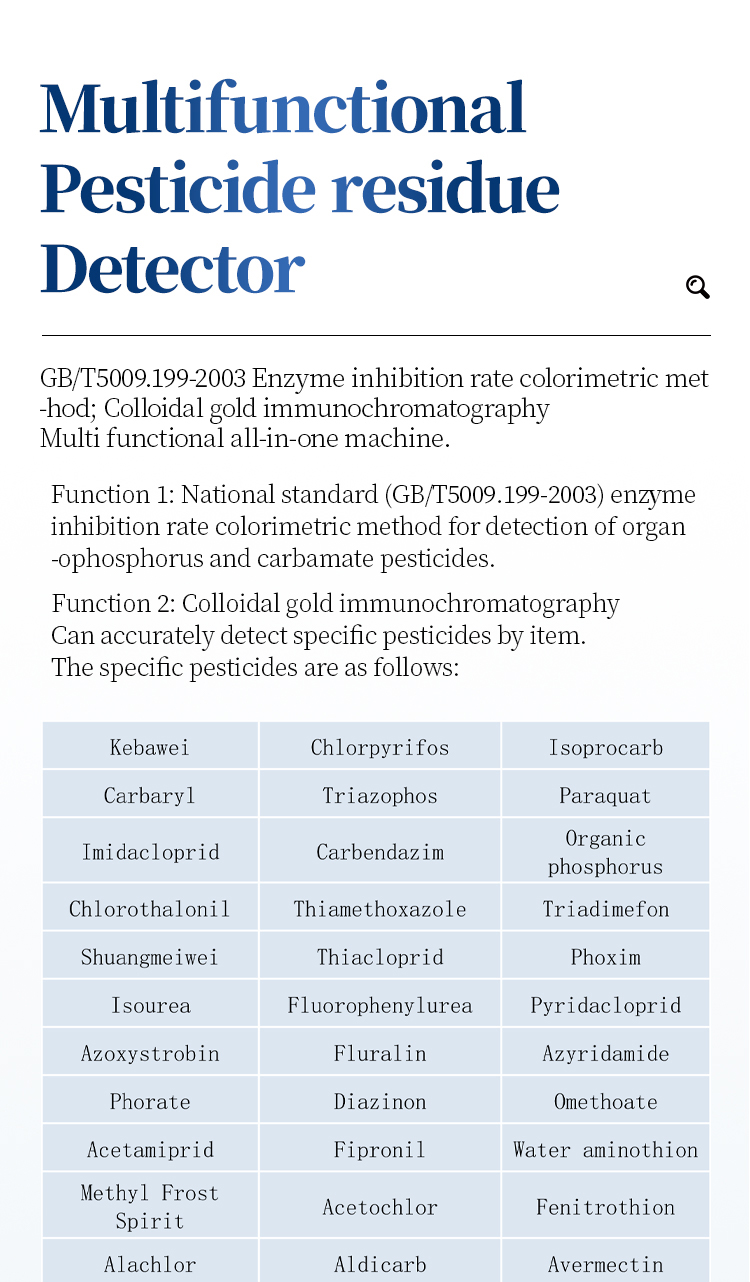

4. Capable of identifying over 60 specific pesticide compounds including organophosphorus, carbamate, and other regulated pesticide varieties

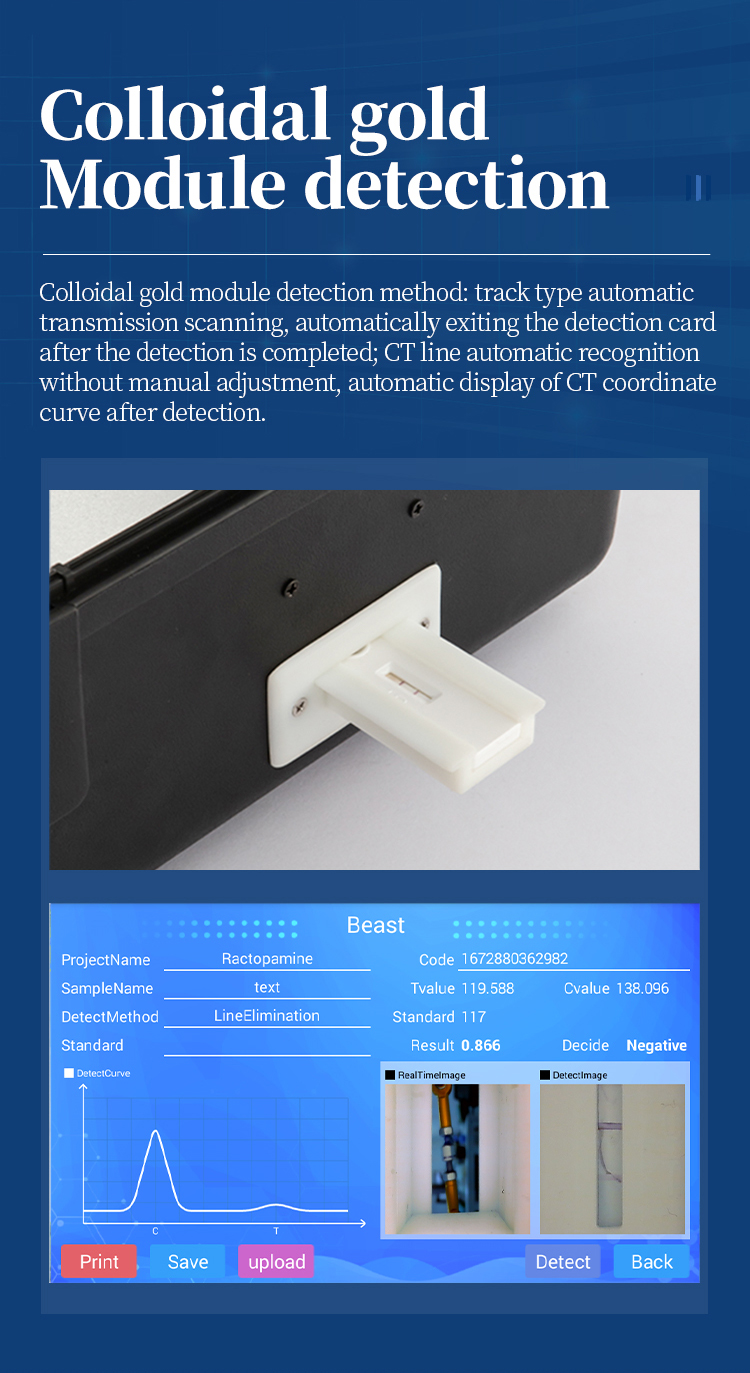

5. Colloidal gold test card reader with automatic image acquisition and quantitative result interpretation for objective reporting
6. ARM Cortex-A7 RK3288 quad-core processor delivering responsive multi-threaded performance for real-time data processing across channels
7. Storage capacity for 200,000 test records with automatic sample identification, date-time stamping, and operator logging

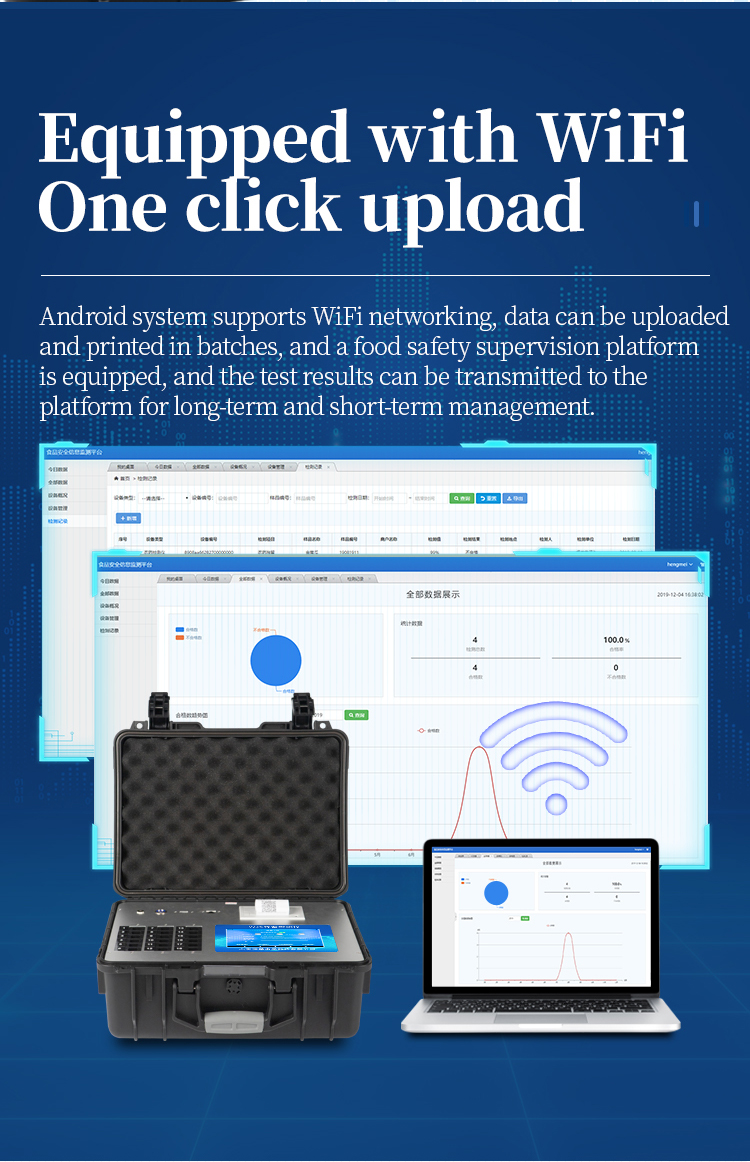

8. USB data export function supporting Excel and PDF report formats for direct integration with laboratory information management systems
9. AC and DC dual power modes with integrated 6 Ah rechargeable lithium battery for flexible deployment between fixed benches and mobile inspection vehicles
10. Compact instrument footprint of 43×35×19 cm with a net weight of 5.2 kg, balancing multi-channel capacity with practical portability
11. Compatible with standardized enzyme inhibition reagent kits and colloidal gold test cards from major manufacturers for supply chain flexibility

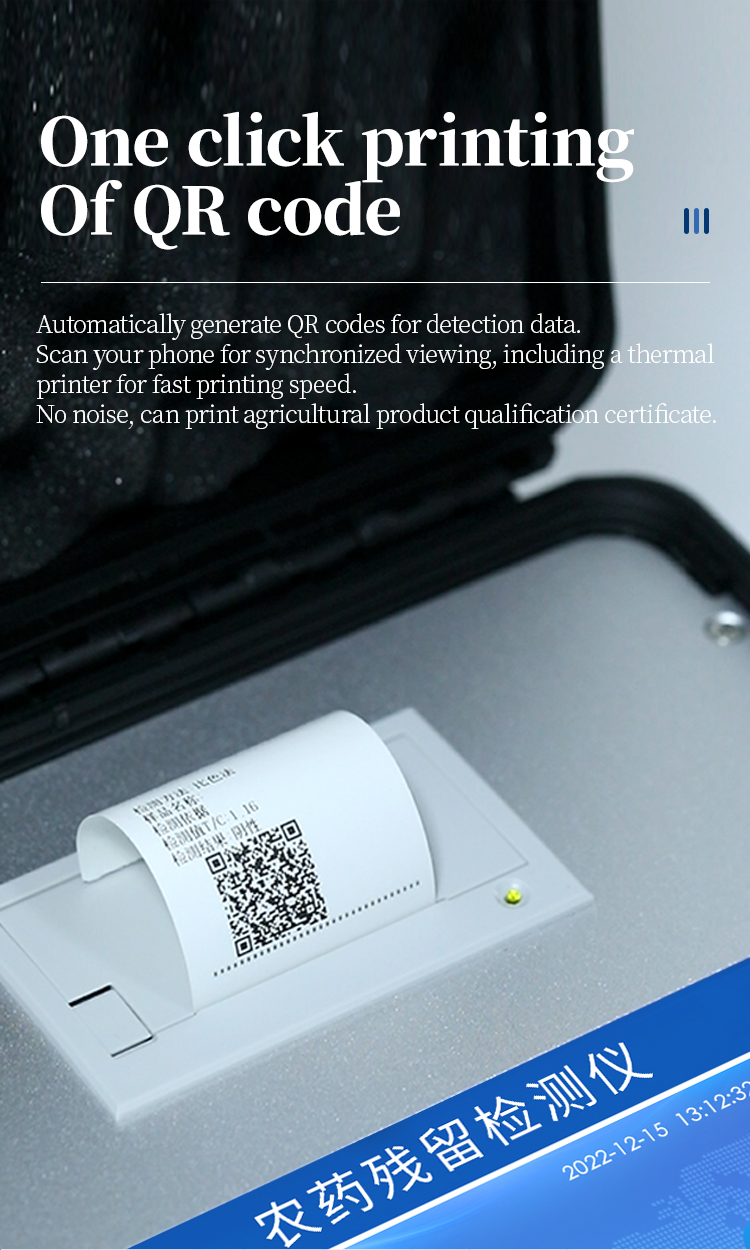

12. Built-in thermal printer for immediate on-site report generation with configurable report header and testing parameters

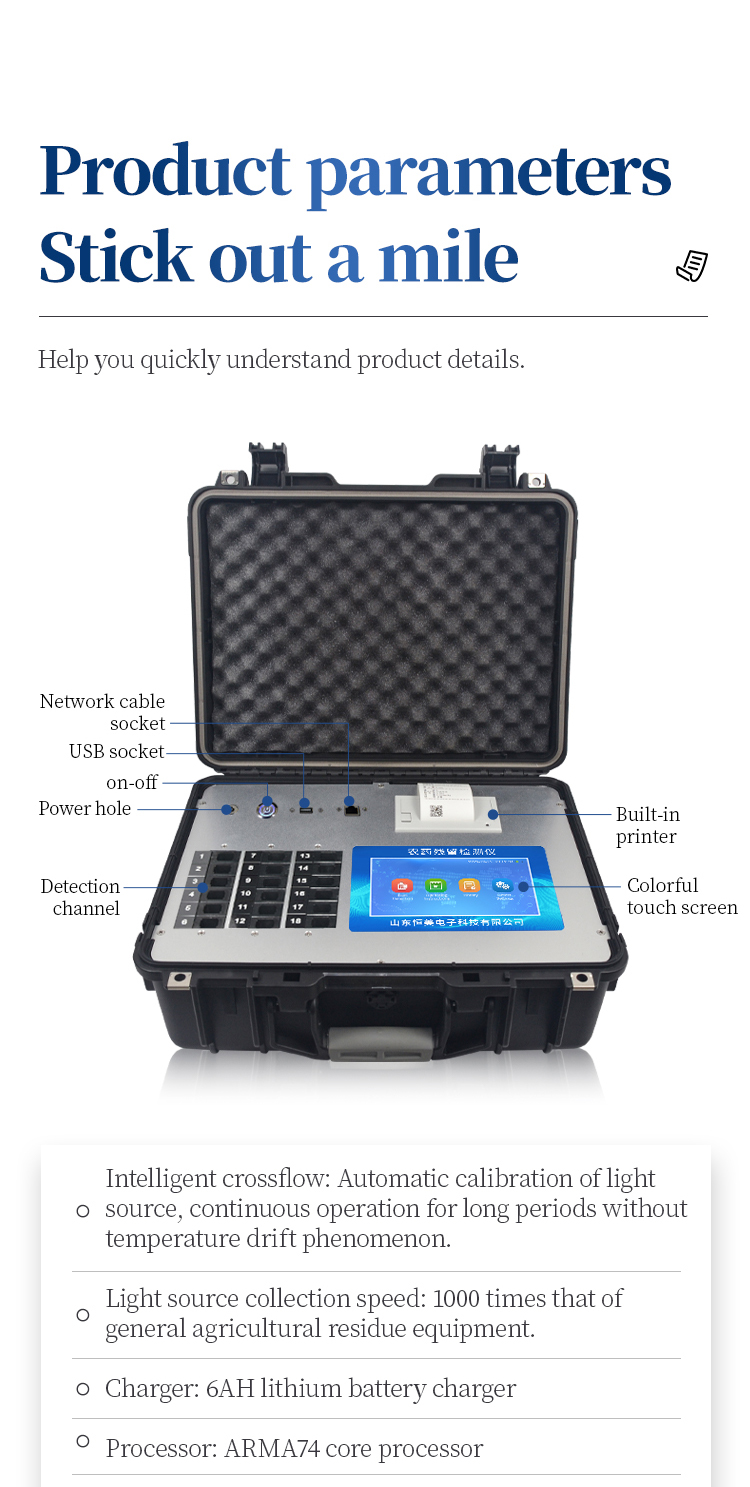

Main Parameters

Technical Parameters
