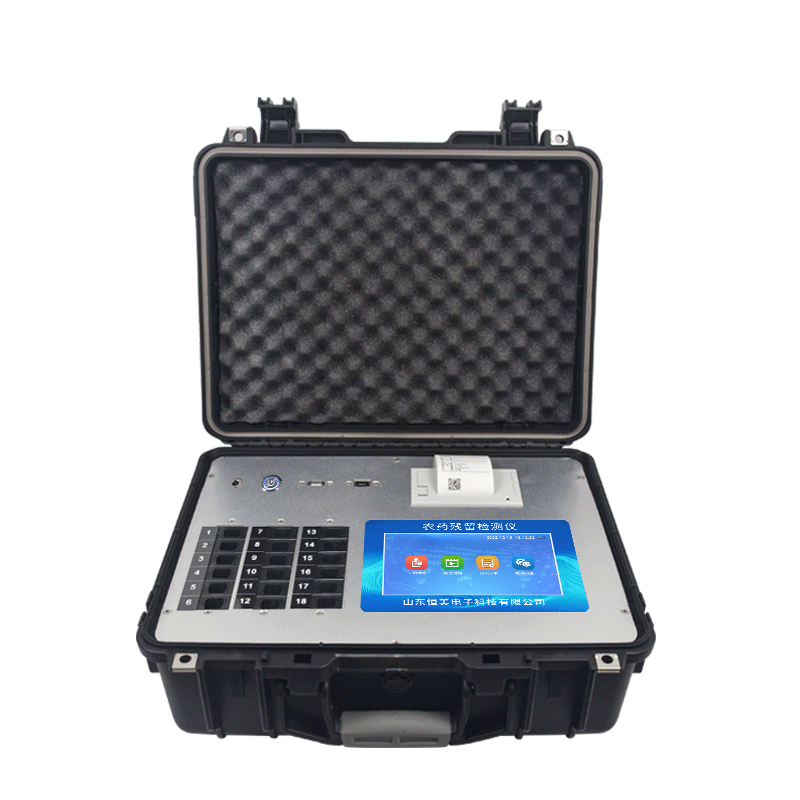

HM-NY12P Comprehensive Pesticide Residue Detector

Product Introduction

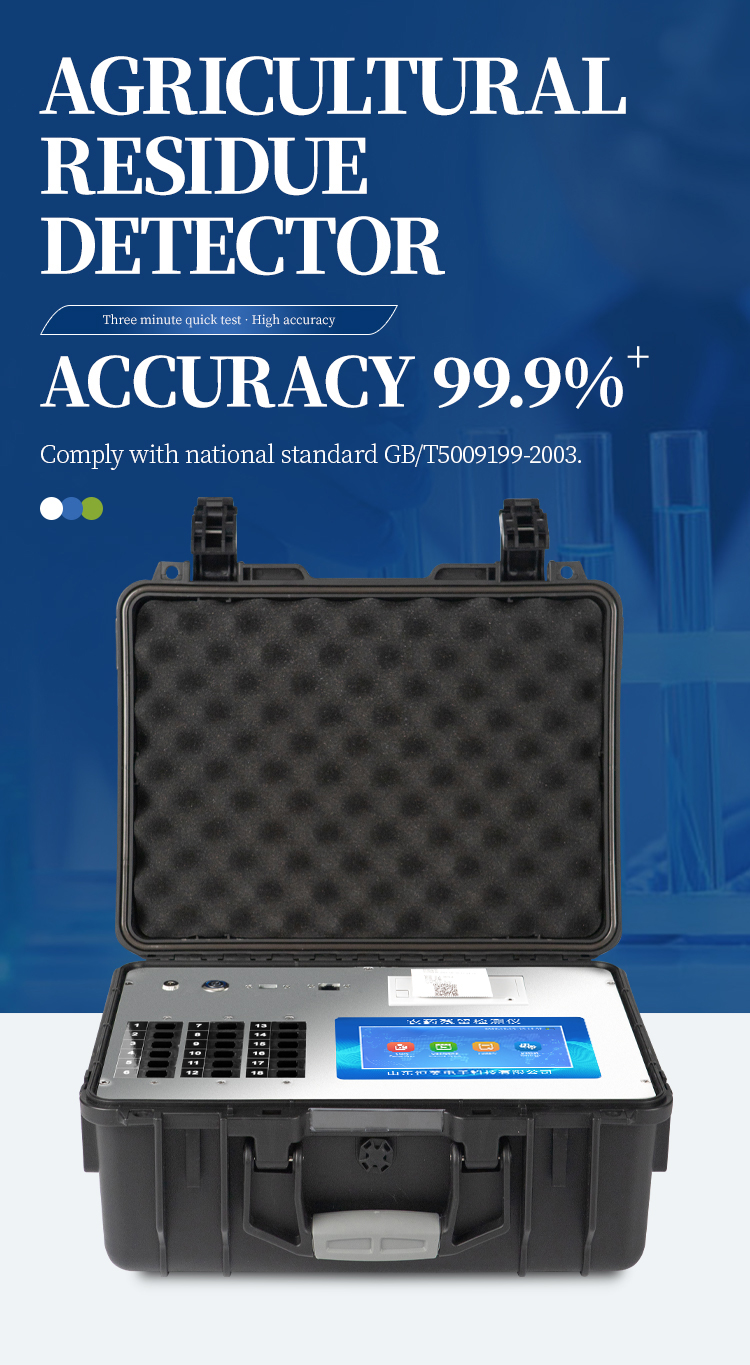

The HM-NY12P comprehensive pesticide residue detector is a multi-method analytical instrument designed for routine food safety screening. Manufactured by HM Instruments (恆美智造), it integrates enzyme inhibition spectrophotometry with colloidal gold immunochromatography into a single compact platform. This dual-method capability allows the instrument to cover a broad spectrum of pesticide compounds, including organophosphates, carbamates, and multiple targeted analytes detected via colloidal gold test strips, totaling over 60 specific pesticide types.

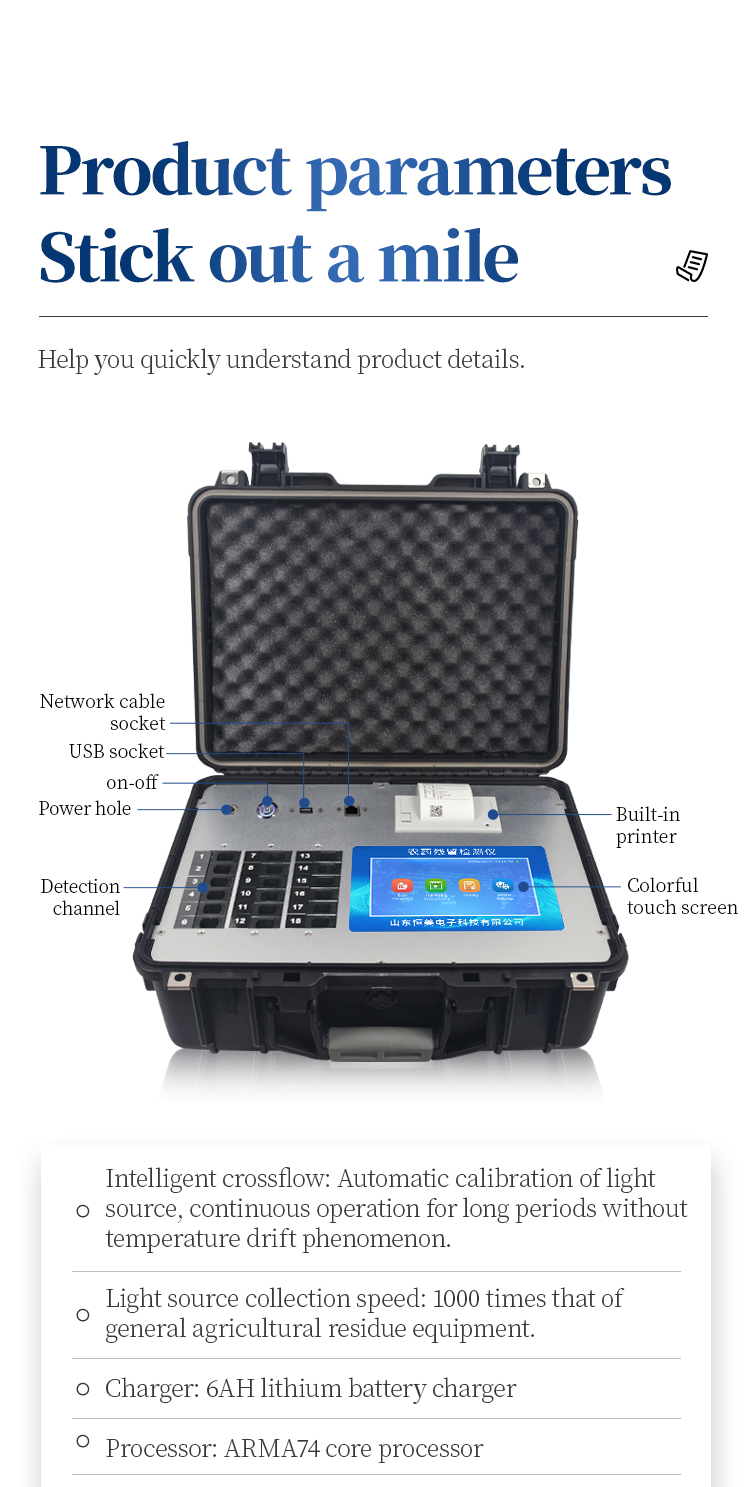

Built around the ARM Cortex-A7 RK3288 processor running at 1.88 GHz, the HM-NY12P features a 7-inch color touchscreen interface that streamlines operation and data review. The 12 independent detection channels enable parallel sample processing, significantly improving throughput for laboratories handling moderate daily sample volumes. With a data storage capacity of 200,000 records, built-in thermal printing, and both AC and DC power with a 6 Ah battery, this instrument is suitable for both fixed laboratory deployment and mobile on-site testing scenarios. For a deeper understanding of pesticide residue testing methodologies, refer to our comprehensive pesticide residue testing guide.

Applications

• Agricultural product wholesale markets: rapid pre-market screening of vegetables and fruits
• Food processing facilities: incoming raw material inspection and quality control
• Supermarket and retail distribution centers: routine produce safety verification
• Community and school canteens: daily food safety monitoring for high-risk ingredients
• County-level food and drug administration laboratories: regulatory compliance testing
• Agricultural extension stations: field-level crop safety assessment

Functional Performance / Features

1. 12 independent detection channels for parallel sample analysis, improving daily throughput

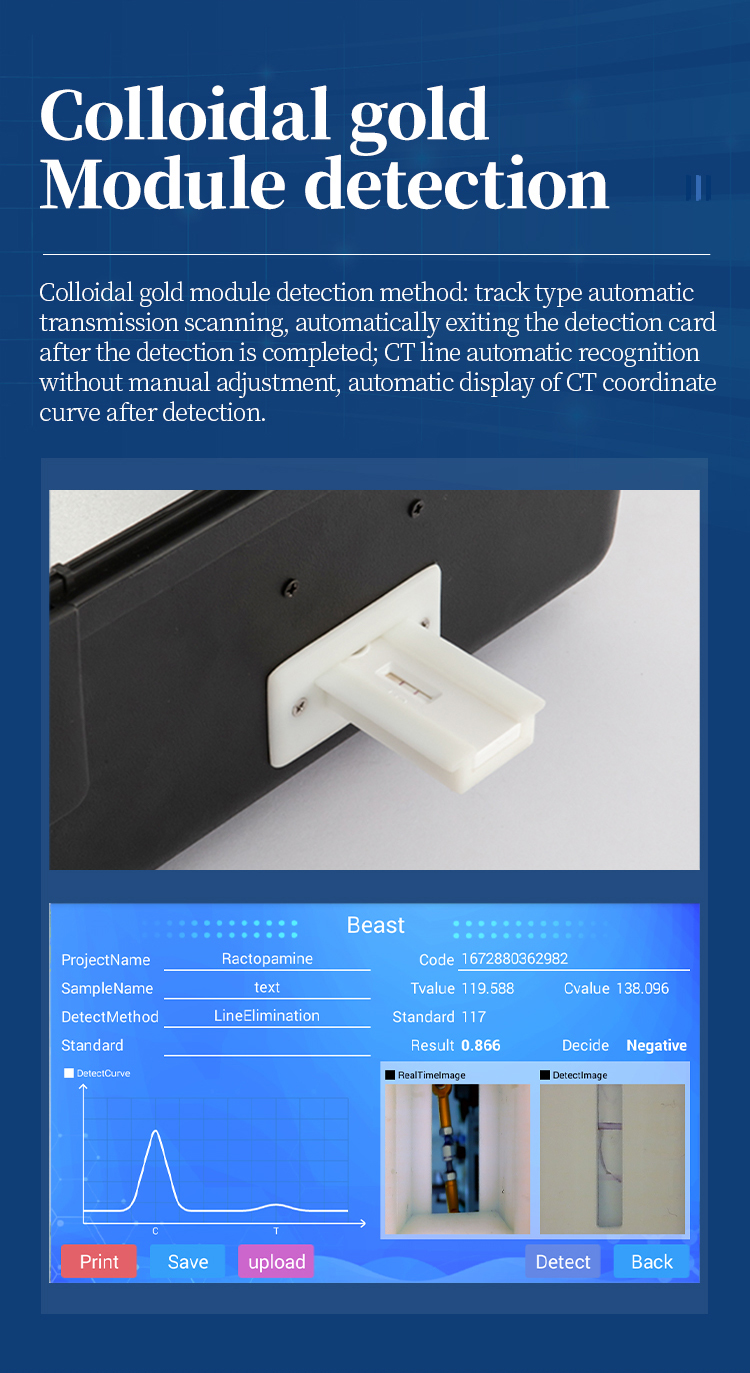

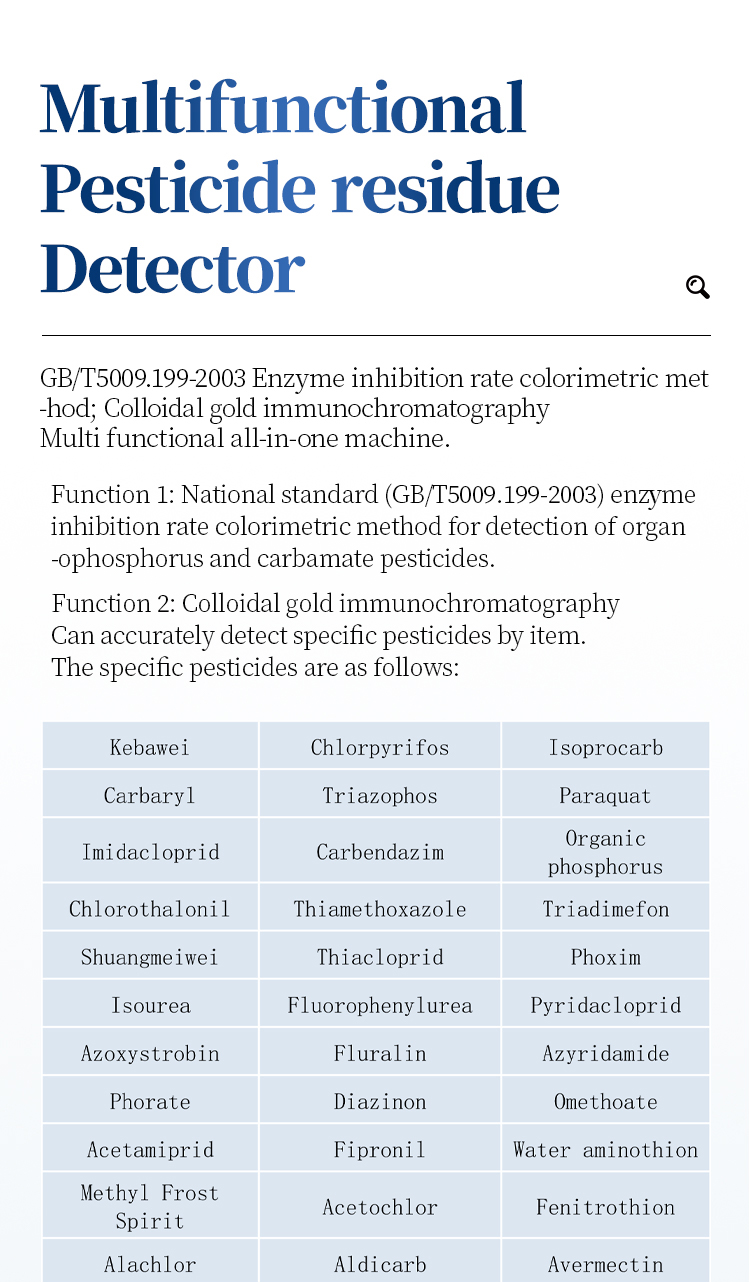

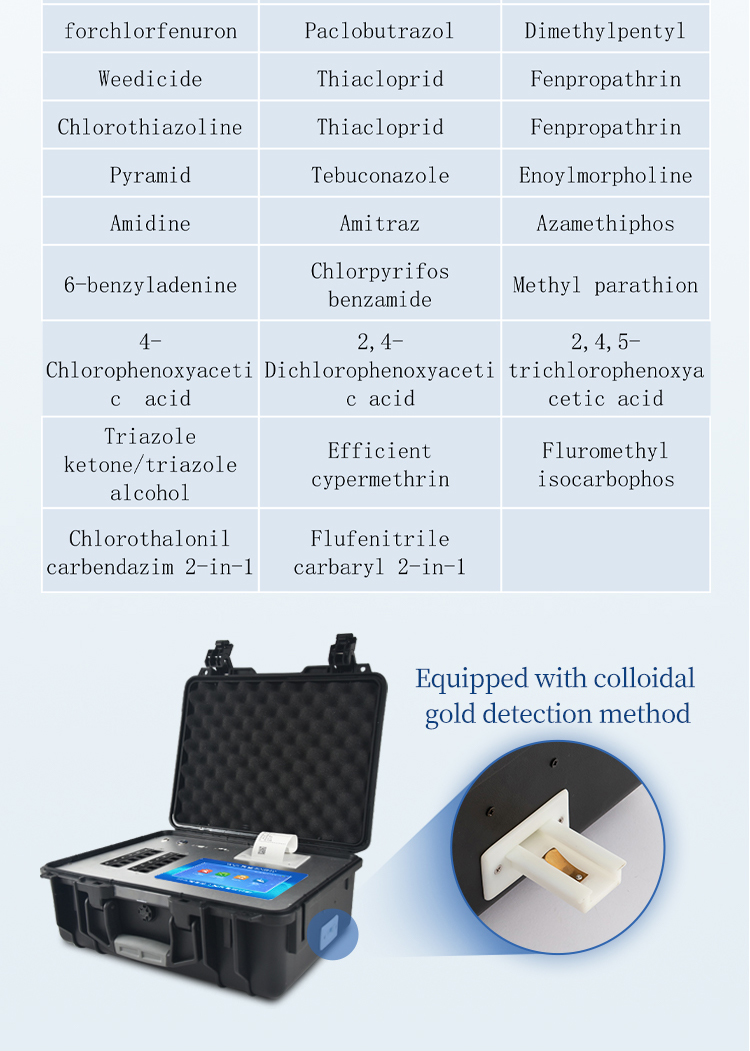

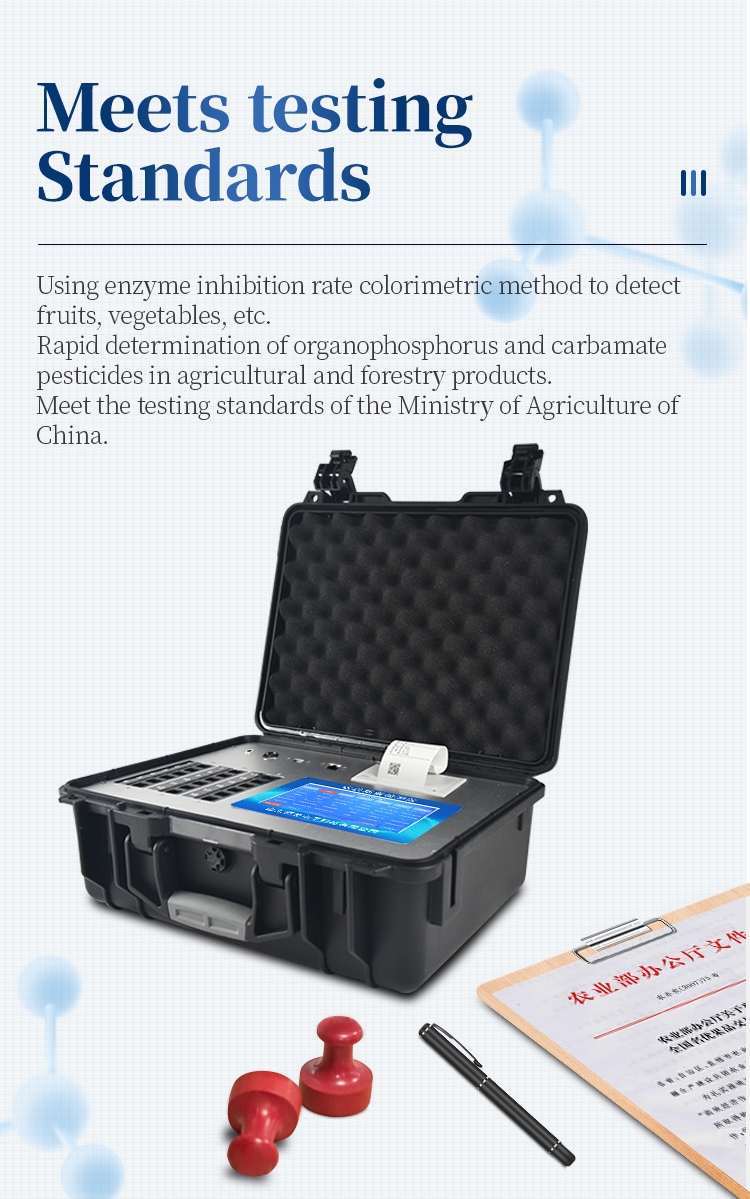

2. Dual detection methods: enzyme inhibition for organophosphate/carbamate screening and colloidal gold for targeted pesticide identification

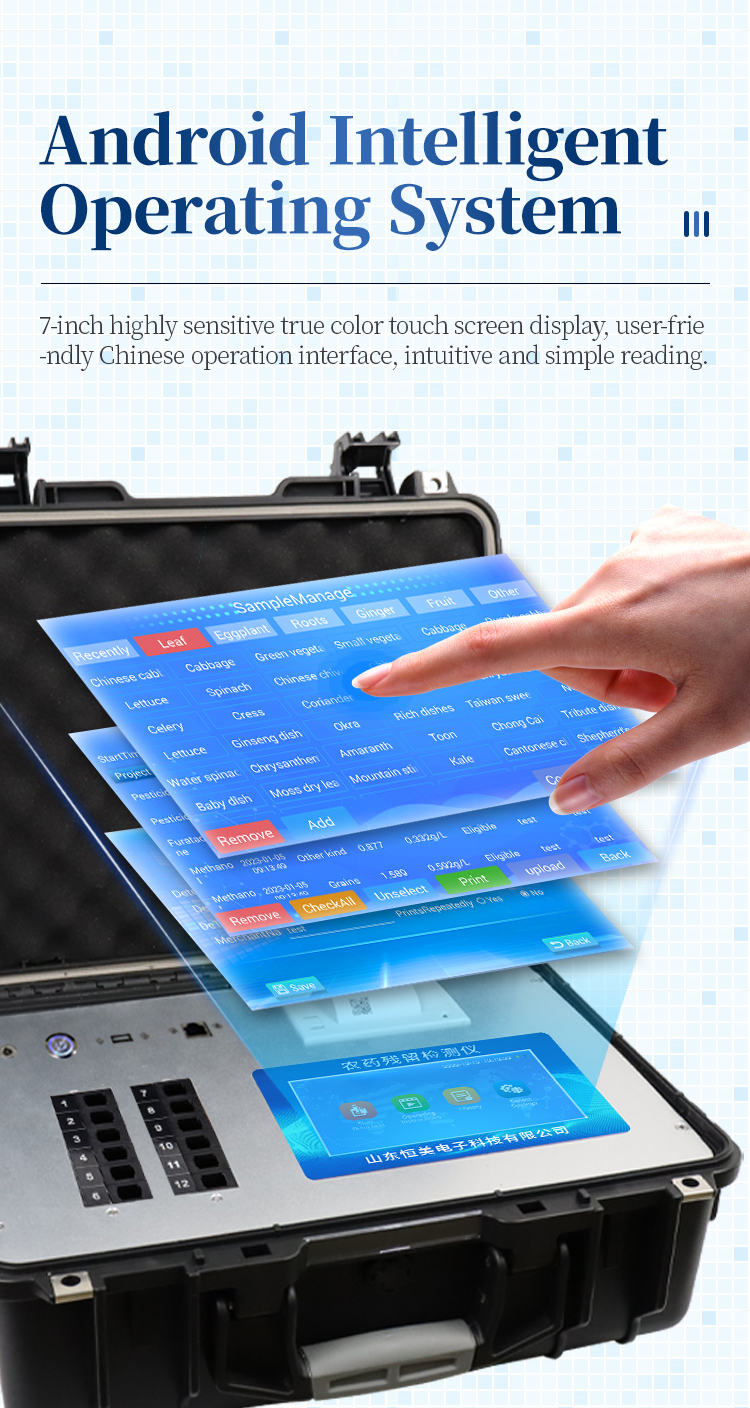

3. 7-inch high-resolution color touchscreen with intuitive graphical user interface
4. ARM Cortex-A7 RK3288 quad-core processor (1.88 GHz) for fast data processing and responsive operation
5. Detection database covering 60+ pesticide compounds with customizable threshold settings
6. 200,000 record onboard storage with multi-criteria search and retrieval functionality

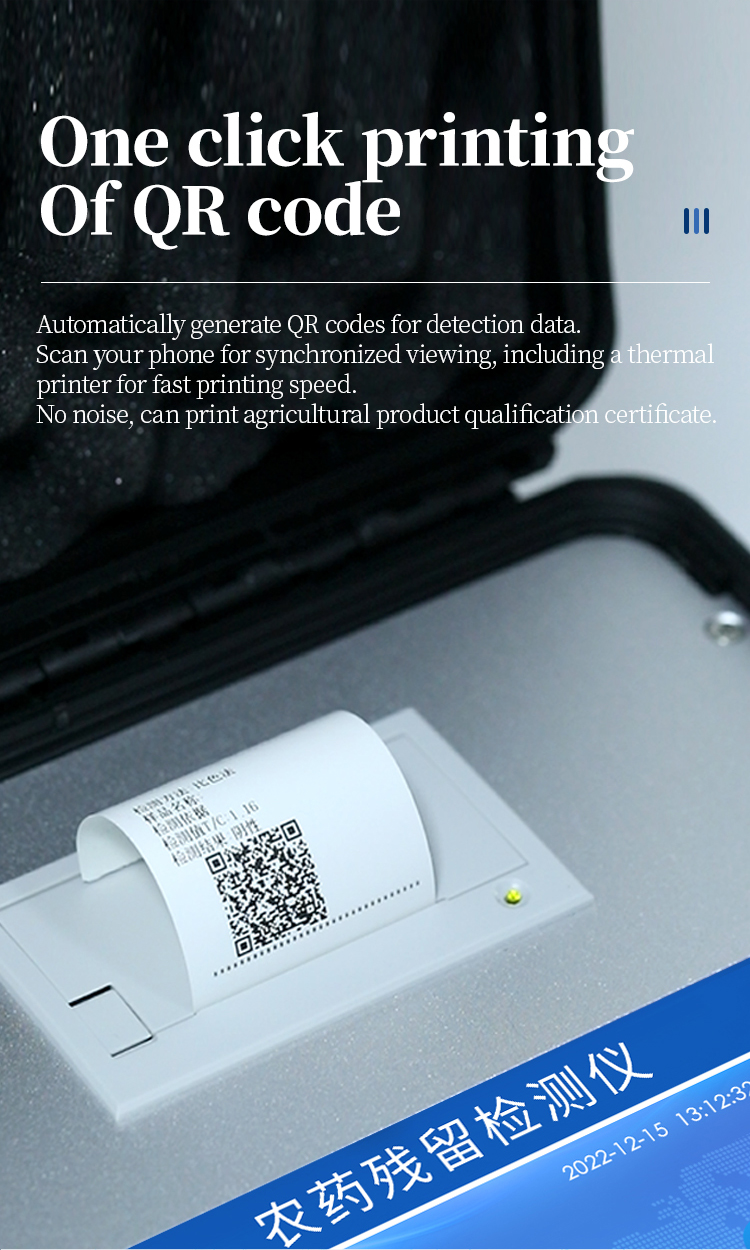

7. Built-in thermal printer for immediate on-site result documentation
8. Dual power supply: AC mains with built-in 6 Ah rechargeable lithium battery for portable field use

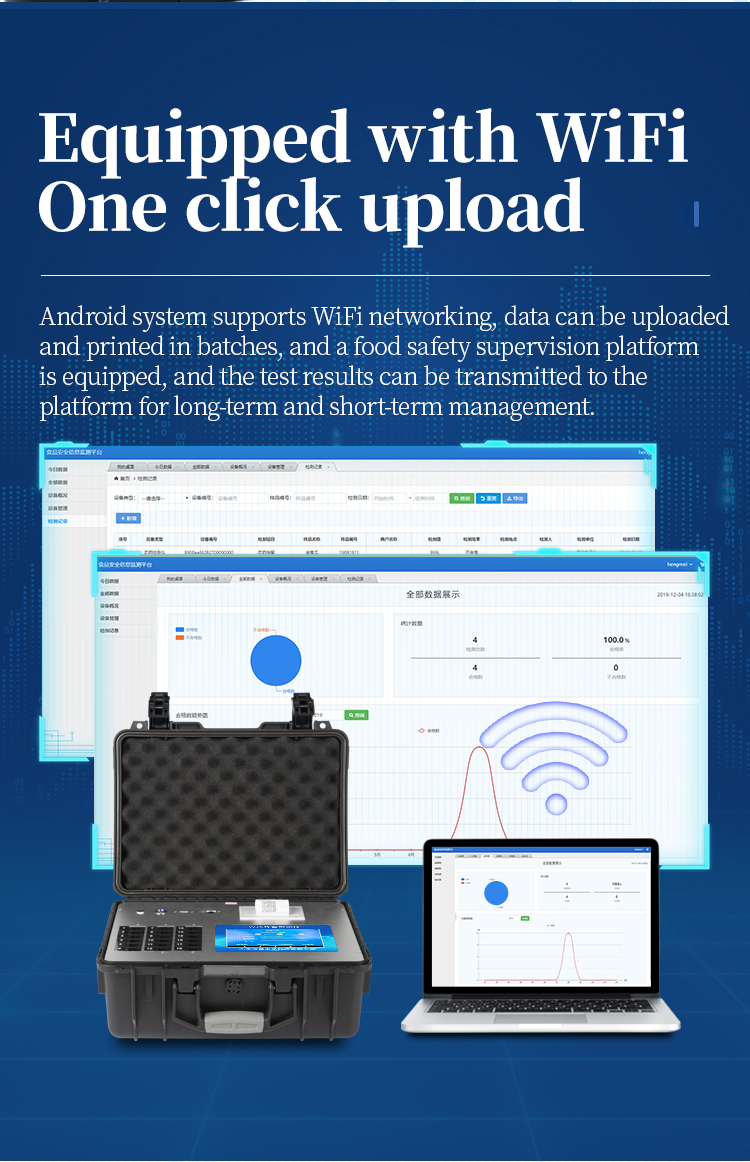

9. USB interface for data export to external storage or LIMS integration

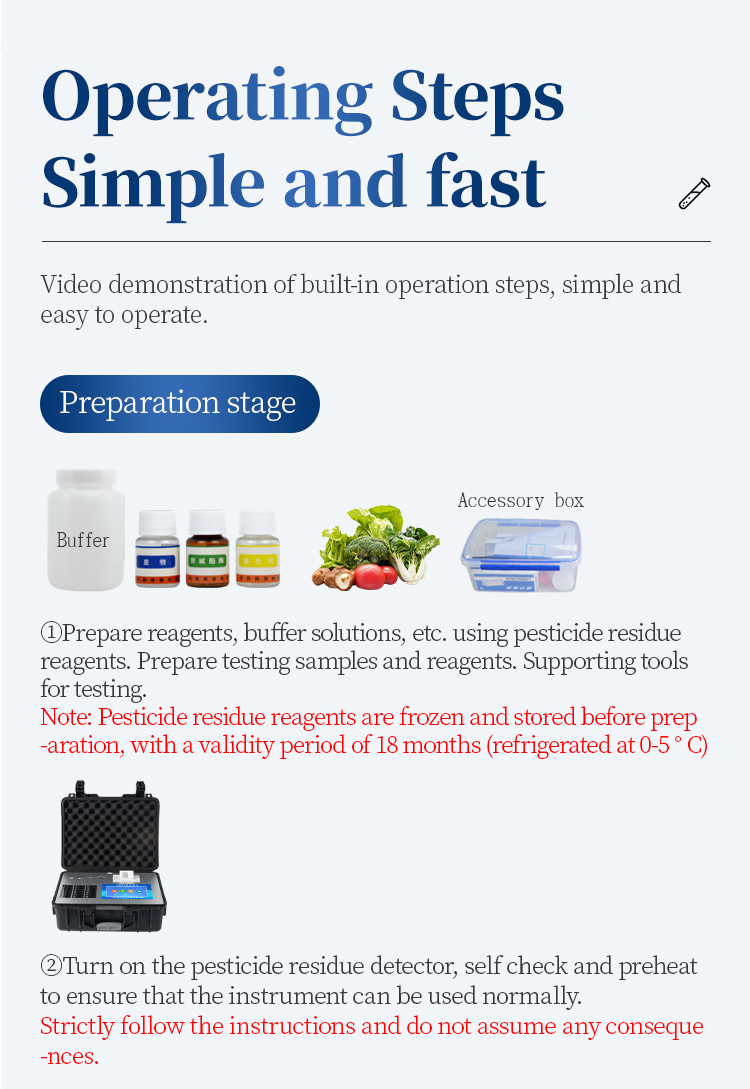

10. Automatic instrument self-check and calibration routine upon startup

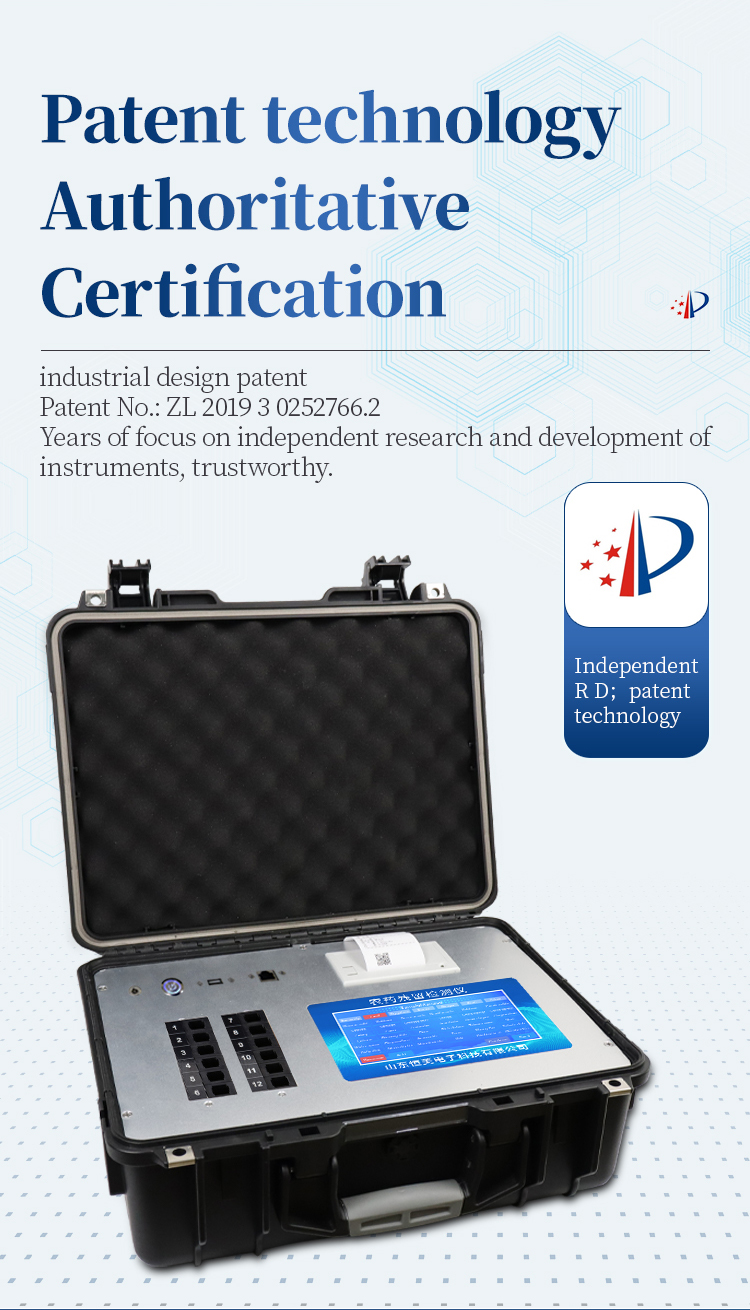

11. Compact form factor (43 × 35 × 19 cm) with integrated carrying handle for transportability
12. Chinese and English bilingual operating interface with one-tap language switching

Main Parameters

Technical Parameters
