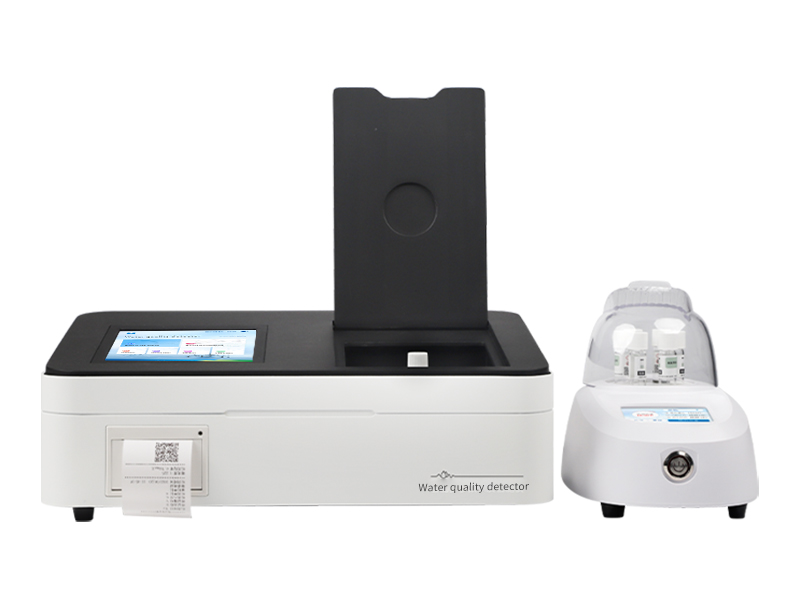

Transform Water Quality Monitoring with Our Advanced COD Ammonia Nitrogen Total Phosphorus Total Nitrogen Analyzer.

Water is life's essential element, and ensuring its quality is a critical responsibility. Our COD Ammonia Nitrogen Total Phosphorus Total Nitrogen Analyzer is designed to meet the stringent demands of environmental monitoring with a blend of precision, innovation, and user-centric design.

Device Introduction:

Crafting this analyzer with reference to the standard "Rapid Digestion Spectrophotometric Method (HJ/T399-2007)," we've ensured its compatibility with numerous domestic and international testing standards. It specializes in detecting COD, ammonia nitrogen, total phosphorus, and total nitrogen indicators with remarkable accuracy. Coupled with intelligent data analysis capabilities, this device presents data in clear charts and lists for straightforward analysis. With a high-definition color LCD touch screen and an Android smart operating system featuring a Chinese interface and bilingual keyboard, this device is a testament to Humanized operation. It also includes a standard intelligent 28-hole dual-temperature zone rapid digester for simplified usage.

Wide Applications:

Our analyzer is versatile and finds applications across various industries, including the detection of wastewater in industrial, municipal, and domestic sectors, as well as the monitoring of surface water bodies like rivers and lakes. It caters to the diverse needs of different users and is suitable for monitoring wastewater in chemical, petroleum, coking, papermaking, metallurgy, brewing, pharmaceutical, and other industries.

Key Features:

1. Powered by an advanced Android 7.1.1 operating system with a user-friendly Chinese interface for faster operation and enhanced stability.

2. An 8-inch LCD touch screen offers an intuitive and simple reading experience.

3. Equipped with a precision cuvette design for consistent light source use, reducing detection errors and ensuring more accurate results.

4. Features imported high-brightness LEDs for the light source, with automatic brightness adjustment and calibration capabilities.

5. Supports a variety of photometry methods, including 10mm, 30mm, and 50mm cuvettes, and φ16mm tube photometry, ensuring measurement accuracy.

6. Wireless communication capabilities, including WIFI, RJ45, and mobile hotspot networking for data transmission, with the option to export data via USB.

7. Comprehensive sample management allows for naming samples in Chinese or English for easy record-keeping and data storage.

8. The device can store up to 8 million data sets, retrievable through time-based searches for convenient data analysis.

9. Supports HDMI output for user training, presentations, and large screen displays.

10. Integrated with a regulatory cloud platform for data upload via LAN or internet, compatible with environmental department platforms.

11. Includes a built-in thermal line printer for customizable printouts, including QR code printing.

12. Operates on AC 220V, with an optional 6Ah high-capacity rechargeable lithium battery for field testing.

13. Built-in instructional videos make operation easier, allowing users to follow along while conducting experiments.

14. Firmware is upgradable for future enhancements.

Technical Specifications:

• Reading Error: ≤±5%

• Instrument Stability: <0.5%

• Instrument Repeatability: <0.5%

• Photochemical Stability: Drift ≤0.002A within 20 minutes (100,000-hour lifespan)

Physical Parameters:

• Photometry Methods: Colorimetric tube (16mm digestion-colorimetric integrated tube), cuvette (10mm, 30mm, 50mm)

• Operating System: Android 7.1.1 smart operating system

• Interface: Chinese or English operation interface

• Display: 8-inch (1024*768 resolution) high-definition color LCD touch screen

• Network Interfaces: USB2.0, HDMI, WiFi, Bluetooth, hotspot, RJ45

• Cloud Platform: Integrated regulatory platform for direct data transmission to environmental safety platforms.

• Printer: Thermal line printer

• Data Storage: 8 million sets, freely accessible

• Data Export Format: Excel spreadsheet

• Instrument Dimensions: 367x243x125mm

• Instrument Weight: 5.3kg

• Ambient Temperature: (5-40)℃

• Ambient Humidity: Relative humidity <85% (no condensation)

• Rated Power: 10W

• Power Supply: AC220V±10%/50Hz

• Optional Configuration: High-capacity lithium battery

Intelligent 28-Hole Dual-Temperature Zone Digester Specifications:

• Display: 8-inch high-definition color touch screen

• Digestion Capacity: 28 samples (dual-temperature zones/each zone 14 samples, independent heating)

• Temperature Control: Intelligent PID temperature control

• Temperature Range: Room temperature to 200℃ adjustable

• Heating Speed: Reaches 165℃ within 10 minutes

• Digestion Volume: 0-10ml

• Digestion Hole Diameter: Φ16mm/10ml digestion-colorimetric tube

• Test Tube Depth: 55mm

• Temperature Accuracy: ±0.5℃

• Temperature Control Time: 0-999 minutes (customizable)

• Pre-set Digestion Modes: COD, total phosphorus, total nitrogen, permanganate, sulfate, formaldehyde

• Custom Digestion Modes: 3 modes

• Constant Temperature Prompt: Supported

• Digestion Completion Prompt: Supported

• Alarm Method: Buzzer alarm

• Safety Protection: Double protection (over-temperature protection + cover protection)

• Instrument Power Consumption: <1000W

• Ambient Temperature: (5～40)℃

• Relative Humidity: ≤85% (no condensation)

• Outer Dimensions: (367251176)mm (lengthwidthheight)

• Instrument Weight: <5.7kg

• Power Supply: AC(220±22)V, (50±0.5)Hz

Elevate your water quality analysis with our state-of-the-art analyzer and ensure the highest standards of water safety and compliance. Contact us today to discover how our analyzer can streamline your monitoring processes and provide you with reliable, actionable data.
