Phosphate Analyzer

Product Overview

HM-LSG is a laboratory phosphate analyzer for measuring soluble phosphate ions in water samples. It combines automatic flow sampling with photoelectric colorimetric detection and calculates phosphate concentration from the developed reaction solution and an internal calibration curve. The source specification describes the instrument for desalinated water, steam condensate and boiler water testing in power, chemical and fertilizer, metallurgy, environmental protection, pharmaceutical, chemical fiber and semiconductor applications.

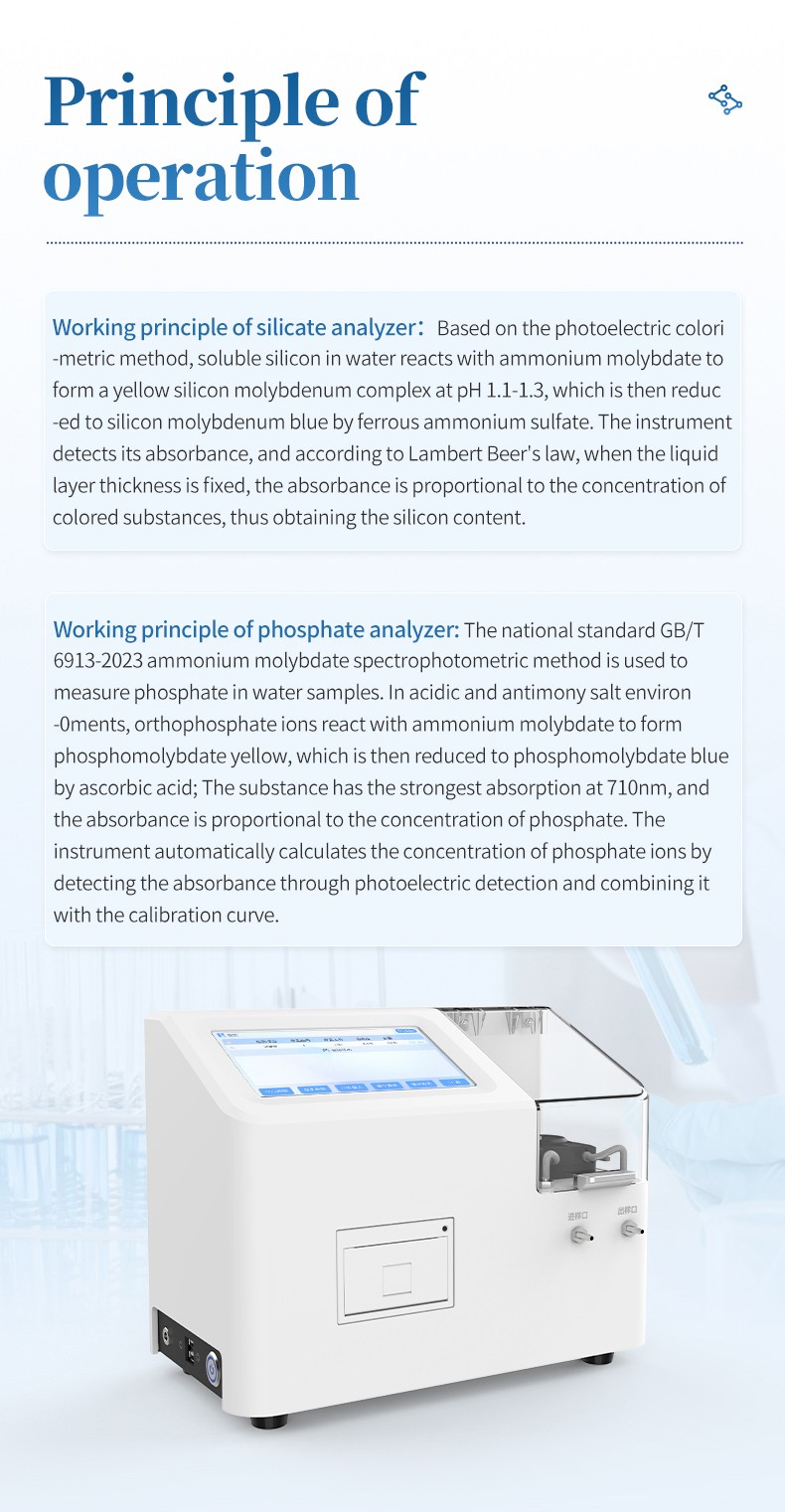

The method is based on the ammonium molybdate spectrophotometric approach referenced in GB/T 6913-2023, Analysis methods for boiler water and cooling water—Determination of phosphates. In an acidic medium with antimony salt, orthophosphate reacts with ammonium molybdate to form phosphomolybdate yellow. Ascorbic acid reduces it to phosphomolybdate blue; the instrument detects absorbance at 710 nm and calculates concentration as phosphate (PO₄³⁻).

Key Features

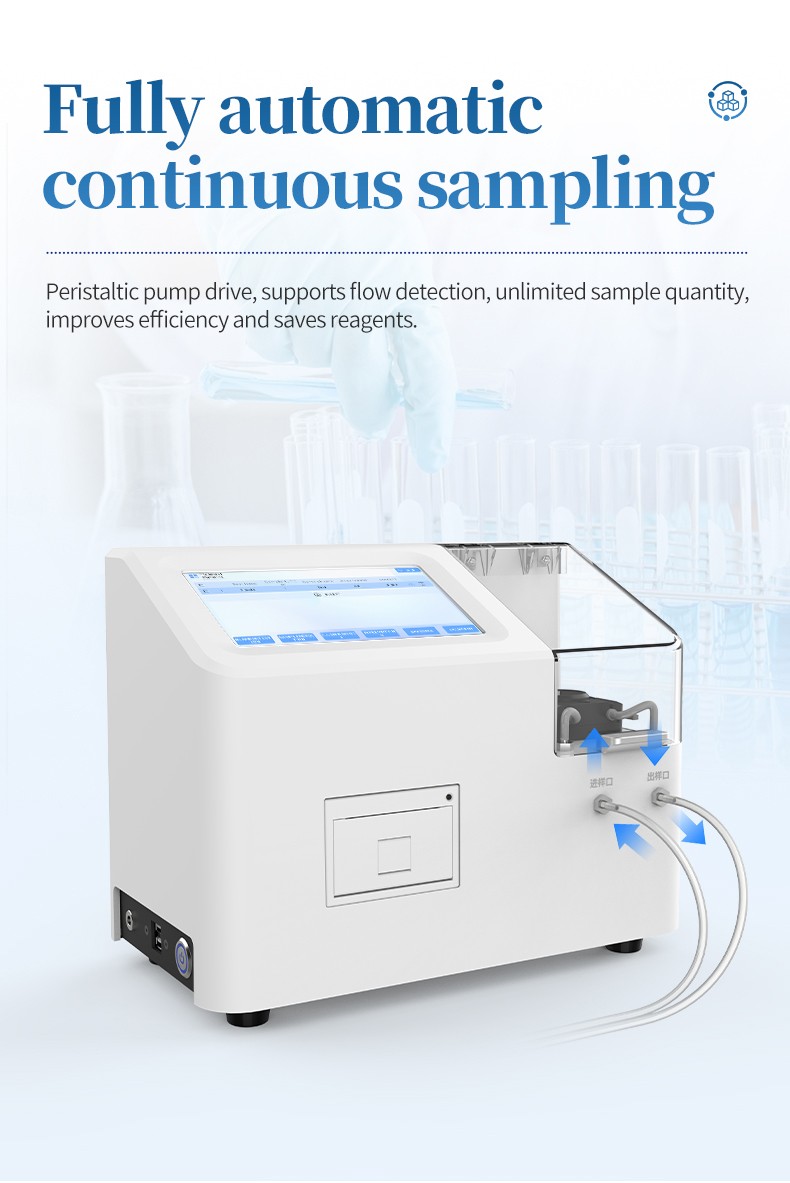

• Peristaltic-pump automatic injection supports continuous multi-sample flow testing without manual sample addition.

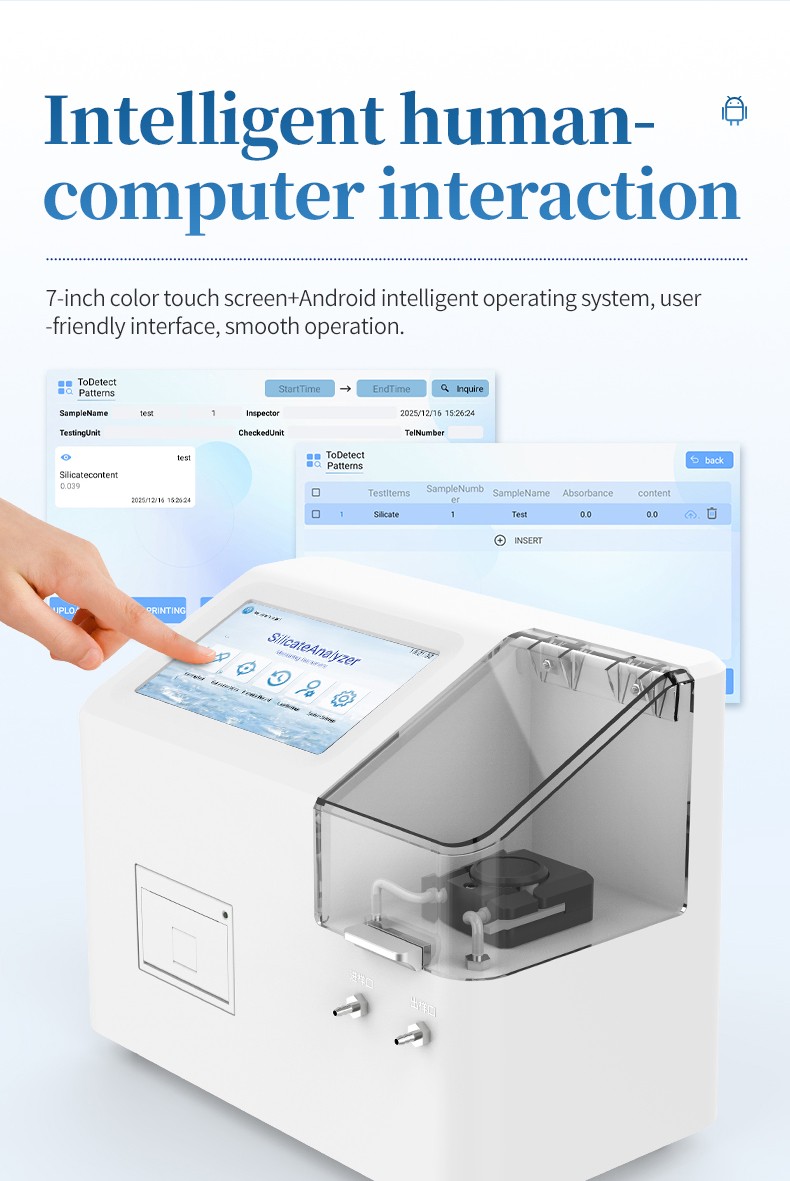

• Seven-inch color touch screen with an Android 7.1.1 smart operating system.
• Preset and user-defined calibration curves support routine testing and method development.
• Customized-wavelength LED cold light source with automatic light adjustment and calibration.
• Wi-Fi result upload, standard USB drive export and an internal thermal printer.

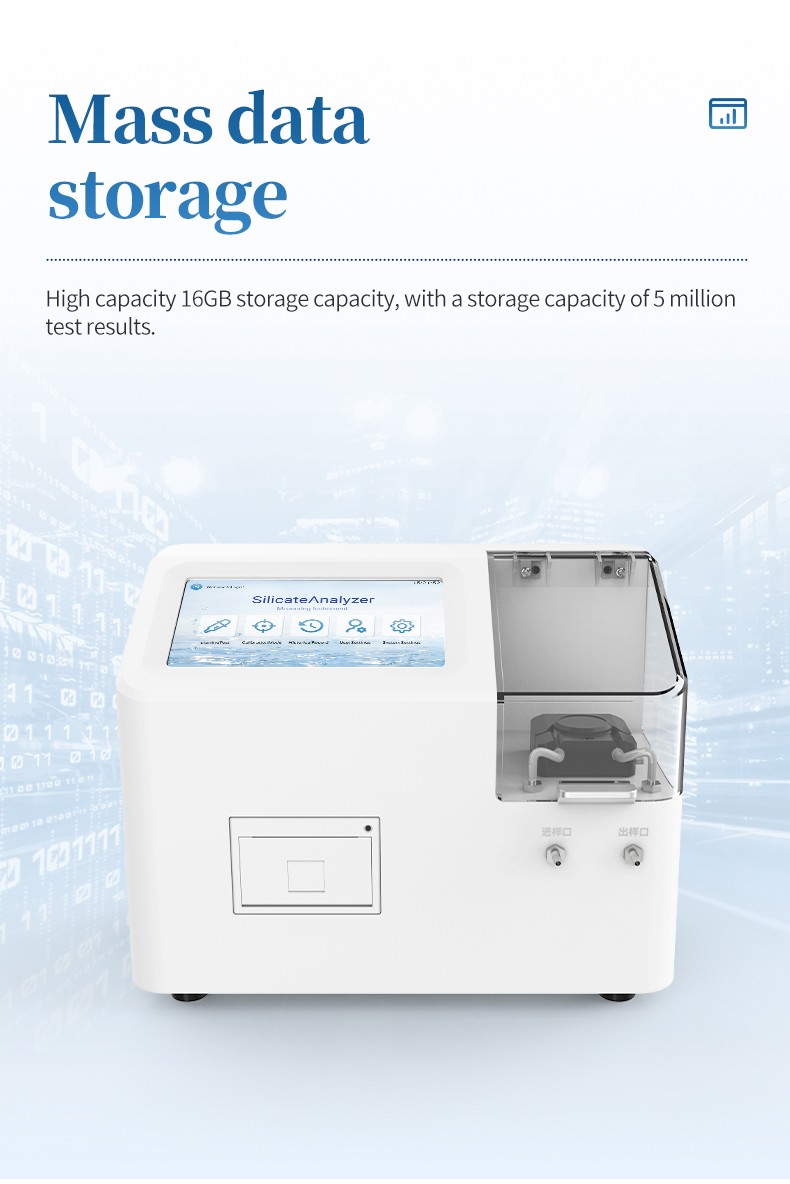

• 16 GB storage capacity for up to 5 million test results.

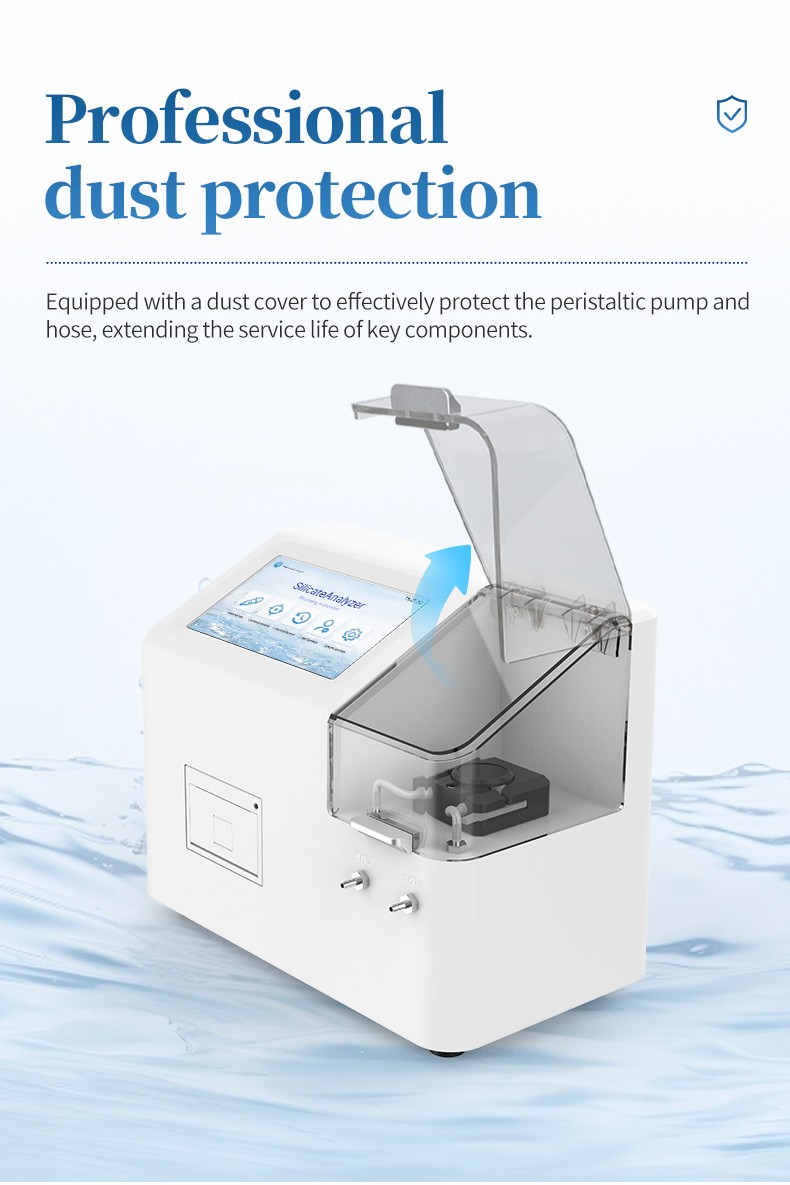

• Automatic pipeline cleaning after detection and a protective cover for the pump and tubing.

Applications

• Phosphate testing in desalinated water, steam condensate and boiler water.
• Laboratory and process-support testing in power plants, chemical and fertilizer production, metallurgy, environmental protection, pharmaceuticals, chemical fiber and semiconductor operations.
• Use the selected range and sample preparation appropriate to the sample and the intended method; application suitability should be confirmed before procurement.

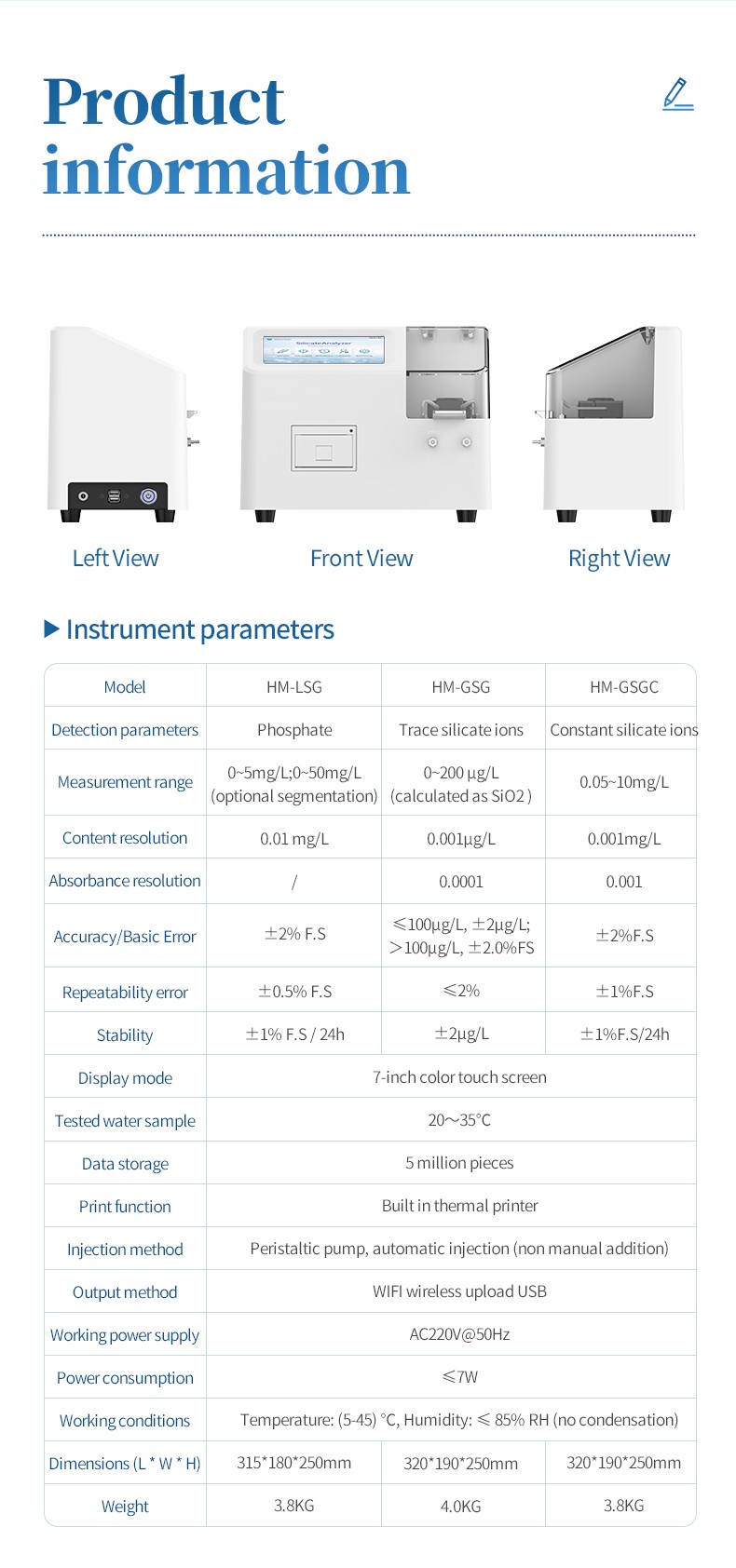

Technical Specifications

Parameter	Specification
Detection parameter	Phosphate
Measurement range	0–5 mg/L or 0–50 mg/L, selectable by segment
Resolution	0.01 mg/L
Basic error	±2% F.S.
Repeatability error	±0.5% F.S.
Stability	±1% F.S. / 24 h
Measured water sample	20–35°C
Display	7-inch color touch screen
Injection	Peristaltic pump, automatic injection (non-manual addition)
Data storage	5 million results; 16 GB storage capacity
Output	Wi-Fi wireless upload and USB
Printer	Built-in thermal printer
Power supply	AC 220 V @ 50 Hz
Power consumption	≤7 W
Working conditions	Temperature 5–45°C; relative humidity ≤85% RH, no condensation
Dimensions (L × W × H)	315 × 180 × 250 mm
Weight	3.8 kg

Configuration / Accessories

• The SKU description identifies the analyzer configuration as automatic injection with a 7-inch touch screen.
• Phosphate testing reagent kits are listed as separate SKU entries; confirm the required kit and final order configuration with sales.

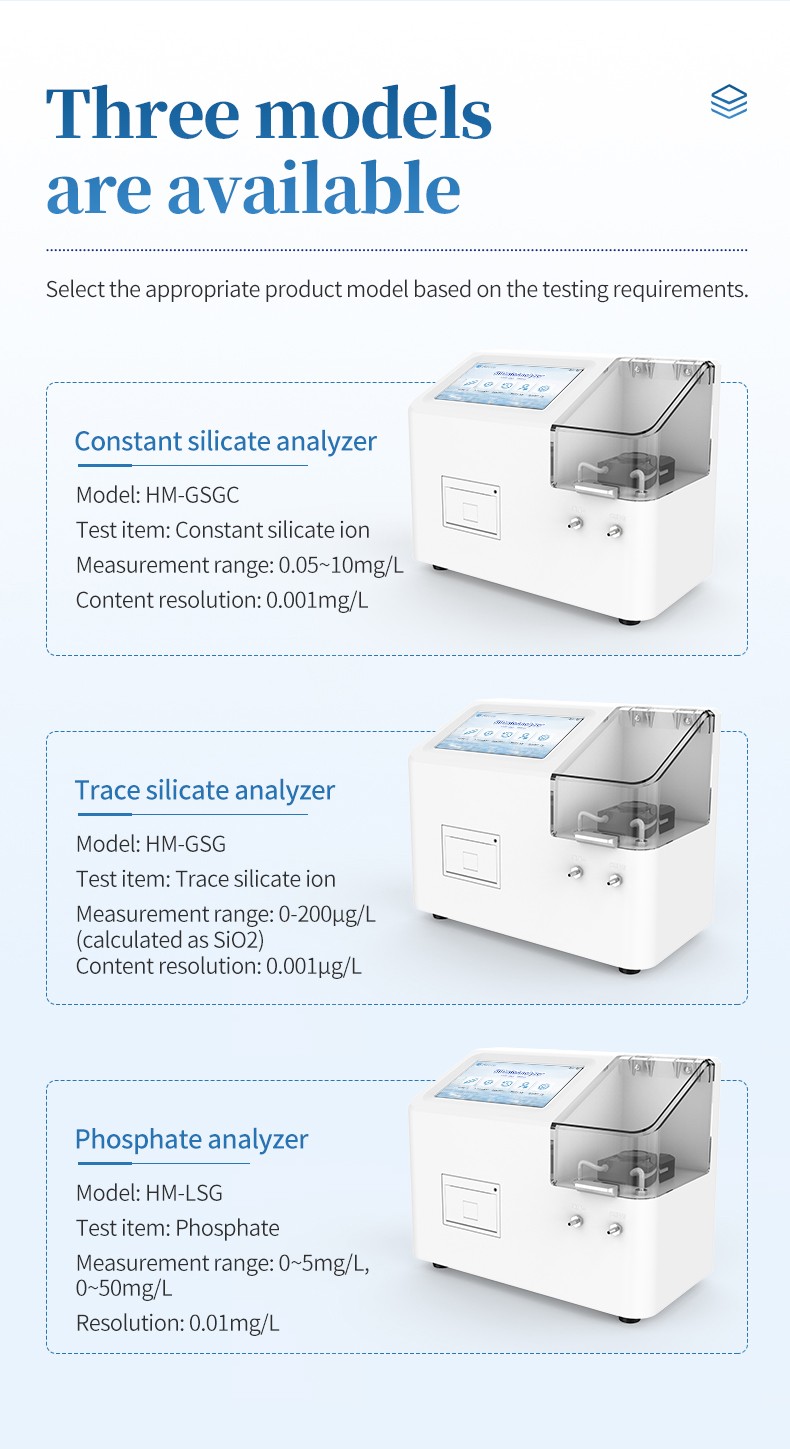

Related Models

Model	Selection reference
HM-GSG	Trace silicate analyzer for 0–200 μg/L, calculated as SiO₂.
HM-GSGC	Constant silicate analyzer for 0.05–10 mg/L.
