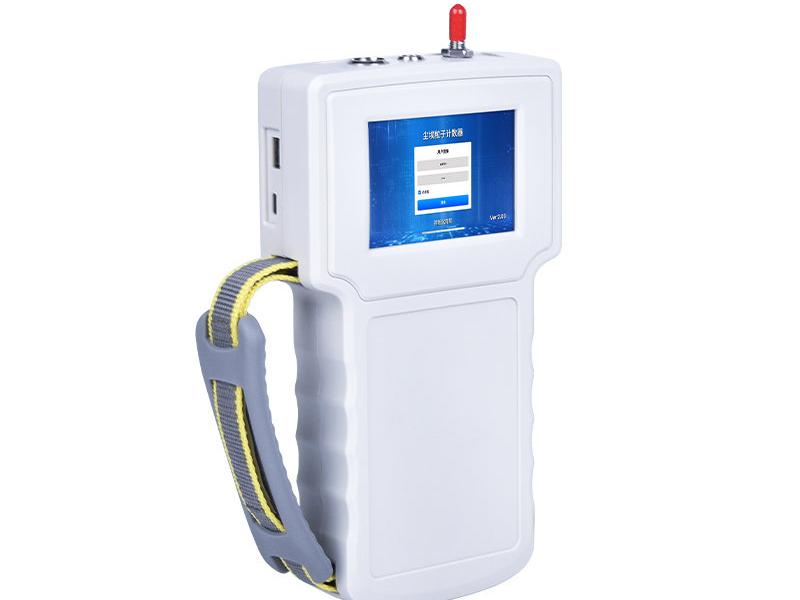

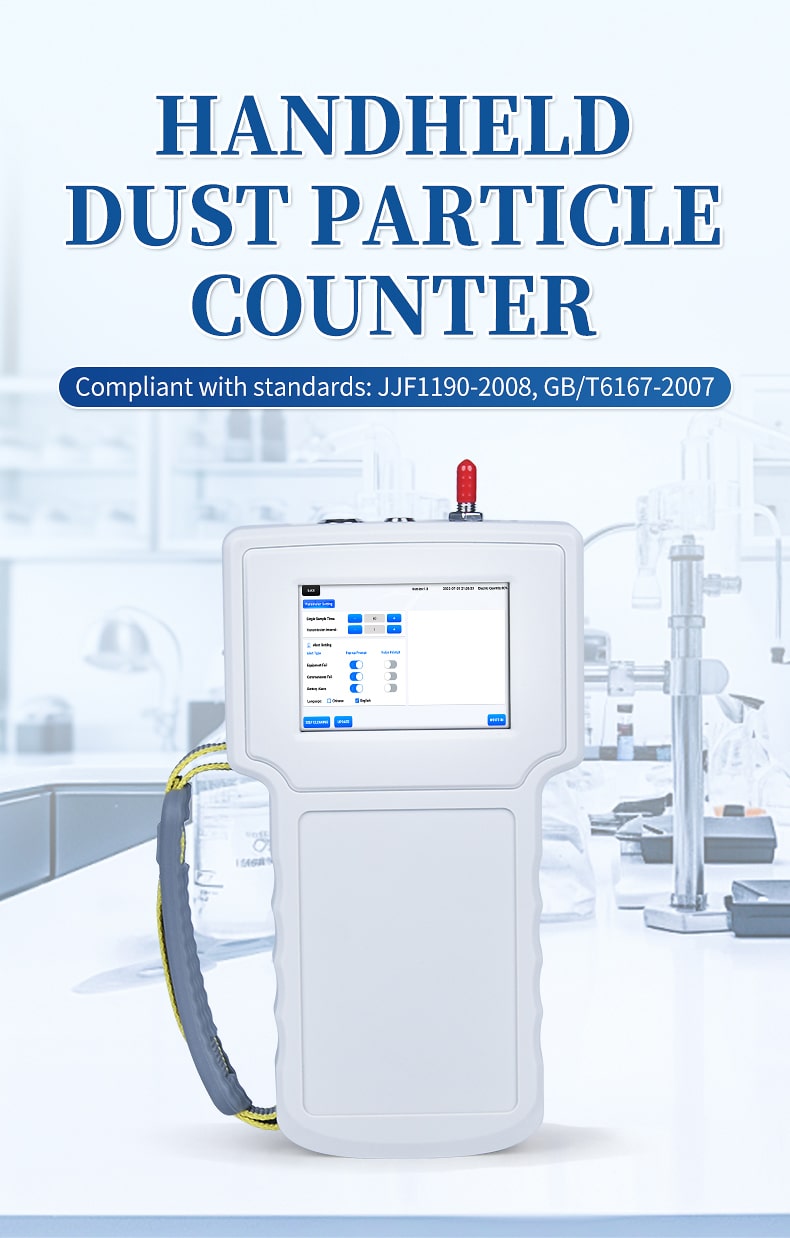

Handheld dust particle counter

；

Introduction:

Handheld dust particle counter is a portable detection device specially designed for rapid measurement of the number and size distribution of dust, particulate matter and other tiny particles in the air. Such instruments are widely used in many industries, including but not limited to pharmaceuticals, semiconductor manufacturing, hospital operating rooms, dust-free workshops, air purifier effect verification and other fields.

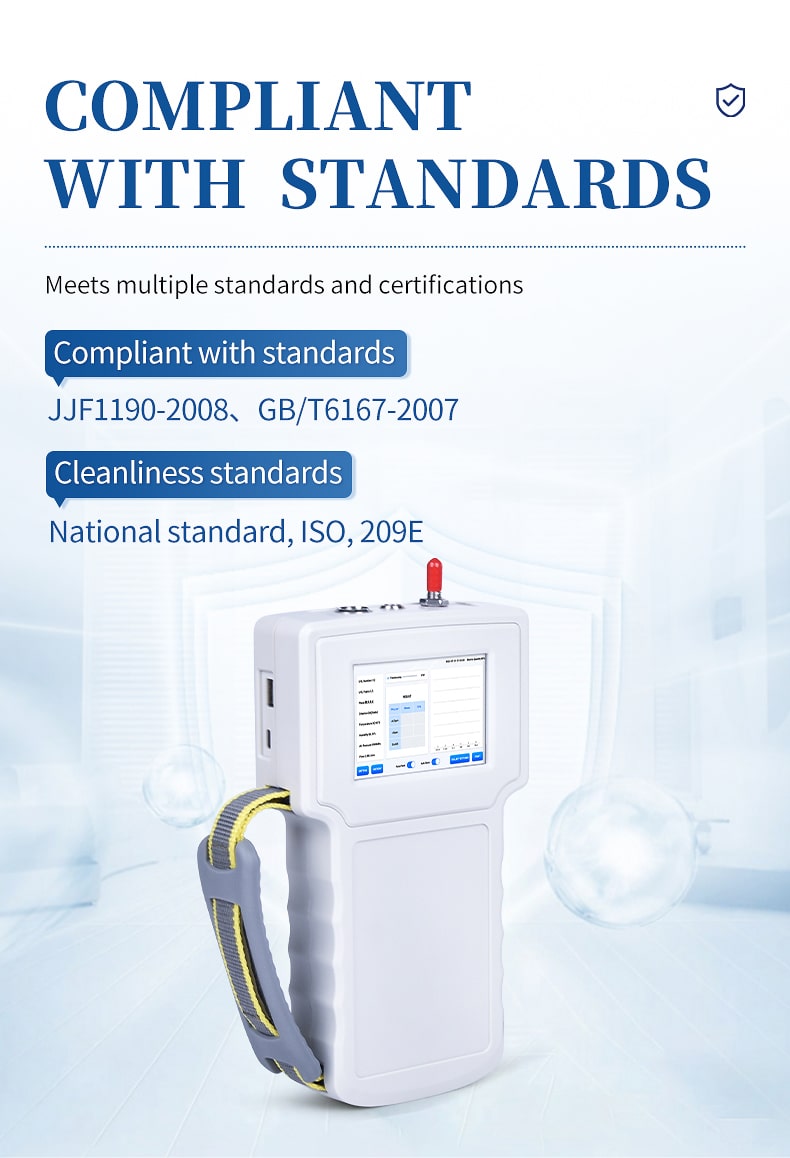

Standards and certifications

• Compliance standards: JJF1190-2008, GB/T6167-2007

• Cleanliness standards: national standards, ISO, 209E

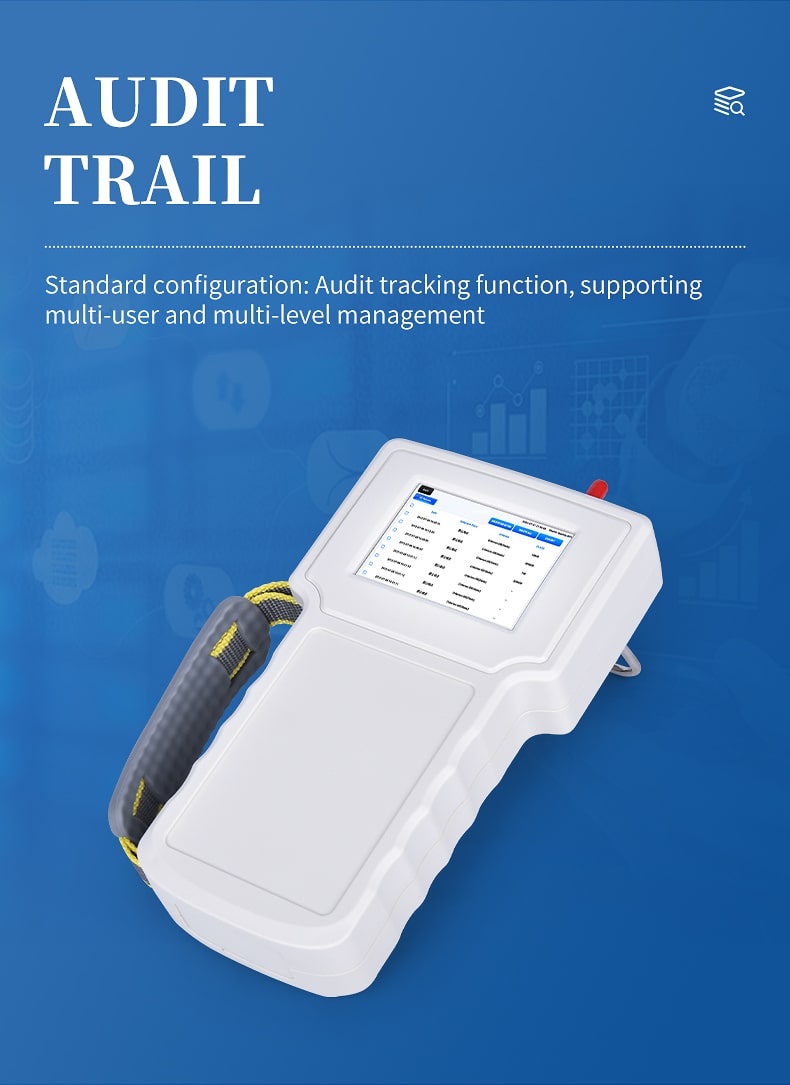

Audit tracking

• Standard: Audit tracking function, support for multi-user and multi-level management.

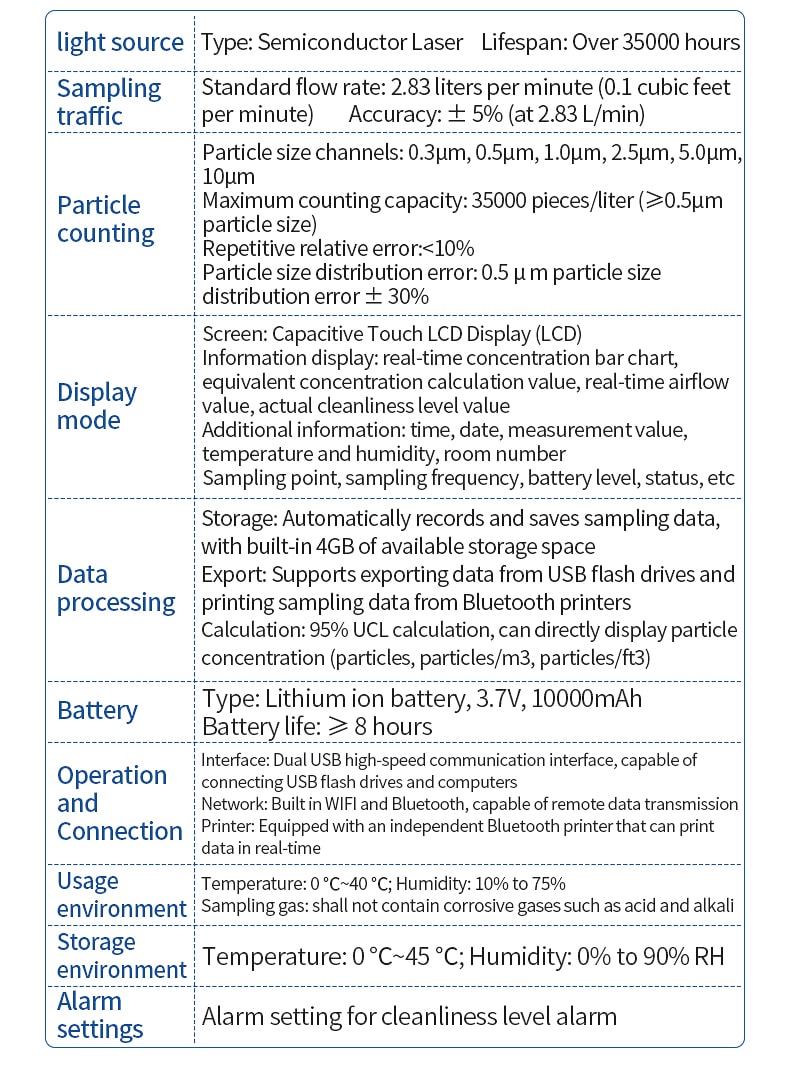

Technical parameters:

1. Light source

• Type: semiconductor laser

• Lifespan: more than 35,000 hours

2. Sampling flow

Standard flow: 2.83 L/min (0.1 cubic feet/min)

Accuracy: ±5% (at 2.83 L/min)

3. Particle counting

Particle size channels: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm

Maximum counting capacity: 35,000 particles/liter (≥0.5μm particle size)

Repeatability relative error: <10%

Particle size distribution error: 0.5μm particle size block distribution error ±30%

4. Display mode

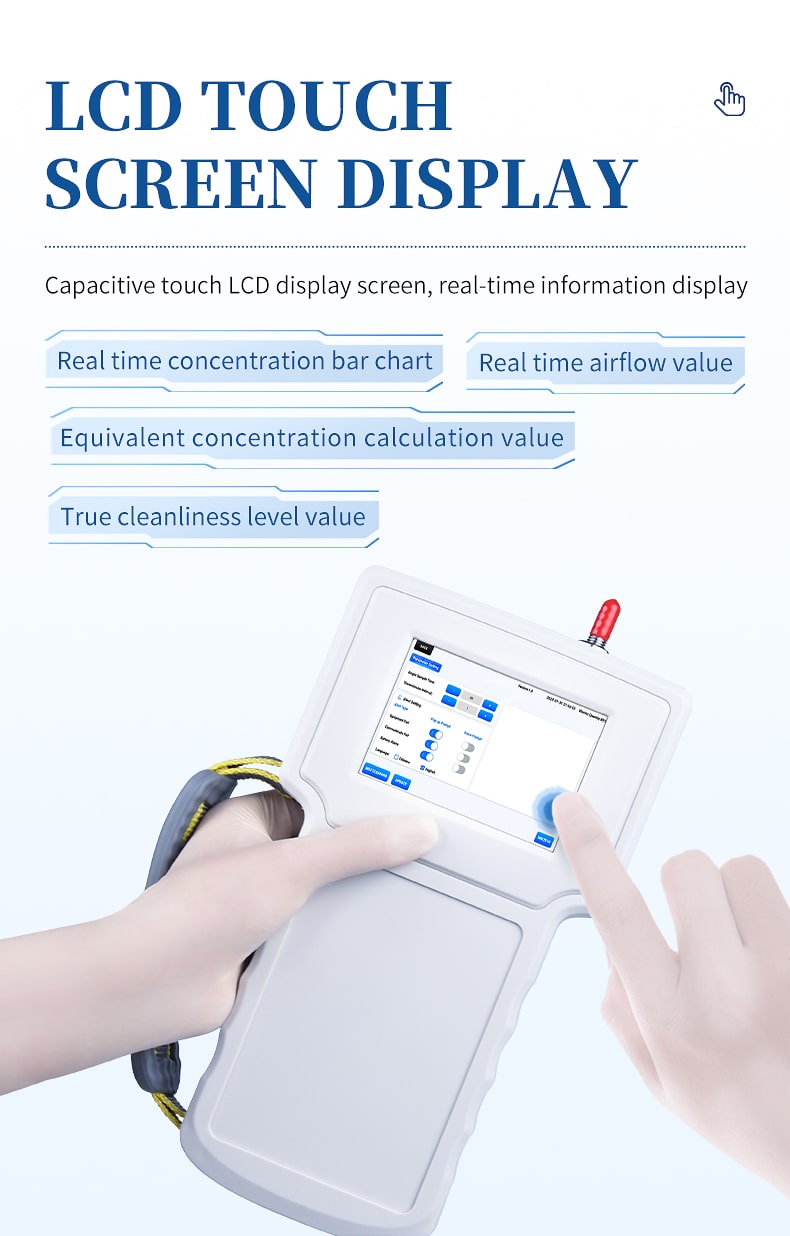

Screen:Capacitive touch liquid crystal display (LCD)

Information display: real-time concentration bar graph, equivalent concentration calculation value, real-time airflow value, cleanliness true grade value

Additional information: time, date, measurement value, temperature and humidity, room number, sampling point, sampling times, battery power, status, etc.

5. Data processing

Storage: Automatically record and save sampling data, built-in 4GB available storage space

Export: Supports USB flash drive to export data, Bluetooth printer to print sampling data

Calculation: 95% UCL calculation, can directly display particle concentration (particles, particles/m3, particles/ft3)

6. Battery

Type: lithium-ion battery, 3.7V, 10000mAh

Battery life: ≥8 hours

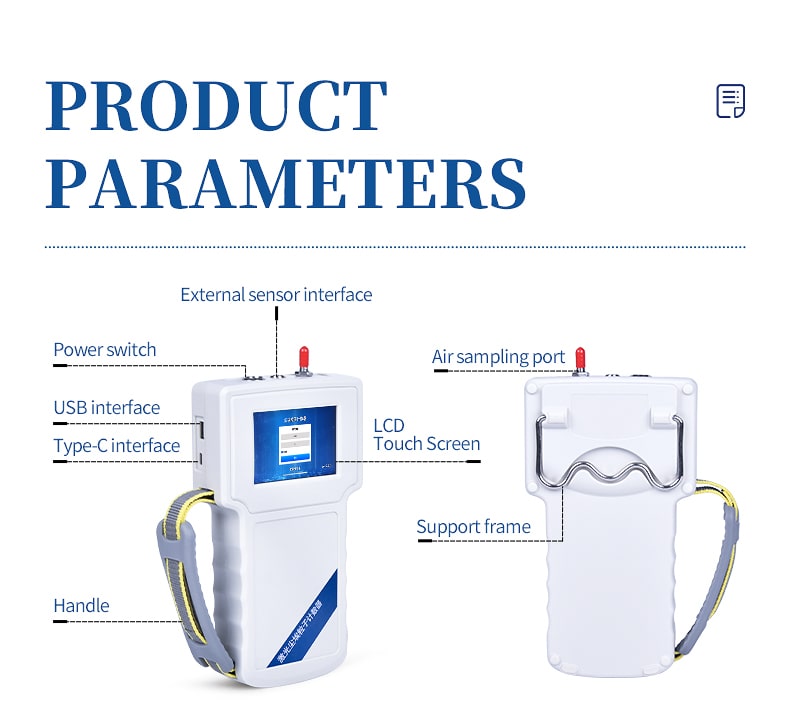

7. Operation and connection

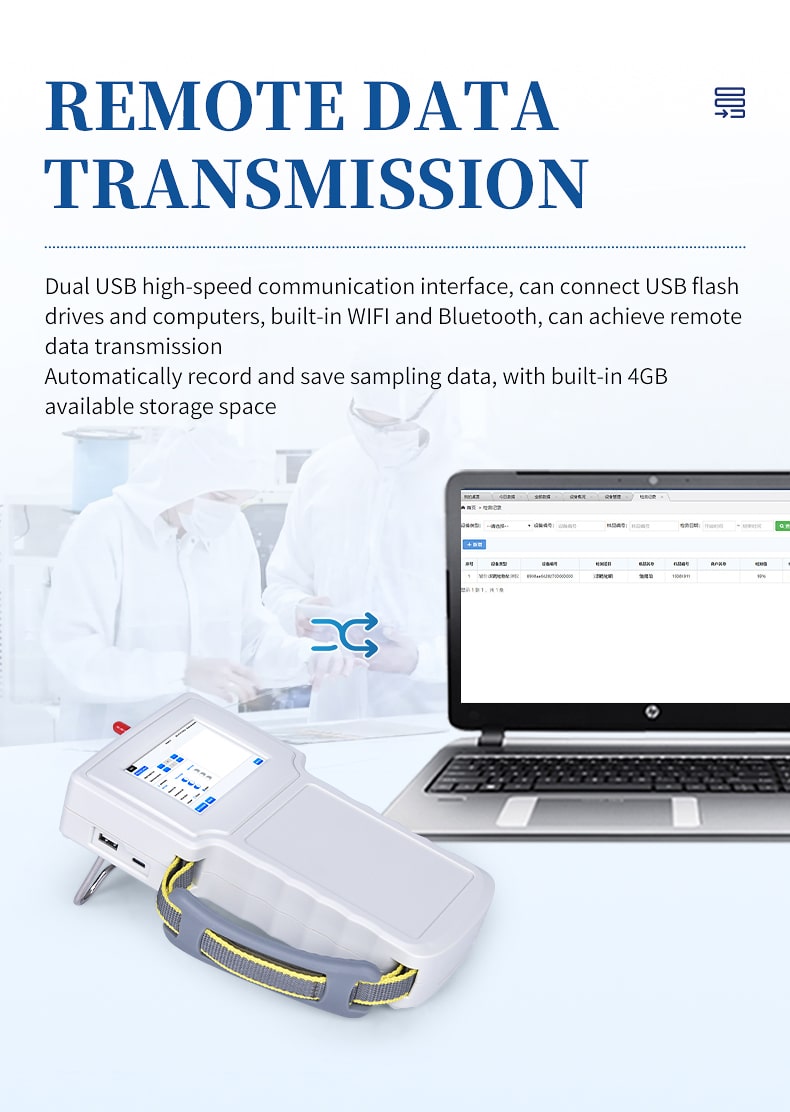

Interface: dual USB high-speed communication interface, can connect to USB flash drive and computer

Network: built-in WIFI, Bluetooth, can realize remote data transmission

Printer: equipped with independent Bluetooth printer, can print data in real time

8. Use environment

Temperature: 0℃～40℃

Humidity: 10%～75%

Sampling gas: must not contain corrosive gases such as acid and alkali.

9. Storage environment

Temperature: 0℃～45℃

Humidity: 0%～90%RH

10. Alarm setting

Alarm setting is used for cleanliness level alarm.

Accessories

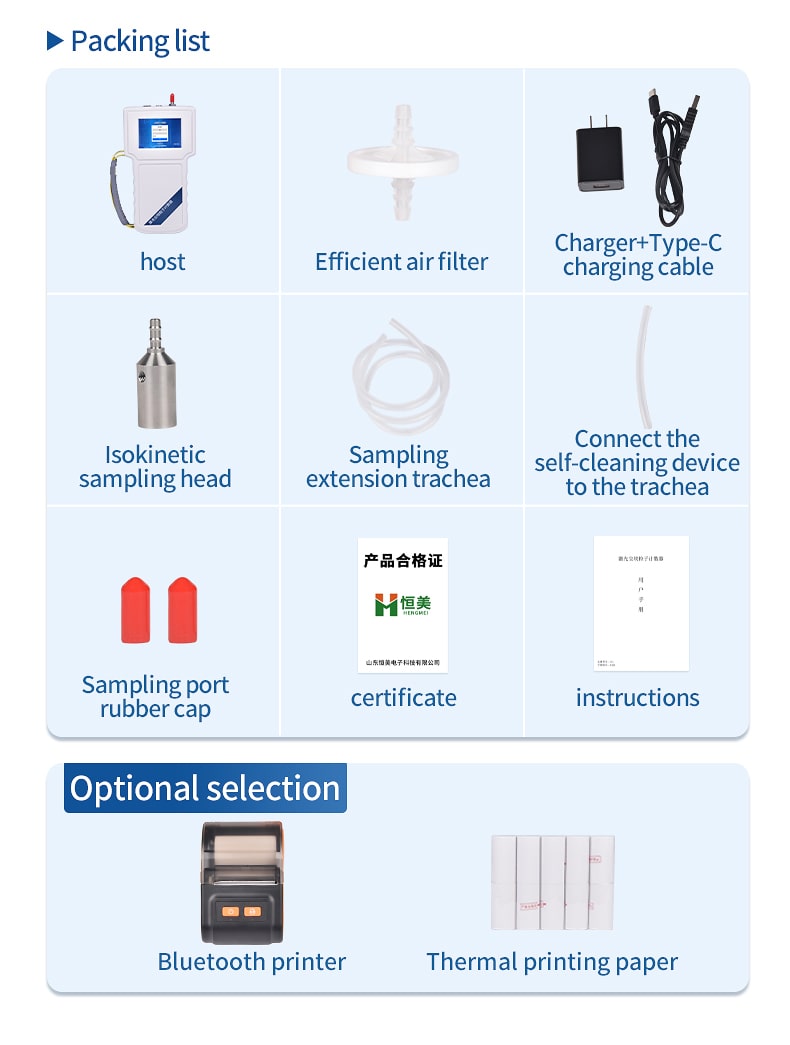

•Standard configuration: isokinetic sampling head, charging adapter, thermal printing paper, high efficiency air filter, thermal printer, measurement extension tube
